Product type	Vinyl record player
Brand	Fenton
Model	RP102A
Power supply	220-240 V~, 50 Hz (mains) or 12 V DC adapter (included)
Dimensions (approx.)	42 x 35 x 12 cm
Weight (approx.)	4.5 kg
Speeds	33, 45 and 78 rpm
Connectivity	Bluetooth (reception), AUX input 3.5 mm, RCA line output, USB port (for PC), headphone jack 3.5 mm
Built-in speakers	Yes, stereo
Special features	Adjustable auto-stop, lockable tonearm, 45 rpm adapter included, cartridge with removable protective cover
Maintenance and cleaning	Wipe with a dry cloth; do not use chemicals. Clean the needle regularly.
Safety	Do not open the casing, avoid humidity and heat sources, unplug before moving. Use only indoors.
Spare parts	Use only original parts. Contact the retailer for replacements.
Warranty	Warranty void if unauthorized modification or repair.
Included accessories	Power adapter, USB cable, CD with Audacity software, 45 rpm adapter
Operating temperature	5 to 35 °C
Certifications	CE

Frequently Asked Questions - RP102A Fenton

How to connect my phone via Bluetooth?

Set the Auto Stop switch to ON. The turntable automatically enters Bluetooth mode (blue LED flashing). Activate Bluetooth on your phone and search for 'Fenton recordplayer'. Once connected, the LED stays solid. You can then stream your music.

Why does the platter not spin after placing the tonearm on the record?

Check that the Autostop switch is set to ON. If it is and the platter still does not spin, make sure the record is correctly placed and the selected speed is appropriate. Otherwise, set Autostop to OFF for manual operation.

How to clean the stylus of the cartridge?

Use an anti-static brush or a small soft brush to remove dust. Avoid any liquid products. Clean from back to front to avoid damaging the stylus.

The sound is very low, what to do?

Increase the volume using the rotary knob. Also check the volume on your source device (phone, etc.) if using Bluetooth or AUX. Ensure the cartridge is clean and the tonearm is correctly positioned.

Can I connect external speakers?

Yes, use the RCA line output to connect an amplifier or powered speakers. You can also use the headphone output for headphones.

How to record a vinyl onto my computer?

Connect the turntable to your PC via the USB cable. Install the Audacity software (provided on CD or downloadable). In Audacity, select 'Stereo Mix' as the microphone source, then in Preferences, choose the USB audio device. You can then record in real time.

What does the flashing blue light mean?

The flashing blue light indicates that the turntable is in Bluetooth mode and searching for a device to connect. When it becomes solid, the connection is established.

The auto-stop does not work properly: the record stops too early or does not stop. What to do?

Some records may cause issues. Set the Autostop switch to OFF to disable auto-stop. You will then need to manually lift the tonearm at the end of the record.

Can I use headphones with this turntable?

Yes, plug your headphones (3.5 mm jack) into the headphone jack on the front. The volume is adjusted with the same knob as the built-in speakers.

Is an adapter needed for 45 rpm records?

Yes, a 45 rpm adapter is included. Place it on the center spindle of the platter before placing a 45 rpm record.

USER MANUAL RP102A Fenton

RP102 Series Record Player BT

Ref. nr.: 102.162; 102.163

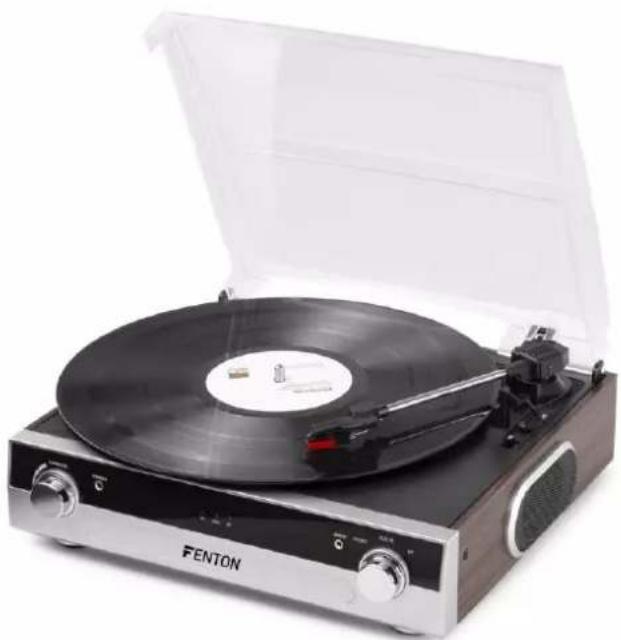

Black FENTON 3000 vinyl record with open lid and green scroll, no visible text or symbols on device body

Fenton 300 vinyl record with open lid and stand (no visible text or symbols on the device body)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

V1.2

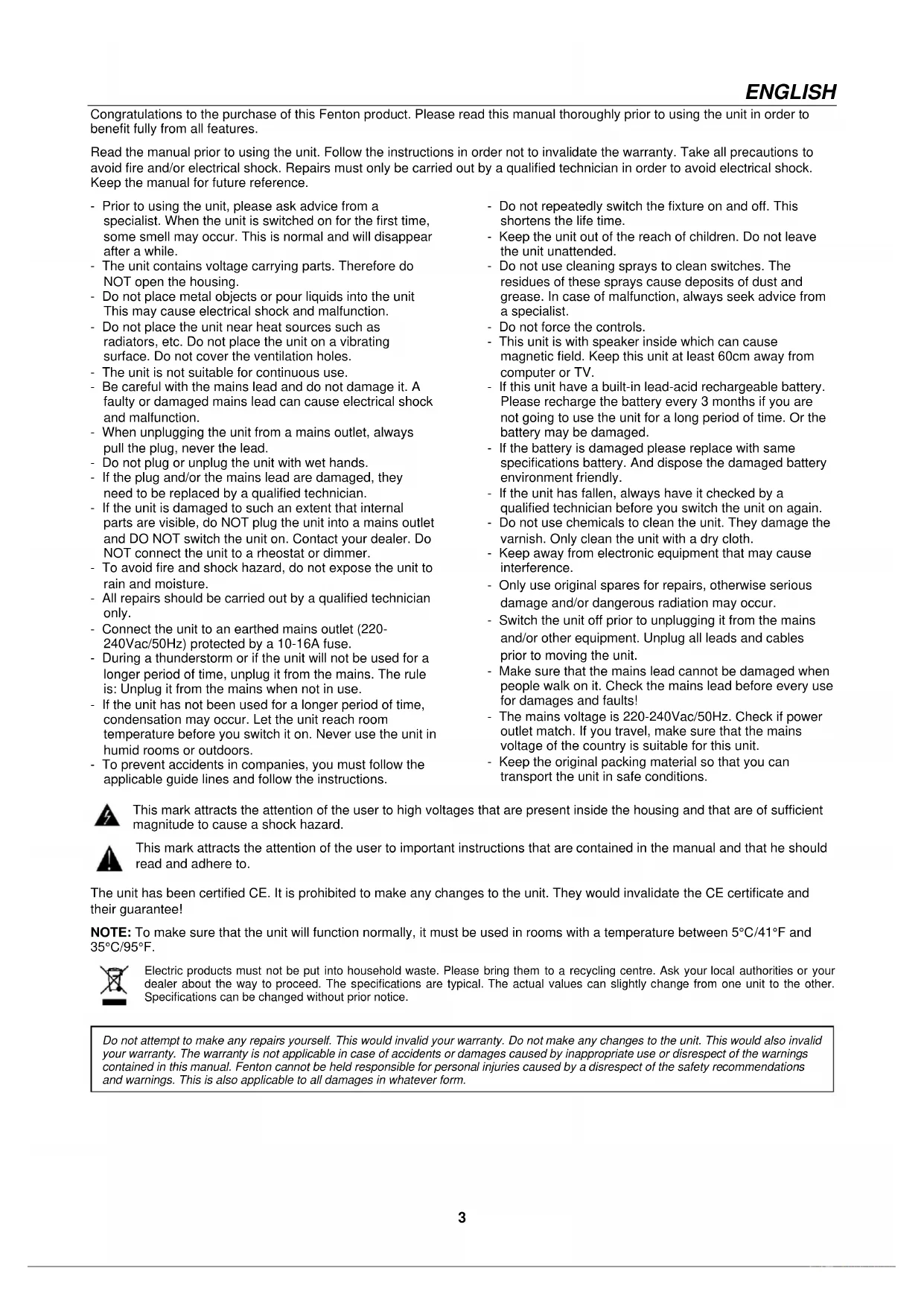

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this unit have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/ 41^ F and 35^ C/ 95^ F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

Technical diagram of a device front panel with numbered labels pointing to ports and buttons

Technical diagram of a device with numbered parts for identification

6 7 8

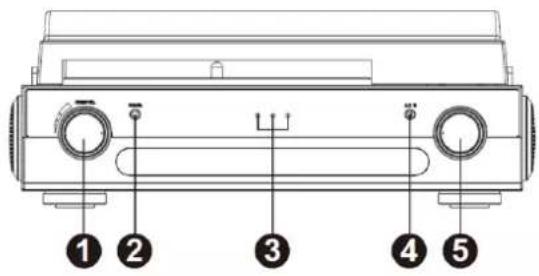

1. Power & volume control knob

To power on the record player, turn this knob clockwise until it clicks. When powered on, use this knob to adjust the volume for the internal speakers and headphones. To turn off the record player, turn this knob counter clockwise until it clicks.

1. Headphone connector

Connect your headphone with this 3.5mm(1/8) jack connector.

1. LED indicators

2. AUX input

3.5mm(1/8) jack connector for auxiliary input.

1. Function switch knob

Knob to select phono, aux or BT input.

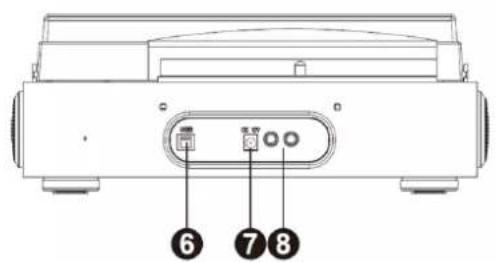

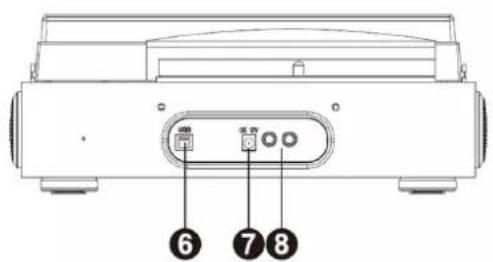

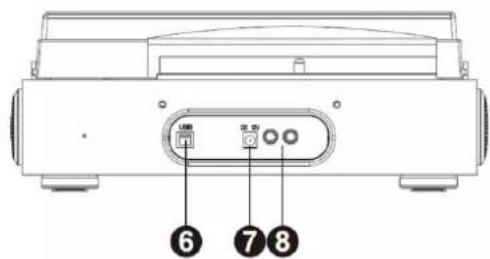

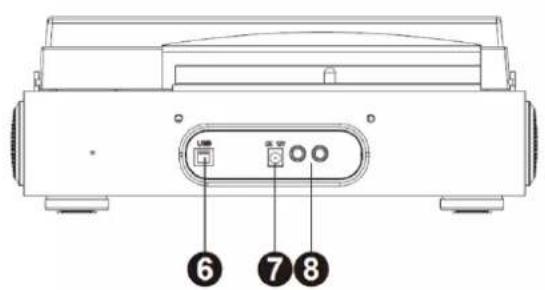

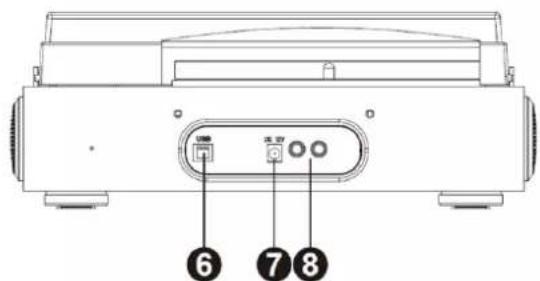

1. USB port

Use the included USB cable to connect your turntable to your computer. The USB connection will send audio from the turntable to your computer.

1. DC IN port

Connecting the 12Volt/DC power adaptor.

1. RCA Line output

The sound signal from long-playing record is sent to this line output. Connect this signal to the line input of an such as an amplifier or a line input of a CD/DVD player.

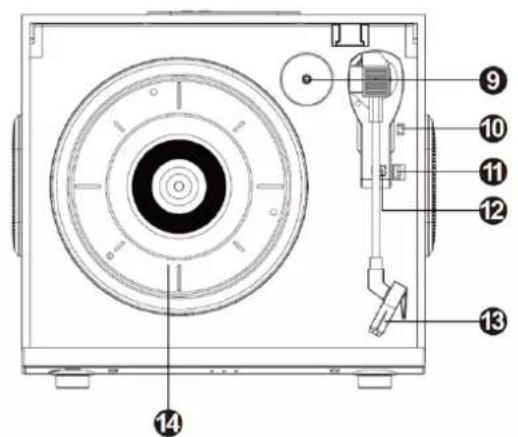

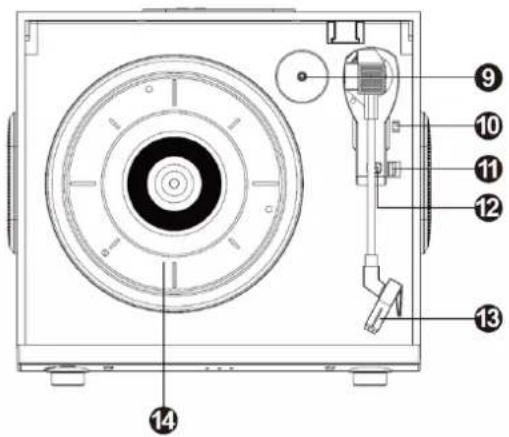

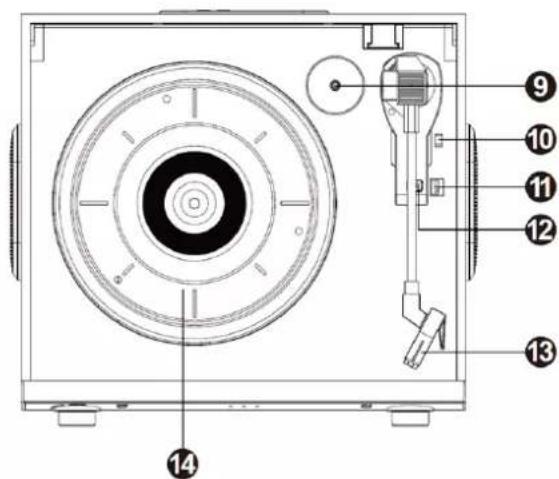

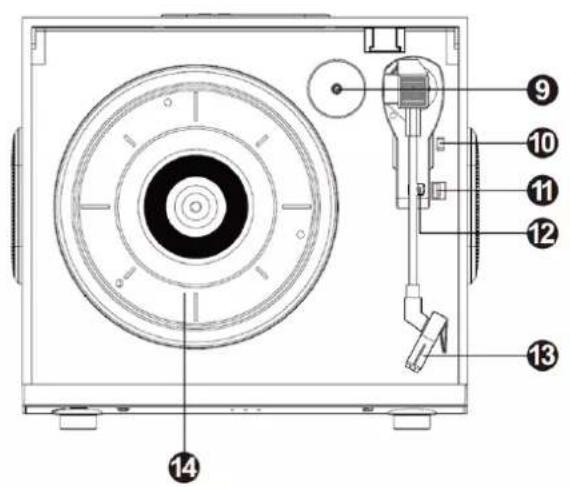

1. 45RPM Adaptor

This adaptor allows you to play 45RPM records.

1. Autostop Switch ON/OFF

This switch turns auto stop on or off. When the automatic stop is enabled, the platform will start rotating as soon as the tone arm is placed over the record and will stop rotating when it has reached the end of the record. Some vinyl records stop before the end or do not stop when the end is reached. In this case set Auto-stop to OFF.

1. 33 / 45 / 78 RPM Switch

This switch controls the RPM of the turntable platter.

1. Arm Clip

This specially designed arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position while unlocked.

1. Cartridge with needle

When the turntable is not in use, it is recommendable to place the removable protection cover on the stylus.

1. Platter

Place your record here.

OPERATION

1. Connect the record player with the power adapter and plug the other end into a wall power outlet.

2. Remove the white protective needle cover by gently pulling towards the front of the unit.

3. Place a vinyl record on the turntable platter and select the desired speed (33/45/78RPM) according to the record.

4. Open the tone arm clip to release the tone arm. Gently move the tone arm and put the cartridge onto the desired position of the record and the turntable player starts to play.

5. Turn the volume control knob clockwise to adjust the volume.

Noted: If the AUTO STOP ON/OFF Switch is turned ON, the record will stop automatically when finished. If Auto Stop Control is turned OFF, record will NOT stop automatically when finished.

BT CONNECTION

Turn the function knob to BT mode. The LED indicator will flash in blue color.

Turn on the BT-function on your mobile phone or tablet PC on and then search the turntable player (Fenton recordplayer). After pairing and connection, the LED will light up continuously in blue color and you can play your music on your mobile phone or tablet PC on this turntable player.

Turn the volume control to adjust the volume. (The volume control of the mobile phone, tablet or PC can also affect the total volume.)

Noted: This device does not have a BT transmitter, this means that it is not possible to send sound via BT to, for example, a BT speaker

when the unit is used as a bt speaker, all other playback functions cannot be used at the same time.

CONNECTING WITH COMPUTER

Before you connect the turntable to a computer, unplug it from your mixer or Hi-Fi system.

The included software is a third party application and therefore Fenton does not handle any questions or problems regarding the software.

1. Turn the computer on
2. If the computer is booted, connect the turntable. The computer will now install the drivers.
3. After the drivers are installed, you must now install the Audacity software.

Windows users: insert the CD or download the newest software via http://audacity.sourceforge.net

MAC users: download the newest software via http://audacity.sourceforge.net

To Install Software (PC)

1. Plug in your turntable to an power supply and connect the USB port on the Turntable to the USB port of your computer.
2. Turn on the power switch to your turntable.
3. The Windows system will detect a new device and indicate that it is available to use.
4. Insert the CD that came with your USB turntable.
5. Run the file to install the Audacity software. Once installed, run the Audacity program.

To Install Software (MAC)

1) Insert the included CD.
2) Open the CD icon on the desktop.
3) Drag the installation folder for audacity to your hard drive. We recommend that you move the folder to your “Applications” folder.
4) A window will come up which shows the files copying.
5) EJECT the CD.
6) Open "Audacity" from where you moved it to on your hard drive.

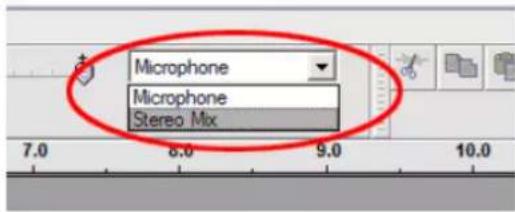

1. Click on Microphone in the drop down menu and select "Stereo Mix".

Microphone Microphone Stereo Mix

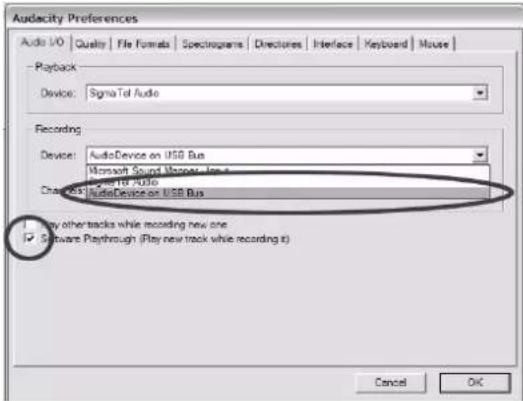

1. Select the "Edit" menu and then "Preferences"

Select the USB audio device under the "Recording" selection as shown. Select "Software Playthrough" to hear the audio while recording.

Audacity Preferences Audio I/O Quality File Format Spectrograms Directures Interface Keyboard Mouse Playback Device: SignalTel Audio Recording Device: AudioDevice on USB Bus Microsoft Sound Manager - less Language Audio Character: AudioDevice on USB Bus Play out tracks while recording new one Software Playthrough (Play new track while recording it) Cancel OK

1. After the above settings are completed, you are ready for recording. If you are still having difficulties in finding the USB Turntable, try to check your system settings or control panel to adjust the audio input settings from the sound control panel.

Note: The attached Audacity software is for reference only. For more information and latest software version, please check the website: http://www.audacity.com

Diagram of a device rear panel with numbered labels pointing to key components

Technical diagram of a device with numbered parts labeled 9 to 14, showing internal components and connections.

Diagram of a device rear panel with labeled ports and numbered annotations

3.5mm jack-connector AUX-ingang.

1. Functieschakelaar

Microphone Microphone Stereo Mix

Audacity Preferences Audio (V) Quality File Formats Sandrograms Directories Interface Keyboard Mouse Playback Device: Signature Audio Recording Device: AudioDevice on USB Bus Microsoft Sound Classic Player Circuit Audio AudioDevice on USB Bus Play other tracks while recording new one Software Playthrough (Play now track while recording it) Cancel OK

Diagram of a device rear panel with labeled ports and adjustment knobs

Technical diagram of a device with numbered components for identification

6 7 8

1. Power- & Lautstärkeregler

Microphone Microphone Stereo Mix

Audacity Preferences Audio I/O | Quality | Pie Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playback Device: Signafile Audio Recording Device: AudioDevice on USB Bus Microsoft Sound Music Record Audio/USB AudioDevice on USB Bus Play other tracks while recording new one Software Playthrough (Play new track while recording it) Cancel OK

Technical diagram of a device rear panel with labeled ports and components

Technical diagram of a device with numbered components for identification

Diagram of a portable electronic device with labeled ports and connectors, numbered 6, 7, and 8.

Microphone Microphone Stereo Mix

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playback Device: Signa Tel Audio Recording Device: AudioDevice on USB Bus Microsoft Sound Masters - Java Signa Tel Audio Characters: AudioDevice on USB Bus Play other tracks while recording new one Software Playthrough (Play new track while recording it) Cancel OK

Diagram of a device rear panel with labeled ports and control buttons

Technical diagram of a device with numbered components for identification

USB ⑥ ⑦ ⑧

Microphone Microphone Stereo Mix

Audacity Preferences Audio I/O | Quality | File Formats | Spectrogrine | Directales | Interface | Keyboard | Mouse | Playback Device: SigmaTel Audio Recording Device: Audio Device on USB Bus Microsoft Sound Music Lab Chassis: Audio Device on USB Bus Play other backs while recording new one Software Playthrough (Play new back while recording it) Cancel OK

Input Connections: 3.5mm jack

Output Connections: 3.5mm jack, RCA, USB

Speed Settings (RPM): 33, 45, 78

Power Supply: 100-240VAC 50/60Hz (12V Adapter)

Dimensions (L x W x H): 322 x 290 x 130mm

Weight: 2,00kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are to change without prior notice.

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
