USER MANUAL XF 470 KB Trevi

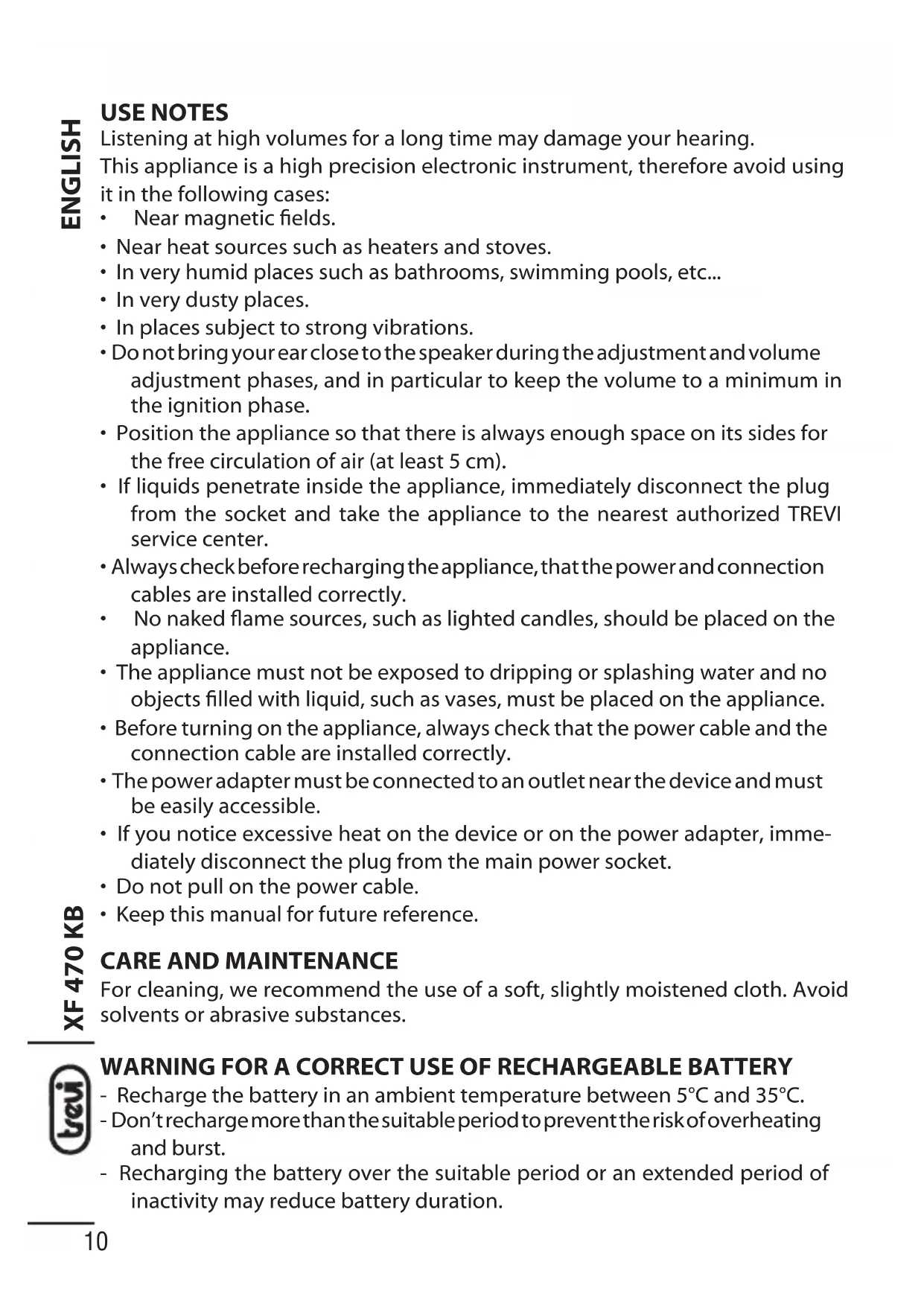

USE NOTES Listening at high volumes for a long time may damage your hearing. This appliance is a high precision electronic instrument, therefore avoid using it in the following cases:

• Near heat sources such as heaters and stoves.

• In very humid places such as bathrooms, swimming pools, etc...

• In very dusty places.

• In places subject to strong vibrations.

• Do not bring your ear close to the speaker during the adjustment and volume adjustment phases, and in particular to keep the volume to a minimum in the ignition phase.

• Position the appliance so that there is always enough space on its sides for the free circulation of air (at least 5 cm).

• If liquids penetrate inside the appliance, immediately disconnect the plug from the socket and take the appliance to the nearest authorized TREVI service center.

• Always check before recharging the appliance, that the power and connection cables are installed correctly.

• Nonakedamesources,suchaslightedcandles,shouldbeplacedonthe appliance.

• The appliance must not be exposed to dripping or splashing water and no objectslledwithliquid,suchasvases,mustbeplacedontheappliance.

• Before turning on the appliance, always check that the power cable and the connection cable are installed correctly.

• The power adapter must be connected to an outlet near the device and must be easily accessible.

• If you notice excessive heat on the device or on the power adapter, imme- diately disconnect the plug from the main power socket.

• Do not pull on the power cable.

• Keep this manual for future reference.

CARE AND MAINTENANCE

For cleaning, we recommend the use of a soft, slightly moistened cloth. Avoid solvents or abrasive substances. WARNING FOR A CORRECT USE OF RECHARGEABLE BATTERY - Recharge the battery in an ambient temperature between 5°C and 35°C. - Don’t recharge more than the suitable period to prevent the risk of overheating and burst. - Recharging the battery over the suitable period or an extended period of inactivity may reduce battery duration. ENGLISHXF 470 KB

- Rechargeable battery is liable to wear and tear and its performance will reduce gradually. - To extend the duration of the battery use it when is completely charged up to the complete discharging, then recharge it fully before use it again. Recharge a battery not completely consumed, will result a reduced duration. In this case, repeat the full charging/discharging cycle many times. - Avoid recharge the battery for the whole night. IMPORTANT This device is designed for non-professional home use. The good construction of this appliance guarantees perfect operation for a long time. However, should any inconvenience arise, it is advisable to consult the nearest TREVI Authorized Service Center. TREVI pursues a policy of continuous research and development. Therefore the products may have different characteristics from those described. CONTROL PANEL ENGLISH

1. MODE button, change to the different

3. LED button, short press to select the

5. NEXT button, next song or next FM

6. PLAY button, short press to Play/Pause

or auto searching FM channel; long press to connect TWS

7. PREV button, previous song or

previous FM radio channel

14. MODE button, to switch between the modes

17. EQ button, to set equalizer variants

18. To select a song directly

19. U/SD button, switch between USB and SD at the same

20. RPT button, to repeat the song

21. VOL+ button, to increase volume

22. VOL- button, to reduce volume

23. button, to select the next song from USB/TF/BT

24. button, to select the previous song from USB/TF/BT

ACTIVATION AND REPLACEMENT OF REMOTE CONTROL BATTERY The remote control has a cell battery already installed. To activate the battery, remove the transparent tab at the bottom of the remote control. The remote control is now ready to use. How to replace battery:

1. Remove the battery compartment cover as per

the illustration shown on the right;

2. Observe the correct polarity and install a

1. With the appliance off, connect the power supply cable to the charging port

type-C(13) on the device. Connect the cable to a 5V 1A power supply (not supplied) and the latter to a mains socket;

2. The Led indicator(12) will light up Red;

3. When charging is complete, the LED indicator(12) will switch off;

4. With low battery, the last segment of the battery icon on the display will

ashforacertaintime,thenthedevicewillswitchoffautomatically. Note: For a good battery life, it is recommended to keep the device off during the charging. Unlessotherwisespecied,thecommandsdescribedbelowapplytoboththe unit and the remote control. ON/ OFF - Press and hold the button LED MUNE (2) for 2 seconds to turn On the appliance; press and hold it again for 2 seconds to turn Off the device. - Press the button LED MUNE (15) on the remote control to turn the appliance on/off.

VOLUME/ MUTE/ TONE/ ECHO/ EQ

1. Rotate the Volume knob (4) clockwise/counterclockwise to increase/decrease

the volume of the unit. Press the button (25) on the remote control to mute the device, press it again to return to normal listening;

2. Press the Volume knob (4) several times and rotate it to adjust: treble, bass,

microphone volume, Echo, and Delay;

3. Press the EQ(17) button several times to choosing from the pre-set ones:

EQ00, EQ01, EQ02, EQ03, EQ04, EQ05. RADIO MODE

1. Press MODE button(1) on the speaker to switch to FM mode;

2. Short press PLAY(6) button to enter automatic search for FM channels;

3. Press PREV(7) or NEXT(5) button to go to the next or previous frequency.

ENGLISH IMPORTANT - Dispose of used batteries in accordance with the recycling regulations in your area. - Danger of explosion if battery is incorrectly replaced. - Replace only with the same or equivalent type. - If the remote control is not used for a long time, the battery may leak and damage the remote control, replace it with a new one if this occurs. - DO NOT short-circuit the batteries or throw them into water, general garbage orre.XF 470 KB

FM reception depends very much on where the device is located. - The proximity of TV sets, neon lamps or other household appliances can cause disturbances in the reception of radio programs, in this case remove the appliance. BLUETOOTH OPERATION

1. Power on the product then press MODE button(1) to enter into BT mode;

2. Open mobile devices (Cell phone, computer, ec.) in BT mode, search for BT

device, when it appears the item pairing name (XF 470 KB);

3. Afterthedevicehasbeenpairedsuccessfullyforthersttime,itwillconnect

automatically around 10 seconds to the devices which connected before when next time use. (Note: Each product could connect to one Bluetooth device only). Note: - The Bluetooth speaker only works with one connection at a time. - The proximity of TV sets, neon lamps or other appliances can cause disturbances in reception, in this case move the appliance away.

CONTROLS AVAILABLE IN BLUETOOTH MODE

- Start sound playback from your device; - Press the PREV(7) button once to go to the previous track, press the NEXT(5) button once to go to the next track; - Press the PLAY(6) button to pause, press it again to resume playback. TWS FUNCTION TWS technology allows the user to make a wireless connection between two speakers of the same model and compatible with the TWS function.

1. Power On two speakers and enter Bluetooth mode;

andthe“BLUE”willbeashing.Adifferentbeepwillthenbeheardtosignify that the two speakers have connected via Bluetooth;

4. Open Bluetooth on the mobile phone and search “XF 470 KB” and connect;

5. A beep will then be heard signifying that the mobile has connected to the

speakers. You can now enjoy music from the two speakers. Note: - If the 2 speakers fail to pair, turn off both devices and repeat steps 1, 2 and 3. - The TWS function only works between the same speakers or with other speakers using the same IC or solution. ENGLISHXF 470 KB

1. Insert a Micro SD card into the slot(9) or a USB stick into the socket(8) and

switch On the device;

2. Playback will start automatically. Otherwise, press the MODE button(1) several

times until the USB or SD appears on the display;

3. Press PREV button(7) to go to the previous track, press the NEXT button(5)

once to skip to the next track;

in listening to the track, release the key to return to normal listening;

6. Using the RPT button(20) it is possible to activate the track repeat function

(ONE = repeats the single track, ALL = repeats all the tracks present);

7. Use the number buttons on the remote control(18) to select the track number.

2. Press MODE button(1) to switch to auxiliary input mode (“LINE” on display);

3. Use the controls of the connected device to select and play the audio.

DISCO-LIGHT To change the Disco-Light effects, press the LED button(3) several times, the various lighting effects will be distinguished on the display with: To vary the Disco-Light effects, press the LED button(3) several times, the various light effects will be distinguished on the display with: Led1, Led2, Led3, Led4. Press and hold the LED button(3) for a few seconds to completely deactivate the front and keyboard LED lighting; press it to reactivate the illumination.

USE OF THE MICROPHONE

1. Plug the supplied microphone into the MIC(11) socket;

2. Adjust the volume, the ECHO effect and the microphone delay using the

BATTERY REMOVAL AND DISPOSAL POLICY

Warning: the removal and disposal operation is reserved exclusively for

specialized technical staff!

1. Remove the screws that secure the top control panel and back panel;

2. Pull out the back panel;

3. Locate and remove the battery from its compartment.

Regardless of the type of used battery, it must not be disposed of with household waste,reorwater.Eachtypeofusedbatterymustberecycledordisposedof at the appropriate dedicated collection centres. Precautions for correct disposal of the product. The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste. The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product. Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste. Illegal disposal of the product leads to the enforcement of administrative penalties. ENGLISHXF 470 KB

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI Spa declares that the radio equipment type XF 470 KB is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address https://www.trevi.it/dms/zidi/TREVI/DOCXF470KB.pdfMade in CHINA Trevi S.p.A. Strada Consolare Rimini-San Marino, 62 47924 Rimini (Rn) Italia Tel. 0541/756420 Fax 0541/756430 l www.trevi.it l e-mail: info@trevi.it l
