USER MANUAL Helicopter Q6 Chauvet

CLASS 3R LASER PRODUCT

CLASSIFIED PER EN/IEC 60825-1:2007

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.Table of Contents Helicopter Q6 User Manual Rev. 2

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor. Garantía Limitada PARA VER EL REGISTRO DE GARANTÍA Y LOS TÉRMINOS Y CONDICIONES COMPLETOS, VISITE NUESTRO SITIO WEB. Para clientes en los Estados Unidos y México: www.chauvetlighting.com/warranty-registration

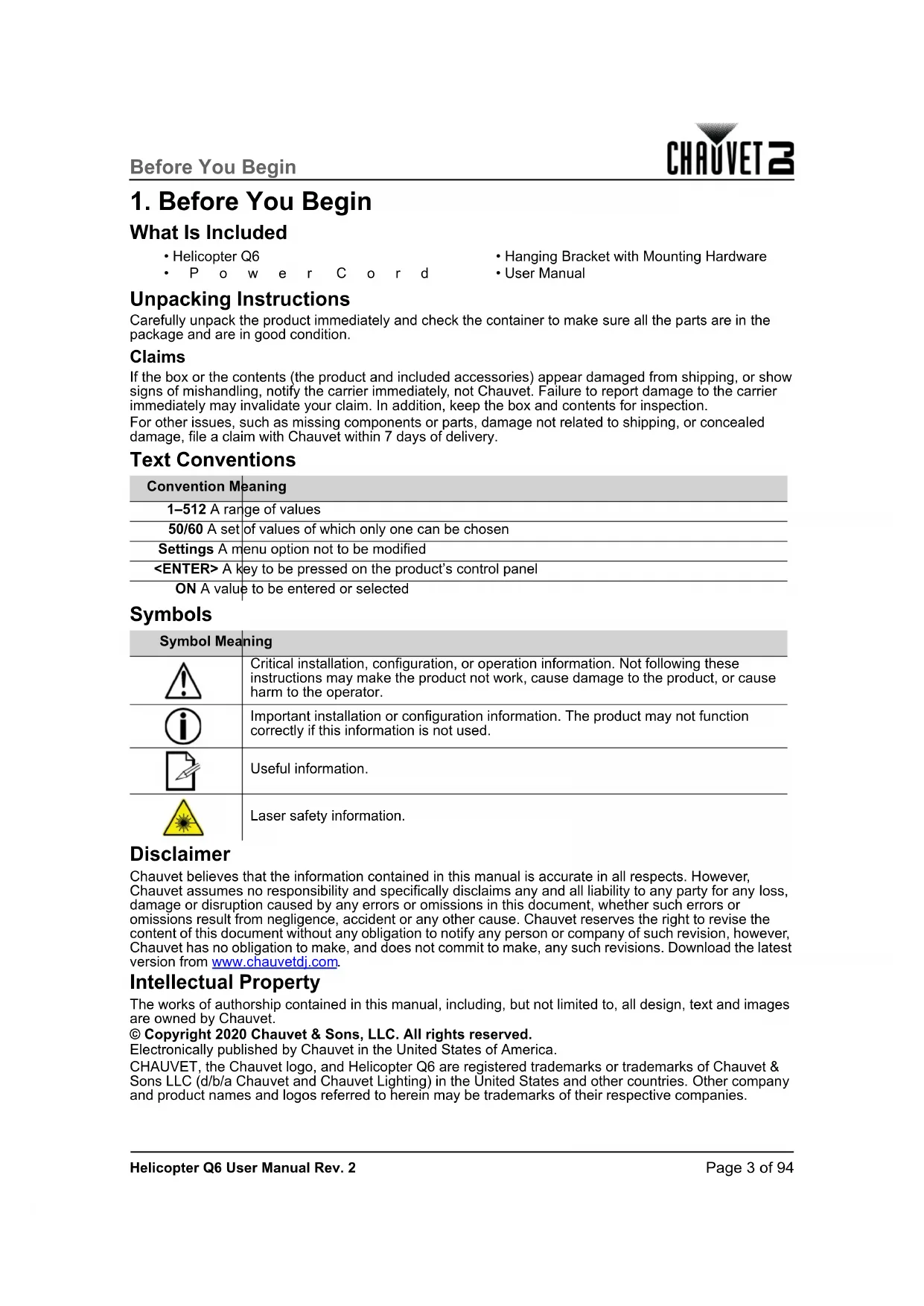

What Is Included Unpacking Instructions Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. Claims If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery. Text Conventions Symbols Disclaimer Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com

Intellectual Property The works of authorship contained in this manual, including, but not limited to, all design, text and images are owned by Chauvet. © Copyright 2020 Chauvet & Sons, LLC. All rights reserved. Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Helicopter Q6 are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

• Hanging Bracket with Mounting Hardware

• User Manual Convention Meaning 1–512 A range of values 50/60 A set of values of which only one can be chosen Settings A menu option not to be modified <ENTER> A key to be pressed on the product’s control panel ON A value to be entered or selected Symbol Meaning Critical installation, configuration, or operation information. Not following these instructions may make the product not work, cause damage to the product, or cause harm to the operator. Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Laser safety information.Page 4 of 94 Before You Begin Helicopter Q6 User Manual Rev. 2 Safety Notes The Safety Notes include important laser system safety information. Read and understand all instructions before powering on the laser for the first time. Knowing these safety instructions is crucial to avoiding laser eye injury and breaking the law. Keep this User Manual in a safe place for future reference. STOP AND READ ALL LASER SAFETY DATA

• Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness are possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in this User Manual. Read all instructions carefully BEFORE operating this device.

• Always connect the product to a grounded circuit to avoid the risk of electrocution.

• Always disconnect the product from the power source before cleaning.

• Avoid direct eye exposure to the light source while the product is on.

• Make sure the power cord is not crimped or damaged.

• Never disconnect the product from power by pulling or tugging on the cord.

• If mounting the product overhead, always secure to a fastening device using a safety cable.

• Make sure there are no flammable materials close to the product when operating.

• Do not touch the product’s housing when operating because it may be very hot.

• This product is not intended for permanent installation.

• Always make sure that the voltage of the outlet to which you are connecting the product is within the range stated on the decal or rear panel of the product.

• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.

• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Be sure that no ventilation slots on the product’s housing are blocked.

• Never connect the product to a dimmer.

• Always use the mounting bracket to carry the product.

• Do not switch the product on/off in short intervals. This will reduce the laser diode life.

• Do not shake this product. Avoid brute force when mounting or operating this product.

• ALWAYS use a safety cable when mounting the product overhead.

• The ambient operating temperature for the laser is 59 °F to 95 °F (15 °C to 35 °C). Do not operate this product outside this range.

• In the event of a serious operating problem, stop using the product immediately.

• Never try to repair the product. Repairs carried out by unskilled people can lead to damage or malfunction. Contact the nearest authorized technical assistance center. CAUTION! Use of controls, adjustments, or procedures other than THOSE specified IN THIS USER MANUAL may result in hazardous radiation exposure.

• Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser light.

• This laser product can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.

• It is illegal and dangerous to shine this laser into audience areas, where the audience or other personnel could get direct laser beams or bright reflections into their eyes.

• It is a U.S. federal offense to shine any laser at aircraft.

• Use of controls, adjustments, or procedures other than those specified in this User Manual may result in hazardous radiation exposure.

• To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

• DO NOT attempt any repairs. Repairs and servicing must be carried out by a certified technician. Unauthorized modifications are forbidden for safety reasons! Keep this User Manual for future consultation. If transferring ownership of the product to another user, be sure this document is kept with the laser.Page 5 of 94 Helicopter Q6 User Manual Rev. 2 Before You Begin Non-Interlocked Housing Warning Laser Safety Notes Laser light is different from any other light. Laser light can cause eye injury if the product is not set up and used properly. Laser light is a thousand times more concentrated than any other kind of light. This concentration can cause instant eye injuries by burning the retina (the light-sensitive portion at the back of the eye). The heat from a laser light cannot be felt, but it can still injure or blind product operators and the audience. Even very small amounts of laser light at long distances are potentially hazardous. DO NOT assume that exposure to an individual laser beam is safe, even a tiny beam split off from a larger beam. This laser product uses dozens of milliwatts of laser power—Class 3B levels internally—and splits them into multiple beams—Class 3R levels. The individual Class 3R level beams are potentially hazardous to the eyes. DO NOT assume that a moving laser light is safe. Laser light is never without risk. Since eye injuries can occur instantly, it is critical to prevent the possibility of ANY direct eye exposure. According to laser safety regulations, it is not legal to aim Class 3R lasers into areas where people can be exposed, even if the laser is aimed below people’s faces, such as at a dance floor.

• This unit contains high power laser devices internally.

• Do not open the laser housing, due to potential exposure to unsafe levels of laser radiation.

• The laser power levels, accessible if the unit is opened, can cause instant blindness, skin burns, and fires. STOP AND READ ALL THE LASER SAFETY NOTES BELOW

• Do not operate the laser without first reading and understanding all the safety and technical data in this manual.

• ALWAYS set up and install all laser effects so that any laser light is at least 3 meters (9.8 feet) above the floor on which people are standing. See the Proper Usage section of this manual.

• After setup, and prior to public use, test the lasers to ensure they are functioning properly. Do not use the product if any defect is detected.

• DO NOT use laser if it is emitting only one or two beams, rather than dozens/hundreds, as this indicates damage to the diffraction grating optic, and allows emission of laser levels higher than Class 3R.

• DO NOT point lasers at people or animals.

• DO NOT look into the laser aperture or laser beams.

• DO NOT point lasers into areas where people could be exposed to them.

• DO NOT point lasers at highly reflective surfaces such as windows, mirrors, and shiny metal. Even laser reflections can be hazardous.

• Never point a laser at aircraft; this is a U.S. federal offense.

• Never point unterminated laser beams into the sky.

• Do not expose the output optic (aperture) to harsh cleaning chemicals.

• Do not use the laser if the housing is damaged, open, or if the optics appear damaged in any way.

• Never open the laser housing. The high laser power levels inside of the protective housing can start fires or burn skin, and will cause instant eye injury.

• Never leave this product running unattended.

• The operation of a Class 3R laser show is allowed only if the lasers are operated by a skilled and well-trained professional, who is familiar with the data included in this manual.

• The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements in the location/country of use. CAUTION! Do not operate this device in ways not specified in this User Manual. Failure to follow the instructions will void the warranty, may damage the product, or injure the user or the audience. CAUTION! This product cannot be discarded with household waste. Contact your local waste management service for electronic disposal regulations in your area.Page 6 of 94 Before You Begin Helicopter Q6 User Manual Rev. 2 Laser Exposure Warning Laser Emission Data As measured under IEC measurement conditions for classification. Laser Compliance Statement This laser product complies with EN/IEC 60825-1 Ed 2, 2007-03, and U.S. FDA/CDRH FLPPS via the terms of Laser Notice No. 50 dated June 24, 2007. This laser device is classified 3R. (Class 3R is the international equivalent of U.S. Class IIIa.) No maintenance is required to keep this product in compliance with laser performance standards. Laser Safety Label Reproduction

LASER LIGHT AVOID DIRECT EYE EXPOSURE

Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from the Laser Institute of America: www.lia.org . Many local governments, corporations, agencies, military, and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display guidance can be obtained via the International Laser Display Association: www.ilda.com

Laser Classification Class 3R Green Laser Medium DPSS Nd:YVO4, 532 nm/30 mW Red Laser Medium LD GaAIAs, 650 nm/100 mW Beam Diameter <5 mm at aperture Pulse Data All pulses < 4 Hz (>0.25 sec) Divergence (each beam) <2 mrad Divergence (total light) <160 degrees Laser Power of Each Beam from Aperture* <5 mW BottomTop

AC Power The Helicopter Q6 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s Technical Specifications . The listed current rating indicates the product’s average current draw under normal conditions. Fuse Replacement

1. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.

2. Pry the fuse holder out of the housing.

3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.

4. Insert the fuse holder back in place and reconnect power.

Power Linking The product provides power linking via the Edison outlet located in the back of the product. Please see the diagram below for further explanation. Power Linking Diagram

• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire.

• To eliminate unnecessary wear and improve its lifespan, during periods of non- use completely disconnect the product from power via breaker or by unplugging it. Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch. Disconnect the product from the power outlet before replacing the fuse. You can power link up to 12 Helicopter Q6 products on 120 VAC or up to 23 Helicopter Q6 products on 230 VAC. The power linking diagram corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region. Safety cap Spare fuse holder (inside safety cap) Installed fuse (held by plastic clip)

Product Additional Products Power Source

ProductPage 9 of 94 Helicopter Q6 User Manual Rev. 2 Setup Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Helicopter Q6 must be mounted in a position that includes planning for safe laser usage. Rigging

• Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes.

• Make sure adequate ventilation is provided around the product.

• Make sure that the structure or surface onto which you are mounting the product can support the product’s weight. (see the Technical Specifications

• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, whether an elevated platform or a truss.

• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Mounting Diagram Proper Usage This product is for overhead mounting only. For safety purposes, Chauvet recommends mounting lighting effect products on steady elevated platforms or sturdy overhead supports using suitable hanging clamps. In all cases, use safety cables. Obtain appropriate mounting hardware from your lighting vendor. International laser safety regulations require that laser products must be operated in the fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation between the floor and the lowest laser light. Additionally, 3 meters of horizontal separation is required between laser light and audience or other public spaces. CAUTION! Use of controls, adjustments, or procedures other than THOSE specified IN THIS USER MANUAL may result in hazardous radiation exposure. Mounting Bracket Safety Cable (such as CH-05 from Chauvet) Mounting Clamp (such as CLP-15 from Chauvet)Page 10 of 94 Operation Helicopter Q6 User Manual Rev. 2

Control Panel Operation To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel. Menu Map Configuration (DMX) The Helicopter Q6 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The Helicopter Q6 uses up to 16 DMX channels, which defines the highest configurable address as 497. If you are not familiar with the DMX protocol, download the DMX Primer from www.chauvetdj.com

To select the starting address, do the following:

1. Press <MENU> repeatedly until 3-CH or 16CH shows on the display.

Turns infrared on or off oFFPage 11 of 94 Helicopter Q6 User Manual Rev. 2 Operation DMX Channel Assignments and Values Zones for DMX Control (16CH) 16CH Channel Function Value Percent/Setting 1 Pod 1

160 Pulse effect 100–0%, slow to fast

240 Strobe, slow to fast

169 Red on, Green strobes (CH12 must be active)

209 Green on, Red strobes (CH12 must be active)

Red and Green alternating strobe (CH12 must be active)Page 13 of 94 Helicopter Q6 User Manual Rev. 2 Operation 16CH (cont.) 3-CH Channel Function Value Percent/Setting 12 Laser Strobe

127 Clockwise rotation, slow to fast

127 Clockwise rotation, slow to fast

185 Pods and SMD Strobes

255 Pods, Laser, and SMD Strobes 16 Auto Program Speed

250 Auto program speed, slow to fast

255 Sound-active program Channel Function Value Percent/Setting 1 Auto Program

185 Pods and SMD Strobes

255 Pods, Laser, and SMD Strobes 2 Auto Program Speed

250 Auto program speed, slow to fast

127 Clockwise rotation, slow to fast

255 Counter-clockwise rotation, slow to fastPage 14 of 94 Operation Helicopter Q6 User Manual Rev. 2 Configuration (Standalone) Set the product in one of the standalone modes to control without a DMX controller. Automatic Programs To run the Helicopter Q6 in automatic mode, follow the instructions below:

1. Press <MENU> repeatedly until P-- shows on the display.

1. Press <MENU> repeatedly until S-- shows on the display.

1. Press <MENU> repeatedly until Snd shows on the display.

5. Turn the sensitivity knob up until the product responds to the beat of the music.

Static Color Mode To run the Helicopter Q6 on a static color, do the following:

1. Press <MENU> repeatedly until C-- shows on the display.

Rotation Mode To control the direction and speed of the rotation when in static color mode, follow the instructions below:

1. Press <MENU> repeatedly until Moto shows on the display.

3. Use <UP> or <DOWN> to select a rotation direction, from di-L (left) or di-r (right).

Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. The product will only respond to low frequencies of music (bass and drums).Page 15 of 94 Helicopter Q6 User Manual Rev. 2 Operation IRC-6 Infrared Remote Control The Helicopter Q6 is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below:

1. Press <MENU> repeatedly until SEt shows on the display.

IRC-6 Operation Automatic Mode Automatic mode will enable you to run the automatic programs on the product. To turn on Automatic mode:

2. Press <+> or <–> to increase or decrease the speed of the program.

Sound-Active Mode Sound-Active mode will enable the product to respond to the music. To turn on Sound-Active mode:

1. Press <SOUND> on the IRC-6.

2. Press <SOUND> repeatedly to cycle through programs, or

Press <0>–<9> to choose a sound-active program. Manual Mode To set the Helicopter Q6 in manual mode and choose a static color with the IRC-6:

1. Press <R> (red), <G> (green), <B> (blue), or <W> (white) on the IRC-6.

To control the rotation direction with the IRC-6 in manual mode:

1. Press <A> to toggle clockwise or counter-clockwise rotation.

To control the rotation speed with the IRC-6 in manual mode:

To adjust the strobe rate of the static color:

This will turn off all the lights until the button is pressed again. NOTE: The IRC-6 will not respond to any inputs when Black Out is activated. If the remote does not respond when a button is pressed, try pressing <BLACK OUT>. You may have inadvertently activated Black Out.Page 16 of 94 Operation Helicopter Q6 User Manual Rev. 2 Master/Slave Mode The Master/Slave mode allows a single Helicopter Q6 product (the “master”) to control the actions of one or more Helicopter Q6 products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave products will be set to operate in Slave mode. Once set and connected, the slave products will operate in unison with the master product. Configure the products as indicated below. Slave products:

1. Press <MENU> repeatedly until 3-CH or 16CH shows on the display.

2. Press <ENTER> to accept.

3. Set the DMX address to 001.

4. Connect the DMX input of the first slave product to the DMX output of the master product.

5. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave

6. Finish setting and connecting all the slave products.

1. Set the master product to operate in Stand-Alone mode or with the IRC-6.

2. Make the master product the first product in the DMX daisy chain.

• Configure all the slave products before connecting the master to the daisy chain.

• Never connect a DMX controller to a DMX string configured for Master/Slave operation because the controller may interfere with the signals from the master.

• Do not connect more than 31 slaves to the master.Page 17 of 94 Helicopter Q6 User Manual Rev. 2 Technical

5. Technical Information

Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. To clean the product, follow the instructions below:

1. Unplug the product from power.

2. Wait until the product is at room temperature.

3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external

4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl

5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue.

6. Softly drag any dirt or grime to the outside of the transparent surface.

7. Gently polish the transparent surfaces until they are free of haze and lint.

Always dry the transparent surfaces carefully after cleaning them.Page 18 of 94 Technical Specifications Helicopter Q6 User Manual Rev. 2

6. Technical Specifications

Dimensions and Weight Note: Dimensions in inches rounded to the nearest decimal digit. Power Light Source Photometrics Thermal DMX Ordering Length Width Height Weight

15.4 in (390 mm) 15.4 in (390 mm) 9.4 in (240 mm) 8.8 lb (4.0 kg)

Power Supply Type Range Voltage Selection Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging Parameter 120 V, 60 Hz 230 V, 50 Hz Consumption 41 W 44 W Operating Current 0.7 A 0.4 A Power linking current (products) 7 A (12 products) 7 A (23 products) Fuse T 1.6 A, 250 V T 1.6 A, 250 V Power I/O U.S./Worldwide UK/Europe Power input connector IEC IEC Power output connector Edison IEC Power Cord plug Edison (U.S.) Local Plug Type Color Quantity Power Current Lifespan LED Quad-color RGBW 6 6.9 W 2 A 50,000 hours SMD LED White 24 1 W 281 mA 50,000 hours Laser Color Laser Power Laser Wavelength Red 100 mW 650 nm Green 30 mW 532 nm Strobe Rate Beam Angle (Beam) 0 to 20 Hz 3° Illuminance (Red) Illuminance (Green) Illuminance (Blue) Illuminance (White) 5,170 lux 6,650 lux 6,550 lux 7,020 lux Laser Maximum External Temp Cooling System 95 °F (35 °C) Fan-assisted convection I/O Connector Channel Range 3-pin XLR 3 or 16 Product Name Item Code UPC Number Helicopter Q6 10051300 781462216481Page 19 of 94 Helicopter Q6 User Manual Rev. 2 Returns Returns In case you need to get support or return a product:

• If you are located in the US, contact Chauvet World Headquarters.

• If you are located in the UK or Ireland, contact Chauvet Europe Ltd.

• If you are located in Benelux, contact Chauvet Europe BVBA.

• If you are located in France, contact Chauvet France.

• If you are located in Germany, contact Chauvet Germany.

• If you are located in Mexico, contact Chauvet Mexico.

• If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetdj.com for distributors outside the US, UK, Ireland, Benelux, France, Germany, or Mexico. Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause for the return. To submit a service request online, go to www.chauvetdj.com/service-request

Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Before sending the product, clearly write the following information on a piece of paper and place it inside the box:

• A brief description of the problem Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. If you are located outside the US, UK, Ireland, Benelux, France, Germany, or Mexico, contact your distributor of record and follow their instructions on how to return Chauvet products to them. Visit our website www.chauvetdj.com for contact details. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. Chauvet reserves the right to use its own discretion to repair or replace returned product(s).Page 20 of 94 Contact Us Helicopter Q6 User Manual Rev. 2 Contact Us Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. General Information Technical Support Chauvet World Headquarters Address: 5200 NW 108th Ave. Voice: (844) 393-7575 Sunrise, FL 33351 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetdj.com Chauvet Europe Ltd Address: Unit 1C Email: UKtech@chauvetlighting.eu Brookhill Road Industrial Estate Pinxton, Nottingham, UK Website: www.chauvetdj.eu NG16 6NT Voice: +44 (0) 1773 511115 Fax: +44 (0) 1773 511110 Chauvet Europe BVBA Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu 9770 Kruishoutem Belgium Website: www.chauvetdj.eu Voice: +32 9 388 93 97 Chauvet France Address: 3, Rue Ampère 91380 Chilly-Mazarin Email: FRtech@chauvetlighting.fr France Website: www.chauvetdj.eu Voice: +33 1 78 85 33 59 Chauvet Germany Address: Bruno-Bürgel-Str. 11 28759 Bremen Email: DEtech@chauvetlighting.de Germany Website: www.chauvetdj.eu Voice: +49 421 62 60 20 Chauvet Mexico Address: Av. de las Partidas 34 - 3B (Entrance by Calle 2) Email: servicio@chauvet.com.mx Zona Industrial Lerma Website: www.chauvetdj.mx Lerma, Edo. de México, CP 52000 Voice: +52 (728) 690-2010Page 21 of 94 Helicopter Q6 Manual de Usuario Rev. 2 Antes de Empezar

(blauw), of C 4 (wit).
