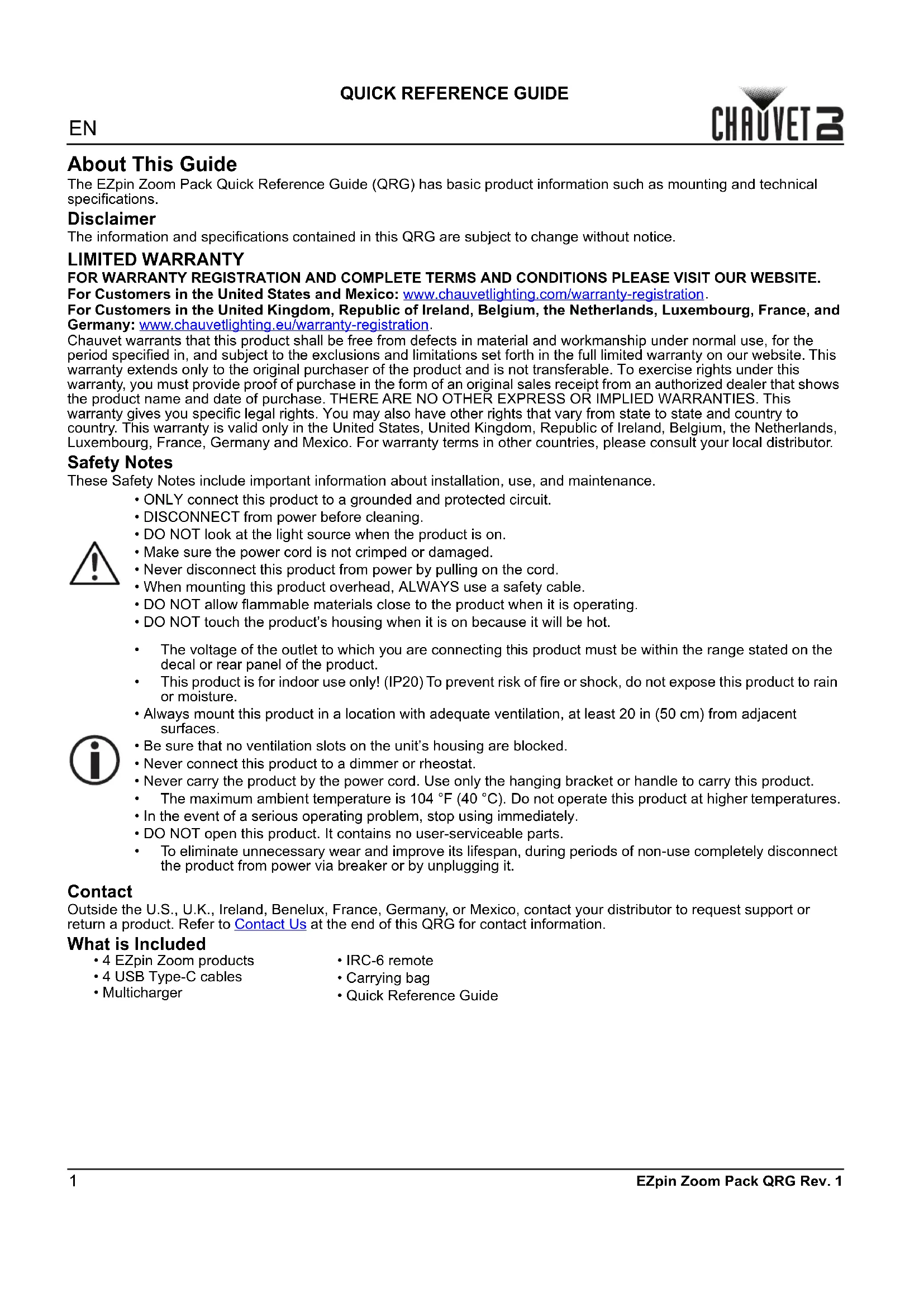

EZpin Zoom Pack QRG Rev. 1 About This Guide The EZpin Zoom Pack Quick Reference Guide (QRG) has basic product information such as mounting and technical specifications. Disclaimer The information and specifications contained in this QRG are subject to change without notice. LIMITED WARRANTY FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor. Safety Notes These Safety Notes include important information about installation, use, and maintenance. Contact Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information. What is Included

• ONLY connect this product to a grounded and protected circuit.

• DISCONNECT from power before cleaning.

• DO NOT look at the light source when the product is on.

• Make sure the power cord is not crimped or damaged.

• Never disconnect this product from power by pulling on the cord.

• When mounting this product overhead, ALWAYS use a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product’s housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.

• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Be sure that no ventilation slots on the unit’s housing are blocked.

• Never connect this product to a dimmer or rheostat.

• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

• In the event of a serious operating problem, stop using immediately.

• DO NOT open this product. It contains no user-serviceable parts.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

EZpin Zoom Pack QRG Rev. 1

QUICK REFERENCE GUIDE

To Begin Unpack your EZpin Zoom Pack and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet. Product Overview AC Power This product has an external auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. The output voltage is 5 VDC, 8 A. Multi-Charger Overview Battery Power Each EZpin Zoom product comes with a rechargeable lithium-ion battery for cable-free operation. Battery Charge Notes

• Avoid depleting the battery below 10%.

• For best results, charge the battery in a temperature between 32 °F (0 °C), and 95 °F (35 °C).

• When charging the battery, keep the product at least 1 m from any open flame or hot plate.

• If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.

• While charging, the device may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

• Do not charge the batteries in a closed container.

• Do not charge the battery for more than 24 hours. Battery Run Time To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

• The indicator on the EZpin Zoom shows red when the battery is charging, and green when it is fully charged.

• Do not charge the batteries in a closed container. Maximum Run Time Recharge Time Up to 11 hours 6 hours Magnetic base Power switch Type-C USB DC power input IR sensor Battery indicator Zoom adjust*

• Manually rotate the head to achieve desired zoom angle (5°–25°) USB C Power Port (x4) (5 VDC, 8 A) Power plug3

EZpin Zoom Pack QRG Rev. 1 Mounting Before mounting this product, read the Safety Notes. Mounting Diagram IRC-6 Remote (Infrared Remote Control) The EZpin Zoom Pack can be operated with the CHAUVET IRC-6. The following IRC-6 buttons are used with the EZpin Zoom Pack: Button Description BLACK OUT Turns LED on/off

Dimmer control (press <+/-> to increase/decrease the brightness) B Turn battery life indicator on/off Mounting clamp Overhead Mounting BLACK OUT AUTO SOUNDSENSI-TIVITYSPEEDSTROBE MANUAL FADE RGB WUVA + 0

EZpin Zoom Pack QRG Rev. 1

QUICK REFERENCE GUIDE

Technical Specifications Dimensions and Weight Note: Dimensions in inches are rounded. Power Light Source Photometrics Thermal Ordering Length Width Height Weight

2.4 in (60 mm) 2.6 in (66.5 mm) 9.2 in (234 mm) 1.6 lb (0.7 kg)
