USER MANUAL Neo 360 SL Osann

Thank you for choosing our Neo360 SL child car seat. If you need help with this product, please contact our customer service. USE

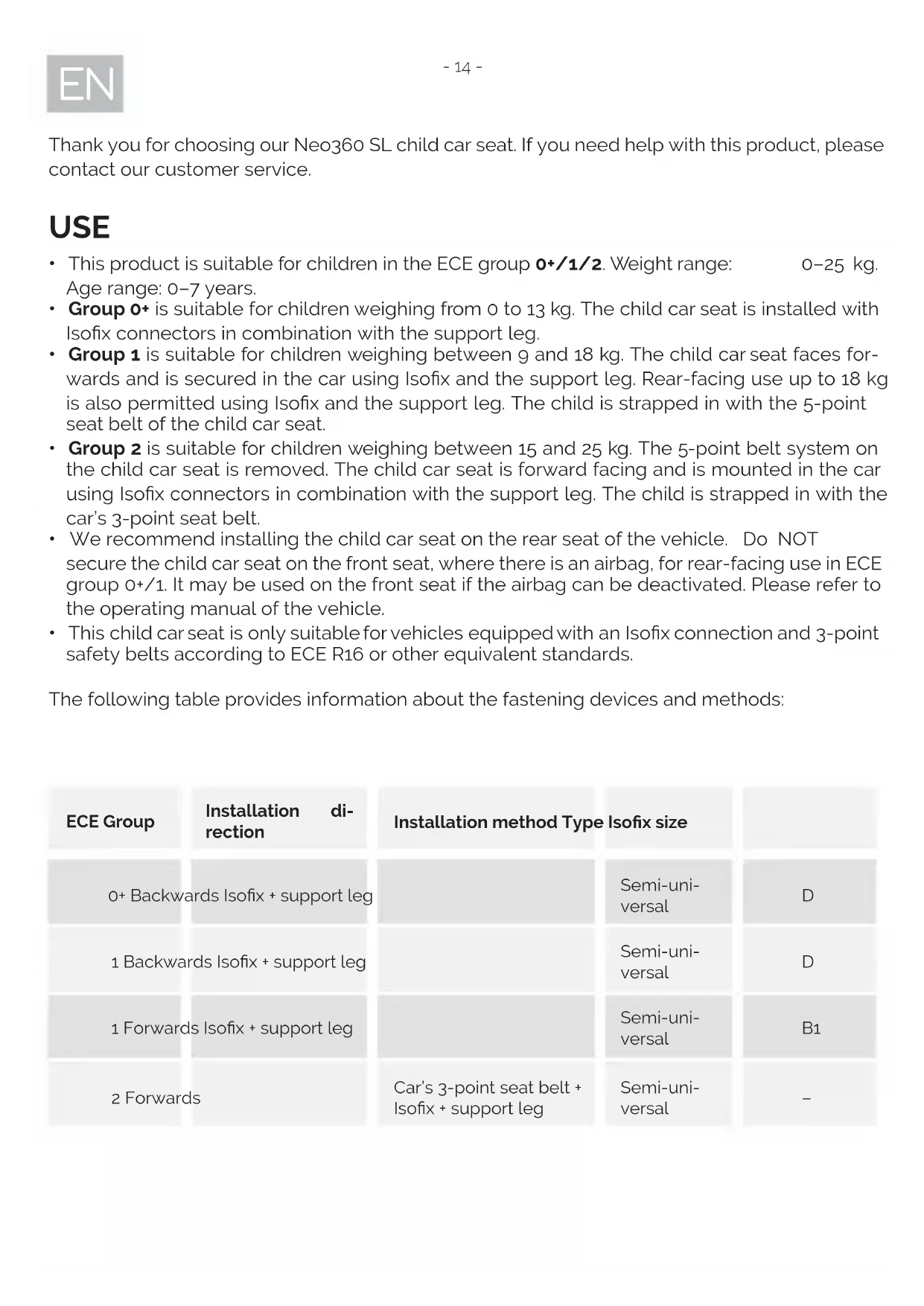

• This product is suitable for children in the ECE group 0+/1/2. Weight range: 0–25 kg. Age range: 0–7 years.

• Group 0+ is suitable for children weighing from 0 to 13 kg. The child car seat is installed with Isox connectors in combination with the support leg.

• Group 1 is suitable for children weighing between 9 and 18 kg. The child car seat faces for- wards and is secured in the car using Isox and the support leg. Rear-facing use up to 18 kg is also permitted using Isox and the support leg. The child is strapped in with the 5-point seat belt of the child car seat.

• Group 2 is suitable for children weighing between 15 and 25 kg. The 5-point belt system on the child car seat is removed. The child car seat is forward facing and is mounted in the car using Isox connectors in combination with the support leg. The child is strapped in with the car’s 3-point seat belt.

• We recommend installing the child car seat on the rear seat of the vehicle. Do NOT secure the child car seat on the front seat, where there is an airbag, for rear-facing use in ECE group 0+/1. It may be used on the front seat if the airbag can be deactivated. Please refer to the operating manual of the vehicle.

• This child car seat is only suitable for vehicles equipped with an Isox connection and 3-point safety belts according to ECE R16 or other equivalent standards. The following table provides information about the fastening devices and methods: ECE Group Installation di- rection Installation method Type Isox size 0+ Backwards Isox + support leg Semi-uni- versal

1 Backwards Isox + support leg Semi-uni- versal

1 Forwards Isox + support leg Semi-uni- versal

2 Forwards Car’s 3-point seat belt + Isox + support leg Semi-uni- versal –- 15 -

• This is a semi-universal child restraint system. It complies with UN Reg. No. 44/04 and may only be used in vehicles that appear in the attached list of permissible vehicles.

• It is only suitable for vehicles with xed 3-point safety belts or 3-point safety belts with seat belt retractor, which correspond to the UN/ECE Regulation No. 16 (or an equivalent standard). Note on the Isox child restraint system (group 0+/1)

• This is an Isox child restraint system. It was approved accordance with Regulation No. 44/04 In its respective valid version for general use in vehicles that feature ISOFIX anchoring sys- tems.

• It ts in vehicles in positions that are approved as ISOFIX positions (as described in the vehicle handbook this depends on the category of the child seat, as well as the type of fastening.

• The weight classes and Isox size classes for which this product is approved are: Group 1, D & B1 and group 0+, D. If you have any doubts, please contact the car seat manufacturer or the retailer.- 16 - WARNING

• Please read through these instructions carefully before use and keep them for subsequent reference in order to guarantee the safety of your child. Non-compliance with the instructions in this manual may result in serious injuries to your child.

• The child seat can only be used with its own 5-point belt system for children who weigh under 18 kg (group 0+ and group 1).

• The child seat CANNOT be used with its own 5-point belt system for children who weigh over 18 kg (group 2).

• The child car seat can be installed in a rear-facing position and forward-facing position with the Isox xture and the support leg. Important: Do not install forward facing until the weight of the child reaches at least 9 kg.

• For the Isox installation: Be sure to read the car manufacturer’s manual.

• Do not use load bearing contact points other than those described in the instructions and marked in the child restraint system.

• Do not use this child car seat at home. It has not been designed for use at home and should therefore only be used in a car.

• Do not leave your child unsupervised in the seat at any time.

• Do not place the rear-facing child car seat on the front seat with an airbag. T h i s could result in death or serious injury.

• The child seat should be replaced if it is exposed to heavy impact during an accident.

• For safety reasons, the child car seat must be secured in the vehicle even when your child is not sitting in the child car seat.

• Always make sure that all belts that hold the seat holder to the vehicle are secure and that all belts that restrain the child are adjusted to the child’s body. Please also ensure that the belts are not twisted.

• Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.

• The rigid items and plastic parts of a child restraint system must be placed and installed so that they cannot get caught by a movable seat or a vehicle door during everyday use.

• It is important that low-lying belts hold the pelvis rmly in place. To avoid the risk of falling, your child should always be strapped in.

• It is dangerous to make changes or additions to the product without approval from the re- sponsible authority. Non-compliance with the installation instructions provided by the man- ufacturer of the child restraint system is also associated with risks.

• This child seat has been designed for new-borns and children weighing up to 25 kg. Never overload the child seat by transporting more than one child or additional loads in it.

• The child restraint system must not be used without the seat cover.

• The seat cover must not be replaced by a cover other than that recommended by the manu- facturer as this seat cover is an important component of the restraint performance. EN- 17 -

Front view Back view Adjustable head support Comfort insert Belt lock Belt adjustment Rotary lever Shoulder pad frame Isox connector Seat bucket Shoulder pad Shoulder belt Angle adjustment lever Head section ad- justment Shoulder belt Isox connector buttons for adjusting the length and releasing Belt lock pad Side protection Support leg Support leg indicator Button for adjusting the height of the support leg Insertion aids for Isox connectors- 18 -

Adjusting the tilt angle of the car seat

• With one hand, use the lever on the lower front side of the seat bucket to adjust the tilt.

• Hold the back of the seat bucket back with your other hand and adjust the tilt.

• If the child car seat is used in a rear-facing position, please always have it set to the maximum reclining position. (Position 4)

• In a front-facing position (body weight from 9 kg and more), you can select any of the three tilt an- gles (position 1 + 2 + 3) oered by the child car seat. Turning the car seat

• Use one hand to pull the lever at the front of the seat and use your other hand to turn the seat bucket. The lever can be released when turning the seat bucket.

• The seat oers four locking positions: at 90, 180, 270 and 0 out of 360 degrees to the base. The seat bucket makes an audible click when it is moved into one of these positions.

• Positions 1 + 2 + 3 are only suitable for use in the direction of travel. Position 4 is exclusively for use facing away from the direction of travel. Position 4 is achieved automatically when the child car seat is placed in position 1 and then rotated by 180 de- grees. Only forward-facing Only rear-facing90°270°0/360° 180° 4, 3 2 1- 19 -

• To loosen the belt, press the belt adjustment but- ton at the front of the seat with one hand.

• Use your other hand to hold the belt lock with the belts and loosen it.

• If your child is fastened in, pull on the front adjust- ment tab to tighten the belt. Please always ensure that the belts are adjusted in such a way that they rest on the child’s shoulders. Adjusting the head support

• Loosen the belt and pull the lever on the front of the head support until it is set to the desired height.

• Release the lever and ensure that the head sup- port is locked in place. Opening/closing the belt

• To release the belt, press the red button on the belt lock and separate the two belt tongues.

• To close the belt, rst pull together the two belt tongues and slide these into the belt lock together.- 20 -

• Insert the red insertion aids through the slit in the cushion between the backrest and seat and into the Isox holders.

• When doing this, the at side must be facing downward. This step is not necessary if the vehicle already has rmly installed insertion aids.

• Press the buttons on the Isox connectors on both sides to extend these.

• Slide the Isox connectors into the insertion aids and press them in until you hear these lock in place.

• The indicators on both sides only show green when the connections are in place. Press the child car seat against the backrest until it is securely in position. Support leg

• Fold out the support leg underneath the child car seat.

• Press the button to adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle.

• Ensure that the indicator on the support leg is showing green. Comfort insert up to max. 13 kg Baby insert (under comfort insert) up to max. 9 kg The comfort insert and baby insert- 21 - Removal of the belt system

• Loosen the belt system so that the metal bracket can be seen on the reverse side of the child car seat. (Fig. 1)

• Pull the shoulder belts out of their metal brackets on the reverse side of the child car seat and guide these through the child car seat to the front side. (Fig. 2)

• Remove the shoulder pads, the belt tongues and the belt lock pad.

• You can tuck the seat belt lock away under the seat cover in the hollow provided for this. (Fig. 3)

• Fold the shoulder belts together so that these can be stored in the hollow on the back rest behind the seat cover. (Fig. 4)

• Ensure that you retain all the parts that are removed in a safe place.

1) Group 0+/1 (rear-facing)

(For children from 0 to 18 kg)

1. Press the two lateral Isox connector buttons in order to extend the length of the Isox

2. Fold out the support leg.

3. Guide the Isox connectors to the Isox connector pieces on the seat of the vehicle and

ensure that they lock in position.

4. Slide the child car seat until it rests securely against the backrest of the car seat. Please

ensure that both Isox indicators are showing green.

5. Press the button to adjust the height of the support leg and ensure that this is fully in contact

with the footwell of your vehicle.

6. Please ensure that the indicator on the support leg is showing green.

7. Set the child car seat to the maximum reclining position and turn it until it is in rear-facing

8. When placing your child in the child car seat, turn the car seat towards the car door for

9. Loosen the belt buckle on the child car seat and place the belts on the outer side of the seat.

10. Put your child in the child car seat.

11. Adjust the height of the head support so that the shoulder belt remains free.

12. Close the belt buckle again until you hear a click.

13. Pull the front adjustment tab in order to tighten the belts. Please ensure that the straps are

14. Turn the seat into the rear-facing position. Check whether the child car seat is locked in

2) Group 1 (forward-facing)

(For children weighing 9–18 kg)

1. Press the two lateral Isox connector buttons in order to extend the length of the Isox

2. Fold out the support leg.

3. Guide the Isox connectors to the Isox connector pieces on the seat of the vehicle and

ensure that they lock in position.

Slide the child car seat until it rests securely against the backrest of the car seat. Please ensure that both Isox indicators are showing green.

5. Press the button to adjust the height of the support leg and ensure that this is fully in contact

with the footwell of your vehicle.

6. Please ensure that the indicator on the support leg is showing green.

7. When facing in the direction of travel, the child car seat oers three adjustable seat positions.

8. When placing your child in the child car seat, turn the car seat towards the car door for

9. Loosen the belt buckle on the child car seat and place the belts on the outer side of the seat.

10. Put your child in the child car seat.

11. Adjust the height of the head support so that the shoulder belt remains free.

12. Close the belt buckle again until you hear a click.

13. Pull the front adjustment tab in order to tighten the belts. Please ensure that the straps are

14. Turn the seat into the forward-facing position. Check whether the child car seat is locked

in this position. IMPORTANT: DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UN- TIL THE CHILD WEIGHS AT LEAST 9 KG.- 24 -

3) Group 2 (forward-facing)

(For children weighing 15 to 25 kg)

1. Follow the installation steps 1 to 6 in Point 2 (Group 1, forward-facing).

2. Now thread the diagonal belt through the car’s 3-point belt guide on the

head support of the child car seat.

3. When placing your child in the child car seat, turn the car seat towards the car door for con-

4. Put your child in the child car seat.

5. Adjust the height of the head support so that the child’s head is completely posi-

tioned in the head support and the diagonal belt exits the belt guide at the child’s shoulder height.

6. Turn the seat into the forward-facing position. Check whether the child car seat is locked in

7. Close the belt buckle of the car’s 3-point belt again until you hear a click.

8. Pull the diagonal strap in order to tighten it. Please ensure that the straps are not twisted.

9. When facing in the direction of travel, the child car seat oers three adjustable seat positions.

CLEANING This product has been developed taking into account safety, comfort and functionality. Please take the time to read these instructions carefully before using the product and retain these instructions for future reference. To ensure that your child car seat remains in a good condition for a long time, please refrain from using solvents or abrasive or aggressive cleaning products to clean it. After washing, al- ways check that the fabric and stitching is not damaged. Please only ever wash the cover in accordance with the instructions on the label (see below). CARE Please check the product for any possible damage regularly. Do not use a damaged product and keep it out of the reach of children. If you have any questions, please contact the Osann customer service team on +49 (0) 7731/970077. Do NOT bleach Tumble dry at a low temperature Wash at 30°C on a delicate cycle Do NOT iron Do NOT dry clean
