ARTIX HB - Heating SunRed - Free user manual and instructions

Product type	Halogen infrared heater
Brand	SunRed
Model	ARTIX HB
Dimensions (H x Diameter)	32 x 74 cm
Weight	4 kg
Power cord length	1.8 m
Supply voltage	220 V
Heating power levels	800 W, 1000 W, 1800 W
Mounting type	Ceiling with chain and hook
Minimum fixing height	2.20 m from floor
Minimum hook capacity	12 kg
Expected element lifespan	5000 hours
Remote control	Yes, with power and LED lamp control
LED lamp	Yes, controlled by remote
Usage	Indoor and outdoor (sheltered from rain)
Cleaning	Soft damp cloth, mild detergent if necessary
Storage	Original packaging, in a cool dry place
Certifications	IEC/EN 55014-1, 55014-2, 61000-3-2, 61000-3-3, 60335-1, 60335-2-30
Repairability	Contact after-sales service or a qualified technician

Frequently Asked Questions - ARTIX HB SunRed

How to install the ARTIX HB heater on the ceiling?

Fix a hook capable of supporting at least 12 kg to the ceiling. Hang the supplied chain on the hook and adjust the height by choosing the appropriate link. The heater must be at least 2.20 m from the floor and 1 m from any wall or partition. Make sure the power outlet remains accessible.

What are the available power levels and how to select them?

The heater offers three levels: 800 W (left button on remote), 1000 W (right button), and 1800 W (both buttons pressed simultaneously). Use the top button to turn on the LED lamp.

Can the heater be used outdoors?

Yes, it is designed for indoor and outdoor use, but it must be protected from rain and humidity. Do not use it in a bathroom or near a swimming pool.

How to clean the ARTIX HB heater?

Unplug the device and let it cool down. Clean the external surface with a soft damp cloth. Use a mild detergent if necessary, then dry with a soft cloth. Never immerse the heater in water and do not use abrasive products.

What to do if the power cord is damaged?

Do not use the device. The cord must be replaced by the manufacturer, an authorized repairer, or a qualified person to avoid any risk of danger.

Can I use a timer or programmer with this heater?

No, it is forbidden to use a programmer, timer, or any automatic power-on device, as this could cause a fire if the appliance is covered or incorrectly positioned.

What safety distance must be observed?

The heater must be placed at least 1 m from any wall or partition, 30 cm from the ceiling, and at least 2.20 m from the floor. Do not place it under a power outlet.

How to store the heater when not in use?

Make sure it is completely cooled. Pack it in its original packaging and store it in a cool, dry place, out of reach of children and animals.

Does the heater have an LED lamp?

Yes, an LED lamp is integrated and can be turned on or off via the top button of the remote.

How to dispose of the heater at the end of its life?

Do not dispose of it with household waste. Take it to an authorized recycling or waste center. Contact your local authorities for more information.

USER MANUAL ARTIX HB SunRed

Manual Ceiling Hung electric Heater (EN)

Handleiding Plafondmodel elektrische Heater (NL)

ARTIX HW/HB – Ceiling Hung electric Heater 800-1000-1800Watt

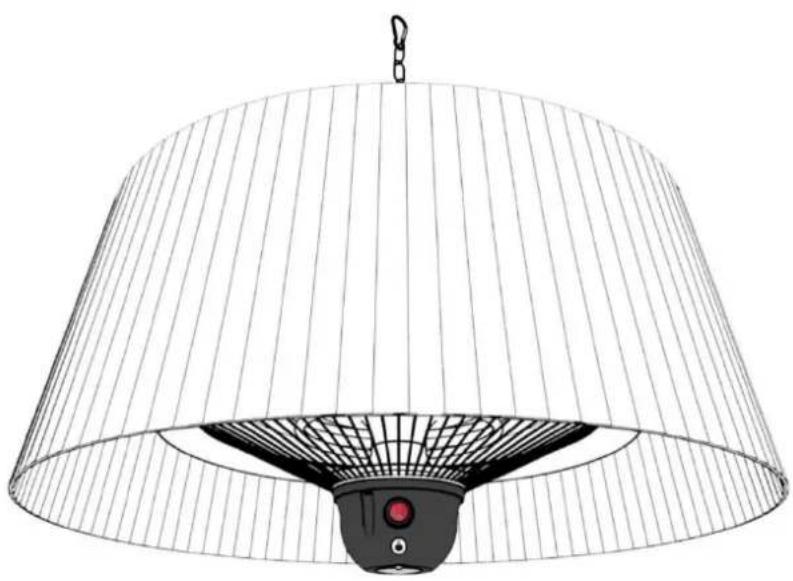

Line drawing of a conical lampshade with a black base and red indicator light (no text or symbols)

Ceiling Hung electric Heater (EN)

User instructions - please keep for future references

Line drawing of a conical lamp with a hanging handle and base (no text or symbols)

TECHNICAL INFORMATION

Wattage: 800w/1000w/1800w

Element type: Infrared Halogen

Expected Life span elements: 5000 hrs.

Weight: 4 kg

Ingress Protection Rating: IPX4

Certificates: CE, GS, PAH, Rohs

CableCord: 1.8 Meters

Dimensions: H32 x Diam 74 cm

Remarks: chain included

All measurements are approximate

IMPORTANT – Carefully remove any packaging before use, but retain the safety instructions.

These instructions form part of the product.

Please take note of all the safety warning listed in these instructions.

Please read these instructions in their entirety and retain them for future reference.

These instructions should be stored with the product.

This product is for domestic use ONLY and should not be used commercially or for contract purposes.

IMPORTANT! KEEP FOR FUTURE REFERENCE

Thank you for choosing our indoor/outdoor Electric Heater. This manual will provide you with information necessary for the proper assembly, care and maintenance of your new product.

Please take a few moments to thoroughly read the instructions and familiarise yourself with all the operational aspects of your new heater. When using this electric unit please follow the safety precautions detailed below. This should reduce the risk of fire, electric shock and injury to persons.

WARNING - CAUTION!

READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS UNIT. KEEP THE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THE ORIGINAL PACKAGING FOR USE WHEN STORING THE HEATER DURING EXTENDED PERIODS OF NON-USE.

CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

- This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater.

- Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft from the front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or other objects on the heater.

- Extreme caution is necessary when any heater is used by or near children or the disabled, or when the heater is left operating and unattended.

- DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been drooped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.

- This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER locate heater where it may fall into a bathtub or other water container. To protect against electrical hazards, DO NOT immerse in water or other liquids.

• DO NOT touch the control panel or plug with a wet hand.

- DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.

- DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.

- To prevent a possible fire, DO NOT blocks the air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, where openings may become blocked.

- A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.

- Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you use an extension cord, the cord shall be NO.13 AWG minimum size.

• To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.

- To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on plug, DO NOT unplug by pulling on the cord.

• Always unplug the unit before moving or cleaning, or whenever the heater is not in use.

- Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by unauthorized dealers may cause hazards.

• Always use on a dry, level surface. Use on ceiling only.

- WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed control device.

- DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. Qualified personnel should perform all servicing only.

- Connect to properly grounded outlets only.

• This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • The marketing concerning covering shall be visible after the heater has been installed.
• Save these instructions.

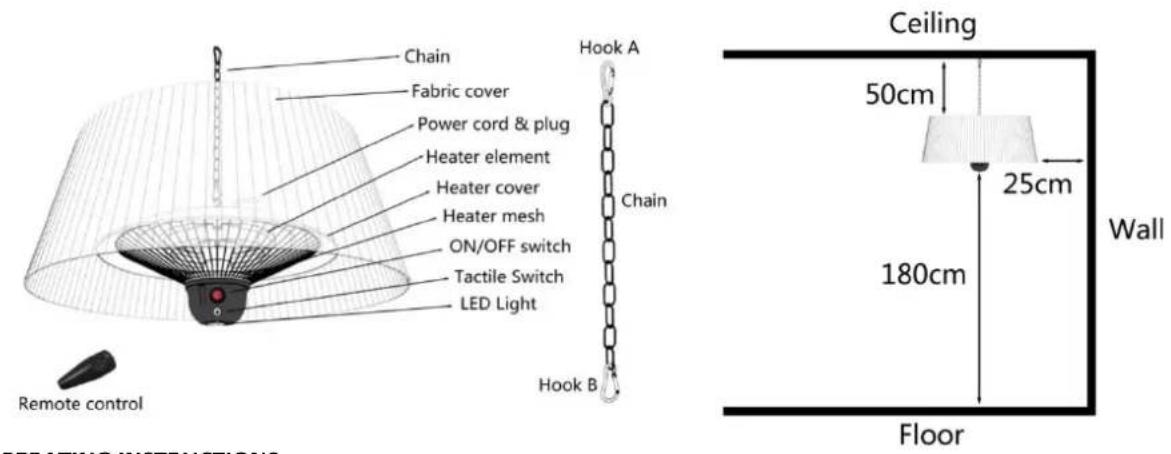

PRODUCT DIAGRAM

OPERATING INSTRUCTIONS

• Place the heater on a firm, level ceiling surface;
  • The Ceiling hook must be suitably strong and be able to hold a minimum weight of 8 Kg.
• Place the Hook A around the Ceiling Hook and clip on any Ring of the Chain to adjust the height of the Patio Heater to the Floor.
  • The distance between the bottom of the Patio Heater to the Floor must be over 180 cm..
• Plug the Patio Heater into a grounded 220\~240V 50Hz power outlet.
  • Only operate the heater when it is in the upright position.
  • The ON-OFF switch on the heater is used to control the power of the heater.
• Press on the On/Off switch to activate the heater
  • To operate the heater on low power (800W), press on the left side button of the remote con
  • To operate the heater on high (1000W), press on the right side button of the remote control
  • Press on both the left and right side button of the remote control for maximum power (1800W)
  • To operate the LED light, press the top button of the remote control

The main power switch must be turned on to use the remote control

MAINTENANCE

• Unplug the unit and let it cool completely.
• To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
  Although this heater is outdoor approved, DO NOT immerse the heater in water for your safety.
• Wait until the unit is completely dry before use.

STORAGE

• Ensure the unit is completely cold before storing in a cool, dry location.
  • To prevent dust and dirt to build-up, use the original packaging to repack the unit.
• CHOKING HAZARD: Store out of reach of children and pets. Contains small parts.

DISPOSAL

• DO NOT dispose of via your weekly household waste collection service. ONLY dispose of this product at your local, licensed recycling/waste centre.
• For further information on the disposal of electrical goods, please contact your local authority.

TROUBLESHOOTING

• If the heater will not operate, please check the following before seeking repair of service:

• Check if the power cord is plugged into an electrical outlet, if not, plug in.

• Check if electricity to the main fuse is working.
  • Make certain the power switches are turned on. If not, choose a setting.

ENSURE YOU HAVE READ THESE INSTRUCTIONS THOROUGHLY PRIOR TO USE.

Plafondmodel elektrische Heater (NL)

Line drawing of a conical fan with mesh blades and a small red button at the base (no text or symbols)

TECHNISCHE SPECIFICATIES

Wattage: 800w/1000w/1800w

Element type: Infrarood Halogeen

Verwachte levensduur elementen: 5000 hrs.

Gewicht: 4 kg

IP waardering: IPX4

Certificaten: CE, GS, PAH, Rohs

Line drawing of a conical fan with mesh blades and a central hub (no text or symbols)

Ingress Protection IPX4

Zertifikate: CE, GS, PAH, Rohs

Chain Fabric cover Power cord & plug Heater element Heater cover Heater mesh ON/OFF switch Tactile Switch LED Light Hook A Chain Hook B Remote control Ceiling 50cm 25cm 180cm Wall Floor

Line drawing of a conical fan with mesh blades and a small control panel (no text or symbols)

INFORMATION TECHNIQUE

Puissance: 800w/1000w/1800w

Qualification IP: IPX4

Certificates: CE, GS, PAH, Rohs

Chain Fabric cover Power cord & plug Heater element Heater cover Heater mesh ON/OFF switch Tactile Switch LED Light Hook A Chain Remote control Hook B

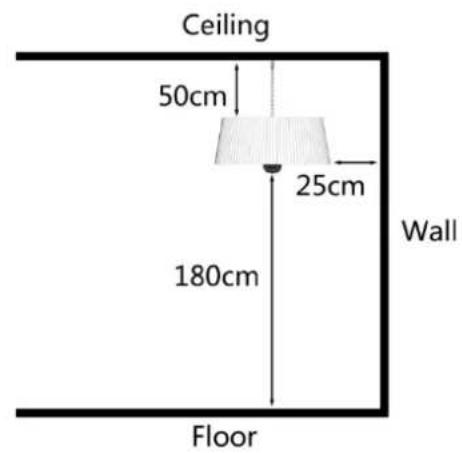

Ceiling 50cm 25cm 180cm Wall Floor

INSTALLATION
