Brand	Aiwa
Model	XHA1000 (CX-A1000 + speakers)
Product type	Multi-channel hi-fi system (receiver + cassette + CD + speakers)
Main unit dimensions (W x H x D)	360 x 372 x 423 mm
Main unit weight	18.5 kg
Front speakers SX-WA1000	250 x 592 x 300 mm, 11.7 kg each
Center speaker SX-C1800	430 x 120 x 175 mm, 2.7 kg
Rear speakers SX-R1800	120 x 230 x 175 mm, 1.9 kg each
Power supply	120 V~, 60 Hz
Power consumption	300 W (standby with economy: 1.9 W)
Output power (amplifier)	Front: 80 W + 80 W (1 kHz, 0.1% THD, 8 Ω); Rear: 80 W + 80 W; Center: 80 W; Subwoofer: 150 W + 150 W (100 Hz, 6 Ω)
CD player	3-disc, compatible CD, CD-R/RW
Cassette deck	Stereo 4-track, Dolby B NR
Tuner	FM/AM (32 presets), auto search
Audio functions	Dolby Pro Logic, DSP Surround (5 modes), BBE, T-BASS, graphic equalizer (5 presets + 5 manual)
Inputs / Outputs	3x video audio, 5.1CH, MD/DAT optical, phono, AUX, headphone
Special functions	AI smart recording, timer, sleep timer, karaoke (2 microphones)
Maintenance	Clean magnetic heads every 10 hours, demagnetize every 20-30 hours
Safety	Moisture protection, 10 cm rear ventilation, antenna grounding
Included accessories	Remote control, FM/AM antennas, cables

Frequently Asked Questions - XHA1000 AIWA

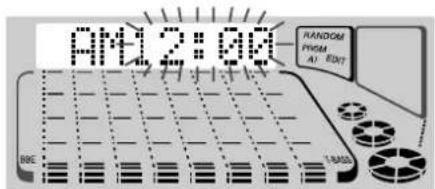

How to set the clock on the Aiwa XHA1000?

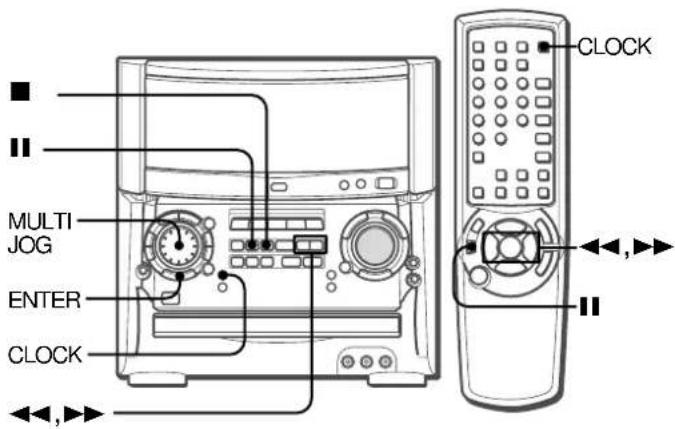

Press CLOCK, then turn MULTI JOG within 4 seconds to set the hour and minutes. Confirm with ENTER or II. To display the clock during use, press CLOCK.

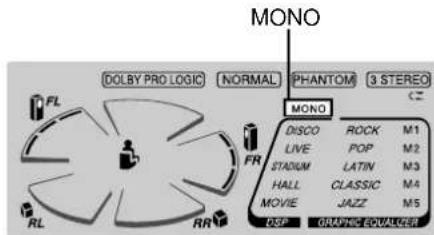

How to activate Dolby Pro Logic mode?

Press DOLBY PRO LOGIC repeatedly to select the desired mode (NORMAL, PHANTOM or 3 STEREO). To deactivate, continue until OFF appears. Ensure speakers are correctly connected.

What to do if the FM sound is weak or distorted?

Check the FM antenna (T-shaped unfolded). If the signal is weak, use an outdoor antenna. To reduce noise in FM stereo, activate MONO TUNER. Move the unit away from noise sources.

How to record a CD to cassette with smart recording?

Insert a blank cassette (desired side facing up). Press CD EDIT/CHECK (once). Select the disc and enter the tape duration with the numeric keys. Press ●/OREC/REC MUTE then ▶/◀▶ within 2 seconds to start.

Can I use headphones with this system?

Yes, plug a stereo headphone (6.3 mm plug) into the PHONES jack on the front. The speakers are then muted. Note that Dolby Pro Logic, DSP Surround and 5.1CH modes are disabled with headphones.

How to clean the cassette deck heads?

Use a special cleaning cassette. Clean every 10 hours of use. To demagnetize, use a demagnetizing cassette every 20 to 30 hours. Do not use metal tools.

Why does the unit turn off by itself?

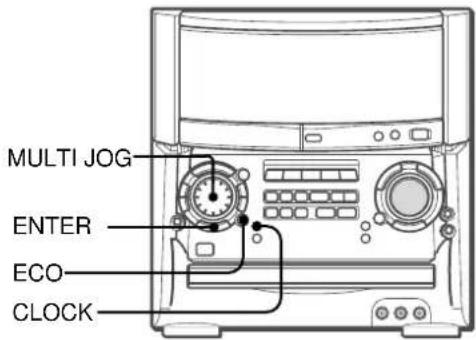

This is probably the power saving mode (ECO). If set to ECO AUTO, the unit turns off after 10 minutes of no audio activity. To disable, press ECO and select ECO OFF.

How to use karaoke on the Aiwa XHA1000?

Connect a microphone (to MIC 1 or MIC 2 jack). Adjust the microphone volume and echo with MIC VOL and ECHO. For a karaoke CD, use CD KARAOKE PROGRAM mode (press PRGM twice in CD mode).

How to program an automatic start?

First set the clock. Select the source (CD, TAPE, TUNER...). Press TIMER (Ⓐ display). Turn MULTI JOG for the time, confirm, then choose the duration. Set the volume and turn the unit off. It will turn on at the programmed time.

What to do if the CD player does not read the disc?

Check that the disc is inserted correctly (printed side up). Clean the disc from the center outward. If the lens has condensation, wait about an hour. Make sure the CD-R/RW is finalized and compatible.

USER MANUAL XHA1000 AIWA

For assistance and information

call toll free 1-800-BUY-AIWA

(United States and Puerto Rico)

CORRECTION

Please read the incorrect description in the Operating Instructions as follows.

Page 21

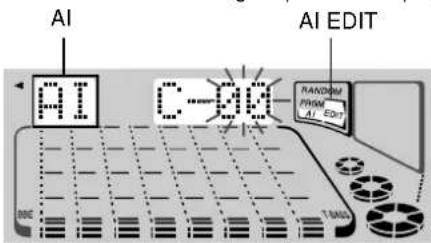

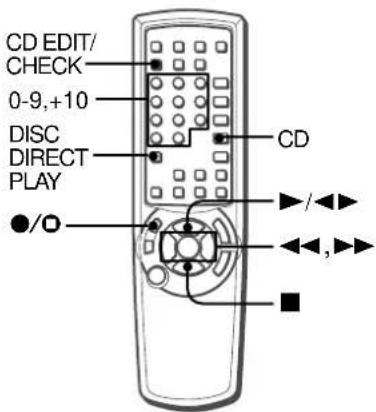

AI EDIT RECORDING

WRONG

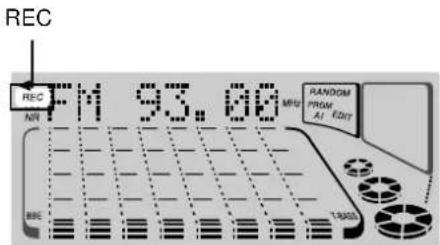

6 Press ●/OREC/REC MUTE to start recording.

RIGHT

6 Press ●/OREC/REC MUTE and then press ▶/◀▶ within 2 seconds to start recording.

Page 22

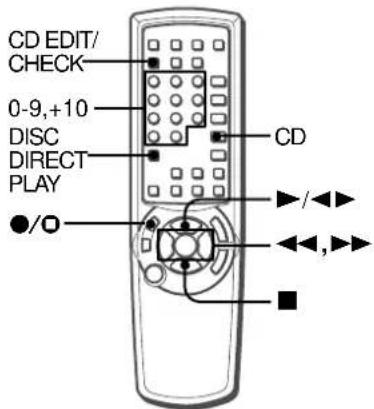

PROGRAMMED EDIT RECORDING

WRONG

8 Press ●/OREC/REC MUTE to start recording.

RIGHT

8 Press ●/OREC/REC MUTE and then press ▶/◀▶ within 2 seconds to start recording.

8A-MTM-919-01

0001A-Y

CORRECCION

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

"CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Owner's record

For your convenience, record the model number and serial number (you will find them on the rear of your unit) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

Model No. Serial No. (Lot No.)
CX-A1000
SX-WA1000
SX-C1800
SX-R1800

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

1 Water and moisture — Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.
2 Heat — Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5^ C ( 41^ F) or greater than 35^ C ( 95^ F).

3 Mounting surface — Place the unit on a flat, even surface.
4 Ventilation — The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from each side.

- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.

5 Objects and liquid entry — Take care that objects or liquid do not get inside the unit through the ventilation openings.

6 Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

7 Condensation — Moisture may form on the CD pickup lens when:

• The unit is moved from a cold spot to a warm spot
• The heating system has just been turned on
• The unit is used in a very humid room
• The unit is cooled by an air conditioner

When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

8 Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization — As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it is not still inserted easily into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

3 AC power cord

• When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
• Never handle the AC power plug with wet hands, as this could result in fire or shock.
• Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.
• Avoid overloading AC outlets and extension cords beyond their capacity, as this could result in fire or shock.

4 Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.

5 When not in use — Unplug the AC power cord from the power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna

1 Power lines — When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding — Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.

Antenna Grounding According to the National Electrical Code

ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUND CLAMP GROUNDED CONDUCTORS (NEC SECTION 810-21) ELECTRIC SERVICE EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

Maintenance

Clean the unit only as recommended in the Operating Instructions.

Damage Requiring Service

Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have got inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

TABLE OF CONTENTS

PREPARATIONS

CHECK YOUR SYSTEM AND ACCESSORIES ....4
BASIC CONNECTIONS ....4
CONNECTING OTHER EQUIPMENTS ......6

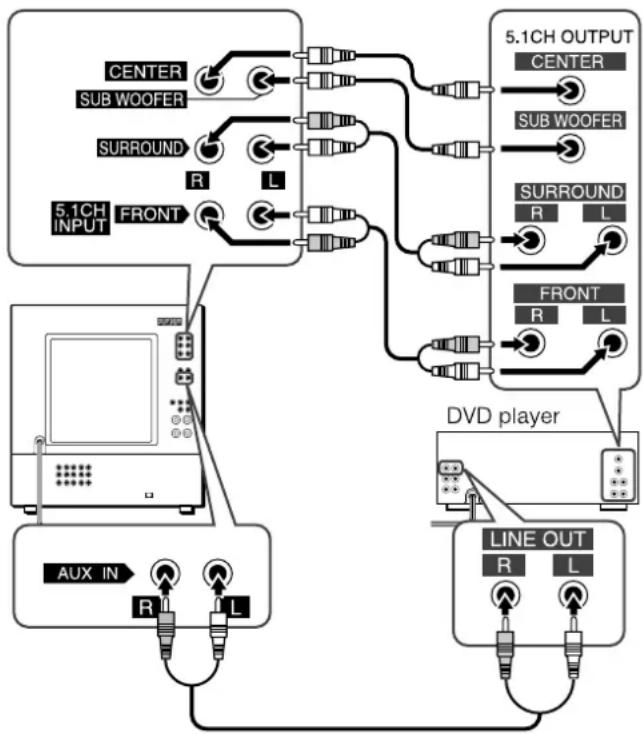

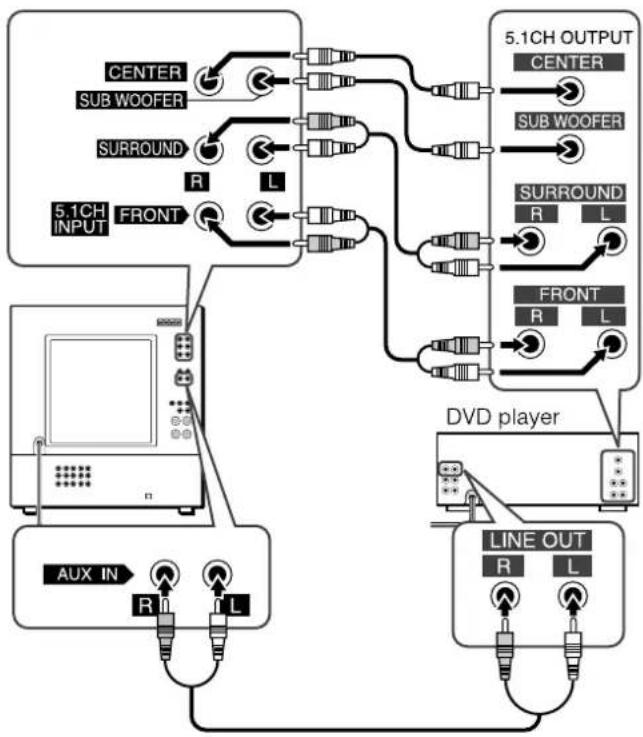

CONNECTING A DVD PLAYER 8

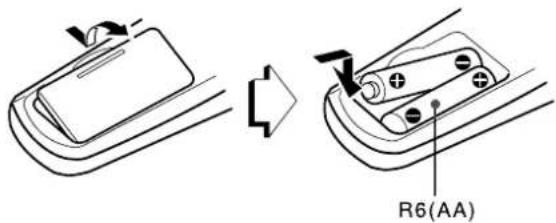

REMOTE CONTROL 9
BEFORE OPERATION 9

SOUND

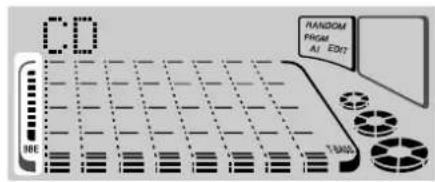

AUDIO ADJUSTMENTS ...... 11

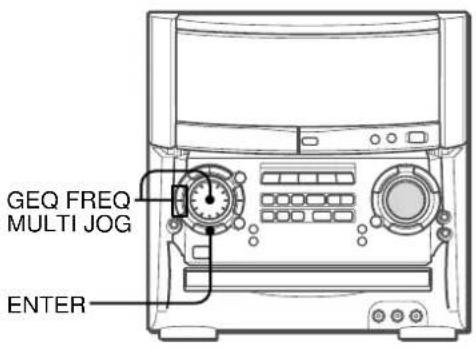

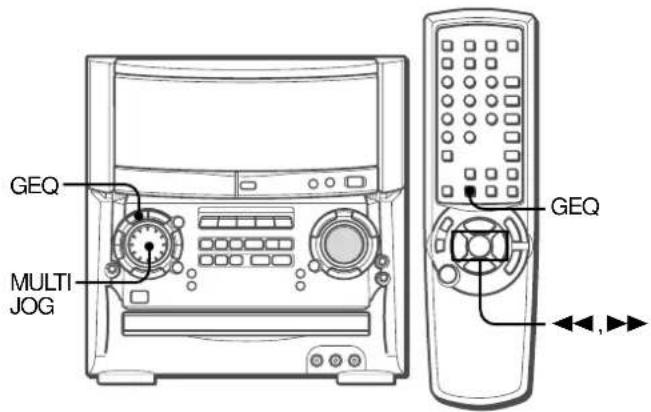

GRAPHIC EQUALIZER.... 12
DSP SURROUND 13

RADIO RECEPTION

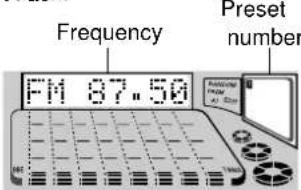

MANUAL TUNING 14

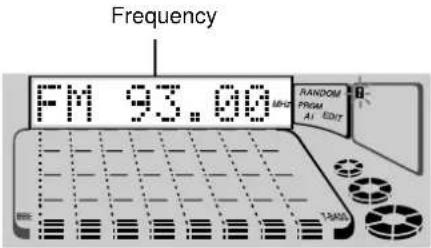

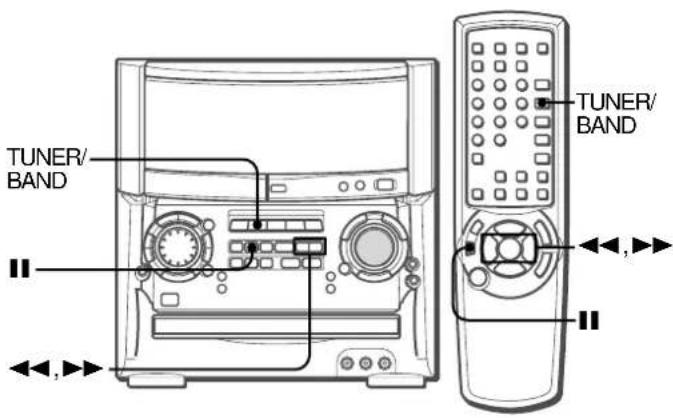

PRESETTING STATIONS 15

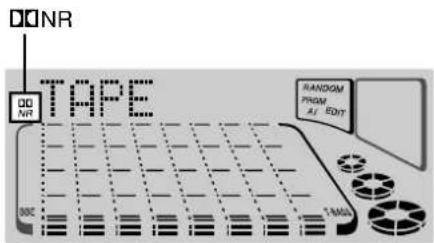

TAPE PLAYBACK

BASIC OPERATIONS ...... 16

CD PLAYING

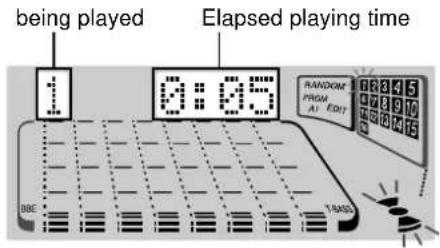

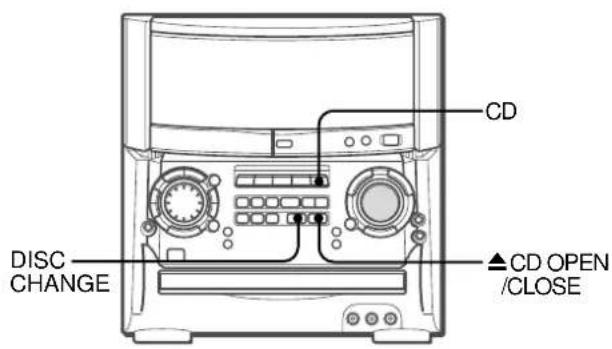

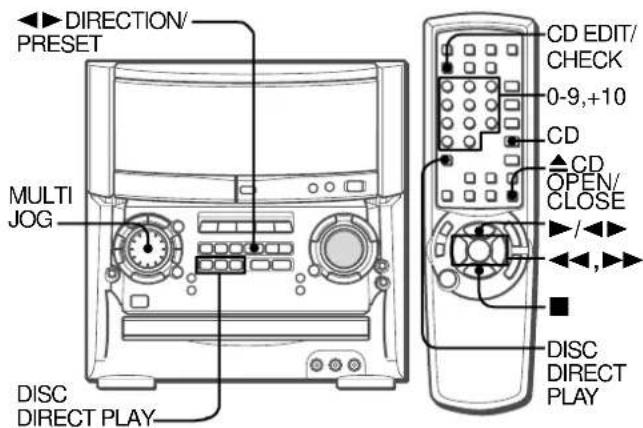

BASIC OPERATIONS ...... 17

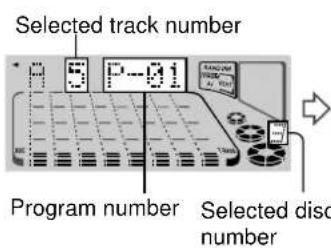

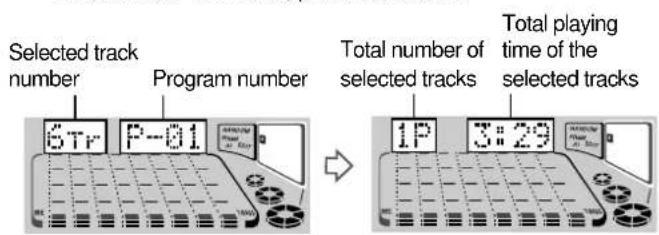

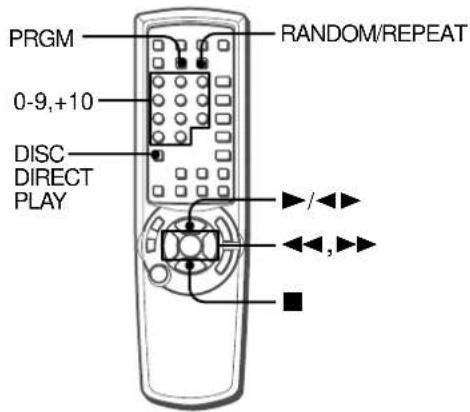

PROGRAMMED PLAY 19

RECORDING

BASIC RECORDING 20
AI EDIT RECORDING 21

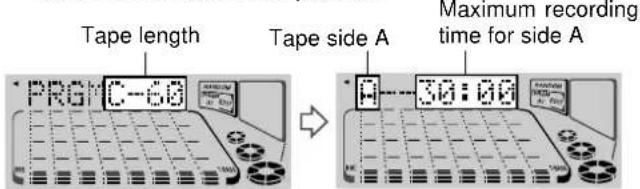

PROGRAMMED EDIT RECORDING.... 22

DOLBY SURROUND

ADJUSTING SPEAKER LEVEL 23

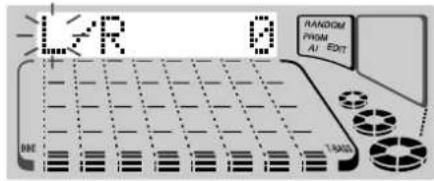

PLAY WITH DOLBY PRO LOGIC.... 24
LISTENING TO DOLBY DIGITAL SURROUND SOUND ..... 25

KARAOKE

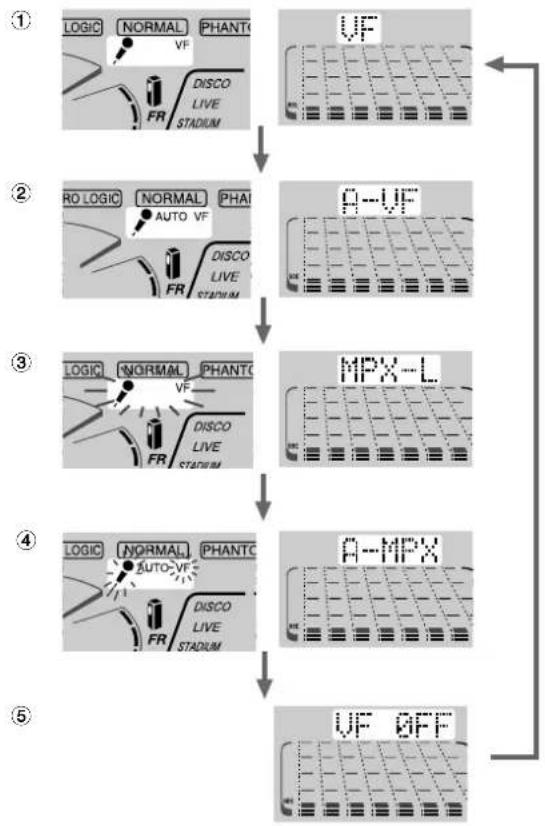

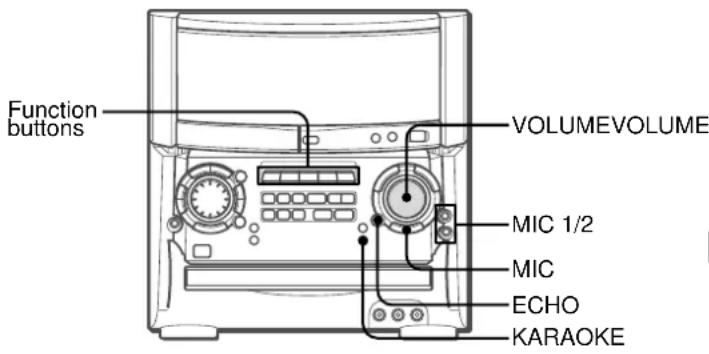

MICROPHONE MIXING 26
CD KARAOKE PROGRAM 28

CLOCK AND TIMER

SETTING THE CLOCK....29
SETTING THE SLEEP TIMER 29

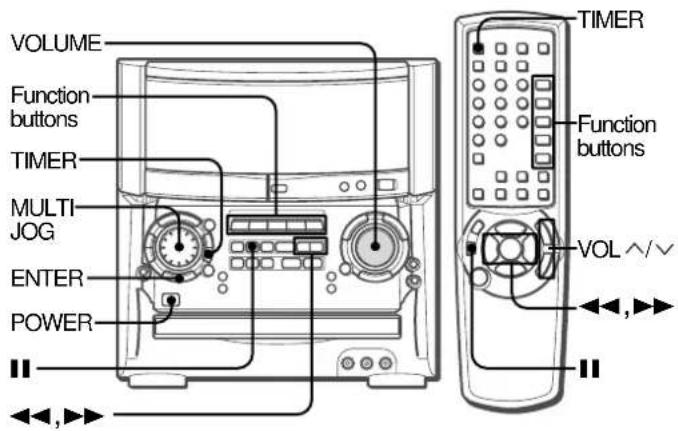

SETTING THE TIMER 30

GENERAL

CARE AND MAINTENANCE 31
SPECIFICATIONS 32
TROUBLESHOOTING GUIDE ...... 33

PARTS INDEX ...... Back cover

CHECK YOUR SYSTEM AND ACCESSORIES

XH-A1000

CX-A1000 Compact disc stereo cassette receiver

SX-WA1000 Front speakers

SX-C1800 Center speaker

SX-R1800 Surround speakers

Illustration of a remote control device, a square device with a coiled cable, and a separate remote device (no text or symbols present)

Remote control AM antenna FM antenna

Operating Instructions, etc.

BASIC CONNECTIONS

The DOLBY PRO LOGIC system which is the biggest feature of this stereo system provides you with multichannel sound in your home. Enjoy the enriched home theater system by connecting the TV set or video equipments with this unit.

Complete setting and connection of the main unit, supplied speakers, your TV and video equipments according to the following procedure.

Before connecting the AC cord

The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord.

There are no difference between the front speakers as well as the surround speakers. Both speakers of its kind can be connected as L (left) or R (right).

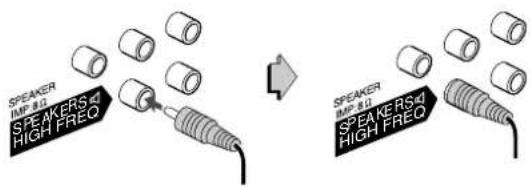

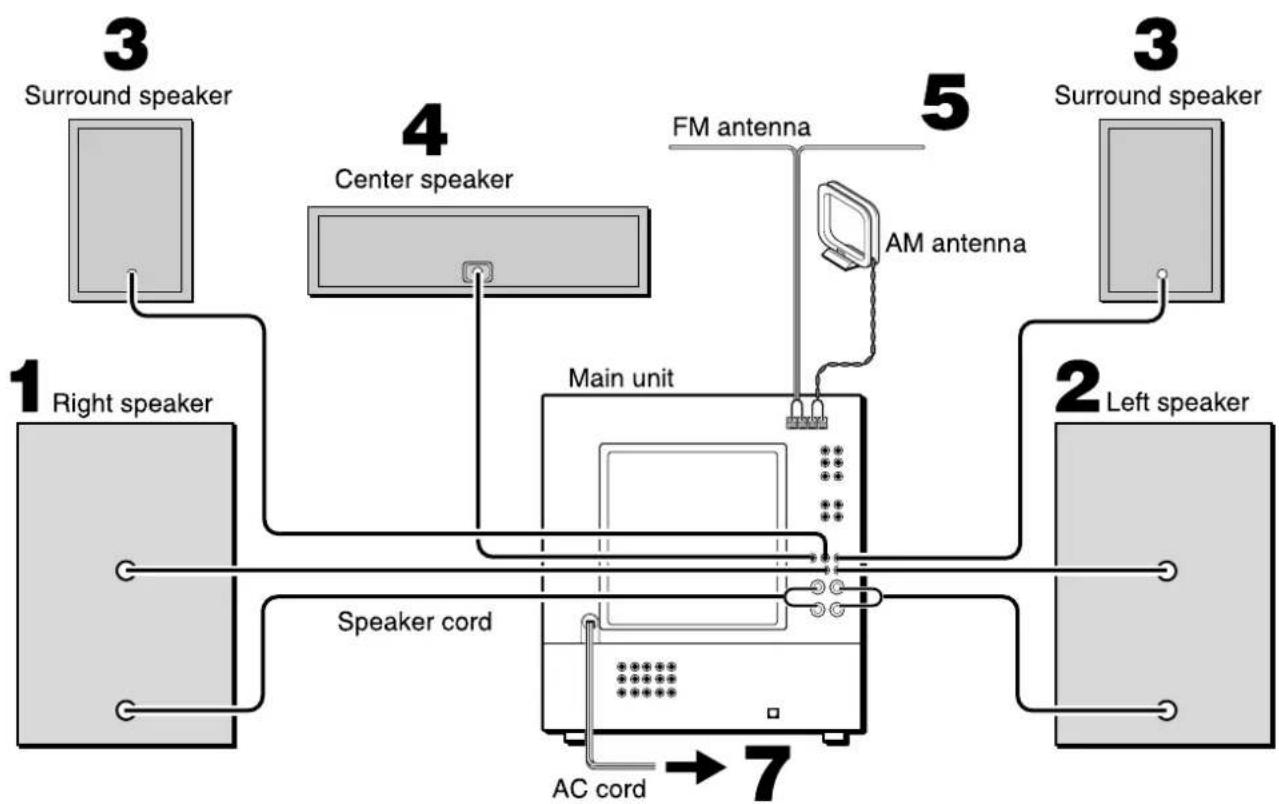

1 Connect the right speaker to the main unit.

①Connect the speaker cord with the white stripe to the SPEAKERS LOW FREQ R + terminal and the black cord to the ● terminal.

5-244628 MP: 80 5-1 R- 5-1 R- LOW FRESH-DR WOODFEN

Wind the tip of the cord around the terminal. Then tighten the terminal. Check that the cord is connected securely.

②Connect the blue colored speaker cord to SPEAKERS HIGH FREQ R jack.

SPEAKER IMR 80 SPEAKERS HIGH FREQ SPEAKER IMR 80 SPEAKERS HIGH FREQ

2 Connect the left speaker to the main unit.

Connect the blue colored speaker cord to SPEAKERS HIGH FREQ L terminal, and another speaker cord to the SPEAKERS LOW FREQ L terminals in the same manner as step 1.

3 Connect the surround speakers to the main unit. Connect the right surround speaker cord to SURROUND SPEAKERS R terminal, and the left to SURROUND SPEAKERS L terminal.

SPEAKER IMP:8Ω-16Ω SURROUND SPEAKERSd R L

4 Connect the center speaker.

Connect the center speaker cord to CENTER SPEAKER terminal.

CENTER SPEAKER SPEAKER IMP:8 Ω SPEAKER IMP:8 Ω-16Ω SURROUND SPEAKERS R L

5 Connect the supplied antennas.

Connect the FM antenna to FM 75 Ω terminals and the AM antenna to AM LOOP terminals.

FM antenna ANTENN FM 75Ω AM 10Ω AM antenna

6 Connect other equipments.

Some audio and video equipments (LD player, MD player, DVD player, TV, etc.) can be connected to this unit. See page 6 for details.

7 Connect the AC cord to an AC outlet.

The DEMO (Demonstration) will begin when the AC cord is plugged into an AC outlet for the first time after purchase. To deactivate the DEMO, set the clock.

To position the antennas

FM antenna:

Extend the antenna horizontally in a T-shape and fix its ends to a wall.

AM antenna:

Position and rotate this antenna to find the best reception.

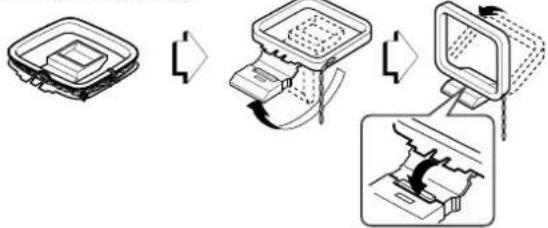

To stand the AM antenna on a surface

Fix the claw to the slot.


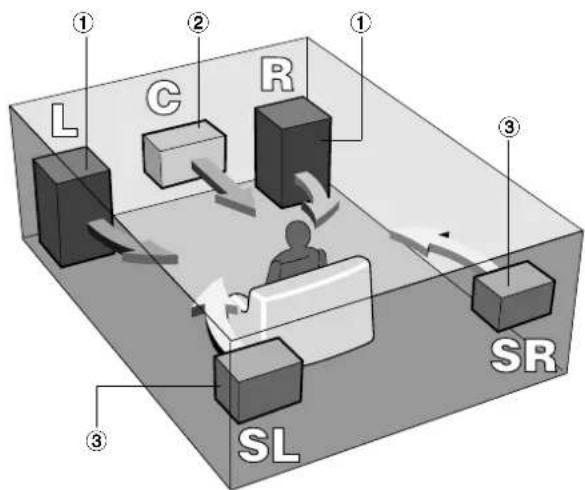

To achieve the optimum effects obtainable with the DOLBY PRO LOGIC system, it is important to position the speakers properly. Refer to the following illustration to find out the best location in your room.

① L G R ② ① ③ SR SL ③

①Front speakers

②Center speaker

Position in the center of the two front speakers. In addition, position on or below the TV set, if connecting a TV set to the unit.

③Surround speakers

Place the surround speakers directly to the side of or slightly behind the listening area. Align them horizontally, about 1 meter above ear height.

NOTE

- No sound is heard from the center and surround speakers when the DOLBY PRO LOGIC, the DSP SURROUND system and the 5.1CH (page 25) are set to off.

- The sound is heard from the center speaker when the DOLBY PRO LOGIC or the 5.1CH (page 25) is set to on.

To mount the surround speakers on a wall

Use wall mounting screws (not supplied).

Select a spot that will hold the weight of the speakers and carefully mount the surround speakers so that they are firmly secured.

Simple line drawing of a screw being inserted into a wall socket (no text or symbols)

Aiwa disclaims any responsibility for injury to persons or other accidents caused by not fitting the surround speakers properly or if the place of the installation is not suitable.

NOTE

- Be sure to connect the speaker cords correctly. Contact of bare conductor with other jacks or other conductors may cause short circuits in SPEAKERS terminals or malfunctions.

• Do not leave objects generating magnetism, such as credit cards, near the speakers, as the objects may be damaged.
• Do not bring the FM antenna near metal objects or curtain rails.
• Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up.
• Do not unwind the AM antenna wire.

Safety warning symbol and battery pack diagram with Chinese text

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is recommended.

Connect the outdoor antenna to FM 75 Ω terminals.

TENNA 71 FM 75Ω

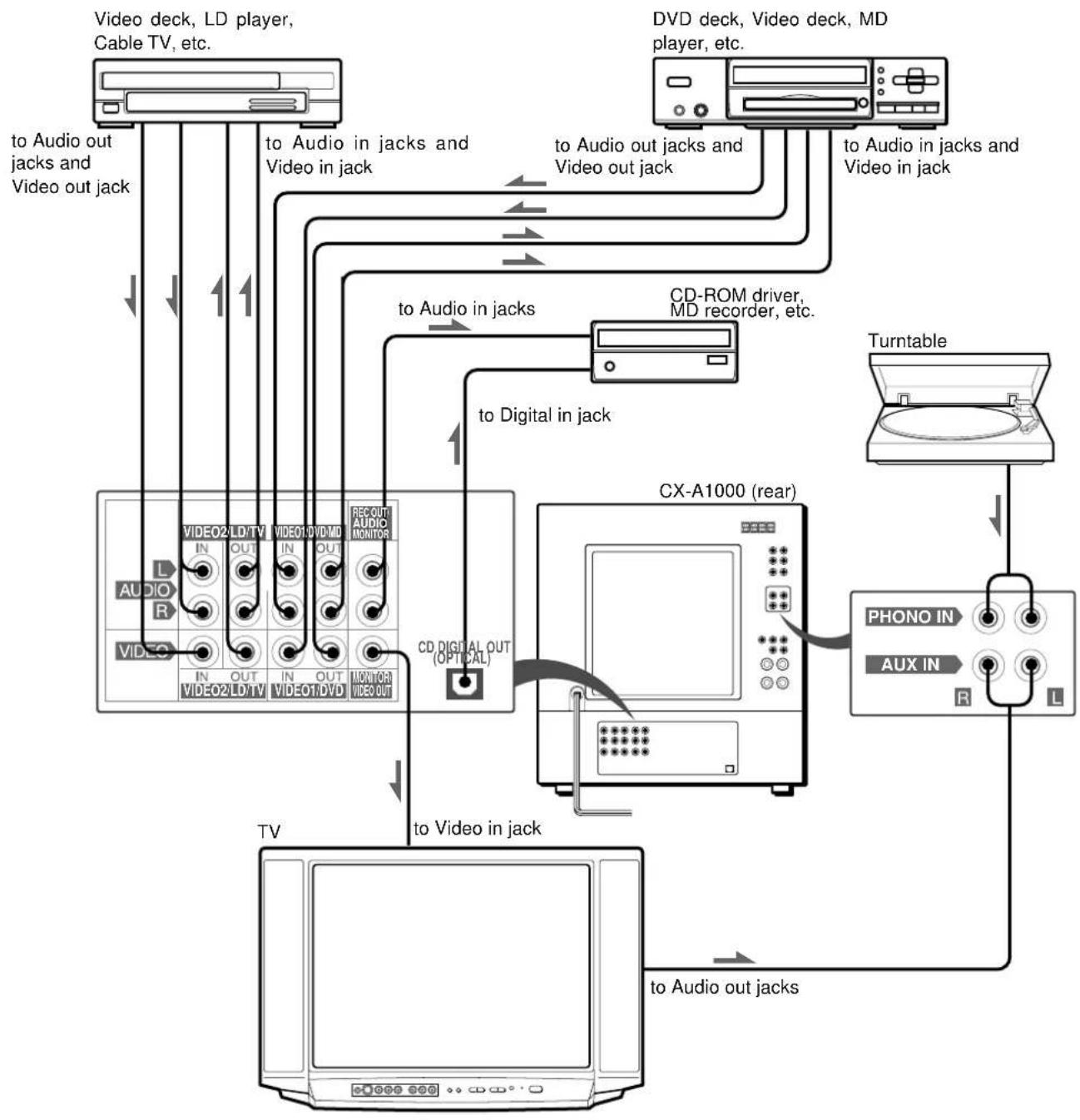

CONNECTING OTHER EQUIPMENTS

A video equipment, the TV set, an LD player, a DVD player or an MD player, etc. can be connected to this unit.

VIDEO1/DVD/MD jacks

A video equipment, a DVD player, or an MD player, etc. can be connected to these jacks.

• Use the audio cable and video cable commercially available.
• To input signals from the connected equipment to this unit, connect the cables to VIDEO1/DVD/MD IN jacks.

To output signals from this unit to the connected equipment, connect the cables to VIDEO1/DVD/MD OUT jacks.

- Connect L (left) output of the connected equipment and AUDIO L of this unit, R (right) output and AUDIO R by the audio cable.

VIDEO2/LD/TV jacks

A video equipment, an LD player or a cable TV, etc. can be connected to these jacks.

• Use the audio cable and video cable commercially available.
• To input signals from the connected equipment to this unit, connect the cables to VIDEO2/LD/TV IN jacks.

To output signals from this unit to the connected equipment, connect the cables to VIDEO2/LD/TV OUT jacks.

- Connect L (left) output of the connected equipment and AUDIO L of this unit, R (right) output and AUDIO R by the audio cable.

VIDEO3 jacks

A video equipment, a camcorder or a TV game, etc. can be connected to these jacks. Turn VOLUME to "0" before connecting equipment to VIDEO 3 jacks.

• Use the audio cable and video cable commercially available.
• Connect L (left) output of the connected equipment and AUDIO IN L of this unit, R (right) output and AUDIO IN R by the audio cable.
• Connect Video output of the connected equipment and VIDEO IN of this unit by the video cable.

REC OUT/AUDIO MONITOR jacks

A recording equipment such as an MD recorder, a CD-R/RW recorder or a cassette deck, or the TV set etc. can be connected to these jacks. The sounds from the equipment connected to VIDEO1/DVD/MD or VIDEO2/LD/TV can be recorded or monitored as well.

• Use the audio cable commercially available.
• Connect L (left) output of the connected equipment and AUDIO L of this unit, R (right) output and AUDIO R by the audio cable.

MONITOR/VIDEO OUT jacks

The TV set, etc. can be connected to these jacks.
The videos from the equipment connected to VIDEO1/DVD/MD
or VIDEO2/LD/TV can be monitored.
- Use the video cable commercially available.

CD DIGITAL OUT (OPTICAL) jack

A digital equipment such as an MD recorder, a DAT deck, a digital cassette deck or a digital amplifier, etc. can be connected to this jack. The digital signals from the CD player of this unit are output to the connected equipment.

• Use the optical cable commercially available.
• Before connecting an optical cable remove the dust cap (a) from CD DIGITAL OUT (OPTICAL) jack.

CD DIGITAL OUT (OPTICAL) CD DIGITAL OUT (OPTICAL)

- When CD DIGITAL OUT (OPTICAL) jack is not used, attach the dust cup ⓐ.

PHONO IN jacks

A turntable can be connected to these jacks. Use an Aiwa turntable equipped with a built-in equalizer amplifier.

AUX IN jacks

A playback equipment such as the TV set or an MD player, etc. can be connected to these jacks.

• Use the audio cable and video cable commercially available.
• Connect L (left) output of the connected equipment and AUDIO L of this unit, R (right) output and AUDIO R by the audio cable.

NOTE

The signals input through VIDEO 1 IN jack are output from VIDEO 2 OUT or MONITOR OUT. The signals input through VIDEO 2 IN jack are output from VIDEO 1 OUT or MONITOR OUT.

Connection example

CX-A1000 (front) Camcorder VIDEO 3 to Audio out jacks and Video out jack VIDEO IN L-AUDIO IN-R

SELECTING EXTERNAL AUDIO/VIDEO SOURCES

AUX/PHONO/5.1CH VIDEO 1/2/3

To play equipment connected to the unit, proceed as follows.

1 Press VIDEO1/2/3 or AUX/PHONO/5.1CH repeatedly to select a desired source.

The source names are displayed cyclically as below. When VIDEO1/2/3 is pressed

When AUX/PHONO/5.1CH is pressed

Select one of the sources depending on the equipment connected to the input terminals on the unit.

*While the headphones are plugged in, 5.1chIN is not displayed.

2 Play the connected equipment.

To monitor a video source

The selected video source is indicated on the display and the video signal through MONITOR/VIDEO OUT jack is output on the TV.

To adjust the sound level of equipments connected to the input jacks (except a equipment connected to PHONO jacks)

When the sound level of the external source is much higher or much lower than that of other function sources, adjust it as follows.

1 Press VIDEO1/2/3 or AUX/PHONO/5.1CH repeatedly so that the name of the jacks connected with the concerned equipment is displayed. Example: To adjust the sound level of equipment connected to VIDEO 1, press VIDEO1/2/3 repeatedly to display VIDEO1.

2 Play the equipment.

3 Press ◀◀ or ▶▶ until the sound level becomes the same as that of other function sources.

NOTE

• During recording, the sound level can not be adjusted.
• The sound level of the connected turntable cannot be adjusted.

CONNECTING A DVD PLAYER

5.1CH INPUT jacks of this unit support the DOLBY DIGITAL SURROUND system (see page 25).

Connect a DVD player with 5.1ch output jacks to this unit using cables with RCA phono plugs as follows:

This unit's jack

DVD player's jack

5.1CH INPUT FRONT (L, R) 5.1CH OUTPUT FRONT (L, R), etc. 5.1CH INPUT SURROUND (L, R) 5.1CH OUTPUT SURROUND (L, R), etc. 5.1CH INPUT CENTER 5.1CH OUTPUT CENTER, etc.
5.1CH INPUT SUB WOOFER 5.1CH OUTPUT SUB WOOFER, etc. VIDEO/AUX IN (L, R) LINE OUT (L, R), etc.

(See NOTE.)

NOTE

- If the DVD player is not connected to AUX IN jacks:

• the spectrum analyzer does not show the sound level of the DVD player.
• the sound from the connected DVD player cannot be recorded. To remove these limitations, connect LINE OUT jacks of the DVD player to AUX IN jacks of this unit besides connecting to 5.1CH INPUT jacks.

The signals through AUX IN jacks enable the spectrum analyzer to work and the recording to be done.

Refer also to the operating instructions of the DVD player.

- The DOLBY DIGITAL SURROUND sound cannot be recorded in any way.

REMOTE CONTROL

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.

R6(AA)

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

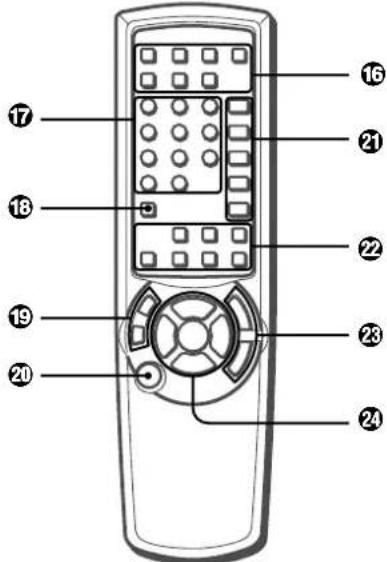

Using the remote control

The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well.

▶/◀▶ PRESET on the remote control

The function is the same as that of ◀▶ on the main unit.

NOTE

• If the remote control is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
  • The remote control may not operate correctly when:
• The line of sight between the remote control and the remote sensor inside the display window is exposed to intense light, such as direct sunlight
• Other remote controls are used nearby (those of a television, etc.)

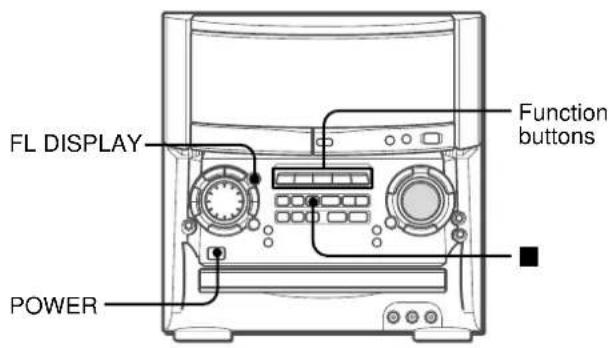

BEFORE OPERATION

FL DISPLAY POWER Function buttons

To turn the power on

Press one of the function buttons (TAPE, TUNER/BAND, VIDEO1/2/3, AUX/PHONO/5.1CH or CD).

Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function).

POWER is also available.

To turn the power off

Press POWER.

Illumination guide

Whenever POWER or one of the function buttons is pressed, the buttons for the selected operation light up or flash.

Example: When CLOCK is pressed, ◀◀ and ▶▶ light as a guide to setting the current time.

Demo mode

When the AC cord is plugged into an AC outlet for the first time after purchase, the Demo mode will begin in the display window. When the power is turned on, the Demo mode will end. When the power is turned off, the Demo mode will begin again.

Until the clock is set, the Demo mode will begin whenever the power is turned off.

When the clock is set, the Demo mode will not begin even if the power is turned off. (See "SETTING THE CLOCK" on page 29 to set the clock.)

To activate the Demo mode

Press DEMO while the power is turned on or off. The Demo mode will begin in the display window.

When one of the button is pressed or the control is turned, the Demo mode will end.

SETTING DISPLAY MODE

By pressing FL DISPLAY as following, the illumination color, brightness level of the display and the spectrum analyzer display can be changed.

To change the illumination color

The lighting color around the function buttons and above the CD compartment can be changed.

1 Press FL DISPLAY once so that the current mode is displayed.
2 Within 4 seconds, turn MULTI JOG to select the illumination color. The modes are displayed cyclically as below. The color will be automatically set after 4 seconds.

To change the brightness level of the display

1 Press FL DISPLAY twice so that the current mode is displayed.

2 Within 4 seconds, turn MULTI JOG to select the dimmer mode. The modes are displayed cyclically as below. The mode will be automatically set after 4 seconds. 3.

DIM-OFF: The normal display.

DIMMER 1: The illumination of the display is dimmer than usual.

DIMMER 2: The illumination of the display is dimmer than DIMMER 1.

DIMMER 3: The illumination of the display is dimmer than DIMMER 2. The spectrum analyzer and the button lamps light off.

To change the spectrum analyzer display

1 Press FL DISPLAY three times so that the current mode is displayed.

2 Within 4 seconds, turn MULTI JOG to select the spectrum analyzer display. The modes are displayed cyclically as below. The mode will be automatically set after 4 seconds.

SETTING POWER ECONOMIZING MODE

MULTI JOG ENTER ECO CLOCK

Setting this unit to power economizing mode reduces power consumption as follows.

ECO ON

• When the power is turned off, all the display lights turn off, and only the indicator on POWER lights; however, when the clock is not set, the window turns to the demo display.
• When the power turns on due to timer recording (page 30), the display brightness level is set to "DIMMER 3", all button lamps are off, and the volume is set to the minimum level (0).
• The display brightens only when operating the unit. When the unit has not been used for 10 seconds, the brightness level switches to the dimmer mode previously selected.

(If the display brightness level is set to "DIM-OFF", the brightness does not change. When the level is "DIMMER 3", the button lamps are also turned off.)

ECO AUTO

- In addition to the conditions of ECO ON, if CD or tape does not play for 10 minutes or if there is no audio input from any connected external equipment for 10 minutes when VIDEO1, 2, 3, AUX or PHONO is selected as the source, the power shuts off. Exceptionally, the power does not shut off when the 5.1CH is selected.

ECO OFF

The economizing mode does not work.

1 Press ECO.

The current power-economizing mode status (ECO OFF/ECO ON/ECO AUTO) will be displayed.

ECO ON RANDOM FROM AT EDIT

2 Turn MULTI JOG within 4 seconds to change the power-economizing mode.
3 Within 4 seconds, press ENTER to set the selected power-economizing mode.

Standby power consumption

If the power-economizing mode is OFF: 55 W

If the power-economizing mode is ON or AUTO: 1.9 W

NOTE

To view the clock when all the display lights turn off, press CLOCK so that the time is displayed for 4 seconds.

4-CHANNEL MULTI-AMPLIFIER SYSTEM

To provide reinforcement for the ultra-low frequencies, in addition to the Left/Right 2-channel amplifier used to reproduce mud-to-high-range frequencies, this system incorporates a second L/R 2-channel amplifier just for reproduction of ultra-low frequencies—making it, in effect, a 4-amplifier system. By utilizing discrete amplifiers for mid-to-high-frequencies and low frequencies, high-quality sonic reproduction that is virtually free from distortion can be realized.

This Multi Amplifier System, which utilizes independent circuitry for the different frequency ranges, enables superb sonic reproduction free from distortion.

BUILT-IN SUBWOOFER SYSTEM

The built-in subwoofer system has a separate subwoofer cavity area that is part of the loudspeaker cabinet structure, which acts as a sonic filter to cut distortion components. (In the Multi Amplifier System, the ultra-low frequency signals transmitted from their own independent amplifier are reproduced in this area.) This separate construction gives a clear, rich definition to bass reproduction and it can realize clear, well-defined mid-to-high frequency signals.

And AIWA's built-in subwoofer system incorporates a subwoofer capable of powerful, satisfying bass performance with true stereo separation.

AUDIO ADJUSTMENTS

T-BASS BBE PHONES VOLUME MANUAL SELECT T-BASS VOL^^/v ◀◀,▶◀

VOLUME CONTROL

Turn VOLUME on the main unit, or press VOL ∧ or √ on the remote control.

The volume level is displayed as a number from 0 to MAX (50). The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.

To change the left/right balance

Press MANUAL SELECT on the remote control. L/R is displayed for 2 seconds. Press ◀◀ or ▶▶ on the remote control within these 2 seconds.

• The DOLBY PRO LOGIC (page 24) and the DOLBY DIGITAL SURROUND (page 25) front speakers level is also changed.

BBE SYSTEM

The BBE system enhances the clarity of high-frequency sound. It also enriches the Karaoke function to make your voice sound clear and pleasant.

Press BBE.

Each time it is pressed, the level changes. Select one of the three levels or the off position to suit your preference.

CD REG T-REG RANDOM FROM A1 EDIT

NOTE

When playing back a tape recorded with BBE, it is recommended that BBE be set to off to avoid distorted high frequency sound.

SUPER T-BASS SYSTEM

The T-BASS system enhances the realism of low-frequency sound.

Press T-BASS.

Each time it is pressed, the level changes. Select one of the three levels or the off position to suit your preference.

00 TAG RANDOM HIGH AI EDIT

NOTE

Low-frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low-frequency sound is already emphasized. In this case, cancel the T-BASS system.

Using the headphones

Connect headphones to PHONES jack with a stereo standard plug (ø6.3 mm, 1/4 inch).

No sound is output from the speakers while the headphones are plugged in.

- When the headphones are plugged in, the DSP SURROUND system (page 13), the DOLBY PRO LOGIC (page 24) and the 5.1CH (page 25) do not function.

GRAPHIC EQUALIZER

SELECTING THE PROGRAMMED EQUALIZATION CURVE

This unit provides the following 5 different equalization curves.

ROCK: Powerful sound emphasizing treble and bass

POP: More presence in the vocals and midrange

LATIN: Accented higher frequencies for latin-type music

CLASSIC: Enriched sound with heavy bass and fine treble

JAZZ: Accented lower frequencies for jazz-type music.

GEQ MULTI JOG GEQ

1 Press GEQ.

The current mode is displayed.

2 Within 4 seconds, turn MULTI JOG or press ◀◀◀ or ▶▶ to select a desired mode. The modes are displayed cyclically as below.

The mode will be automatically set after 4 seconds.

To cancel the selected mode

Press GEQ twice so that "GEQ OFF" is displayed.

To select with the remote control

Press GEQ repeatedly until the desired program mode is displayed. Each mode and "GEQ OFF (cancel)" appear cyclically.

SETTING A NEW EQUALIZATION CURVE MANUALLY

GEQ FREQ (HIGH) GEQ FREQ (LOW) MULTI JOG

The equalization curve can be customized to suit your preference.

1 Press GEQ FREQ (LOW).

The lowest level frequency indicator flashes for 8 seconds.

2 Within 8 seconds, turn MULTI JOG to adjust the level of the lowest frequency.

8:00 LOW RANDOM P/ASM AI EDIT ONE TRADE

3 Press GEQ FREQ (HIGH).

The highest level frequency indicator flashes for 8 seconds.

4 Within 8 seconds, turn MULTI JOG to adjust the level of the highest frequency.

GEO HIGH TRANS RANDOM FROM A1 EDIT

The frequency level indicators between the lowest and the highest are adjusted accordingly.

MEMORIZING THE NEW EQUALIZATION CURVES

GEQ FREQ MULTI JOG ENTER

Up to 5 customized equalization curves can be stored on the manual mode M1-M5.

1 Set a new equalization curve with GEQ FREQ and MULTI JOG.

See "SETTING A NEW EQUALIZATION CURVE MANUALLY" on page 12.

The created equalization curve is displayed for 8 seconds.

2 Within 8 seconds, press ENTER.

"GEQ M1" is displayed and all the manual mode indicators flash for 8 seconds. Go to step 3 within those 8 seconds.

- If this step is not completed within 8 seconds, press GEQ FREQ first to display "GEQ HIGH" or "GEQ LOW". Then press ENTER within 8 seconds.

3 While the manual mode indicators are flashing, turn MULTI JOG to select a number among from M1 to M5 and press ENTER.

The equalization curve is stored.

To select the stored equalization curve

1 Press GEQ.

2 Within 4 seconds, turn MULTI JOG to select a desired number among from M1 to M5.

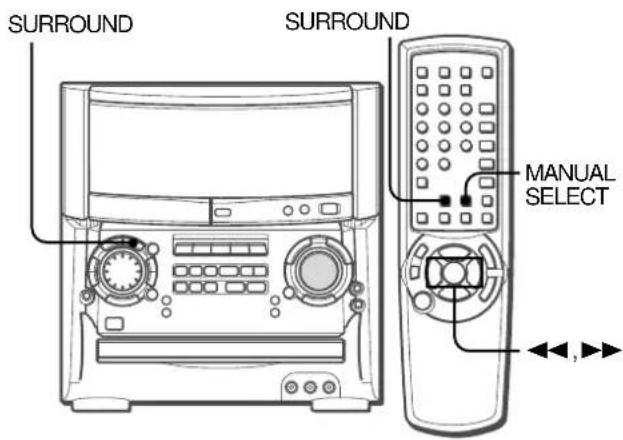

DSP SURROUND

The DSP (Digital Signal Processor) SURROUND system can create the effect of sound reflected from walls and ceilings. This system enhances 5 types of sound presence.

DISCO: Sound presence of a disco

LIVE: Sound presence of a live music performance

STADIUM: Sound presence of a stadium

HALL: Sound presence of a concert hall

MOVIE: Sound presence of a movie theater

The current mode is displayed.

2 Within 4 seconds, turn MULTI JOG or press ◀◀◀ or ▶▶▶ to select a desired mode.

Equalization curves are selected automatically to match the DSP SURROUND modes and can also be selected or turned off to suit your preference.

When the music source is monaural

Select LIVE, STADIUM or MOVIE to obtain a simulated stereo effect. When DISCO or HALL is selected, no sound will be heard from the surround speakers.

To cancel the selected mode

Press SURROUND twice so that "DSP OFF" is displayed. The selected equalization curve remains.

To adjust the volume of the surround speakers

Press MANUAL SELECT twice or three times on the remote control. "S-L" or "S-R" is displayed for 2 seconds. Press ◀◀ or ▶▶ on the remote control within these 2 seconds.

- The DOLBY PRO LOGIC (page 23) and the DOLBY DIGITAL SURROUND (page 25) surround speakers level is also changed.

NOTE

The DSP SURROUND mode is canceled when:

• the ECHO is turned on.
• the DOLBY PRO LOGIC is turned on.
• the headphones are plugged in.
• the 5.1CH (page 25) is selected.

MANUAL TUNING

TUNER/ BAND TUNER Preset MULTI JOG POWER MONO TUNER/ BAND

1 Press TUNER/BAND repeatedly to select the FM or AM band.

When TUNER/BAND is pressed while the power is off, the power is turned on directly (Direct Play Function).

2 Press TUNER PRESET repeatedly to select the manual tuning mode.

Each time the button is pressed, the following three tuning modes are selected cyclically.

① Preset tuning mode: The preset number flashes.
② Auto search mode: "SEARCH" is displayed.
③ Manual tuning mode: "SEARCH" is not displayed and the preset number does not flash.

DOLETH PROLOGIC NORMAL PHANTOGOL STEREO SEARCH FL NL FIN MOSSO ROCK M1 LIVE POP M2 STORM LATIN M3 HALL CLASSIC M4 MOVE JAZZ M5 SELLER

Frequency FM 87.50 Preset number RUNNER FROM AT 2000

NOTE

The preset tuning mode is skipped if no station is preset.

3 Turn MULTI JOG clockwise or counterclockwise to tune in to a station.

The frequency changes as you turn MULTI JOG.

When a station is received, "TUNE" is displayed for 2 seconds.

During FM stereo reception, ((0))) is displayed.

[101] CD.37 PROLOGIC NORMAL FANET 3STEREO C2 FL FR RIL R4 DUBO HOCOMI LIVE PDP MA SODIM LATIN MS HALL CLASSIC MA MOOVE JAZO MS LPG GND

- ◀◀DOWN and ▶▶UP are also available to tune in to a station.

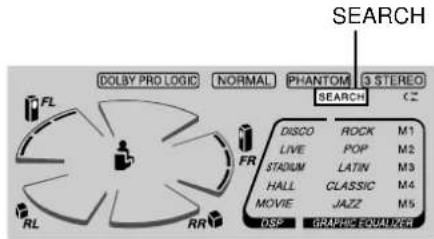

To search for a station quickly (Auto Search)

Press TUNER PRESET repeatedly to display "SEARCH" (auto search mode), and turn MULTI JOG clockwise or counterclockwise until the frequency starts to change rapidly. After tuning in to a station, the search stops.

DOLBY PRO LOGIC NORMAL PHANTOM 3 STEREO FL FR DISCO ROCK M1 LIVE POP M2 STADIUM LATIN M3 HALL CLASSIC M4 MOVIE JAZZ M5 DSP GRAPHIC EQUALIZER

To stop the Auto Search manually, turn MULTI JOG a little in either direction.

• The Auto Search may not stop at stations with very weak signals.
- ◀◀DOWN and ▶▶UP are also available to search for a station. Keep ◀◀DOWN or ▶▶UP pressed until the tuner starts searching. Press the button to stop the search manually.

When an FM stereo broadcast contains noise

Press MONO TUNER on the remote control so that "MONO" appears on the display.

Noise is reduced, although reception is monaural.

MONO DOLBY PRO LOGIC NORMAL PHANTOM 3 STEREO FL FR MONO DISCO ROCK M1 LIVE POP M2 STADIUM LATIN M3 HALL CLASSIC M4 MOVIE JAZZ M5 DSP GRAPHICS EQUALIZER

To restore stereo reception, press MONO TUNER so that "MONO" disappears and "STEREO" is displayed for 2 seconds.

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval.

Press POWER while pressing TUNER/BAND on the unit.

To reset the interval, repeat this procedure.

PRESETTING STATIONS

TUNER/ BAND TUNER/ BAND <<,▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶◀,▲◀

The unit can store a total of 32 preset stations for all bands. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

1 Press TUNER/BAND to select a band, and tune in to a station with ◀◀DOWN or ▶▶UP.
2 Press IISET to store the station.

A preset number beginning from 1 in consecutive order for each band is assigned to a preset station.

Frequency FM 93.00 MFG RANDOM FROM AI EDIT

3 Repeat steps 1 and 2.

No more stations will be stored if a total of 32 preset stations have already been stored.

NOTE

• When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.
• "FULL" is displayed if you attempt to store more than 32 preset stations.

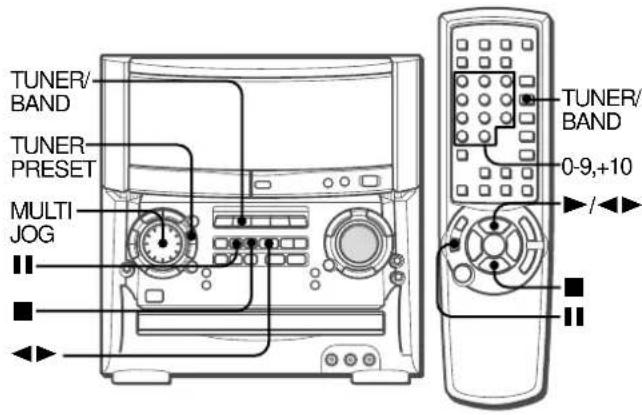

PRESET NUMBER TUNING

Use the remote control to select the preset number directly.

TUNER/ BAND TUNER Preset MULTI JOG TUNER/ BAND 0-9,+10 /◄► ■ ■ ◄►

1 Press TUNER/BAND to select a band.
2 Press numbered buttons 0-9 and +10 to select a preset number.

Example:

To select preset number 20, press +10, +10 and 0.

To select preset number 15, press +10 and 5.

Selecting a preset number on the main unit

Press TUNER/BAND to select a band.

Press TUNER PRESET repeatedly until the preset number flashes (preset tuning mode), and turn MULTI JOG. The preset numbers are selected in sequence as you turn MULTI JOG.

- ◀▶PRESET is also available to select the preset number. Each time the button is pressed, the next highest number is selected.

To clear a preset station

Select the preset number of the station to be cleared with the numbered buttons. Then, press ■CLEAR, and press IISET within 4 seconds.

The preset numbers of all other stations in the band with higher numbers are decreased by one.

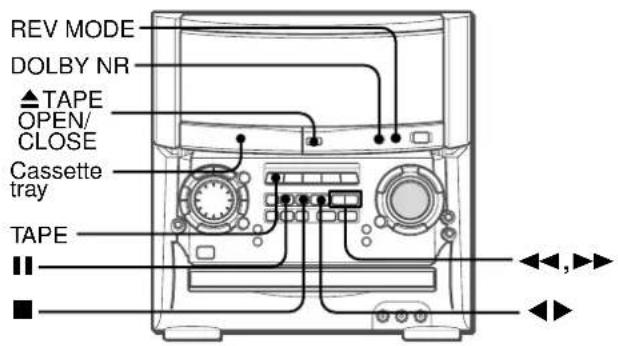

BASIC OPERATIONS

REV MODE DOLBY NR ▲TAPE OPEN/ CLOSE Cassette tray TAPE

1 Press DOLBY NR to turn Dolby NR on or off to match the playback tape.

DO NR TOPE 00 NR RANDOM FROM X1 EDIT 0000 T-LOGI

For tapes recorded with DOLBY NR, turn on ☐NR. For tapes recorded without DOLBY NR, turn off ☐NR.

2 Press TAPE and press ▲TAPE OPEN/CLOSE to open the cassette tray.

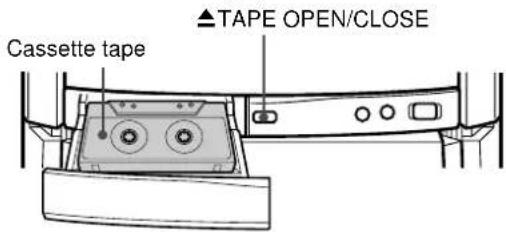

Cassette tape ▲TAPE OPEN/CLOSE

Load a tape with the exposed side facing the unit, and the side to be played back facing upward.

3 Press ▲TAPE OPEN/CLOSE to close the cassette tray.

4 Press ◀▶ to start play.

To play the opposite side of the tape, press ◀▶ again.

Playback side indicator The tape counter indicates the tape running length. TP 30000 RANDOM FROM Air Edit RARE T-AMG

◀: The side facing upward is being played (forward).

▶: The opposite side is being played (reverse).

To stop play, press ■.

To pause play, press III. To resume play, press again.

To fast forward or rewind, press ◀◀ or ▶▶. Then press ■ to stop the tape.

Types of tape

Use Type I (normal), Type II (high/CrO2) or Type IV (metal) tapes for playback.

To select a reverse mode

Each time REV MODE is pressed, the reverse mode changes.

To play one side only, select 2.

To play from the side facing upward to the opposite side once only, select C.

To play both sides repeatedly, select (二).

To start play when the power is off (Direct Play Function) When a tape is loaded, press TAPE. The power is turned on and playback begins.

When ▲TAPE OPEN/CLOSE is pressed, the power is also turned on.

To set the tape counter to "0000"

Press ■ CLEAR in stop mode.

The counter is also set to "0000" when the cassette tray is opened.

MUSIC SENSOR

If there is a 4-second or longer blank between each track, a search for the beginning of the current or next track during playback can be done easily.

When the ◀ indicator of ◀ is flashing, press ◀ to move to the next track or ▶ to move to the beginning of the current track.

When the ▶ Indicator of ◀▶ Is flashing, press ▶▶ to move to the next track, or ◀◀ to move to the beginning of the current track.

The search function may not be able to detect tracks under the following conditions:

• Blanks of less than 4 seconds between tracks
• Noisy blanks
• Long passages of low-end sound
• Low overall recording levels

BASIC OPERATIONS

LOADING DISCS

CD DISC CHANGE ▲CD OPEN /CLOSE

Press CD, then press ▲CD OPEN/CLOSE to open the disc compartment. Load disc(s) with the label side up.

To load one or two discs, place the discs tray 1 and tray 2.

DISC CHANGE Tray number

To load three discs, press DISC CHANGE to rotate the trays after placing two discs. Place the third disc on tray 3.

After placing the discs, press ▲CD OPEN/CLOSE to close the disc compartment.

The display shows the information of the disc to be played.

Total number of tracks 49:23 Total playing time 16 RANDOM FROM AT EDIT Tray number of the disc to be played

PLAYING DISCS

DIRECTION/ PRESET CD EDIT/ CHECK 0-9,+10 CD ▲CD OPEN/ CLOSE ►/◄► ◄◄►,►►► DISC DIRECT PLAY MULTI JOG DISC DIRECT PLAY

Load discs.

To play all discs in the disc compartment (continuous play), press ◀▶.

Play begins with the disc on tray 1.

The indicator of DISC DIRECT PLAY flashes to indicate the disc being played.

Number of track

being played 0:05 Elapsed playing time RANDOM FROM ALL EDIT 1 BKE TRANS

To play one disc only (single disc play), press one of DISC DIRECT PLAY 1-3.

The disc with the selected tray number is played once.

Only the indicator of the selected DISC DIRECT PLAY flashes.

Number of track being played Elapsed playing time 1 0:05 RANDOM FROM A/ EDT 1 8 4 5 7 6 7 6 3 2 3 4 1 0 1 2 3 Selected disc tray number

To play with the remote control

Press DISC DIRECT PLAY, then press one of the numbered buttons 1-3 within 3 seconds to select a disc.

To stop play, press ■.

To pause play, press Ⅱ. To resume play, press again.

To search for a particular point during playback, keep ◀◀◀ or ▶▶ pressed and release the button at the desired point.

To skip to the beginning of a track during playback, turn MULTI JOG or press ◀◀ or ▶▶ repeatedly.

To remove discs, press ▲CD OPEN/CLOSE.

You can only remove the two discs that face you. When the disc(s) to be removed does(do) not face you, press DISC CHANGE repeatedly.

To start play when the power is off (Direct Play Function)

Press CD. The power turns on and play of the loaded disc(s) begins.

When ▲ CD OPEN/CLOSE is pressed, the power is also turned on and the disc compartment is opened.

To check the remaining time

Press CD EDIT/CHECK on the remote control during play. The amount of time remaining until all tracks finish playing is displayed. To restore the playing time display, press CD EDIT/CHECK.

Selecting a track with the remote control

1 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-3 within 3 seconds to select a disc.
2 Press the numbered buttons 0-9 and +10 to select a track. Example:

To select the 25th track, press +10, +10 and 5.

To select the 10th track, press +10 and 0.

The selected track starts to play and play continues to the end of that disc.

Replacing discs during play

While one disc is playing, the other discs can be replaced without interrupting play.

1 Press DISC CHANGE.
2 Remove the discs and replace with other discs.
3 Press ▲CD OPEN/CLOSE to close the disc compartment.

NOTE

• When loading an 8-cm (3-inch) disc, make sure to place it onto the inner circle of the tray precisely.
• Do not place more than one compact disc on one disc tray.
• Do not tilt the unit with discs loaded. Doing so may cause malfunctions.
• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
• The unit may not play a CD-R/RW disc that is recorded on personal computers or some kinds of CD-R/RW recorders because of differences in recording platforms.
• Do not attach any seal or label to either side (the recordable side or the labeled side) of a CD-R/RW disc. It may cause malfunction.

RANDOM/REPEAT PLAY

RANDOM/REPEAT

Use the remote control.

RANDOM PLAY

All the tracks on the selected disc or all the discs can be played randomly.

REPEAT PLAY

A single disc or all the discs can be played repeatedly.

Press RANDOM/REPEAT.

Each time it is pressed, the function can be selected cyclically. RANDOM play — The line around RANDOM lights up on the display.

REPEAT play — lights up on the display. RANDOM/REPEAT play — The line around RANDOM and light up on the display.

Cancel — The line around RANDOM and ▶ disappear from the display.

To play all discs, press ◀▶ to start play.

To play a single disc, press DISC DIRECT PLAY, then press one of the numbered buttons 1-3 within 3 seconds to start play.

NOTE

• During random play, it is not possible to skip to the previously played track with ◀◀ or MULTI JOG.
• Random play is canceled when the numbered button is pressed to select a track.

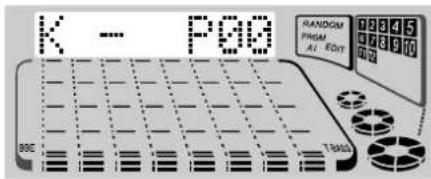

PROGRAMMED PLAY

Up to 30 tracks can be programmed from any of the inserted discs.

PRGM 0-9,+10 DISC DIRECT PLAY RANDOM/REPEAT ▶/◀▶ ◀◀,▶▶ ■

Use the remote control.

1 Press PRGM twice in stop mode.

“--” and the line of PRGM appear on the display.

PRGM RANDOM PROM A1 EDIT LOAD

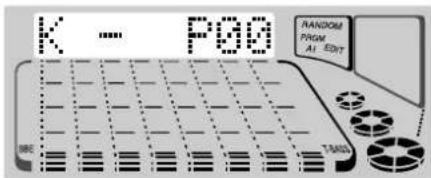

- When PRGM is pressed once in step 1, the unit enters the CD KARAOKE PROGRAM (page 28).

2 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-3 within 3 seconds to select a disc.

Go to the next step when the tray stops rotating.

3 Press the numbered buttons 0-9 and +10 to program a track.

Example:

To select the 25th track, press +10, +10 and 5.

To select the 10th track, press +10 and 0.

Selected track number Program number 6Tr F-01 Total number of selected tracks 1P 3:29 Total playing time of the selected tracks

4 Repeat steps 2 and 3 to program other tracks.

5 Press ◀▶ to start play.

To check the program

Each time ◀◀ or ▶▶ is pressed in stop mode, a disc number, track number, and program number will be displayed.

To clear the program

Press ■ CLEAR in stop mode.

To add tracks to the program

Repeat steps 2 and 3 in stop mode. The track will be programmed after the last programmed track.

To change the programmed tracks

Clear the program and repeat all the steps again.

To play the programmed tracks repeatedly

After programming the tracks, press RANDOM/REPEAT once so that appears on the display.

NOTE

• During programmed play, you can not use random play or check the remaining time.
• During programmed play, you can not select a track. "Can't USE" is displayed if you attempt to select a track.
• "FULL" is displayed if you attempt to program more than 30 tracks.

BLANK SKIP PLAY

The silent portions between tracks recorded on a CD can be skipped during playback.

1 Press CD BLANK SKIP on the main unit.

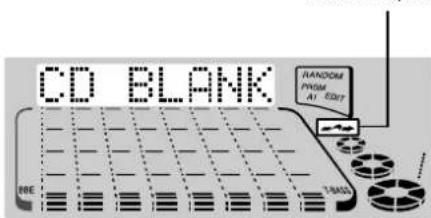

"CD BLANK SKIP ON" is displayed and a blank skip mark will appear in the display. Blank skip mark

CD BLANK RANDOM FROM AT 80%

2 Press ◀▶ to start playback.

The silent portions between tracks will be skipped, and the sound will be played back without interruption. If a track fades out (ends with the sound gradually decreasing), the fadeout portion will also be skipped.

To return to normal playback

Press CD BLANK SKIP again. "CD BLANK SKIP OFF" is displayed and the blank skip mark in the display will disappear.

NOTE

• There may be a case where BLANK SKIP PLAY does not function correctly.
• BLANK SKIP PLAY is automatically canceled when performing AI EDIT RECORDING (page 21), PROGRAMMED EDIT RECORDING (page 22), or recording during PROGRAMMED PLAY (left column) or RANDOM PLAY (page 18).

BASIC RECORDING

This section explains how to record from the tuner, CD player, or external equipment.

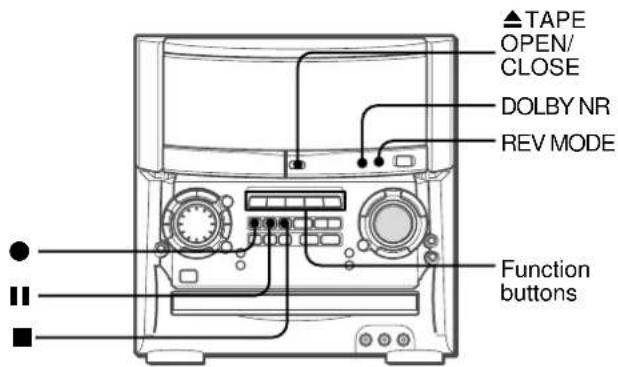

▲TAPE OPEN/ CLOSE DOLBY NR REV MODE Function buttons

Preparation

• Set the tape to the point where recording will start.
• Use Type I (normal) and Type II (high/CrO2) tapes for recording.

1 Load a tape to be recorded.

Load the tape with the exposed side facing the unit, and the side to be recorded facing upward.

▲TAPE OPEN/CLOSE Cassette tape

To open or close the cassette tray, press ▲TAPE OPEN/CLOSE of the cassette tray.

2 Press REV MODE to select the reverse mode.

To record on one side only, select 二. To record on both sides, select ①(二).

3 Press DOLBY NR to turn Dolby NR on or off.

To record with DOLBY NR, turn on ☐NR. To record without DOLBY NR, turn off ☐NR.

4 Press one of the function buttons and prepare the source to be recorded.

To record from a CD, press CD and load the disc(s). To record from a radio broadcast, press TUNER/BAND and tune in to a station. To record from the connected source, press VIDEO1/2/3 or AUX/PHONO/5.1CH and play.

5 Press ●REC/REC MUTE to start recording.

REC REC NR 93.00 MNU RANDOM FROM AI EDIT REC 1.0000

When the selected function is CD, playback and recording start simultaneously.

To stop recording, press ■.

To pause recording, press III. (Applicable when the recording source is TUNER, VIDEO1/2/3 or an external equipment connected to AUDIO IN jacks on the rear or the front.) To resume recording, press again.

To start recording with the remote control

First press ●/OREC/REC MUTE, and then press ◀▶ within 2 seconds.

NOTE

"Can't REC" is displayed if you attempt to record on a tape with the plastic tabs brocken off.

SOUND ADJUSTMENT DURING RECORDING

The output volume and tone (except BBE, MIC, ECHO and the rhythm play function) of the speakers or headphones are freely varied without affecting the recording.

INSERTING BLANK SPACES

Insertion of 4-second blank spaces enables you to activate the Music Sensor function. (Applicable when the source is TUNER, VIDEO1/2/3 or AUX/PHONO/5.1CH.)

1 Press ●REC/REC MUTE during recording or while in recording pause mode.

"REC" on the display flashes for 4 seconds and a 4-second blank space is made. Then, the deck enters the recording pause mode.

2 Press II to resume recording.

To insert a blank space of less than 4 seconds, press ●REC/REC MUTE again while "REC" is flashing.

To insert blank spaces of more than 4 seconds, after the deck enters recording pause mode, press ●REC/REC MUTE again. Each time the button is pressed, a 4-second blank space is added.

To erase a recording

Make sure the microphone is not connected to the unit. Set the microphone volume and the echo level to OFF (page 26).

1 Press TAPE and load the tape to be erased.
2 Set the tape to the point where the erasure is to be started.
3 Set the reverse mode by pressing REV MODE.
4 Press ●REC/REC MUTE to start the erasure.

AI EDIT RECORDING

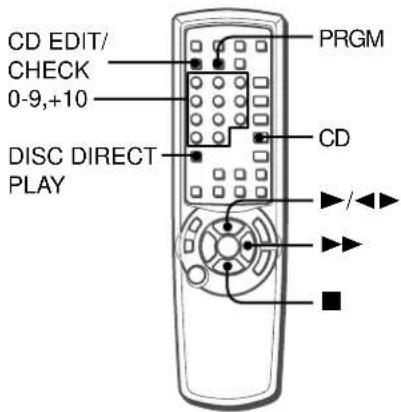

CD EDIT/ CHECK 0-9,+10 DISC DIRECT PLAY CD /◄► ◄►,►► ●/○

The AI edit recording function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track lengths. If necessary, the order of tracks is rearranged so that no track is cut short.

(AI: Artificial Intelligence)

NOTE

The AI edit recording will not start from a point halfway into the tape. The tape must be recorded from the beginning of either side.

Use the remote control from steps 3 to 6.

1 Load the tape into the cassette tray, and press DOLBY NR to turn Dolby NR on or off.

Load the tape with the side to be recorded on first facing upward.

2 Press CD and load the disc(s).

3 Press CD EDIT/CHECK once.

The lines of AI EDIT and "AI" light up on the display.

AI AI C-PIA AI EDIT RANDOM PWM AI EDIT

When "PRGM" is selected, press CD EDIT/CHECK again.

4 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-3 within 3 seconds to select a disc.

5 Press the numbered buttons 0-9 to designate the tape length.

10 to 99 minutes can be specified.

Example: When using a 60-minute tape, press 6 and 0.

In a few seconds, the tracks to be recorded on each side of the tape are determined.

- ◀◀, ▶▶ and MULTI JOG are also available to designate the tape length.

Tape length Tape side A (facing upward) Selected tracks for side A Remaining time of side A

6 Press ●/OREC/REC MUTE, and then press

▶/◀▶ within 2 seconds to start recording.

The tape is rewound to the beginning of the side facing upward, the lead segment is played through for 10 seconds, and recording starts. When recording on the side facing upward (side A) ends, recording on the other side (side B) starts.

To stop recording

Press ■. Recording and CD play stop simultaneously.

To clear the edit program

Press ■ twice so that the line of EDIT disappears from the display.

To check the order of the edit program

Before recording, press CD EDIT/CHECK to select side A or B, and press ◀◀ or ▶▶ repeatedly.

Tape side Track number Program number Programmed track numbers P-01 RANDOM FROM EDIT AT EDIT

To add tracks from other discs to the edit program

If there is any time remaining on the tape after step 5, you can add tracks from other discs in the CD compartment.

1 Press CD EDIT/CHECK to select side A or B.

2 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-3 within 3 seconds to select a disc.

3 Press the numbered buttons 0-9 and +10 to select tracks. A track whose playing time is longer than the remaining time cannot be programmed.

4 Repeat steps 2 and 3 to add more tracks.

5 Start recording.

The line of AI lights off and the line of PRGM lights up.

Time on cassette tapes and editing time

The actual cassette recording time is usually a little longer than the specified recording time printed on the label. This unit can program tracks to use the extra time. When the total recording time is a little longer than the tape's specified recording time after editing, the display shows the extra time (without a minus mark), instead of the time remaining on the tape (with the minus mark).

NOTE

- Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.

- The AI edit function cannot be used with discs containing 31 tracks or more. "TR OVER" is displayed if this is attempted.

PROGRAMMED EDIT RECORDING

CD EDIT/ CHECK 0-9,+10 DISC DIRECT PLAY CD /◄► ◄►,►► ●/○

In the programmed edit recording function, the tracks can be programmed while checking the remaining time on each side of the tape as the tracks are programmed.

NOTE

The programmed edit recording will not start from a point halfway in the tape. The tape must be recorded on from the beginning of either side.

Use the remote control from steps 3 to 8.

1 Load the tape into the cassette tray, and press DOLBY NR to turn Dolby NR on or off.

Load the tape with the side to be recorded on first facing upward.

2 Press CD and load the disc(s).

3 Press CD EDIT/CHECK twice.

The lines of PRGM EDIT and "PRGM" light up on the display.

PRGM PRGM EDIT PRGMC - 400 RANDOM FROM AT EDIT

When "AI" is selected, press CD EDIT/CHECK again.

4 Press the numbered buttons 0-9 to designate the tape length.

10 to 99 minutes can be specified.

Tape length PRGTC-60 Tape side A Maximum recording time for side A 30:00

- ◀◀, ▶▶ and MULTI JOG are also available to designate the tape length.

5 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-3 within 3 seconds to select a disc. Then, press the numbered buttons 0-9 and +10 to program a track.

Example: To select the 10th track of disc 2, press DISC DIRECT PLAY and 2, then +10 and 0.

Selected track number Program number Selected disc number

Remaining time on side A -24:54 Programmed track numbers

6 Repeat step 5 for the rest of the tracks for side A.

A track whose playing time is longer than the remaining time cannot be programmed.

7 Press CD EDIT/CHECK to select side B and program the tracks for side B.

After confirming B on the display, repeat step 5.

Tape side B(reverse side) B 30:00 RANDOM ITEMS AI EDIT

8 Press ●/OREC/REC MUTE, and then press

▶/◀▶ within 2 seconds to start recording.

The tape is rewound to the beginning of the side facing upward, the lead segment is played through for 10 seconds, and recording starts. When recording on the side A facing upward ends, recording on the other side B starts.

To stop recording

Press ■. Recording and CD play stop simultaneously.

To check the order of the programmed track numbers

Before recording, press CD EDIT/CHECK to select side A or B, and press ◀◀ or ▶▶ repeatedly.

Track number P-01 Programmed track numbers Random FROM A1 EDIT Disc number Program number

To change the program of each side

Press CD EDIT/CHECK to select side A or B, and press

■CLEAR to clear the program on the selected side. Then program tracks again.

To clear the edit program

Press ■ CLEAR twice so that the line of EDIT disappears from the display.

NOTE

• Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.
• Up to 30 tracks can be programmed from any of the inserted discs.
• "FULL" is displayed if you attempt to program more than 30 tracks.

About cassette tapes

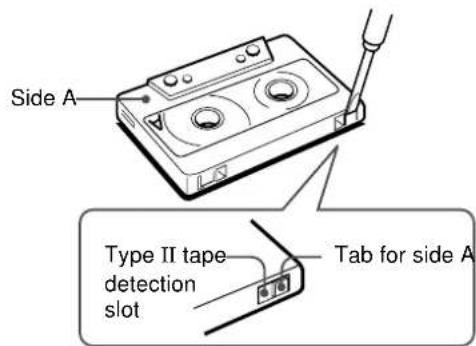

- To prevent accidental erasure, break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.

Side A Type II tape detection slot Tab for side A

To record on the tape again, cover the tab openings with adhesive tape, etc. (On Type II tapes, take care not to cover the Type II tape detection slot.)

• 120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.
  • Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break or jam in the mechanism.

Line drawing of hands holding a device with buttons and a switch (no text or symbols)

DOLBY NR system

The Dolby Noise Reduction system reduces tape hiss noise. For optimum performance when playing back a tape recorded with the DOLBY NR system, turn on the DOLBY NR system.

DOLBY SURROUND

The DOLBY PRO LOGIC feature and the center and surround speakers (standard) assure full-scale home theater sound. When playing back laser discs or video software that have been recorded in Dolby Surround, astonishingly realistic sound surrounds the listener to create a new level of audio/visual entertainment.

Independent control of the five sound channels allows the listener to enjoy the same type of sound reproduction experienced in movie theaters. Voices are reproduced in the front and center sound field, while ambient sounds like cars and crowds are reproduced on all sides of the listener for an incredibly lifelike audio/video experience. Please read the following carefully to "tune" the system's output to match the characteristics of your listening space.

Check the following:

• Before using the DOLBY PRO LOGIC, adjust the proper balance of speaker sound levels.
• Make sure the supplied speakers are properly connected and positioned (see page 5).
• Make sure the TV set and video unit are properly connected (see page 7).
  • Make sure the laser disc, video tape, etc., support DOLEY SURROUND.

The unit is equipped with a built-in test signal generator called a noise sequencer for easy balance adjustment of all 5 channels. The sequencer outputs a noise signal that "travels" from channel to channel, enabling the simple adjustment of sound level to achieve, at the listening position, the same apparent loudness from each channel.

1 Press DOLBY PRO LOGIC to select NORMAL.

“NORMAL” is displayed.

If "PHANTOM" or "3 STEREO" is displayed, press DOLBY

PRO LOGIC repeatedly until "NORMAL" is selected.

2 Press MANUAL SELECT and hold it down for about 4 seconds until "L" flashes.

K-R G RANDOM PHISM AI EDIT

A noise signal is sent to each channel in turn in the following sequence.

3 Adjust the sound level of the center and the surround speakers.

While "CEN", "S-R" or "S-L" is displayed, press ◀◀ or ▶▶ to adjust the volume of the center or surround speakers to match the level of the left and right speakers.

OPEN + 3 RANDOM FROM AJ EDIT

To adjust the balance between the left and right front speakers, see page 11.

4 Press MANUAL SELECT again to stop the noise signal.

NOTE

• If the surround speakers or the center speaker level of the DOLBY PRO LOGIC is changed, that of the DSP SURROUND system (page 13) and the DOLBY DIGITAL SURROUND (page 25) is also changed.
• While "S-R" or "S-L" is displayed, both surround speakers output the noise signal together. However, only the sound level of one surround speaker displayed as "S-R" or "S-L" can be adjusted.
• When the sequencer outputs a noise signal, a clicking sound might be heard from the speakers due to the characteristics of the circuit. This is not malfunction.

About the channels

The left and right speakers create the stereo effect.

The center speaker helps achieve precise sound positioning over a broad sound field.

The surround speakers enhance the "depth" of the sound field.

To change the delay time

The surround speakers reproduce sounds a split second after the front speakers. The delay is initially set to 20 ms (milliseconds). To change this standard delay time, press MANUAL SELECT on the remote control repeatedly in NORMAL or PHANTOM mode until "TIME" is displayed. Then, press the ◀◀ or ▶▶. Each time one of the buttons is pressed, the delay time changes as shown below.

TIME 20.5 RANDOM FROM A1 EDIT

PLAY WITH DOLBY PRO LOGIC

AUX/ PHONO/ 5.1CH VIDEO 1/2/3 MANUAL SELECT ◀◀,▶◀

1 Press VIDEO 1/2/3 or AUX/PHONO/5.1CH. Then start playback of the video source.
2 Press DOLBY PRO LOGIC.

NORMAL is selected, and the playback sound has the DOLBY PRO LOGIC effect.

To cancel DOLBY PRO LOGIC mode

Press DOLBY PRO LOGIC repeatedly until "OFF" is displayed.

To change the sound levels during playback

After adjusting the balance with the noise sequencer, the sound levels of the center or surround speakers can be adjusted during playback of laser discs or video software.

1 Press MANUAL SELECT on the remote control repeatedly to select "CEN" (center), "S-R" (surround right) or "S-L" (surround left).
2 While the "CEN", "S-R" or "S-L" is displayed, press ◀◀ or ▶▶ on the remote control to adjust the volume.

15ms 20ms 30ms

ADDITIONAL DOLBY PRO LOGIC MODES

In addition to the NORMAL mode, this unit is also equipped with the PHANTOM and the 3 STEREO modes.

PHANTOM mode: Use this mode when no center speaker is connected. The center channel signals are output through the left and right speakers.

3 STEREO mode: Use this mode when no surround speakers are connected. This mode reproduces rear sounds through the front speakers.

To select PHANTOM or 3 STEREO

Press DOLBY PRO LOGIC repeatedly until the desired DOLBY PRO LOGIC mode is displayed. The DOLBY PRO LOGIC mode is displayed cyclically as follows.

To adjust the balance of connected speaker sound levels

Carry out steps 2 to 4 on page 23.

NOTE

• Depending on the sound source and/or listening conditions, surround effect may not be obtained even when the DOLBY PRO LOGIC is on.
• The full DOLBY PRO LOGIC effect cannot be obtained when using software without ☐☐ DOLBY SURROUND mark. In this case, use the DSP SURROUND system instead (see page 13).
• The DOLBY PRO LOGIC is automatically canceled when: - the ECHO is turned on.

- the DSP SURROUND system or the BBE is turned on.

- the headphones are plugged in.

-the Karaoke function is turned on.

- the 5.1CH (page 25) is turned on.

- Set the microphone volume to OFF while the DOLBY PRO LOGIC is on. Otherwise, the DOLBY PRO LOGIC sound cannot be reproduced correctly.

When too high signals are input

When input analog signals from the connected equipment are too high to accept, ▶ on the left of "DOLBY PRO LOGIC" in the display lights up.

In this case, turn down the input level. If not, erroreous operation will be carried out in the processor.

Complete the connection on page 8 at first.

When a DVD player is connected to 5.1CH INPUT jacks of this unit, you can listen to DOLBY DIGITAL SURROUND sound, which enables you to enjoy theater-quality sound in your home.

1 Press AUX/PHONO/5.1CH repeatedly until "5.1ch IN" is displayed.
DOLBY DIGITAL SURROUND is turned on.
2 Press ◀◀ or ▶▶ to adjust the input level while "5.1ch IN" is displayed.
The input level can be selected from MIN (0) to MAX (7).
3 Start playing DOLBY DIGITAL SURROUND sound on the DVD player.

NOTE

• The DOLBY PRO LOGIC, the BBE, the DSP SURROUND system, Karaoke function, MIC and ECHO are automatically canceled when the 5.1CH is selected.
• Make sure the software played back with the connected equipment support the DOLBY DIGITAL SURROUND.

• The function is changed from the 5.1CH to the AUX when:

• the headphones are plugged in.

• the DSP SURROUND system, the DOLBY PRO LOGIC or the Karaoke function is turned on.
• the MIC or ECHO level is changed.

To adjust the sound levels of the speakers while listening to the source (DOLBY DIGITAL SURROUND)

1 Press AUX/PHONO/5.1CH repeatedly until "5.1ch IN" is displayed.

DOLBY DIGITAL SURROUND is turned on.

2 Press MANUAL SELECT on the remote control repeatedly.

Speaker name appears in turn as follows:

3 Press ◀◀ or ▶▶ to adjust the sound level while "L/R", "CEN", "S-L", "S-R" or "S-W" is displayed.
4 Repeat steps 2 and 3 to adjust each speaker's sound level.

NOTE

If the surround speakers or the center speaker level of the DOLBY DIGITAL SURROUND is changed, that of the DSP SURROUND system (page 13) and the DOLBY PRO LOGIC (page 24) is also changed.

MICROPHONE MIXING

Function buttons VOLUMEVOLUME MIC 1/2 MIC ECHO KARAOKE

Two microphones (not supplied) can be connected to this unit, allowing you to sing along to music sources.

Use microphones with standard plugs ( 6.3 mm, ^1/_4 inch).

Before connecting a microphone

Press MIC and turn VOLUME counterclockwise until "MIC OFF" is displayed.

1 Connect your microphones to MIC 1 and MIC 2 jacks.

MIC 1 MIC 2

2 Press one of the function buttons to select the source to be mixed, and play the source.
3 Adjust the volume and tone of the source.
4 Press MIC and turn VOLUME within 4 seconds to adjust the microphone volume.

The microphone volume can be selected from 1 to MAX (7) or OFF (cancel).

The volume of both microphones is adjusted simultaneously.

5 Press ECHO and turn VOLUME within 4 seconds to adjust the echo level.

The echo level can be selected from 1 to MAX (7) or OFF (cancel).

To change the delay time of echo

Hold down ECHO while the echo is on. "ECHO-L" (Long) and "ECHO-M" (Middle) are displayed alternately. At the desired position, release the button.

To record microphone sound mixed with source sound Follow the procedure for recording from the sound source (see page 20).

When the microphones are not in use

Set the microphone volume and echo level to OFF and remove the microphones from MIC jacks.

NOTE

• ECHO is reset to OFF automatically when the function is changed, the DOLBY PRO LOGIC or one of the DSP SURROUND mode buttons is pressed, the power is turned off, or the AC cord is disconnected.
• If the MIC or ECHO is turned on while the 5.1CH (page 25) is selected, the 5.1CH is changed to the AUX.
• When the ECHO level is changed, the DSP SURROUND system and the DOLBY PRO LOGIC are automatically canceled.
• If a microphone is held too near the speakers, a howling sound may be produced. In this case, hold the microphone away from the speakers, or decrease the microphone volume.
• If sound through the microphone is extremely loud, it may be distorted. In this case, decrease the microphone volume.

Recommended microphones

Use of unidirectional type microphones is recommended to prevent howling. Contact your local Aiwa dealer for details.

VOCAL FADER/MULTIPLEX FUNCTIONS

This unit can use discs or tapes as Karaoke sources.

• Use the vocal fader function for ordinary discs or tapes.
• Use the multiplex function for multi audio discs or tapes.

Press KARAOKE repeatedly to select the vocal fader or multiplex function.

Each time KARAOKE is pressed, one of the following functions is selected cyclically.

①Vocal Fader

The singer's voice becomes softer than the accompaniment.

② Auto Vocal Fader

The singer's voice becomes softer only while there is audio input through a microphone.

③Multiplex

Only the sound on the left channel is heard from both speakers, and the sound on the right channel is muted.

④Auto Multiplex

The sound on the left channel is heard from both speakers, and the sound on the right channel is muted only while there is audio input through a microphone.

⑤Cancel

To change the time lag setting in Auto Vocal Fader or Auto Multiplex function

The muted original singer's voice can be turned faster than the normal level.

When Auto Vocal Fader or Auto Multiplex is selected, "A-VF" or "A-MPX" is displayed for 3 seconds and disappears. Then hold down KARAOKE until "FAST" is displayed.

To return to the initial setting, select SLOW.

When the power is turned off, SLOW is restored.

To change the audible channel in Multiplex function

Only the sound on the right channel can be heard from both speakers.

When Multiplex is selected, "MPX-L" is displayed for 3 seconds and disappears. Then the selected function name is displayed, hold down KARAOKE until "MPX-R" is displayed.

To return to the initial setting, select MPX-L.

When the power is turned off, MPX-L is restored.

NOTE

- The Karaoke functions may not operate correctly with the following kinds of CDs or tapes.

- Those with monaural sound

- Those recorded with strong echoes

- Those with the vocal part recorded on the right or left side of the sound

• While the Karaoke function is on, the sound is output as monaural.
• When the function is changed, the power is turned off or the AC cord is disconnected from the AC power outlet, the Karaoke function is canceled.

CD KARAOKE PROGRAM

CD EDIT/ CHECK 0-9,+10 DISC DIRECT PLAY PRGM CD /▲▶ ■

Before or during CD play, you can reserve up to 15 tracks to be played after the current track. Each reservation is cleared when it finishes playing.

Use the remote control.

1 Press CD and load the discs.

2 Press PRGM once.

After "CD KARAOKE" scrolls on the display, "K-P00" appears.

K --- P00 RANDOM PRGM AY EDIT 8345 83490 83490 BSC TRAG

3 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-3 within 3 seconds to select a disc. Then, press the numbered buttons 0-9 and +10 to select a track.

Reserved disc number Reserved track number K2- 3P00 RANDOM PHR AI EDIT 78910 78910 78910 78910 TAXI

4 Repeat step 3 to reserve other tracks.

5 Press ◀▶ to start play.

After a track is played, it is cleared from the program.

Track number of the last reservation 2P03 Currently playing track number flashes. K3-- RANOM PRSM AI EDIT DISC number of the last reservation Number of remaining reserved tracks Currently playing disc

To add a reservation during play

Repeat step 3.

To check the reserved tracks

Press CD EDIT/CHECK repeatedly. Each time it is pressed, the disc number and track number are displayed in the reserved order.

To stop play

Press ■. When ◀▶ is pressed, the play starts from the last track again.

To skip a track

Press ▶▶

The skipped track is cleared from the program.

To clear all the reservations

Press ▶▶ repeatedly until "K - P00" is displayed.

K ... P00 RANDOM FROM AI EDIT TAIN

Press it once more to cancel the Karaoke programs. The display returns to that of CD play.

NOTE

- If the reserved track number does not exist on the selected disc, the unit stops playing and the display flashes. In this case, press ▶▶ to skip the error track. Then press ◀▶ to start play with the next reserved track.

- When PRGM is pressed twice in step 2, “—0:00” is displayed and the unit enters CD programmed play mode (page 19). To cancel programmed play, press ■.

SETTING THE CLOCK

MULTI JOG ENTER CLOCK CLOCK <<,>

When the clock is set, the “:” between the hours and minutes flashes. When the clock setting is canceled due to a power failure, the entire clock display flashes.

1 Press CLOCK.

AM12:00 RANDOM PHISM AI EDIT

2 Within 4 seconds, turn MULTI JOG to designate the hour and the minute.

Turning MULTI JOG changes both the hour and the minute. ◀◀ or ▶▶ is also available instead of MULTI JOG. Holding these buttons down will vary the time rapidly.

3 Press ENTER or II.

The clock starts from 00 seconds.

To view the clock when another display is in the display Press CLOCK. The time is displayed for 4 seconds and then the original display reappears. However, the clock cannot be displayed during recording.

To switch to the 24-hour standard

Press CLOCK and then press ■ within 4 seconds.

Repeat the same procedure to restore the 12-hour standard. In the 12-hour standard, "AM12:00" indicates midnight and "PM12:00" indicates noon.

If the clock display flashes

If the display flashes when the clock is displayed, it indicates that the clock has stopped due to a power failure or the removal of the power cord. The current time needs to be reset.

NOTE

If the power-economizing mode (page 10) is on, all the display lights turn off when the power is turned off. To view the clock, press CLOCK so that the time is displayed for 4 seconds.

SETTING THE SLEEP TIMER

MULTI JOG SLEEP

The unit can be turned off automatically at a specified time.

1 Press SLEEP on the remote control.

SLEEP

DOLLY PRO.ORG NORMAL PHANTONE STERRED FL RIL FR INCKD M1 LIVE POP M2 STICKM LATIN M3 HALL CLAUDIO M4 MOVIE JACC M5 RUNNING KONKSWAT

2 Within 4 seconds, turn MULTI JOG or press ◀◀ or ▶▶ to specify the time until the power is turned off.

The time changes between 5 and 240 minutes in 5-minute steps.

K.SBP DRDY FIRE-LOGO [NORMAL] PHANTOM 257000 FL RL RR BR FR DUCO LIVE STORM HALL MOVIE M1 POP LATIN CLASSIC JAZZ M3 M3 M3 M3 M3 M3 M3

Specified time SLEEP 75

To check the time remaining until the power turns off

Press SLEEP once. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press SLEEP twice so that "SLEEPoFF" appears.

SETTING THE TIMER

VOLUME Function buttons TIMER MULTI JOG ENTER POWER TIMER Function buttons VOL ^/√ ◀◀, ▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▶◀◀, ▽

The unit can be turned on at a specified time every day with the built-in timer.

Preparation

Make sure the clock is set correctly.

1 Press one of the function buttons to select a source.

2 Press TIMER once so that ⏻appears on the display.

Time and audio source name flash alternately.

OBUY PROLOGIC NORMAL PHANTOM 3.27 VICO RIL FR BROD M1 LIVE POP M2 KONN LATIN M3 HALL GLASS M4 MOVE JAZZ M5

3 Within 6 seconds, turn MULTI JOG to designate the timer-on time, then press ENTER or II.

Turning MULTI JOG changes both the hour and the minute. ◀◀ or ▶▶ is also available instead of MULTI JOG. Holding these buttons down will vary the time rapidly.

4 Within 4 seconds, turn MULTI JOG to select the duration for the timer-activated period.

The duration can be set between 5 and 240 minutes in 5-minute steps.

◀◀ or ▶▶ is also available instead of MULTI JOG.

The duration will be automatically set after 4 seconds. It will also be set if ENTER or II is pressed within 4 seconds after step 4.

5 Adjust the volume.

The source sound will play at the volume level set in this step when the power is turned on by the timer. If the volume level is set to 21 or higher, however, it will automatically be set to 20 when the power is turned on.

6 Prepare the source.

To listen to a CD, load the disc to be played first on tray 1. To listen to a tape, insert the tape into the cassette tray. To listen to the radio, select the band and tune in to a station.

7 Press POWER to turn off the power.

① remains on the display after the power is turned off (timer standby mode) if the power-economizing mode is OFF.

Simple diagram with a clock icon above a square, no text or symbols present

When the timer-on time is reached, the unit turns on and begins play with the selected source.

To check the timer setting

Press TIMER.

The selected source, the timer-on time, and the duration for the timer-activated period will be displayed for 6 seconds.

To change any of the previous setting

Carry out from step 1.

However, if you do not change the timer-on time, in step 3 just press ENTER twice and continue from step 4.

To cancel the timer standby mode temporarily

Press TIMER repeatedly until Ⓤ disappears and "OFF" is displayed.

To restore the timer standby mode, press TIMER once or twice to display 📊 or REC.

Using the unit while the timer is set

You can use the unit normally after setting the timer. Before turning off the power, carry out step 5 and 6.

NOTE

• You can change the source that was selected in step 1 by pressing one of the function buttons before pressing ENTER or III in step 3.
• If the power-economizing mode is ON, Ⓤ is not displayed in the timer standby mode.
• Timer playback and timer recording will not begin unless the power is turned off.
• Connected equipment cannot be turned on and off by the built-in timer of this unit. Use an external timer.

TIMER RECORDING

Timer recording is applicable for TUNER, VIDEO1/2/3 and AUX/PHONO/5.1CH (with an external timer) sources only.

Press either TUNER/BAND, VIDEO1/2/3 or AUX/PHONO/5.1CH to select a source, then press TIMER repeatedly until

①REC appears on the display. Within 6 seconds, carry out the steps of "SETTING THE TIMER" from step 3 and load the tape to be recorded on into the cassette tray after step 6.

NOTE

• If the timer recording is done with the economizing mode (page 10) set to "ECO ON" or "ECO AUTO" and the power turns off, the dimmer mode will be set to "DIMMER 3" and the volume level will be 0 (minimum) level) the next time the power is turned on.
• You cannot use the timer function to record from a CD.
• You can check the timer setting by pressing TIMER even while the power is off. In this case, if you press ENTER or II within 4 seconds after pressing TIMER, you can enter the timer setting mode and change the previous setting.

CARE AND MAINTENANCE

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft dry cloth.

If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

To clean the tape heads

When the tape heads are dirty;

• high frequency sound is not emitted
• the sound is not adequately high
• the sound is off-balance
• the tape cannot be erased
• the tape cannot be recorded on

After every 10 hours of use, clean the tape heads with a head cleaning cassette.

Refer to the instructions of the cleaning cassette for details.

To demagnetize the tape heads

The tape heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise.

After every 20 to 30 hours of use, demagnetize the tape heads with a separately sold demagnetizing cassette.

Refer to the instructions of the demagnetizing cassette for details.

Care of discs

- When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth.

Illustration of a hand holding a CD or DVD with a cloth partially covering the disc (no text or symbols)

• After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid.

Care of tapes

• Store tapes in their cases after use.
• Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise.
• Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.

SPECIFICATIONS

Main unit CX-A1000

FM tuner section

Tuning range 87.5 MHz to 108 MHz

Usable sensitivity (IHF)

13.2 dBf

Antenna terminals 75 ohms (unbalanced)

AM tuner section

Tuning range 530 kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step)

Usable sensitivity 350 μV/m

Antenna Loop antenna

Amplifier section

Mid-high frequency amplifier

Power outputFront

80 W + 80 W

(200 Hz - 20 kHz, THD less than 1 %, 8 ohms)

100 W + 100 W

(200 Hz - 20 kHz, THD less than 10 %, 8 ohms)

Rear (Surround)

80 W + 80 W

(1 kHz, THD less than 1 %, 8 ohms)

100 W + 100 W

(1 kHz, THD less than 10 %, 8 ohms)

Center 80 W (1 kHz, THD less than 1 %, 8 ohms)

100 W (1 kHz, THD less than 10 %, 8 ohms)

Total harmonic distortion

0.15%

(40 W, 1 kHz, 8 ohms, DIN AUDIO/Front)

LOW FREQ + SUB WOOFER amplifier

Power output 200 W + 200 W

(50 Hz - 200 Hz, THD less than 1 %, 6 ohms)

250 W + 250 W

(50Hz- 200 Hz, THD less than 10%, 6 ohms)

Total harmonic distortion

0.15%

(100 W, 100 Hz, 6 ohms, DIN AUDIO/Front)

Inputs AUX: 310 mV

PHONO: 400 mV

VIDEO1, VIDEO2, VIDEO3: 310mV

5.1CH INPUT (adjustable)

FRONT: 300 mV

SURROUND: 300 mV

CENTER: 600 mV

SUB WOOFER: 300 mV

MIC 1, MIC 2: 1.4 mV (20 kohms)

Outputs CD DIGITAL OUT (OPTICAL)

SPEAKERS:

LOW + SUB WOOFER 6 ohms

HIGH 8 ohms

SURROUND SPEAKERS: accept

speakers of 8 -16 ohms

CENTER SPEAKER: accepts speakers

of 8 ohms or more

PHONES (stereo jack): accepts

headphones of 32 ohms or more

Cassette deck section

Track format 4 tracks, 2 channels stereo

Frequency response CrO _2 tape: 50 Hz – 16000 Hz

Normal tape: 50 Hz – 15000 Hz

Signal-to-noise ratio 60 dB (Dolby B NR ON, CrO 2 tape peak level, above 400 Hz)

Recording system AC bias

Heads Recording/playback head · 1, erase head · 1

Compact disc player section

Laser Semiconductor laser ( = 780 nm)

D/A converter 1 bit dual

Signal-to-noise ratio 85 dB (1 kHz, 0 dB)

Harmonic distortion 0.03 % (1 kHz, 0 dB)

General

Power requirements 120 V AC, 60 Hz

Power consumption 300 W

Dimensions of main unit

360 · 372 · 423 mm

(14^1/4 · 14^3/4 · 16^3/4 in.)

Weight of main unit 18.5 kg (40 lb. 12 oz)

Front speakers SX-WA1000

Cabinet type 4 way, built-in subwoofer

Speakers Subwoofer:

220 mm cone type

Woofer:

160mm cone type

Tweeter:

60 mm cone type

Super tweeter:

20 mm ceramic type

Impedance 6 ohms/8 ohms

Output sound pressure level

89 dB/W/m

Dimensions (W · H · D)

250 · 592 · 300 mm

(9^7/8 · 23^3/8 · 11^7/8 in.)

11.7 kg (25 lb. 13 oz)

Surround speakers SX-R1800

Speakers Full-range:

100 mm · 1, cone type

Impedance 8 ohms

Center speaker SX-C1800

Speakers Full-range:

100 mm · 2, cone type

Impedance 8 ohms

Dimensions (W · H · D)

430 · 120 · 175 mm

Specifications and external appearance are subject to change without notice.

COPYRIGHT

Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.

BBE SYSTEM

The word "BBE" and the "BBE symbol" are trademarks of BBE Sound, Inc.

Under license from BBE sound, Inc.

DOLBY NR

Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.

"DOLBY" and the double-D symbol □□ are trademarks of Dolby Laboratories Licensing Corporation.

DOLBY PRO LOGIC

Manufactured under license from Dolby Laboratories Licensing Corporation.

"DOLBY", the double-D symbol ☐ and "PRO LOGIC" are trademarks of Dolby Laboratories Licensing Corporation.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

To reset

If an unusual condition occurs in the display window or the cassette decks, reset the unit as follows.

1 Press POWER to turn off the power.

2 Press POWER to turn the power back on while pressing ■CLEAR. Everything stored in memory after purchase is canceled.

If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord, and connect it again. Then carry out step 2.

TROUBLESHOOTING GUIDE

If the unit fails to perform as described in these Operating Instructions, check the following guide.

GENERAL

There is no sound.

• Is the AC cord connected properly?
• Is there a bad connection? ( page 4)
• There may be a short circuit in the speaker terminals.

→Disconnect the AC cord, then correct the speaker connections.

• Was an incorrect function button pressed?
• No sound is heard from the center and surround speakers when the DOLBY PRO LOGIC, the DSP SURROUND system and the 5.1CH are set to off. (→ pages 13, 23)

There is no sound from the center and surround speakers when you use the DOLBY PRO LOGIC.

• Are the DSP SURROUND system and the 5.1CH set to off? ( pages 13, 23)
  Sound is emitted from one speaker only.
  • Is the other speaker disconnected?
  The output sound is not stereo.
• Is the Karaoke function turned on? (→ page 26)
  An erroneous display or a malfunction occurs.

→Reset the unit as stated below.

The unit blacks out when the power is off.

• Is the power economizing mode set to "ECO ON" or "ECO AUTO"? (→ page 10)
  The power is not turned on.
• Disconnect the AC cord, and connect it again in a few seconds.

TUNER SECTION

There is constant, wave-like static.

• Is the antenna connected properly? ( page 5)
• Is the signal weak?

→Connect an outdoor antenna.

The reception contains noise interferences or the sound is distorted.

• Is the system picking up external noise or multipath distortion?

→Change the orientation of the antenna.
→Move the unit away from other electrical appliances.

CASSETTE DECK SECTION

The tape does not run.

• Is the deck in pause mode? ( page 16)
  The sound is off-balance or not adequately high.
• Is the playback head dirty? (→ page 31)

Recording is not possible.

• Is the erasure prevention tab on the tape broken off? ( page 23)
• Is the recording head dirty? ( page 31)

Erasure is not possible.

• Is the erasure head dirty? ( page 31)
  • Is a metal tape being used?

High frequency sound is not emitted.

• Is a tape recorded without Dolby NR played back with the Dolby NR system operating? (→ page 16)
• Is the playback head dirty? (→ page 31)

CD PLAYER SECTION

The CD player does not play.

• Is the disc correctly placed? ( page 17)
  • Is the disc dirty? (→ page 31)
• Is the lens affected by condensation?

→Wait approximately one hour and try again.

PARTS INDEX

INDICE DE LAS PARTES

NOMENCLATURE

Diagram of a device rear panel with numbered labels pointing to various components

Diagram of a remote control with numbered labels pointing to various ports and buttons

Name/Nombre/Nom Page/Página/Page

① Display window

②Function buttons (TAPE, TUNER, VIDEO1/2/3, AUX/PHONO/5.1CH, CD) ...... 8, 9, 14-17, 20, 24, 25

③Cassette tray

④MULTI JOG....9, 10, 12-15, 17, 29, 30

GEQ 12

SURROUND 13

FL DISPLAY 9,10

TUNER PRESET ......14, 15

TIMER 30

ECO 10

ENTER 10, 13, 29, 30

GEQ FREQ (LOW) ......12, 13

GEQ FREQ (HIGH).....12, 13

⑤ PHONES ......11

⑥ POWER....9, 14, 30

⑦CLOCK 10,29

DEMO 9

⑧CD tray 17

⑨ ▲ TAPE OPEN/CLOSE .....16

⑩DOLBY NR ....20 REV MODE ....16, 20 DOLBY PRO LOGIC ....23-25

⑪BBE 11

T-BASS ....11

MIC 26

ECHO....26

VOLUME 11,26,30

⑫MIC1 26

MIC2 26

⑬CD BLANK SKIP ......19

KARAOKE 27

14 ● REC/REC MUTE......20-22

II SET 15-17, 20, 29, 30

■ CLEAR....15-17, 19-22, 28, 29

◀▶DIRECTION/PRESET ... 15-19, 28

Name/Nombre/Nom Page/Página/Page

◀◀/◀◀(DOWN)....11-17, 19, 21-25, 29, 30

▶▶/▶▶I(UP)....11-17, 19, 21-25, 28-30

DISC DIRECT PLAY 1-3.....17-19, 21, 22, 28

DISC CHANGE ....17

▲CD OPEN/CLOSE .....17

⑮VIDEO 3 IN, AUDIO IN (L,R) 7

⑯ TIMER 14,30

SLEEP 29

MONO TUNER ....14

CLOCK 10,29

CD EDIT/CHECK ......17, 21, 22, 28

PRGM 19,28

RANDOM/REPEAT......18, 19

⑰0-9,+10 15-17,19,21,22,28

⑱DISC DIRECT PLAY 1-3.....17-19, 21, 22, 28

19 ●/OREC/REC MUTE .....20-22

IISET 15-17, 20, 29, 30

20 POWER....9, 14, 30

②TAPE....16

TUNER/BAND 14, 15

AUX/PHONO 8,24,25

CD 17

VIDEO 1/2/3 8

②SURROUND ....13

MANUAL SELECT ......11, 13, 24, 25

PRO LOGIC....23-25

T-BASS ....11

GEQ 12

KARAOKE 27

▲CD OPEN/CLOSE .....17

②VOL( ∧,∨)....11,26,30

24 ▶/◀▶PRESET 15-19, 21, 22, 28

■CLEAR....15-17, 19-22, 28, 29

◀◀/◀◀(DOWN)....11-17, 19, 21-25, 29, 30

▶▶/▶▶I(UP)....11-17, 19, 21-25, 28-30

For assistance and information

call toll free 1-800-BUY-AIWA (United States and Puerto Rico)

CORRECTION

Please read the incorrect description in the Operating Instructions as follows.

Page 21

AI EDIT RECORDING

WRONG

6 Press ●/OREC/REC MUTE to start recording.

RIGHT

6 Press ●/OREC/REC MUTE and then press ▶/◀▶ within 2 seconds to start recording.

Page 22

PROGRAMMED EDIT RECORDING

WRONG

8 Press ●/OREC/REC MUTE to start recording.

RIGHT

8 Press ●/OREC/REC MUTE and then press ▶/◀▶ within 2 seconds to start recording.

8A-MTM-919-01

0001A-Y

CORRECCION

"CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Illustration of a remote control device, a square electronic device with a coiled cable, and a separate remote device (no text or symbols present)

Control remoto Antena de AM Antena de FM

R SFEAMER IMP - 102 S R-S LOW FREQUENCY WOOFERS

SPEAKER MP 80 SPEAKERS HIGH FREQ SPEAKER MP 80 SPEAKERS HIGH FREQ

Simple line drawing of a screw being inserted into a wall socket (no text or symbols)

Diagram showing a no-smoking symbol and connected batteries with labels indicating resistance values.

ANTENNA 75Ω FM 75Ω

Toma CD DIGITAL OUT (OPTICAL)

CD DIGITAL OUT (OPTICAL) CD DIGITAL OUT (OPTICAL)

- Cuando no utilice la toma CD DIGITAL OUT (OPTICAL), fije la tapa contra polvo ⓐ.

Tomas PHONO IN

5.1CH INPUT SUB WOOFER 5.1CH OUTPUT SUB WOOFER, etc.

VIDEO/AUX IN (L, R) LINE OUT (L, R), etc.

(Consulte la NOTA.)

NOTA

ECD ON RANDOM FROM AI EDIT

RANDOM FROM A1 EDIT TAXES

NOTA

CD BEE BEE BEE BEE RANDOM FROM AI - EDIT

NOTA

GEQ FREQ (HIGH) GEQ FREQ (LOW) MULTI JOG

GEO LOW RANDOM FROM AI EDIT TAXS

3 Presione GEQ FREQ (HIGH).

GEO HIGH RANDOM PHSM AI EDIT TRANS

DONR TOPE ON NR RANDOM FROM A1 EDIT 806 T-806

TP WWW RRN RANDOM FROM AI EDIT 1:1/2

CD DISC CHANGE ▲CD OPEN /CLOSE

RANDOM/REPEAT

PRGM RANDOM PRGM AI EDIT

REC REC NR FM 93.00 MHz RANDOM FROM AI / EON BEE 1 kHz

AI AI C-DM AI EDIT RANDOM PROG AI EDIT

0 1 P-MI RANDOM PARAM AI EDIT 78 78 1 MADS

PRGM PRGM EDIT PRGMC-3D RANDOM PRGM AI EDIT

E----30:00 RANDOM PHO AI EDIT

Line drawing of hands holding a handheld device with buttons and a knob (no text or symbols)

Sistema DOLBY NR

K/R G RANDOM FROM AI EDIT RREF TRANS

BPF + 3 RANDOM PHRM AI EDIT BPF PASS

MIC 1 MIC 2

K ... P00 RANDOM PRGM AJ EDIT 8 3 4 5 7 8 9 10 BRE TAMS

K ... P00 RANDOM FROM AI EDIT

At 12:00 RANDOM FROM AI EDIT

MULTI JOG SLEEP

ESPAIO DE TIempo especificado SLEEP 15 SLEEP SLEEP PROLOGY NORMAL PHANTOS ESTEFICIOS FL FL LIVE PDP M3 STRAW LATIN M3 HALL CLARING M4 MOUNT JUST M5 SLEEP PROLOGY NORVAL PHANTOS ESTEFICIOS FL FL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FULL FIRE

Simple diagram with a clock icon above a square symbol, no text or labels present

Illustration of a hand holding a CD or DVD with a cloth partially covering the disc (no text or symbols)

CD DIGITAL OUT (OPTICAL)

SPEAKERS:

LOW + SUB WOOFER

6 ohmios, bajo

HIGH 8 ohmios, alto

Please read the incorrect description in the Operating Instructions as follows.

Page 21

AI EDIT RECORDING

WRONG

6 Press ●/OREC/REC MUTE to start recording.

RIGHT

6 Press ●/OREC/REC MUTE and then press ▶/◀▶ within 2 seconds to start recording.

Page 22

PROGRAMMED EDIT RECORDING

WRONG

8 Press ●/OREC/REC MUTE to start recording.

RIGHT

8 Press ●/OREC/REC MUTE and then press ▶/◀▶ within 2 seconds to start recording.

8A-MTM-919-01

0001A-Y

CORRECCION

Illustration of a remote control device, a square electronic device with a coiled cable, and a separate remote device (no text or symbols present)

Télécommande Antenne AM Antenne FM

Mode d'emploi, etc.

RACCORDEMENT DE BASE

R S RS-40 5.0 1.62 SPEAKER P42.612

SPEAKER IMP-80 SPEAKERS HIGH FREQ SPEAKER IMP-80 SPEAKERS HIGH FREQ

POSITIONNEMENT DES HAUT-PARLEURS

L C R ① ② ③ SR SL

Simple line drawing of a screw being inserted into a wall socket (no text or symbols)

Diagram showing a no-smoking symbol next to a photo of batteries with labeled components and specifications.

ANTENNA 71 FM75Ω

RACCORDEMENT D'AUTRES APPAREILS

Prise CD DIGITAL OUT (OPTICAL)

CD DIGITAL OUT (OPTICAL) CD DIGITAL OUT (OPTICAL)

5.1CH INPUT SUB WOOFER 5.1CH OUTPUT SUB WOOFER, etc.

VIDEO/AUX IN (L, R) LINE OUT (L, R), etc.

(Voir REMARQUE)

REMARQUE

ECD ON RANDOM PRM AI EDIT

CD Random PROGRAM A1 EDIT BAS T-BAS

REMARQUE

0.0 RANDOM FROM A1 EDIT TAD

REMARQUE

GEQ FREQ (HIGH) GEQ FREQ (LOW) MULTI JOG

8:00 LOW RANDOM PRISM AI EDIT

MANUAL SELECT

Fréquence FM 93.00 RANDOM FROM AI - EDIT T-8A51

DO NR TAPE DO NR BRE TGNDS RANDOM FROM AT EDIT

Cassette ▲ TAPE OPEN/CLOSE

CD DISC CHANGE ▲CD OPEN /CLOSE

RANDOM/REPEAT

Cassette ▲ TAPE OPEN/CLOSE

REC REC NR PM 93.00 MHz RANDOM PHOM A1 EDIT BEE I/O

AI AI EDIT RANDOM FROM AI EDIT

PRGM PRGM EDIT PRGMC - 01M RANDOM PRGM AI EDIT TAMS

Line drawing of hands holding a cassette tape device with a knob (no text or symbols)

Système DOLBY NR

RANDOM FROM AI EDIT TAKES

CEN- + 3 RANDOM FROM AI EDIT

TIME20.5s RANDOM FROM AT EDIT BEE TAGS

MIC 1 MIC 2

K .... P M RANDOM P RSM AI EDIT D B E T A B D

AM12:00 RANDOM PROM AI / EDIT

MULTI JOG SLEEP

Simple diagram with a clock icon above a square containing a small symbol (no text or labels)

Illustration of hands holding a CD or DVD with a cloth partially covering the disc (no text or symbols)

Avant 80 W + 80 W (200 Hz - 20 kHz, DHT

100 W + 100 W (200 Hz - 20 kHz, DHT

Amplificateur LOW FREQ + SUB WOOFER

Puissance de sortie

200 W+200 W (50 Hz - 200 Hz, DHT

CD DIGITAL OUT (OPTICAL)

SPEAKERS:

LOW + SUB WOOFER

Bas: 6 ohms

HIGH Haut: 8 ohms

SURROUND SPEAKERS: accepte des
