USER MANUAL PEH 30 B2 PARKSIDE

PDF online www.lidl-service.com PARKSIDE

RABOT ÉLECTRIQUE PEH 30 B2

FR BE

RABOT ÉLECTRIQUE

Operation and Safety Notes

Translation of original operation manual

DE AT CH

ELEKTROHOBEL

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

GB / IE / NI Operation and Safety Notes Page 30

PARKSIDE 1 1 12 3 3 14 2 3 4 5 6 7 0 9 8

Close-up of a mechanical device with a cylindrical component and a dial, labeled 'A' in the corner (no readable text or symbols on the device itself)

B PARKSIDE 9 165 5

C PARKSIDE 5

D 17 26 9

E 22 18 17 21 20 27 9 19

F 23 5 4 5

G 23 24 25

H 45°

Close-up of a hand operating a Parkside manual plowing machine (no visible text or symbols)

Close-up of a hand operating a manual power tool on a workbench (no visible text or symbols)

Préface

Directive CEM (2014/30/UE)

Directive RoHS (2011/65/UE)

Features and equipment...... Page 31

Included items....Page 31

Technical data....Page 31

General power tool safety warnings Page 32

1. Work area safety......Page 32
2. Electrical safety...... Page 33
3. Personal safety......Page 33
4. Power tool use and care...... Page 34
5. Service Page 34
   Safety advice relating specifically to power planers...... Page 35
   Safety instructions for planers......Page 35
   Original accessories / attachments......Page 35

Preparing for use

Switching On / Off...... Page 35
Setting the cutting depth....Page 35
Vacuum extraction of dust / debris...... Page 35
Parking shoe....Page 36
The planing process....Page 36
Chamfering edges....Page 36
Using the guide fence.... Page 36
Using the rebate depth stop...... Page 37
Removing and installing a planer blade.... Page 37
Replacing a drive belt....Page 37

Maintenance and cleaning...... Page 37

Service centre...... Page 38

Warranty Page 38

Disposal...... Page 38

Translation of the original declaration of conformity / Manufacturer.... Page 40

Electric planer PEH 30 B2

- Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The device is suitable for planing wood in the form of beams or boards or the like if the workpiece is held securely in a fixed position. The device is also suitable for chamfering edges and for rebating. Any other use or modification to the device shall be considered as improper use and could give rise to considerable risk of accident. The manufacturer will not accept liability for loss or damage arising from improper use. Not suitable for commercial use.

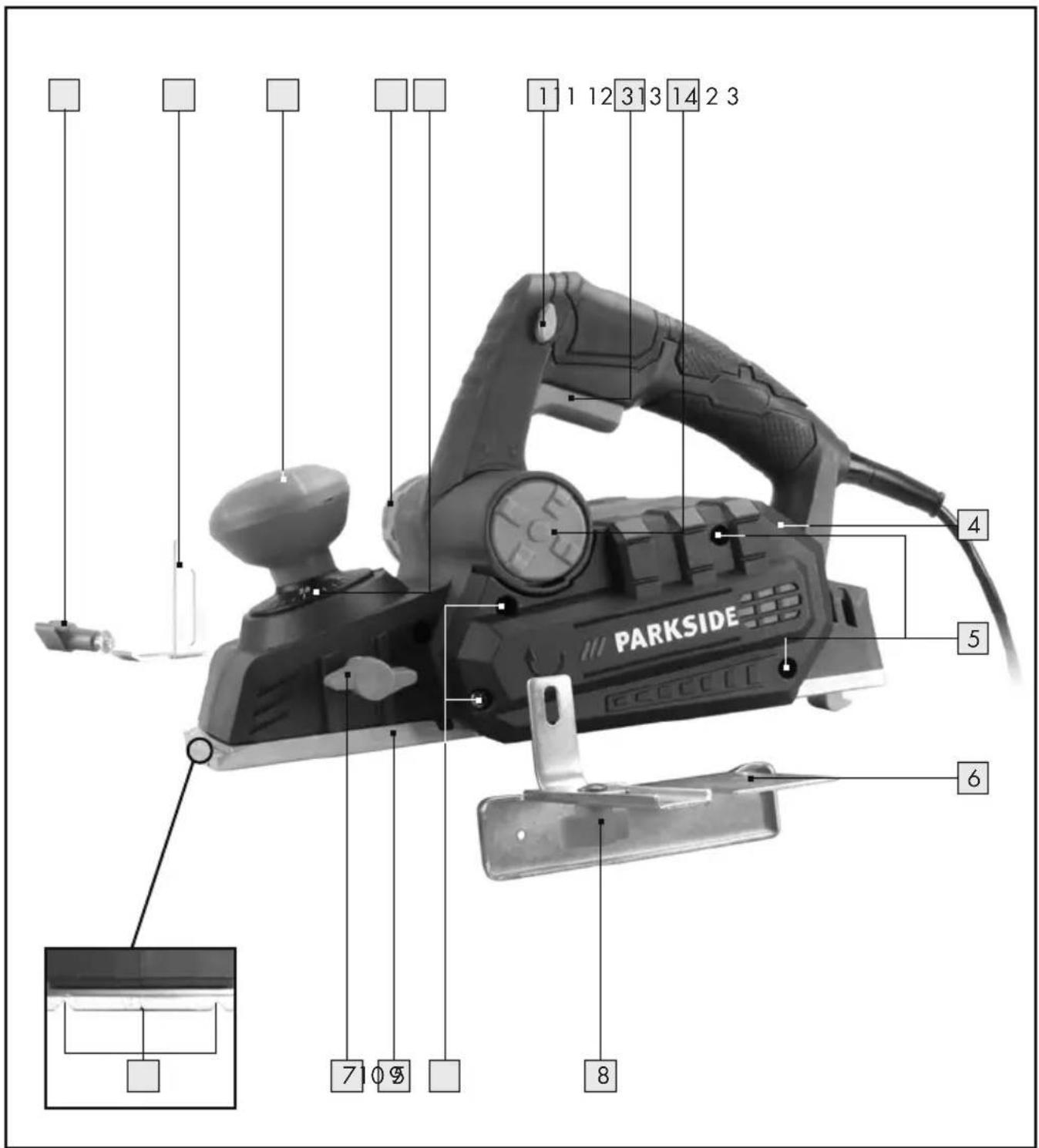

● Features and equipment

1 Safety lock-out
2 ON / OFF switch
3 Planing debris removal port (right / left selectable)

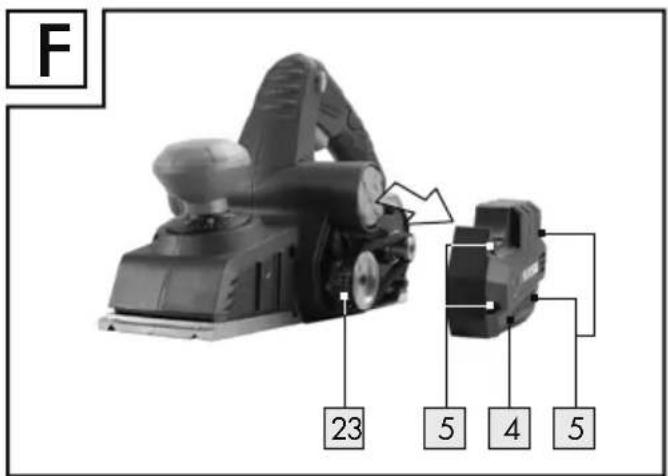

4 Belt cover
5 Belt cover screws
6 Guide fence
7 Guide fence fixing screw
8 Fixing nut for setting rebate width
9 Sole
10 V-groove
11 Rebate depth stop fixing screw
12 Rebate depth stop

13 Rotary control for setting planing depth (auxiliary handle)
14 Cutting depth scale
15 Vacuum cleaner adapter
16 Parking shoe
17 Blade shaft
18 Cutting element
19 Plane blade fixing screws
20 Plane blade
21 Side blade shaft guard
22 Hex key

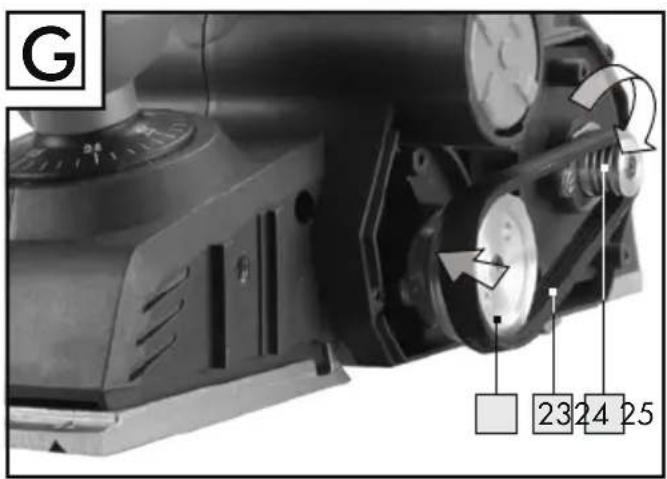

23 Drive belt
24 Large belt wheel
25 Small belt wheel
26 Open spanner
27 Hex screws

- Included items

1 Electric planer PEH 30 B2
1 Guide fence
1 Rebate depth stop
1 Hex key
1 Open spanner
1 Vacuum cleaner adapter
1 Operating instructions

● Technical data

Rated voltage: 230–240 V\~ 50 Hz

Rated power: 750 W

No-load rotation speed: n_0 13000 min ^-1

Planing width: 82 mm

Depth of cut: 0–3 mm

Rebate depth: max. 24 mm

Protection class: II/☐

Noise and vibration data:

Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:

Sound pressure level: 88.4 dB(A)

Sound power level: 99.4 dB(A)

Uncertainty K: 3 dB

Wear ear protection!

Vibration emission value:

Main handle: ah=1.939 m/s²

auxiliary handle: ah=2.719 m/s²

Uncertainty K = 1.5 m / s ^2

WARNING! The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure. The vibration level will change according to the application of the electrical tool an in some cases may exceed the value specified in these instructions. Regularly using the electric tool in such a way may make it easy to underestimate the vibration.

Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

● General power tool safety warnings

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury.

Save all warnings and instructions for future reference!

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of

electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may

result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools

are dangerous in the hands of untrained users.

5. Service

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
● Safety advice relating specifically to power planers
■ Wait until the blade shaft 17 has completely stopped moving before you put the device down. An exposed blade shaft may catch on the surface and lead to loss of control or serious injury.
- Do not place your fingers in the planer debris removal port 3.

Danger of injury from rotating parts.

■ Always switch on the device before placing it against the workpiece. Otherwise the device could kick back if the planer blade gets snagged in the workpiece.
■ When working always keep the sole 9 flat against the workpiece. Otherwise you could be injured if the plane tilts.
■ Never plane over metal objects. Otherwise the planer blade / blade shaft 17 could be damaged.
- Secure the workpiece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it with your hand.
■ Do not plane materials containing asbestos. Asbestos is a known carcinogen.
The dust generated while planing could be hazardous to health, inflammable or explosive. Wear a dust mask and use a suitable dust / debris vacuum extraction device. Some dusts are known carcinogens.
■ When planing wood for long periods and in particular when working on materials that give rise to dusts that are hazardous to health, the planer must be connected to a suitable external dust extraction device.
- Do not use the power planer if its mains lead is damaged. Damaged mains leads increase the risk of electric shock.
■ Never support yourself by placing your hands near or in front of the device or on the workpiece surface. If you slip you could be injured.
If a dangerous situation arises, pull the mains plug immediately out of

the mains socket.

When taking a break from your work, before carrying out any tasks on the device itself (e.g. changing the plane blade) or when you are not using the device, always pull the mains plug out of the mains socket.

■ Always work with the mains lead leading away from the rear of the device.

■ Use sharp planer blades only.

Do not soak the materials or the surface you are about to work on with liquids containing solvents.

- Avoid contact with rotating parts.

■ Never use the device for a purpose for which it was not intended or with non-original parts / accessories.

- Hold the device securely when working. Ensure that you are standing in a stable, well-balanced position.

■ Always keep the device clean, dry and free from oil or grease.

● Safety instructions for planers

- Wait for the cutter spindle to stop completely before setting down the power tool. An exposed rotating cutter spindle can catch on the surface, resulting in loss of control and serious injuries.

Only hold the power tool by the insulated handle areas as the cutter spindle may touch the tool's mains cable. Contact with a live wire could cause metal parts of the device to become live and lead to electric shock.

- Fix and secure the work piece to a stable surface using clamps or other means. When only securing the work piece by hand or against your body it will remain

unstable, which could lead to loss of control.

● Original accessories / attachments

■ Use only the accessories and attachments detailed in the operating instructions. The use of attachments or accessories other than those recommended here could lead to you suffering an injury.

● Preparing for use

- Switching On / Off

Switching on:

☐ First press the safety lock-out 1.

☐ Then press and keep pressed the ON / OFF switch 2.

Switching off:

☐ Release the ON / OFF switch 2.

Note: For safety reasons the ON / OFF switch 2 cannot be locked in the ON position.

- Setting the cutting depth

The rotary control 13 can be used to set the cutting depth in steps from 0–3.0 mm according to the cutting depth scale 14.

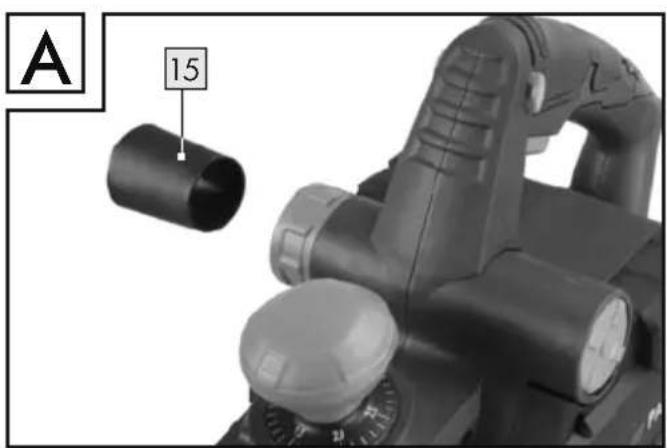

● Vacuum extraction of dust / debris (see Fig. A)

Wear a dust mask!

WARNING! DANGER OF INJURY!

Before you carry out any work on the device always pull the mains plug out of the mains

socket.

Planing debris removal port (right / left selectable):

☐ Release the planing debris removal port 3 by turning it into the "Lock-off" position along the direction of the arrow.
☐ Pull the planing debris removal port 3 out of the device.
The planing debris removal port 3 can be set to face left or right in the planer.
☐ Push the planing debris removal port into the device.
☐ Lock the planing debris removal port ☑ by turning it into the "Lock" position along the direction of the arrow.

External vacuum extraction:

If necessary fit the vacuum cleaner adapter 15 when using a dust extraction system, e.g. a workshop dust extraction system.

The vacuum cleaner / dust extraction device used must be suitable for the material being planed.

Connection:

Place the vacuum cleaner adapter 15 firmly on to the planing debris removal port 3.
☐ Push the hose of a suitable dust extraction device approved for that purpose (e.g. a workshop vacuum cleaner) on to the planing debris removal port 3 or the vacuum cleaner adapter 15.

Removal:

Pull the hose of the dust extraction device off the planing debris removal port 3 or off the vacuum cleaner adapter 15.
☐ Pull off the vacuum cleaner adapter 15, if fitted.

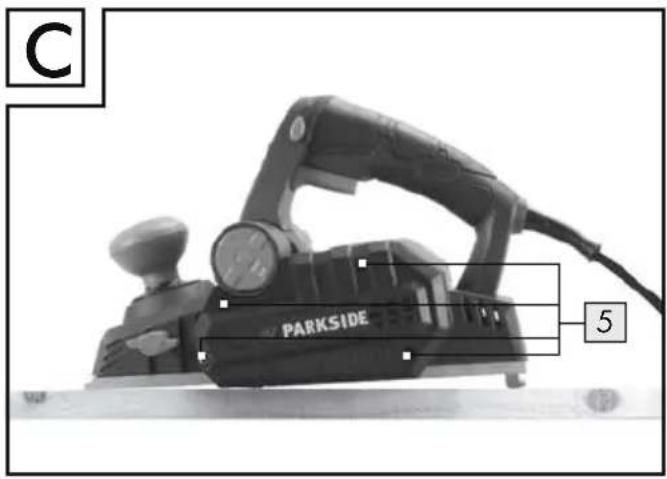

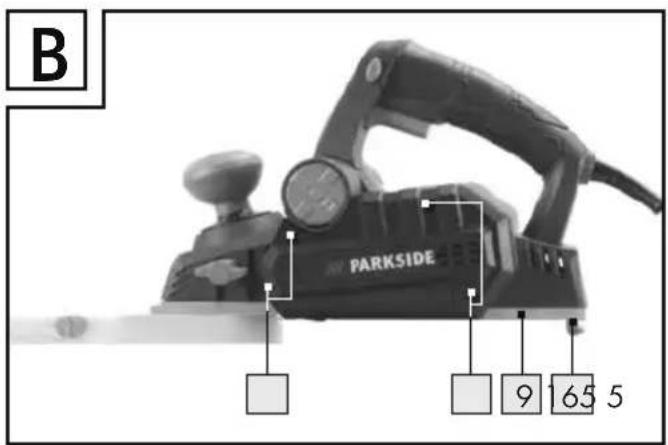

● Parking shoe (see Figs. B / C)

The parking shoe 16 allows you to lay the device down without the risk of damaging the workpiece.

When planing, the parking shoe 16 swings up and exposes the rear part of the sole 9.

● The planing process

■ CAUTION! DANGER OF KICKBACK!

Always switch on the device before placing it against the workpiece.

☐ Set the required cutting depth.
□ Switch on the device.
□ Always place the front part of the sole 9 down first on to the workpiece.
☐ Guide the device with even forward movement over the surface being planed.
□ Move the device forward at a slow rate and ensure that the contact pressure acts evenly on the sole 9. Moving forward at too great a rate results in a poorer surface quality and can lead to blocking of the planing debris removal port.

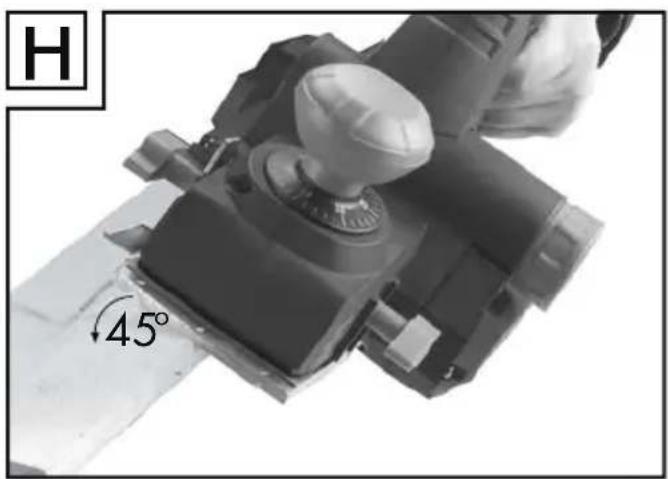

● Chamfering edges (see Fig. H)

The V-grooves 10 in the front sole 9 allow the device to be used for simple chamfering of workpiece edges.

Use the V-groove most appropriate to your desired chamfer width.
Place the planer with the V-groove 10n the workpiece edge and guide the planer along the edge.

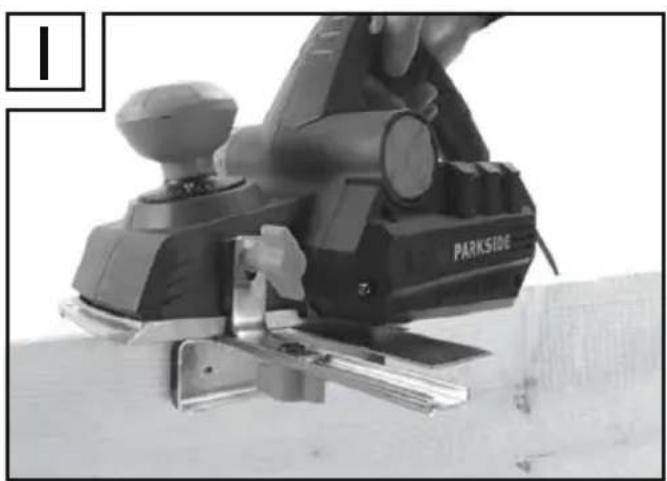

● Using the guide fence (see Fig. I)

☐ Attach the guide fence 6 to the device with the fixing screw 7.
☐ Release the fixing nut 8 and set the guide at the desired distance.
☐ Retighten the fixing nut 8.

Exert some slight sideways pressure when guiding the planer with the guide fence.

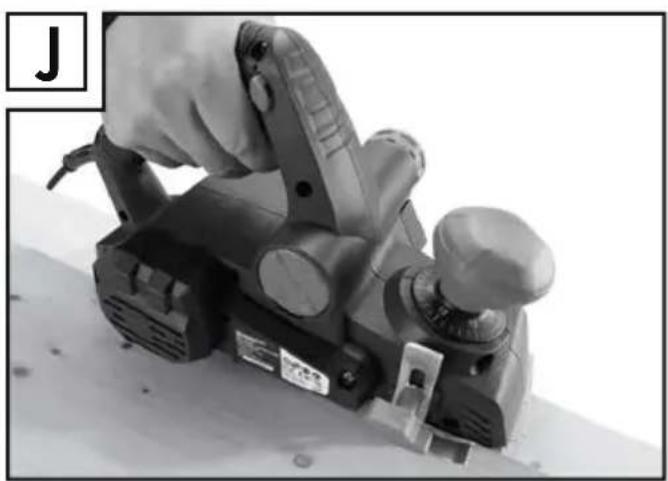

● Using the rebate depth stop (see Fig. J)
□ Attach the rebate depth stop 12 to the device with the fixing screw 11.
Set the desired rebate depth with the rebate depth stop 12.
☐ Make the required number of passes with the planer until desired rebate depth is achieved.

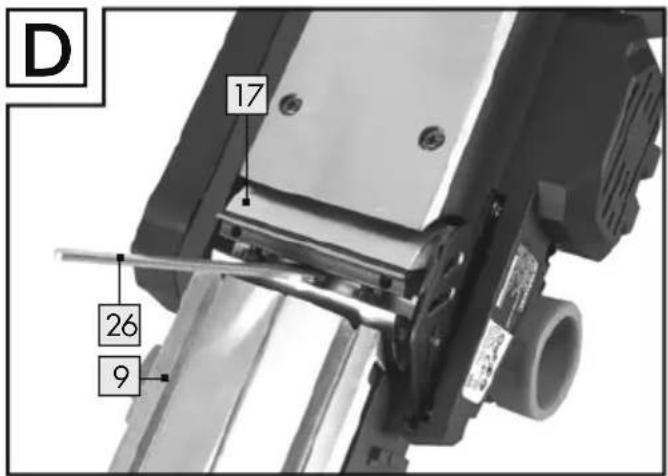

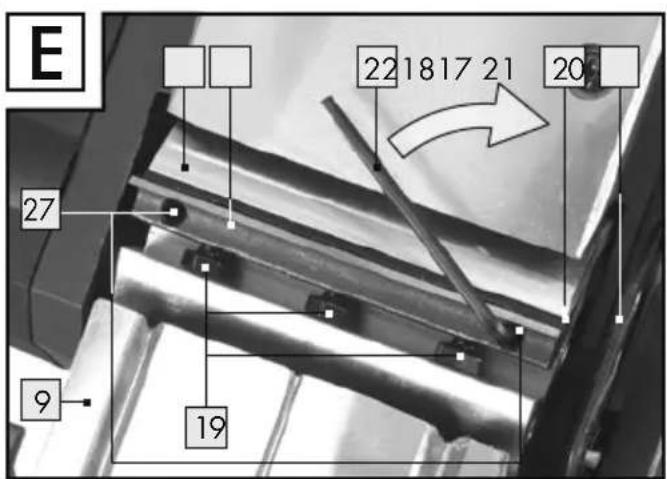

- Removing and installing a planer blade 20 (see Fig. D + E)

WARNING! DANGER OF INJURY!

Before you carry out any work on the device always pull the mains plug out of the mains socket.

■ CAUTION! The sharp cutting edges of the planer blade ^20 present an injury hazard! Never touch the cutting edges of the planer blade ^20 .

The planer blade 20 has two cutting edges and it can be fitted either way around.

☐ Replace the planer blade 20 when both cutting edges are blunt.
☐ Do not resharpen the planer blades 20.

Reversing or replacing a planer blade 20

IMPORTANT INFORMATION:

Do not release the two hex screws 27. They are used to adjust the height of the blade shaft.

Adjustment is necessary only if you wish to use a different planer blade type e.g. a profiled blade.

Always replace both blades at the same time to avoid out of balance forces.

NOTE: If you only release one blade first then you can use the factory-fitted second blade for orientation when you fit the new blade.

1. Release the three bolts of the cutting element 18 using the supplied open spanner 26.
   Press the removable side guard 21 into the slot in the housing.
2. Push the cutting element 18 sideways out from the blade shaft 17.
3. Push the planer blade 20 sideways out from the cutting element 18.
4. Reassembly is carried out in the reverse order with a reversed or new planer blade.
5. Planer blades 20 can be obtained from the service address indicated (see section about warranty).
   ● Replacing a drive belt (see Figs. F + G)

WARNING! DANGER OF INJURY!

Before you carry out any work on the device always pull the mains plug out of the mains socket.

☐ Release the screws 5 and remove the belt cover 4.
☐ Remove the worn drive belt 23.
☐ First place the new drive belt 23 on to the small belt wheel 25 and then pull the drive belt 23 on to the large belt wheel 24 by rotating it.
Put the belt cover 4 back into position and fasten it into place with the screws 5.

● Maintenance and cleaning

WARNING! DANGER OF INJURY!

Before you carry out any work on the device always pull the mains plug out of the mains socket.

■ Always keep the device and the ventilation slots clean. This way you will work more safely and produce better results.
□ Clean out the planing debris removal port 3 regularly.
☐ Clean out a blocked planing debris removal port using suitable means (e.g. piece of wood, air under pressure, etc.).
☐ Use a dry cloth to clean the housing.
□ Remove any adhering planing dust with a narrow paint brush.
☐ In no circumstances use sharp objects, or petrol, solvents or cleaning agents that might attack plastic. Do not allow any liquids to enter the inside of the device.

● Service centre

WARNING! Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.

WARNING! If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre.

- Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before

delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

Service Great Britain

teknihall Elektronik GmbH

Breitefeld 15 64839 Münster Germany

Email: [e-mail]

Tel: [phone]

Fax: [phone]

IE

Service Ireland

teknihall Elektronik GmbH

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance with European Directive 2012 / 19 / EU (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

● Translation of the original declaration of conformity / Manufacturer

We, GA-PO-VERTRIEB GMBH, the person responsible for documents: Mr. Z. Fabijanic, Heinrich-Horten-Straße 5 47906 Kempen, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006 / 42 / EC)

Electromagnetic Compatibility (2014/30/EU)

RoHS Directive (2011 / 65 / EU)

Applicable harmonized standards

EN 60745-1:2009/A11:2010 EN 60745-2-14:2009/A2:2010 EN 55014-1:2006/A2:2011 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013

Type / Device description:

Electric planer PEH 30 B2

Date of manufacture (DOM): 10 - 2016 Serial number: S-EK00001\~S-EK82468

30.11.2016

d.g.

Mr. Z. Fabijanic - Quality Manager -

We reserve the right to make technical modifications in the course of further development.

Ga-Po-Vertrieb GmbH

47906 Kempen, Germany

Manual PEH 30 B2-FR, version 1.03 dated 2016-11-20
