PBS 350 A1 - Electric saw PARKSIDE - Free user manual and instructions

Product type	Electric band saw
Brand	Parkside
Model	PBS 350 A1
Table dimensions	300 x 300 mm
Max. workpiece dimensions	400 x 400 x 80 mm
Weight	14.8 kg
Power supply	230-240 V~ 50 Hz
Power	350 W (S1, continuous operation)
No-load speed	1400 min⁻¹
Cutting speed	900 m/min
Blade length	1400 mm
Compatible blade width	3.5 to 12 mm
Blade included	6 x 1400 mm
Pass height	0 – 80 mm
Pass width	200 mm
Table inclination	0° to 45° forward
Sound pressure level (LpA)	77.4 dB(A) (K=3 dB)
Sound power level (LWA)	90.4 dB(A) (K=3 dB)
Main functions	Straight cut, bevel cut, freehand cut, use with parallel guide
Safety	On/Off switch with anti-restart protection, protective covers with lock, adjustable blade guard
Included accessories	Parallel guide, push stick, Allen keys (3, 4, 5 mm), screwdriver, open-end wrench 10/13
Maintenance and cleaning	Clean regularly with a dry cloth or low-pressure compressed air; check and tension the blade before each use; relax the blade if stored for long periods
Wear parts (not covered by warranty)	Saw blade, table insert, push stick
Repairability	Repairs by a qualified electrician with original spare parts; contact Scheppach after-sales service
Intended use	Longitudinal and cross cutting of wood and similar materials; do not use for firewood

Frequently Asked Questions - PBS 350 A1 PARKSIDE

How to tension the saw blade on the Parkside PBS 350 A1?

Turn the tensioning screw (1) clockwise. The tension is correct if the blade deflects about 1 to 2 mm under lateral finger pressure midway between the wheels. A metallic sound when tapped indicates sufficient tension. Relax the blade if stored for long periods.

How to adjust the saw blade guide?

Open the covers (11). Adjust the upper rear guide roller (36) to max. 0.5 mm from the blade, then the upper lateral guide blocks (37) to 0.5 mm from the blade and 1 mm behind the teeth. Proceed similarly for the lower guide after removing the saw table.

How to use the parallel guide?

Raise the locking bracket (25), place the parallel guide (24) to the left or right of the blade at the desired dimension, then lower the bracket to lock it. To increase clamping, turn the raised bracket clockwise. Check parallelism with the blade.

How to replace the saw blade?

Set the blade guide to mid-height, open the covers, remove the U-shaped reinforcement (34), relax the blade by turning the tensioning screw (1) counterclockwise, remove the old blade through the table slot, then install the new blade with teeth pointing toward the table. Then tension it correctly.

How to tilt the table for a bevel cut?

Loosen the locking handle (20) and wing nuts (31). Tilt the table (7) forward to the desired angle (0° to 45°) by reading the scale (17). Retighten the handle and nuts. For bevel cuts, place the parallel guide to the right of the blade.

What type of saw blade to use?

The included blade (6 x 1400 mm) is universal. For tight radii, use a narrower blade; for straight cuts, a wider blade. Fine-toothed blades cut cleaner but slower. Never use deformed or damaged blades.

How to clean and maintain the saw?

Always unplug the power cord before cleaning. Use a clean cloth or low-pressure compressed air to remove dust. Clean immediately after each use. Store the machine in a dry place, frost-free and out of reach of children.

What to do if the motor does not start?

First check that the covers (11) are properly closed (safety switch). Check the fuses and power cable. If the problem persists, have the machine checked by a specialist. Never repair the motor yourself.

How to use the push stick?

The push stick (26) is essential for guiding narrow workpieces during cuts. Always place it on its holder (48) on the side of the machine when not in use. This prevents finger contact with the blade.

What are the essential safety measures?

Wear safety glasses, hearing protection and a dust mask. Do not wear loose clothing. Keep sufficient distance between your hands and the blade. Do not use the saw without the protective covers in place. Unplug the power cord before any adjustments or maintenance.

USER MANUAL PBS 350 A1 PARKSIDE

Exterior view of a Parkside industrial machine with control panel and mounting bracket (no visible text or symbols)

PDF ONLINE www.1idl-service.com

BAND SAW PBS 350 A1

GB IE NI

BAND SAW

Operating and Safety Instructions

Translation of Original Operating Manual

NL BE

BANDZAAG

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE / NI Operating and Safety Instructions Page 01

1c 72 1d 30 28

1d 30 28

2 17 32 20

3 34: 3 3

4 7 21 32 31 20

5 35 36 37 38 38 21

6 40 40 39 37

7 21 41 42

8 45 43 46 47 43 44 45 46

9 23 22 5

10 5 21 7

11 7 49 50

12 48 PARKSIDE 26

Close-up of a hand operating a 3D printer with a small component, labeled with number 13 and number 6 (no text or symbols on the device itself)

Person operating a mechanical device with a fan inside, no visible text or symbols

15 12

16 PARKSIDE 21 24 25 7

Person using a Parkside printer to press or export a sheet of paper, no visible text or symbols on the device itself.

Person using a PARKSIDE industrial machine to cut a wooden block, no visible text or symbols on the device itself.

Person using a PARKSIDE printer to print or spread materials on a surface (no visible text or symbols)

Table of contents: Page:

1. Explanation of the symbols on the equipment 2
2. Introduction....3
3. Device description (Fig. 1-16)....3
4. Scope of delivery 4
5. Intended use 4
6. Safety information....4
7. Technical data....6
8. Before starting the equipment 6
9. Attachment....7
10. Operation....9
11. Working instructions....9
12. Electrical connection....10
13. Cleaning, maintenance, and storage 10
14. Transport....10
15. Disposal and recycling 11
16. Troubleshooting....12
17. Warranty certificate....13
18. Declaration of conformity....68

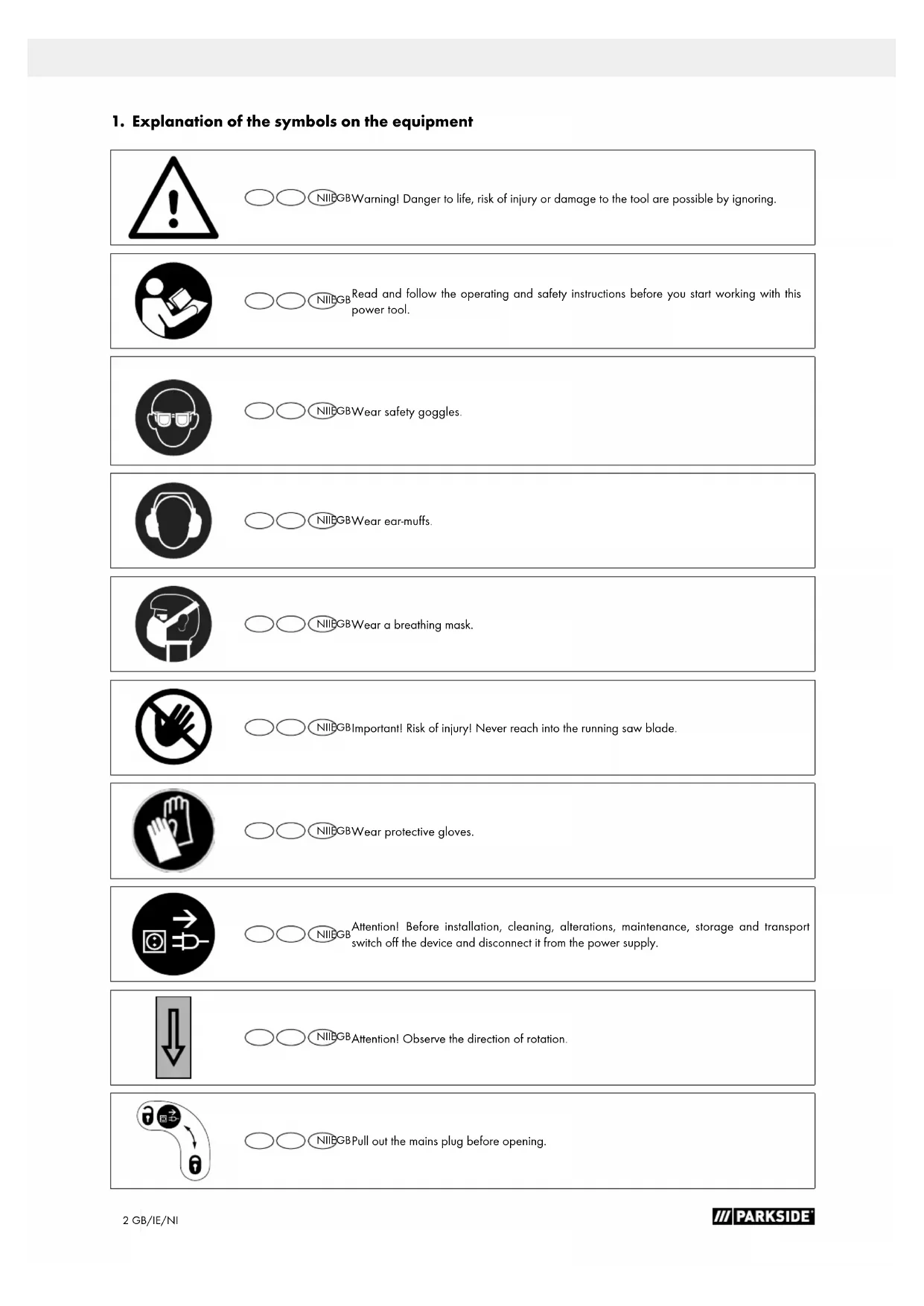

1. Explanation of the symbols on the equipment

○○○ NIIEGBWarning! Danger to life, risk of injury or damage to the tool are possible by ignoring.

Read and follow the operating and safety instructions before you start working with this power tool.

○○●NIIEGBWear safety goggles.

○○NIIBGBWear ear-muffs.

○○●NIEGBWear a breathing mask.

○○NIIEGB Important! Risk of injury! Never reach into the running saw blade.

○○○ NIIEGBWear protective gloves.

○○○ NIIGB Attention! Before installation, cleaning, alterations, maintenance, storage and transport switch off the device and disconnect it from the power supply.

○○NIIEGB Attention! Observe the direction of rotation.

○○NIIEGBPull out the mains plug before opening.

2. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

we hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
  • Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information.

The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety requirements in these operating instructions and your country's applicable regulations, you should observe the generally recognized technical rules concerning the operation of woodworking machines.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

3. Device description (Fig. 1-16)

1. Clamping screw
2. Top saw band roller
3. Rubber surface
4. Saw band guard

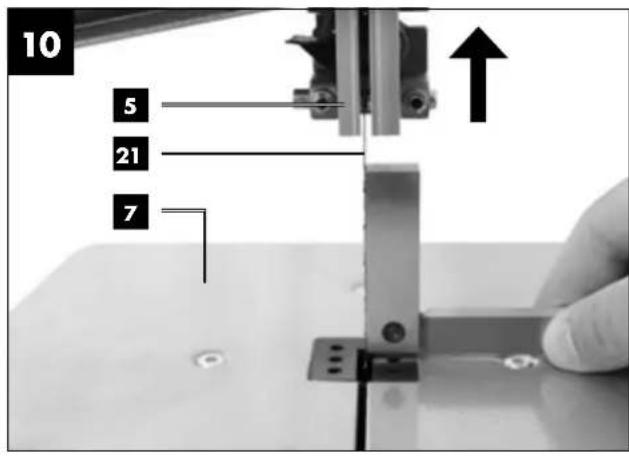

5. Top saw band guide

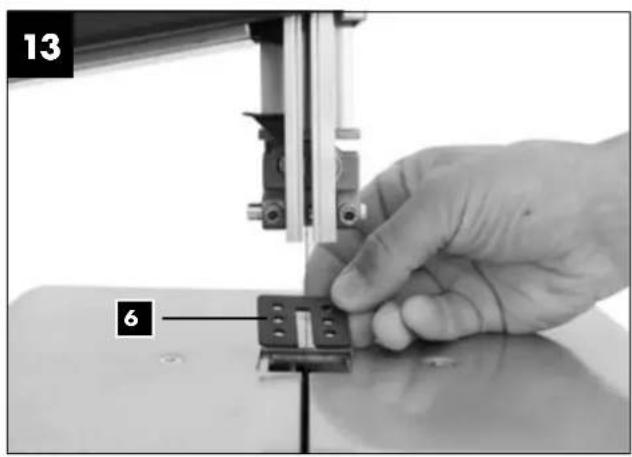

6. Table insert
7. Saw table
8. Bottom saw band roller
9. Foot
10. Cover locking mechanism
11. Side cover

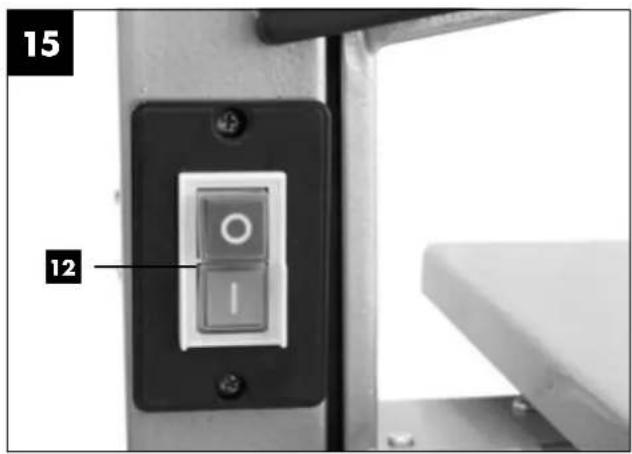

12. On/off switch
13. Locking screw for top saw band roller
14. Set screw for top saw band roller
15. Machine frame
16. Mains cable
17. Degree scale for swivel range
18. Motor
19. Extraction nozzle

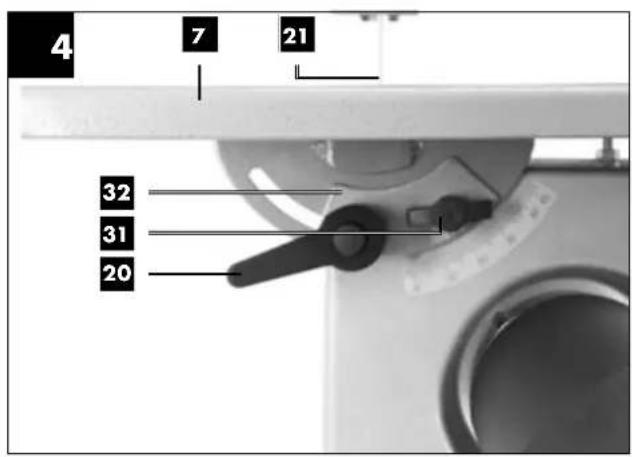

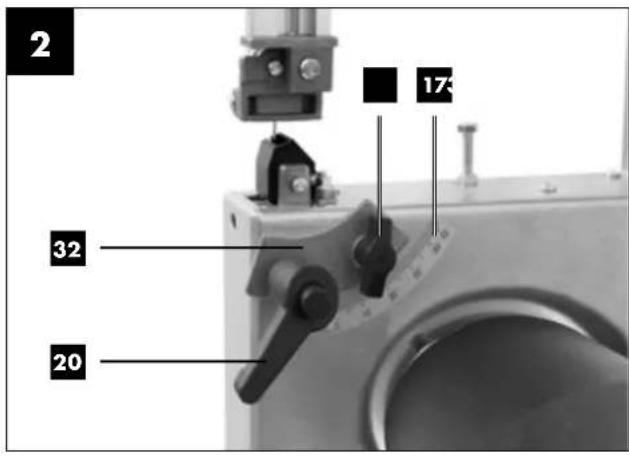

20. Locking handle for saw table
21. Bandsaw blade

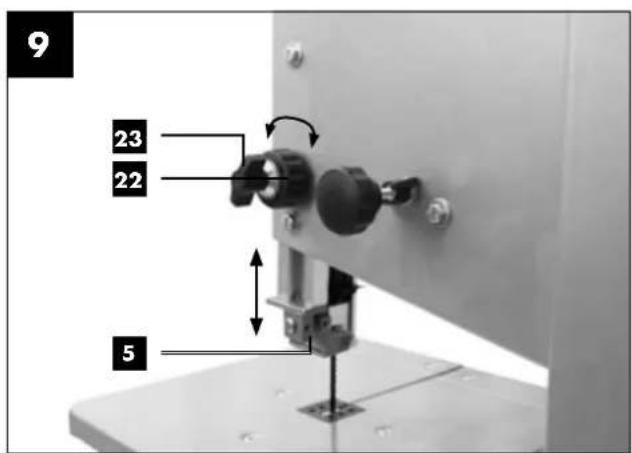

22. Adjustment handle for saw band guide
23. Locking handle for saw band guide
24. Parallel stop
25. Clamping bar for parallel stop

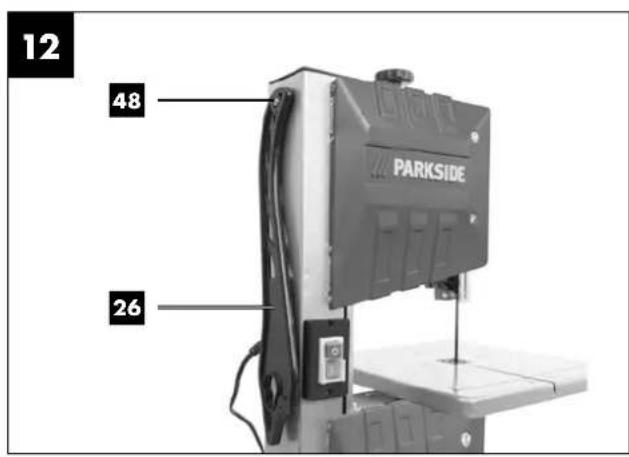

26. Push stick

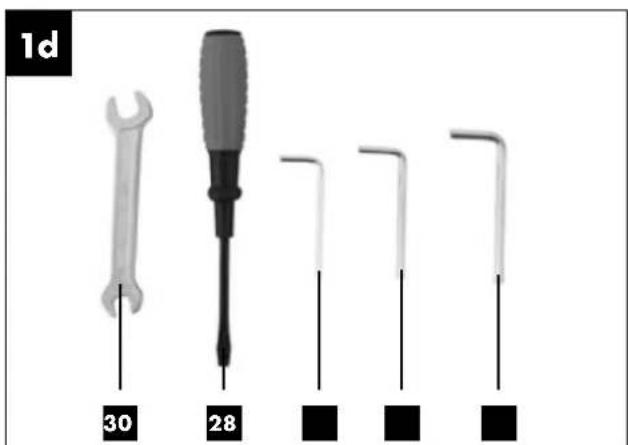

27. 3 mm Allen key
28. 4 mm Allen key
29. Screwdriver
30. Open-ended spanner
31. Wing nut
32. Clamping plate
33. Knurled nut
34. U-reinforcement

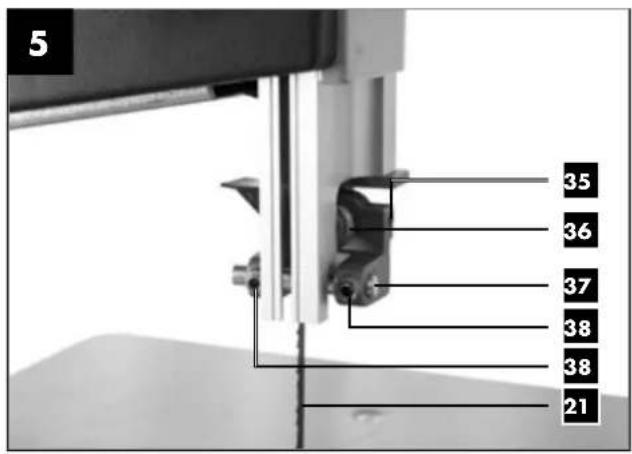

35. Allen screw for top support bearing
36. Top support bearing

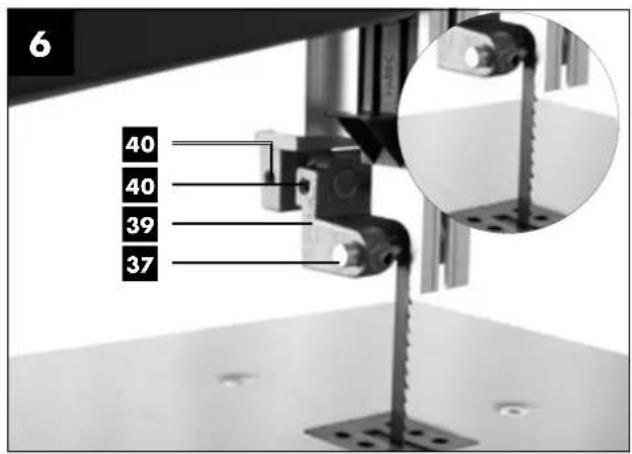

37. Top guide pin
38. Allen screw for top guide pins
39. Retainer (top)
40. Allen screw top retainer (2x)

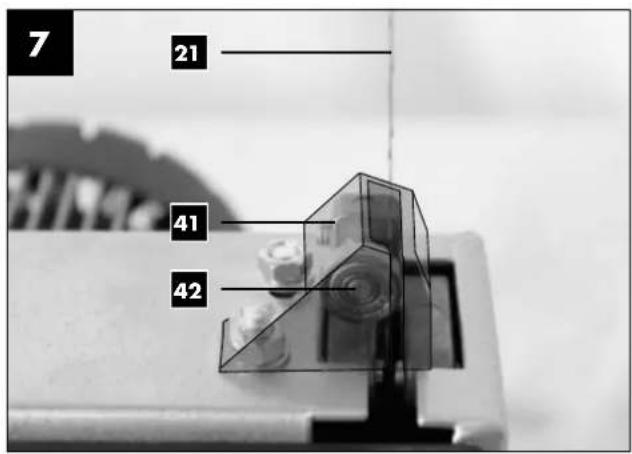

41. Allen screw bottom support bearing
42. Bottom support bearing

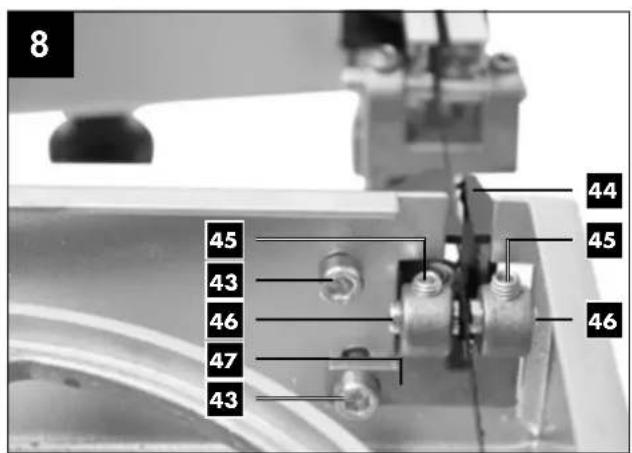

43. Screw bottom retainer
44. Saw band protection
45. Allen screw for bottom guide pins
46. Bottom guide pin
47. Bottom retainer
48. Push Stick retainer

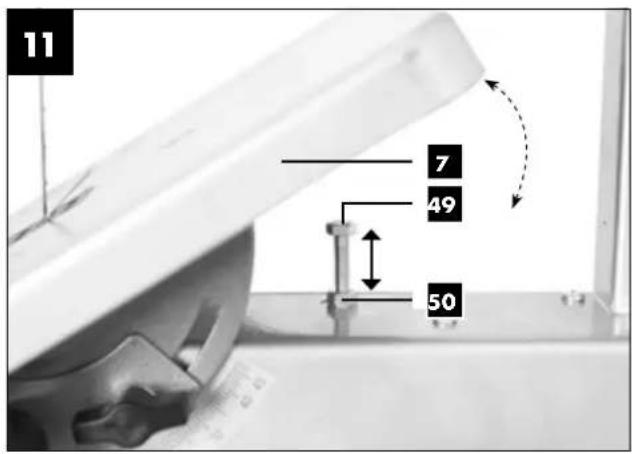

49. Screw (saw table adjustment)
50. Nut (saw table adjustment)
51. 5 mm Allen key

4. Scope of delivery

• Bandsaw/Bandsaw blade (pre-assembled)
- Saw table
- Push stick
- Parallel stop
- Open-ended spanner, size 10/13
- Allen key, size 3/4/5
- Screwdriver
• Original operating instructions

5. Intended use

The band saw is designed to perform longitudinal and cross cuts on timber or wood-type materials. To cut round materials you must use suitable holding devices.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

The machine is to be operated only with suitable saw blades. To use the machine properly you must also serve the safety regulations, the assembly instructions and the operating instructions to be found in this manual.

All persons who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of occupational health and safety.

The manufacturer shall not be liable for any changes made to the machine nor for any damage resulting from such changes. Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and design:

• Damage to hearing if ear-muffs are not used as necessary.
• Harmful emissions of wood dust when used in closed rooms.
• Contact with the blade in the uncovered cutting zone.
• Injuries (cuts) when changing the blade.
• Injury from catapulted workpieces or parts of workpieces.
• Crushed fingers.
• Kickback
• Tilting of the workpiece due to inadequate support.
• Touching the blade.
• Catapulting of pieces of timber and workpieces.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

6. Safety information

Attention!

The following basic safety measures must be observed when using electric tools for protection against electric shock, and the risk of injury and fire. Read all these notices before using the electric tool and keep the safety instructions for later reference.

Safe work

1. Keep the work area orderly
2. Disorder in the work area can lead to accidents.
3. Take environmental influences into account
4. Do not expose electric tools to rain.
5. Do not use electric tools in a damp or wet environment.
6. Make sure that the work area is well-illuminated.

7. Do not use electric tools where there is a risk of fire or explosion.

8. Protect yourself from electric shock

- Avoid physical contact with earthed parts (e.g. pipes, radiators, electric ranges, cooling units).

1. Keep other people away

- Do not let other people – especially children – touch the electric tool or its cable. Keep them clear of the work area.

1. Securely store unused electric tools

- Unused electric tools should be stored in a dry, elevated or closed location out of the reach of children.

1. Do not overload your electric tool

- They work better and more safely in the specified output range.

1. Use the correct electric tool

- Do not use low-output electric tools for heavy work.

- Do not use the electric tool for purposes for which it is not intended. For example, do not use handheld circular saws for the cutting of branches or logs.

- Do not use the electric tool to cut firewood.

1. Wear suitable clothing

2. Do not wear wide clothing or jewellery, which can become entangled in moving parts.

3. When working outdoors, anti-slip footwear is recommended.

4. Tie long hair back in a hair net.

5. Use protective equipment

- Wear protective goggles.

- Wear a mask when carrying out dust-creating work.

1. Connect the dust extraction device.

- If connections for dust extraction and a collecting device are present, make sure that they are connected and used properly.

- When processing wood, materials similar to wood, and plastics. Operation in enclosed spaces is only permitted with the use of a suitable extraction system.

1. Do not use the cable for purposes for which it is not intended

- Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

1. Secure the workpiece

2. Use the clamping devices or a vice to hold the workpiece in place. In this manner, it is held more securely than with your hand.

3. An additional support is necessary for long workpieces (table, trestle, etc.) in order to prevent the machine from tipping over.

4. Always press the workpiece firmly against the working plate and stop in order to prevent bouncing and twisting of the workpiece.

5. Avoid abnormal posture

- Make sure that you have secure footing and always maintain your balance.

- Avoid awkward hand positions in which a sudden slip could cause one or both hands to come into contact with the saw blade.

1. Take care of your tools

2. Keep cutting tools sharp and clean in order to be able to work better and more safely.

3. Follow the instructions for lubrication and for tool replacement.
4. Check the connection cable of the electric tool regularly and have it replaced by a recognised specialist when damaged.
5. Check extension cables regularly and replace them when damaged.

6. Keep the handle dry, clean and free of oil and grease.

7. Pull the plug out of the outlet

8. Never remove loose splinters, chips or jammed wood pieces from the running saw blade.

9. During non-use of the electric tool or prior to maintenance and when replacing tools such as saw blades, bits, milling heads.

10. When the saw blade is blocked due to abnormal feed force during cutting, turn the machine off and disconnect it from power supply. Remove the work piece and ensure that the saw blade runs free. Turn the machine on and start new cutting operation with reduced feed force.

11. Do not leave a tool key inserted

12. Before switching on, make sure that keys and adjusting tools are removed.

13. Avoid inadvertent starting

14. Make sure that the switch is switched off when plugging the plug into an outlet.

15. Use extension cables for outdoors

16. Only use approved and appropriately identified extension cables for use outdoors.

17. Only use cable reels in the unrolled state.

18. Remain attentive

- Pay attention to what you are doing. Remain sensible when working. Do not use the electric tool when you are distracted.

1. Check the electric tool for potential damage

2. Protective devices and other parts must be carefully inspected to ensure that they are fault-free and function as intended prior to continued use of the electric tool.

3. Check whether the moving parts function faultlessly and do not jam or whether parts are damaged.
4. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the electric tool.
5. The moving protective hood may not be fixed in the open position.
6. Damaged protective devices and parts must be properly repaired or replaced by a recognised workshop, insofar as nothing different is specified in the operating manual.
7. Damaged switches must be replaced at a customer service workshop.
8. Do not use any faulty or damaged connection cables.

9. Do not use any electric tool on which the switch cannot be switched on and off.

10. ATTENTION!

- The use of other insertion tools and other accessories can entail a risk of injury.

1. Have your electric tool repaired by a qualified electrician - This electric tool conforms to the applicable safety regulations. Repairs may only be performed by an electrician using original spare parts. Otherwise accidents can occur.

Additional safety instructions

• Wear safety gloves whenever you carry out any maintenance work on the blade!
• When cutting round or irregularly shaped wood, use a device to stop the workpiece from twisting.
• When cutting boards in upright position, use a device to prevent kick-back.
• A dust extraction system designed for an air velocity of 20 m/s should be connected in order to comply with woodworking dust emission values and to ensure reliable operation.
• Give these safety regulations to all persons who work on the machine.
• Do not use this saw to cut fire wood.
• The machine is equipped with a safety switch to prevent it being switched on again accidentally after a power failure.
• Before you use the machine for the first time, check that the voltage marked on the rating plate is the same as your mains voltage.
• If you use a cable reel, the complete cable has to be pulled off the reel.
• Persons working on the machine should not be distracted.
• Note the direction of rotation of the motor and blade.
• Never dismantle the machine's safety devices or put them out of operation.
• Never cut workpieces which are too small to hold securely in your hand.
• Never remove loose splinters, chips or jammed pieces of wood when the saw blade is running.
• It is imperative to observe the accident prevention regulations in force in your area as well as all other generally recognized rules of safety.
• Note the information published by your professional associations.
• Adjustable protective devices have to be adjusted as close as possible to the workpiece.
• Important! Support long workpieces (e. g. with a roller table) to prevent them sagging at the end of a cut.
• Make sure the blade guard (4) is in its lower position when the saw is being transported.
• Safety guards are not to be used to move or misuse the machine.
• Blades that are misshapen or damaged in any way must not be used.
• If the table insert is worn, replace it.
• Never operate the machine if either the door protecting the blade or the detachable safety device are open.
• Ensure that the choice of blade and the selected speed are suitable for the material to be cut.
• Do not begin cleaning the blade until it has come to a complete standstill.
• For straight cuts of small workpieces against the longitudinal limit stop the push stick has to be used.

• Wear gloves when handling the saw blade and rough materials

• The bandsaw blade guard should be in its lowest position close to the bench during transport.

• For miter cuts when the table is tilted, the parallel stop must be positioned on the lower part of the table.
• Never use guards to lift or transport items.
• Ensure that the bandsaw blade guards are used and correctly adjusted.
• Keep your hands a safety distance away from the bandsaw blade. Use a push stick for narrow cuts.
• The push stick has to be stored on the intended device, so that it can be reached from normal working position and is always ready to be used.
• In the normal operating position the operator is in front of the machine.

Warning!

This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

Remaining hazards

The machine has been built using modern technology in accordance with recognized safety rules. Some remaining hazards, however, may still exist.

• Risk of injury for fingers and hands by the rotating saw band due to improper handling of the work piece. Risk of injury through the hurling work piece due to improper handling, such as working without the push stick.
• Risk of damaging your health due to wood dust and wood chips. Wear personal protective cloth such as goggles. Use a fitting dust extractor.
• Risk of injury due to defective saw band. Regularly check saw band for such defects.
• Risk of injury for fingers and hands while changing saw band. Wear proper gloves.
• Risk of injury due to starting saw band while switching on the machine.
• The use of incorrect or damaged mains cables can lead to injuries caused by electricity.
• Wear only close fitting clothes. Remove rings, bracelets and other jewellery.
• For the safety of long hair, wear a cap or hair net. Even when all safety measures are taken, some remaining hazards which are not yet evident may still be present.
• Remaining hazards can be minimized by following the instructions in „Safety information“, “Intended use” and in the entire operating manual.

7. Technical data

Electric motor	230 - 240 V~ 50 Hz
Power	S1 350W*
Revolutions n_o	1400 min ^-1
Saw band length	1400 mm
Saw band width	3,5-12 mm
Saw band (pre-assembled)	6 x 1400 mm
Cutting speed	900 m/min
Passage height	0 - 80 mm
Passage width	200 mm
Table size	300 x 300 mm
Slewing range of the table	0° to 45°
Max. size of the workpiece	400 x 400 x 80 mm
Overall weight	14,8 kg

Subject to technical modifications!

* Operating mode S1, continuous operation.

The work piece must have a minimum height of 3 mm and a minimum width of 10 mm.

The total noise values determined in accordance with EN 61029.

Sound pressure level L_pA	77,4 dB(A)
Uncertainty K_pA	3 dB
Sound power level L_WA	90,4 dB(A)
Uncertainty K_WA	3 dB

Wear hearing protection!

The effects of noise can cause a loss of hearing.

Keep the noise level and vibration to a minimum!

• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.

8. Before starting the equipment

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

Make sure the machine stands securely, i.e. bolt it to a workbench or solid base. There are two holes for this purpose in the machine foot.

• The saw table must be mounted correctly.
• All covers and safety devices have to be properly fitted before the machine is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed before, watch out for foreign bodies such as nails or screws etc.
• Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and that the machine's moving parts run smoothly.
• Before you connect the machine to the power supply, make sure the data on the rating plate is the same as that for your mains.

9. Attachment

ATTENTION!

Before all maintenance, set-up and assembly work on the band saw, unplug the mains plug.

Assembly tools

1 Open-ended spanner, size 10/13

1 Allen key, size 3

1 Allen key, size 4

1 Allen key, size 5

1 Screwdriver

The saw table is not assembled for packaging reasons.

9.1 Assembling the saw table (Fig. 2-4)

• Remove the wing nut (31), the locking handle (20), the two washers and the clamping plate (32). (Fig. 2)

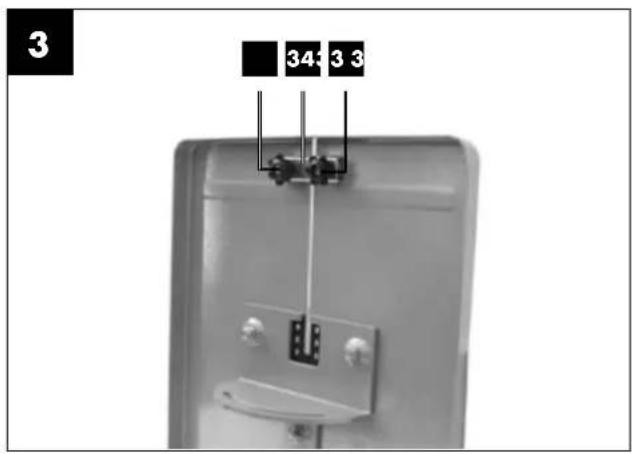

• Remove the two knurled nuts (33), the U-reinforcement (34) and the two countersunk screws M6x16 from the saw table. (Fig. 3)
• Guide the saw table (7) over the bandsaw blade (21). Fasten it to the two screws on the machine frame with the plate (32), the two washers, the wing nut (31) and the locking handle (20). (Fig. 4)
• Fasten the U-reinforcement (34) to the front side of the saw table with 2 countersunk screws M6x16 and 2 knurled nuts (33). (Fig. 3)

9.2 Tensioning the saw band (Fig. 1a)

• ATTENTION! If the saw is at a standstill for an extended period the saw band tension must be relieved, i.e. before switching the saw on it is necessary to check the saw blade tension.
• Turn the clamping screw (1) clockwise to tension the band-saw blade (21). The correct tension of the saw band can be determined by pressing the finger laterally against the saw band, roughly centrally between the two saw band rollers (2+8). The bandsaw blade (21) should only depress slightly (approx. 1-2 mm) here.

• The sufficiently tensioned saw band makes a metallic sound when tapped.

• Relieve the saw band tension if it is not in use for an extended time, so that it does not become overstretched.

• ATTENTION! With high tension, the saw band may break. RISK OF INJURY! If the tension is too low, the driven saw band roller (8) may spin, resulting in the saw band coming to a standstill.

9.3 Adjusting the saw band (Fig. 1a+1b)

• ATTENTION! Before it is possible to implement the saw band setting, the saw band must be tensioned correctly.
• Open the side covers (11) by undoing the cover locking mechanisms (10) with the help of the screwdriver (29).
• Slowly turn the saw band roller (2) clockwise. The bandsaw blade (21) should run centrally on the saw band roller (2). If this is not the case, the angle of the top saw band roller (2) must be corrected.
• If the bandsaw blade (21) runs more towards the rear edge of the saw band roller (2) then the set screw (14) must be rotated anticlockwise.
• Open the locking screw for the top saw band roller (13).
• Turn the bottom saw band roller (8) slowly by hand, to check the position of the bandsaw blade (21).
• If the bandsaw blade (21) runs more towards the front edge of the saw band roller (2) then the set screw (14) must be rotated clockwise.
• After setting the top saw band roller (2), check the position of the bandsaw blade (21) on the bottom saw band roller (8).
• The bandsaw blade (21) should also lie centrally on the saw band roller (8) here. If this is not the case, the angle of the top saw band roller (2) must be adjusted again.
• Turn the saw band roller a few times, until the adjustment of the top saw band roller (2) acts on the saw band position on the bottom saw band roller (8).
• Tighten the locking screw for the top saw band roller (13).
• Once adjustment is complete, close the side covers (11) again and secure with the cover locking mechanisms (10) with the help of the screwdriver (29).

9.4 Adjusting the saw band guide (Fig. 5 - 8)

• Both the support bearing (36 + 42) and the guide pins (37 + 46) must be readjusted after every saw band change.
• Open the side covers (11) by undoing the cover locking mechanisms (10) with the help of the screwdriver (29).

9.4.1 Top support bearing (36) (Fig. 5)

• Undo Allen screw for top support bearing (35).
• Move support bearing (36) sufficiently far that it just no longer touches the Bandsaw blade (21) (distance max. 0.5 mm).
• Retighten the Allen screw for the top support bearing (35).

9.4.2 Adjusting the bottom support bearing (42) (Fig. 7)

• Disassemble the saw table as per 9.1 in the opposite direction.
• Undo Allen screw for bottom support bearing (41).
• Move bottom support bearing (42) sufficiently far that it just no longer touches the bandsaw blade (21) (distance max. 0.5 mm).
• Retighten Allen screw for bottom support bearing (41).

9.4.3 Adjusting the top guide pins (37) (Fig. 5+6)

• Undo Allen screws for top retainer (40)
• Move top retainer (39), top guide pins (37), until the front edge of the guide pins (37) is approx. 1 mm behind the tooth base of the saw band.

- Retighten Allen screws for top retainer (40).

- ATTENTION! The saw band will be unusable if the teeth touch the guide pins with the saw band running.

- Undo Allen screws for top guide pins (38).

- Slide the guide pins (37) in the direction of the saw band!

- Attention! The distance between the guide pins (37) and bandsaw blade (21) must not exceed 0.5 mm. (Saw band must not jam)

• Retighten Allen screws (38).

- Turn the top saw band roller (2) a few times in a clockwise direction.

- Check the setting of the top guide pins (37) again and adjust if necessary.

- If necessary, adjust the top support bearing (36) (9.4.1).

9.4.4 Adjusting the bottom guide pins (46) (Fig. 7+8)

• Disassemble saw table (7)
- Undo screw for bottom retainer (43) (Allen key, size 5)
- Move bottom retainer (47), bottom guide pins (46), until the front edge of the bottom guide pins (46) is approx. 1 mm behind the tooth base of the saw band.
- Retighten screw for bottom retainer (43).

- ATTENTION! The saw band will be unusable if the teeth touch the guide pins with the saw band running.

- Undo Allen screws for bottom guide pins (45).

- Slide the two bottom guide pins (46) sufficiently far in the direction of the saw band that the distance between the guide pins (46) and bandsaw blade (21) is max. 0.5 mm. (Saw band must not jam)

- Retighten Allen screws for bottom guide pins (45).

- Turn the bottom saw band roller (8) a few times in a clockwise direction.

- Check the setting of the bottom guide pins (46) again and adjust if necessary.

- If necessary, adjust the bottom support bearing (42) (9.4.2).

9.5 Adjusting the top saw band guide (5) (Fig. 9)

• Undo locking handle for saw band guide (23).
• Turn the adjustment handle for the saw band guide (22) to lower the saw band guide (5) as closely as possible (distance approx. 2-3 mm) over the material to be cut.
  • Retighten locking handle (23).
• Check the setting before every cutting process and adjust if necessary.

9.6 Adjusting the saw table (7) to 90° (Fig. 10+11)

• Set the top saw blade guide (5) fully upwards.
• Undo locking handle (20) and wing nut (31) (Fig. 2).

• Place the angle bracket between the bandsaw blade (21) and saw table (7). Angle bracket not included in the scope of supply.

• Tilt the saw table (7) by turning, until the angle to the band-saw blade (21) is precisely 90^ . If the saw table is already on the screw (49) and a 90^ angle cannot be set, undo the nut (50) and shorten the screw (49) by turning in a clockwise direction.

• Retighten the locking handle (20) and wing nut (31).
• Also undo the nut (50).
• Adjust the screw (49) sufficiently that the saw table touches the underside.
• Retighten the nut (50) to fix the screw (49) in position.

9.7 Which saw band to use

The saw band supplied in the band saw is intended for universal use. The following criteria should be considered when selecting the saw band:

• It is possible to cut tighter radii with a narrow saw band than with a wide saw band.
• A wide saw band is used if a straight cut is required. This is important in particular when cutting wood. The saw band has a tendency to follow the wood grain and therefore deviates easily from the desired cutting line.
• Fine-toothed saw bands cut more smoothly, but also more slowly than coarse saw bands.

Attention: Never use bent or torn saw bands!

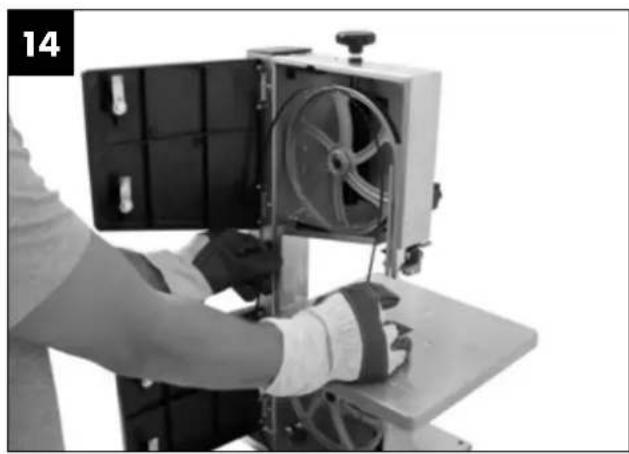

9.8 Replacing the saw band (Fig. 1a+1b+14)

• Set the saw band guide (5) at approx. half height between the saw table (7) and machine frame (15).
• Undo the cover locking mechanisms (10) and open the side covers (11).
• Remove U-reinforcement (34) as described in 9.1.
• Relieve the bandsaw blade (21) tension by turning the clamping screw (1) anti-clockwise.
• Remove the bandsaw blade (21) from the saw band rollers (2 + 8) and through the slot in the saw table (7).
• Place the new bandsaw blade (21) centrally on both saw band rollers (2+8). The teeth of the bandsaw blade (21) must point downwards in the direction of the saw table (Fig. 6).
  • Tension the bandsaw blade (21) (see 9.2)
• Close the side cover (11) again.
  • Re-install the U-reinforcement (34).

9.9 Replacing the table insert (Fig. 13)

• In case of wear or damage, the table insert (6) must be replaced; otherwise there is an increased risk of injury.
• Remove the worn table insert (6) by lifting it up and out.
• Installation of the new table insert takes place in reverse order.

9.10 Extraction nozzle (Fig. 1b)

• The band saw is equipped with an extraction nozzle (19) ∅ 40 mm for chips.
• Only operate the device with a suitable extraction system. Check and clean the suction channels at regular intervals.

9.11 Push Stick retainer (Fig. 12)

- The Push Stick retainer (48) is pre-mounted on the machine frame. If unused, the Push stick (26) must always be stowed in the Push Stick retainer.

10. Operation

10.1 On/Off switch (12) (Fig. 15)

• To turn the machine on, press the green button „I“.
• To turn the machine off again, press the red button „0“.
• The band saw is equipped with an undervoltage switch. With a power failure, the band saw must be switched back on again.

10.2 Parallel stop (Fig. 16)

• Press the clamping bar (25) of the parallel stop (24) upwards
• Slide the parallel stop (24) left or right of the Bandsaw blade (21) on the saw table (7) and set to the desired measurement.
• Press the clamping bar (25) down to fix the parallel stop (24) in place. In order to increase the clamping force of the clamping bar (25), rotate it clockwise until the parallel stop is sufficiently fixed in place.
• Make sure that the parallel stop (24) always runs parallel to the bandsaw blade (21).

10.3 Angled cuts (Fig. 17)

In order to execute angled cuts parallel to the bandsaw blade (21), it is possible to tilt the saw bench (7) forwards from 0° - 45°.

• Undo locking handle (20) and wing nut (31).
• Tilt saw bench (7) forwards, until the desired angle is set on the degree scale (17).
• Retighten the locking handle (20) and wing nut (31).
• Attention: With a tilted saw table (7), the parallel stop (24) must always be fitted to the right of the bandsaw blade (21) in the working direction. This prevents the workpiece from slipping.

11. Working instructions

The following recommendations are examples of the safe use of band saws.

The following safe working methods should be seen as an aid to safety. They cannot be applied suitably completely or comprehensively to every use. They cannot treat every possible dangerous condition and must be interpreted carefully.

• Connect the machine to a suction unit when working in closed rooms.
• Loosen the sawband when the machine is not in operation (e.g. after finishing work). Attach a notice on the tension of the saw band to the machine for the next user.
• Collect unused sawbands and store them safely in a dry place. Check for faults (teeth, cracks) before use. Do not use faulty sawbands!
• Wear suitable gloves when handling sawbands.
• All protective and safety devices must be securely mounted on the machine before beginning work.
• Never clean the sawband or the sawband guide with a hand-held brush or scraper while the sawband is running. Resin-covered sawbands impair working safety and must be cleaned regularly.
• For your own protection, wear protective glasses and hearing protection. Wear a hairnet if you have long hair. Roll up loose sleeves over the elbows.

• Always position the sawband guide as near the workpiece as possible when working.
- Insure sufficient lighting in the work area and around the machine.
• Always use the fence for straight cuts to keep the workpiece from tipping or slipping away.
- When working on narrow workpieces with manual feed, use the push stick.
- For diagonal cuts, place the saw bench in the appropriate position and guide the workpiece on the fence.
- In order to cut dovetail tenons and teeth or wedges, bring the saw table into the corresponding position on the angle scale.
- For arced and irregular cuts, push the workpiece evenly using both hands with the fingers together. Hold the workpiece with your hands on a safe area.
- Use a pattern for repeated arced or irregular cuts.
- Insure that the workpiece does not roll when cutting round pieces.
- Attention! After every new setting, we recommend performing a test cut, in order to check the dimensional settings.
- With all cutting processes, the top saw band guide (5) must be positioned as close as possible to the workpiece (see 9.5).
- The workpiece must always be guided with both hands and kept flat against the saw table (7). This prevents the band-saw blade (21) from jamming.
- Forward feeding should always take place with an even pressure, which is just sufficient for the saw band to cut through the material with ease without becoming blocked.
- Always use the parallel stop (24) for all cutting processes that it can be used for.
- It is better to perform a cut in a single working step than in multiple steps, which may require that the workpiece be drawn back. However, if it is not possible to avoid drawing the workpiece back then the band saw must be switched off first. Only draw the workpiece back once the bandsaw blade (21) has come to a standstill.
- When sawing, the workpiece must always be guided by its longest side.
- Attention! When processing narrower workpieces it is essential to use a Push stick. The Push stick (26) must always be stored within reach, on the Push Stick retainer (48) provided for this purpose on the side of the saw.

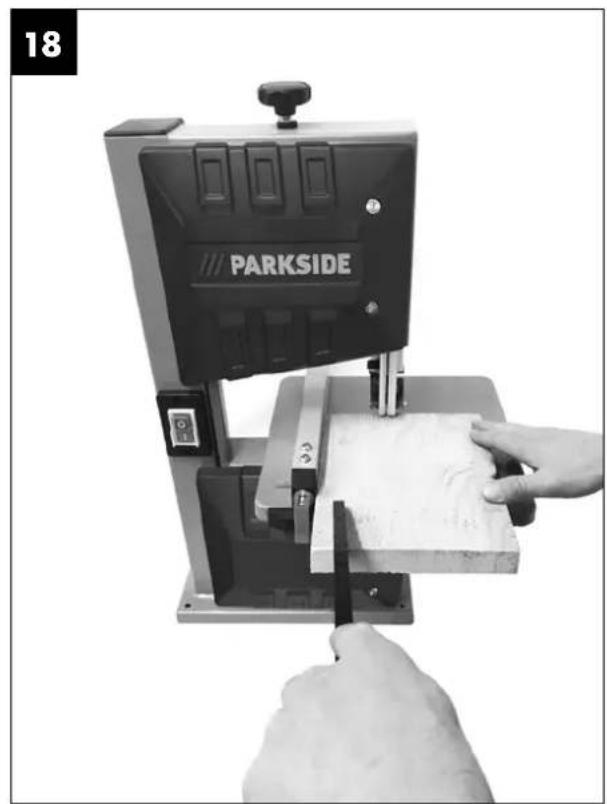

11.1 Performing longitudinal cuts (Fig. 18)

Here, a workpiece is cut in its longitudinal direction.

• Position the longitudinal fence (24) on the left side (if possible) of the Bandsaw blade (21), in accordance with the desired width.
• Lower the saw band guide (5) onto the workpiece (9.5).
• Switch on the saw (see 10.1).
• Press one edge of the workpiece against the longitudinal fence (24) with the right hand, whilst the flat side lies on the saw bench (7).
• Slide the workpiece at an even feed rate along the longitudinal fence (24) into the Bandsaw blade (21).
• Important: Long workpieces must be secured against tipping at the end of the cutting process (e.g. with reel-off stand, etc.)

11.2 Performing angled cuts (Fig. 17)

• Set saw bench to desired angle (see 10.3).
  • Perform the cut as described under 11.1.

When producing angled cuts, only use the parallel stop to the right of the saw band.

11.3 Freehand cuts (Fig. 19)

• One of the most important features of a band saw is the ease with which it can cut curves and radii.
• Lower the saw band guide (5) onto the workpiece (see 9.5).
• Switch on the saw.
• Press the workpiece firmly onto the saw bench (7) and slowly slide into the bandsaw blade (21).
• In many cases it is helpful to roughly saw curves and corners approximately 6 mm from the line.
• If it is necessary to saw curves that are too tight for the saw band used, auxiliary cuts must be sawn up to the front face of the curve, so that these fall off as wood waste when the final radius is sawn.

12. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Important information

In the event of an overloading the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.
- Kinks where the connection cable has been improperly fastened or routed.
- Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
- Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking „H05VV-F“.

The printing of the type designation on the connection cable is mandatory.

AC motor:

• The mains voltage must be 230 - 240 V\~ 50 Hz.
• Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

Connections and repairs of electrical equipment may only be carried out by an electrician.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
• Machine data - type plate

13. Cleaning, maintenance, and storage

⚠️ Important!

Prior to any adjustment, maintenance or service work disconnect the mains power plug!

Cleaning

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Maintenance

There are no parts inside the equipment which require additional maintenance.

Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Store the power tool in original packaging.

Cover the electrical tool in order to protect it from dust and moisture.

Store the operating manual with the electrical tool.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: bandsaw blade, table inserts, Push stick

* Not necessarily included in the scope of delivery!

14. Transport

The machine must only be lifted and transported on its frame or the frame plate. Never lift the machine at the safety devices, the adjusting levers, or the sawing table.

During the transport the saw blade protection must be in the lowest position and near the table.

Never raise at the table! Unplug the machine from the mains during transport.

15. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled.

The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

16. Troubleshooting

Fault Possible cause Remedy
Motor does not work Motor, cable or plug defective, fuses burnt	Arrange for inspection of the machine by a specialist. Never repair the motor yourself. Danger! Check fuses and replace as necessary
	Housing cover open (limit switch) Close housing cover exactly
The motor starts up slowly and does not reach operating speed.	Voltage too low, coils damaged, capacitor burnt	Contact the utility provider to check the voltage.Arrange for inspection of the motor by a specialist.Arrange for replacement of the capacitor by a specialist
Motor makes excessive noise Coils damaged, motor defective Arrange for inspection of the motor by a specialist
The motor does not reach its full power.	Circuits in the network are overloaded (lamps other motors, etc.)	Do not use any other equipment or motors on the same circuit
Motor overheats easily. Overloading of the motor, insufficient cooling of the motor		Avoid overloading the motor while cutting, remove dust from the motor in order to ensure optimal cooling of the motor
Saw cut is rough or wavy	Saw blade dull, tooth shape not appropriate for the material thickness	Resharpen saw blade and/or use suitable saw blade
Workpiece pulls away and/or splinters	Excessive cutting pressure and/or saw blade not suitable for use	Insert suitable saw blade
Saw blade is not running straight	Guide has been wrongly set Set the saw blade guide according to the operating instructions
	Wrong saw blade Select a saw blade according to the operating instructions
Burn marks appear on the wood during the cutting work	Blunt saw blade Change the saw blade
	Wrong saw blade Select a saw blade according to the operating instructions
Saw blade jams during cutting work	Blunt saw blade Change the saw blade
	Deposits on the saw blade Clean the saw blade
	Guide has been set poorly Set the saw blade guide according to the operating instructions

17. Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

- The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

- In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Service-Hotline (GB/IE/NI):

[phone]

(0,00 EUR/Min.)

Service-Email (GB):

[e-mail]

Service-Email (IE/NI):

[e-mail]

Service Address (GB/IE/NI):

Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate, Pontypridd CF375SW

PDF ONLINE www.1idi-service.com

At www.lidl-service.com you can download this and many more manuals, product videos plus installation software.

The QR code takes you directly to the Lidl service page (www.lidl-service.com) and you can open your operating manual by entering the article number (IAN) 317155_1904.

Table des matières: Page:

Günzburger Straße 69

D-89335 Ichenhausen

Chers clients,

1 clé plate SW 10/13

Service-hotline (BE):

[phone]

(0,00 €/Min.)

Email du service (FR):

[e-mail]

E-mailadres (BE):

[e-mail]

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

[e-mail]

E-mailadres / Email du service (BE):

[e-mail]

Serviceadres / Adresse du service (NL/BE):

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη,

[e-mail]

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

1 Gabelschlüssel SW 10/13

1 Inbusschlüssel SW 3
1 Inbusschlüssel SW 4
1 Inbusschlüssel SW 5
1 Schraubenzieher

[e-mail]

[e-mail]

Service Adresse (DE): Service Adresse (AT):

CE - Declaration of Conformity

Translation of the original EC declaration of conformity

CE

Standard references:

EN 61029-1:2009/A11:2010; EN 61029-2-5:2011/A11:2015;

EN 55014-1:2017; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013;

This declaration of conformity is issued under the sole responsibility of the manufacturer.

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registar: Andreas Pecher

Günzburger Str. 69, D-89335 Ichenhausen

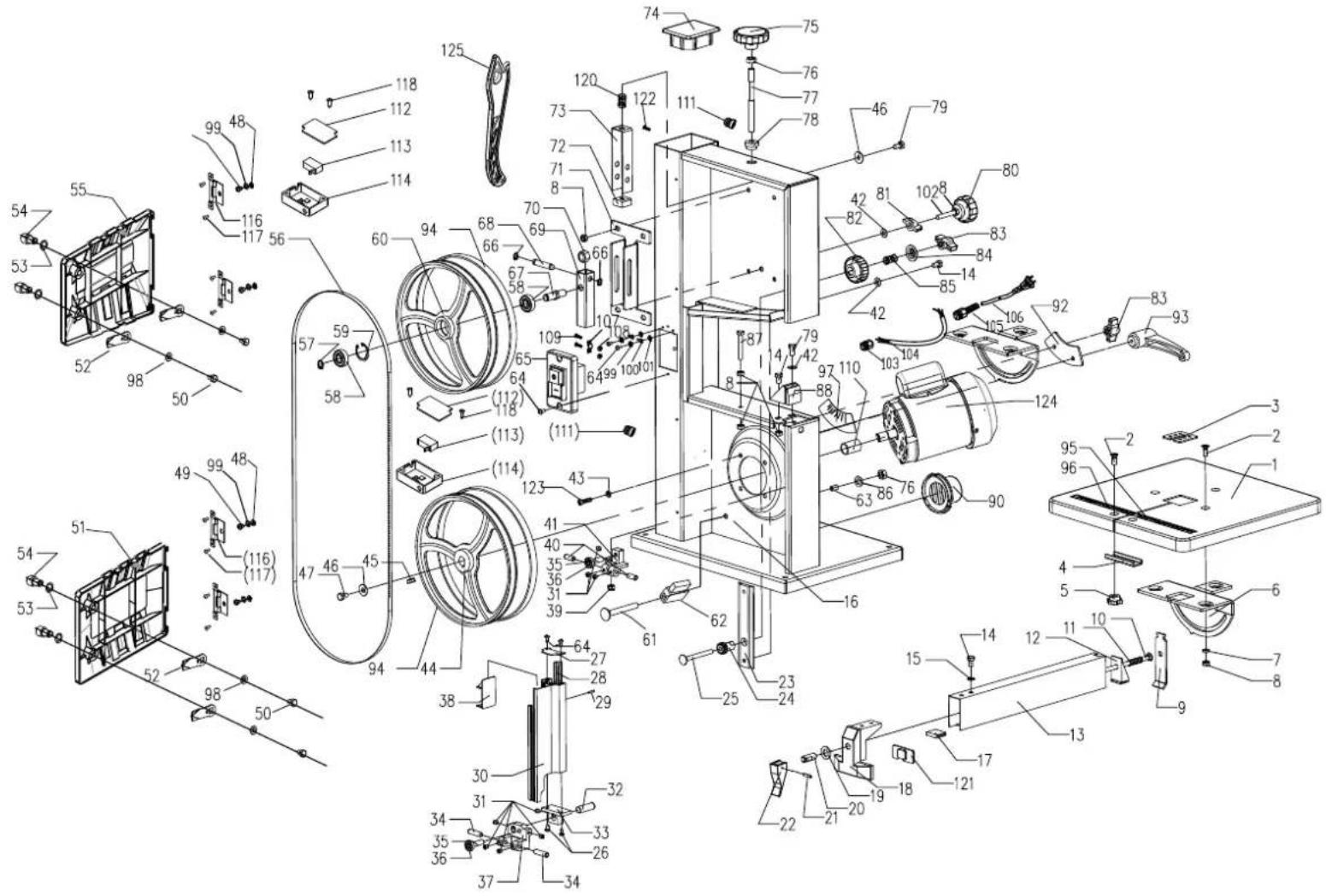

Exploded view diagram of a mechanical device with numbered components and exploded views

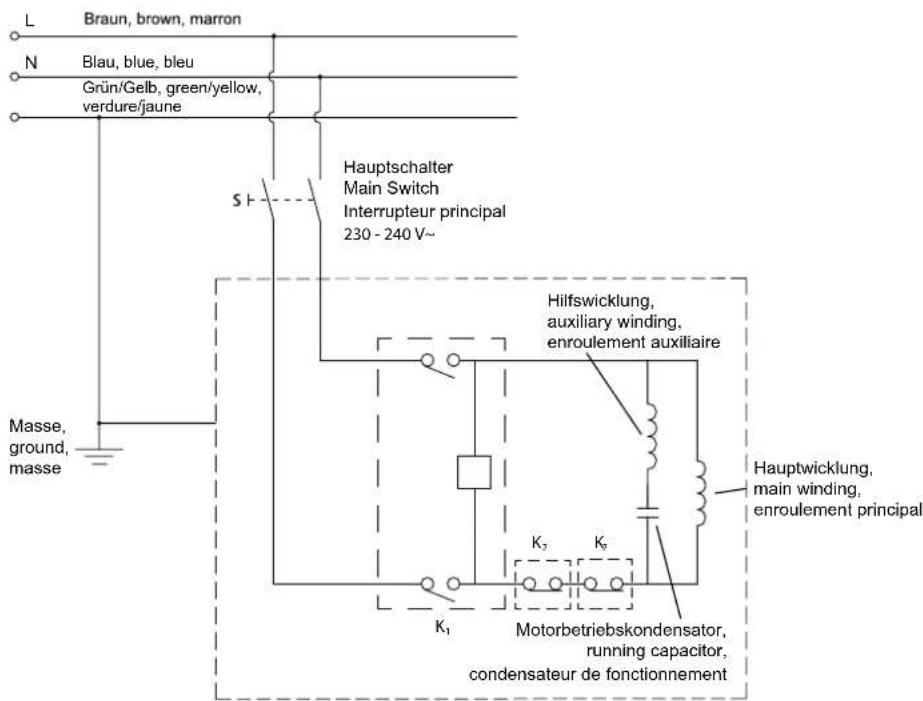

L Braun, brown, marron N Blau, blue, bleu Grün/Gelb, green/yellow, verdure/jaune S+ Hauptschalter Main Switch Interrupteur principal 230 - 240 V~ Masse, ground, masse K1 Motorbetriebskondensator, running capacitor, condensateur de fonctionnement K2 K3 Hilfswicklung, auxiliary winding, enroulement auxiliaire Hauptwicklung, main winding, enroulement principal

CE
