USER MANUAL JOS1F Aiphone

Thank you for selecting Aiphone for your communication and security needs. Please read this manual carefully for proper system operation. For future reference, keep manual in a safe place.

PRECAUTIONS

Prohibited Do not dismantle unit Keep unit away from water Genesh precautions

WARNING

Negligence could result in death or serious injury.

1. Do not dismantle or alter the unit. Fire or electric shock could result.
2. Keep the unit away from water or any other liquid. Fire or electric shock could result.
3. High voltage is present internally. Do not open the case. Electric shock could result.
4. Do not connect any non-specified power source to the + , - terminals. Also, do not install two power supplies in parallel to a single input. Fire or damage to the unit could result.
5. Do not use power supply with a voltage other than specified. Fire or electric shock could result.
6. Do not put any metal or flammable material into the unit through the openings. Fire, electric shock, or unit trouble could result.
7. The unit must be installed and wired by a qualified technician.

CAUTION

Negligence could result in injury or damage to property.

1. Do not install or make any wire terminations while power supply is plugged in. It can cause electrical shock or damage to the unit.
2. When mounting the unit on a wall, install the unit in a convenient location, but not where it could be jarred or bumped. Injury could result.
3. Before turning on power, make sure wires are not crossed or shorted. Fire or electric shock could result.
4. Do not install the unit in locations subject to frequent vibration or impact. It may fall or tip over, resulting in damage to the unit or personal injury.
5. For power supply, use Aiphone power supply model specified for use with system. If non-specified product is used, fire or malfunction could result.
6. Do not put anything on the unit or cover the unit with cloth, etc. Fire or unit trouble could result.

7. Do not install the unit in any of the following locations. Fire, electric shock, or unit trouble could result.

8. Places under direct sunlight or near heating equipment that varies in temperature.

9. Places subject to dust, oil, chemicals, hydrogen sulfide (hot spring).
10. Places subject to moisture and humidity extremes, such as bathrooms, cellars, greenhouses, etc.
11. Places where the temperature is quite low, such as inside a refrigerated area or in front of an air conditioner.
12. Places subject to steam or smoke (near heating or cooking surfaces).
13. Where noise generating devices such as dimmer switches or inverter electrical appliances are closetcy.

14. Locations subject to frequent vibration or impact.

15. Do not apply high pressure on the screen. If fractured, injury could result.

16. If the LCD is punctured, do not allow skin contact with the liquid crystal inside. Inflammation could result.
17. If liquid crystal is ingested, immediately gargle with water and seek medical attention.
18. If contact with the eyes or skin occurs, clean with pure water and seek medical attention.

GENERAL PRECAUTIONS

1. Keep the unit more than 1m (3.3) away from radio or TV set.
2. Kcpc the intercom wires more than 30cm (12^) away from AC 100-240V wiring, AC induced noise and/or unit malfunction could result.
3. Comply with all third party manufacturing specifications that will be used with this system (sensors, door releases, etc.).
4. If the unit is down or does not operate properly, unplug the power supply.
5. When wall-mounted, the top of the unit may darken. This does not indicate a malfunction.

6. The unit case may become warm with use, but this is not a unit malfunction.

7. If the unit is used near a cellular phone, the unit may malfunction.

8. The unit can be damaged if dropped. Handle with care.
9. The unit will not work during power failure.
10. In areas where broadcasting station antennas are close by, the intercom system may be affected by radio frequency interference.
11. All the units, except for door stations, are designed for indoor use only. Do not use at outdoor locations.
12. This product, providing door release, should not be used as a crime prevention device.
13. Please note the LCD panel, though manufactured with very high precision techniques, inevitably will have a very small portion of its image elements always lit or not lit at all. This is not considered a unit malfunction.
14. Environmental sound around the unit may hinder smooth communication, but this is not a malfunction.
15. At night, due to reduced lighting on the object, the screen sees more noise and faces become more difficult to see, but this is not a malfunction.
16. For hands-free communication: If you stand too far away, it may be difficult for the other person to hear the communication.
17. If there are loud noises around the unit (such as music playing or children crying), the sound may break up and be difficult to hear.
18. During communication, if you speak before the other person has finished talking, your voice may not come through clearly. Communication will proceed smoothly if you wait until the other person has finished before speaking.
19. At a gate or porch illuminated by a fluorescent lamp, the image may vary, but this is not a malfunction.
20. The outline of video images displayed by the video door station may differ from that of the actual person(s) or background, but this is not a malfunction.
21. If the surface of a video door station freezes during wintertime, the image may become difficult to see or the call button may not move, but this is not a malfunction.
22. Warm-color lighting shining on the video door station may change the tint of the image on the screen.
23. When outside temperature lowers sharply after rainfall, etc., the inside of the camera may fog up slightly, causing a blurry images, but this is not a malfunction. Normal operation will be restored when moisture evaporates.
24. When the unit's screen is illuminated with strong light, the image looks white or silhouetted, but this is not a malfunction.

NOTICES

• We will under no conditions be liable for damage occurring due to the inability to communicate due to malfunctions, problems, or operational errors in this product.
• We will under no conditions be liable for any damages or losses resulting from this product's contents or specifications.
• This manual was created by Aiphone Co., Ltd., all rights reserved. Copying, in part or in whole, this manual without prior permission from Aiphone Co., Ltd. is strictly forbidden.
• Please note that images and illustrations depicted in this manual may differ from the actual ones.
• Please note that this manual may be revised or changed without prior notice.
• Please note that product specifications may be changed for the sake of improvement without prior notice.
• This system is not intended for life support or crime prevention. It is a supplementary means of conveying information. Aiphone will under no conditions be liable for loss of life or property which occurs while the system is being operated.
• Lighting adjustments are made automatically by the door station. Adjustment results may vary depending on installation environment.

PACKAGE CONTENTS

	JOS-1A JO	V JOS-1F
JO-1MD	✓	✓	✓
Front panel Main unit JO-DA	✓
JO-DV		✓
Flush mount back box Special screw x4 JO-DVF			✓
Manual	✓	✓	✓
Special screwdriver		✓
Special screwdriver (Hexagonal wrench)			✓
Transparent name plate x2		✓	✓

NOTES:

• Mounting and Wood mounting screws not included
• For details on the power supply, see the installation manual separately.

PART NAMES

Remove protective film before use.

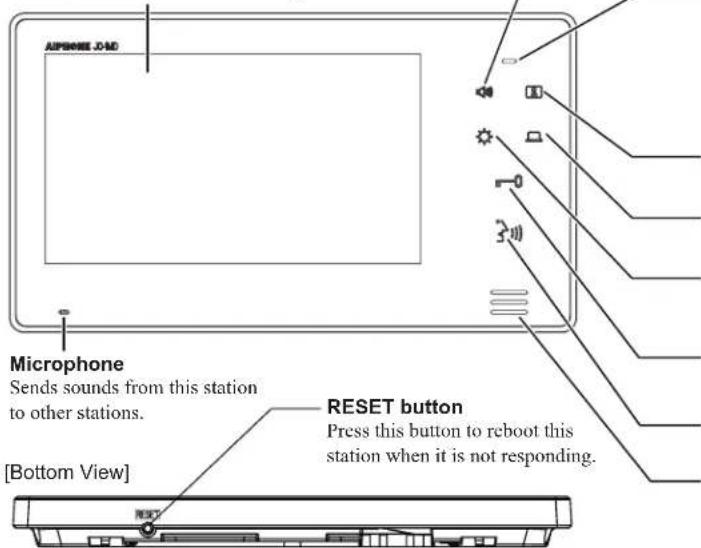

JO-1MD

Color LCD screen

Displays camera images during door station call-ins, communication with door station, and door station monitoring

Volume control button

[During standby]

Adjust the calling volume.

Volume adjustment range: (mutc), 1-3

[During communication or monitoring]

Adjust the communication volume.

Volume adjustment range: 1-3

Status LED (orange)

Indicates the current status of this station by lighting up or blinking.

On: During communication sending, while the door release button is being pressed, or while the option button is being pressed

Flashing: During communication reception in the PTT mode, during short detection or during mute

Monitor button

Monitor a door station

Option button

To activate/trigger external device

Screen brightness control button

Adjusts LCD screen brightness

Brightness adjustment range: 1-5

Door release button

Unlocks door

Talk/off button

Starts or ends communication.

Speaker

Call tones, sounds from a door station.

Camera-angle adjustment switch

The camera-angle adjustment switch is behind the panel. Pushing the button changes the angle of the camera.

Camera-angle adjustment switch

JO-DA

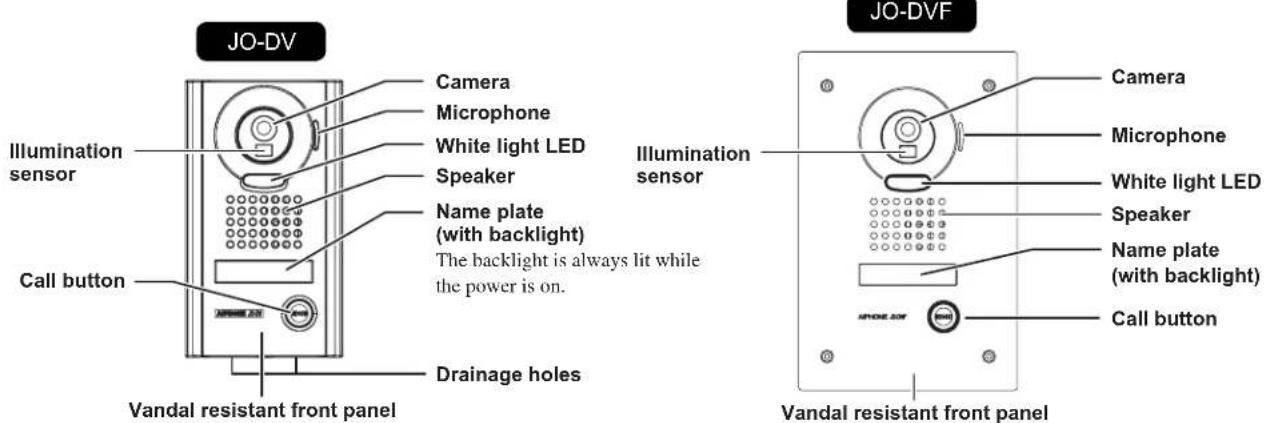

Drainage holes

Camera

Captures images to display on the screens of the master and expansion monitor station.

Microphone

Sends sounds from the door station to the master and expansion monitor station.

Illumination sensor

Detects outside illuminance to recognize whether it is daytime or nighttime.

Speaker

Outputs sounds from the master or expansion monitor station.

Call button with white light LED

Calls the preset master and expansion monitor station.

Lights up automatically when it gets dark around this station.

INSTALLATION

Cable

Use PE (polyethylene)-insulated PVC jacket cable.

Parallel or jacketed 2-conductor, mid-capacitance, non-shielded cable is recommended.

Never use individual conductors, twisted pair cable, or coaxial cable.

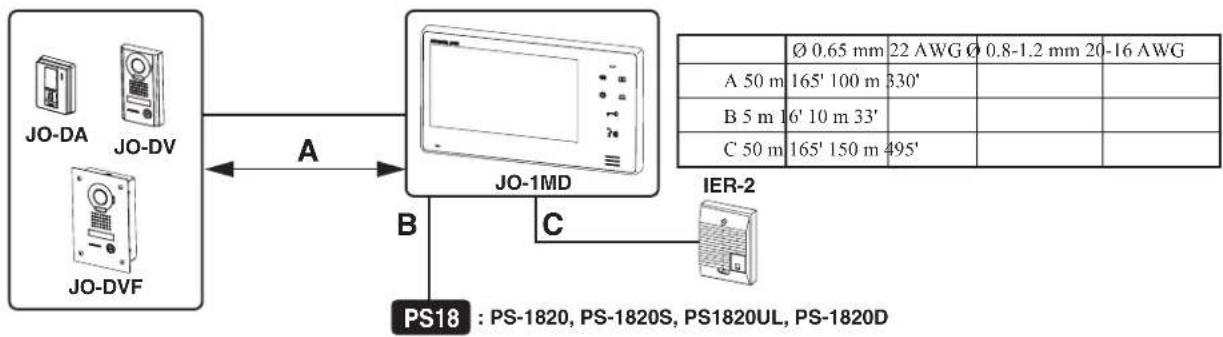

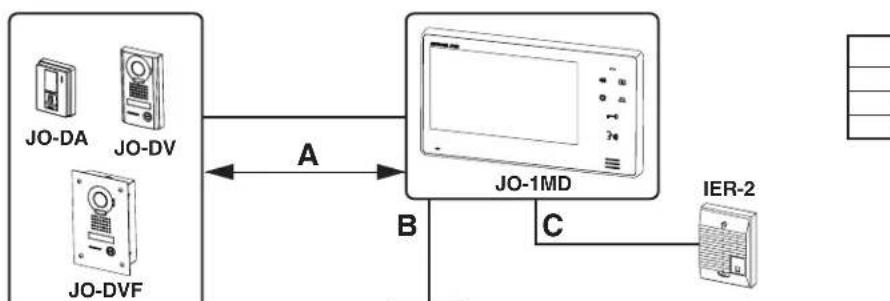

Wiring method, wiring distance

Mounting locations

Do not install door station and master monitor station in any of the following locations where lighting or the ambient environment could impact the display on the video monitor.

JO-DA, JO-DV, JO-DVF

a In direct sunlight

b Under street lights or door lights

c Other locations subject to strong

lighting or backlighting conditions

JO-1MD

a In direct sunlight

b Avoid installing the master monitor

station in a concave space of a wall to prevent disconnection of communication

c Allow at least 15cm(6^ ) above and 25cm(9^ ) below center of

the mounting bracket for installation of the station

Mounting positions and image view area

JO-DA, JO-DV, JO-DVF

[Horizontally]

JO-DA: Refer to below diagrams when the camera angle is changed with the adjustment switch.

MOUNTING

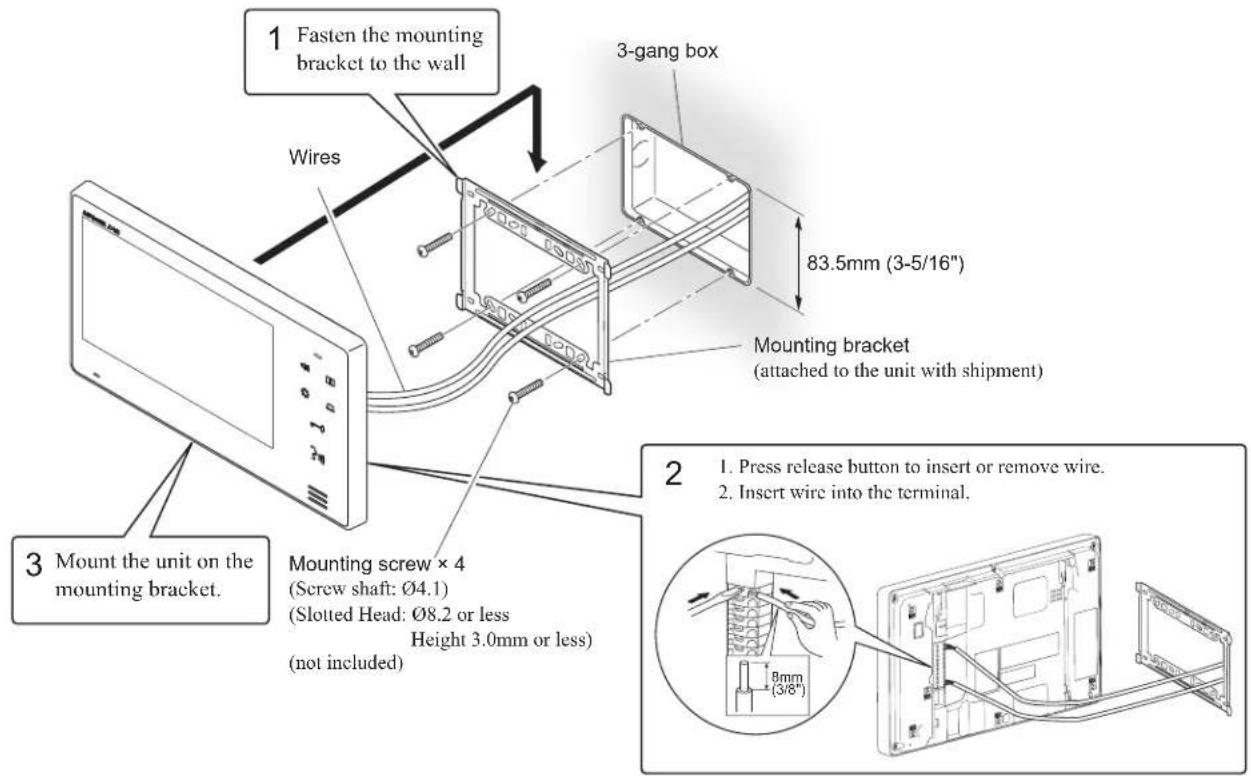

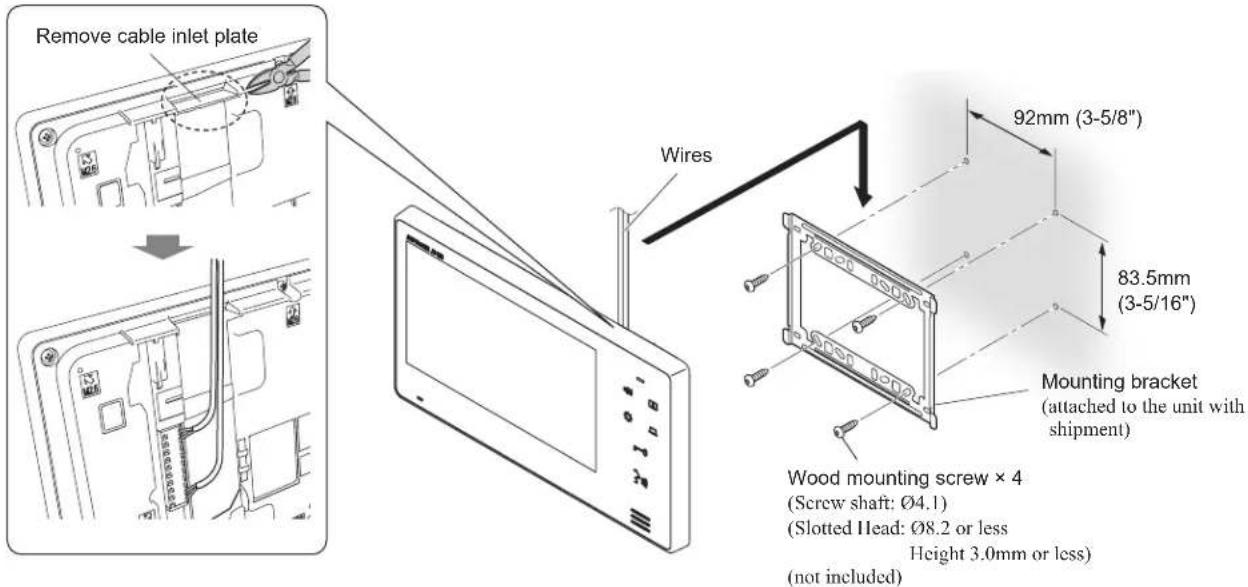

JO-1MD

When the wiring is not coming through the wall, the wires can be routed to the top or bottom of the unit. Remove cable inlet plate on the upper part of the unit to allow passage of the wiring into the unit.

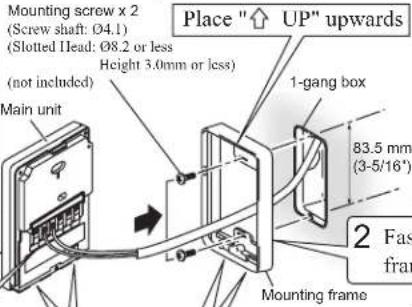

JO-DA

1 Remove the main unit from the mounting frame by loosening the locking screws

Mount the main unit on the mounting frame, and fit the front panel on.

Front panel Main unit

Removing the front panel

Pry off the front panel with a flathead screwdriver.

3 Connect wires.

Drainage hole Do not block the holes.

Fasten the mounting frame to the wall.

Mounting screw x 2 (Screw shaft:04.1) (Slotted Head:08.2 or less Height 3.0mm or less) (not included)

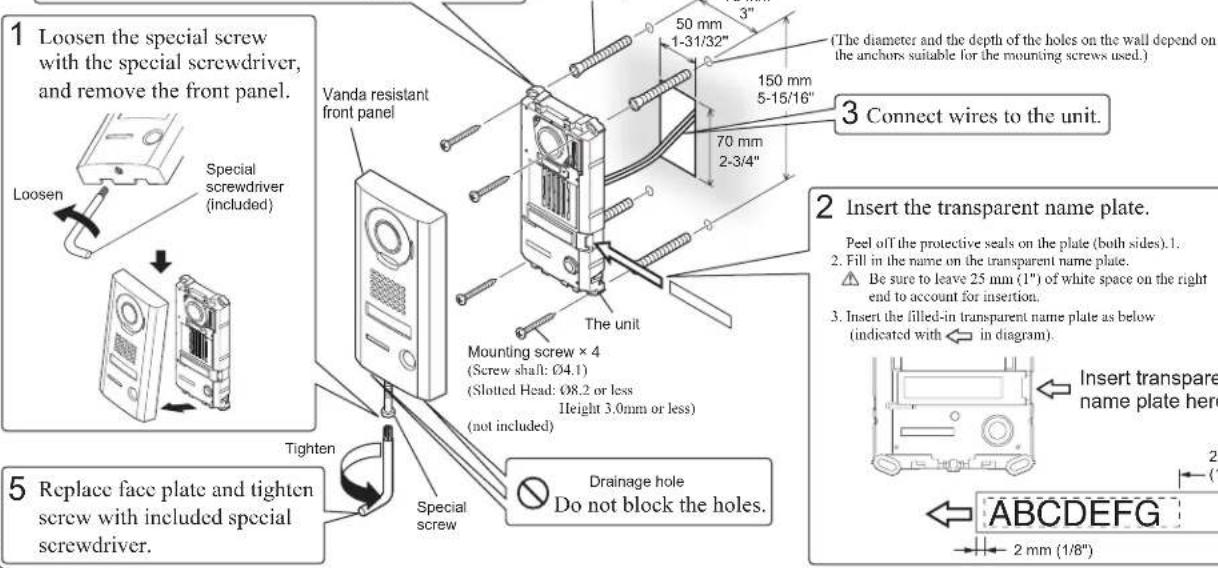

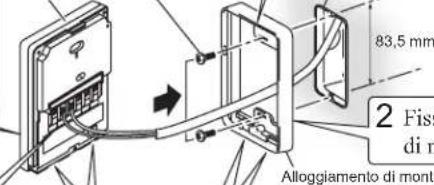

JO-DV

4 Fasten the unit to the mounting surface.
*Use board anchors or concrete plugs as needed.

Anchor x 4 (Prepare anchors according to the size of the mounting screws.) (not included) 75 mm

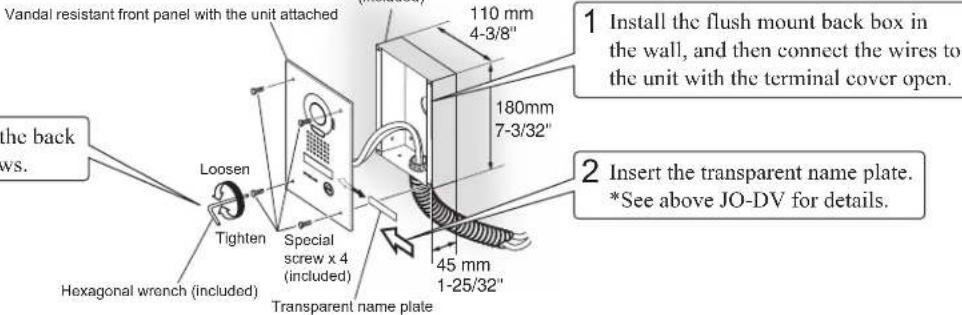

JO-DVF

Flush mount back box (included)

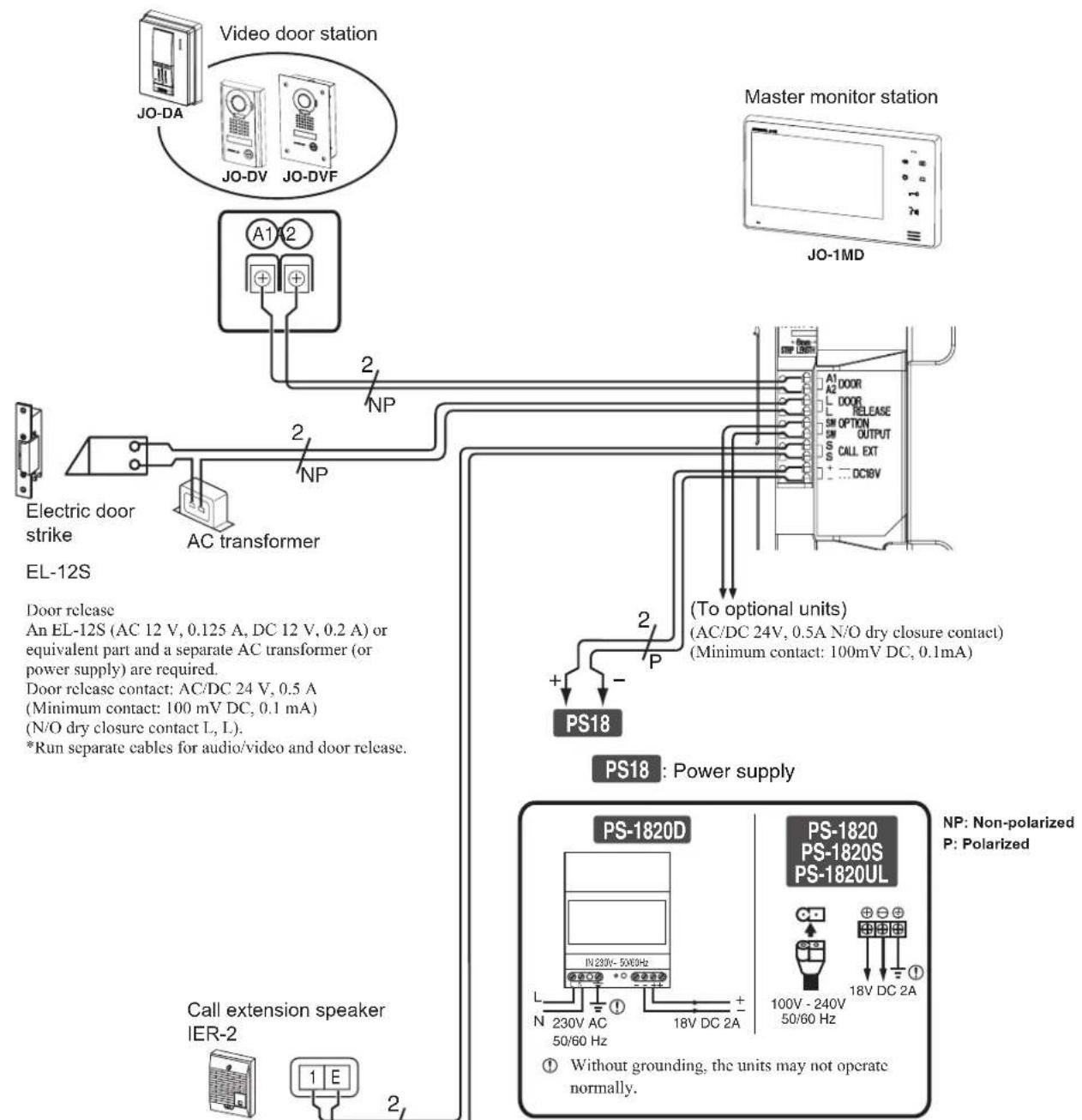

WIRING

Insert wires securely into each terminal as shown.

Presence of sound from IER-2

Call tone from door station.

NOTES:

• To add an expansion monitor station, see the installation manual of the expansion monitor station.

OPERATIONS

1 Push Call button.
2 The call tone sounds, an image appears on screen.

• The screen turns off after approx. 45 seconds if not answered.

3 Push 3,nd after the beep, communicate hands-free (hands-free mode).
4 After finishing communication, push and communication will end after the beep.

NOTES:

• Communication ends automatically after approx. 1 minute.
• The communication volume can be adjusted during the monitoring or the communication by pressing. There are three communication volume settings to cycle through: [1] (Minimum), [2] (Medium), and [3] (Maximum). The current volume level is displayed on the screen and disappears in approx. 5 seconds. The default setting is [2] (Medium).

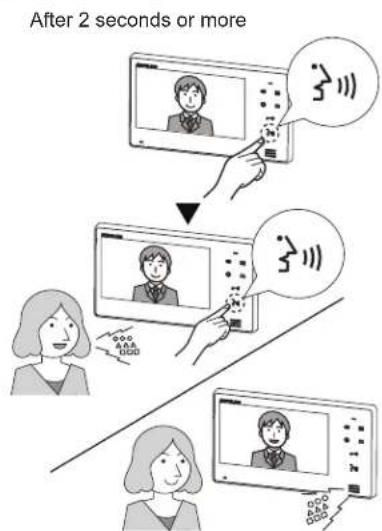

For loud outdoor areas, use Press-to-Talk mode (PTT)

1 Press and hold 2 seconds or more. After approx. 2 seconds bcep sounds, PTT mode is engaged. If is pressed briefly, PTT mode is not engaged.
2 When communicating, keep pressed. To hear the caller's voice, release Status LED lights when you talk, and flashes slowly as you listen to caller (or hear outside sounds). NOTES: It is not possible to switch back to hands-free mode (from PTT mode during communication).

Activating door release

1 Press -0
2 Door release is activated and door can be opened. During release: Status LED lights.

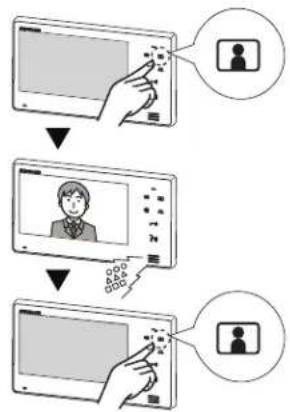

Monitoring door station

1 Push A standby mode.
2 The video image from the door station and the incoming audio is heard. If you do not push the caller will not hear sounds from the inside station.
3 Push end monitoring.

NOTES:

• To talk to door station during monitoring, momentarily push 3 串 . This allows communication with the door station.
• The monitoring turns off automatically after approx. 1 minute.

Adjust call tone volume

Push standby mode to adjust call tone volume and display the volume level.
2 Push until the desired call tone volume level is heard.

NOTES:

• There are four call tone volume settings to cycle through: [Mute), [Minimun] (Minimum) - [3] (Maximum). The current volume level is displayed on the screen and disappears in approx. 5 seconds. The default setting is [2] (Medium).

Night illumination

At night, the door station White light LED lights up during calling or monitoring door station.

If Call button is pushed, the White light LED lights up.

When communication ends, the White light LED will turn off.

When is pushed during monitoring door station, the White light LED will light up.

When monitoring door station ends, the White light LED will turn off.

NOTES:

• The door station evaluates lighting conditions to automatically turn on the white light LED when necessary.

Adjust screen brightness

Push when the screen is difficult to see. The screen brightness changes from [0-1] (the darkest) to [0-5] (the brightest) during communication or monitoring.

NOTES:

• The current brightness level is displayed on the screen and disappears in approx. 5 seconds.
  The default setting is [3].

Activating/Triggering external devices (if installed)

1 Press to operate to the unit's option output.

NOTES:

• Optional devices must be installed and connected properly. The can control lights, secondary doors, garages, etc.
• While the button is pressed, the N/O dry closure contact signal is kept being output.

TECHNICAL PRECAUTIONS

Cleaning:

• Clean all units with a soft cloth and gentle cleaner. Do not spray cleaner directly on unit. Do not use an abrasive cleaner or cloth.
• Door stations are weather resistant.

Wiring:

• When a short is detected between A1 and A2 of the door station, the unit stops functioning and the Status LED flashes rapidly until the short is removed. Check the wires.
• If noise is heard from the master monitor station, the wiring is disconnected between the video door station and the master monitor station.

Trouble:

• If the station does not respond, reboot this station by pressing the RESET button.
• When the power supply is turned off, power failure, or the RESET button is pressed, the setting of brightness, communication volume, and call tone volume are returned to the default setting.

SPECIFICATIONS

JO-1MD (Master monitor station)

Power supply DC 18V (from power supply)
Current consumption (standby) 24mA (max) 410mA
Communication Hands-free: Auto-voice actuation
PTT: Press-to-talk, release to listen
Ambient temperature 0 - 40°C (+32°F - +104°F)
Monitor 7 inch color LCD screen
Mounting Wall-mount
Electrical box 3-gang box
Material	Flame resistant ABS resin
Color	White
Dimension	130 (H) x 230 (W) x 21 (D) (mm)
	5-1/8 (H) x 9-1/16 (W) x 13/16 (D) (inches)
Weight	Approx. 470g (1.04 lbs.)

JO-DA/JO-DV/JO-DVF (Video door station)

Camera unit		1/4 - inch color CMOS
Ambient temperature		-20 - 60°C (-4°F - +140°F)
Minimum illumination		Approx. 5 lux at 50 cm (1'6") distance
Dimensions	(JO-DA)	129 (II) x 97 (W) x 36 (D) (mm)
	(JO-DV)	5-3/32 (II) x 3-27/32 (W) x 1-13/32 (D) (inches)
		173 (II) x 98 (W) x 27 (D) (mm)
	(JO-DVF)	6-13/16 (II) x 3-7/8 (W) x 1-3/8 (D) (inches)
		209 (II) x 135 (W) x exposed area 3.5 (D) (mm)
		8-1/4 (H) x 5-5/16 (W) x 5/16 (D) (inches)
(Flush mount back box for JO-DVF)		180 (H) x 110 (W) x 45 (D) (mm)
		7-3/32 (H) X 4-3/8 (W) X 1-25/32 (D) (inches)
Weight	(JO-DA)	Approx. 200 g (0.44 lbs.)
	(JO-DV)	Approx. 650 g (1.43 lbs.)
	(JO-DVF)	Approx. 580 g (1.27 lbs.)
(Flush mount back box for JO-DVF)		Approx. 550 g (1.2 lbs.)
IP rating		IP54 (JO-DA / JO-DV / JO-DVF)
IK rating		IK08 (JO-DV)
		IK07 (JO-DVF)

PRECAUTIONS

JO-1MD (Monitor principal)

VOORZORGSGMAATREGELEN

	∅0,65mm	∅0,8-1,2mm
A 50m	100m
B 5m	0m
C 50m	150m

Montagelocations

(Slcufkop: 0 8,2 of minder

Hoopte 3.0 mm of minder)

(nict inbcrepc)

Richt"UP"omhoog

inbouwdoos

(non inclusive) Unita principal

PS18 : PS-1820, PS-1820S, PS1820UL, PS-1820D

	Ø 0,65 mm	Ø 0,8-1,2 mm
A 50 m	100 m
B 5 m	0 m
C 50 m	150 m

Montageorte

[Stumm), [Minimun] (Maximum).

Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of two years after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which examination shall disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final decision whether there is a defect in materials and/or workmanship; and whether or not the product is within the warranty. This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect, accident, power surge, or to use in violation of instructions furnished, nor extended to units which have been repaired or altered outside of the factory. This warranty does not cover batteries or damage caused by batteries used in connection with the unit. This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone. This warranty is limited to the standard specifications listed in the operation manual. This warranty does not cover any supplementary function of a third party product that is added by users or suppliers. Please note that any damage or other issues caused by failure of function or interconnection with Aiphone products is also not covered by this warranty. Aiphone will not be responsible for any costs incurred involving on site service calls. Aiphone will not provide compensation for any loss or damage incurred by the breakdown or malfunction of its products during use, or for any consequent inconvenience or losses that may result.

The object area of the EU.

GARANTIE

Français
