USER MANUAL FHL 900 C4 FLORABEST

Translation of original operation manual

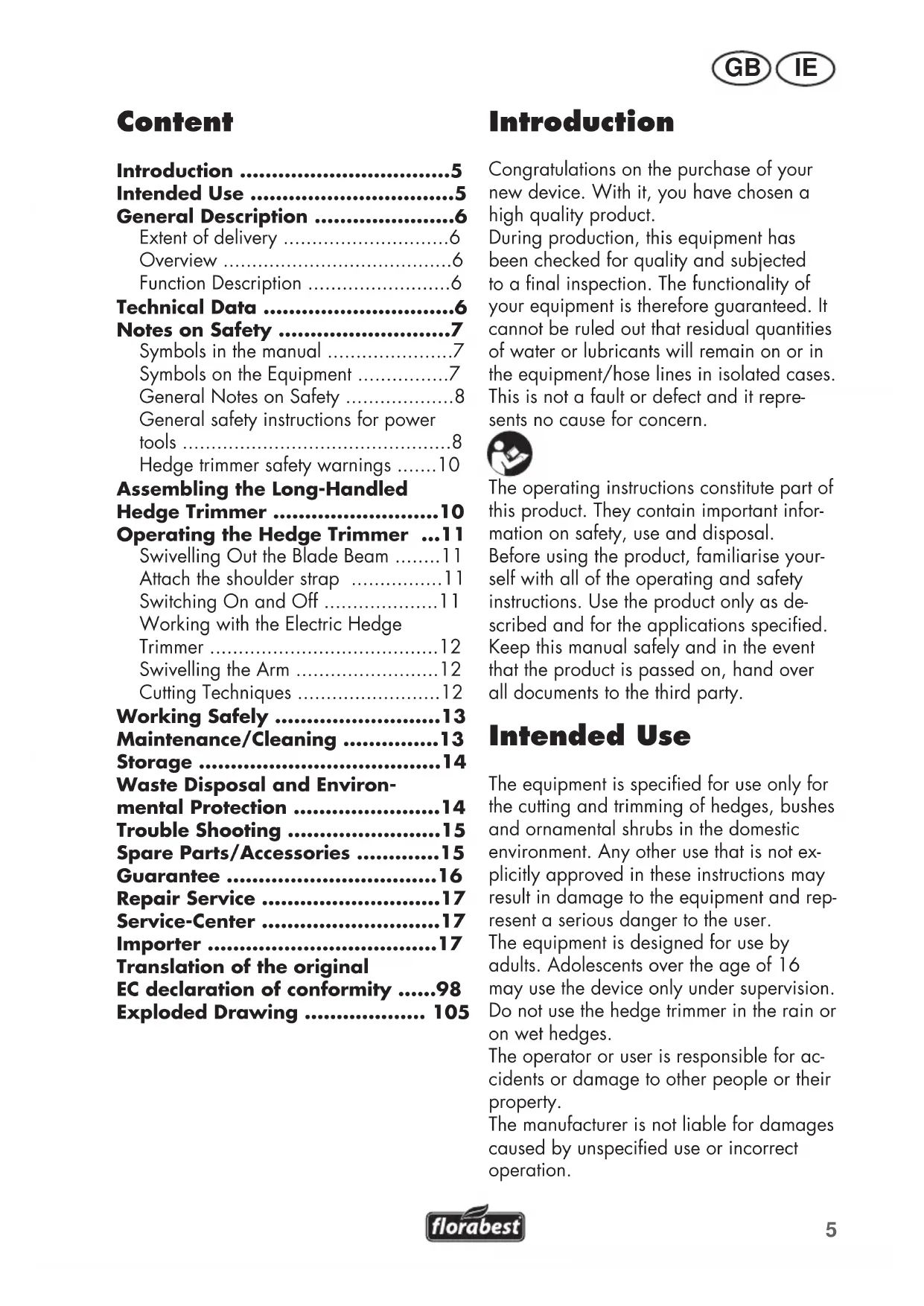

• Content Introduction p. 5
• Intended Use p. 5
• General Description p. 6
• Extent of delivery p. 6
• Overview p. 6
• Function Description p. 6
• Technical Data p. 6
• Notes on Safety p. 7
• Symbols in the manual p. 7
• Symbols on the Equipment p. 7
• General Notes on Safety p. 8
• General safety instructions for power tools p. 8
• Hedge trimmer safety warnings p. 10
• Assembling the Long-Handled Hedge Trimmer p. 10
• Operating the Hedge Trimmer p. 11
• Swivelling Out the Blade Beam p. 11
• Attach the shoulder strap p. 11
• Switching On and Off p. 11
• Working with the Electric Hedge Trimmer p. 12
• Swivelling the Arm p. 12
• Cutting Techniques p. 12
• Working Safely p. 13
• Maintenance/Cleaning p. 13
• Storage p. 14
• Waste Disposal and Environ- mental Protection p. 14
• Trouble Shooting p. 15
• Spare Parts/Accessories p. 15
• Guarantee p. 16
• Repair Service p. 17
• Service-Center p. 17
• Importer p. 17
• Translation of the original EC declaration of conformity p. 98
• Exploded Drawing Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it repre- sents no cause for concern. The operating instructions constitute part of this product. They contain important infor- mation on safety, use and disposal. Before using the product, familiarise your- self with all of the operating and safety instructions. Use the product only as de- scribed and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended Use The equipment is specied for use only for the cutting and trimming of hedges, bushes and ornamental shrubs in the domestic environment. Any other use that is not ex- plicitly approved in these instructions may result in damage to the equipment and rep- resent a serious danger to the user. The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. Do not use the hedge trimmer in the rain or on wet hedges. The operator or user is responsible for ac- cidents or damage to other people or their property. The manufacturer is not liable for damages caused by unspecied use or incorrect operation.6 GB IE Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the ma-chine. Damages caused by cutting with blunt blades are not covered by the guarantee. General Description Extent of delivery - Long-handled hedge trimmer (two-part)- Blade protection- Leg protection- Shoulder strap- Round handle- Allen wrench- Instruction Manual See the front fold-out page for illustrations. Overview p. 105

20 Square nuts 21 Screws 22 Assembly block Function Description The electric hedge trimmer is driven by an electronic motor. The equipment is double-insulated for safety and does not require earthing. The hedge trimmer is equipped with a dou-ble-sided safety cutter bar. When cutting, the blades move backwards and forwards in linear motion. The impact protection on the tip of the cutter bar prevents unpleasant recoils should the trimmer come into con-tact with walls, fences and so on.The unit can only be operated with the deadman switch depressed, in order to protect the operator. In addition, the hand guard protects against branches and briars.Please note the following descriptions for the function of the operating components. Technical Data Electrical Hedge Trimmer .........FHL 900 C4Input voltage rating ...230-240 V~, 50 HzInput power ................................900 WSafety class .................................... Degree of protection ........................ IPX0Weight .......................................5,8 kgCutting length ........................... 410 mmCutting capacity .......................... 20 mmAcoustic pressure level (L

K = 1,5 m/s Noise and vibration values have been determined according to the standards and7

regulations mentioned in the declaration of conformity. Technical and optical changes may be undertaken in the course of further devel- opment without notice. All dimensions, references and information in this instruc- tion manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid. The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to com- pare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle). Notes on Safety This section deals with the basic safety regulations to be observed when working with the electric hedge trimmer. Symbols in the manual Warning symbols with in- formation on damage and injury prevention. Instruction symbols (the instruction is explained at the place of the excla- mation mark) with information on preventing damage. Help symbols with information on improving tool handling. Symbols on the Equipment Caution! Read through the instruction manual carefully. Wear personal protective equip- ment. Basically, wear protective goggles or, even better, face protec- tion, ear protection, safety helmet, cut-protection working clothes, cut- protection gloves, and cut-protec- tion safety boots with anti-slip soles. Keep the equipment away from nearby people. Do not use the hedge trimmer in the rain or on wet hedges. 10 m Danger of death by electrocution! Keep at least 10m away from power lines. Caution! Falling objects. Particularly when cutting overhead. Caution! Risk of injury from blades in operation. Pull out the power plug immediately if the cable is damaged, has been badly twisted or is completely cut through and in the event that the device is left unattended for a short time. Caution! Hot surface. Risk of burns.8 GB IE

Information of the acoustic power level L

in dB. Machines are not to be place with domestic waste. Safety class II 410 mm

Cutting length General Notes on Safety Before working with the equip- ment, familiarise yourself with all operating components. Practice handling the equipment and have the function, operation and working methods explained to you by an ex- perienced user or specialist. Ensure that you can shut off the equipment immediately in an emergency. Inap- propriate use of the device may result in serious injury. If an accident or fault occurs during opera- tion, immediately switch off the device and disconnect at the plug. Treat injuries ap- propriately or consult a doctor. For the cor- rection of faults, read the “Troubleshooting” chapter or contact our service centre. RESIDUAL RISKS Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards: a) Cuts b) Ear damage if working without ear pro- tection. c) Damage to your health caused by swinging your hands and arms when op- erating the appliance for longer periods of time or if the unit is not held or maintained properly. General safety instructions for power tools WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and in- structions for future use. The term “Power Tools” used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-op- erated power tools (without power cord). Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite ac- cidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi- ed plugs and matching outlets will reduce risk of electric shock

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an in- creased risk of electric shock if your9

body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

• Where possible, connect the equip- ment only to a plug socket with a leak- age-current-operated circuit breaker (FI switch), with a rated current of not more than 30 mA.

• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualied per- son in order to prevent hazards. Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inu- ence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury.

• Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce per- sonal injuries.

• Hold the power tool by insulated grip- ping surfaces only, because the cutter blade may contact hidden wiring or its own cord.

• Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising pow- er tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the pow- er tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the pow- er tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or the bat-10 GB IE tery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preven- tive safety measures reduce the risk of starting the power tool accidentaIly.

• Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for op- erations different from those intended could result in a hazardous situation. • Carefully inspect the area to be cut and remove all wires or other foreign bodies.

• Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts. Service

• Have your power tool serviced by a qualied repair person us- ing only identical replacement parts. This will ensure that the safety of the power tool is maintained. Hedge trimmer safety warnings

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always t the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

• Keep cable away from cutting area. During operation the cable may be hid- den in shrubs and can be accidentally cut by the blade. If dropped, check the equipment for signicant damage or defects. Assembling the Long- Handled Hedge Trimmer Pull out the power plug before carry- ing out any work on the equipment. Use only original parts.

1. Unpack the device and check it

2. Slide the front arm (7) of the long-

handled hedge trimmer onto the tubular shaft of the long-handled hedge trimmer and turn slightly. The safety button (8) then locks into place. Fix the two shaft ele- ments to the star wheel (9). Screw the nut onto this from the threaded rod on the star wheel (9) and place it sideways in the holder on11

the tubular shaft. With the star wheel, push the threaded rod (9) through the tubular shaft and screw the star wheel (9) together with the nut.

right-handed users in variant a). For left-handed users, assemble the leg protection rotated in vari- ant b) as per the illustration. Insert the square nuts (20) into the leg protection (18). Place the leg protection on the assembly block (22) in position a) or b) as desired. Push the screws (21) through the aligning holes and screw the leg protection onto the assembly block until it is sitting rmly. Operating the Hedge Trimmer Do not use the equipment without the hand guard. Wear suitable clothing and work gloves when working with the equipment. Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment. Note noise protection and local specications. The use of the equip- ment on certain days (e.g. Sundays and national holidays), at certain times of day (lunch times, night time quiet periods) or in special areas (e.g. health resorts, clinics etc.) is restricted or forbidden. Swivelling Out the Blade Beam

1. Hold the safety blade beam

1) on the handle to adjust the

2. Unscrew the stop lever xing (4)

from the stop lever (5a).

3. Unlock the stop lever (5a) by

pressing the safety lever (5b). Press simultaneously on the safe- ty lever (5b) and stop lever (5a) to release the safety blade beam xing (

4. The safety blade beam (

can now be swivelled out into the operating position. Use the stop stages and allow the stop lever (5a) and safety lever (5b) to click back in. You can choose 13 stop stages.

5. Screw the stop lever xing (4)

back into the stop lever (5a). The angled-in blade shaft is a trans- port and storage position. For work with the equipment, the blade shaft can be angled up to max. 90°. Attach the shoulder strap Attach the shoulder strap spring clip

16) to the carrying eyelet (

the tubular shank of the device. Set the strap length such that the spring clip on the shoulder strap is roughly at the height of your hip. Switching On and Off Ensure that you are standing in a rm position with both hands grip- ping the hedge trimmer away from the body. Ensure that the trimmer is in contact with no other objects be- fore switching on.12 GB IE

1. Form a loop in the end of the ex-

tension cable and hook this into strain relief (

the equipment housing.

2. Connect the device to the mains

3. To switch on, hold the safety

simultaneously press the on/off switch (

13). The hedge trimmer will be run at maximum speed.

4. The equipment will switch off

again when you release on/off switch (

13). Working with the Electric Hedge Trimmer During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar.

• Always hold the equipment rmly in both hands, with one hand on the rear handle and the other on the front han- dle. Thumbs and ngers must be rmly around the handles.

• Switch off the equipment immediately in the event that the blades are blocked by solid objects, pull out the power plug then remove the object.

• Always work away from the mains power outlet. Set the cutting direction be- fore starting work. Ensure that the power cable is kept well away from the work- ing area. Never lay the cable over the hedge, where it could easily be caught up in the trimmer blades.

• Avoid overstraining the equipment dur- ing work. Pull out the power plug im- mediately if the cable is dam- aged, badly twisted or has been completely cut through. Swivelling the Arm Caution! The gear box (

hot during operation. There is a risk of burns. Do not touch the gearbox housing (

the connection to the front arm

1. Release the indexing by pushing

the safety slide (11) forward.

2. The tubular shank can now op-

tionally be turned 45° / 90° to the right or the left (see the scale on the device). Cutting Techniques

• Cut thick branches beforehand using a branch clippers.

• The double-sided cutter bar enables cut- ting in both directions or, with a swing- ing action, from one side to the other.

• In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.

• In case of horizontal cutting, move the hedge trimmer in a sickle-shaped move- ment to the edge of the hedge, so that cut branches fall to the ground.

• In order to achieve long straight lines, the placing of tensioned guid- ing cords is recommended. Cutting Shaped Hedges: It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natural plant growth and allows the hedge to thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.

1. Cut the sides of a hedge rst. To

in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.

2. Cut the top edge, according to

taste, in a at shape, roof shape or rounded shape

3. Trim young plants to the required

shape. The main growth should re- main undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size. Care of Free-Growing Hedges: Free-growing hedges are not shaped when cut, although they must be regularly main- tained so the hedge does not become too high. Working Safely

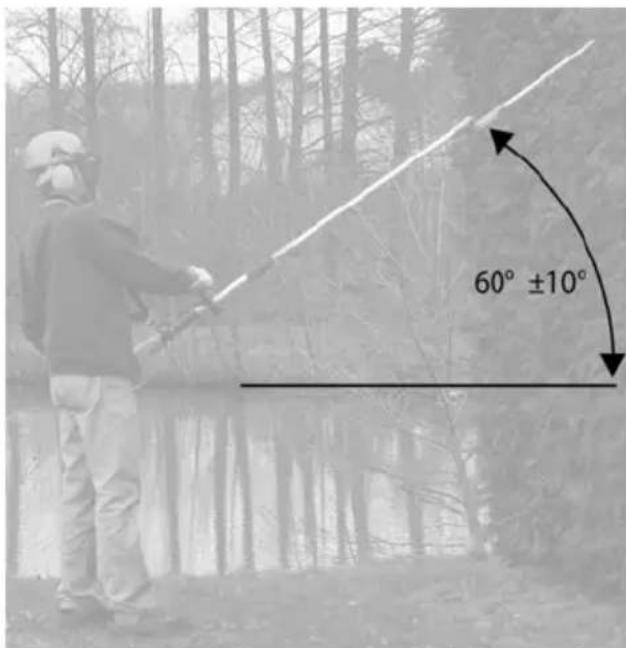

• Observe the specied working an- gle (see illustration above), in order to guarantee safe working.

• Do not use the high pruning saw when standing on a ladder or in an unsafe position.

• Do not be tempted to make uncon- sidered cuts. Doing so may endan- ger both yourself and others.

• Children must be supervised to en- sure that they do not play with the equipment.

• Long use of the equipment can re- sult in vibration-related circulatory disorders in the hands. However, the length of use can be extended by using suitable gloves or taking regular breaks. Note that a per- sonal tendency for poor circulation, low outdoor temperatures, or high gripping forces during work will reduce the length of use. Maintenance/Cleaning Repair and servicing work not de- scribed in this manual should always be carried by our Service Centre. Use only original parts. Pull out the power plug before carry- ing out any work on the equipment. Wear gloves while handling the blades. Carry out the following maintenance and cleaning work regularly. This will guarantee a long and reliable service life.

• Before each use, check the hedge trim- mer for obvious defects such as loose, worn or damaged parts. Check the secure seating of the bolts in the cutter bar.

• Do not use the unit if the blades are blunt or worn. This will overstress the motor and gearbox of the machine.

• Check coverings and safety devices for damage and correct seating. Replace these where necessary.

• Keep the ventilation slots and motor housing of the device clean. Use a damp cloth or a brush to do this. Do not14 GB IE wash down the equipment with water, or submerge it in water.

• Do not use any cleaning agents or solvents. These could cause irreparable damage to the equipment. Chemical substances can attack the plastic parts of the equipment.

• Clean the cutter bar carefully after each use. Wipe it off with an oily cloth or spray it with a metal protec- tive spray.

• Keep the hedge trimmer dry and cov- ered with the blade protection supplied and out of reach of children.

• The gears is maintenance free Storage

• Keep the trimmer in the blade guard supplied, in a dry place and out of reach of children.

• Hang up the advice on the handle for adjusting the blade beam (6) for stor- age. Waste Disposal and Environmental Protection Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have nished with them. Electrical machines do not belong in domestic waste. Take the equipment to a waste disposal site. The plastic and metal parts that are used can be separated out into pure grade, which allows recycling. Ask our Service Centre for details.15

Spare Parts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see “Service-Center” page 17). Please have the order number mentioned below ready. Pos. exploded Description Order No. drawing 6-9, 117, 118 Front arm, assembled 91096602 10-16 Pipe connector 91096586 17-23 Upper pipe Rohr 91096598 49,97,162-165 Connecting strap 91102870 74+75 Handle with screws for adjusting the blade beam 91096590 62, 120+121 Round handle 91096594 64+66 Leg protection 91096595 74-111+124-128 Gearbox unit with safety blade 91096597 74-111 Gearbox unit without safety blade 91096600 151-153 Carbon brush 91102871 Trouble Shooting Problem Possible cause Fault correction Device does not start Mains voltage not on Check plug socket, cable, line and plug, where appropriate, have repaired through electrical specialist On/Off switch (13) defective Repair by Service Centre Worn carbon brushes Defective motor Device runs with inter- ruptions Power cable is damaged Check the cable and have it changed by the Service Centre if necessary Internal loose electrical connection Repair by Service Centre On/Off switch (13) defective Blades become hot Blades (1) are blunt Have the blades (1) sharpened or replaced (Service Centre) Blades (1) are notched Have the blades (1) checked or replaced (Service Centre) Too much friction due to lack of lubrication Oil the blades (1)16 GB IE Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. lters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and item num- ber (IAN 96814) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci- cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the ad- dress communicated to you. Ensure that17

the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure ad- equate, safe transport packaging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us.

CH98 Translation of the original EC declaration of conformity We conrm, that the design type of the Electric Hedge Trimmer Design Series FHL 900 C4 Serial number 201405000001 - 201405116500 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EG • 2004/108/EG • 2000/14/EG • 2011/65/EG* In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:

• EN 55014-1:2006/A2:2011 EN 55014-2:1997/A2: 2008 • EN 61000-3-2:2006/A2:2009 • EN 61000-3-3:2008 We additionally conrm the following in accordance with the 2000/14/EC emissions guideline: Guaranteed sound power level: 99 dB(A) Measured sound power level: 95,6 dB(A) Compliance evaluation process carried out in accordance with Appendix V, 2000/14/

This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Gartengeräte GmbH & Co. KG Am Gewerbepark 2 64823 Groß-Umstadt / 28.05.2014 Germany Volker Lappas Responsabile documentazione tecnica, *The object of the declaration described above satises the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
