USER MANUAL CNS 200 F STIEBEL ELTRON

Read these instructions carefully before using the appliance and retain them for future reference. Pass on the instructions to any new users.

1.2.1 Layout of safety information

Safety information comprises a warning symbol, a keyword and a text giving information. Safety information is printed on a grey background. Example: DANGER Electrocution Install the appliance in such a way that control equipment...

1 Symbol (see chapter on warning symbols/symbols) 2 Keyword (see chapter on keywords) 3 Description (see chapter on warning symbols/symbols) 4 Information text

:tqHV ¼ńļêĤŒêĒĉDANGER The keyword DANGER indicates information which must be observed, otherwise serious injury or death will result. WARNING The keyword WARNING indicates information that must be observed, otherwise serious injury or death may result. CAUTION The keyword CAUTION indicates information that must be observed, otherwise relatively serious or light injuries may result.

1.2.3 Warning symbols/symbols

q|ļĉêĉÖńźăĒù¼ńļêĤŒêĒĉInjury Electrocution Burns or scalding

Other situations Fire Never cover the appliance Appliance disposal OPERATION

5. Cleaning, care and maintenance ____________________________ 15

7.2 Instructions, standards and regulations ______________________ 16

9.1 Installation with wall mounting bracket ______________________ 16

12.1 Dimensions of wall mounted version __________________________18

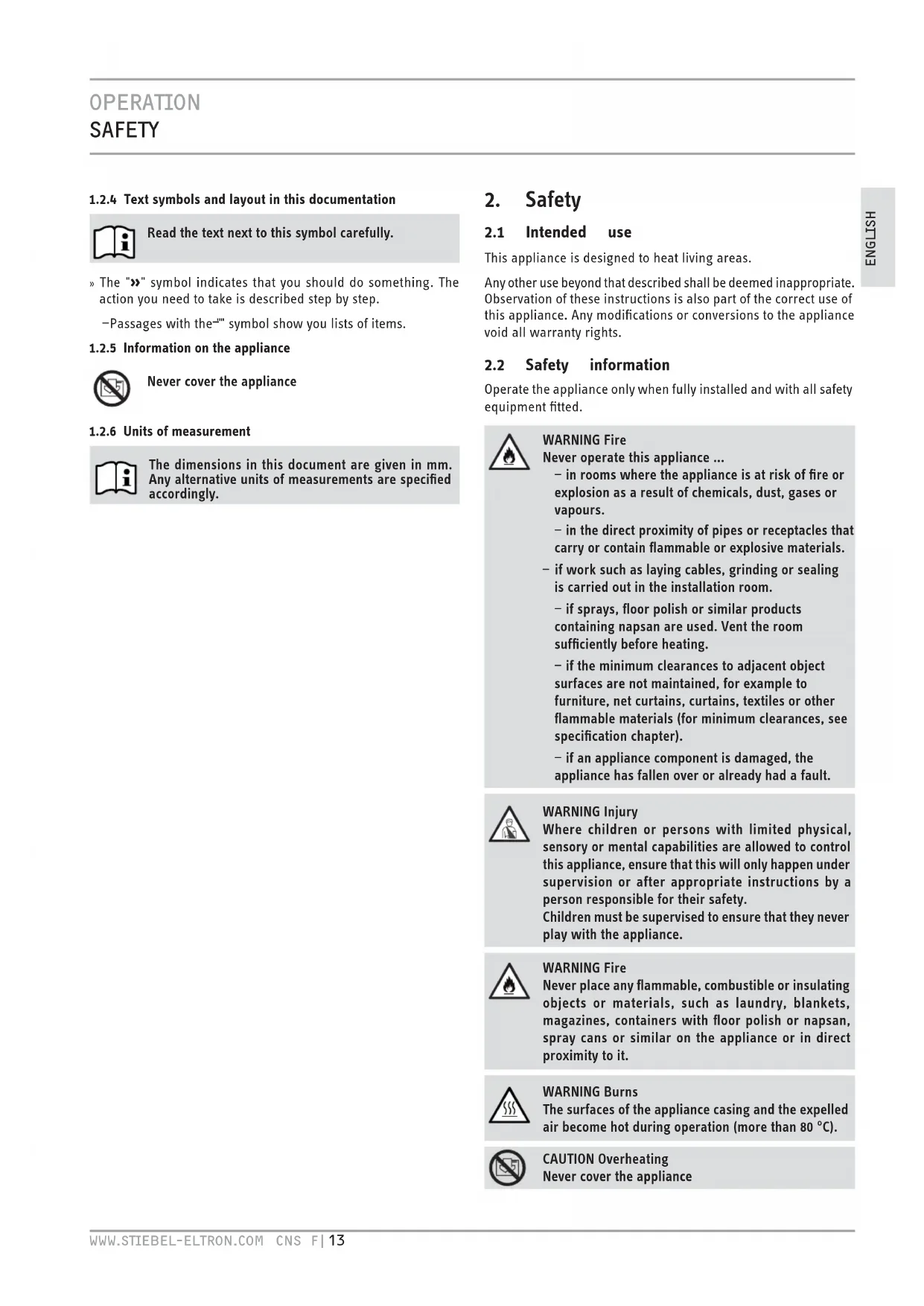

Read the text next to this symbol carefully. » The "»" symbol indicates that you should do something. The action you need to take is described step by step. —Passages with the " –" symbol show you lists of items.

1.2.5 Information on the appliance

Never cover the appliance

1.2.6 Units of measurement

The dimensions in this document are given in mm. Any alternative units of measurements are specified accordingly.

This appliance is designed to heat living areas. Any other use beyond that described shall be deemed inappropriate. Observation of these instructions is also part of the correct use of this appliance. Any modifications or conversions to the appliance void all warranty rights.

2.2 Safety information

Operate the appliance only when fully installed and with all safety equipment fitted. WARNING Fire Never operate this appliance ... — in rooms where the appliance is at risk of fire or explosion as a result of chemicals, dust, gases or vapours. — in the direct proximity of pipes or receptacles that carry or contain flammable or explosive materials. — if work such as laying cables, grinding or sealing is carried out in the installation room. — if sprays, floor polish or similar products containing napsan are used. Vent the room sufficiently before heating. — if the minimum clearances to adjacent object surfaces are not maintained, for example to furniture, net curtains, curtains, textiles or other flammable materials (for minimum clearances, see specification chapter). — if an appliance component is damaged, the appliance has fallen over or already had a fault. WARNING Injury Where children or persons with limited physical, sensory or mental capabilities are allowed to control this appliance, ensure that this will only happen under supervision or after appropriate instructions by a person responsible for their safety. Children must be supervised to ensure that they never play with the appliance. WARNING Fire Never place any flammable, combustible or insulating objects or materials, such as laundry, blankets, magazines, containers with floor polish or napsan, spray cans or similar on the appliance or in direct proximity to it. WARNING Burns The surfaces of the appliance casing and the expelled air become hot during operation (more than 80 °C). CAUTION Overheating Never cover the applianceHTV`.HC

When using the mobile floorstanding unit, observe the following: — Never cover the power cable with a carpet or rug. Route the power cable away from walkways to prevent anyone tripping over the cable or knocking the appliance over. — Avoid using an extension cable. If this is unavoidable, only use an undamaged extension cable with a sufficient cable cross-section for the full appliance output, as well as undamaged plugs or coupler plugs and adequate protective measures. — Position the appliance on a solid base. On a soft base, the appliance can tip over or the air apertures can become blocked. — Never move or carry the appliance by pulling on the power cable. — If you use the appliance as a floorstanding unit, never install it in the bathroom, in similarly damp rooms or outside.

The CE designation shows that the appliance meets all essential requirements according to the: —Electromagnetic Compatibility Directive —Low Voltage Directive

See type plate. The type plate is located on the right on the exterior of the appliance.

3. Appliance description

The appliance is an electric direct heater and can be used as a wall mounted appliance or alternatively as a mobile floorstanding appliance with feet attached. The appliance is suitable as a full heating system in bathrooms, for example, or for use between seasons and as a booster heater in smaller rooms, such as hobby and guest rooms. The air in the appliance is heated by a heating element and expelled via natural convection through the air outlet grille at the top. Cool room air flows in through the apertures at the bottom of the appliance. After mounting the appliance to the wall or attaching the feet, and making the electrical connection via the mains plug, the appliance is ready for operation.

4.1 Description of the user interface

» Switch the appliance ON via the switch on the r.h. side of the appliance. » Set the required room temperature via the continuously variable temperature selector (for temperatures see specification chapter). 26_07_31_0037 As soon as the selected room temperature is reached, it is constantly maintained at this selected temperature through periodic heating (the output of the appliance must correspond at least to the required heat demand of the room). If several appliances are installed in a single room, the setting at the temperature selector on each appliance can be different. To avoid excessive power consumption when windows are open, you should stop the appliance while venting.

4.2 Frost protection

» Turn the temperature selector as far to the right as possible. In this position, the temperature controller switches on the heating element automatically if the room temperature drops below the frost protection temperature.HTV`.HC

4.3 Limiting the temperature controller

Using the two pins fitted to the back of the control casing, you can fix the temperature controller at a certain setting or limit the temperature setting range. » Break out the pins. » To fix the selected temperature, push a pin into the hole opposite (see diagram).

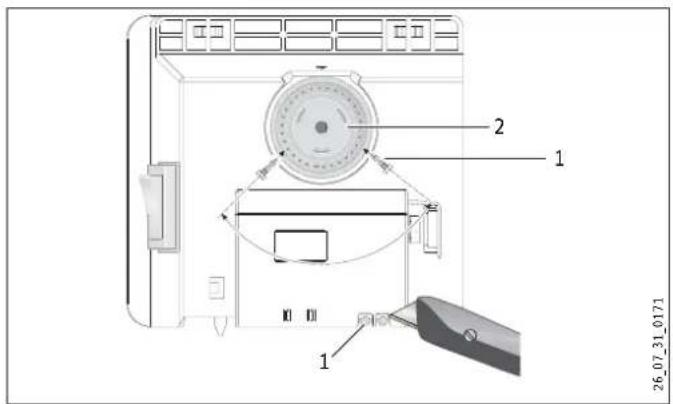

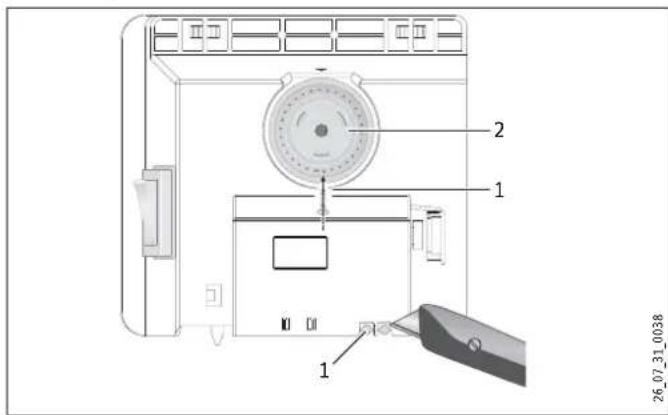

26_07_31_0038 1 Pin 2 Temperature selector » To limit the temperature setting range, set the minimum and maximum values at the temperature selector, and push a pin for each into the slightly offset hole opposite (see diagram). 26_07_31_0171

» Move the switch on the right of the appliance to OFF.

5. Cleaning, care and maintenance

If a pale brownish discolouration appears on the appliance casing, wipe this off as soon as possible with a damp cloth. Clean the appliance when cold with ordinary cleaning products. Avoid abrasive or corrosive cleaning products. CAUTION Fire Never spray cleaning spray into the air slot. Ensure that no moisture can enter the appliance. As part of regular maintenance, we recommend also having the control components checked. The safety and control components should be checked by a contractor no more than ten years after commissioning.

6. What to do if ...

... the appliance does not heat up: Check the temperature set at the appliance and the MCB/fuse in your fuse box. The appliance has a safety temperature controller that shuts the appliance down if it overheats. After the cause has been removed (for example air outlet or inlet apertures covered) and the appliance has cooled down for a few minutes, operation starts again. If you cannot remedy the fault, contact your contractor. To facilitate and speed up your enquiry, please provide the number on the type plate (no. XXXXXX - XXXX - XXXXXX):ĜōCZ% qqqĪZ`.<é<`VHCĪHB .CZ`<<`.HC Z%`t

Only qualified contractors should carry out the maintenance and repair of this appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only if the original accessories and spare parts intended for the appliance are used. DANGER Electrocution If you mount the appliance on the wall, do so in such a way that control equipment cannot be touched by a person in the bath or shower.

CAUTION — Only fit the wall mounted appliance to a vertical wall that is temperature-resistant to at least 85 °C. — Observe the minimum clearances to adjacent object surfaces (for minimum clearances see specification chapter). — Never install the appliance directly below a wall socket. — Ensure that the power cable is not in contact with any appliance components.

7.2 Instructions, standards and regulations

Observe all applicable national and regional regulations and instructions. Observe the Building and Garage Regulations [or local regulations].

—Wall mounting bracket (hooked into the appliance) —Feet —One-way Screws

9.1 Installation with wall mounting bracket

9.1.1 Installing the wall mounting bracket

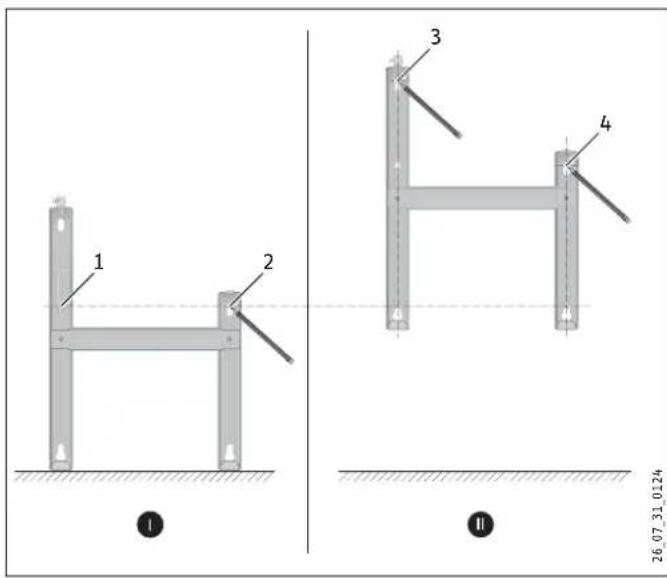

You can also use the wall mounting bracket as a template for wall mounting; this ensures the required floor clearance. » Unhook the wall mounting bracket. » Place the centred wall mounting bracket level on the ground and mark holes 1 and 2. » Lift up the wall mounting bracket so that its lower holes match up with the markings you have just made on the installation wall. » Mark holes 3 and 4 on the installation wall. DDD 26_07_31_0124

» Drill holes at all four markings. Secure the wall mounting bracket with suitable materials (screws, rawl plugs) depending on the type of wall. With the vertical slots, you can compensate for an offset fixing hole.

9.1.2 Appliance installation

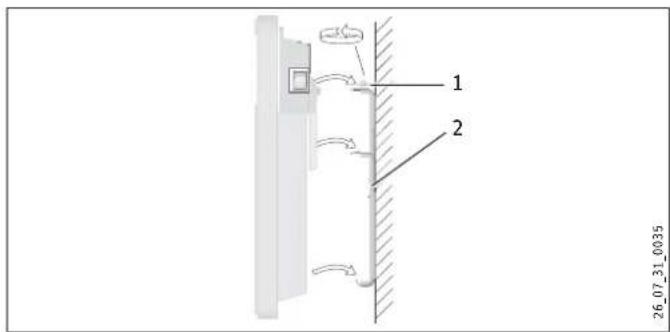

» Hook the appliance by its slots in the back of the appliance on to all four tabs of the wall mounting bracket simultaneously. » Push the appliance to latch it in position. » Turn the locking bolt in the wall mounting bracket fully clockwise; this locks the appliance in place. » Push the safety cap onto the locking bolt to prevent it from loosening.qqqĪZ`.<é<`VHCĪHB CZ%Ĝ Ō C&<.Z+ .CZ`<<`.HC `VHe<Z+HH`.C& 26_07_31_0035

9.1.3 Dismounting the appliance

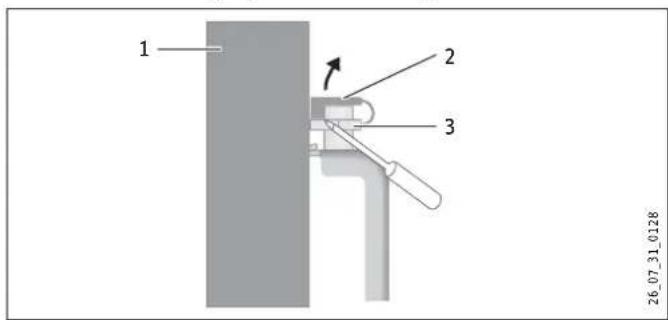

1 Appliance 2 Safety cap 3 Locking bolt » Undo the locking bolt on the wall mounting bracket. » Lift the appliance up slightly and pull it forwards and away from the wall mounting bracket.

9.2 Installation with feet

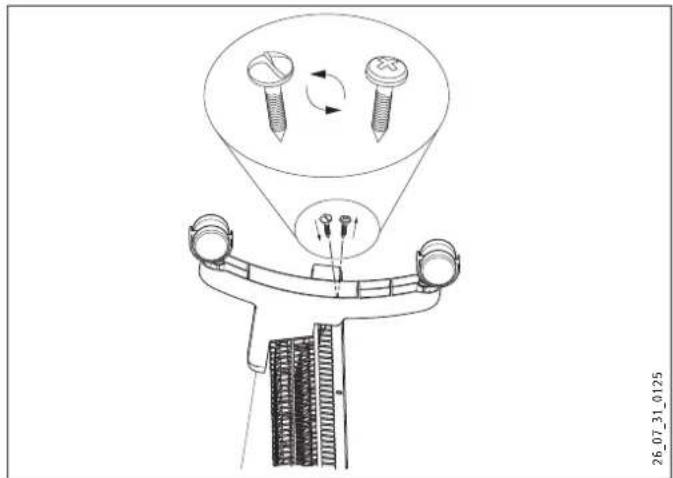

» Unhook the wall mounting bracket. » Only remove both external left and right screws at the bottom of the appliance. » Fit the feet to the bottom of the appliance in such a way that they are inserted into the recess at the back of the appliance. Secure the feet with the One-way Screws supplied. 26_07_31_0125

» Ensure the on-site supply cable has an adequate cross-section. » Ensure that a socket is installed at a distance of at least 10 cm from the side of the appliance. DANGER Electrocution! Carry out all electrical connection and installation work in accordance with relevant regulations. DANGER Electrocution! The appliance must be able to be separated from the mains power supply by an isolator that disconnects all poles with at least 3 mm contact separation. DANGER Electrocution! Do not install the appliance with a fixed power cable. Observe the type plate. The specified voltage must match the mains voltage.

The power cable must only be replaced by a contractor using our original spare parts.

11. Appliance handover

Explain the functions of the appliance to the user. Draw special attention to the safety information. Hand the operating and installation instructions to the user.ĜÄCZ% qqqĪZ`.<é<`VHCĪHB .CZ`<<`.HC ZT.%.`.HC

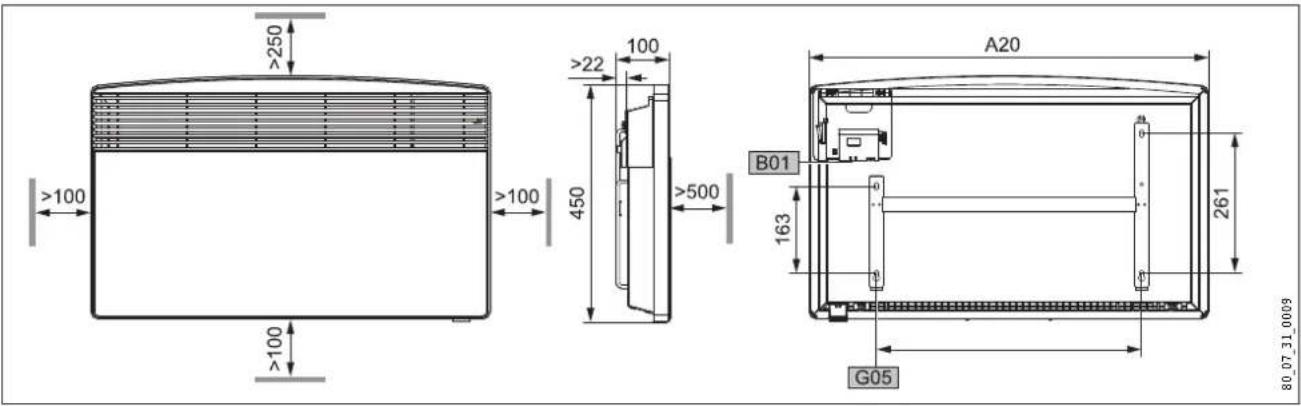

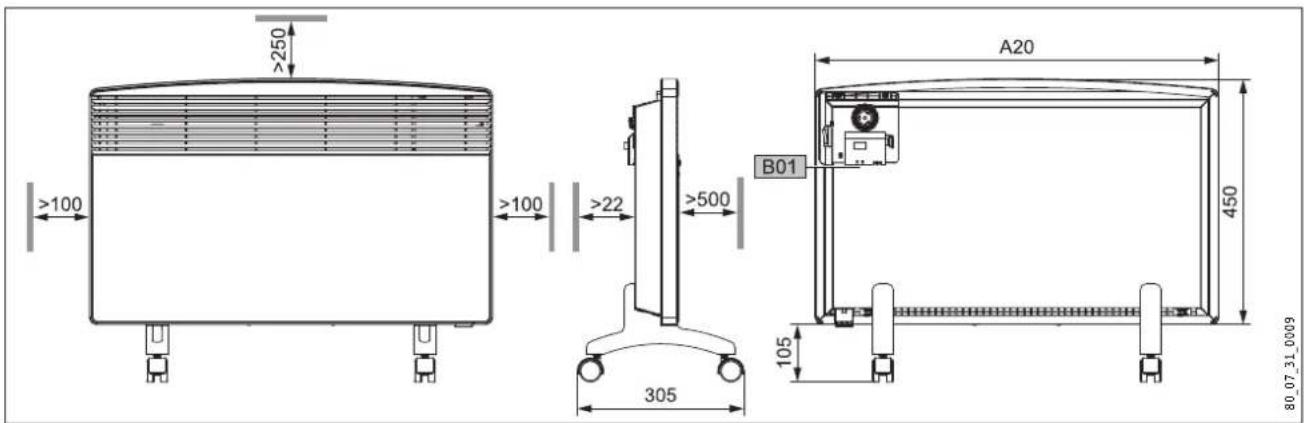

12.1 Dimensions of wall mounted version

%/1A7@B/;3HWCIC2/>3AB
