ENGLISH

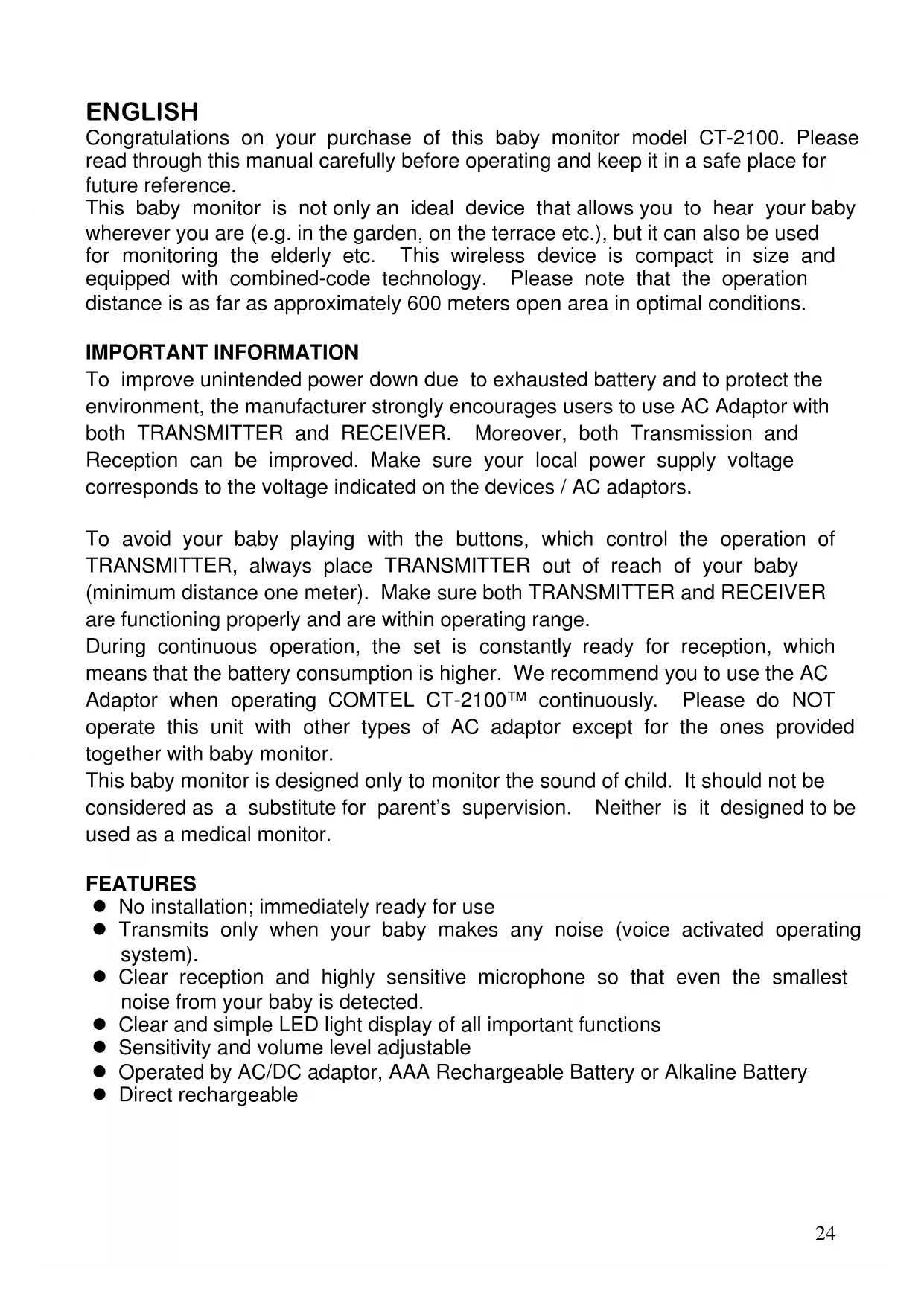

Congratulations on your purchase of this baby monitor model CT-2100. Please read through this manual carefully before operating and keep it in a safe place for future reference.

This baby monitor is not only an ideal device that allows you to hear your baby wherever you are (e.g. in the garden, on the terrace etc.), but it can also be used for monitoring the elderly etc. This wireless device is compact in size and equipped with combined-code technology. Please note that the operation distance is as far as approximately 600 meters open area in optimal conditions.

IMPORTANT INFORMATION

To improve unintended power down due to exhausted battery and to protect the environment, the manufacturer strongly encourages users to use AC Adaptor with both TRANSMITTER and RECEIVER. Moreover, both Transmission and Reception can be improved. Make sure your local power supply voltage corresponds to the voltage indicated on the devices / AC adaptors.

To avoid your baby playing with the buttons, which control the operation of TRANSMITTER, always place TRANSMITTER out of reach of your baby (minimum distance one meter). Make sure both TRANSMITTER and RECEIVER are functioning properly and are within operating range.

During continuous operation, the set is constantly ready for reception, which means that the battery consumption is higher. We recommend you to use the AC Adaptor when operating COMTEL CT-2100™ continuously. Please do NOT operate this unit with other types of AC adaptor except for the ones provided together with baby monitor.

This baby monitor is designed only to monitor the sound of child. It should not be considered as a substitute for parent's supervision. Neither is it designed to be used as a medical monitor.

FEATURES

• No installation; immediately ready for use
• Transmits only when your baby makes any noise (voice activated operating system).
• Clear reception and highly sensitive microphone so that even the smallest noise from your baby is detected.
• Clear and simple LED light display of all important functions
• Sensitivity and volume level adjustable
• Operated by AC/DC adaptor, AAA Rechargeable Battery or Alkaline Battery
• Direct rechargeable

FUNCTIONS

• 2 channels (CH A & CH B) selection for both TRANSMITTER and RECEIVER
• 3 levels of sensitivity adjustment for TRASNITTER
  Volume level adjustment for RECEIVER
• Out of range LED indicator & beep warning (when RECEIVER is out of the desired range from TRANSMITTER),
• Low battery LED indicator and beep warning
  Sound level LED indicator for RECEIVER
• User selectable DIP SWITCH (8 combinations) to avoid interference from other monitors working in same frequency band.
• Vibration alert for RECEIVER (optional)

BASIC OPERATION

1. Before operating this baby monitor for the first time, the 1.2V AAA rechargeable batteries must be recharged for about 12 hours, then insert 3 - batteries to both TRANSMITTER and RECEIVER. Alternatively, use the AC adaptor to connect to both units.
2. On both TRANSMITTER and RECEIVER, push the power button to turn on the unit.
3. Press and hold the menu button "M" until the channel LED "A" or "B" flashes, press the up▲ or down▼ button to select the channel. Press the "M" button again to confirm the selection.
4. On TRANSMITTER, press and hold the menu button "M" until the sensitivity LED flashes, press the up or down button to select the sensitivity level you prefer. The sensitivity level will increase from low, middle to high along with the 3 LEDs from left to right.
5. On RECEIVER, press the up▲ or down▼ button to select the volume level you prefer. The volume level will increase gradually as more LEDs light up from left to right
6. Have someone make some sound near TRANSMITTER, then the sound will be heard through RECEIVER.

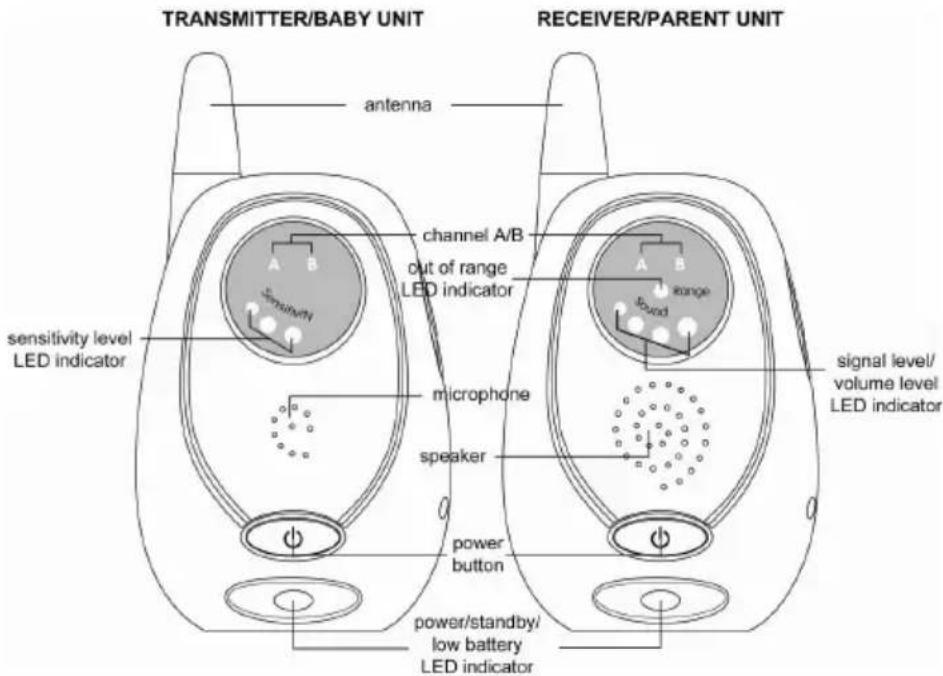

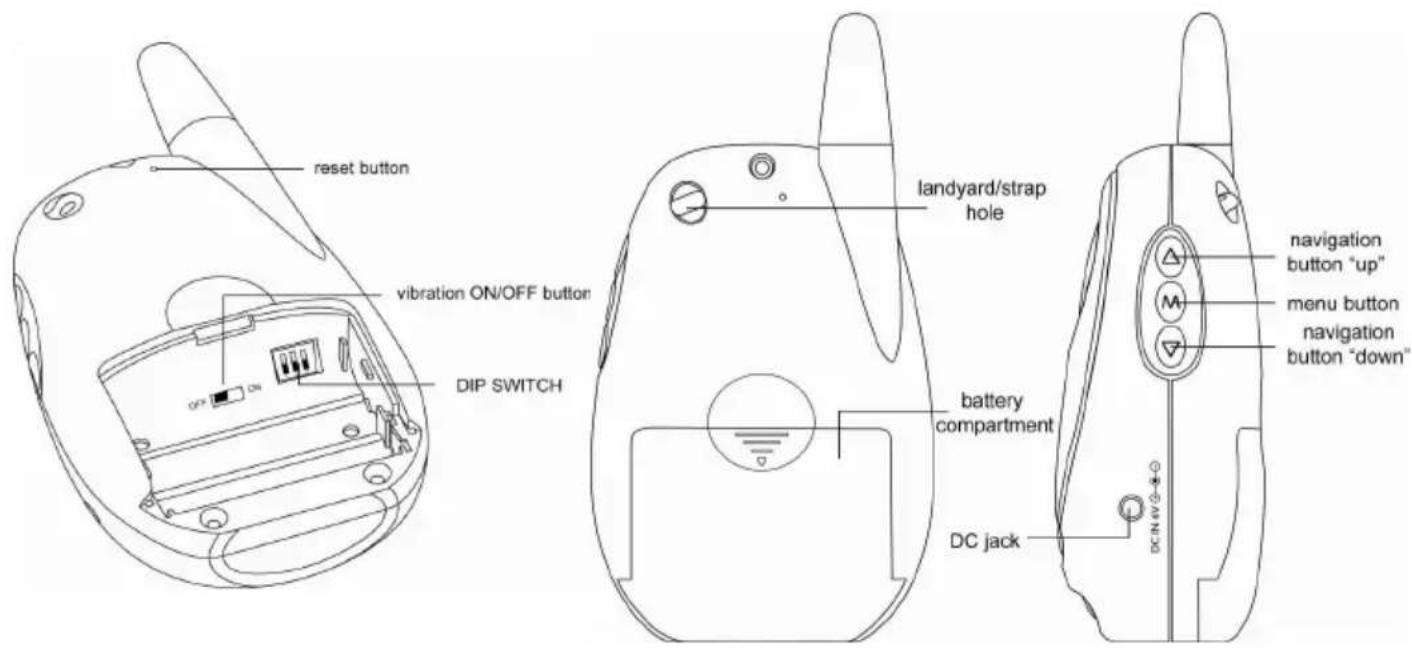

ILLUSTRATION

DETAILED OPERATION OF TRANSMITTER

BATTERY COMPARTMENT

Insert 1.2V AAA rechargeable battery x 3 (safety-enhanced type) to TRANSMITTER or 1.5V AAA Alkaline battery. Alternatively, use the AC adaptor to connect to TRANSMITTER.

AC ADAPTOR

Make sure that the AC adaptor input voltage is the same as the AC outlet voltage.

POWER BUTTON

This is the main power switch of the TRANSMITTER. Press the button to turn on the unit.

CHANNEL A/B LED INDICATOR

To avoid interference, COMTEL CT-2100™ provides two user selectable channels. Press and hold the menu button “M” until the channel LED “A” or “B” flashes, press the up or down button to select the channel. Press the “M” button again to confirm the selection. Make sure both TRANSMITTER and RECEIVER must work in the same channel.

POWER / STANDBY LED INDICATOR

When turning on the power switch, the GREEN LED will light.

When there is no sound, the GREEN LED will flash to indicate the standby mode.

When the battery power is low, the GREEN LED will turn into RED color.

SENSITIVITY LEVEL

Press and hold the menu button "M" until the sensitivity LED flashes, press the up or down button to select the sensitivity level you prefer. The sensitivity level will increase from low, middle to high along with the 3 LEDs from left to right. Adjust for the voice active sensitivity level as you prefer, e.g. during night time, you

do not want to be disturbed by every little sound made by your baby, then you can choose Low Sensitivity Level or vice versa.

LOW BATTERY LED INDICATOR & BEEP WARNING

If the power LED turns into RED along with a beeping sound, the battery is low in power. You have to recharge the battery by connecting the unit to the AC Adaptor. COMTEL CT-2100™ can be operated even during recharging. The batteries can be recharged approx. 500 times that corresponds to about 1 and 12 years of normal operation.

DIRECT RECHARGEABLE

Simply place 3 AAA rechargeable batteries (safety-enhanced type) into the battery compartment and then connect the adaptor to the unit (DC Jack).

ANTENNA

The antenna is fixed and cannot be pulled out. Always place the unit to an up-right position for better intercommunication.

LANYARD/STRAP HOLE

You can attach a strap or lanyard so that the unit can be safely and conveniently carried with you especially when traveling outside.

RESET BUTTON

Use the reset button only when the device is down / has no response at all. Use a pointing tool to gently press the reset button inside the small hole on the back casing. The reset button will return you to the starting point of the device.

Insert 1.2V AAA rechargeable battery x 3 to RECEIVER (safety-enhanced type) or 1.5V AAA Alkaline battery. Alternatively, use the AC adaptor to connect to RECEIVER.

AC ADAPTOR:

Make sure that the AC adaptor input voltage is the same as the AC outlet voltage.

POWER BUTTON

This is the main power switch of the TRANSMITTER. Press the button to turn on the unit.

CHANNEL A/B LED INDICATOR

To avoid interference, COMTEL CT-2100™ provides two user selectable channels. Press and hold the menu button "M" until the channel LED "A" or "B" flashes, press the up or down button to select the channel. Press the "M"

button again to confirm the selection. Make sure both TRANSMITTER and RECEIVER must work in the same channel.

POWER / STANDBY LED INDICATOR

When turning on the power switch, the GREEN LED will light.

When there is no sound, the GREEN LED will flash to indicate the standby mode.

When the battery power is low, the GREEN LED will turn into RED color.

VOLUME CONTROL

Adjust for a proper volume level by pressing the up or down button. The volume level will increase from low to high along with the 4 LEDs lighting up from left to right. The more LEDs are lighting up, the higher the volume is set. To turn off the speaker, press the down button until all LEDs are off.

SIGNAL LEVEL LED INDICATOR

When hearing sounds through the speaker from TRANSMITTER, the louder the sound from TRANSMITTER, the more LED is lighted to indicate the sound level. The built-in LED lights provide visual monitoring of reception strength, irrespective of the volume, e.g. when you do not want to disturb anyone or you are vacuuming.

VIBRATION ALERT

When the sound is received from TRANSMITTER to as loud as the 4^th LED on the LED bar, there will be a vibration alert.

To turn on the VIBRATION ALERT, you have to switch the vibration ON/OFF button located inside the battery compartment. Use a pen/clip/pin to switch this button.

OUT OF RANGE GREEN LED INDICATOR & BEEP WARNING

If RECEIVER is out of the desired range from TRANSMITTER or TRANSMITTER is not switched on, this GREEN LED will flashe.

LOW BATTERY LED INDICATOR & BEEP WARNING

If the power LED turns into RED along with a beeping sound, the battery is low in power. You have to recharge the battery by connecting the unit to the AC Adaptor. COMTEL CT-2100™ can be operated even during recharging. The batteries can be recharged approx. 500 times that corresponds to about 1 and 12 years of normal operation.

DIRECT RECHARGEABLE

Simply place 3 AAA rechargeable batteries into the battery compartment and then connect the adaptor to the unit (DC Jack).

ANTENNA

The antenna is fixed and cannot be pulled out. Always place the unit to an up-right position for better intercommunication.

LANYARD/STRAP HOLE

You can attach a strap or lanyard so that the unit can be safely and conveniently carried with you at all times.

RESET BUTTON

Use the reset button only when the device is down / has no response at all. Use a pointing tool to gently press the reset button inside the small hole on the back casing. The reset button will return you to the starting point of the device.

NOTES OF USING THE RECHARGEABLE BATTERIES

This baby monitor only recharges the safety-enhanced type of 1.2V AAA rechargeable battery. It will not recharge any alkaline batteries or even ordinary rechargeable batteries. Thus you need not to worry about any short-circuit or damage caused by connecting the main power to the unit with the alkaline batteries inside.

Please contact an authorized dealer or approved service center if spare is required.

DIP SWITCH CODE SETTING

The DIP SWITCH which includes 8 combinations can help to avoid interference from

1. Turn off both TRANSMITTER and RECEIVER and place both units side by side.
2. Open the battery compartment cover and remove all the batteries.
3. Use a ball pen or any pointing tool to move the switches up or down to set a new combined code. Make sure the switches up/down pattern on both TRANSMITTER and RECEIVER are IDENTICAL.
4. Upon completion, power on both units and make some noise to test.
5. If noise from TRANSMITTER can be heard through RECEIVER, the code of both units is matched. If not, please check the code pattern on both units.

MAINTENANCE AND REPAIRS

Avoid operating the devices in humid places, under extreme heat or direct sunlight.

Clean the devices with a slightly damp cloth without detergents.

Do NOT let water get inside the devices.

If this baby monitor is not used for a long time, please first remove all batteries and unplug AC adaptors.

This product contains no user serviceable parts inside. If servicing is needed, please do NOT take the unit apart. Please return the unit to an authorized dealer or approved service center.

TECHNICAL SPECIFICATIONS

1. Sender / Transmitter / Baby Unit

Internal Power Supply	:	1.2V AAA x 3 rechargeable battery / 1.5V AAA x 3 alkaline battery
External Power supply	:	max. 6V 200mA
Transmission Power	:	max. 10mW
Channel Frequency	:	863.4 ~ 863.8 MHz
Norm :		EN 301489 - 9, EN 301489 - 1, EN 301357 - 2

1. Receiver / Parent Unit

Internal Power Supply	:	1.2V AAA x 3 rechargeable battery / 1.5V AAA x 3 alkaline battery
External Power supply	:	max. 6V 200mA
Channel Frequency	:	863.4 ~ 863.8 MHz
Norm :		EN 301489 - 9, EN 301489 - 1, EN 301357 - 2

1. Mains Adaptor

Input Voltage :		230V ~ 50Hz
Output Voltage :		max. 6V 200mA

Jack Plug Polarity	:	⊕-⊕-
Norm :		EN 61558-2-6, EN 61558-1, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

Warranty*

See warranty instructions on the attached warranty card.

*only valid for sale in Switzerland

Set includes

a. 6V AC/DC 200 mAH adaptor for transmitter and receiver
b. 6 x AAA 800 mAH NI-MH rechargeable batteries for transmitter and receiver
c. Transmitter
d. Receiver
e. Manual : german/french/italian/english

C∈0168①

COMTEL AG, Rotzbergstrasse 7, CH-6362 Stansstad

Tel. [phone] Fax: [phone]

www.comtel.ch

E-Mail: [e-mail]
