Ready Warm 5850 Space 360º - Heating CECOTEC - Free user manual and instructions

Product type	Oil-filled radiator
Brand	Cecotec
Model	Ready Warm 5850 Space 360º
Maximum power	2500 W
Power supply	220-240 V, 50/60 Hz
Number of heating elements	11
Power levels	1000 W (I), 1500 W (II), 2500 W (I+II)
Thermostat	Adjustable with temperature selection
Indicator light	Indicates operation
Mobility	Swivel wheels included
Carrying handle	Integrated
Safety	Safety thermostat (overheat protection)
Maintenance	Clean with a soft damp cloth
Usage	Household use only, well-insulated spaces
Warranty	2 years
Country of manufacture	China
Design	Spain

Frequently Asked Questions - Ready Warm 5850 Space 360º CECOTEC

How to mount the radiator wheels?

Place the appliance upside down, insert the mounting plate between the last two heating elements, secure with the U-bolt and wing nuts provided, then tighten.

What are the available power levels?

The 5850 Space 360º model offers three levels: 1000 W (switch I only), 1500 W (switch II only), and 2500 W (both switches activated).

Can I use this radiator in a bathroom?

No, this radiator is not designed for damp rooms. Do not use it near water or in a bathroom.

How to set the desired temperature?

Turn the thermostat knob clockwise to increase the temperature, counterclockwise to decrease it.

Does the radiator make noise?

No, the oil-filled radiator operates silently, without a fan.

What to do if the radiator does not heat?

Check that the appliance is plugged in, the switches are on ON, and the thermostat is set above room temperature. If the problem persists, contact Cecotec customer service.

How to clean the radiator?

Turn off and unplug the appliance, let it cool, then wipe the outer surface with a soft damp cloth. Do not touch the heating elements.

Can I use an extension cord?

It is not recommended to use an extension cord as it could overheat and cause a fire. Plug the appliance directly into a grounded outlet.

What is the safety distance to maintain?

Keep a distance of at least 1 meter between the appliance and any object or wall to avoid any risk of overheating or fire.

What to do in case of oil leak?

Immediately unplug the appliance and contact the Official Cecotec After-Sales Service. Any repair requiring opening the oil tank must be carried out by a professional.

USER MANUAL Ready Warm 5850 Space 360º CECOTEC

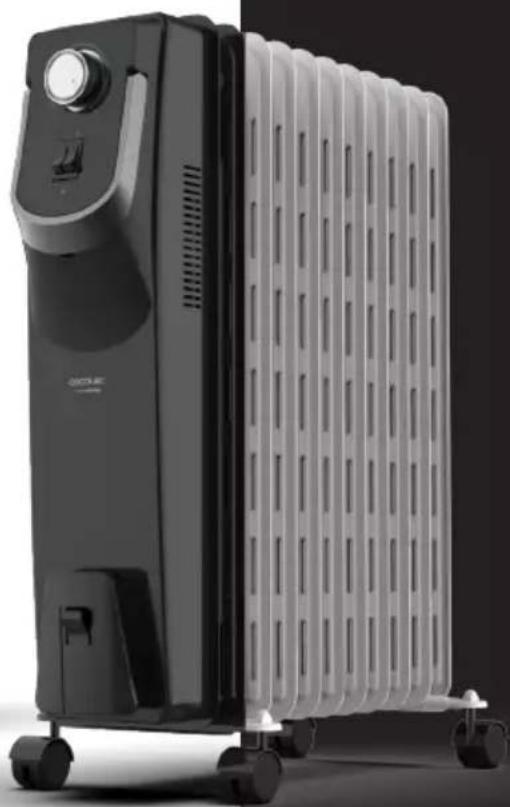

Black industrial electrical heater with coiled heat sink and wheels (no visible text or symbols)

Exterior view of a black and white electric water heater with cooling fan array (no visible text or symbols)

Ready Warm White

Exterior view of a white electric water heater with cooling fan and wheels (no visible text or symbols)

Abstract geometric design with overlapping dark gray triangles forming a staircase-like shape (no text or symbols)

ÍNDICE

1. Parts and components / 04
2. Safety instructions /11
3. Product Assembly / 12
4. Before use / 12
5. Operation / 12
6. Cleaning and maintenance / 13
7. Technical Specifications / 13
8. Disposal of old electrical appliances / 15
9. Technical support service and warranty / 15

INDICE

Technical diagram of a solar water heater with numbered parts labeled for identification.

ES

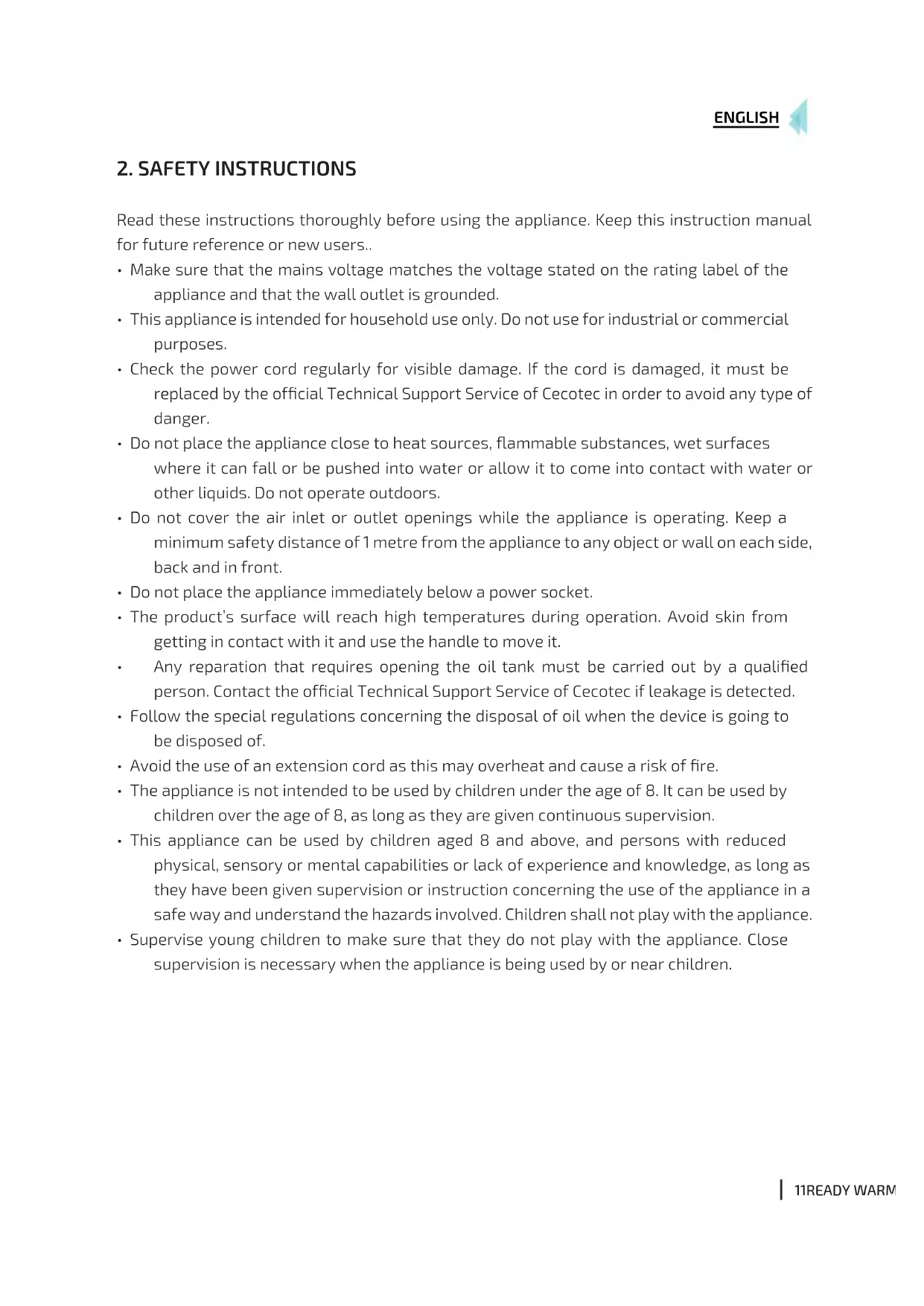

2. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users..

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• This appliance is intended for household use only. Do not use for industrial or commercial purposes.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids. Do not operate outdoors.
• Do not cover the air inlet or outlet openings while the appliance is operating. Keep a minimum safety distance of 1 metre from the appliance to any object or wall on each side, back and in front.
• Do not place the appliance immediately below a power socket.
• The product's surface will reach high temperatures during operation. Avoid skin from getting in contact with it and use the handle to move it.
  • Any reparation that requires opening the oil tank must be carried out by a qualified person. Contact the official Technical Support Service of Cecotec if leakage is detected.
• Follow the special regulations concerning the disposal of oil when the device is going to be disposed of.
• Avoid the use of an extension cord as this may overheat and cause a risk of fire.
• The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

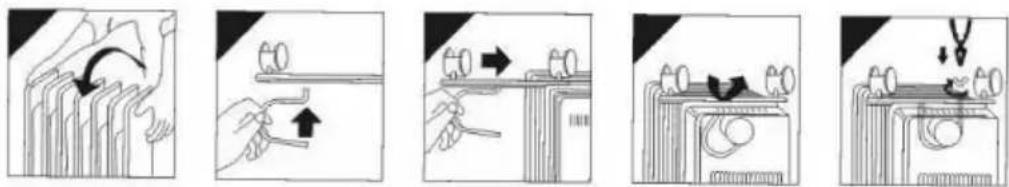

3. PRODUCT ASSEMBLY

1. Take the product out of the box and remove all packaging materials.

2. Turn the heater upside down.

3. Place the wheel-mounting plate between the end fins.

4. Attach them to the heater using the U-shaped bolts and wing nuts supplied.

5. Tighten the wing nuts.

6. Turn the heater the right way up.

4. BEFORE USE

• Place the radiator on a flat, stable surface.
• Set the power switch and thermostat knob to 0.
• Plug the appliance to a properly-earthed power outlet.

5. OPERATION

1. Make sure the power-level switches are set at the OFF positions and the thermostat knob at 0, then connect the device to a power supply.
2. Turn the thermostat knob clockwise to increase temperature or anticlockwise to decrease it and select the desired temperature.
3. Select the desired heating power level by pressing switches:

a) l: 600 W (7 fins) a) l: 800 W (9 fins) a) l: 1000 W (11 fins)
b) II: 900 W. (7 fins) b) II: 1200 W. (9 fins) b) II: 1500 W. (11 fins)
c) I and II: 1500 W. (7 fins) c) I and II: 2000 W. (9 fins) c) I and II: 2500 W. (11 fins)

1. The light indicator will light up during operation.

2. Once you have finished using the heater, switch all the switches to the OFF position, turn the thermostat knob to 0 and unplug it from the power supply.

6. CLEANING AND MAINTENANCE

• Always turn off, unplug and allow the appliance to cool down before cleaning.
- Do not use abrasive scouring pads, powders or cleaners to clean the product.
- Use a soft, dampened and clean cloth to clean the product's outer housing. Be careful not to touch the heating elements.
• If the heater is not going to be operated for a long period of time, uninstall the castors and store it in a dry and safe place where it is protected from dust.

7. TECHNICAL SPECIFICATIONS

Models and references (7 fins):

• Ready Warm 5750 Space 360 (05338)
• Ready Warm 5770 Space 360 (05347)
  1500 W, 220-240 V, 50/60 Hz.
  Made in China | Designed in Spain

Models and references (9 fins):

• Ready Warm 5800 Space 360 (05339)
• Ready Warm 5820 Space 360 (05348)
  2000 W, 220-240 V, 50/60 Hz.
  Made in China | Designed in Spain

Models and references (11 fins):

• Ready Warm 5850 Space 360 (05340)
• Ready Warm 5870 Space 360 (05349)
  2500 W, 220-240 V, 50/60 Hz.
  Made in China | Designed in Spain

Information requirement for the electric local space heaters
Model identifier(s): Ready Warm Space Series
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output Pnom		Model 5750 and 5770: 1,5Model 5800 and 5820: 2,0Model 5850 and 5870: 2,5	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin 0	kW		manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	Model 5750 and 5770: 1,5Model 5800 and 5820: 2,0Model 5850 and 5870: 2,5	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	N/A	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

9. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].
