USER MANUAL Horizon 35.1155.01 TFA

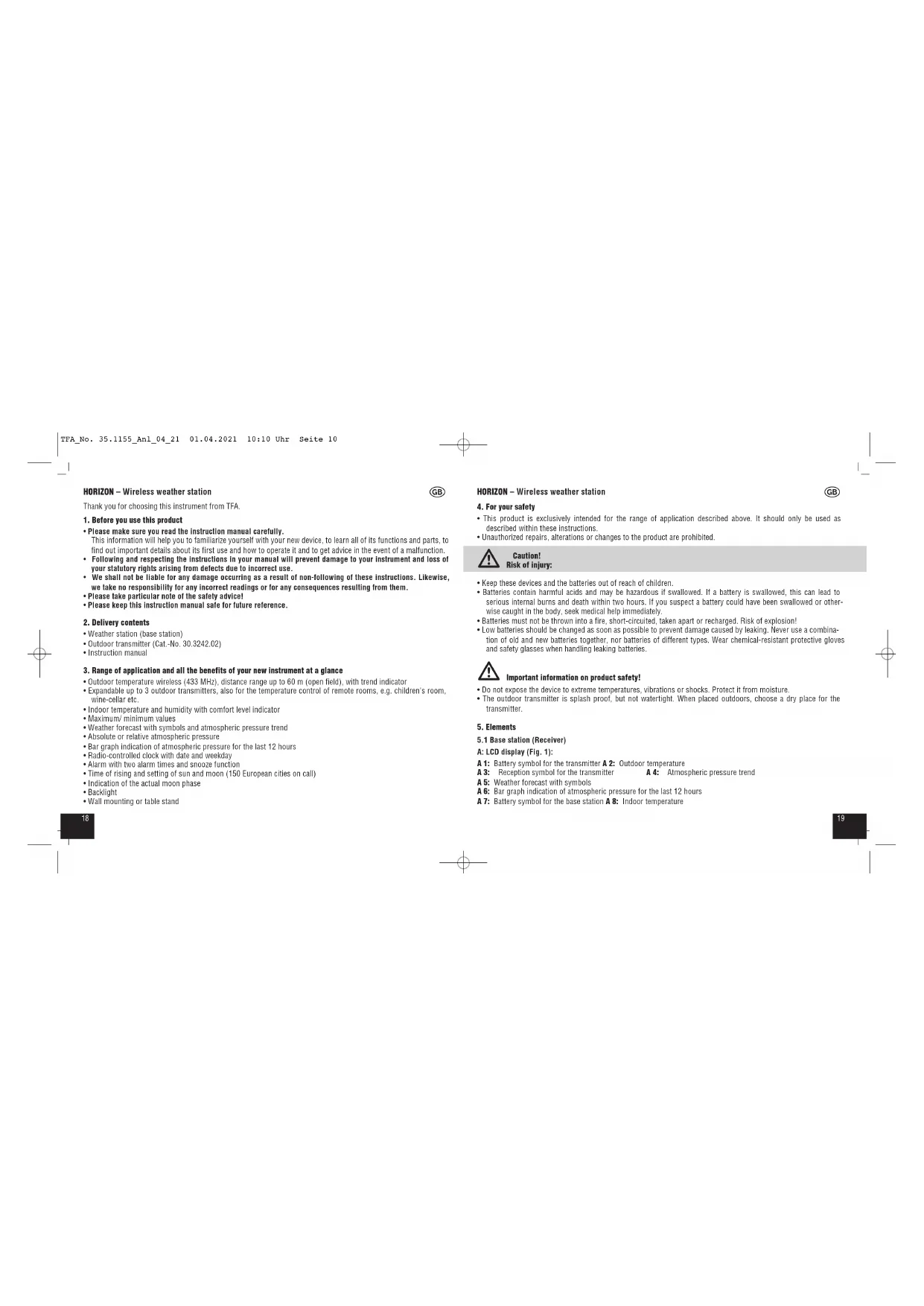

HORIZON - Wireless weather station
Thank you for choosing this instrument from TFA.
1. Before you use this product
Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
- Following and respecting the Instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
- We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any Incorrect readings or for any consequences resulting from them.
- Please lake particular note of the safety advice!
- Please keep this instruction manual safe for future reference.
2. Delivery contents
- Weather station (base station)
- Outdoor transmitter (Cat-No. 30.3242.02)
- Instruction manual
3. Range of application and all the benefits of your new instrument at a glance
- Outdoor temperature wireless (433 MHz), distance range up to 60 m (open field), with trend indicator
- Expandable up to 3 outdoor transmitters, also for the temperature control of remote rooms, e.g. children's room, wine-cellar etc.
- Indoor temperature and humidity with comfort level indicator
Maximum minimum values
- Weather forecast with symbols and atmospheric pressure trend
- Absolute or relative atmospheric pressure
Bar graph indication of atmospheric pressure for the last 12 hours
Radio-controlled clock with date and weekday
- Alarm with two alarm times and snooze function
Time of rising and setting of sun and moon (150 European cities on call)
- Indication of the actual moon phase
- Backlight
- Wall mounting or table stand
GB
HORIZON-Wireless weather station
GB
4. For your safety
This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.
- Unauthorized repairs, alterations or changes to the product are prohibited.
Caution! Risk of injury:
- Keep these devices and the batteries out of reach of children.
- Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
- Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
- Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.
- Do not expose the device to extreme temperatures, vibrations or shocks. Protect it from moisture.
- The outdoor transmitter is splash proof, but not watertight. When placed outdoors, choose a dry place for the transmitter.
5. Elements
5.1 Base station (Receiver)
A: LCD display (Fig. 1):
A1: Battery symbol for the transmitter A2: Outdoor temperature
A3:Reception symbol for the transmitter A4:Atmospheric pressure trend
A5:Weather forecast with symbols
A6: Bar graph indication of atmospheric pressure for the last 12 hours
A7: Battery symbol for the base station A8: Indoor temperature
HORIZON - Wireless weather station
A 9: Comfort level indicator of indoor climate
A11: Moon phase A12: Moonrise/moonse
A13: Location A14:Sunrise/Sunset time
A 15: Daylight Saving Time symbol A 16: DCF reception icon
A17: Alarm symbol 1-2 A18: Date and weekday
A 19: Time with seconds A 20: History values of atmospheric pressure
A 21: Absolute or relative atmospheric pressure
A 23: Circle symbol for the alternating channel
A 25: Channel number
A10: Indoor humidity
B1:SNOOZE/LIGHT button B2: + / 12 / 24 button
B 3: Relative/Absolute button B 4: -f button
B5:MAX/MIN/- button B6:MODE button
B7: C / F / + button
B9: HISTORY/WEATHER button
B11: CHANNEL button
C: Housing (Fig. 2):
C1: Wall mounting holes
C3: Stand (fold out)
D:Transmitter (Fig.3):
D1:°C/°F button
D3: Wall mounting hole
D5: Battery compartment
D7: Radio symbol channel 1.2.3
D9: Transmission indication LED
D11:Transmission signal
#
B8:ALARMON/OFFbutton
B10: SUN MOON button
B12:RESET button
C2: Battery compartment
D4: 123 switch for channel selection
16:Stand
D8: Outdoor temperature display
D 10: Battery symbol for the transmitter
GB
HORIZON - Wireless weather station
6. Getting started
6.1 Insert the batteries
- Remove the protective films from the display of the base station and the transmitter.
- Open the battery compartment of the transmitter and receiver and place both instruments on a desk with a distance of approximately 1.5 meter. Avoid being close to possible sources of interference such as electronic devices and radio equipment.
- Insert at first two new batteries 1,5V AAA in the battery compartment of the transmitter and immediately afterwards three new batteries 1,5V AAA in the battery compartment of the base station. Make sure the polarities are correct.
After a successful installation close the battery compartments carefully.
6.2 Weather symbol setting
The device will alert you with a beep and all segments will be displayed for a short moment.
- After batteries were inserted or when holding HISTORY/WEATHER button in normal mode for 3 seconds, the weather symbol will be flashing for 20 seconds. Enter the actual weather curing this time by pressing the MAX/MIN/- or "C/F+ button.
- Press the HISTORY/WEATHER button to confirm the setting
6.3 Reception of outdoor temperature
- After the battaros are inserted, the outdoor values will be transmitted to the base station. The reception symbol for the transmitter flashes.
- If the reception of the outdoor values fails, "..." appears on the base station display. Check the batteries and try it again. Check if there is any source of interference.
- You can also start the outdoor transmitter search manually later on (for example when the outdoor transmitter is lost or the batteries are changed). Press and hold the CHANNEL button for three seconds. The last registered transmitter (channel) will be canceled.
- Press the TX button on the outdoor transmitter. The transmission of the outdoor data takes place immediately and a successful reception will be confirmed by a beep tone of the base station.
GB
HORIZON - Wireless weather station
6.4 Radio-controlled time reception
- After 3 minutes the clock will then scan the DCF (radio-controlled clock) frequency signal. The DCF reception symbol will be flashing. When the time code is successfully received after 3-10 minutes, the radio-controlled time, the date, the day of the week and the DCF symbol will be shown steadily on the display. The clock automatically scans the time signal at 1 a.m., 2 a.m., 3 a.m. and 4 a.m. every day to maintain accurate timing. If the reception fails, it will repeat again at 5:00 a.m. and 6:00 a.m (less disturbances).
- You can also start the initialization manually. Press and hold the → f button for 3 seconds. The DCF reception symbol will be flashing.
- Hold the -√1/2 button for 3 seconds again to stop scanning the DCF time signal. The DCF reception symbol disappears.
- If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock. (see: Setting of the clock, calendar and location).
6.5 Note on radio-controlled time
The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braunschweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio clock receives the signal, converts it and always shows the exact time. The adjustment to Daylight Saving Time (summer/winter time) is automatic. In Daylight Saving Time DST is shown on the display. The reception quality depends mainly on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.
Therefore, please note the following steps:
The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.
- Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.
- During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.
7. Operation
Important:
Buttons will not function while scanning DCF or outdoor temperature signal unless they are well received or stopped manually.
HORIZON-Wireless weather station
During the operation, all successful settings will be confirmed by a brief beep tone.
- The device will automatically quit the setting mode if no button is pressed for 15 seconds.
- Press and hold the +12/24 or -√3 button in setting mode for fast mode.
7.1 Setting of the clock, calendar and location
- Press and hold the MODE button for 3 seconds. The time zone correction (00 default) flashes on the display. The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus). Press the +/-12/24 or -f button to make the time zone correction (+12/-12).
- Press the MODE button to make the settings in the following sequence: Hours, minutes, seconds, year, month,
day, day-of-week language, country and city. Press the +F2/24 or -F button to adjust the settings. Day-of-week language: German (GE), French (FR), Spanish (ES), Italian (IT). Dutch (NE), Danish (DA), Russian (RU) and English (EN).
For the selection of your location please see the included table at the end of the manual.
The manually set time is overwritten once the DCF time signal is successfully received.
7.1.1 12 or 24 hour system
Press the +12/24 button in normal mode to choose 12 HR or 24 HR system. In the 12 HR system AM or PM (after 12 o'clock) appears on the display.
8. Alarm clock function
- You can select your respective alarm by pressing the MODE button:
- Alarm 1
- Set the alarm time in the respective alarm mode. Hold the MODE button for 3 seconds. The hour digits flash. Press the +12/24 or -f1/2 button to set the desired time. Confirm with the MODE button. Set the minutes in the same way.
To activate and deactivate the alarm function press the ALARM ON/OFF button in the respective alarm mode. "on" or "off" appears on the display next to the alarm time.
- When the alarm is activated, the alarm starts to ring when the set alarm time is reached.
-
Press any button (except SNOOZE/LIGHT) and the alarm will stop.
-
If the alarm is not stopped manually, the ascending alarm tone automatically turns off after two minutes and it will be reactivated at the same set time on the following day.
HORIZON - Wireless weather station
- When the alarm rings, press the SN00ZE/LIGHT button and the snooze function is activated. The backlight turns on for a short period.
The alarm symbol flashes.
The alarm will be interrupted for 5 minutes.
9. Thermometer and hygrometer
9.1 Display change ° C / °F
Press the C F / F+ button to select the temperature display of the base station in ° C (Celsius) or °F (Fahrenheit) as the temperature unit.
- Press the ° C/ ° F button on the transmitter to change the temperature unit on the sensor display from ° C to ° F .
9.2 Trend arrow
The trend arrow on the display will show if the outdoor temperature is increasing, steady or decreasing.
9.3 Comfort level indicator of indoor climate
- On the display appears a smiley to indicate the comfort level:
| <40% 40-60% >60% |
| DRY COMFORT HUMID |
| <20℃/ | | |
| 20-26℃ | | |
| >26℃/ | | |
9.4 Maximum/Minimum function
Press the MAX/MIN/- button to show the maximum (MAX) values of temperature and humidity of the indoor transmitter and outdoor temperature. Press the MAX/MIN/- button again to show minimum (MIN) values.
If you press and hold the MAX/MIN- button for 3 seconds, the values are deleted and reset to the actual value.
HORIZON - Wireless weather station
10. Atmospheric pressure
10.1 Weather forecast symbols
- There are 5 different weather symbols (sunny, slightly cloudy, cloudy, rainy, heavy rain) and 3 different symbols for the trend of atmospheric pressure (increasing, steady, decreasing). A snow crystal is shown if rain is forecasted and the outdoor temperature is under 0°C .
- The weather forecast relates to a range of 12 to 24 hours and indicates only a general weather trend. For example, if the current weather is cloudy and the rain icon is displayed, it does not mean the product is faulty because it is not raining. It simply means that the air pressure has dropped and the weather is expected to get worse but not necessarily rainy.
10.2 Absoluble and relative atmospheric pressure
- Press the Relative/Absolute button to select Absolute ("Abs") or Relative ("Rel") pressure display.
- Absolute pressure is the actual atmospheric pressure measured by the main unit.
- The relative atmospheric pressure is referred to the sea level's pressure and has to be adjusted first to your local altitude. Ask for the current relative atmospheric pressure of your home area (local weather service, www). Hold the Relative/Absolute button for 3 seconds. Press MAX/MIN/- or C / F + F+ button to adjust the respective value. Confirm the setting with the Relative/Absolute button.
- Press the HISTORY/WEATHER button to view the past 12 hours barometric pressure history. The hour is indicated on the display (0, -1, -2, ... -12).
- Press and hold the ^C / ^F / + button for three seconds to select inHg or mb / hPa as the unit for barometric pressure.
10.3 Development of atmospheric pressure
The bar graph indication of atmospheric pressure shows the last 12 hours.
11. Sun and moon
11.1Sunrise/sunset and moonrise/moonset time
- After setting the local country and the city in the setting mode (see 7.1), the main unit calculates the time for the sunrise/sunset and moonrise/moonset.
- Press the SUN MOON button to display the day length.
HORIZON - Wireless weather station
- Hold the SUN MOON button for 3 seconds to enter the quick checking mode. The country digits blink and you can select your setting by the +1/24 or -f button. Enter city, year, month and day which you would like to check by pressing the SUN MOON button. Press the +1/24 or -f button to adjust the settings. Confirm with the SUN MOON button.
- The location digits keep flashing to indicate the main unit is still in quick checking mode. Press the SUN MOON button to return to normal mode.
- The instrument will quit the quick checking mode and return to the home location if there is no button used within 15 seconds.
- If moonrise or moonset occur at the next day "MOONRISE +1" or "MOONSET +1" will be displayed.
If there is no moonrise or moonset on that day, "---" will be displayed.
11.2 Moon phase
The moon phase of each day is shown on the display:
A: New Moon B: Waxing Crescent
D: Waxing Gibbos
6:Last Quarter
B: Waxing Crescent
E:Full Moon
H:Waning Crescent
C:First Quarter
F:Waning Gibbons
12. Backlight
Press the SNOOZE/LIGHT button. The backlight turns on for 3 seconds.
13. Additional outdoor transmitters
For having more than one external transmitter, select different channels for each sensor with the switch 123. The new transmitter will be received automatically by the base station.
- The temperature measured by the sensor is shown on the display of the base station. If you have installed more than one transmitter, press the CHANNEL button to change between the outdoor transmitters.
HORIZON-Wireless weather station
GB
- You can also choose an alternating channel display. Press the CHANNEL button. After the last registered channel a circle symbol will appear (display for channel 1, for channel 2 or for channel 3 and for alternating channel).
- To cancel an unused channel hold the CHANNEL button for 3 seconds. If a new channel is received it will be automatically registered again.
14. Positioning and mounting of the base station and the transmitter
- When placed outdoors, choose a shady and dry place for the transmitter. Direct sunlight may trigger incorrect measurement and continuous humidity damages the electronic components needlessly.
- Place the base station in any room of the house. Make sure to avoid the vicinity of any source of interference such as computer screens, TV sets or solid metal objects.
Once the desired location is chosen, check whether the transmission from the transmitter to the base station is possible (transmission range of up to 60m in open areas). Within solid walls, especially ones with metal parts, the transmission range can be reduced considerably.
If necessary choose another position for the outdoor transmitter and/or receiver.
- is the transmission successfully, you can wall mount the base station and the outdoor transmitter with the suspension device.
1
Clean the devices with a soft damp cloth. Do not use solvents or scouring agents. Protect it from moisture.
- Remove the batteries from all devices if you do not use the products for a long period of time.
- Store the devices in a dry place.
15.1 Battery replacement
- As soon as the battery symbol will appear on the display of the base station beside the outdoor temperature or on the display of the outdoor transmitter, change the batteries of the outdoor transmitter.
- Charge the batteries of the base station, when the battery symbol appears on the indoor values display.
- Please note:
When the batteries are changed, the contact between the transmitter and the receiver must be restored - so always insert new batteries into both devices or start the manual search for the transmitter.
HORIZON - Wireless weather station
16. Troubleshooting
Problem Solution
No indication on the → Ensure the batteries' polarities are correct base station/transmitter → Change the batteries
No transmitter recetion No transmitter installed
Display"-- Check the outdoor transmitter's batteries (do not use rechargeable batteries!)
for channel 1/2/3 → Restart the transmitter and the base stallion according to the manual
→ Start the outdoor transmitter manual search
Choose another place for the outdoor transmitter and/or the base station
→ Reduce the distance between the outdoor transmitter and the base station
Check if there is any source of interference
No DCF reception → Press and hold the - button for three seconds and start the initialisation manually
Wait for an attempt reception during the night
Choose another place for your product
Set the clock manually
- Check if there is any source of interference
→ Restart the instrument according to the manual
Incorrect indication → Press the RESET button
Change the batteries
17. Waste disposal
This product has been manufactured using high-grade materials and components which can be recycled and reused.
Never dispose of empty batteries and rechargeable batteries with ordinary household waste.
As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.
The symbols for the contained heavy metals are:
Cd=cadmium, Hg=mercury, Pb=lead
HORIZON-Wireless weather station
GB
18. Specifications
Measuring range indoor
Temperature 0°C...+50°C(+32...+122°F)
Humidity 20%rh..95%rh
Atmospheric pressure 900hPa 1050hPa
Measuring range outdoor
Temperature -20 °C... +60 °C (-4 °F... +140 °F)
Range max. 60 m (open field)
Transmission frequency 433 MHz
Maximum
radio-frequency power <10mW
Power consumption Base station: 3 x 1.5 V AAA (Batteries not included)
Outdoor transmitter: 2 x 1,5 V AAA batteries (Batteries not included)
Use alkaline batteries
Base stallion
Dimensions 158 x 26 (51) x 123 mm
Weight 224 g (device only)
Outdoor Transmitter
Dimensions 50x30x97mm
Weight 45 g (device only)
HORIZON - Wireless weather station
No part of this manual may be reproduced without written consent of TFA Dostrann. The technical data are carried at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.
Hereby, IFA Dostmann declares that the radio equipment type 35.1155 is in compliance with Directive 2014/SEU. The full text of the EU declaration of conformity is available at the following Internet address: www.fia.dostmann.de/service/downloads.pdf
www.ifadostmann.de
5-mail:info@dashman.com
TFA Dcetmann GmbH & Co.KG, Zum Ostersberg 12. D-97877 Wertheim, Germany 04/21
10.2 Pression atmospheric pressure relative
A: Nouvelle June
P:Premier croissant
-Problem(1)
B:Premier croissant
E:Pleine Jure
H:Demier croissant
9.4 Maximum/Minimum-functl
A: Nieuw mean
T. Tropomanda mean
b. Toenlenthe man 1. Upper mean (loseto inversely
B: Jonge maansikkel
F: Volta maan
1: Ateamoe cithel
D E
E
F
(earste kwartier)
F: Afnemende maan
radiofrequency transmitida < 10mW
