USER MANUAL SBLF 5 A1 SILVERCREST

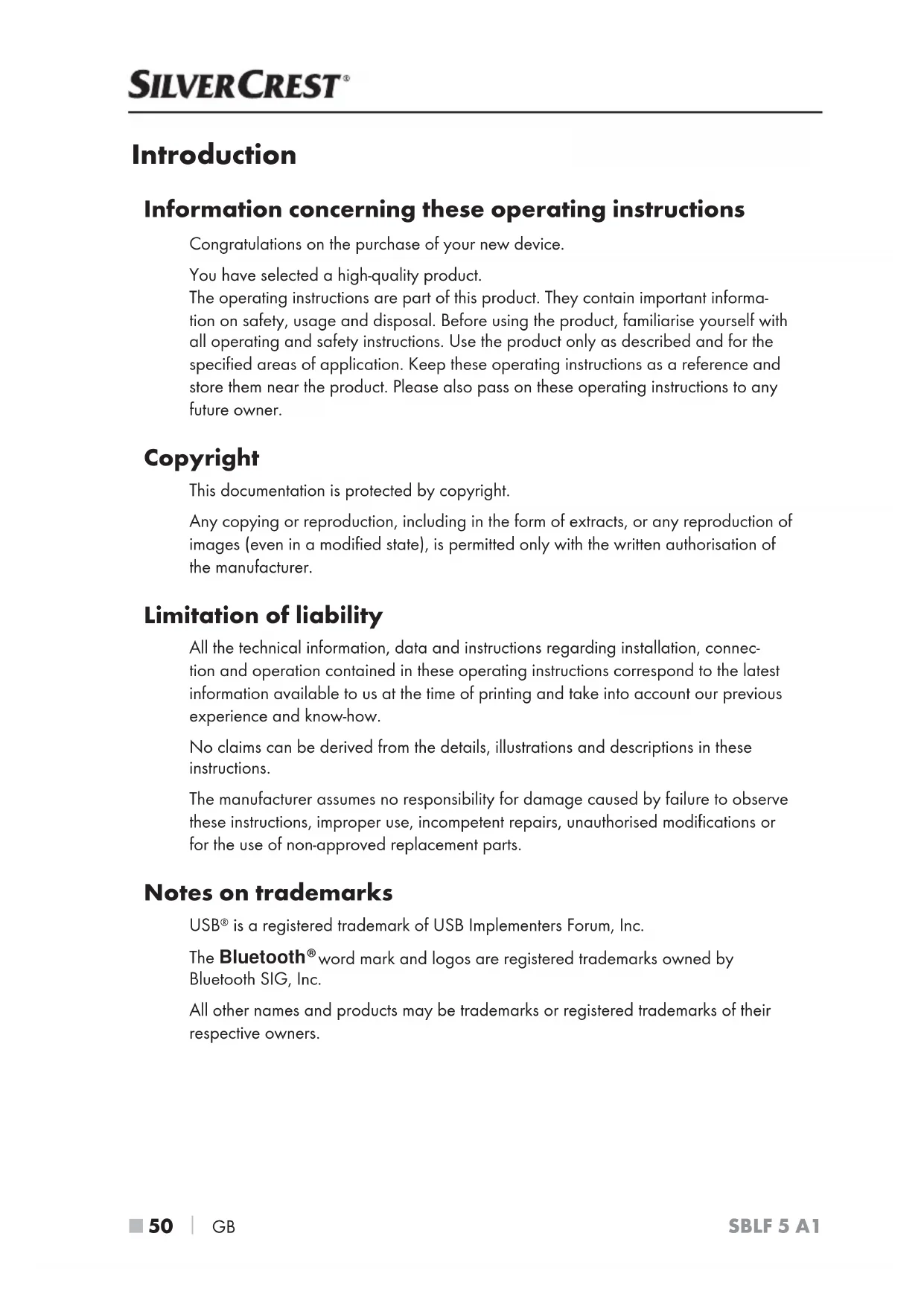

 GB Introduction Information concerning these operating instructions Congratulations on the purchase of your new device. You have selected a high-quality product. The operating instructions are part of this product. They contain important informa- tion on safety, usage and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Keep these operating instructions as a reference and store them near the product. Please also pass on these operating instructions to any future owner. Copyright This documentation is protected by copyright. Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer. Limitation of liability All the technical information, data and instructions regarding installation, connec- tion and operation contained in these operating instructions correspond to the latest information available to us at the time of printing and take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts. Notes on trademarks USB

is a registered trademark of USB Implementers Forum, Inc. The Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. All other names and products may be trademarks or registered trademarks of their respective owners.SBLF 5 A1 GB 

 51 ■ Intended use This consumer electronics device is used to play back audio files which can be trans- ferred via Bluetooth

. This product is not suitable for lighting rooms in houses. The device is intended for private use only and is not suitable for commercial purposes. The device is splash-proof (IP 44) and can therefore also be used outside or in damp rooms such as bathrooms or showers. The mains adapter is only suitable for opera- tion and recharging in dry indoor locations. The device is not intended for any other purpose, nor for use beyond the scope described. The device is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk shall be borne solely by the user. Warnings used The following warning notice types are used in these operating instructions: DANGER A warning notice at this hazard level indicates a potentially hazardous situation. Failure to avoid this hazardous situation could result in severe injuries or even death. ► Follow the instructions in this warning notice to avoid the risk of death or serious injury. CAUTION A warning notice at this hazard level indicates a potential for property damage. Failure to avoid this situation could result in property damage. ► Follow the instructions in this warning notice to prevent property damage. NOTE ► A note provides additional information that will assist you in using the device.SBLF 5 A1 ■ 52 

 GB Safety This section contains important safety instructions for using the product. This product complies with statutory safety regulations. Improper use may result in personal injury and property damage. Basic safety guidelines To ensure safe operation of the product, follow the safety guidelines set out below: ■ This device may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowl- edge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not use the device as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children. Risk of suffocation! ■ Check the device for visible external damage before use. Do not operate a device that has been damaged or dropped. ■ If the mains adapter cable or connections are damaged, have them replaced by an authorised specialist or the Customer Service department. ■ Protect the mains adapter cable from hot surfaces and sharp edges. ■ Ensure that the mains adapter cable is not stretched tightly or kinked. ■ Do not leave the mains adapter cable hanging over edges (tripping hazard). ■ Always place the device on a stable and level surface. It can be damaged if dropped. ■ Do not expose the device to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged.

DANGER! Be sure to provide sufficient air circulation to avoid a heat build-up. Never cover the device or the mains adapter! Risk of fire! ■ Do not place the product near heat sources such as radiators or other heat-generat- ing devices.

DANGER! Never operate the device in the vicinity of naked flames (e.g. can- dles), and do not place burning candles on or next to the device. This will help to prevent fires. ■ The speaker may warm up during charging. Place the speaker in a well-ventilated location during the charging process and do not cover it.SBLF 5 A1 GB 

 53 ■ ■ The speaker is protected according to protection class IP44. During charging, this protection is not provided. For this reason, do not place any containers filled with liquids (e.g. vases) on or next to the speakers and the mains adapter during this time. ■ Never open the housing of the device. There are no user-serviceable or replaceable components inside the device. ■ Do not make any unauthorised modifications or alterations to the device. ■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims. ■ Repairs to the device during the warranty period may only be carried out by a cus- tomer service department authorised by the manufacturer. Otherwise, no warranty claims will be held for any subsequent damages. ■ Defective components must always be replaced with original replacement parts. Compliance with the safety requirements can only be guaranteed by using these replacement parts. ■ DANGER! Switch off the device immediately and pull the mains adapter out of the power socket if you smell fumes or notice any smoke. Have the device checked by a qualified specialist before using it again. ■ In the case of a malfunction occurring or a thunderstorm, disconnect the mains adapter from the power socket. Notice regarding power disconnection ■ The multifunction button on this device does not completely disconnect the device from the mains power supply. In addition, the mains adapter consumes power as long as it is connected to the power socket (standby mode). To completely disconnect the device from the power supply, the plug must be removed from the mains power socket. The power socket must always be easily accessible so that the mains adapter can be easily disconnected in an emergency. Notes on the radio interface ■ Keep the device at least 20 cm away from a pacemaker, as the proper functioning of the pacemaker could be affected by radio waves. ■ The transmitted radio waves can cause noise interference in hearing aids. ■ Do not use the device with the radio components switched on in the presence of flam- mable gases or in a potentially explosive atmosphere (e.g. in a paint shop), as the transmitted radio waves can cause an explosion or ignite a fire. ■ The range of the radio waves is dependent on the environment and the ambient conditions. ■ Data transmissions via a wireless connection can be intercepted by unauthorised third parties.SBLF 5 A1 ■ 54 

 GB Notes on batteries and rechargeable batteries DANGER Mishandling batteries can cause fires, explosions, leakages or other hazards! ► Do not swallow the battery; there is a danger of chemical burns. ► The supplied remote control contains a button cell battery. If this button cell battery is swallowed, it can lead to serious internal burns within 2 hours that can lead to death. ► Keep new and used batteries away from children. ► If the battery compartment does not close securely, stop using the product and keep it away from children. ► If you suspect batteries may have been swallowed or have got into any part of the body, seek immediate medical help. ► Batteries must never be short-circuited, taken apart, deformed or thrown into a fire. There is a risk of explosion! ► Chemicals from leaking or damaged batteries can cause skin irritations when touched. Therefore, use suitable protective gloves. In the event of contact with the skin, rinse with plenty of water. If the chemicals come into contact with your eyes, rinse thoroughly with plenty of water, do not rub and consult a doctor immediately. ► Do attempt to recharge non-rechargeable batteries. There is a risk of fire and/ or explosion! ► When inserting the battery, note the correct polarity (plus/+ and minus/−). ► During extended periods of non-use (e.g. during storage), remove the battery from the remote control to prevent damage caused by battery leakage. Description of components (See fold-out page for illustrations) Speaker Multifunction button (underside of the device) Rubber cover (underside of the device) Charger socket (underside of the device) Remote control Mains adapter Charger cableSBLF 5 A1 GB 

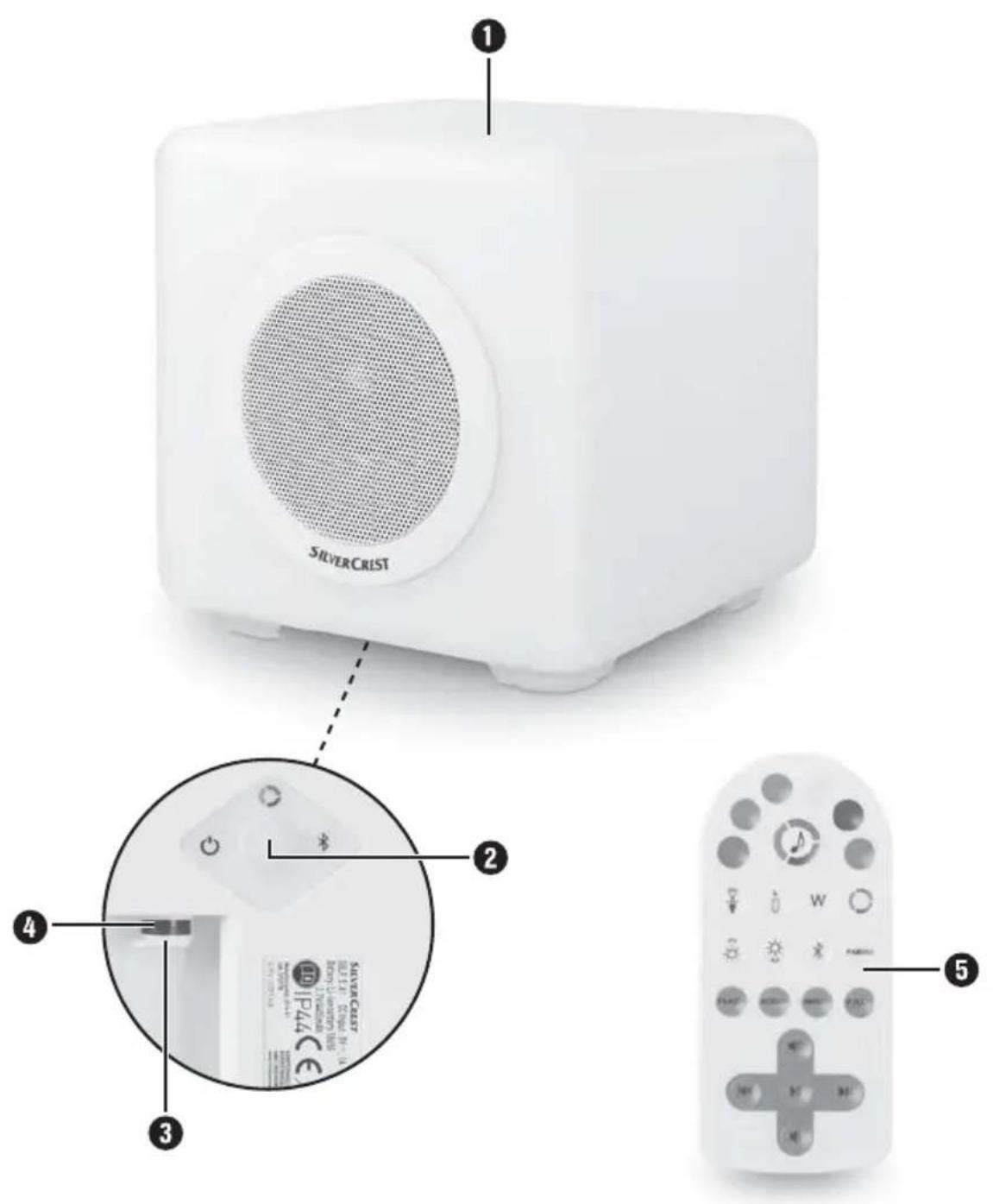

 55 ■ Operation Unpacking ♦ Remove all parts and the operating instructions from the box. ♦ Remove all packaging material. Check the package contents (See fold-out page for illustrations) The product includes the following components: ▯ Bluetooth

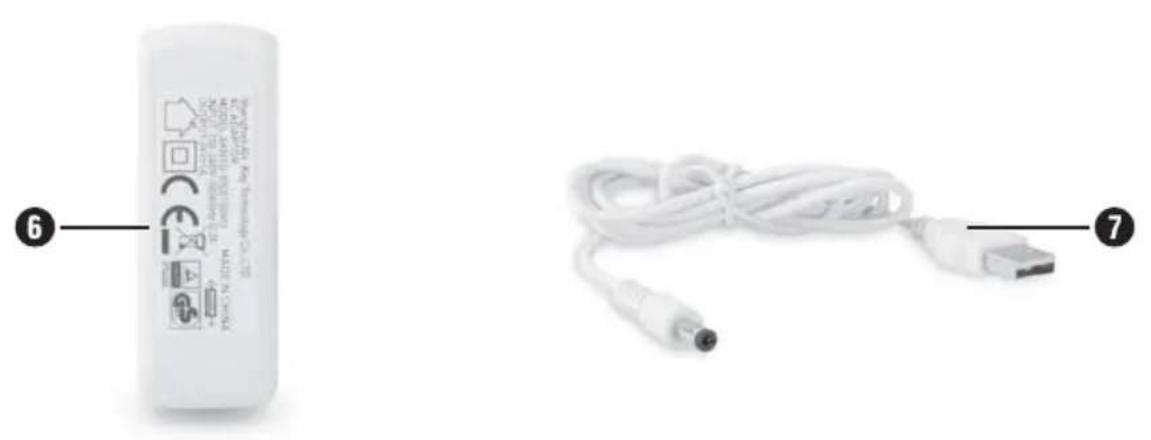

Speaker SBLF 5 A1 ▯ Mains adapter ▯ Charger cable ▯ Remote control ▯ 3V button cell CR2025 (already inserted in the remote control) ▯ These operating instructions (not shown) NOTE ► Check the package for completeness and for signs of visible damage. ► If the delivery is incomplete or damage has occurred as a result of defec- tive packaging or during transport, contact the Service hotline (see section Service). Disposal of packaging materials The packaging protects the device from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of dis- posal, and are therefore recyclable. Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations. NOTE ► If possible, keep the device's original packaging during the warranty period so that the device can be packed properly for return shipment in the event of a warranty claim.SBLF 5 A1 ■ 56 

 GB Inserting/changing the remote control batteries NOTE ► The supplied battery (type CR2025) is already installed in the remote control on delivery. Before use remove the insulation strip from the battery compartment. To replace the battery proceed as follows: ♦ Pull the battery compartment out of the remote control

pressing in the catch at the side and, at the same time, pulling the battery compartment out. ♦ Remove the depleted battery and insert a new battery of the type CR2025 (button cell) into the battery compartment. Be sure to insert the battery according to the polarity (the plus sign must point upwards). ♦ Slide the battery compartment back into the remote control until it locks into place. Charging the speaker CAUTION ► Charge the speaker only in dry interior spaces. ♦ Remove the rubber cover from the charger socket on the underside of the speaker

♦ Connect the USB plug of the charger cable to the mains adapter and connect the other end of the charger cable to the speaker charging socket . ♦ Plug the mains adapter into a properly installed power socket. The lower part of the speaker lights up red and the battery will be charged. As soon as the red light goes off, the integrated battery is fully charged. ♦ Pull the charger cable out of the charging socket and replace the rubber cover

NOTE ► The charging time is approximately 5 hours with a charging current of 1 A and allows music playback of up to 5 hours at a medium volume. The playback time may vary depending on usage (volume/lighting). ► When the battery is depleted, the speaker flashes red for about 10 seconds and switches off.SBLF 5 A1 GB 

 57 ■ Handling and operation This section provides you with important information on handling and using the device. Switching the speaker on/off ♦ Press the multifunction button briefly to switch the speaker on. The speaker can now be operated using the remote control. ♦ Press and hold the multifunction button for about 5 seconds to turn the speaker off. The speaker can now no longer be operated using the remote control NOTE ► Most of the devices functions can be controlled via the buttons on the remote control . The multifunction button on the underside of the speaker only switches the light function and Bluetooth

operation on/off. ► After around 8 hours without any operation on the device or with the remote control, the light function is switched off to preserve the battery charge. You can reactivate the light function at any time using the multifunction button

the remote control. If the light function is switched on at the same time as music playback, the automatic switch-off function is deactivated. The automatic switch- off function is also deactivated during mains operation. Buttons on the remote control Button Function Switch the light function on/off

Increase/reduce brightness* Switch between 8 colours with "hard" transition* Selected colour flashes* Switch between 3 colours (red, blue and green)* Switch between 8 colours with "soft" transition* Colour changes to the rhythm of the music (above a certain volume level)* Direct colour selection buttons (red, violet, green, yellow, blue, turquoise)* Colour selection button to scroll through the individual colours* Turn on candlelight colour (orange)* Turn on white light* Switch Bluetooth

operation on/offSBLF 5 A1 ■ 58 

operation is switched on. Bluetooth

, the speaker must previously have been paired with a compatible Bluetooth

playback device. ♦ Switch on the speaker using the multifunction button

♦ Press the button on the remote control or press and hold the multifunction button for about 2 seconds to switch on the Bluetooth

function is switched on, the confirmation melody is played and the bottom of the speaker flashes blue every second. ♦ Set up the Bluetooth

playback device so that it searches for other Bluetooth

devices. A detailed description of how to do this can be found in the operating instructions for your Bluetooth

playback device. ♦ Press the button on the remote control or press and hold the multifunction button for about 3 seconds to switch the speaker into pairing mode. The bottom of the speaker flashes blue every half second. ♦ Select SBLF 5 A1 from the list of found devices in your Bluetooth

playback device to pair the two devices. If pairing is successful, you will hear a short sequence of beeps and bottom of the speaker lights up permanently blue. ♦ Start playback on the Bluetooth

playback device. ♦ To end the Bluetooth

connection, either deactivate the Bluetooth

operation on the speaker off by pressing the button on the remote control or hold down the multifunction button down for about 2 seconds. When the Bluetooth

function is terminated, there is a descending series of tones.SBLF 5 A1 GB 

 59 ■ NOTE ► The next time you turn on the device it will automatically connect to the last Bluetooth

playback device connected. If your Bluetooth

playback device does not automatically reconnect to the device, you will have to re- establish the connection to your Bluetooth

playback device manually. A detailed description of how to do this can be found in the operating instruc- tions for your Bluetooth

playback device. ► If you use a smartphone as your Bluetooth

playback device, the audio playback will be paused when there is an incoming call. Acceptance/termina- tion of the call is carried out via the smartphone. After finishing the call, the playback will be automatically continued. ► Note that while in Bluetooth

mode, you can also set the volume via the Bluetooth

playback device. Troubleshooting The following table will help you to identify and rectify minor malfunctions: Faults Possible cause Remedy The speaker will not switch on. The speaker’s battery is not charged. Charge the speaker’s battery (see section Charging the speaker). The mains adapter is not con- nected. Connect the mains adapter to the speaker correctly. The socket is not supplying any power. Check the house mains fuse. No sound. The volume on the speaker or the playback device is set to minimum. Increase the volume on the speaker or on the playback device. Playback has not been started on the playback device. Start playback on the playback device.SBLF 5 A1 ■ 60 

 GB Faults Possible cause Remedy The Blue- tooth

connec- tion cannot be established. Bluetooth

is not activated on the playback device. Switch on Bluetooth

on your playback device. Please refer to its operating instructions for more information. It is possible that not all of Blue- tooth

devices are compatible. Check the settings on your Blue- tooth

device. The playback device is not paired with the speaker. Carry out the pairing procedure again. The distance between the speaker and the playback device is too great. Ensure that the speaker is no more than 10 metres away from the playback device. Bluetooth

operation is deacti- vated on the speaker. Press the button on the remote control or press and hold the multifunction button for about 2 seconds to switch on the Blue- tooth

function. The remote control does not work. The remote control is pointing the wrong way. Point the remote control towards the front of the speaker. The battery is inserted incorrectly. Check the battery and, if neces- sary, insert it correctly. Battery is empty. Replace battery. The distance between the remote control and the speaker is too great. Move the remote control closer to the speaker. The speaker is switched off. Press the multifunction button to switch the speaker on. NOTE ► If the above-mentioned solutions do not resolve the problem, please contact Customer Service (see section Service).SBLF 5 A1 GB 

 61 ■ Cleaning DANGER Risk of fatal injury from electrocution! ► Remove the mains adapter from the power socket before starting to clean the device. CAUTION Damage to the device! ► To avoid irreparable damage to the device, ensure that no moisture can penetrate the device during cleaning. ► Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the device. ♦ Clean the surfaces of the device and the remote control with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth with a mild detergent. Storage when not in use ♦ If you decide not to use the device for a long period, disconnect it from the mains power supply and store it in a clean, dry place away from direct sunlight. ♦ To ensure a long battery life, charge the battery at regular intervals. ♦ If you are not going to be using the remote control for an extended period, remove the battery to prevent leakage.SBLF 5 A1 ■ 62 

 GB Disposal Disposal of the device The adjacent symbol of a crossed-out wheelie bin means that this device is subject to Directive 2012/19/EU. This directive states that this device may not be disposed of in the normal household waste at the end of its useful life, but must be handed over to specially set-up collection locations, recycling depots or disposal companies. This disposal is free of charge for the user. Protect the environment and dispose of this device properly. You can obtain further information from your local disposal company or the city or local authority. NOTE ► The integrated rechargeable battery in the speaker cannot be removed for disposal. Disposing of the batteries Do not dispose of the batteries in the domestic waste. Defective or worn-out batteries must be recycled according to Directive 2006/66/EC. Consumers are legally obliged to dispose of used batteries at a collection point in their town/district or at a retail store. This obligation is intended to ensure that batteries are disposed of in an environmentally responsible manner. Dispose of batteries only when they are fully discharged. Appendix Technical data Mains adapter AKN1G-0500100VU Manufacturer Shenzhen All-Key Technology Co., Ltd Input voltage/frequency 100–240 V ∼, 50/60 Hz Current consumption 0.2 A Output voltage/current 5 V , 1 A Protection class II / Operating temperature +15°C to +35°C Storage temperature +5°C to +40°C Humidity (no condensation) 5 to 75%SBLF 5 A1 GB 

specifications Version 3.0 (range of up to 10 metres) Supported Bluetooth

profiles A2DP and AVRCP Frequency range speaker 35 Hz–18 kHz Impedance 4 Ω Output power approx. 5 W RMS @ 10% THD Integrated battery 3.7 V/4400 mAh (Li-ion) Charging time approx. 5 hours Operating time approx. 5 hours (music playback only) Protection class IP 44 Operating temperature +15°C to +35°C Storage temperature +5°C to +40°C Humidity (no condensation) 5 to 75% Dimensions (W x H x D): approx. 19.8 x 20.2 x 20.3 cm Weight approx. 1450 g Operating voltage – remote control 3V (1 x CR2025 button cell) Notes on the EU Declaration of Conformity This device complies with the fundamental specifications and other relevant regulations of the Low Voltage Directive 2006/95/EC, the R&TTE directive 1999/5/EC, the ErP Directive 2009/125/EC, the EMC directive 2004/108/EC and the RoHS directive 2011/65/EU. The complete EU Declaration of Conformity is available from the importer. Warranty This device is provided with a 3-year warranty, valid from the date of purchase. This device has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods. NOTE ► The warranty only covers claims for material and manufacturing defects, not for transport damage, worn parts or damage to fragile components such as buttons or rechargeable batteries.SBLF 5 A1 ■ 64 

 GB This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immedi- ately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge. Service Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 273778 Importer
