designation of ParTs

1. Eyepiece cups
   Position a: Extended for viewing without glasses
   Position b: Retracted for viewing with glasses
2. Central focusing dial
3. Diopter compensation dial with a. Scale
4. Eyes for carrying strap
5. Release button for distance metering
6. Laser transmission optics
7. Diopter compensation for reticule with a. Scale
8. Hinged axis for adjusting the eye spacing
9. Battery compartment
10. Battery compartment cover

foreword

Dear Customer,

All over the world, "Leica" stands for top quality, precision engineering with extreme reliability and a long life.

We wish you a great deal of enjoyment and success with your new Leica Geovid HD-R binoculars. To ensure that you use them correctly, we recommend that you read these instructions first.

Package conTenTs

• Binoculars
• 13V lithium round cell, type CR2
• Carrying strap
  Ever ready case
• Eyepiece cover
• 2 lens covers
  Warranty card

CONTENTS

Designation of parts. 17

Foreword 17

Package contents 17

Disposal of electrical and electronic equipment. 19

Potential applications. 19

Attaching the carrying strap and the eyepiece cover..19

Attaching the lens covers 19

Inserting and replacing the battery 20

Battery charge level 21

Adjusting the eyepiece cups / Using with and without glasses 22

Adjusting the eye spacing 22

Setting the focus / Diopter compensation. 23

Distance metering. 24

Equivalent horizontal range (Ehr) 25

Scan mode 26

Measurement range and accuracy 26

Maintenance / cleaning. 28

Accessories 28

Spare parts 28

Troubleshooting 29

Technical data 30

Leica Information Service 32

Leica Customer Service 32

Warning: As with any binoculars, avoid looking directly at bright sources of light when using the Leica Geovid HD-R, to prevent eye injury.

disPosal of elecTrical and elecTronic eQuiPmenT

(Applies within the EU, and for other European countries with segregated waste collection systems)

This device contains electrical and/or electronic components and should therefore not be disposed of in general household waste. Instead it should be disposed of at a recycling collection point provided by the local authority. This costs you nothing. If the device itself contains removable batteries or rechargeable batteries, these should first be removed and, if necessary, properly disposed of (refer to the specifications in the manual for your device). Further information on this issue is available from your local authority, your local waste disposal company, or in the store where you purchased this device.

PoTenTial aPPlicaTions

Leica Geovid HD-R binoculars have a robust aluminum housing, allowing them to be used even under adverse conditions. There's no need to worry about moisture-they are absolutely waterproof to a depth of 5m and the internal optics do not become fogged and a nitrogen filling means that the internal optics do not become fogged.

aTTaching The carrying sTraP and The eyePiece coVer

If you want to attach the eyepiece cover to the carrying strap, you must thread the strap through the eyelet on the eyepiece cover before you attach the carrying strap to the left-hand side of the binoculars.

aTTaching The lens coVers

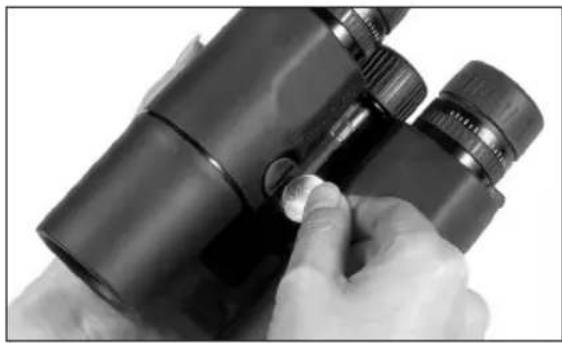

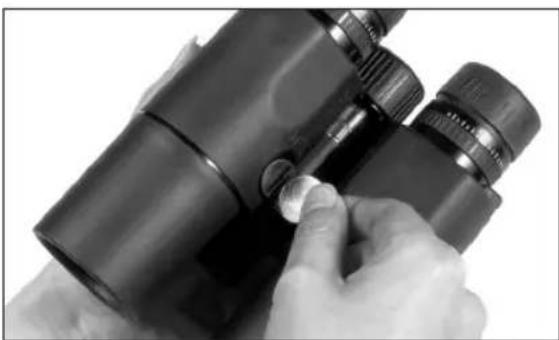

To fit the two lens covers, the rubber rings on the covers are pushed over the binocular tubes from the lens side in such a way that the covers fold downwards.

INSERTING AND CHANGING THE BATTERY

The Leica Geovid HD-R binoculars are powered by a 3 Volt lithium round cell (e.g. Duracell DL CR2, Ucar CR2, Varta CR2 or other CR2 types).

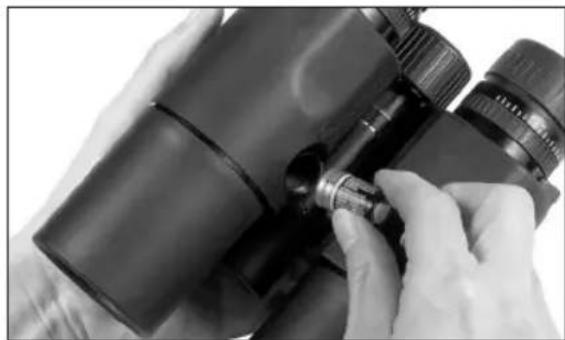

1. Open the cover (10) over the battery compartment (9) by turning it anticlockwise, e.g. with a coin.
2. Insert the battery so that the positive contact goes in first (as shown by the markings in the battery compartment).
3. Close the cover again by turning it clockwise.

Notes:

• Batteries should be stored in a cool dry place.
• If the binoculars are not going to be used for a long time, the battery should be removed.

Caution:

• Batteries should never be put in a fire, heated, recharged, taken to pieces or broken apart.
• Used batteries may not be disposed of as normal, household waste as they contain toxic materials that are harmful to the environment. To ensure that they are properly recycled, they should be returned to the dealer or disposed of as special waste (at a collection point).

BATTERY CHARGE LEVEL

A new battery lasts for around 2000 measurements at 20^ . Depending on the conditions of use, the battery life can be significantly shorter or longer than this. Low temperatures and frequent use of scan mode shorten the battery life. A used battery is indicated by a flashing measured value and reticule display. When flashing starts, around another 50 measurements are possible, but with a continuously reduced range.

Caution:

Cold conditions impair the battery performance. Therefore, at low temperatures the LEICA Geovid HD-R should be kept as close to the body as possible and a new battery should be used.

adjusTing The eyePiece cuPs / using wiTh and wiThouT glasses

The eyepiece cups (1) can easily be adjusted by turning them and they lock securely in the selected positions. They can be removed completely for thorough cleaning.

For viewing with glasses (Figure A), they remain in the fully screwed in position. For viewing without glasses, they are extended by turning them anticlockwise.

Two positions are available for optimum adjustment (Figures B, C).

If the eyepieces are heavily soiled, we recommend removing the cups for cleaning (Figure D).

They are removed by gently pulling them in the fully extended position.

adjust Ting The eye sPacing

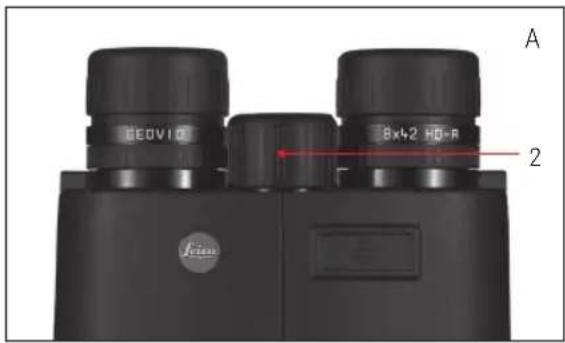

Bending the binoculars about the hinged axis (8) individually adjusts the eye spacing. The right and left field of vision should merge into a circular image.

SETTING THE FOCUS / DIOPTER COMPENSATION

On the Leica Geovid HD-R binoculars, the focus is set for objects diff erent distances away using the central focusing dial (2). The two diopter compensation dials (3 / 7) are used to compensate for individual eyesight problems when viewing without glasses and to focus the reticule. Carefully run through the steps described below. Only then can you utilize the full capabilities of the optical system.

1. Turn the two diopter compensation dials to their zero positions.
2. When viewing with both eyes, adjust them to a distant object using the central focusing dial.

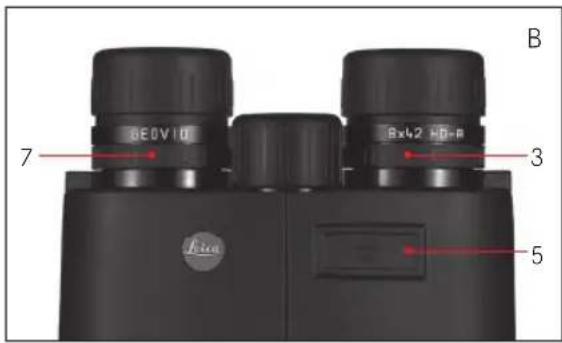

1. Press the release button (5) to activate the reticule.
2. When the reticule appears, while continuing to view with both eyes, adjust the right diopter compensation dial (red index) so that the reticule can be seen in focus in the right optical system.
3. Then, with the reticule still activated but only viewing with the right eye, use the central focusing dial to adjust the image in the right barrel until it is exactly in focus.
4. Finally, set the image in the left barrel to an optimum focus with the left diopter dial (3).

The set values can be read using the "+" or "-" values on the diopter scales (3a/7a).

Note:

When looking through just the left or right side, the other eye should be squeezed shut or you can simply hold the corresponding half of the binoculars on the lens at the front.

DISTANCE METERING

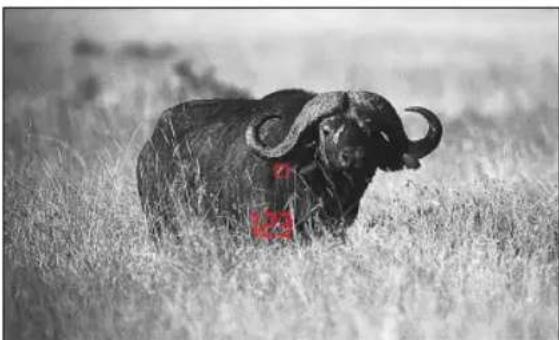

To measure the distance to an object, you must aim directly at it. To do this, activate the reticule by pressing the release button (5) once. When you release the button, the reticule remains lit for around another 4s. With the button held down, the reticule remains lit continuously. While it is lit, aim at the object and press the release button to repeat the distance measurement, and the measured value is then displayed. The reticule disappears briefly during the measurement.

Pressing the release button again allows a new measurement to be started at any time, provided the reticule is still lit.

If the distance to the object is less than 10 meters, the measuring range is exceeded or the object is not sufficiently reflective, "---" appears in the display.

When the display disappears, the distance meter is automatically deactivated.

Notes:

Depending on the set eye spacing, the displays may be slightly skewed.

• The Leica Geovid HD-R binoculars are available in different versions for displaying the distance in meters or yards. The different versions can be identified externally by the specifications on the cover of the central focusing dial.

EQUIVALENT HORIZONTAL RANGE (EHr)

Shots at targets at a higher or lower position are subject to changed ballistic conditions. Therefore, they require knowledge of the equivalent horizontal range, which is relevant for hunting. For example, knowing the EHr is important when using ballistic reticles.

The Leica Geovid HD-R calculates this EH from the linear range measured, a correction factor, and from the measured angle.

For individual measurements, the Leica Geovid HD-R will always show you the direct linear distance to the target first. After around 2s, the display changes to the equivalent horizontal range.

Note:

• EH values are only specified between 10m and 550m for safety reasons. The actual measured linear range is also specified.
• The EH function cannot be disabled.

Important:

• Please note that particularly at long ranges, the influence of all relevant ballistic influencing factors is greatly increased and considerable variations can occur. The ballistic values displayed should therefore only be viewed as a guideline.
• Regardless of whether this information is used, you are responsible for assessing the relevant hunting situation.

SCAN MODE

The Leica Geovid HD-R binoculars can be used to measure continuously. Holding down the release button (5) the 2nd time it is pressed switches the device to scan mode after around 0.5s and it then performs continuous measurements. This can be seen by a change in the display: Around every 1.5s a new measured value is shown. Scan mode is particularly practical for measuring small targets.

Notes:

• Because of the continuous measurements, power consumption is greater in scan mode than for single measurements.
  After 10s, scan mode is automatically deactivated to conserve the battery if the button has been pressed unintentionally.
• In scan mode, the EHR value is only displayed for the last measurement.

MEASUREMENT RANGE AND ACCURACY

The measuring accuracy of the Leica Geovid HD-R binoculars is up to ± 1 meter/yard. The maximum range is achieved with well reflecting target objects and a visual range of 10km . The measuring range is influenced by the following factors:

Range Longer Shorter
Color of object	White Black
Angle to object	Perpendicular Acute
Object size	Large Small
General brightness	Low (cloudy) High (midday sun)
Atmospheric conditions	Clear Hazy
Object structure	Homogeneous (wall of building)	Inhomogeneous (bush, tree)

In sunlight and with good vision, the following ranges and accuracies can be achieved:

Range	10m to approx. 1300m
Accuracy	±1m up to 350m ±2m up to 700m ±0.5% over 700m

MAINTENANCE / CLEANING

Your Leica Geovid HD-R binoculars do not require any special care. Coarse dirt particles, such as sand, should be removed with a fine hair brush or blown away. Fingerprints etc. on the lenses or eyepieces can be wiped off with a soft, clean leather or dust-free cloth. For excessive soiling, e.g. to the rotating eyepiece sleeves, the binoculars can be cleaned simply by rinsing them under running water. Saltwater can be rinsed off in the same way.

Caution:

Do not exert excessive pressure, even when wiping very dirty lens surfaces. Although the coating is highly abrasion resistant, it can be damaged by sand or salt crystals. All Leica Geovid HD-R binoculars have their "personal" serial number in addition to the type designation. Note this number in your documentation for security.

ACCESSORIES ORDER NO.

Tripod adapter with 1/4" thread 42 220
Swimming carrying strap, orange 42 163

SPARE PARTS

If you should require any spare parts for your binoculars, e.g. eyepiece cups, covers or a carrying strap, please contact our Customer Service department or the Leica office in your country (see warranty card for addresses).

TROUBLESHOOTING

Problem Cause Remedy
The image is not circular when viewing.	a) The binoculars are not properly adjusted to your personal eye spacing.	a) Correct the spacing of the two barrels of the binoculars simply by bending the binoculars about the hinged axis to a greater or lesser extent.
	b) The viewer's pupil is not located in the binoculars' exit pupil.	b) Correct the position of the head, the eyes or the binoculars.
	c) The position of the rotating eyepiece sleeves does not match that for correct use with and without glasses.	c) Correct the adjustment: If wearing glasses, screw in the eyepiece sleeves; if viewing without glasses: Extend the eyepiece sleeves.
Display not focused Diopter compensation not exact Repeat diopter compensation
When measuring the range, the display shows "- - - "	a) Above or below measuring range Re- tior to measuring range specifica- tions
	b) The object is not sufficiently reflective
Display flashes or no measurement is possible	Battery dead Replace the battery

TECHNICAL DATA

LEICA GEOVID 8x42 HD-R LEICA GEOVID 10x42 HD-R

Magnification		8x
Lens diameter	42mm
Exit pupil		5.25mm
Twilight number		18.33
Geometric luminous intensity	27.56	17.64
Field of vision ((at 1000m/yards) 125m/7.1° 110m/6.3° (wide angle)
Close up limit (at 0 diopter) Approx. 5.6m Approx. 5.6m
Exit pupil longitudinal distance	18.5mm	15.6mm
Pupil distance	56-74mm
Prism type	Ridge
Coating on lenses on prisms Phase correction coating P40	High Durable Coating (HDC™) and hydrophobic Aqua-Dura coating on external lenses
Diopter compensation Approx. ±3,5 diopter
Suitable for use when wearing glasses	Yes
Operating temperature -25 °to +55 °C
Storage temperature	-40 °C to +85 °C
Water tightness	0.5 bar (approx. 5m water depth)
Housing material	Die cast aluminum
Maximum range	Approx. 1300m
Minimum range	10m
Measuring accuracy	±1m up to 350m
	±2m up to 700m
	±0.5% over 700m
Ballistic function	Display of equivalent horizontal range (EHH) from 10m/y to 550m/600y
Display	4 digit LED
Battery	1 3V lithium round cell, type CR2
\( Battery life^1 \)	≥ 2000 measurements
Laser	Safe for eyes, in compliance with EN and FDA Class 1
Laser beam divergence	2.5 x 0.5mrad
Maximum measurement duration	Approx. 1.4s
Dimensions (\( W^2 \times H^3 \times D^2 \))	Approx. 124 x 174 x 65mm
Weight (with battery)	Approx. 900g

At 20^ and with average usage profile 2 At eye spacing 65mm With eyepiece cups screwed in

TECHNICAL DATA

LEICA GEOVID 8x56 HD-R LEICA GEOVID 15x56 HD-R

Magnification		8x
Lens diameter	56mm
Exit pupil		7mm
Twilight number		21.17
Geometric luminous intensity	49	13.94
Field of vision ((at 1000m/yards)	118m/6,8°	72m/4.1°
Close up limit (at 0 diopter) Approx. 5.5m Approx. 5.5m
Exit pupil longitudinal distance	18.5mm	15.6mm
Pupil distance	58-74mm
Prism type	Ridge
Coating on lenses on prisms Phase correction coating P40	High Durable Coating (HDC™) and hydrophobic Aqua-Dura coating on external lenses
Diopter compensation Approx. ±3,5 diopter
Suitable for use when wearing glasses	Yes
Operating temperature	-25 °C to +55 °C
Storage temperature	-40 °C to +85 °C
Water tightness	0.5 bar (approx. 5m water depth)
Housing material	Die cast aluminum
Maximum range	Approx. 1300m
Minimum range	10m
Measuring accuracy	±1m up to 350m
	±2m up to 700m
	±0.5% over 700m
Ballistic function	Display of equivalent horizontal range (EHR) from 10m/y to 550m/600y
Display	4 digit LED
Battery	1 3V lithium round cell, type CR2
\( Battery life ^1 \)	≥ 2000 measurements
Laser	Safe for eyes, in compliance with EN and FDA Class 1
Laser beam divergence	2.5 x 0.5mrad
Maximum measurement duration	Approx. 1.4s
Dimensions (\( W^2 \times H^3 \times D^2 \))	Approx. 135 x174 x 68mm	Approx. 135 x 208 x 68mm
Weight (with battery)	Approx. 1100g	Approx. 1245g

3.7mm

15x
