USER MANUAL MD05TV Billow

MD04TV MD05TVEN Introduction and Product Description Thank you for choosing the SMART BOX TV MD04TV / MD05TV. The MD04TV / MD05TV is a Smart Android TV Box, designed to turn your TV into an ultima generation Smart TV. With its Quad Core 2Ghz processor, graphics card of 8 cores, its 1Gb DDR3 / 2GB of RAM, its 8GB of storage memory, WiFi b / g / n and Bluetooth 4.0 will equip your TV with all of the potential to play or do anything. Its operating system is Android 4.4 Kit Kat, which oers unmatched stability. It supports 4K resolution, and includes a powerful remote control technology Air Mouse. The application package is the most complete of the market, XBMC will have endless possibilities and TV on demand. Discover the new way to enjoy your TV !! Package Contents

• Remote Control and nano receiver

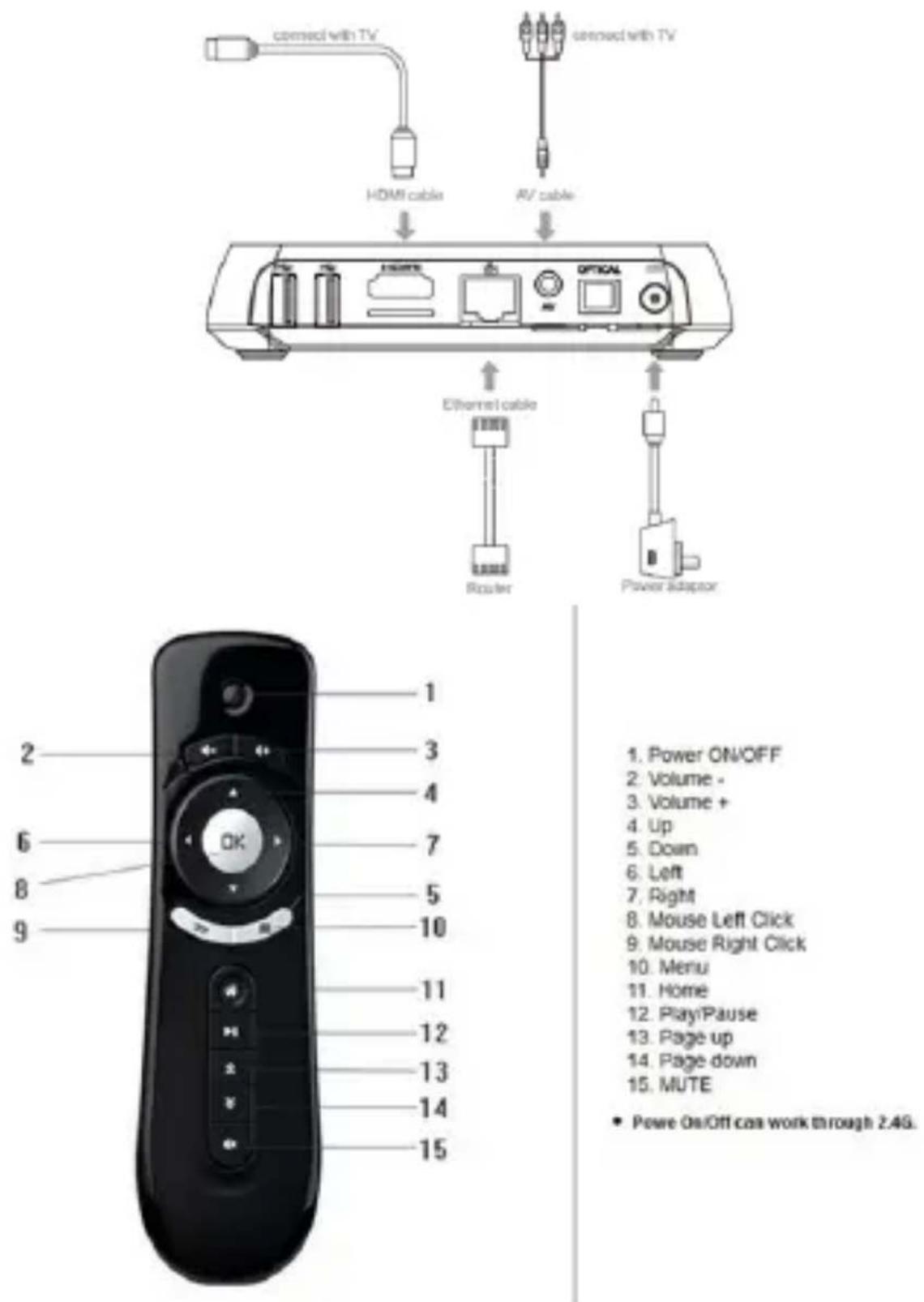

• HDMI cable Make sure your package contains the elements described above. If you nd something is missing or damaged, please contact your dealer.EN System Requirements

• TV with free HDMI Port

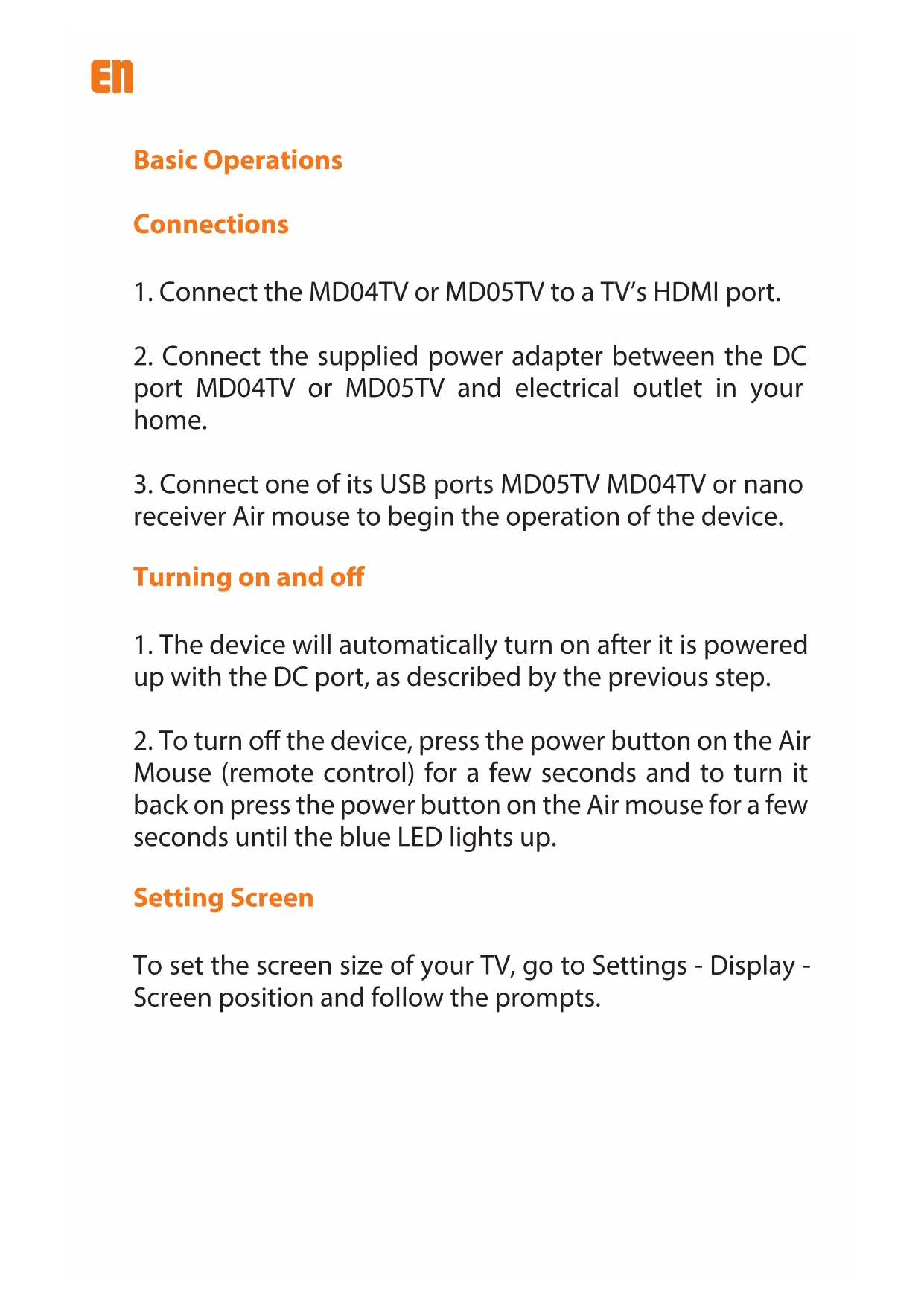

2. Connect the supplied power adapter between the DC

port MD04TV or MD05TV and electrical outlet in your home.

3. Connect one of its USB ports MD05TV MD04TV or nano

receiver Air mouse to begin the operation of the device. Turning on and o

1. The device will automatically turn on after it is powered

up with the DC port, as described by the previous step.

2. To turn o the device, press the power button on the Air

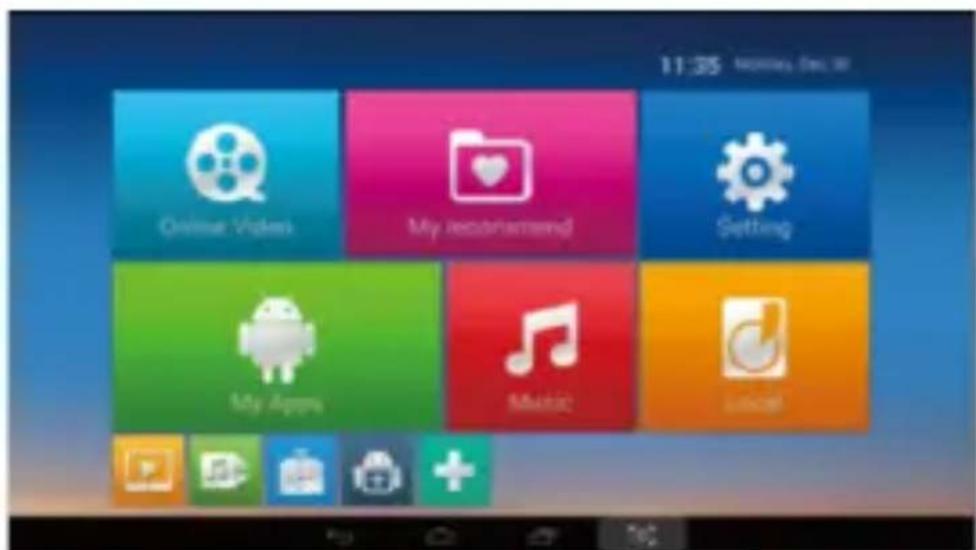

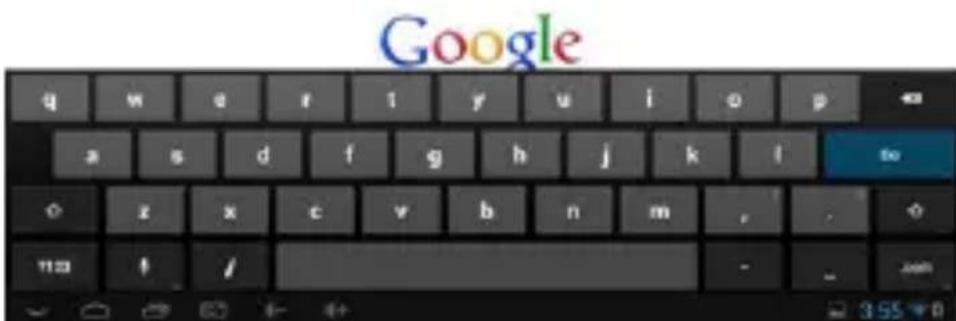

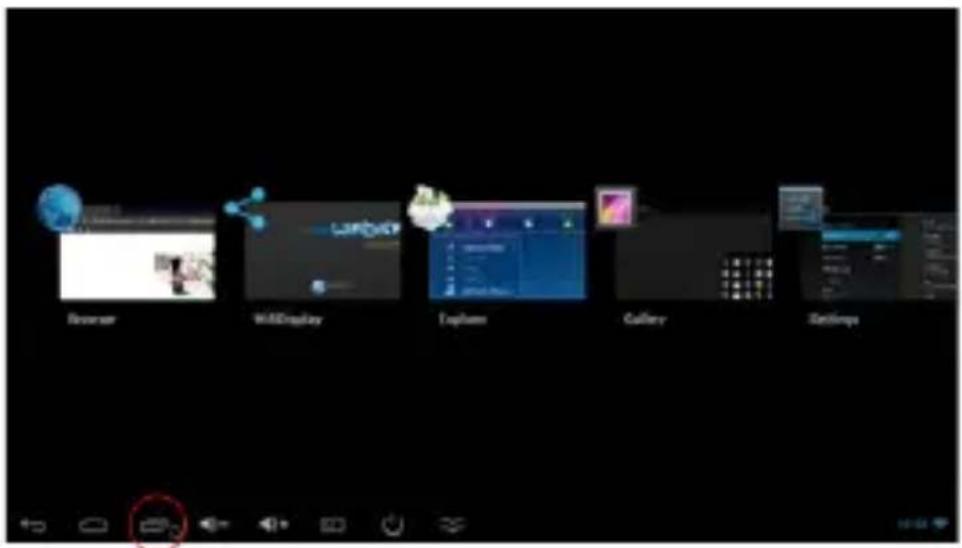

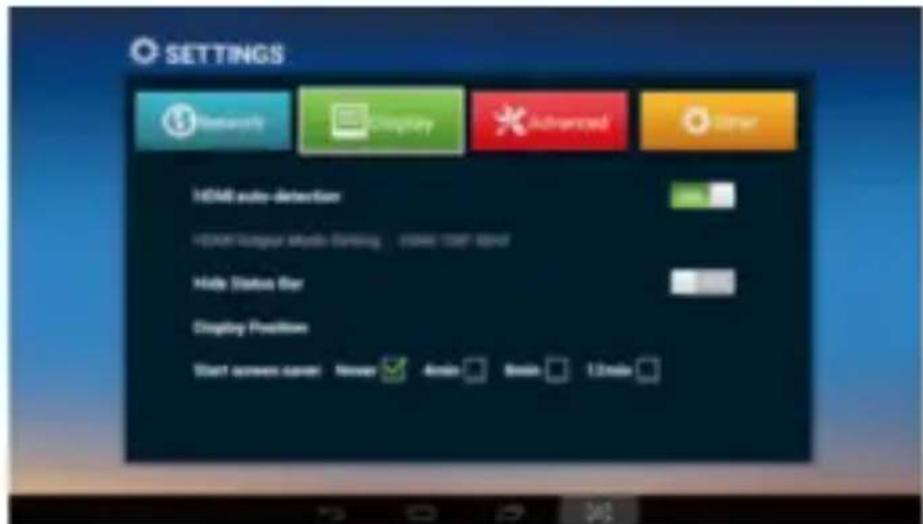

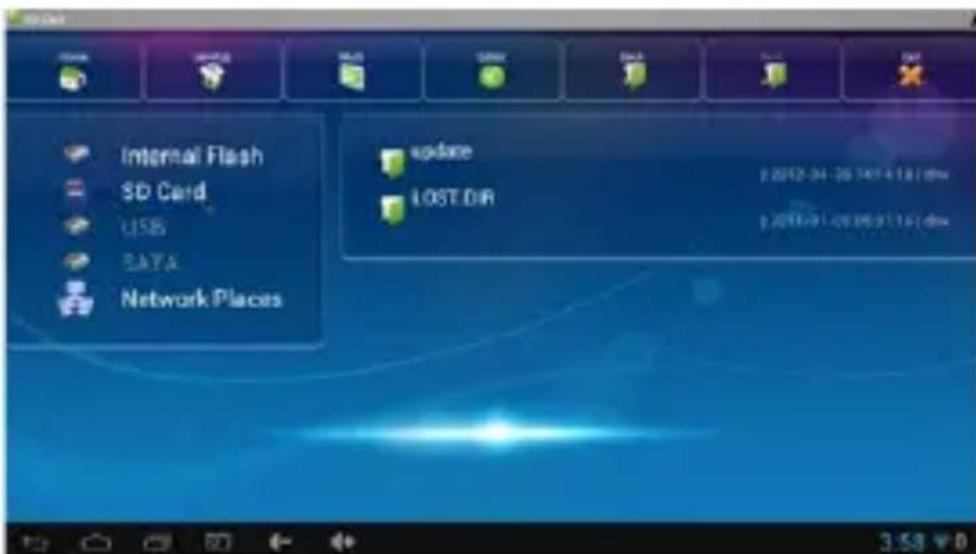

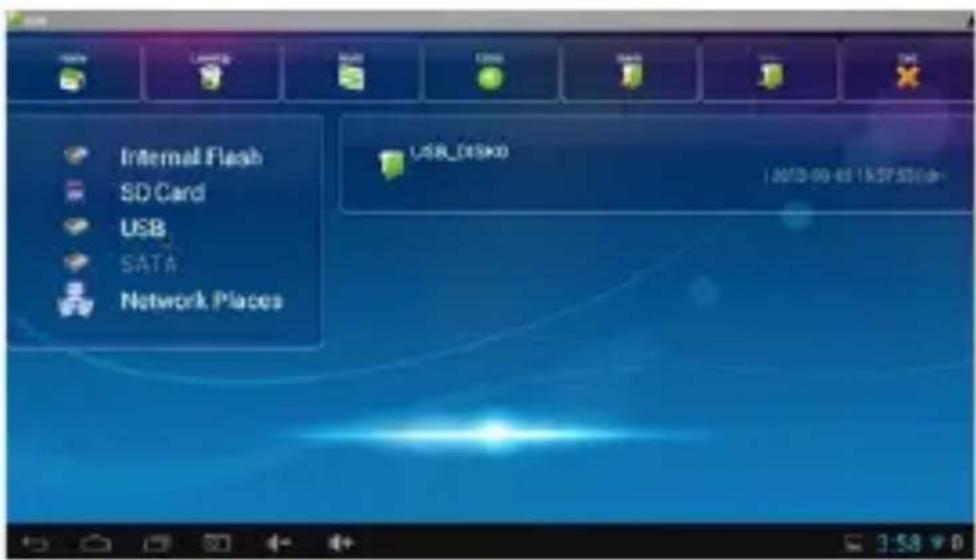

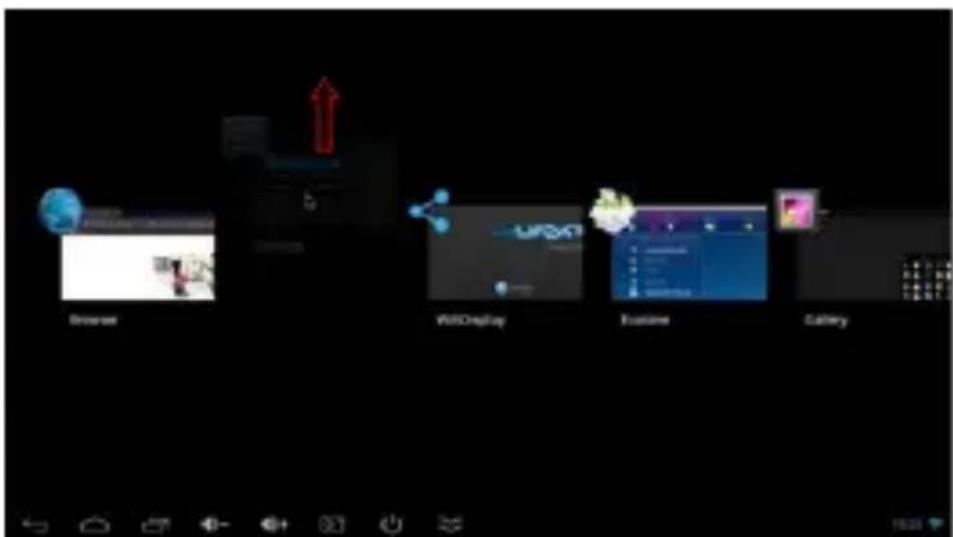

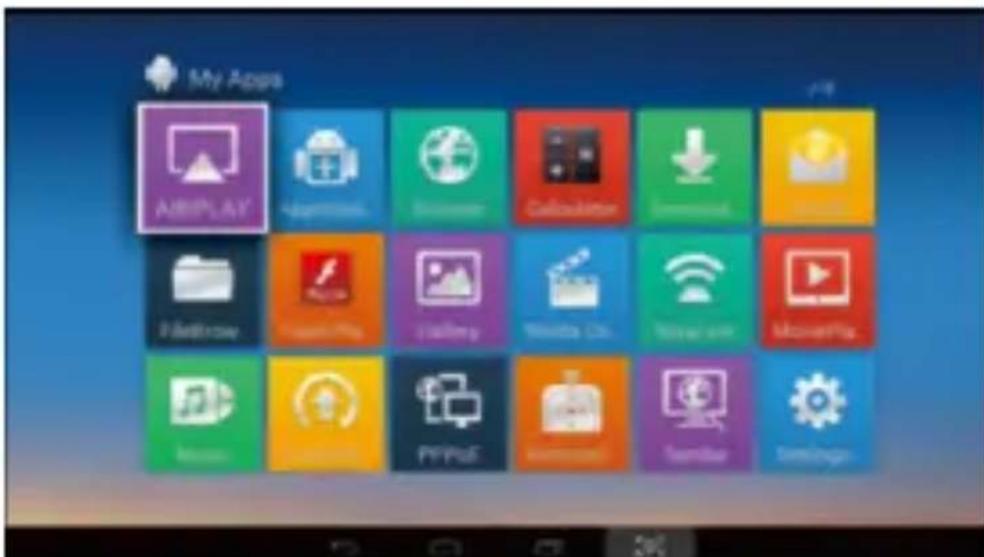

Mouse (remote control) for a few seconds and to turn it back on press the power button on the Air mouse for a few seconds until the blue LED lights up. Setting Screen To set the screen size of your TV, go to Settings - Display - Screen position and follow the prompts.EN How to open applications Move the cursor over the My Apps icon (My Apps) and click on the icon. Recently used applications Click on the icon to view all applications that are running.EN You can select the desired to bring it forward. How to close applications Click on the icon to see all running applications, choose one of them by clicking and holding, drag it to the upper area until you close the application. Move between screens on the desktop Click and hold on the desktop, move left or right to view other screens.EN Back to the main screen or desktop Click the icon to return to the main screen. Write Click the box where you want to write something and the virtual keyboard will open to enter any text. Connect and read data from external devices 1.Connect external hard drive: Connect the external hard drive to a USB port on MD04TV / MD05TV click the application FileBrowser. The “USB” storage will be enabled.EN 2.Connect the Micro SD Card: Connect an SD card to the SD port of the MD04TV or MD05TV or click the browser application. Storage “SD Card” will be enabled. WIFI Connection Click on the Settings icon and the available Wi-Fi access points will appear in the coverage range.EN Select the desired wireless network and enter the access key to connect. Connection by RJ-45 cable Connect the RJ-45 cable to the port on the MD04TV or MD05TV. Tap the Settings icon and select Ethernet, you automatically if you connect your router if the DHCP is enabled.EN Display settings (Display) In this screen you can adjust the display settings. Advanced settings (Advanced) In this screen you can set options such as miracast, digital audio output, etc.EN Other Settings (Other) In this screen you can set system options by pressing the More Settings button. Bluetooth Connection Go to Settings - Other - More Bluetooth Settings- and change the switch to ON. Click on the desired product to the right and enter the required PIN (generally “0000” or “1234”) to connect Bluetooth device to device.EN This image shows the connected Bluetooth device. Wireless DisplayMiracast connection Click the “miracast” application, select the desired device and press connect.EN In the smartphone Go to the conguration interface wireless display on your smartphone, enable wireless display function and click the name of MD04TV / MD05TV device to connect. Once connected, you can enjoy movies, games on TV.

SAFETY, MAINTENANCE AND RECYCLING

INSTRUCTIONS 1.Caution: Never open the device, the internal parts are danger, electrical shock. 2.Do not install this unit near water, for example, in a wet basement, in an unprotected outdoor installation or in any area classied as a wet. 3.Make sure to connect the power supply to the TV USB port or power adapter 5VDC / 2A. 4.Connect the HDMI connector correctly, otherwise the HDMI connector of your device or TV could be damaged. 5.Clean the product with a soft and dry cloth. 6.Follow local regulations for disposing of the product.EC DECLARATION OF CONFORMITY We declare under our sole responsibility that the product: Brand name: BILLOW TECHNOLOGY Model no: MD04TV / MD05TV Product description: Smart Android TV Box The measurements shown in this test report were made in accordance with the procedures given in the:

To which this declaration is based on with full conformance to the following European norms and standards:
