USER MANUAL Gala optimyst FABER

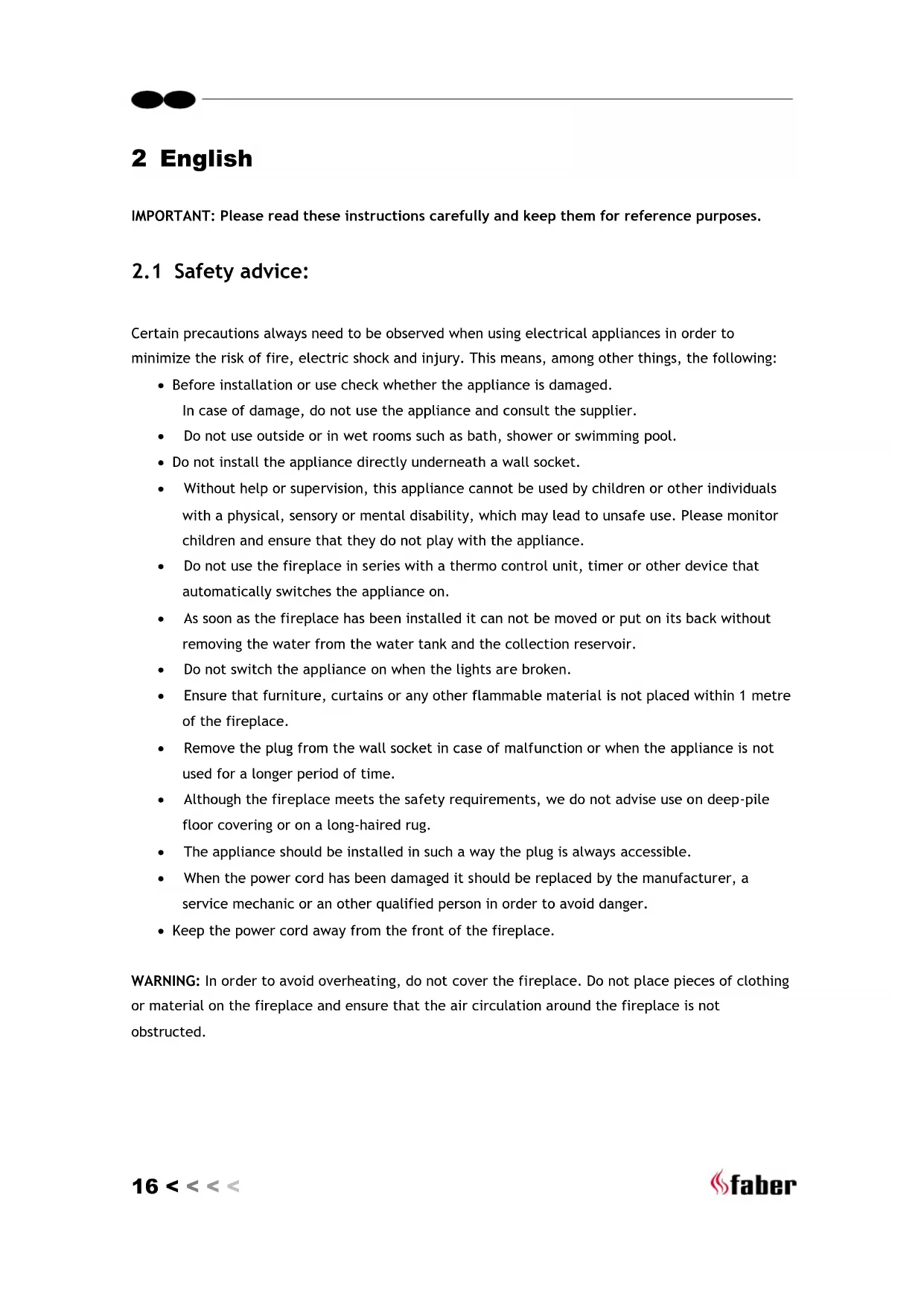

2 English IMPORTANT: Please read these instructions carefully and keep them for reference purposes.

Certain precautions always need to be observed when using electrical appliances in order to minimize the risk of fire, electric shock and injury. This means, among other things, the following: Before installation or use check whether the appliance is damaged. In case of damage, do not use the appliance and consult the supplier. Do not use outside or in wet rooms such as bath, shower or swimming pool. Do not install the appliance directly underneath a wall socket. Without help or supervision, this appliance cannot be used by children or other individuals with a physical, sensory or mental disability, which may lead to unsafe use. Please monitor children and ensure that they do not play with the appliance. Do not use the fireplace in series with a thermo control unit, timer or other device that automatically switches the appliance on. As soon as the fireplace has been installed it can not be moved or put on its back without removing the water from the water tank and the collection reservoir. Do not switch the appliance on when the lights are broken. Ensure that furniture, curtains or any other flammable material is not placed within 1 metre of the fireplace. Remove the plug from the wall socket in case of malfunction or when the appliance is not used for a longer period of time. Although the fireplace meets the safety requirements, we do not advise use on deep-pile floor covering or on a long-haired rug. The appliance should be installed in such a way the plug is always accessible. When the power cord has been damaged it should be replaced by the manufacturer, a service mechanic or an other qualified person in order to avoid danger. Keep the power cord away from the front of the fireplace.

WARNING: In order to avoid overheating, do not cover the fireplace. Do not place pieces of clothing

or material on the fireplace and ensure that the air circulation around the fireplace is not obstructed.17 < < < <

The fireplace produces a flame effect without heating function, so you can enjoy the flame effect all year long. The Gala can be used with or without glass and can be build in with one side glass or as see through appliance. ATTENTION: When the appliance is used in a room with very little background noise, a noise can heard which is caused by the movement of the flame effect. This is normal and no reason for concern. Only use tap water with a maximum hardness degree of 10°Dh (you can ask your water supplier about the hardness degree). This is necessary in order to lengthen the lifetime of the smoke unit. In situations with a higher water hardness, the water should be filtered (for example with a Maxtra filter). Do not use a decalcifier when cleaning the appliance, this may shorten the lifetime of the smoke unit.

2.3 Electrical connection

This appliance should be connected to an earthed wall socket. Check before you connect the fireplace if the mains voltage corresponds with the information on the name plate.

2.4 Installation instruction

Carefully unwrap the fireplace, and keep the packaging for future use, for example a removal or return of the fireplace to the supplier. The remote control, batteries and lights are packed together with the log set. Please read the warning labels carefully. For the correct installation measurements, please refer to the dimensional drawing in figure 1a or 1b, depending on the method of installation. Always ensure that the fireplace is levelled, and that the glass can be removed.

2.4.1 Removing the glass.

Place the two suction cups on the glass. Lift the glass from the groove, and tilt the lower part of the glass to the front and downward. Reinstall the glass in reverse order.

2.4.2 Installation of the fireplace with surround.

Put the floor plate on the floor and position the fireplace on the floor plate, ensure that it is levelled, and screw it to the back wall. Put the power cable in the v-groove of the floor plate. The Gala is supplied with a MDF drawer, remove this and fit the marble drawer which is supplied with the surround.18 < < < <

The Gala has a glass back panel, if not desired can this be removed. To do this unscrew the 4 screws of the back plate, remove the glass and mount the back plate using the 4 screws. Build up the rest of the surround and ensure that the glass can be removed.

2.4.3 Installation as one sided without surround or as a see through.

The Gala can be built in a wooden casing. The Gala has a glass back panel, if not desired can this be removed. To do this unscrew the 4 screws of the back plate, remove the glass and mount the back plate using the 4 screws. If the Gala will be built in as a see-through, remove the back plate by unscrewing the 4 screws. The glass is visible. Ensure that the appliance is levelled, and that the glass can be removed. The appliance can be screwed to the casing with 2 screws. Ensure that there is adequate ventilation in the casing. The Gala is supplied with a MDF drawer which can be painted in every desired colour.

1. First fill the water tank before the appliance is switched on. (see par. 2.8.2).

2. Only pull the drawer in order to operate the fireplace, refill the water tank or replace a light,

otherwise it may lead to a high water level in the collection reservoir, which will lead to a lower flame effect. If this happens, empty the collection reservoir as indicated in par. 2.9.2.

3. With flame height set to minimum, the water use will be 40 ml per hour, and the appliance

will burn three times as long as when the flames height is set to maximum.

4. Do not move or replace the fireplace while there is water in the water tank or the

collection reservoir.

5. The flames will move more realistically when the button for flame control is turned low.

6. Give the flame generator some time to react to changes when you change the flame effect.

7. If the appliance is not used for a period longer than 2 weeks, empty the water tank and the

collection reservoir en dry them with a cloth.

8. When the water tank is empty the lights will go out and you will hear two beeps. The

fireplace will go into stand-by mode.

9. The lights should be inspected regularly as described in par. 2.8.1.

Depending on the room temperature and humidity some condensation can appear on the inside of the fireplace. This can be prevented by turning the flame effect lower, just until the glass has warmed up.19 < < < <

The manual control unit of the Gala is located in the drawer. (See Fig. 2 and 3) Switch “A”: - main switch. Switch “B”: - On/off switch. Press I once to switch the flame effect on. This is confirmed by one beep. Although the lights start burning immediately, it will take approx. 30 seconds for the flame effect to start. Press to put the fireplace in “stand-by” mode. This is confirmed by one beep. Button “C”: - Adjusts the intensity of the flame effect. A turn to the right will increase the flame effect and a turn to the left will decrease the flame effect.

2.5.3 The operation of the Remote Control.

Ensure that switch “A“ (see Fig. 2) is in the “ON” ( I ) position. Point towards the fireplace for the remote control to work properly. The remote control has 2 buttons (see Fig. 8). The functions are as follows: Press once switch flame effect on. This is confirmed by one beep. Stand-by This is confirmed by one beep. I20 < < < <

1. Remove the lid of the batteries compartment at the back of the remote control. (see Fig. 8).

2. Place the batteries.

3. Put the lid of the batteries compartment back in its place.

The batteries should be discharged properly in accordance with local requirements.

WARNING: Always remove the plug from the wall socket before performing maintenance.

2.7.1 Replacing lights

If a large quantity of smoke is grey or colourless it is possible that one or more lights is not burning. You can check this as follows.

1. Pull the drawer while the flame effect is active. (See Fig. 3).

2. Look at the lights from a distance to see which light(s) are broken.

3. Put switch “A” in the “OFF” position, and remove the plug from the wall socket.

4. Leave the appliance like this during 20 minutes so that the lights can cool down before

5. Remove the water tank by lifting it up and to the front and put it in a sink.

6. Remove the collection reservoir as described in chapter 2.8.2 .

7. Remove the broken light(s) by pulling it from its holder. (see Figs. 5 and 6). Replace the

light by a Dimplex Opti -opti-myst, 12V, 50W, basis Gu 5.3, 8º radiation angle, coloured light. (obtainable from your dealer).

8. Gently push the light(s) with the 2 pins in the corresponding holes (See Figs. 5 and 6).

9. Put the collection reservoir and the water tank back in their positions.

10. Put the plug in the wall socket and put switch “A” in the “ON” position.

2.7.2 Filling the water tank.

When you use the appliance for the first time or when you hear two beeps and the lights have gone out the water tank needs refilling. Proceed as follows.

2. Put switch “A” in the “OFF”(0) position. (see Fig. 2).

3. Remove the water tank by lifting it up.

4. Put the water tank in the sink and open the cap. (See Fig. 7).21 < < < <

5. Fill the water tank with water with a hardness as indicated in chapter 2.2.

6. Screw the cap back on.

7. Put the water tank back in with the cap facing down and the flat side on the front.

8. Put switch “A” in the “ON” ( I ) position (see Fig. 2).

9. Adjust the flame effect and the heating with switch “B” or the remote control. (See chapter 2.5).

10. Push the drawer back in.

WARNING : Always remove the plug from the wall socket before performing maintenance.

Do not put any plastic components of the Opti-myst in the dishwasher. Don’t use a decalcifier, this will shorten the lifetime of the smoke unit. We recommend to clean the following components once every two weeks, especially in areas with hard water: screw cap of the water tank, collection reservoir with damp spreader, air filter. Use a soft clean cloth for the cleaning, and never use any grating or abrasive cleansing agents.

2.8.1 Screw cap of the water tank

1. Pull the drawer out. (see Fig. 3).

2. Put switch “A” in the “OFF” (0) position. (see Fig. 2).

3. Remove the water tank and place it in a sink with the cap pointing upwards.

4. Remove the screw cap.

5. Clean the inner surface of the screw cap with the supplied brush, pay special attention to

6. Put a small quantity of detergent in the tank, screw the cap on and shake the tank well,

rinse the tank after that until all detergent has gone.

7. Fill the tank with tap water, and screw the cap back on.

2.8.2 Collection reservoir.

1. Pull the drawer out. (see Fig. 3).

2. Put switch “A” in the “OFF” (0) position. (see Fig. 2).

3. Remove the water tank and place it in a sink with the cap pointing upwards.

4. Uncouple the plug, which is attached to the left side of the collection reservoir, by

unscrewing the 2 screws and carefully pulling the plug loose. (see Fig. 9).

5. The collection reservoir with damp spreader can be lifted from its position by turning the

two knobs 90 degrees and lifting it up. (see Figs. 10 and 11) Take care that the reservoir is held horizontally because of the water that is still in the reservoir.

6. Put the entire unit in the sink.

7. Turn the two knobs of the reservoir 90 degrees, and the damp spreader can be removed.

8. Tilt the reservoir so that the water can be drained. (see Fig.13).

9. Put a small quantity of detergent in the collection reservoir and use the supplied brush to

clean all surfaces including the metal discs and the rubber connection. Don’t remove the rubber connections. (See Figs. 14 and 15).

10. After the reservoir has been cleaned, rise it with clean water.

11. Clean the surface of the damp spreader with the brush and rinse thoroughly with water.

(See Fig.16 and 17).

12. Re-install the unit by following the previous steps in reverse order.

1. Pull the drawer out. (See Fig. 3).

2. Put switch “A” in the “OFF” (0) position. (See Fig. 2).

3. Remove the water tank and place it in a sink with the cap pointing upwards.

4. Carefully pull up the plastic holder of the air filter. (See Fig. 18).

5. Remove the filter combination from the plastic holder.

6. Rinse the filter with clean water and dry it with paper towels.

7. Place the filter back in its holder and ensure that the black part is on the plastic holder.

8. Put the water tank back.

9. Put switch “A” in the “ON” ( I ) position (See Fig. 2).

10. Carefully close the drawer.

All electrical equipment that is sold within the European Union should not be disposed of as domestic waste at the end of their lifetime, but should be brought to an appropriate recycle point. Please ask your local authority or dealer for a recycle point in your neighbourhood.23 < < < <

Symptom Cause Solution Flame effect does not start The plug is not in the wall socket. Switch ”A” is in ´ON´ position, but switch “B” has not been pressed. Water level is low. Plug on collection reservoir is not connected properly (See Fig.9) Put the plug in the wall socket.

Press switch “B”.(See Fig.2) When the switch is ´ON´

Fill water tank. Check the connection within the appliance (See Fig.9) The flame effect is too low. The flame effect button “C” is switched low (See Fig.2) The water level in the collection reservoir is too high, because the drawer was opened several times, the water tank was removed several times or the fireplace was moved. The metal discs in the collection reservoir are dirty. (See Fig.14) Turn the flame effect button “C” up. (See chapter 2.5.2)

When the water level in the collection reservoir is higher than 40mm, the reservoir should be emptied in the sink.

Clean the metal discs with the supplied brush. (See chapter 2.8.2) Unpleasant smell during use Dirty or old water. Unfiltered tap water has been used. Clean the unit as described in chapter 2.8 Only use filtered tap water. The flame effect gives off too much smoke The flame effect button “C” is too high Turn the flame effect button “C” down (See chapter 2.5.2) Turn slowly until the desired effect has been reached. Turn the button a quarter to the right, and give the smoke generator some time to adjust. The lights are not burning and there is no smoke visible Water tank is empty Appliance has not been connected properly Appliance is switched off.

Fill the water tank (See chapter 2.7.2). ensure that the plug is inserted in the wall socket properly

Put switch “A” in the “ON” position and/or press switch “B” once until one beep can be heard. Condensation on the glass. The glass surface is cold. Turn the flame effect down during this process. Scale on the glass. Unfiltered water was used Use filtered water.24 < < < <
