DVR MILANO 4 9 16
Video	Input 4 BNC 9 BNC n°		16 BNC
	Output		VGA / S-Video / 2 BNC (monitor e spot)
	Standard NTSC/PAL manual selection
	Signal		1.0Vp-p, 75 W unbalanced tipo BCN
Audio	Input	n°	2	4
	Output		2	2
	Signal		100mV - 2Vrms
Functions			Recording, Live, Playback, Control, Backup and Network
Recording
Frame rate (adjustable for each camera)	NTSC	Fps	120 (360×240)	240 (360×240)	240 (360×240)
			60 (720×240)	120 (720×240)	120 (720×240)
			30 (720×480)	60 (720×480)	60 (720×480)
	PAL		100 (360×288)	200 (360×288)	200 (360×288)
			50 (720×288)	100 (720×288)	100 (720×288)
			25 (720×576)	50 (720×576)	50 (720×576)
Quality			Adjustable for each camera with 9 levels
Modality			Manual / Scheduling / Motion / Alarm / Pre and Post alarm (0-60 sec)
Scheduling			Time and frame rate adjustable for each camera
Compression	video	std	H264
	audio		ADPCM
Search			Date / time / motion / video loss / Camera / Smart Search
Hard disk	Type		SATA, internal mount and eSATA external
	Capacity max	GB	2 disks with 1TB each one (2TB max)	3 disks with 2TB each one (6TB max)
	Overwrite		Full disk stop / Full disk overwrite / Time adjustable overwrite (Privacy)
	Partition		Double partition size adjustable for alarm and normal recording
	Security		Failure event detection
Estimated Recording time CIF (352x288) with medium quality (5)	160 GB	days	3,5 (100 fps)	1,8 (200 fps)	1,8 (200 fps)
	750 GB		17 (100 fps) 8,5 (200 fps)	8,5 (200 fps)
	2 TB		46 (100 fps)	23 (200 fps)	23 (200 fps)
Display
Resolution	NTSC	pixels	720×480
	PAL		720×576
Speed			Real time
Mode			Full screen / Quad / Sequential	Full screen / Quad / 7/9 / Sequential	Full screen / Quad / 7/9 / 10 / 13 / 16 Sequential
Zoom			X2 and x4 on live
Motion detection			Detection areas and sensitivity adjustable for each camera
Network
Connection			RJ45, Ethernet 10/100 baseT Mbit
Communications	Protocols		TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP
	Ports		Independent configuration for data and Control
Functionalities			Remote control, Live view with PTZ facility, Backup, fw upgrade
Event management			Mail notification and ftp recording
Users			Max 8 users simultaneously
User interface
Protection Multilevel Password (3) and multi-user (18)
Local			Frontal keyboard, USB mouse, remote control (up to 4 dvr), optional control keyboard with 3-axis joystick (up to 256 DVR)
Remote	PC	Browser Full management (up to 4 DVR) by ActiveX control
		CMS Full management (up to 4 DVR) with interactive graphic maps
	Mobile phone/Smartphone/PDA		Live (Quad/Full screen) with adjustable resolution, input alarms status monitoring, output relay activation (home automation facility)
Event management
Detected events Type Motion detection, video loss, input alarms
Alarms (TTL/CMOS selectable polarity)	Input	n.°	4	9	16
	Output		1 NO, 1 NC
Buzzer			Programmable for each event
Log file			Last 1.000 events	Last 3.000 events
Connections
Serial communication			RS485 (D+, D-), RS-232
PTZ control			Pelco D, Samsung SCC-641P, Kalatel Cyber Dome, Bosch AutoDome and other protocols...
Backup			USB 2.0 (Pendrive, external hard disk self-powered, External DVD burner self-powered, SD-MMC Card) / eSATA for external hard disk / Internet Explorer / CMS / Internal DVD burner (optional)
Generals
Power supply ~	ON/OFF switch	V, Hz	100–240, 50/60(12Vdc/5A external adapter included)	100–240, 50/60(12Vdc/8A external adapter included))
Power		W	45 max	70 max
Operating Temperature		°C	0 – 50
Operating Humidity		Ur %	<80
Dimensions (w×l×h)		mm	320 x 210 x 50
Weight		kg	About 4 (without hard disk)

1 Pannello frontale – Frontal Panel - Panneau frontal Panel delantero - Painel dianteiro – Прóσοψη - Panel Czołowy

Diagram of a device rear panel with numbered ports and connections, likely for system or data labeling.

2 Pannello posteriore - Back Panel - Panneau arrière Panel trasero - Painel traseiro - Πίσω όψη - Panel Tylny

Diagram of a network device rear panel with numbered labels pointing to various ports and connectors

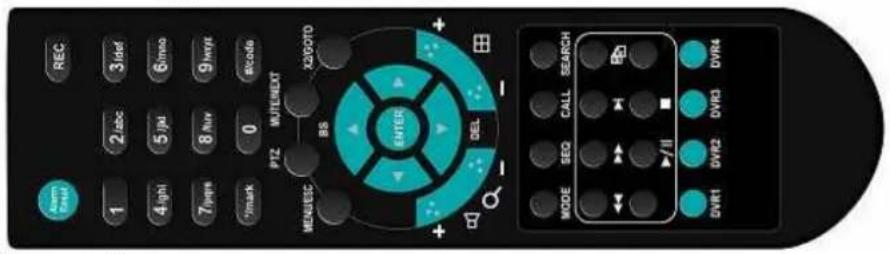

3 Telecomando - Remote control - Télécommande Mando a distancia - Controlo remoto - Τηλεχειριστήριο - Pilot Zdalnego Sterowania

REC 3ddef 6moo 9wxt 8code 0 WUTENEXT X2GOTD PFZ MENIECS BS ENTER DEL MODE SEQ CALL SEARCH VDR4 VWR1 VWR2 VWR3 VWR4

Black rectangular electronic device with control panel and indicator lights (no visible text or symbols)

Interior view of an open electronic device showing internal circuit board and drive bays (no visible text or labels)

Exterior view of a hard disk drive (no visible text or labels)

Internal view of a hard disk drive with visible circuit board and wiring (no text or symbols)

Interior view of an open electronic device showing internal components including hard drives, capacitors, and a green circuit board (no visible text or labels)

Interior view of a computer tower case showing internal components and ventilation slots (no visible text or labels)

Control Panel 控制 Panel with Chinese text content. Control Panel with Chinese text content.

Fig.A

Fig.B

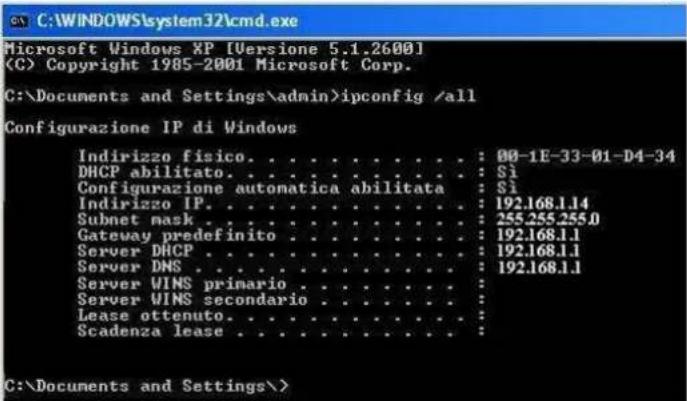

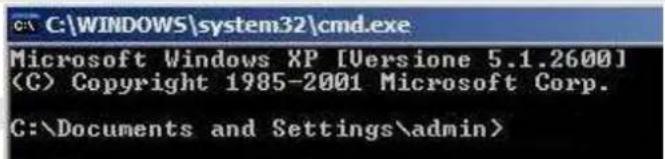

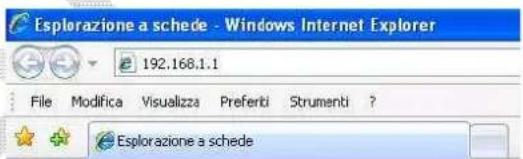

C:\Documents and Settings\admin>

Net type	Static IP	E-mail	FTP	Adv.
Static IP	IP Address		192.168.1.15
	Net Mask		255.255.255.0
	Gateway		192.168.1.1
	DNS
PPPoE	Username
	Password
	DDNS Type		Dynamic
	URL
	DDNS Username
	DDNS Password

Trusted sites ✓ You can add and verify the server from the zone. All sites in this zone will use the zone's security settings. Add this website to the zone: Windows: 170.160.1.15 Remove □ Requires server verification (<|vision_start|> Close)

Scanned image of a remote control interface with Chinese text labels and buttons

Interior view of a room with electronic equipment and a computer monitor (no visible text or symbols)

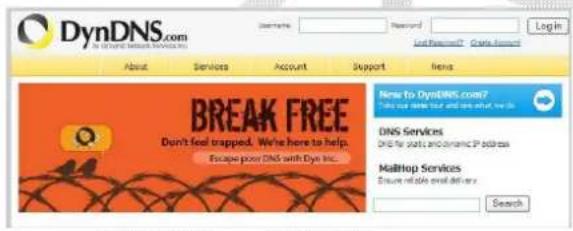

DynDNS.com About Services Account Support News BRAK FREE Don't feel trapped. We're here to help Escape your DNS with Dyn Inc. New to DynDNS.com? I don't miss your email and what we can DNS Services One for statics and dynamic IP address Mailtop Services Ensure reliable email delivers Search

DynDNS.com About Services Account Support News One more step to go... We've sent an email to and click on the confirmation link. To verify your account. Please check your notes If you do not receive the email in the next few minutes you can try something it Thanks for choosing DynDNS.com

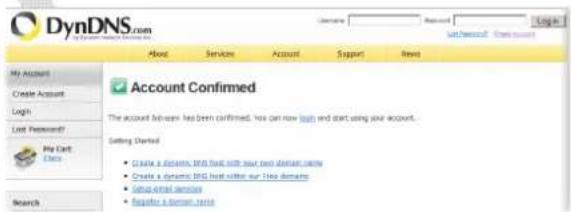

DynDNS.com Account Confirmed The account follows has been confirmed. You can read now and start using your account. Calling Started • Create a generic DNS web with your own domain name • Create a generic DNS web with our free domains • Get out email service • Make a generic email Search

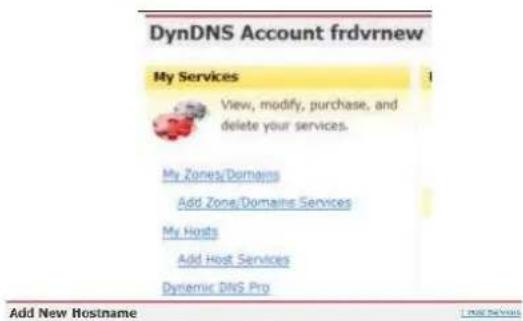

Cliccare su "Add Host Services"

DynDNS Account frdvrnew My Services View, modify, purchase, and delete your services. My Zones/Domains Add Zone/Domains Services My Hosts Add Host Services Dynamic DNS Pro Add New Hostname Host name: Service: D:\WINDOWS\dynans.org Withmost Status: Enabled [user not listed name] Service Type: R NOS with IP address; ○ WebHas Redirect ○ Offline Hostname IP Address: $5.42.133.138 Use any selected IP address $5.42.173.138 FTP NAME IS IP MIRCUA, 106.173; Mail Routing: Yes, let me configure brief routing. AddTo Can

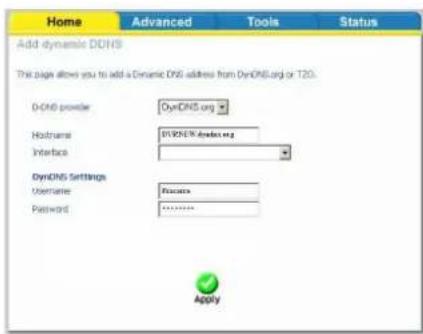

Home Advanced Tools Status Add dynamic DDNS This page allows you to add a Dynamic DNS address from DynDNS.org or T20. DDNS provider DynDNS.org Hostname SPRING INDEX.COM Interface DynDNS Settings Username: Bioscure Password ****** Apply

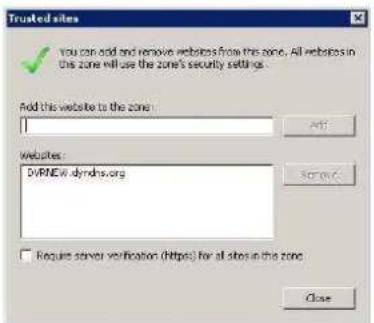

Trusted sites You can add and remove websites from the zone. All websites in the zone will use the zone's security settings. Add this website to the zone: Web sites: DvRikew.dynns.org Require server verification (https) for all sites in this zone Close

Screenshot of a remote control interface with Chinese text labels and a virtual screen displaying status indicators.

Four-panel surveillance camera view showing outdoor scenes with equipment and a close-up of a device (no visible text or symbols)

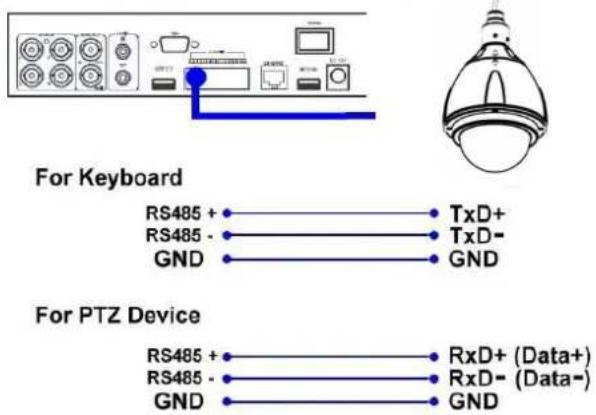

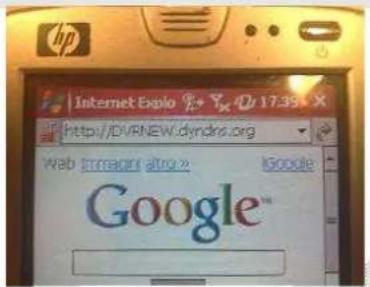

7.4 Connessione telecamera PTZ:

Instructions Picture

RS-232/ 422 /485 Setup
COM Port RS-232 RS-422/485
Device Type		PTZ
Model		Pelco (D-Type)
Baud Rate		4800
Data Bit		8
Stop Bit		1
Parity		None
DVR/Camera ID Pre-Camera Setup		0
REC Resolution		720x288
Watermar	√	Group
Camera	Installed	PTZ ID	1 2 3 4 5 6 7
1	√	N/A
2	√	1
...	...	...

ATTENTION: This user manual is a quick guide for the first installation of the DVR please refer to the user manual to know the complete information of all the single functions.

Table of contents:

1- Safety warnings ......pag.23

1.1 – Content Package ......pag.23

2- Product Overview ...... pag.23

3- Panels and remote controller ......pag.24

3.1-Front Panel....pag.24

3.2 - Back Panel ......pag.24

3.3 - Remote controller ......pag.24

3.4 - Mouse ......pag.25

4- Installation ...... pag.25

4.1 - Power on and off ......pag.25

4.2-HDD setup....pag.25

4.3 – First access to the DVR ......pag.26

5- Basic use of the DVR....pag.29

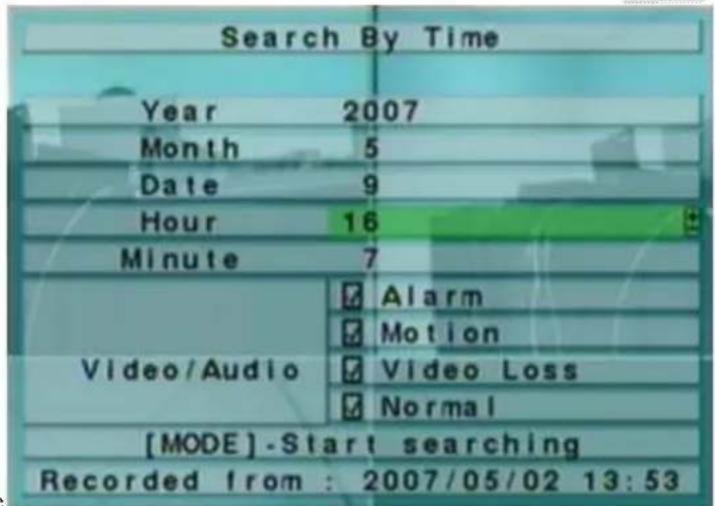

5.1 - Search ......pag.29

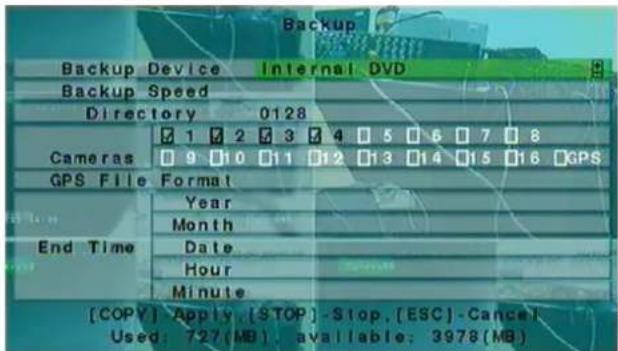

5.2 - Backup ......pag.30

5.3 - Viewing the images....pag.30

6- Shutdown ...... pag.31

7- Appendix ......pag.31

7.1 - Recording table ......pag.31

7.2 - PC Network connection ......pag.35

7.3 - Mobile phone Network connection PTZ connection ......pag.35

7.4 - PTZ connection ......pag.36

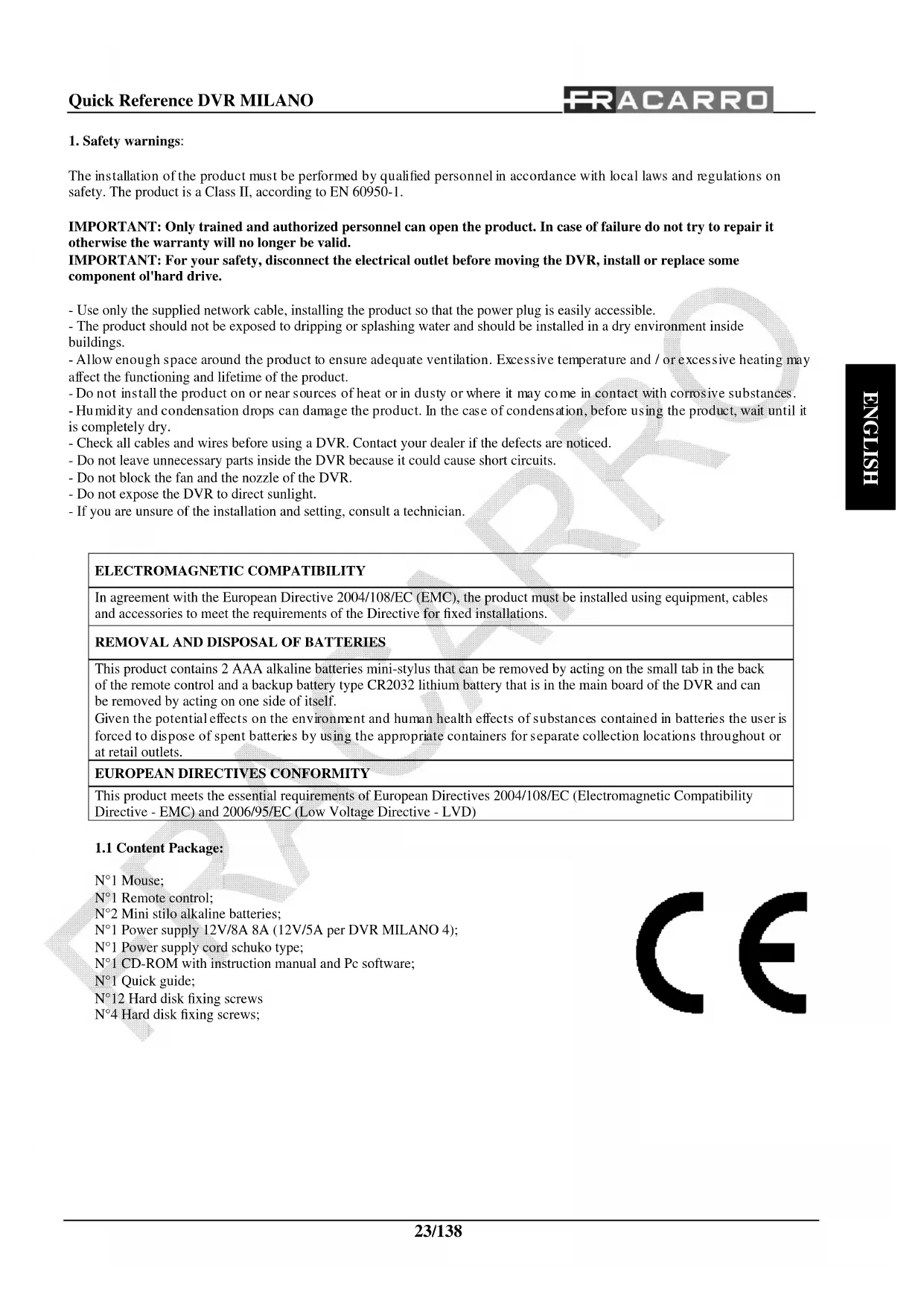

1. Safety warnings:

The installation of the product must be performed by qualified personnel in accordance with local laws and regulations on safety. The product is a Class II, according to EN 60950-1.

IMPORTANT: Only trained and authorized personnel can open the product. In case of failure do not try to repair it otherwise the warranty will no longer be valid.

IMPORTANT: For your safety, disconnect the electrical outlet before moving the DVR, install or replace some component ol'hard drive.

• Use only the supplied network cable, installing the product so that the power plug is easily accessible.
• The product should not be exposed to dripping or splashing water and should be installed in a dry environment inside buildings.
• Allow enough space around the product to ensure adequate ventilation. Excessive temperature and / or excessive heating may affect the functioning and lifetime of the product.
• Do not install the product on or near sources of heat or in dusty or where it may come in contact with corrosive substances.
• Humidity and condensation drops can damage the product. In the case of condensation, before using the product, wait until it is completely dry.
• Check all cables and wires before using a DVR. Contact your dealer if the defects are noticed.
• Do not leave unnecessary parts inside the DVR because it could cause short circuits.
• Do not block the fan and the nozzle of the DVR.
• Do not expose the DVR to direct sunlight.
• If you are unsure of the installation and setting, consult a technician.

ELECTROMAGNETIC COMPATIBILITY

In agreement with the European Directive 2004/108/EC (EMC), the product must be installed using equipment, cables and accessories to meet the requirements of the Directive for fixed installations.

REMOVAL AND DISPOSAL OF BATTERIES

This product contains 2 AAA alkaline batteries mini-stylus that can be removed by acting on the small tab in the back of the remote control and a backup battery type CR2032 lithium battery that is in the main board of the DVR and can be removed by acting on one side of itself.Given the potential effects on the environment and human health effects of substances contained in batteries the user is forced to dispose of spent batteries by using the appropriate containers for separate collection locations throughout or at retail outlets.

EUROPEAN DIRECTIVES CONFORMITY

This product meets the essential requirements of European Directives 2004/108/EC (Electromagnetic Compatibility Directive - EMC) and 2006/95/EC (Low Voltage Directive - LVD)

1.1 Content Package:

N°1 Mouse;

N°1 Remote control;

N°2 Mini stilo alkaline batteries;

N°1 Power supply 12V/8A 8A (12V/5A per DVR MILANO 4);

N°1 Power supply cord schuko type;

N°1 CD-ROM with instruction manual and Pc software;

N°1 Quick guide;

N°12 Hard disk fixing screws

N°4 Hard disk fixing screws;

CE

2. Product Overview:

The DVR MILANO series are a family of digital video/audio recorders designed to realize a powerful and secure surveillance system that can be interfaced with different kind of monitors, pc and smartphones. The new type of compression and the configurable quality guarantee a long time recording on the Hard Disk and a good quality of the images during the playback.

The new processor allows the DVR to do six different operation like: simultaneous record, realtime live display, playback, backup, control & remote access.

It can be managed by the front panel, mouse, remote control, external keyboard, virtual keyboard and web interface with a Pc or a smartphone.

The two output relay can be activated by input alarm, motion, video loss, system event or directly with the mobile phone or the web interface.

3. Panels and Remote Controller:

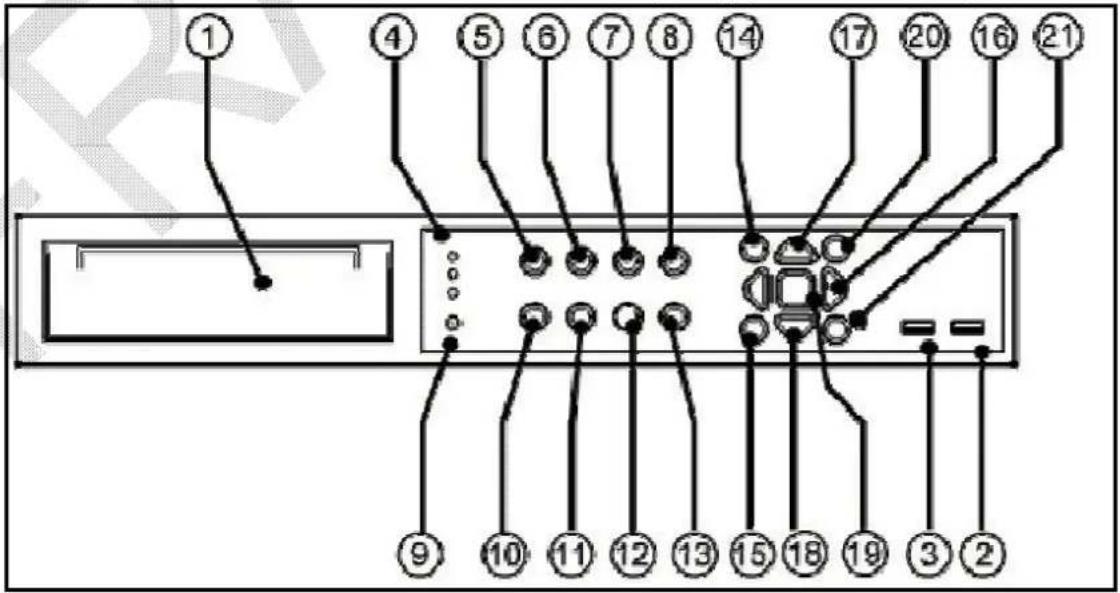

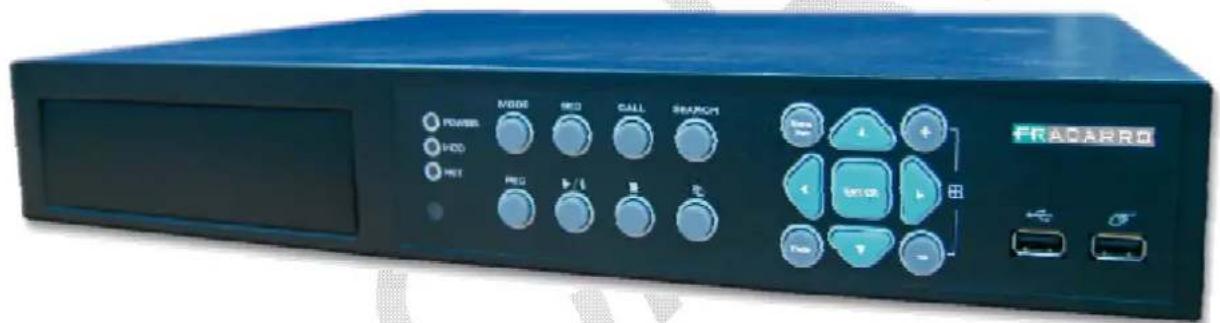

3.1 Front Panel (refer to figure 1):

N°	Button	Function	N°	Button	Function
1	DVD Writer (optional)	Used for backup purpose if installed	12	STOP	Stop the playback
2	USB Mouse connector	Connect a compatible mouse before power on the DVR	13	COPY	Start or stop backup
3	USB connector	Connect a compatible storage device such as disk drive, card reader or DVD+RW	14	MENU / ESC	Display or ESC the menu
4	LEDs indicator	Indicator for Power, HDD and NET	15	PAGE	Display in multi-split-windows
5	MODE	Toggle between live and playback mode	16	LEFT / RIGHT	Move the cursor or Pan the camera
6	SEQ	Switch to or return from SEQ display mode	17	UP / BS	Move the cursor or Tilt up the camera or Backspace
7	CALL	Switch to or return from full screen display	18	DOWN / DEL	Move the cursor or Tilt down the camera or Delete
8	SEARCH	Display the search menu	19	ENTER	Enter Key
9	Remote IR sensor	Receive signal from I/R remote controller	20	SPLIT Windows +	Next split window
10	REC	Manual recording	21	SPLIT Windows -	Previous split window
11	Play/Pause	Play the recorded images or pause the playback

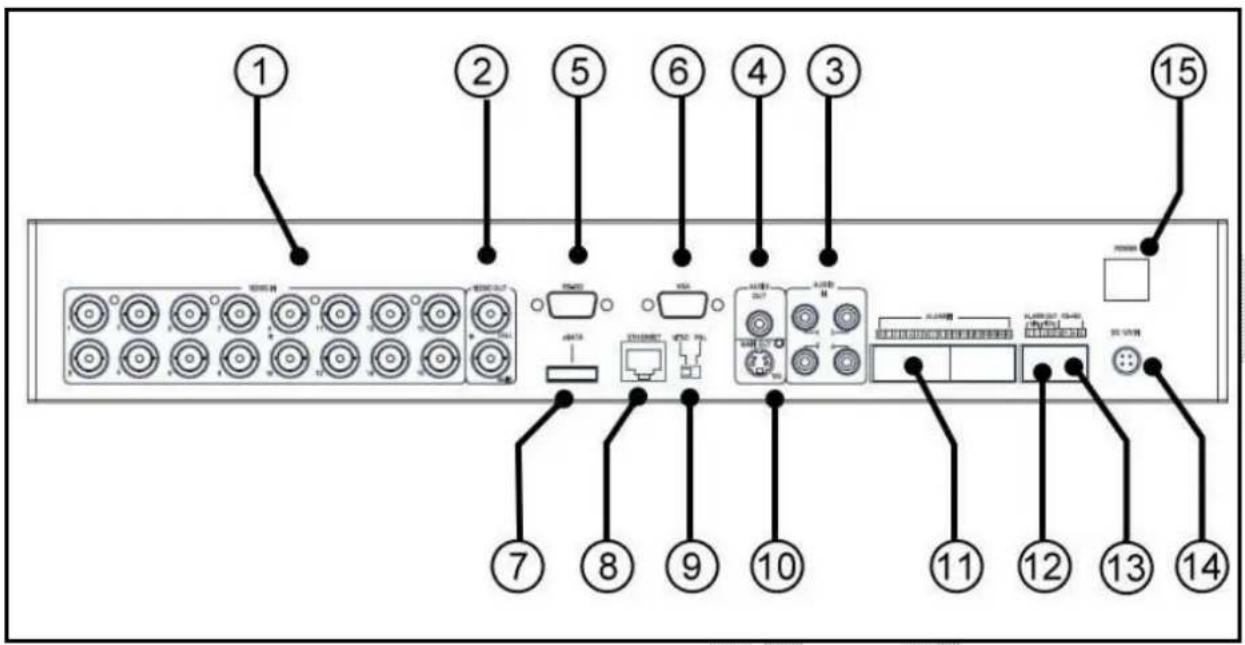

3.2 Back Panel (refer to figure 2):

N'	Connector	N'	Connector
1	4-9-16 Video BNC input	9	NTSC/PAL selector
2	Video BNC output call and main	10	Main S-video output monitor
3	4 Audio input RCA	11	16 Input alarm connectors
4	1 Audio output RCA	12	2 Output alarm connectors

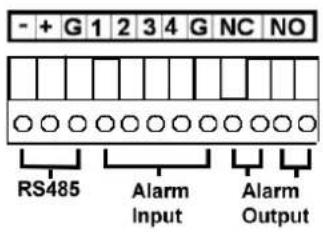

5	RS-232 connectors for Keyboard	13	RS-485 connectors for PTZ cameras or control keyboard
6	Video VGA output	14	Power supply
7	eSATA connector for external SATA storage device	15	Power switch
8	Ethernet connector for LAN connection

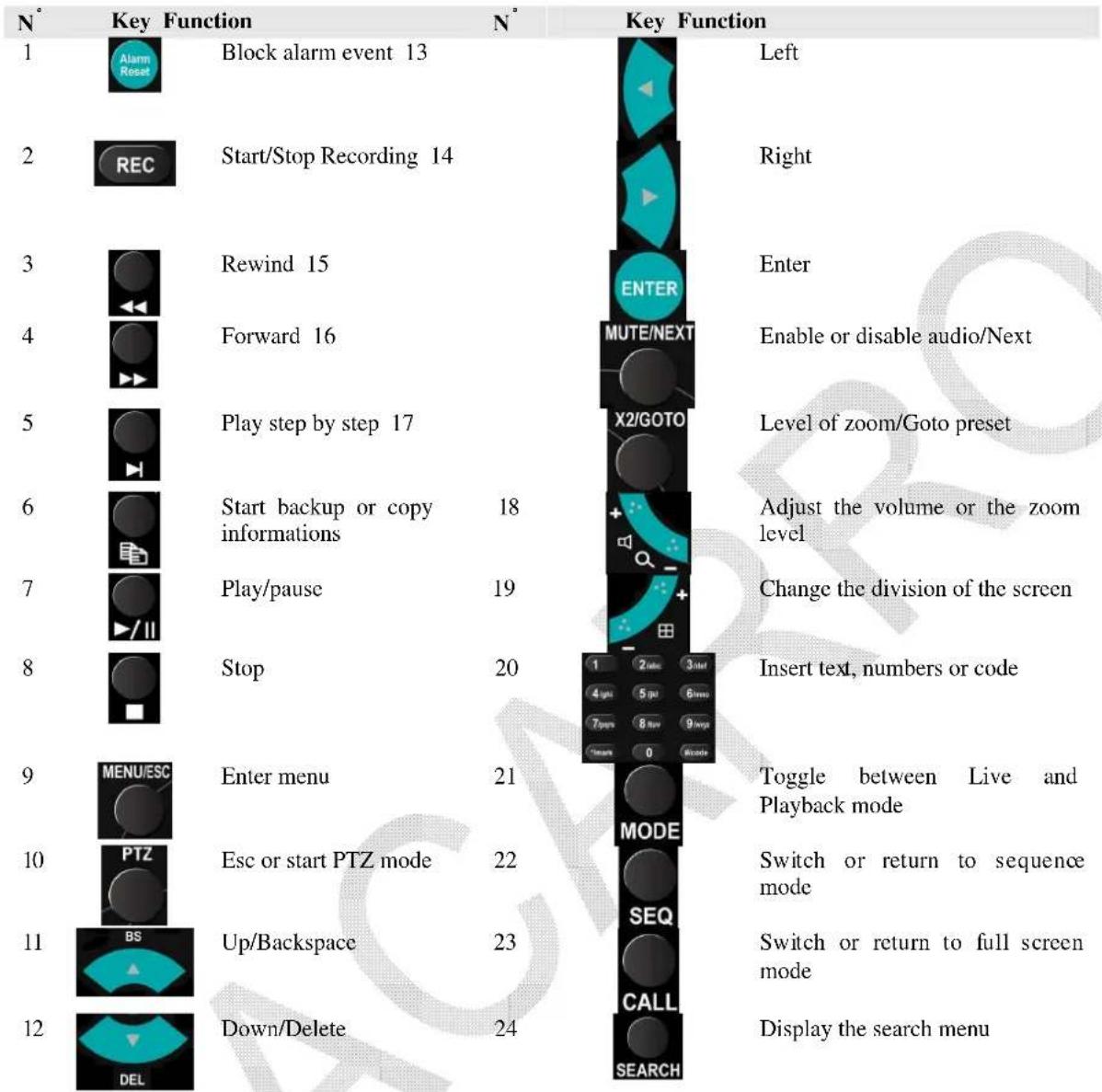

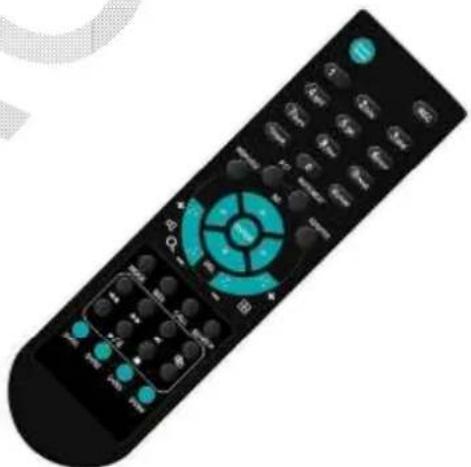

3.3 Remote Controller (refer to figure 3):

The remote controller is an optional accessory to ease the user's operations. You can do all the operations by the remote controller instead of the buttons on the front panel. The effective distance is about 10 meters without any obstacle.

3.4 Mouse:

The DVR can be easily managed by the mouse. Please connect the mouse before connecting the power supply and then move the cursor on the bottom of the screen to view the setup menu.

4. Installation:

4.1 HDD Setup:

Please follows the steps below for a correct installation of the HDD and the DVD Writer on the DVR.

N° Instructions

1 Take the DVR and disconnect all the cables.

Black rectangular electronic device labeled 'Picture' with control buttons at the bottom (no visible text on device body)

2 Remove all the screws (10) on the rear (4) and lateral panel (3+3).

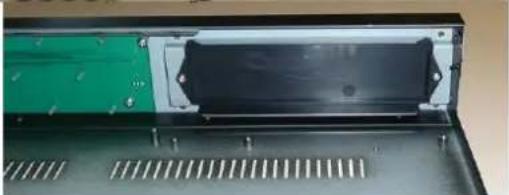

3 Remove the cover as shown.

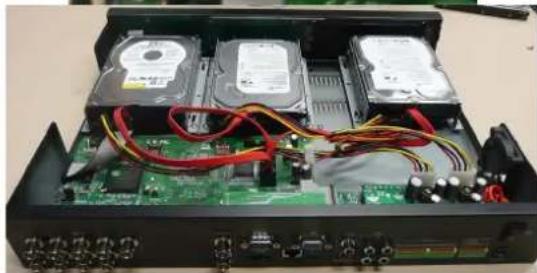

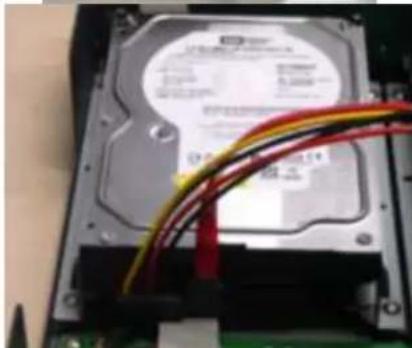

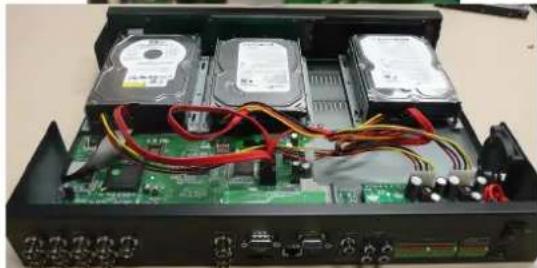

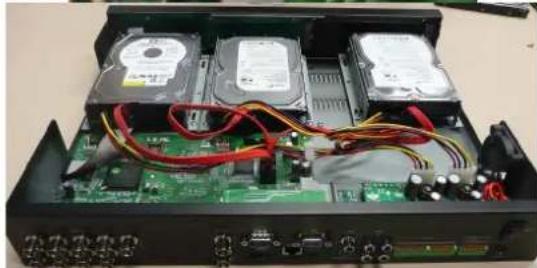

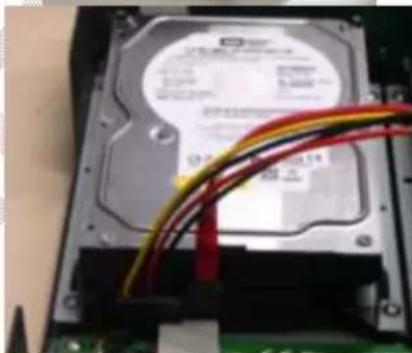

4 From the bag of DVR accessories take the 2 brackets and fix them on the HDD using the 4 screws.

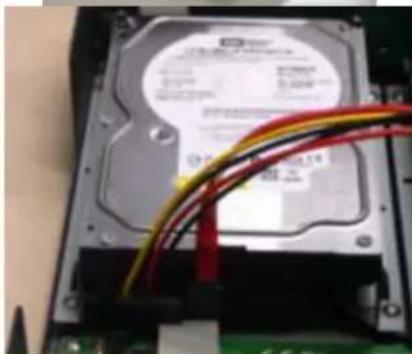

5 From the bag of DVR accessories take the 4 screws and fix the HDD on the DVR and connect the data and power cables.
6 Return to the step number 4 to install the other 2 optional HDD.

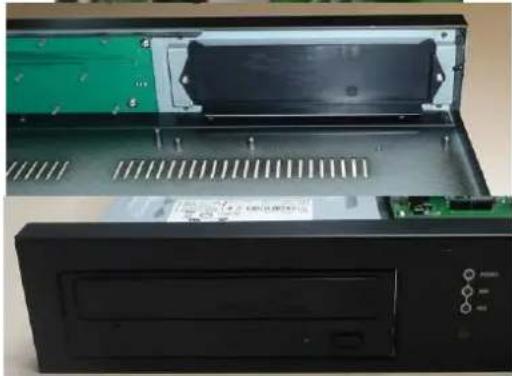

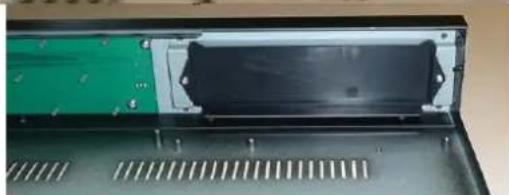

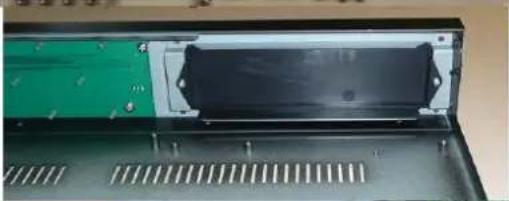

7 It is possible to install, as optional, a DVD writer that will be placed in the housing of the third HDD. To install this device remove the 2 screws and the plastic cap.
8 From the bag of DVR accessories take the 2 brackets, fix them on the DVD writer and install the device on the DVR connecting the cables.
9 Using all the screws close the cover, connect the monitor and the power supply. Now the DVR is installed and ready to use. Please refer to the manual to setup the time and format all the HDDs.

Front view of a black electronic device control panel with buttons and display (no visible text or symbols)

Interior view of a server rack with visible circuit board, connectors, and ventilation slots (no text or labels)

Exterior view of a hard disk drive (no visible text or labels)

Internal view of a hard disk drive with visible circuit board and wiring (no text or symbols)

Interior view of an open hard disk drive with multiple hard drives and visible circuit boards (no text or labels)

Interior view of a device showing a black rectangular component with green and black panels, mounted on a metal frame (no visible text or symbols)

Close-up of a black internal computer drive with indicator lights and a power button (no visible text or symbols)

Back panel of a computer interface showing ports, connectors, and drive buttons (no readable text or symbols)

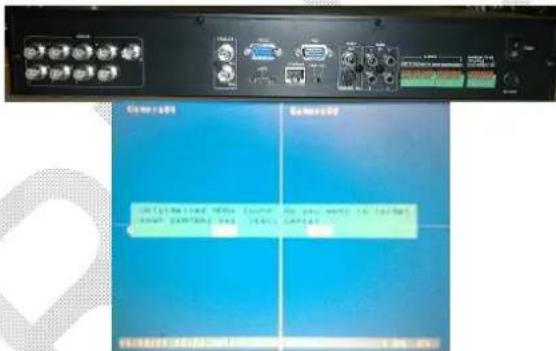

10 Turn On the DVR using the apposite button on the rear panel of the DVR. The DVR will show the message: "Unformatted HDDs found. Do you want to format now? [ENTER]: Yes, [ESC]: Cancel". Press the [ENTER] button to format the hard disk.

Control Control Control Control

4.3 First access to the DVR:

- Login

After turning on the DVR, press the "MENU" button and then move the cursor on the icon called "Login / Logout" and press "ENTER".

Now enter the name and password. Parameters from the factory's installer has a username: "aa" and password "11". Move the cursor on "Login" and confirm by pressing "ENTER".

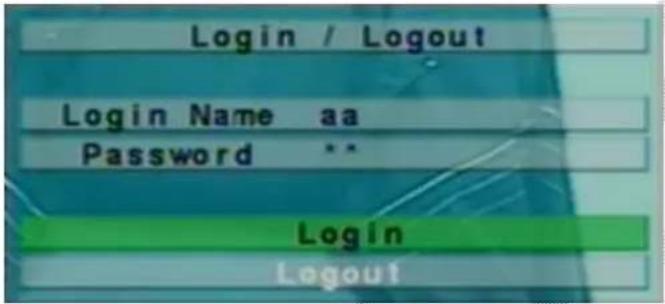

Login / Logout Login Name aa Password ** Login Logout

There are three password levels in the system, including: Administrator (highest), Supervisor, and Operator (lowest). The Operator can operate live video display, the Supervisor live video display, image playback and archive, and the Administrator everything.

CAUTION: The factory setting of the DVR takes only one user configured as an administrator. In order to increase the level of security you should use that user for only the first access and change the password as soon as possible.

WARNING: In case of loss of the system password please contact your local distributor who will contact Fracarro Radioindustrie S.p.A.

- Setting Language

Faithfully follow the steps below to configure the language of the DVR:

1. Press the "MENU" button to access the configuration menu;
2. Move the cursor to "SETUP" and confirm by pressing "ENTER";
3. Move the cursor to the "SYSTEM" and confirm by pressing "ENTER";
4. Using the arrow keys move the cursor to the "LANGUAGE" and press the keys "+/-" to set the desired language;
5. Press the "MENU" button to return to the previous menu, the DVR will be prompted to save the settings by pressing the "ENTER";
6. Press "ENTER" to confirm the change of language. The system will restart with the new settings.

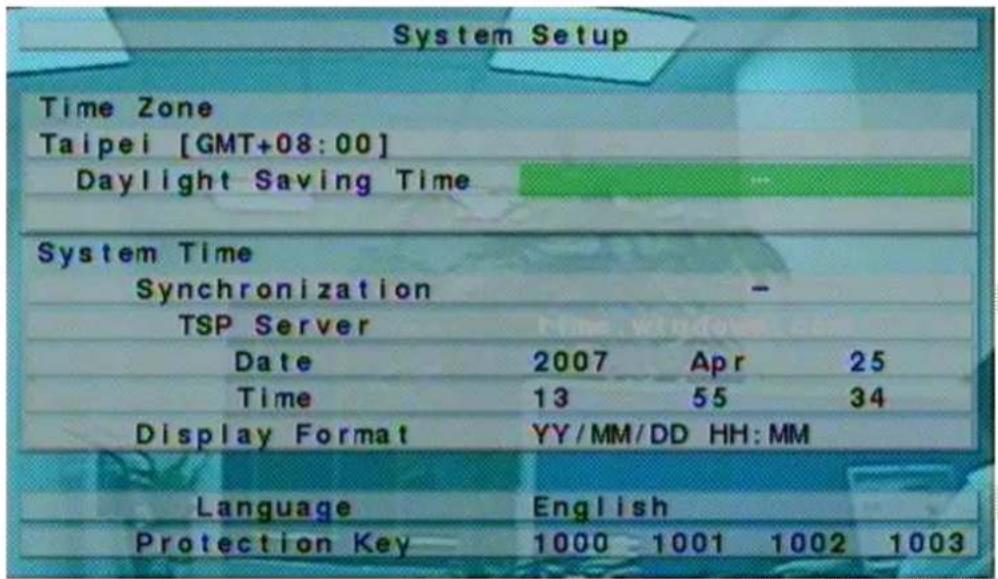

System Setup Time Zone Taipei [GMT+08:00] Daylight Saving Time System Time Synchronization TSP Server Date 2007 Apr 25 Time 13 55 34 Display Format YY/MM/DD HH:MM Language English Protection Key 1000 1001 1002 1003

- Adjust Date / Time:

Faithfully follow the steps below to adjust the date / time:

1. Press the "MENU" button to access the configuration menu;
2. Move the cursor to "SETUP" and confirm by pressing "ENTER";
3. Move the cursor to the "SYSTEM" and confirm by pressing "ENTER";
4. Using the arrow keys move the cursor to the "DATE" and, using the keys "+/-" set the year, month and day;
5. Using the arrow keys move the cursor on "TIME" and, using the keys "+/-" set the time;
6. Press the "MENU" button to return to the previous menu, the DVR will be prompted to save the settings by pressing the "ENTER";

System Setup Time Zone Taipei [GMT+08:00] Daylight Saving Time System Time Synchronization - TSP Server Date 2007 Apr 25 Time 13 55 34 Display Format YY/MM/DD HH:MM Language English Protection Key 1000 1001 1002 1003

- Formatting the hard disk:

Faithfully follow the steps below to format the hard disk:

1. Press the "MENU" button to access the configuration menu;
2. Move the cursor to "SETUP" and confirm by pressing "ENTER"; Move the cursor to the heading "HDD" and confirm by pressing "ENTER";
3. Press the "MODE" button;
4. Press the "CALL" button to format the entire hard drive;
5. Press "ENTER" to confirm the operation;
6. Press the "MENU" button to return to the previous menu.

HDD Format / Clear
Recording HDD	Alarm : 1		Normal : 1
HDD	1	2	3	4
Size (GB)	78	-	-	-
Normal Record(%)	71	-	-	-
Alarm Record(%)	29
[MODE]-Format, [SEQ]-Clear [CALL]-Physical Format

- Setting the record:

The DVR allows different recording modes: alarm, motion, continuous or scheduled. Using the last mode, the system administrator can define, for each hour of the week, the type of registration.

In order to customize the recording schedule every day is divided into a maximum of 16 segments (T1, ..., T16) which can be configured in 3 different recording modes to choose from: recording video, audio+video recording or absence of registration.

NOTE: The DVR is factory programmed to record continuously during the whole week.

Faithfully follow the steps below to set the schedule:

1. Press the "MENU" button to access the configuration menu;
2. Move the cursor to "SETUP" and confirm by pressing "ENTER";
3. Move the cursor to the heading "SCHEDULE RECORDING" and confirm by pressing "ENTER";
4. Press "MODE" button;
5. The following screen will appear:

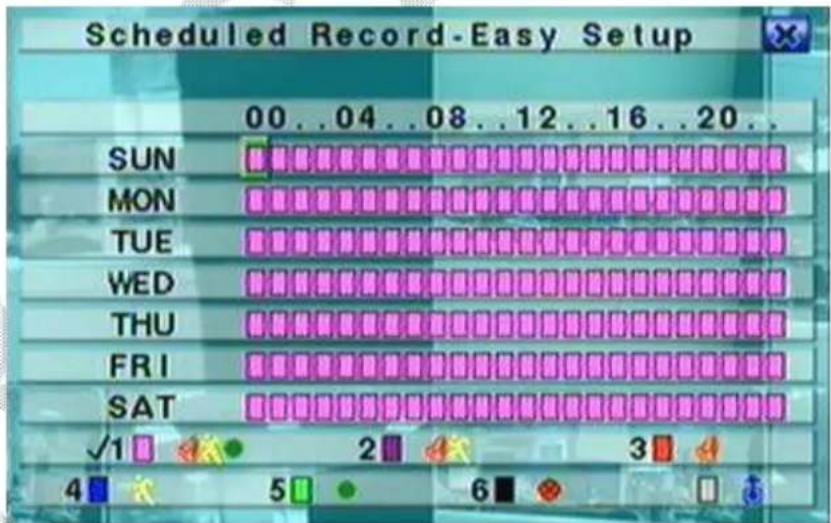

Scheduled Record-Easy Setup 00..04..08..12..16..20.. SUN MON TUE WED THU FRI SAT √1 2 3 4 5 6

This screen allow the administrator an easy and fast way to program the schedule recording. It is possible, for each hour of the week, to set the way of recording from: Alarm+Motion+Normal, Alarm+Motion, Alarm, Motion, Normal, and no Recording. I will be recorded both audio and video.

Button description:

■ ▲ ▼ ◀ ▶
Press these button to move the cursor.
■ Numeric 1-6 (Mouse: Left click)

Press these buttons to select the recording mode. Press ENTER button to activate the mode. Recording modea are: "1" - Alarm+Motion+Normal, "2" - Alarm+Motion, "3" - Alarm, "4" - Motion, "5" - Normal, "6" - No Recording.

■ +/- (Mouse: Left click)

Press these buttons to select the desidered time interval. Press ENTER button to activate the recording mode on the selected time interval.

■ ESC (Mouse: Right click)

Press these buttons to esc the screen and return to the previous. Time segment will be updated..

5 Basic use of the DVR:

5.1 Search:

The DVR allow 4 different ways to search the image like: search by time, search by event, smart search or search on archived files.

The screen for "SEARCH BY TIME", on the bottom, shows the date when the recording started so it is possible to know how long is the recording and select a specific date for search the image. It is possible to reduce the searching time by selecting the type of recording like Alarm, Motion, Video loss or Normal.

Search By Time Year 2007 Month 5 Date 9 Hour 16 Minute 7 Video/Audio ✓ Alarm ✓ Motion ✓ Video Loss ✓ Normal [MODE]-Start searching Recorded from : 2007/05/02 13:53

Faithfully follow the steps be

1. Press the "SEARCH" to enter the Search menu;
2. Move the cursor on "SEARCH BY TIME" and confirm by pressing "ENTER";
3. Move the cursor over the heading "YEAR", "MONTH", "DATE", "HOUR" and "MINUTE" to select the start date of research using the keys "+/-";
4. Move the cursor over the headings "ALARM", "MOTION", "VIDEO LOSS" and "NORMAL" to select the type of recording you want to search using the buttons "+/-";
5. Press "PLAY" to start the playback;
6. Press the "◀" and "▶" to increase or decrease the speed of display and the button "▶ / ||" to pause or play the video;
7. Press the "STOP" to exit the playback mode.

5.2 Backup:

The DVR permits to backup the video/audio recording on different type of external USB devices like pendrive, self-powered HDD or DVD Writable. Please refer to the previous section to know how to install and connect all the devices:

1. Press the "SEARCH" button;
2. Move the cursor on "SEARCH BY TIME" and confirm by pressing "ENTER";
3. Move the cursor over the heading "YEAR", "MONTH", "DATE", "HOUR" and "MINUTE" to select the start date of research using the keys "+/-";
4. Move the cursor over the headings "ALARM", "MOTION", "VIDEO LOSS" and "NORMAL" to select the type of recording you want to search using the buttons "+/-";
5. Press the "COPY" button;

6. Move the cursor on "BACKUP SPEED" and select the value of the backup rate from 1 (slow) to 9 (fast) using the keys "+/-";

7. Move the cursor on "CAMERAS" to select the camera that you want to backup using the keys "+/-";

8. Move the cursor over the heading "YEAR", "MONTH", "DATE", "HOUR" and "MINUTE" to select the time and date of end of backup using the keys "+/-";
9. Press the "COPY" to start the backup.

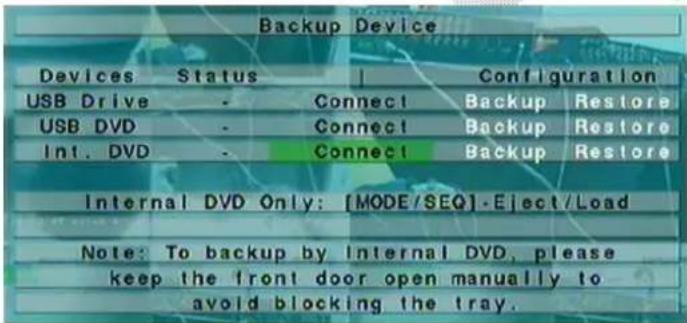

Backup Device Internal DVD Backup Speed Directory 0128 Cameras 9 10 11 12 13 14 15 16 GPS GPS File Format Year Month Date Hour Minute End Time [COPY] Apply [STOP]-Stop,[ESC]-Cancel Used: 727(MB), available: 3978(MB)

Throughout the backup process will receive an icon and a message indicating the progress of the procedure. Once the procedure is necessary to disconnect the device acting on the appropriate menu:

1. Press the "MENU" button to access the system menu;
2. Move the cursor on "BACKUP DEVICE" and confirm by pressing "ENTER";
3. Move the cursor over the headings "USB DRIVE", "USB DVD" or "SD CARD" to select the type of connected device and press "ENTER" to disconnect;
4. At this point you can physically disconnect the backup device from the DVR.

Backup Device Devices Status Configuration USB Drive - Connect Backup Restore USB DVD - Connect Backup Restore Int. DVD - Connect Backup Restore Internal DVD Only: [MODE/SEQ]-Eject/Load Note: To backup by Internal DVD, please keep the front door open manually to avoid blocking the tray.

CAUTION: Do not remove the DVD until the backup process is not completely finished to prevent damage to the optical drive.

CAUTION: Do not remove the USB device until the backup process is not completely finished.

5.3 Viewing the images:

During the backup the DVR creates two folders on the device, one containing the backup files and the other containing the display of images (SelfPlayer). Follow the steps below to view images:

1. Connect the backup device used on a PC;

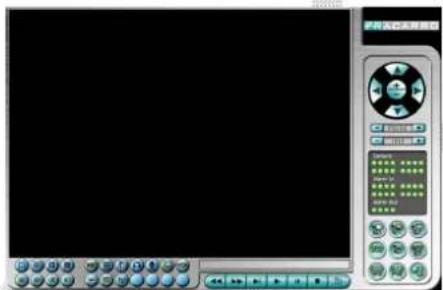

2. Start the software "Selfplayer" contained in the folder "SelfPlayer";
3. Press the "FILE" then "OPEN";
4. Select the file you want to display (in the folder "00001") and confirm with the button "OPEN".

The DVR backup splits the video into multiple files of maximum size of 100Mb which can subsequently be joined to form a single file "avi" using the software "AVICverter" provided.

6 Shut down:

Before turning off the DVR, press the "MENU" button and then "SHUTDOWN" and confirm by pressing "ENTER". Press "ENTER" again to request for confirmation of the command. Only when the DVR displays the message "Shutdown complete. Now you can turn off the system, you can turn off the DVR using the appropriate key on the back panel of the DVR.

7 Appendix:

7.1 Recording table:

In order to choose the correct size of hard disk to install on the DVR is a table showing the maximum recording time at CIF resolution (360x288) and maximum quality (9) for each type of DVR and hard drive size:

HDD (GB) DVR MILANO CH4 (hours) DVR MILANO CH9 (hours) DVR MILANO CH16 (hours)

160 50 25 25

320 99 50 50

750 230 115 115

1000 308 154 154

ATTENTION: The DVR divide the HDD in two different partitions, the largest one (70% of the maximum capacity of the HDD) is used for the normal recording and the other one (30%) for pre-alarm and pre-motion recording.

Please wait the complete start of the DVR before entering the menu, then press "MENU" in split-window display to call up Menu display, than press login/logout to access to the function of the DVR.

Please before shutting down the system press "MENU" in split-window display to call up Menu display and press

"Shutdown" then, when the DVR shows "Shutdown completed. You may turn off the system now", it will be possible to power off the DVR with the apposite switch on the rear panel.

7.2 PC Network connection:

The DVR can be connect to a Ethernet or Internet network. In both case it is possible to manage more DVRs from the same PC and the same CMS (Central Monitoring System) or view the image and manage the output relay directly from a mobile phone or a Web browser also different from Internet Explorer.

The first type of connection is made by a cross Ethernet cable that connect the DVR (Fig.A) and the PC or by switch, hub or a router (Fig.B):

Fig.A

Fig.B

In both case please refer to the following steps to configure the connection:

Instructions

First of all go to a pc, connected to the same network of the DVR, access to start/run then enter "cmd" and press Enter. The DOS prompt will appear.

On the screen enter "ipconfig /all" and press Enter. The screen will shows all the PC Network information so it is possible to know which are the Gateway (Ex. 192.168.1.1) and the PC IP Address (Ex. 192.168.1.14).


C:\WINDOWS\system32\cmd.exe Microsoft Windows XP [Versione 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp. C:\Documents and Settings\admin>

C:\WINDOWS\system32\cmd.exe Microsoft Windows XP [Versione 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp. C:\Documents and Settings\admin>ipconfig /all Configurazione IP di Windows Indirizzo fisico. . . . . . . . . . . : 00-1E-33-01-D4-34 DHCP abilitato. . . . . . . . . . : Si Configurazione automatica abilitata : Si Indirizzo IP. . . . . . . . . . . : 192.168.1.14 Subnet mask. . . . . . . . . . : 255.255.255.0 Gateway predefinito. . . . . . . . : 192.168.1.1 Server DHCP. . . . . . . . . : 192.168.1.1 Server DNS. . . . . . . . . : 192.168.1.1 Server WINS primario. . . . . . : Server WINS secondario. . . . . : Lease ottenuto. . . . . . . : Scadenza lease. . . . : C:\Documents and Settings\>

Please return to the DVR, press MENU than SETUP and NETWORK SETUP to access to the "Network Setup" menu. In this screen enter an IP address (Ex. 192.168.1.15) that isn't used by other network devices and the same Gateway (Ex.192.168.1.1) and Net mask (Ex. 255.255.255.0) of the PC.

ATTENTION: The IP Address that will be assigned to the DVR must be different from the PC one only in the last number.

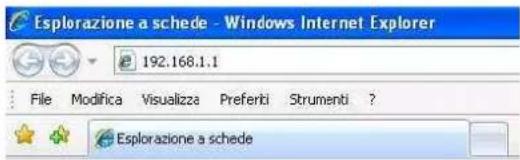

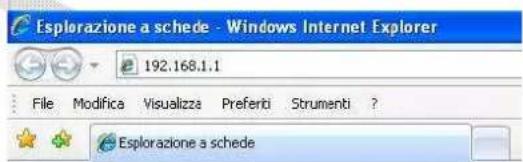

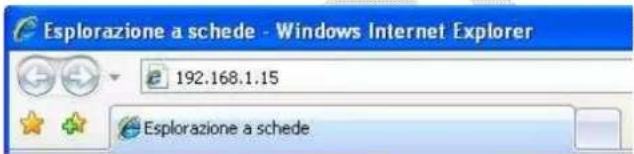

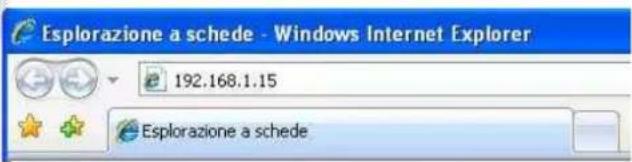

Please enter the IP address of the DVR (Ex. 192.168.1.15) in the search bar of Internet Explorer and press Enter.

The Browser will ask to install the ActiveX control, please confirm all the request. The connection could be interrupt by the firewall or the antivirus so please be sure that they aren't active.

If the browser won't show the image please insert the IP address of the DVR in the "Trusted sites" menu.

Please insert the User ID and password of the user that will access to the DVR.

ATTENTION: The default user is the administrator and he has user ID: aa and password:11

Now, using Internet Explorer is it possible to view the image and manage until 4 different DVRs.

Using Firefox or other Web browser it is possible to view the image, the state of the input alarm and manage the output alarm of the DVR.

Net type Static IP E-mail FTP Adv.
	IP Address	192.168.1.15
Static IP	Net Mask	255.255.255.0
	Gateway	192.168.1.1
	DNS
PPPoE	Username
	Password
	DDNS Type	Dynamic
	URL
	DDNS Username
	DDNS Password

Trusted sites You can add and remove websites from the zone. All sites in this zone will use the zone's security settings. Add this website to the zone: Website: 192.160.1.15 Require server verification (https) for all sites in this zone: Close

Login Indicazo IP 10.31.50 Name User Password Control Port 67 Data Port 68 OK Cancela

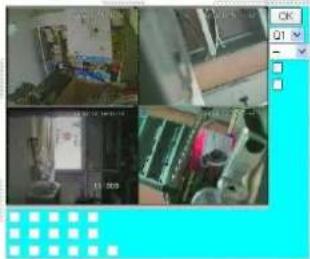

Scanned image of a software interface with Chinese text labels and a control panel

Four-panel photo collage showing indoor scenes with visible furniture and equipment (no text or symbols)

ATTENTION: If the connection is made by a cross cable please don't insert the Gateway IP address.

Now the DVR is correctly connect to the Ethernet network, if the connection is made using a router it is possible to connect the DVR through Internet and view the same information all over the world (Fig. C).

Please follow the steps below to configure the connection:

Instructions Picture

Please access to the website www.dyndns.org and press "Create Account".

An E-mail with all the informations will be sent to the E-mail address inserted. Please follow the instructions to activate the new account.

Insert the username and password of the new dyndns account.

Click on "Add Host Services"

Select a new Hostname of the DVR, click on "Use auto detect IP Address" and confirm all the requests to activate the new Host.

DynDNS.com @DynDNS.com About Services Account Support News Break FREE Don't feel trapped. We're here to help. Escape your DNS with Dyn Inc... New to DynDNS.com? "Is our best your and sure what, we do" DNS Services DNS for peers and dynamic IP address Mailtop Services Ensure reliable email delivery Search

DynDNS.com About Services Account Support News One more step to go... We've sent an email to to verify your account. Please check your inbox and click on the confirmation kit. If you do not receive the email in the next few minutes you can try newing it. Thank for crossing DynDNS.com

DynDNS.com Account Confirmed The account between has been confirmed, you can now look and start using your account. Setting Started • Create a dynamic DNS web with your new domain name • Create a dynamic DNS web within our new domain • Setup email service • Replace a domain name

DynDNS Account frdvrnew My Services View, modify, purchase, and delete your services. My Zones/Domains Add Zone/Domains Services My Hosts Add Host Services Dynamic DNS Pro Add New Hostname

Note: You currently don't have any active dynamic DNS Pro upgrade in your account. You cannot use some of our Host Service features. Paying far an dynamic DNS Pro upgrade will make this form fully functional and will add several other features.

Hostcode: D:\WINDOWS\dynics.org Wildcard Status: Insured [Very Wildard support] Service Type: F has with IP address C website installed C offline routing IP Address: 8542.133.139 the user requested IP address 8542.133.139 TTL value at 10 seconds. 60 TT: Mail Routing: F Yes, let me configure timer routing. AddToCut

Using Internet Explorer enter the IP Address of the router (Gateway) and press Enter, a screen will ask to enter the user ID and password of the router, please find this information on the instruction manual of the device.

Please follow the installation manual of the Router to create a rule for the 67, 68 and 80 port for the DVR IP Address and TCP protocol.

NOTE: Please refer to the www.portforwarding.com website to know the correct way to configure the router

Please follow the installation manual of the Router to insert the DDNS information like username, password and hostname of the DVR.

Now the DVR is correctly connected to the network. Please make sure that the IP Address of the DVR is inserted on the "Trusted sites" of Internet Explorer

Enter the Hostname of the DVR on the search bar of Internet Explorer and it will be possible to view all the cameras.

Home Advanced Tools Status Add dynamic DONE This page allows you to add a Dynamic ONE address from DynDNS.org or T20. DONE provider DynDNS.org Hostname IP3007EN Devio.org Interface DynDNS Settings Username Procans Password ****** Apply

Trusted sites ✓ You can add and remove websites from this zone. All websites in the zone will use the zone's security settings. Add this website to the zone: Website: DVRNEW.dyndns.org Screw ✓ Require server verification (https) for all sites in the zone Close

Scanned image of a remote control interface with Chinese text labels and buttons

7.3 Mobile phone network connection:

The image of the DVR can be viewed using a mobile phone, smartphone or PDA connected to the internet network. Follow the steps below to create the connection:

Instructions Picture

Enter the Hostname of the DVR on the search bar of the browser of the mobile phone or PDA.

The DVR will ask the user to enter his User ID and Password.

Please select the best image resolution for the mobile phone or PDA than press "OK".

Now it will be possible to view the image on the mobile phone or PDA, manage the output relays and know the state of the input alarm directly by the interface.

Internet Explorer 17.39 X http://DVRNEW.dyndrs.org Web https://www.dryndrs.org/2 Google™

ID: PSWD: PIC Size : 176X144 228X187 320X240 OK

Composite image showing three scenes: a lab with equipment, a close-up of a device, and a close-up of a computer (no visible text or symbols)

7.4 PTZ Camera connection:

The DVR can be used for manage until 4-9-16 PTZ cameras using the RS-485 cable. (Fig D:)

For Keyboard RS485 + TxD+ RS485 - TxD- GND GND For PTZ Device RS485 + RxD+ (Data+) RS485 - RxD- (Data-) GND GND

Please follow the steps below to connect a PTZ camera to the DVR:

Instructions Picture

Please follow the instruction manual of the Camera to configure it with Pelco-D Protocol, Baud Rate of 4800 bps and a ID Address (from 1 to 255) that will be different for each camera.

Connect the BUS RS-485 of the camera to the back panel of the DVR.

- + G 1 2 3 4 G NC NO RS485 Alarm Input Alarm Output

Press "MENU", than "SETUP" and "RS-232/422/485 Setup" on the DVR for enter to the BUS configuration and enter the same Protocol (Model) and Baud Rate of the PTZ camera.

Press "MENU", than "SETUP" and "Pre-Camera Setup" on the DVR and enter the ID Address of the single PTZ camera.

ATTENTION: Please be sure that all cameras have different ID Address.

RS-232/ 422 /485 Setup
COM Port RS-232 RS-422/485
Device Type PTZ
Model Pelco (D-Type)
Baud Rate 4800
Data Bit 8
Stop Bit 1
Parity None
DVR/Camera ID 0
Pre-Camera Setup
REC Resolution		720x288
Watermark ✓		Group
Camera Installed		PTZ ID	1 2 3 4 5 6 7 8
1 ✓		N/A
2 ✓		1
... ...		...

Now the camera it is correctly connected to the DVR and is possible to manage it using the remote controller, mouse or the PC software.

Black rectangular electronic device with indicator lights (no visible text or symbols)

Interior view of an electronic device showing internal components like a green circuit board, red connectors, and power lines (no visible text or labels)

Exterior view of a hard disk drive (no visible text or labels)

Close-up of a hard disk drive with visible internal wiring and mounting bracket (no text or symbols)

Interior view of an open hard disk drive with multiple hard drives and visible circuit board (no text or labels)

Interior view of an electronic device casing showing a black panel with green and black components, mounted on a metal tray (no visible text or symbols)

Back view of a black electronic device with ports and connectors, no visible text or symbols

Command Ordering Command is required to be saved Command is required to be saved

Fig.A

Fig.B

Instructions Picture

Net type	Static IP	E-mail	FTP	Adv.
Static IP	IP Address		192.168.1.15
	Net Mask		255.255.255.0
	Gateway		192.168.1.1
	DNS
PPPoE	Username
	Password
	DDNS Type		Dynamic
	URL
	DDNS Username
	DDNS Password

Trusted sites You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: Website: 192.163.1.15 Require server verification (https) for all sites in the zone Close

DynDNS.com About Services Account Support News Log In BREAK FREE Don't feel trapped. We're here to help. Escape your DNS with Dyn Inc... New to DynDNS.com? This is our best job and we are about us in DNS Services DNS for data and dynamic IP address Mailtop Services Ensure reliable email delivers Search DynDNS.com About Service Account Support News One more step to go... We've sent an email to to verify your account. Please check your profile and click on the confirmation link. If you do not receive the email in the next few minutes you can try sending it Thanks for checking DynDNS.com!

DynDNS.com Account Confirmed The account deliver has been confirmed. You can now get and start using your accounts. Getting Started: • Create a dynamic DNS host with your own domains name • Create a dynamic DNS host with our new domain • Setup email services • Include a domain name DynDNS Account frdvrnew My Services View, modify, purchase, and delete your services. My Zones/Demiais Add Zone/Demiais Services My Hosts Add Host Services Dynamic DNS Pro Add New Hostname + User Service

Note: You currently don't have any setup Dynamic DAS. Fix updates in your account. You cannot use some of our Web Services features. Paying for an Dynamic DAS. Fix upgrade will make the form fully functional and will add several other features.

HostName: C:\WINDOWS\ndns.dwg Network Status: Selected [www.nescart.nescrt] Network Type: Web with B address C:\Workshop.bashnet C:\Office.bashnet IP Address: 05.42.13.128 Use your address (P:) address 05.42.13.128 FTP access is 68 seconds (Fed 77) Mail Mountings: Yes, let me configure total routing. Add to Cart

D-Link DSA-3100 Wireless Service Gateway Home Advanced Tools Status Help Home Direct Service Tools No. Document Service Type Local Direct Address Local Direct Port Type Create 1 67 192.368.1.15 67 TCP- C: UDP 2 68 192.368.1.15 68 TCP- C: UDP 3 60 192.368.1.15 80 TCP- C: UDP 4 5 6 7 8 9 10 Apply Cancel Help

Home Advanced Tools Status Add dynamic DNS This page allows you to add a Dynamic DNS address from DynDNS.org or T20. D-CMS provider DynDNS.org Hostname BURNET-Adlers.org Interface DynDNS Settings Username: Access Password ****** Apply

Trusted sites You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: Add Websites: DYRNEW.dyrdns.org Remove Require server verification (https:) for all sites in this zone Close

Screenshot of a mobile device interface with Chinese text labels and control buttons

Four-panel photo collage showing industrial equipment and a close-up of a device (no visible text or symbols)

RS-232/ 422 /485 Setup
COM Port RS-232		RS-422/485
Device Type		PTZ
Model		Pelco (D-Type)
Baud Rate		4800
Data Bit		8
Stop Bit		1
Parity		None
DVR/Camera ID		0
Pre-Camera Setup
REC Resolution		720x288
Watermark	√	Group
Camera	Installed	PTZ ID	1 2 3 4 5 6 7 8
1	√	N/A
2	√	1

Fig. A

Fig. B

Backup Device Devices Status - Configuration USB Drive - Connect Backup Restore USB DVD - Connect Backup Restore SD Card - Connect Backup Restore Status

Fig.A

Fig.B

Net type	Static IP	E-mail	FTP	Adv.
Static IP	IP Address		192.168.1.15
	Net Mask		255.255.255.0
	Gateway		192.168.1.1
	DNS
PPPoE	Username
	Password
	DDNS Type		Dynamic
	URL
	DDNS Username
	DDNS Password

Pre-Camera Setup
REC Resolution		720x288
Watermark	√	Group
Camera	Installed	PTZ ID	1 2 3 4 5 6 7 8
1	√	N/A
2	√	1

Search By Time Year 2007 Month 5 Date 9 Hour 16 Minute 7 Video/Audio ✓ Alarm ✓ Motion ✓ Video Loss ✓ Normal [MODE]-Start searching Recorded from: 2007/05/02 13:53

Backup Device Devices Status - Configuration USB Drive - Connect Backup Restore USB DVD - Connect Backup Restore SD Card - Connect Backup Restore Status

Euk.A

Euk.B

Pre-Camera Setup
REC Resolution		720x288
Watermark	√	Group
Camera	Installed	PTZ ID	1 2 3 4 5 6 7 8
1	√	N/A
2	√	1
...	...	...

Black rectangular electronic device with indicator lights (no visible text or symbols)

Interior view of a server rack with visible circuit board and connectors (no text or symbols)

Exterior view of a hard disk drive (no visible text or labels)

Internal view of a hard disk drive with visible wiring and mounting bracket (no text or symbols)

Interior view of an electronic device showing internal components including hard drives, capacitors, and a green circuit board (no visible text or labels)

Interior view of an open electronic device casing showing a black panel and green cover (no text or symbols visible)

Back view of a black electronic device with ports and connectors, no visible text or symbols

Cancel Cancel Welcome the Web Start. Do you want to perform http://www.web/10.1/ Cancel Microsoft Word 2003 - 2004 - 2005 - 2006 - 2007 - 2008 - 2009 - 2010 - 2011 - 2012 - 2013 - 2014 - 2015 - 2016 - 2017 - 2018 - 2019 - 2020 - 2021 - 2022 - 2023 - 2024 - 2025 - 2026 - 2027 - 2028 - 2029 - 2030 - 2031 - 2032 - 2033 - 2034 - 2035 - 2036 - 2037 - 2038 - 2039 - 2040 - 2041 - 2042 - 2043 - 2044 - 2045 - 2046 - 2047 - 2048 - 2049 - 2050 - 2051 - 2052 - 2053 - 2054 - 2055 - 2056 - 2057 - 2058 - 2059 - 2060 - 2061 - 2062 - 2063 - 2064 - 2065 - 2066 - 2067 - 2068 - 2069 - 2070 - 2071 - 2072 - 2073 - 2074 - 2075 - 2076 - 2077 - 2078 - 2079 - 2080 - 2081 - 2082 - 2083 - 2084 - 2085 - 2086 - 2087 - 2088 - 2089 - 2090 - 2091 - 2092 - 2093 - 2094 - 2095 - 2096 - 2097 - 2098 - 2099 - 2100 Microsoft Word Web Start. Do you want to perform http://www.web/web/10.1/

Rys.A

Rys.B

Internet Explorer - annella di prostruzione Installare: E software! Name: USPay.com Address: 906-PU TECHNOLOGY INC. File Properties: Editative: New installare: 3 file access via Internet property online call, non question type (e-mail) plus download to computer. Installare all software access via mail considerati attendare. Qual.pptv.com

Trusted sites ✓ Get sites add and remove websites from this zone. All sites in this zone will use the zone's security settings. Add the website to the zone: Web sites: 152.160.1.15 Require server verification (https://all sites in this zone) Close

Login Indicino IP 10.3.1.50 None Urote Password II Control Port 67 Data Port 58 OK Cancela

Screenshot of a digital audio workstation interface with playback controls and track controls

Interior view of a room with computer equipment and a close-up of a device (no visible text or symbols)

DynDNS.com About Services Account Support Here BRAK FREE Don't feel trapped. We're here to help. Escape your DNS with Dye Inc... New to DynDNS.com? This can see your new services and any other services DNS Services DNS for static and dynamic IP address Mailtop Services Ensure reliable email delivers Search

DynDNS.com About Services Account Support News One more step to go... We've sent an email to and click on the confirmation link. If you do not receive the email in the next few minutes you can try something it Thanks for choosing DynDNS.com

DynDNS.com Account Confirmed The account between has been confirmed. You can now have and start using your account. Setting Tested: • Create a generic DNS list with your own domain name • Create a generic DNS list within our DNS domains • Design email address • Support a domain name

DynDNS Account frdvrnew My Services View, modify, purchase, and delete your services. My Zones/Domains Add Zana/Domains Services My Hosts Add Host Services Dynamic DNS Pro Add New Hostname I mail https://www.dynDNS.org Hostname: DYNNEW - dynns.org Wildcat Status: Wildcat [User Wildcat support] Service Type: IP add with IP address Video Rednet Offline Hostname IP Address: 85.42.733.128 Use Auto defect: IP address 85.42.733.128 TTL value: 60 WSDMS: 200 TTL Mail Setting: Yes, let me configure email routing Add To Cut Esplorazione a schede - Windows Internet Explorer 192.168.1.1 File Modifica Visualizza Preferiti Strumenti ? Esplorazione a schede D-Link Wireless Service Gateway DSA-3100 Home Advanced Tools Status Help Virtual Server Tools No External Cookie Port Local Server IP Address Local Service Port Type Elements 1 67 192.168.1.15 67 TCP OOPP 2 68 192.168.1.15 68 TCP OOPP 3 80 192.168.1.15 80 TCP OOPP 4 5 6 7 8 9 10 TCP OOPP 11 TCP OOPP 12 TCP OOPP 13 TCP OOPP 14 TCP OOPP 15 TCP OOPP 16 TCP OOPP 17 TCP OOPP 18 TCP OOPP 19 TCP OOPP Apply Causal Help Home Advanced Tools Status Add dynamic DNS This page allows you to add a Dynamic DNS address from DynDNS.org or T20. DNS provide DynDNS.org HostName: SYNSTEX Ocular mg DynDNS Settings Username: Prcnare Password: ********_ Apply

Trusted sites ✓ You can add and remove webbouts from this zone. All webbouts in the zone will use the zone's security settings. Add this website to the zone: Add Websites: DVRNEW.dyndns.org Remove ☐ Require server verification (https) for all sites in the zone Close

Scanned image of a digital audio workstation interface with control panel and status bar visible

Four-panel photo collage showing indoor scenes with equipment and a control panel (no visible text or symbols)

Esc of start PTZ mode 22

11

Naar beneden/Delete 24

Tasto Funzione

Links

Rechts

Enter

Audio activeren of deactiveren/ Volgende

Front view of a black electronic device with multiple ports and indicator lights (no visible text or symbols)

Interior view of an electronic device showing internal components including a green circuit board, red connectors, and wiring (no visible text or labels)

Exterior view of a hard disk drive (no visible text or labels)

Internal view of a hard disk drive with visible circuit board and wiring (no text or symbols)

Interior view of a computer tower case showing internal components and ventilation slots (no visible text or symbols)

Back panel of a computer interface with ports, connectors, and a display (no visible text or symbols)

"Unformatted HDDs found. Do you want to format now?"

[ENTER]: Yes, [ESC]: Cancel".

Control Control Unrealized Media Source Do you want to install 2007 1987/01 344 (11%) LAD-61 P produzi di sioni e n i o n www.pouzi.edu.cn

Search By Time Year 2007 Month 5 Date 9 Hour 16 Minute 7 Video/Audio ✓ Alarm ✓ Motion ✓ Video Loss ✓ Normal [MODE]-Start searching Recorded from: 2007/05/02 13:53

Backup Device Devices Status - Configuration USB Drive - Connect Backup Restore USB DVD - Connect Backup Restore SD Card - Connect Backup Restore Status

Fig.A

Fig.B

Net type	Static IP E-mail	FTP	Adv.
Static IP	IP Address		192.168.1.15
	Net Mask		255.255.255.0
	Gateway		192.168.1.1
	DNS
PPPoE	Username
	Password
	DDNS Type		Dynamic
	URL
	DDNS Username
	DDNS Password
