USER MANUAL Reposo BN002 Baninni

(BN002)Congratulations on your purchase of this product! Please read all instructions before assembly and use of the swing.

www.baninni.com

CONTENTS

1. Parts list & drawings
   II. Assembly instructions
   III. Operating instructions
   IV. Warning
   V. Care & cleaning

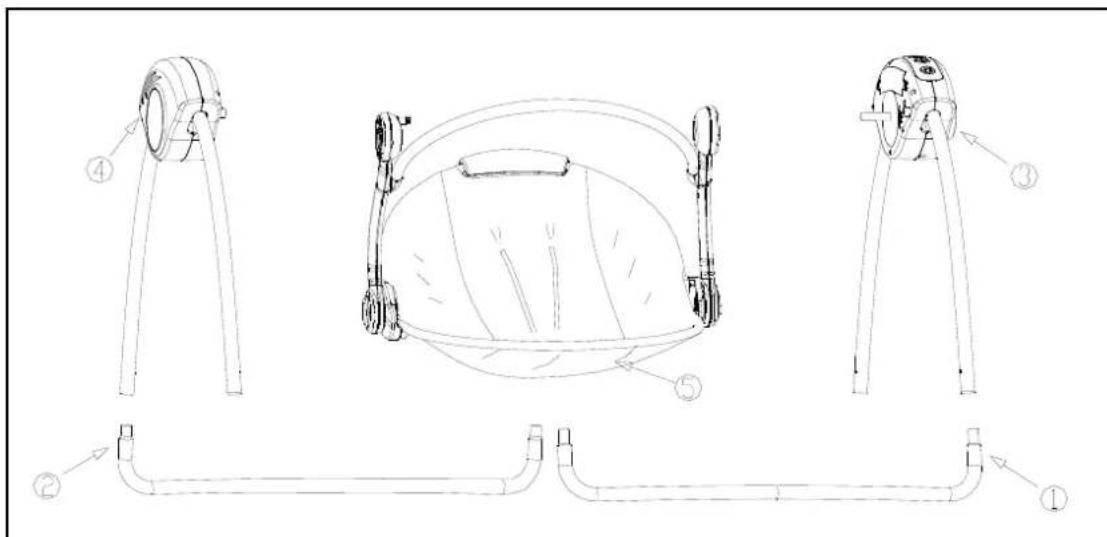

I. Parts list & drawings

No.	Description
1 Front base	frame tube
2 Rear base	frame tube
3 Right	frame/pivot assembly with swing control module
4 Left frame	pivot assembly
5	Seat pad

II. Assembly instructions

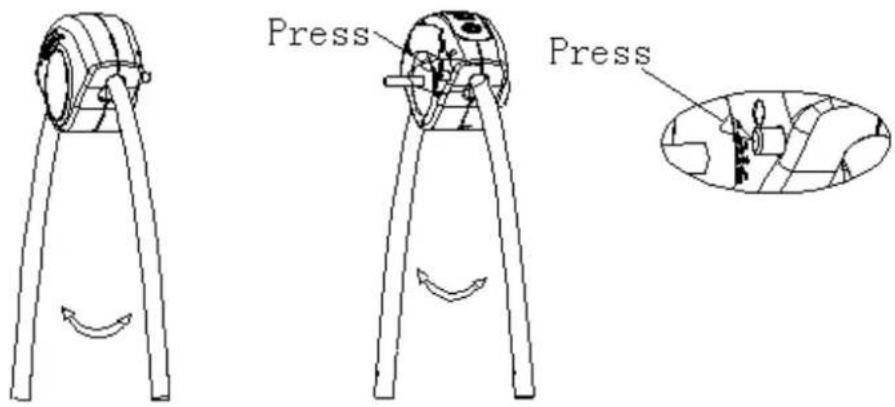

1) Locate the left and right frame/pivot assemblies.(The Speed Selector Knob and battery compartment are on the right frame pivot assembly)

Pivot the two frame tubes in each assembly apart. Ensure the tubes click into place in the open position. (While pressing the frame lock button, fold the frame tube as show arrows.)

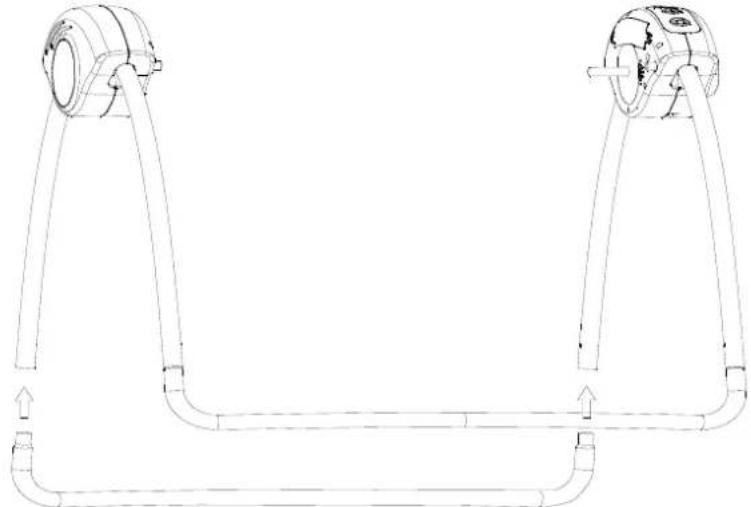

2) Inset each end of the tube into the rear tube of the left and right frame/pivot assemblies. Verify that the spring-loaded button at each corner of the left and right frame has clicked into place to secure the frame.

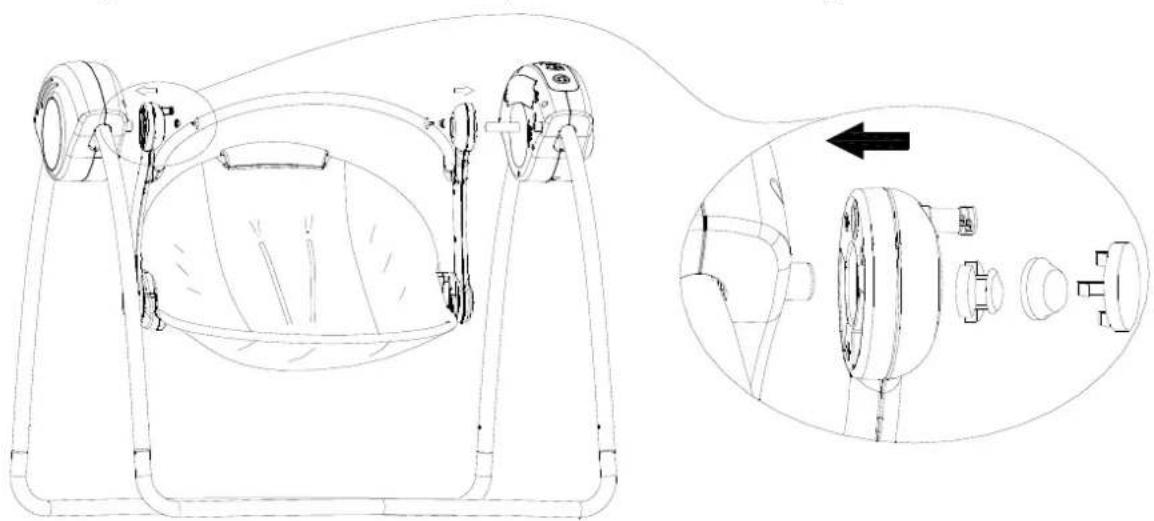

3) Assembly seat pad as shown arrow (Note: round head match round hole, half-round head match half-round hole)

Insert clip into the metal axis as shown arrow, make sure it click into the right slot to secure the seat frame.

4) Fold for storage and travel:

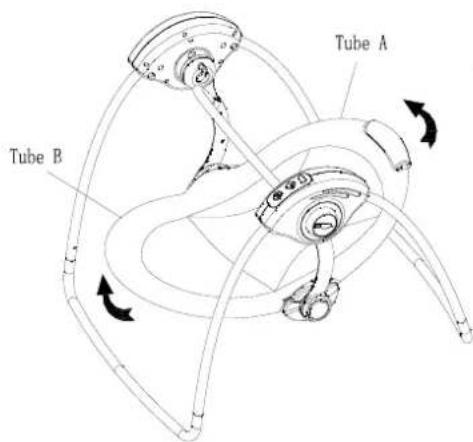

1. fold the seat frame up tube A and bottom tube B according to below arrow directions of picture 1

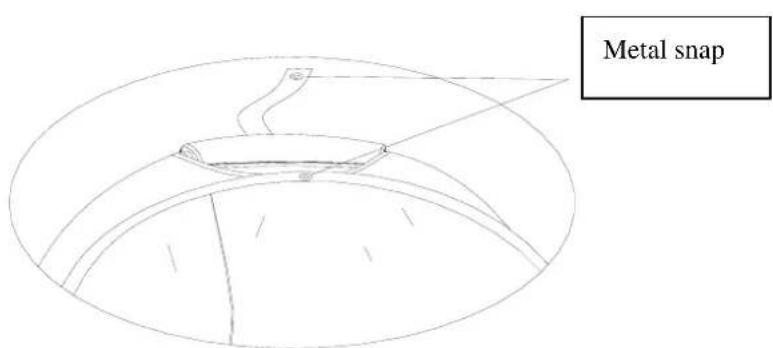

2. fasten the metal button according to picture 2

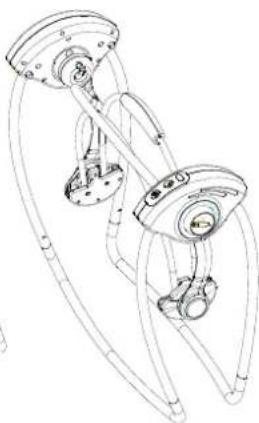

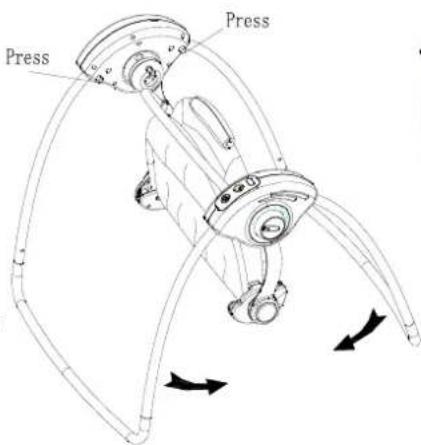

3.press the four buttons according to picture 3 to fold the swing frame, final effect like picture 3

Picture 1

Picture 2

Picture 3

5): if want to adjust the should tape height, please refer to below pictures.

Top slot, Bottom slot

Strap pulled through top slot

Strap turned and pushed through bottom slot

Strap pulled tight

IV. Operating instructions:

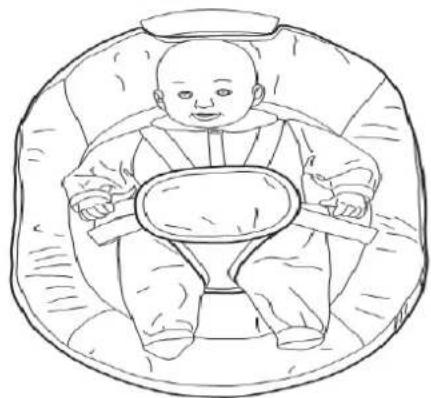

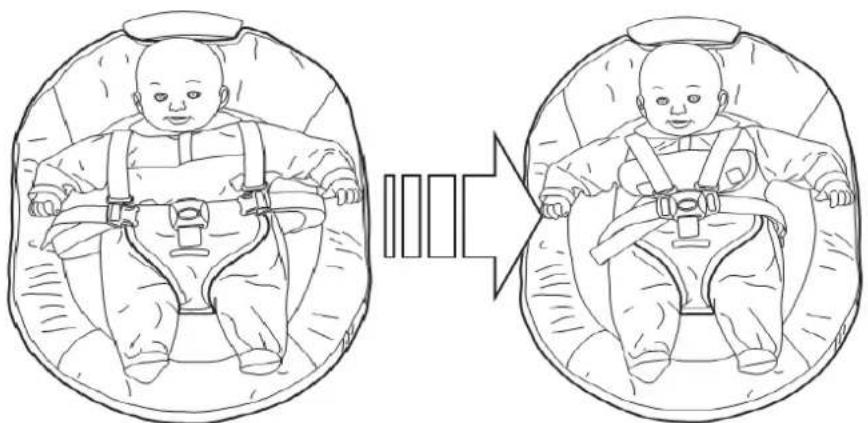

1) Place the infant in the seat as below shown. Insert the left and right sets of buckles into the restraint latch. Adjust the straps in the buckles as needed so that the restraint fits snugly, but not too tightly.

Warning! Please use adapter which is positive inside, negative outside.

2）Features

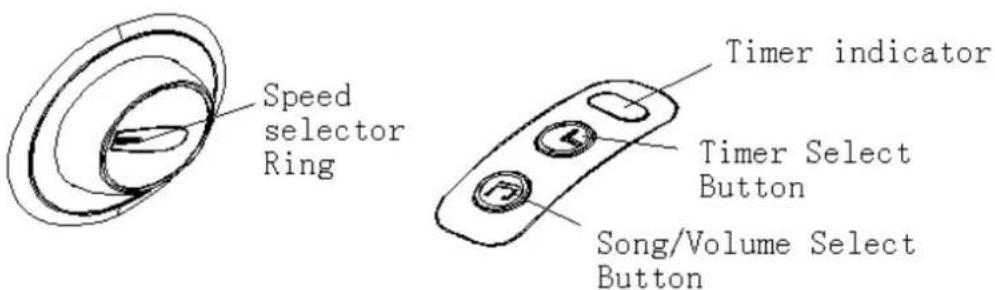

1: Our SCM control system provides steady motion to calm your baby. Turn the Speed Selector Knob clockwise to any of five positions to start the swing and select the speed. Turn the selector knob counter-clockwise to the first position to stop the swing.
2: Use the Swing Timer Select function to turn OFF the swing automatically. Press the button to sequence to the desired timer setting of 8,15 or 30 minutes. The three LEDs beside the button indicate the selected time period. If you do not select a timer setting(all LEDs are OFF),it will swinging all the time.
3: Press the Song/Volume Select Button to start a melody at low volume. Twelve different melodies will play. Press the button again to increase the volume to higher, press the button a five time to stop the music. Press the button a sixth time to play another new melody.
4: The swing control module requires 4 pcs AA size(1.5V) batteries(no included).Or use AC adapter require: output: Voltage:5-6V, Electric current:350-600mA.

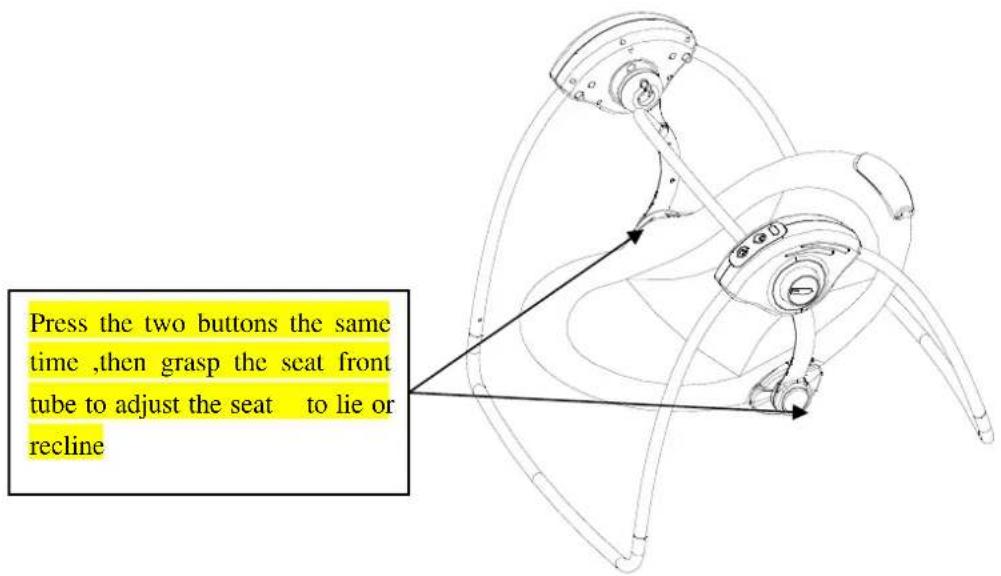

3) Two seat angle: baby can lie or recline

V.

WARNING

To Prevent Serious Injury or Death.

Warning! Please use adapter which is positive inside, negative outside.

1) Important! Keep for future reference.
2) Never leave the child unattended in the reclined cradle.
3) Not intended for carrying baby.
4) NEVER use for a baby who is able to sit upright unassisted.
(5) To prevent serious injury or death from falls and strangulation from the restraint system: ALWAYS use restraint system. NEVER use with an active child who may be able to climb out of the seat.
6) NEVER place a child under 6 lbs.(3kgs) or over 20 lbs.(9kgs) in the swing.
7) NEVER lift swing using the toy bar as a handle
8) NEVER move unit while child is in swing.
9) NOT for use in automobile or airline travel.
10) NEVER use as a car seat or infant carrier.
11) NEVER attach any additional strings or straps to product or toy bar.
12) Non-rechargeable batteries are not to be recharged.
13) Different types of batteries or new and used batteries are not to be mixed.
14) Batteries are to be inserted with the correct polarity.
15) Exhausted batteries are to be removed from the toy.
16) The supply terminals are not to be short-circuited.

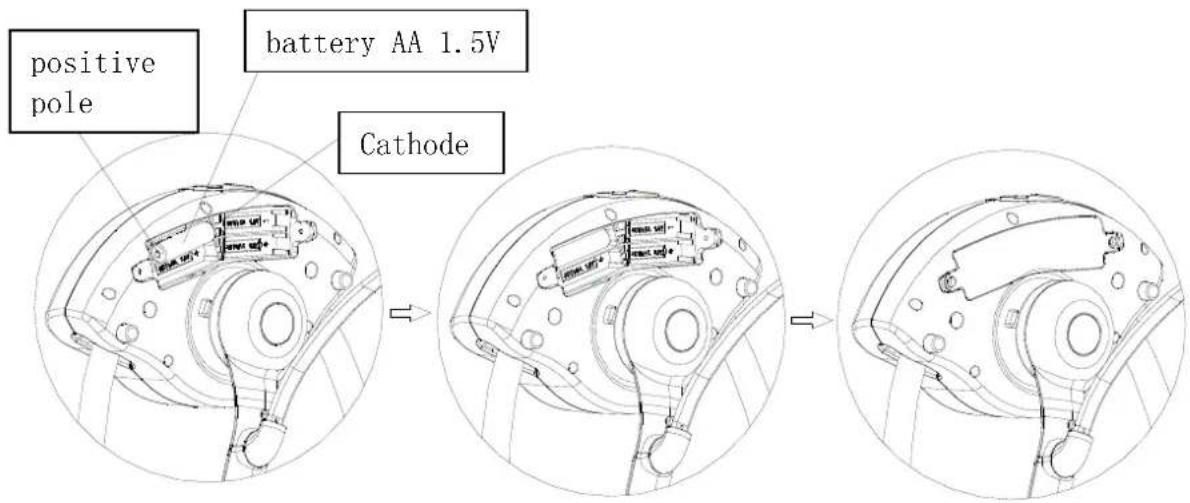

Battery installation and dismantlement: As shown in below picture, push negative pole of battery into with negative pole of battery jar(the side with spring) till battery positive pole is connect to positive pole of battery jar to install the batteries.

Take off the battery from positive part and push the spring of the battery jar to dismantle the batteries.

FALL HAZARD: Discontinue use of swing while infant can roll over or push up on hands and knees. Never place the swing on countertops, table, on or near steps or on other elevated surfaces. ALWAYS use on the floor.

SUFFOCATION HAZARD: NEVER use on soft surface, such as a bed, sofa, or cushion, as seat my tip over and cause suffocation.

PLEASE use and assemble this swing as instructions, Baninni will not be responsible for any wrong operations.

VI. Care and cleaning.

1) Seat pad: Remove from frame. Fasten Buckles on seat restraint and seat pad. Washing machine with cold water, gentle cycle. No bleach. Tumble dry, low heat.

Toy bar and toys: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.

Frame: Wipe the metal frame with soft, clean cloth and mild soap.

2) Basic maintenance:

NO.	Possible problems	Solutions
1 Music or swinging motion break off Maybe batteries exhausted or wrong assembly
2 When start-up, no response Check on batteries polarity right or not.
3 Long time storage Remove batteries.
4 Rock badly Check on the frame lock tube click into the right position or not.
