USER MANUAL Series 3000 S3530 PHILIPS

S3540, S3530, SS3520, S3510, S3130, S3120, S3110

English 6

Dansk 24

Deutsch 40

Espanol 61

Français 79

Italiano 100

Nederlands 121

Norsk 140

Portugués 156

Suomi 173

Svenska 189

Türkce 205

Elambda 221

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

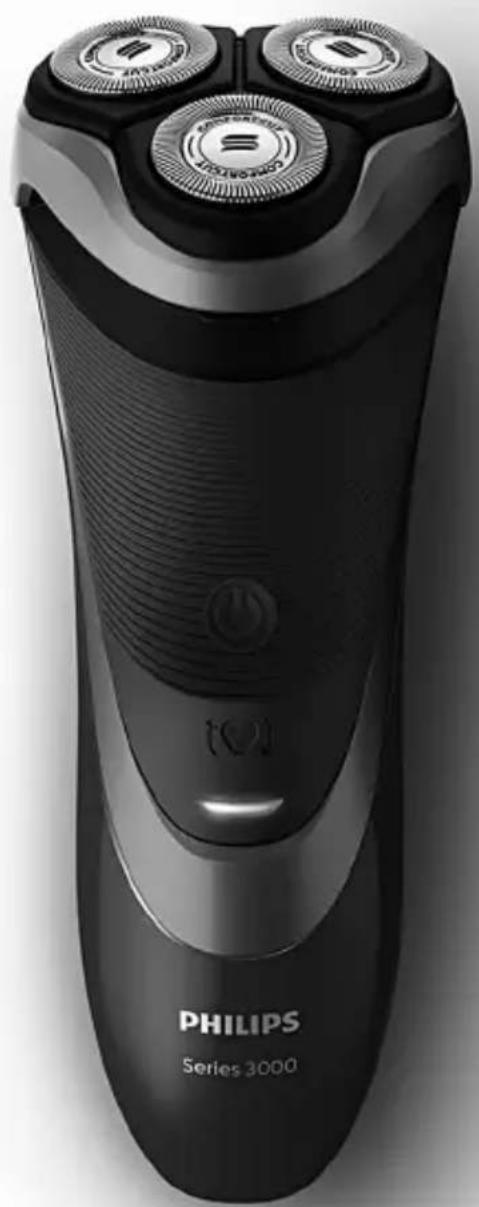

General description (Fig. 1)

1 Click-on stubble cap (S3520, S3510 only)
2 Shaving unit
3 Shaving unit release button
4 On/off button
5 Shaving head symbol
6 Charging light
7 Protection cap
8 Trimmer (S3540, S3530, S3520, S3510 only)
9 Trimmer release slidez (S3540, S3530, S3520, S3510 only)
10 Supply unit (adapter, type HQ8505)
11 Small plug

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

• Keep the supply unit dry.

Warning

• To charge the battery, only use the detachable supply unit (type HQ8505) provided with the appliance.

• The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Always unplug the shaver before you clean it under the tap.

• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

• Do not open the appliance to replace the rechargeable battery.

Caution

• Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
• Never immerse the shaver in water. Do not use the shaver in the bath or in the shower.
• Never use water hotter than 60^ C to rinse the shaver.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.

• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

• If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).

• Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.

• If your cleaning system uses a cleaning cartridge, always makes sure the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.

• When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.

• Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

• Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This shaver can be safely cleaned under the tap.
• The supply unit is suitable for mains voltages ranging from 100 to 240 volts.
• The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

It takes approx. 1 hour (S3540, S3530, S3520, S3510) or 8 hours (S3130, S3120, S3110) to fully charge the appliance. When you charge the appliance for the first time or after a long period of

disuse, let it charge until the charging light lights up continuously. A fully charged appliance provides up to 50 minutes (S3540, S3530, S3520, S3510) or 45 minutes (S3130, S3120, S3110) of shaving time. The shaving time may be less than 50 or 45 minutes as a result of your shaving behavior, your cleaning habits or your beard type.

Charging with the adapter

1 Put the small plug in the appliance.
2 Put the supply unit in the wall socket.

• The charging light shows the charging status of the appliance (see section 'Charge indications' in this chapter).

3 After charging, remove the supply unit from the wall socket and pull the small plug out of the appliance.

Charge indications

Battery low

• When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange.
• When you switch off the appliance, the charging light continues to flash orange for a few seconds.

Quick charging

When you start charging the empty battery, the charging light alternately flashes orange and green. After approx. 3 minutes the charging light starts flashing green only. The appliance now contains enough energy for a 5-minute shave.

12 English

Charging

• When the appliance is charging, the charging light flashes green.

Battery fully charged

• When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Using the appliance

Note: This appliance can be used without cord or when it is connected to the wall socket.

Shaving tips and tricks

• Make circular movements during use. Circular movements provide better shaving results than straight movements.

• Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

Switching the appliance on and off

1 To switch on the appliance, press the on/off button once.

2 To switch off the appliance, press the on/off button once.

Shaving

1 Switch on the appliance.

2 Move the shaving heads over your skin in circular movements.
3 After shaving, switch off the appliance.
4 Clean the appliance (see chapter 'Cleaning and maintenance').

Trimming (S3540, S3530, S3520, S3510 only)

You can use the trimmer to groom your sideburns and moustache.

1 Push the trimmer release slide downwards to open the trimmer.
2 Switch on the appliance.

• You can now start trimming.

3 After trimming, switch off the appliance.
4 Clean the trimmer (see chapter 'Cleaning and maintenance').

5 Close the trimmer ('click').

Trimming with click-on stubble cap (S3520, S3510 only)

You can use the click-on stubble cap to trim your beard to a length of a 3 day beard or to maintain a 1mm stubble look.

• For best trimming results with the click-on stubble cap, hair and skin should be dry.
• The maximum beard length for using the click-on

stubble cap is a 7 day beard.
- The click-on stubble cap is for trimming above the neck line only.

1 Place the click-on stubble cap on the appliance.

2 To switch on the appliance, press the on/off button once.

3 Gently press the appliance to your skin. Make both straight and circular movements to achieve the best result.

4 To switch off the appliance, press the on/off button once.

5 Pull off the stubble cap from the appliance.

6 Clean the appliance and the click-on stubble cap after each use.

Cleaning and maintenance

Danger: Remove the detachable cord from the handheld part before cleaning this part in water.

Caution: Never use compressed air, scouring pads, abrasive cleaning agents or aggressive

liquids such as petrol or acetone to clean the appliance.

• Clean the appliance after every shave for optimal shaving performance.
• Regular cleaning guarantees better shaving performance.
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the appliance when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Cleaning the shaving unit under the tap

1 Switch off the appliance and make sure it is disconnected from the wall socket.
2 Press the release button to open the shaving unit. Rinse the inside of the shaving unit and the hair chamber under a hot tap for 30 seconds.

• Rinse the outside of the shaving unit.
  3 Close the shaving unit and shake off excess water.

Caution: Be careful not to hit the shaving unit against anything while you shake off excess water.

Caution: Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving unit.

4 Open the shaving unit again and leave it open to let the appliance dry completely.

Thorough cleaning

Clean the shaving heads thoroughly once a month for optimal performance.

1 Switch off the appliance and make sure it is disconnected from the wall socket.
2 Press the release button to open the shaving unit. Pull the shaving unit off the appliance.
3 Turn the lock anticlockwise and remove the retaining frame.
4 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

• Remove the cutter from the shaving guard and clean both parts under the tap.

5 Put the cutter back into the guard.

6 Put the shaving heads back into the shaving unit.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses of the shaving head holder.

7 Put the retaining frame back into the shaving unit and turn the lock clockwise.

8 Insert the lug of the shaving unit into the slot in the top of the appliance. Then close the shaving unit ('click').

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Cleaning the trimmer under the tap (S3520, S3510 only)

Clean the trimmer every time you have used it.

1 Switch off the appliance and make sure it is disconnected from the wall socket.

2 Push the trimmer release slide downwards to open the trimmer.

3 Switch on the appliance and clean the trimmer under the tap.

4 Switch off the appliance and leave the trimmer open to let it dry.

5 Close the trimmer ('click').

Tip: For optimal trimming performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the click-on stubble cap (S3520, S3510 only)

Clean the click-on stubble cap after every trim for optimal performance.

Be careful with hot water. Always check if the water is not too hot, to prevent burning your hands.

Never dry the stubble cap with a towel or tissue, as this may damage the stubble cap.

1 Remove the stubble cap from the appliance.

2 Rinse the stubble cap under a warm tap.

3 Carefully shake off excess water and let the stubble cap air dry.

Storage

Note: We advise you to let the appliance dry before you put the protection cap on it.

Put the protection cap on the appliance to prevent damage.

Replacement

For maximum shaving performance, we advise you to replace the shaving heads every two years. Replace damaged shaving heads immediately. Always replace the shaving heads with original Philips shaving heads' (see 'Ordering accessories').

Replacement reminder

The shaving unit symbol will light up to indicate that the shaving heads need to be replaced.

English

1 The shaving unit symbol lights up orange continuously.
2 Switch off the appliance and make sure it is disconnected from the wall socket.
3 Press the release button to open the shaving unit. Pull the shaving unit off the appliance.
4 Turn the lock anticlockwise and remove the retaining frame.
5 Remove the shaving heads from the shaving unit and throw them away.
6 Place new shaving heads in the shaving unit. Note: Make sure that the projections of the shaving heads fit exactly into the recesses of the shaving head holder.
7 Put the retaining frame back into the shaving unit and turn the lock clockwise.

8 Insert the lug of the shaving unit into the slot in the top of the appliance. Then close the shaving unit ('click').

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light goes out.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

The following accessories and spare parts are available:

• SH30 Philips Shaving Heads.

HQ110 Philips shaving head cleaning spray

Recycling

• This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

22 English

• This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.
• Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The appliance does not shave as well as it used to.

The shaving heads are damaged or worn.

Replace the shaving heads (see chapter 'Replacement').

Problem Possible cause Solution

	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see chapter 'Cleaning and maintenance').
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see chapter 'Cleaning and maintenance').
The appliance does not work when I press the on/off button.	The rechargeable battery is empty.	Recharge the battery (see chapter 'Charging').
	The temperature of the appliance is too high. In this case, the appliance does not work.	As soon as the temperature of the appliance has dropped sufficiently, you can switch on the appliance again.
