EN - Bicycle holder, towbar mounted

Preparations 16

Transportation. 19

Adjustment 22

Holder for extra bicycle 25

Instructions towbar mounted bicycle holder 27

EN Bicycle holder, towbar mounted

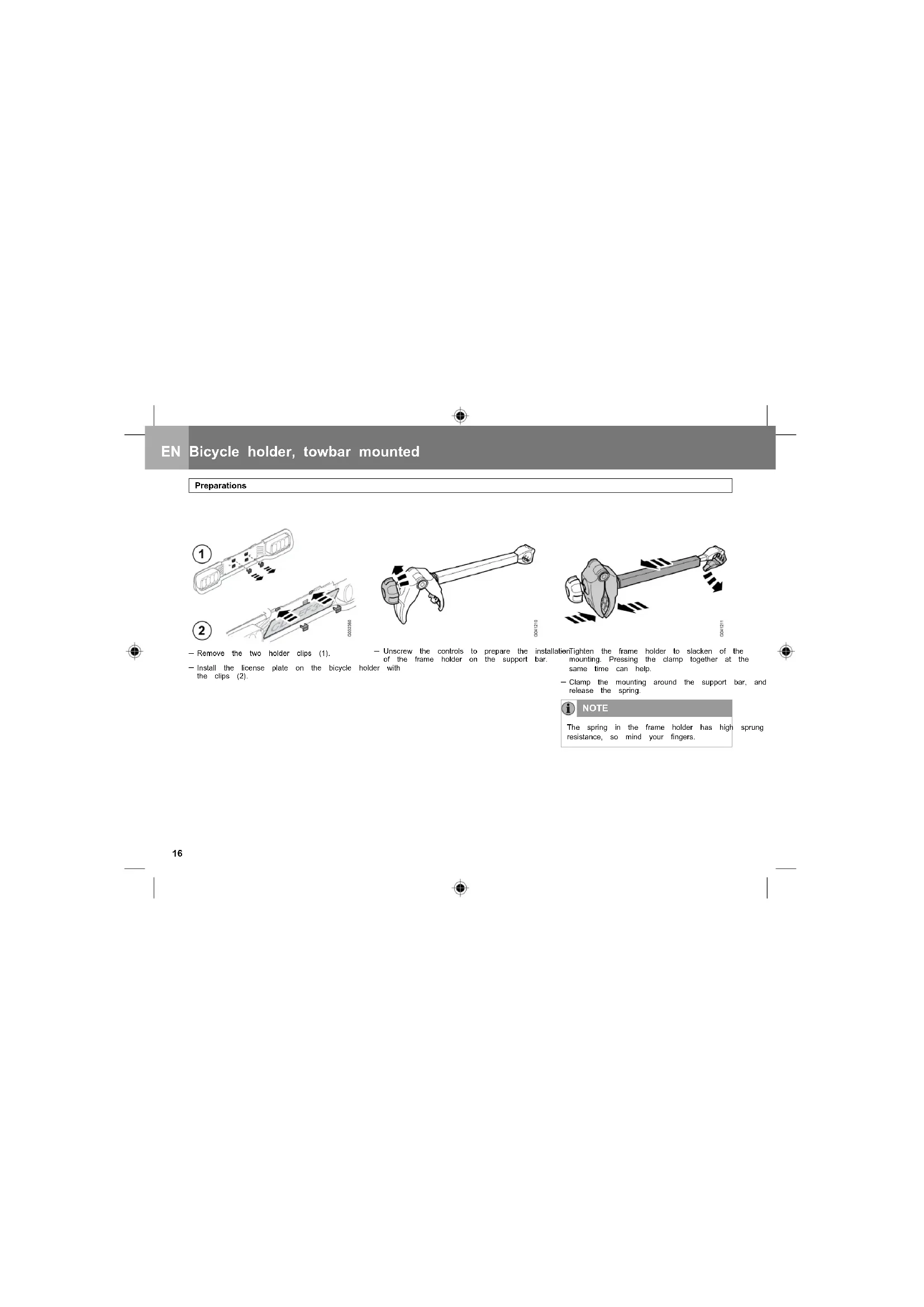

Preparations

• Remove the two holder clips (1).

• Install the license plate on the bicycle holder with the clips (2).

• Unscrew the controls to prepare the of the frame holder as the required

installation#f#hen the frame holder to slacken of the bar. mounting. Pressing the clamp together at the same time can help.

• Clamp the mounting around the support bar, and release the spring.

NOTE

The spring in the frame holder has high sprung resistance, so mind your fingers.

Bicycle holder, towbar mounted EN

Preparations
- Pull the frame holders to the correct

Install the support arc in the holders and into position.

seldock and pull the striker plate back on the tensioner arm. Check the symbol on the striker plate.

EN Bicycle holder, towbar mounted

Preparations

-Fold the tensioner arm up.

Wipe the towbar clean.
Install the bicycle holder on the towbar.

- Move the striker plate forward, lock and remove the key.
- Check the symbol on the striker plate.

NOTE

There must be at least a 65 mm distance between the bumper and centre of the tow ball.

NOTE

Take care not to damage the bumper.

• Fold the tensioner arm down completely.

Bicycle holder, towbar mounted EN

Transportation.

Install the bicycle(s) on the bicycle holder. - Secure the bicycle with the frame holder. - Tighten the wheels using the straps.

• Overlap the bicycles if more than one is to be loaded onto the holder. Place the heaviest bicycle innermost.
• Check that the handlebar of the innermost bicycle does not lie against the tailgate of the car. If necessary, slacken off the handlebars and turn them or move the bicycle out one position.

NOTE

Remember that the exhaust gases from the car are hot and can affect the bicycle holder or its load. This especially applies to plastic parts. If necessary, you should route the exhaust gases away from the bicycle holder.

EN Bicycle holder, towbar mounted

Transportation.

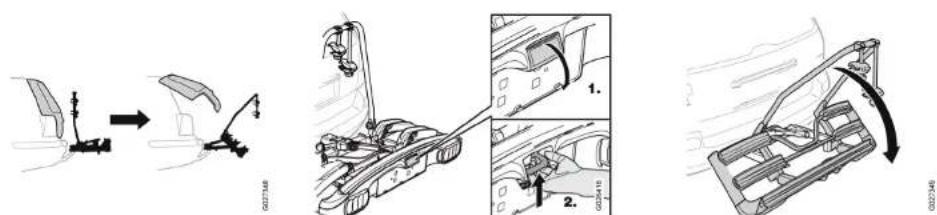

In order to open the tailgate on five doors, the cover down, which is located above Atthe the bicycle holder backwards. the bicycle holder can be angled backwards. holder for the license plate.

• Pull up the catch handle.

Bicycle holder, towbar mounted EN

Transportation.

Fold up the bicycle holder until it locks with a clear click sound.

• Check that the bicycle holder is properly locked in the folded up position.

• Fold up the cover.

EN Bicycle holder, towbar mounted

Adjustment

Opening angle

• The bicycle holder can be angled back to - Slacken off the stop screws on both sides.- Install the stop screws in the upper positions.

facilitate opening the tailgate. The opening angle

can be adjusted. Moving the stop screws

increases the opening angle (70^)

Bicycle holder, towbar mounted EN

Adjustment
Attachment

The pressure that is required to attach the -baden off the adjuster screws.

holder to the towbar is 50kg (500 N). If the bicycle holder can be turned on the towbar, or if the torsioner arm is too stiff to fold down, adjust the attachment pressure.

If the bicycle holder is too loose, turn the protractor upwards.
- If the tensioner arm is too stiff to fold down, turn the protractor downwards.

EN Bicycle holder, towbar mounted

Adjustment

Tighten the adjuster screws.

24

Bicycle holder, towbar mounted EN

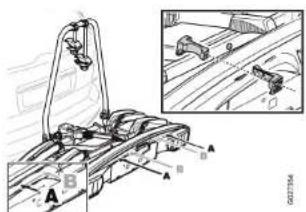

Holder for extra bicycle

Install the wheel holders

Install them in position A for 16" bicycles

larger

Install in position B for 12*-16bicycles

Install the straps. Use the supplied

andre screws.

Install the frame holder and secure the bicycles.

EN Bicycle holder, towbar mounted

Holder for extra bicycle

Tighten the wheels using the straps.

12"-16" bicycles
- Place the strap on the outside to prevent the excess hiding the license plate.

Bicycle holder, towbar mounted EN

Instructions towbar mounted bicycle holder

Maximum load: 80 kg (ball pressure load). Always follow applicable speed limits and other traffic laws.
- The speed must be adjusted to the prevailing
Maximum weight per bicycle: 20 kg. conditions, but must never exceed 130 km/h.
The vehicle driver has the sole responsibility for syndem bicycles must not be transported.

the product being free from defects and securely fastened. -Volvo takes no responsibility for personal injuries

Before a journey, the function of the lighting equipment to prevent damage to property and structural elements. Losses, caused by incorrect mounting or use.

• Do not leave any loose items on the bicycle product must not be modified during transportation.

• Check that the straps and other mountings are secure and post tighten as necessary.

• The length of the car increases when the bicycle holder is installed. The bicycles can add to the width and height of the car. Take care when reversing.
• Replace any worn or damaged parts immediately.
• The bicycle holder must always be locked during a journey.
• The driving characteristics of the car may differ when cornering and under braking when the product is installed.
