Product type	Wine cellar (wine refrigerator)
Brand	Teka
Model	RVI 35
Approximate capacity	35 bottles
Main functions	Cooling, electronic temperature regulation, automatic defrosting, LED interior lighting
Accessories	Wooden shelves, bottle holders, odor filter
Temperature adjustment	Thermostat adjustment knob (min/max) and quick cooling button
Light indicators	Green LED (running), orange LED (quick cooling), red LED (temperature alarm)
Child safety	Door lock (key not supplied, keep out of reach of children)
Power supply	220-240 V, 50 Hz (standard estimate)
Maintenance and cleaning	Clean with warm water and baking soda; do not use gasoline or abrasive products
Defrosting	Automatic; water evaporates via a drain hose
Recycling	Compliant with WEEE directive (2002/96/EC); do not dispose with household waste

Frequently Asked Questions - RVI 35 TEKA

How to adjust the temperature of the Teka RVI 35 wine cellar?

Use the thermostat adjustment knob (min/max) on the control panel. For quick cooling, press the quick cooling button (the orange LED lights up). Press again to deactivate once the desired temperature is reached.

How to defrost the appliance?

Defrosting is automatic. The defrost water flows into a groove and evaporates in the evaporator. You do not need to intervene. Simply keep the ventilation openings clear.

What to do in case of condensation on the interior walls?

Condensation can occur in case of high ambient humidity or frequent door openings. Reduce openings, wipe condensation with a dry cloth, and check that the door closes properly. If necessary, set the thermostat to a cooler level.

How to clean the interior of the wine cellar?

Unplug the appliance. Use a damp cloth soaked in a solution of one teaspoon of baking soda to half a liter of warm water. Dry thoroughly. Never use gasoline, benzene, or abrasive products.

Can I store all types of wines in the Teka RVI 35 wine cellar?

Yes, it is suitable for all wines. Respect the recommended serving temperatures: sweet white wines at 6°C, dry whites at 8-10°C, dry reds at 16-18°C. Open bottles keep for 2 to 7 days depending on type and fill level.

How to correctly install the appliance?

Place the wine cellar in a location away from direct sunlight and heat sources (minimum distance 30 cm). Leave at least 5 cm of space around for ventilation. Ensure the floor is level and sturdy. Plug into a grounded outlet.

What does the red light continuously lit mean?

The red LED stays on if the door has been left open for a long time, if the appliance is overloaded, or if the internal temperature is too high. If none of these causes are obvious, contact customer service.

How to replace the interior lighting?

The lighting module must be replaced by a qualified professional. Please contact customer service to perform this operation safely.

What to do if the appliance does not cool?

First check that the appliance is properly plugged in and that the fuse has not blown. Make sure the thermostat is not set to the minimum position. If the problem persists, wait 6 minutes after a power cut (thermal protection). Contact customer service if nothing works.

How to save energy with the wine cellar?

Do not leave the door open for a long time. Do not place hot foods inside. Do not overload the appliance. Install it away from heat sources. Use sealed containers. Thaw food in the refrigerator to save energy.

USER MANUAL RVI 35 TEKA

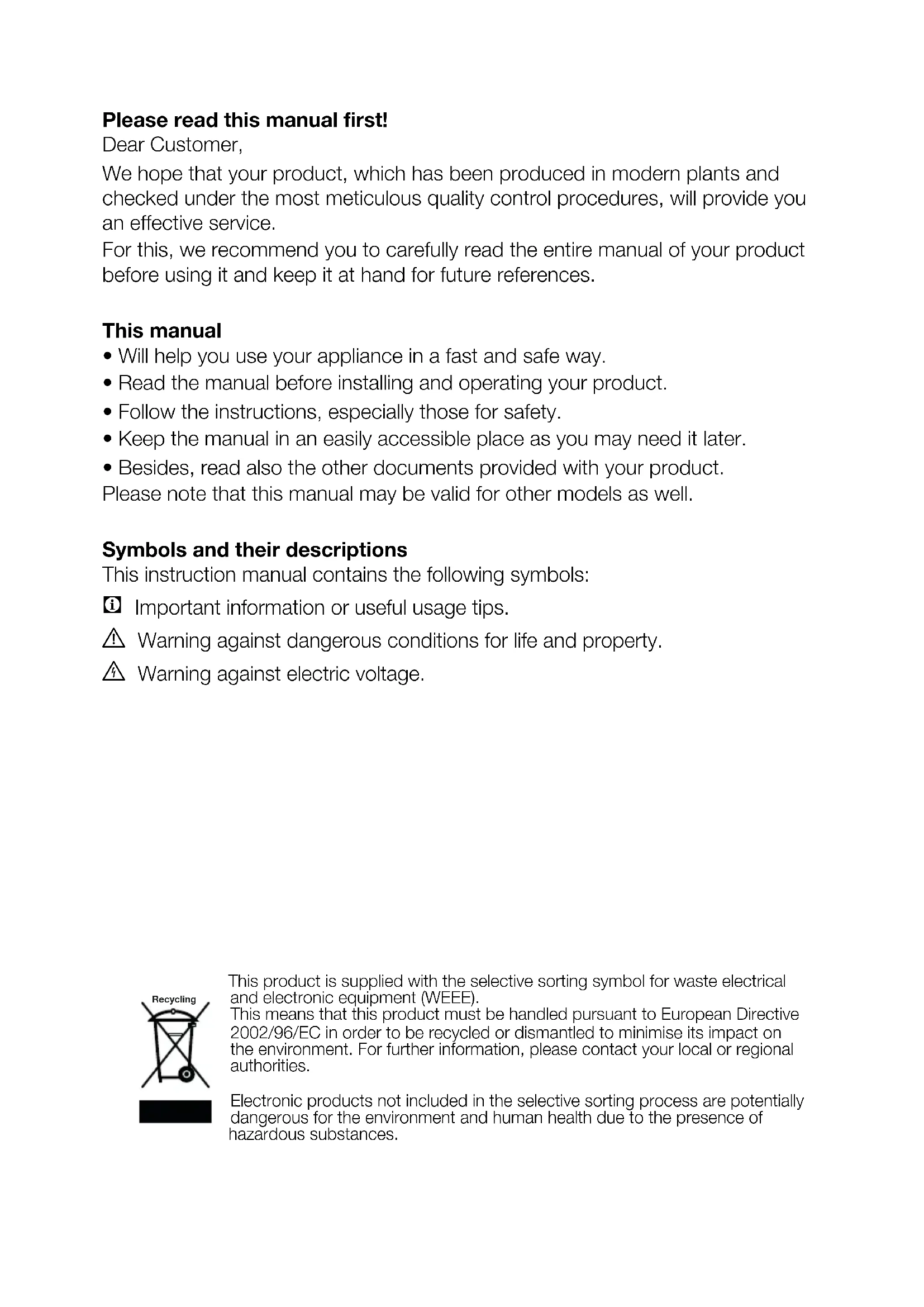

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product. Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

Important information or useful usage tips. Warning against dangerous conditions for life and property. Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use 4

For products with a water dispenser; .6

Child safety 6

HCA Warning 6

Things to be done for energy saving ..7

3 Installation 8

Points to be considered when re-transporting your refrigerator .8

Before operating your refrigerator ....8

Disposing of the packaging 9

Disposing of your old refrigerator ....9

Placing and Installation 9

4 Preparation 10

5 Using your refrigerator 11

Temperature setting button 11

Defrost 11

Using the accessories 11

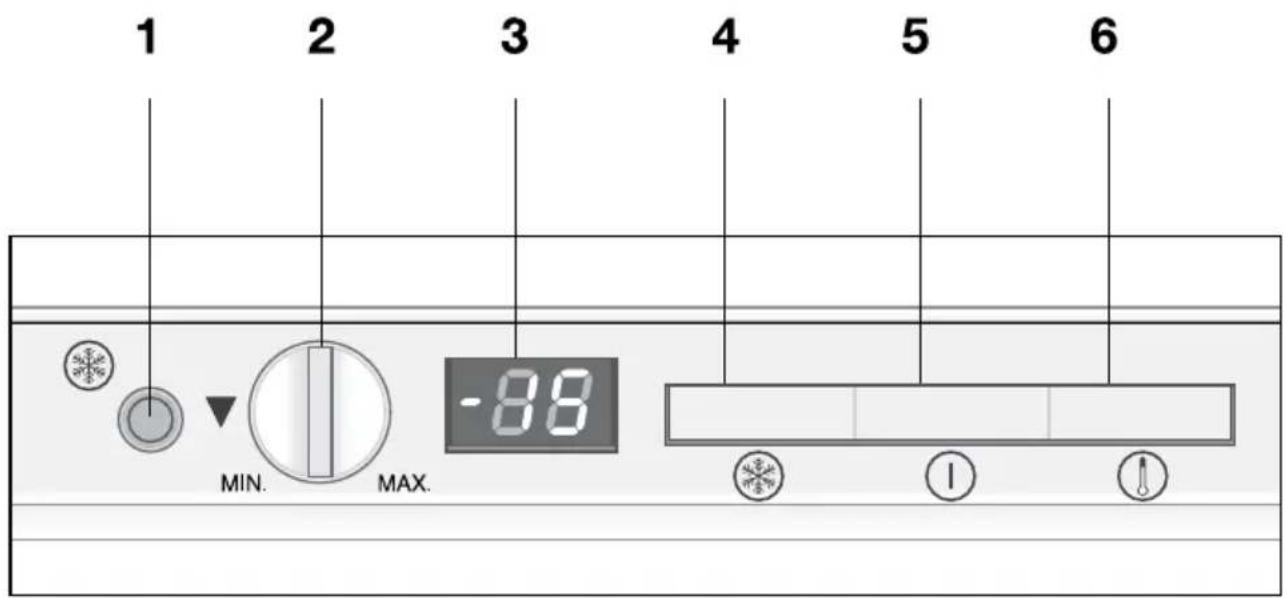

LED indicators and control panel ....13

Replacing the interior light module ...13

6 Maintenance and cleaning 14

Protection of plastic surfaces 14

7 Recommended solutions for the problems 15

1 Your refrigerator

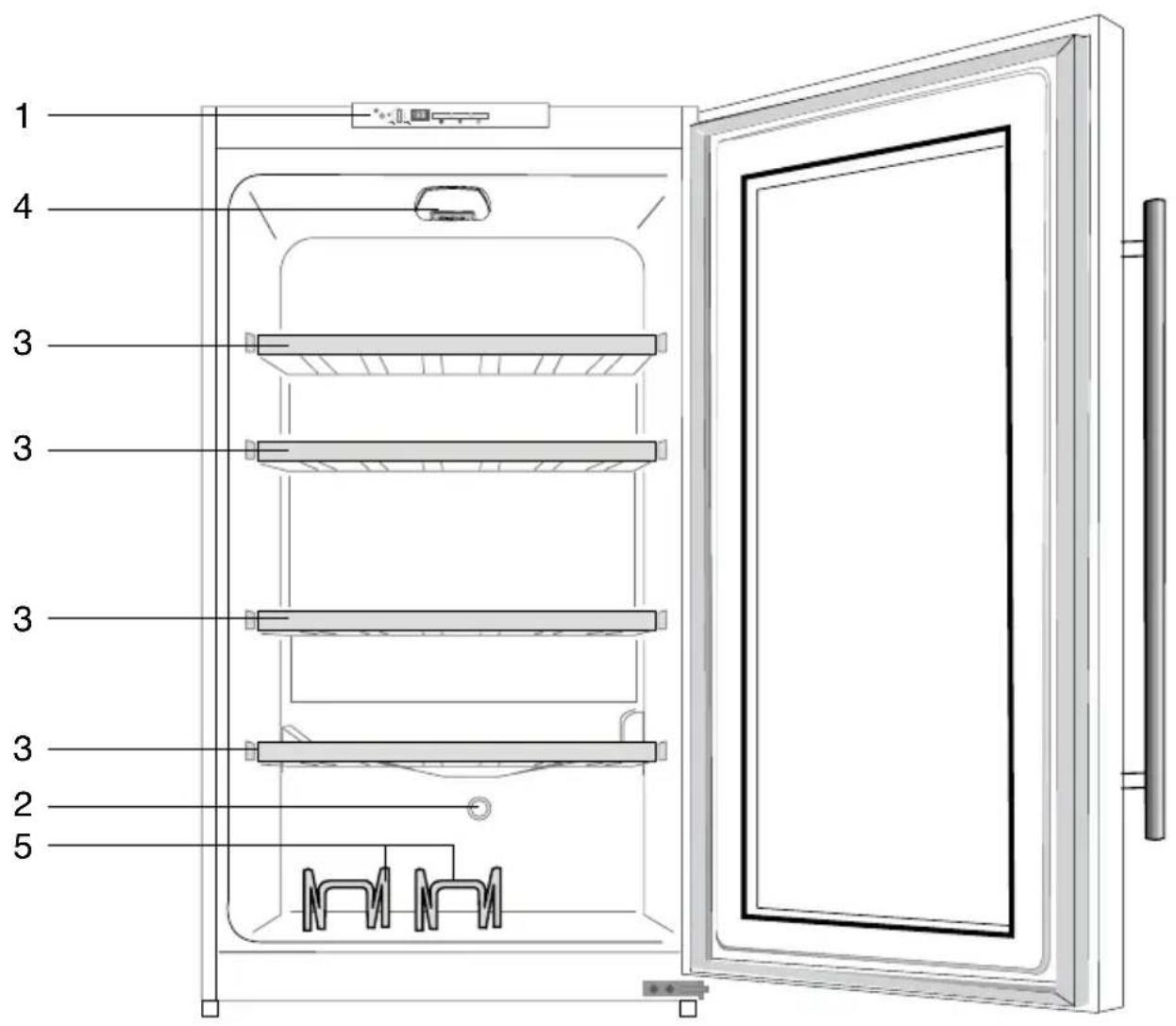

1- Electronic control indicator panel 2- Odor filter 3- Wooden body shelf 4- Ceiling light 5- Bottle holder

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

- indoors and in closed areas such as homes; - in closed working environments such as stores and offices; - in closed accommodation areas such as farm houses, hotels, pensions. - This product should not be used outdoors.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorized services.
• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)
• For products with a freezer compartment; Do not put bottled and

canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand; they may stick to your hand.
• Unplug your refrigerator before cleaning or defrosting.
• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.
• Never use the parts on your refrigerator such as the door as a means of support or step.
• Do not use electrical devices inside the refrigerator.
• Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
• Electrical devices must be repaired only by authorized persons. Repairs performed by incompetent persons create a risk for the user.
• In case of any failure or during maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.
• Do not pull by the cable when pulling off the plug.
• Place beverages with higher proofs tightly closed and vertically.
• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product.
• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact authorized service when there is a power cable damage to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended for storing food items only. It must not be used for any other purpose.
• The label with technical specifications is located on the left wall inside the refrigerator.
• Never connect your refrigerator to electricity-saving systems; they may

damage the refrigerator.

• If there is a blue light on the refrigerator, do not look at it with optical tools.
• For manually controlled refrigerators, wait at least 5 minutes before restarting after a power failure. This operation manual should be handed over to the new owner if the product is given to someone else.

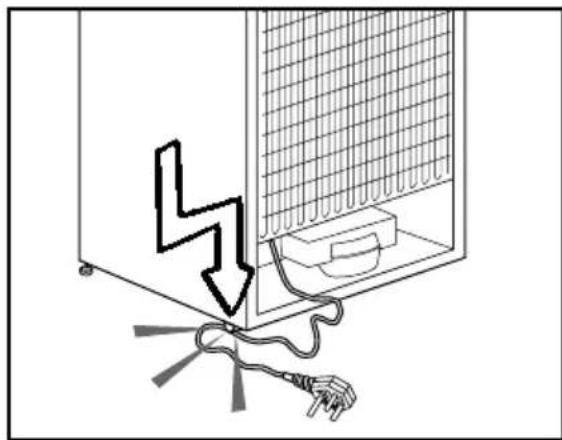

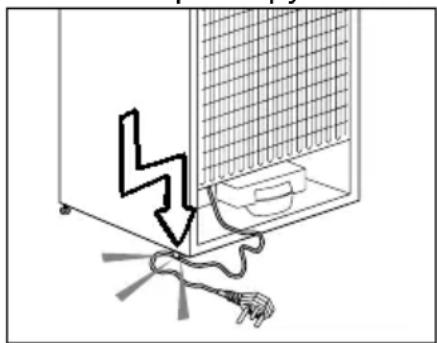

• Avoid damaging the power cable when transporting the refrigerator. Bending the cable may cause fire. Never place heavy objects on the power cable. Do not touch the plug with wet hands when plugging in the product.
• Do not plug in the refrigerator if the wall outlet is loose.
• Do not spray water directly on the inner or outer parts of the product for safety reasons.
• Do not spray substances containing flammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
• Never place containers filled with water on top of the refrigerator, as this may cause electric shock or fire.
• Do not overload your refrigerator with excessive amounts of food. If overloaded, food items may fall and hurt you or damage the refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, they may fall when you open or close the door.

• Vaccines, heat-sensitive medicine, scientific materials, and similar items requiring precise temperatures should not be kept in the refrigerator. If the refrigerator will not be used for a long time, unplug it. A possible problem in the power cable may cause fire.
• The plug's tip should be cleaned regularly; otherwise, it may cause fire.
• The refrigerator may move if the adjustable legs are not properly secured on the floor. Properly securing the adjustable legs can prevent the refrigerator from moving.
• When carrying the refrigerator, do not hold it from the door handle. Otherwise, it may snap.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8 cm. Otherwise, adjacent side walls may become humid.

For products with a water dispenser:

The pressure of the water mains should be minimum 1 bar and maximum 8 bars.

• Use only potable water.

Child safety

If the door has a lock, the key should be kept away from the reach of children. Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that could cause the product to catch fire, and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

The type of gas used in the product is stated on the type plate, which is on the left wall inside the refrigerator.

Never throw the product into fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.
• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation

Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator, check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?
2. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.
3. Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on.
4. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running, and this is quite normal.
5. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• The specified voltage must be equal to your mains voltage.
• Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician. The product must not be operated before it is repaired! There is a danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

• You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

1. Install your refrigerator in a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places, and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance from the ceiling and at least 5 cm from the wall.

If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

1. Place your refrigerator on an even floor surface to prevent jolts.
2. Do not keep your refrigerator in ambient temperatures under 10°C.

4 Preparation

1. Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heaters, and stoves, and at least 5 cm away from electrical ovens. It should not be located under direct sunlight. The ambient temperature of the room where you install your refrigerator should be at least 10°C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency. Please make sure that the interior of your refrigerator is cleaned thoroughly. If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them. When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the "Recommended solutions for the problems" section.

Original packaging and foam materials should be kept for future transportations or moving.

Temperature setting button

The interior temperature of your refrigerator changes for the following reasons:

• Seasonal temperatures,
• Frequent opening of the door and leaving the door open for long periods,
• Food put into the refrigerator without cooling down to room temperature,
• The location of the refrigerator in the room (e.g., exposing to sunlight). If you want to make the compartment temperatures cooler or hotter, you can change this by pressing the button of the relevant compartment.

Defrost

It is normal that ice crystals build up on the surface of the rear wall of your refrigerator while it is operating. There is no need to scrape or wipe them off. Your refrigerator defrosts automatically. Water resulting from the defrosting passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself.

Using the accessories

Bottle holder

You can use this bottle holder to serve drinks on tables or counters.

Useful information

1- Suggestions on opening time of the wine before it is tasted:

Normal quality wines Just before	drinking
Quality white wines Approximately 10 minutes before
Young red wines Approximately 10 minutes before
Dense and mature red wines Approximately 3-60 minutes before

2- How long can an opened wine be stored?

The mouth of wine bottles that you did not fully consume after opening and intend to store for later drinking must be securely closed, and the bottle must be stored in a cool, dry place. Carbon dioxide in the wine mixes into the air (evaporates) together with various valuable aromatic substances, and thus the bouquet and taste of the wine lose their freshness.

Therefore, the best and most enjoyable option is to completely consume opened wines and those at their best time to drink.

However, wines that are securely closed can be stored in cool places for the following periods (not advised).

Normal and quality white wines, normal and high quality red wines

%75 Full bottle 3 – 5 days 4 –	7 days
%50 Full bottle 2 – 3 days 3 –	5 days
Less 1 days 2 days

3- Suggested optimum service temperatures of some wines

6 °C Sweet white wines
6 – 8 °C Semidry white and	sparkling wine
8 – 10 °C Dry white and dry	rose
16 – 18 °C Dry red wines

Silver

Inner surfaces of the refrigerator are rendered antibacterial by means of the silver-ion additive. Thus, growth and reproduction of bacteria on interior body parts are prevented.

LED indicators and control panel

LED indicators in the front section of your refrigerator are intended to help you monitor the operation of your appliance.

Keep your food in the refrigerator in a safe manner by monitoring and using these LEDs and controls as explained below:

Quick Cool Button (1): Used to cool the food quickly. The compressor may not operate immediately but after some time when the button is pressed, and this is quite normal.

Thermostat Setting Button (2): Used to set your refrigerator between minimum and maximum values.

Temperature Indicator (3): Displays the inner temperature of your refrigerator.

Orange LED (4): Lights up when the quick cool button on the LED panel is pressed. In this case, your refrigerator operates continuously.

Press the button again when the food you would like to quick cool comes to the desired temperature and the orange LED will turn off.

Green LED (5): Lights up continuously after plugging in your refrigerator.

Red LED (6): It warns you by lighting up continuously when your refrigerator starts to operate, if not enough cooling effect is obtained, when the door of your refrigerator remains open for a long time, and when excessive food is loaded.

If the red LED lights up continuously when the conditions stated in the adjacent column do not exist, then call our Authorized Service.

Replacing the interior light module

To change the light module of your refrigerator, please call your Authorized Service.

6 Maintenance and cleaning

Never use gasoline, benzene, or similar substances for cleaning purposes. We recommend that you unplug the appliance before cleaning. Never use any sharp abrasive instrument, soap, household cleaner, detergent, or wax polish for cleaning. Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry. Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. Make sure that no water enters the lamp housing and other electrical items. If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it, and leave the door ajar. Check door seals regularly to ensure they are clean and free from food particles. To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

1. Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket. • Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree. • Decreasing the time the door left open or using it less frequently. • Covering the food stored in open containers with a suitable material. • Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period. • The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically. • Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket. • Are the temperature adjustments correctly made? • Power might be cut off.

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. • The ambient room temperature may be high. This is quite normal. • The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer. • Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature. • Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for long periods. Open the doors less frequently. • Freezer or fridge compartment door might have been left ajar. Check if the door are tightly closed. • The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved. • Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the free temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level. • Doors might have been opened frequently or left ajar for a long time; open the less frequently. • Door might have been left ajar; close the door completely. • Large amount of hot food might have been put in the refrigerator recently. Was until the fridge or freezer reaches the desired temperature. • The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

· The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

· The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level. · The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

· Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

· Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

· Hot and humid weather increases icing and condensation. It is normal and not a fault. · Doors might have been left ajar; make sure that the doors are closed fully. · Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

· There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

· Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water. · Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

· Food packages may prevent the door's closing. Replace the packages that are obstructing the door. · The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws. · The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

· The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Dear customer,

Preparation for use 8

Unpacking 9

Disposal of the old refrigerator ....9

Placement and installation. 9

4 Preparation 10

5 Operation of the refrigerator 11

Temperature control button 11

Defrosting 11

Use of accessories 11

Light indicators and control panel 13

Replacing the interior lighting unit 13

6 Maintenance and cleaning 14

3. Safety of surfaces 14

7. Recommendations for troubleshooting 15

1- Indicator panel of electronic control 2- Air filter 3- Wooden housing base 4- Ceiling lighting 5- Bottle holder

The illustrations in this manual are schematic and may differ from your model. If some components are not included in the purchased device, they are valid for other models.

2. Important safety instructions

Be sure to read the following information. Failure to follow these instructions may result in injury or property damage. In addition, warranty and reliability obligations are void.

The service life of the purchased device is 10 years. This is the period during which spare parts necessary for normal operation of the device are provided.

Intended use

• This appliance is intended for domestic use and also for use in the following conditions:
• In kitchen areas for staff in shops, offices and other working environments;
• In farmhouses, as well as for clients in hotels, motels and other residential environments; in bed and breakfast type establishments; for catering and similar non-retail applications.
• This appliance is intended for indoor use only. It must not be used outdoors, even under a roof.

General safety rules

If it becomes necessary to dispose of or scrap the appliance, it is recommended to contact the authorized service center and local authorities for the necessary information. For any questions regarding the appliance, contact the authorized service center. Do not interfere with the operation of the appliance and do not allow others to do so without the authorization of the authorized service center.

Do not eat ice cream or ice cubes immediately after removing them from the freezer! This may cause frostbite to the oral cavity. Do not place beverages in bottles or cans in the freezer compartment, as they may burst. Do not touch frozen products; they may stick to your hands. Never use steam cleaners or aerosol devices for defrosting the refrigerator. In this case, steam may reach electrical components, leading to a short circuit or electric shock. Never use the refrigerator or its parts (e.g., the door) as a support or stand. Do not use electrical appliances inside the refrigerator. Do not damage the refrigeration circuit, which contains the refrigerant, for example, by piercing or drilling with tools. Refrigerant may escape from a damaged evaporator, piping, or surface coating and cause skin irritation and eye damage. - Never cover or block the ventilation openings of the refrigerator. - Repair of electrical equipment must be carried out only by qualified specialists. Repairs performed by incompetent persons may create a hazard for the consumer.

In case of malfunction during operation, as well as during maintenance or repair, disconnect the refrigerator by switching off the corresponding circuit breaker or by pulling the power plug out of the socket. Do not pull the power cord when unplugging from the socket. Strong alcoholic beverages should be stored tightly closed and in an upright position. Do not store explosive substances in the refrigerator, such as aerosol cans with flammable gases. Never use mechanical or other devices to accelerate the defrosting process, except those recommended by the manufacturer. - This electrical appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. They may use the appliance only under the supervision of a person responsible for their safety, or under their guidance. Never use a defective refrigerator. In case of doubt, contact a service center. - Electrical safety is guaranteed only if the grounding system in your home complies with standards. Exposure of the appliance to rain, snow, sun, or wind is dangerous from the point of view of electrical safety. In case of damage to the power cord or plug, contact a certified service center to avoid exposing yourself to danger.

Never operate the refrigerator during installation. This can lead to serious injury or death. - This refrigerator is intended only for storing food products. It must not be used for any other purposes. - The technical data plate is located on the left inside wall of the refrigerator. Never connect the refrigerator to electronic energy-saving systems, as this can lead to its failure. - If the refrigerator has interior lighting, do not look at it through optical devices. - When disconnecting the refrigerator from the power supply with manual control, wait at least 5 minutes before reconnecting it. - If the refrigerator is handed over to another person, this operating manual must be handed over to the new owner. - When moving the refrigerator, be careful not to damage the power cord. Never kink or pinch the power cord, as this can cause a fire. Also, do not place heavy objects on the power cord. When connecting the refrigerator to the power supply, do not touch the socket with wet hands.

Never connect the refrigerator to a poorly grounded power outlet.

• To ensure safety, do not pour water directly onto the external or internal parts of the refrigerator. - To avoid fire or explosion, do not place flammable substances such as gas or gasoline near the refrigerator. Do not place containers of water on the refrigerator, as this can cause electric shock or fire. Do not overload the refrigerator with food. If the refrigerator is overloaded, products may fall out when opening the door, which can lead to injury or damage to the refrigerator. Do not place anything on top of the refrigerator, as these items may fall when opening or closing the door. Do not store substances that require specific temperature conditions, such as vaccines, thermosensitive medications, or scientific research materials, in the refrigerator.
• If the refrigerator will not be used for an extended period, it should be disconnected from the power supply. Damage to the insulation of the electrical cable can lead to fire. It is necessary to regularly check the contacts of the power plug. Failure to comply with this condition can lead to fire. The refrigerator may tip over if the adjustable feet are not secured on the floor. With the help of the adjustable feet, the stability of the refrigerator can be ensured.
• If the refrigerator door has a handle, do not pull it by the handle when moving the refrigerator, as it may detach from the body.
• If the appliance is to be installed next to another refrigerator or freezer, the distance between them must be at least 8 cm. Otherwise, condensation will form on the side walls facing each other. The pressure in the water supply line must not be lower than 1 bar. The pressure in the water supply line must not be higher than 8 bar.
• Use only drinking water. Child safety
• If the door has a lock, keep the key in an inaccessible place. Make sure that children do not play with the appliance.

Health warnings

Refrigerator with refrigerant R600a

This gas is flammable, so be careful not to damage the cooling system and piping during operation and transport. In case of damage, move the appliance away from potential sources of fire that could cause ignition, and ventilate the room where the appliance is located.

Ignore this warning if the cooling system of the refrigerator uses refrigerant R134a.

Information about which refrigerant is used is given on the rating plate located inside the refrigerator on the left.

Do not expose the appliance to fire!

Energy saving tips

Do not leave the refrigerator door open for a long time. Do not put hot food or drinks in the refrigerator. Do not overload the refrigerator to avoid obstructing air circulation. Do not install the refrigerator in places where it is exposed to direct sunlight or near heat sources such as a stove, dishwasher, or radiator. Make sure that containers with food are closed. The freezer compartment can hold the maximum amount of food if you remove the drawers and shelves. The energy consumption indicated in the technical specifications is determined under the condition that the freezer drawers are removed and the maximum possible amount of food is loaded. The shelf and drawer can be used according to the shape and size of the food for freezing.

3 Installation

Note that the manufacturer is not responsible in case of non-compliance with the instructions given in this manual.

Transportation rules for the refrigerator

1. Clean all shelves, equipment, containers for vegetables, fruits, etc. with adhesive tape to protect them from shaking.
2. The refrigerator should be tied with straps made of dense material and strong ropes. During transportation, follow the rules printed on the packaging.

Do not forget that...

Reuse of materials is very important for the preservation of nature and our national wealth.

If you want to send packaging materials for recycling, contact the environmental protection organization or local authorities for more information.

Preparation for operation

Before starting the refrigerator, perform the following actions.

1. Make sure the inside of the refrigerator is dry and air can circulate freely behind the refrigerator.
2. Perform cleaning of the refrigerator in accordance with the recommendations given in the section "Maintenance and Cleaning".
3. Plug the refrigerator into a power outlet. When the refrigerator door is opened, the interior light turns on.
4. When the compressor starts working, you will hear noise. The liquid and gases inside the sealed cooling system may also create noise, regardless of whether the compressor is running or not, which is normal.
5. The front edges of the refrigerator may feel warm. This is normal. These areas must heat up to avoid condensation.

Cut the power cord and remove the locks on the doors (if any) to prevent dangerous situations for children.

Placement and installation

If the door of the room where the refrigerator will be installed is not wide enough, you can remove the refrigerator doors and bring it in sideways. To remove the doors, contact an authorized service center.

1. Install the refrigerator in a place convenient for use.
2. The refrigerator should be installed in places protected from direct sunlight, away from heat sources and high humidity. For more efficient operation, it is necessary to ensure good ventilation around the refrigerator.

If the refrigerator is installed under a ceiling, the minimum distance to the ceiling and walls must be at least 5 cm.

When installing on a carpet, place the refrigerator 2.5 cm above the floor.

1. The refrigerator should be installed on a level surface, otherwise vibration may occur.
2. The temperature of the room where the refrigerator is located must not be lower than 10°C.

4 Preparation

The refrigerator should be installed in places where direct sunlight does not fall, at a distance of at least 30 cm from heat sources such as gas stoves, ovens, central heating radiators, and at a distance of at least 5 cm from electric stoves. The air temperature in the room where the refrigerator is installed must not be lower than 10°C. Using the refrigerator at lower temperatures is not recommended due to its low efficiency in such conditions. Keep the interior of the refrigerator clean. If two refrigerators are installed side by side, the distance between them must be at least 2 cm. During the first six hours of operation, be sure to follow the following rules.

• Do not open the doors too often.
• Do not overload the refrigerator with products.
• Do not disconnect the refrigerator from the power supply. If a power outage occurs and it is not your fault, see the section "Troubleshooting".

The original packaging film should be kept for possible subsequent transportation of the appliance.

Refrigerator temperature

The temperature inside the refrigerator changes for the following reasons:

• Seasonal temperature changes;
• Frequent opening of the door and leaving the door open for a long time; placing products in the refrigerator without prior cooling to room temperature; location of the refrigerator in the room (for example, in places illuminated by sunlight). If you want to lower or raise the temperature in the refrigerator compartments, this can be done by pressing the button of the corresponding compartment.

Defrosting

It is quite normal that ice crystals form on the surface of the rear wall of the refrigerator during its operation. There is no need to scrape or remove them. Defrosting of the refrigerator is carried out automatically. The water that forms during defrosting flows down the gutter into the drain tube, enters the evaporator and evaporates there.

Using accessories

Bottle holder

You can use this holder for bottles to serve drinks on the table or on the bar counter.

Useful information

1- Recommendations regarding the time of opening bottles of wine before consumption:

2- How long can open wine be stored?

The cork of a wine bottle that you have not completely emptied after opening and intend to keep for later use should be tightly closed, and the bottle should be stored in a cool and dry place. The carbon dioxide gas in the wine mixes with air (evaporates) together with various beneficial aromatic substances, as a result of which the freshness of the bouquet and taste of the wine is lost.

Therefore, the most practical option is to drink the opened wine immediately; this is the best time for consumption.

However, tightly closed wine can be stored in a cool place for later use (not recommended).

Ordinary and quality white wines, ordinary and high-quality red wines

Бутbilka, наразнения на 75% 3-5 дnev 4-7 дnev
Бутbilka, наразнения на 50% 2-3 дnev 3-5 дnev
Мени 1 дnev 2 дnev

3-Recommended optimal serving temperature for some wines with meals

7 Recommendations for troubleshooting

Before calling a service center, review this section. This will save time. Below are listed common problems, the causes of which are not defects in production or materials. Some of the functions described here may be absent in your model of refrigerator.

The refrigerator does not work.

• Possibly, the refrigerator is not connected to the electrical network. Insert the plug into the electrical outlet.
• Possibly, the fuse of the outlet into which the refrigerator is plugged has blown. Check the fuse.

Condensation on the side walls of the refrigerator compartment (MULTI ZONE, COOL CONTROL and FLEXI ZONE).

• Very low temperature in the room. Frequent opening and closing of the door. Very high humidity in the room. Storing products containing liquid in open containers. The door is not closed tightly. Set the thermostat to a lower temperature. Reduce the periods when the door remains open, or open it less often.
• Cover products in open containers with suitable material.
• Wipe the condensation with a dry cloth and check if it forms again.

The compressor does not work.

• The compressor thermal protection may trip during unexpected power outages or when turning the appliance off and on, because the refrigerant pressure in the cooling system does not have time to stabilize. The refrigerator should start working in about 6 minutes. If after this time the refrigerator does not start, contact a service center. The refrigerator is in the defrosting mode. This is normal for a refrigerator with automatic defrosting. Defrosting is performed periodically. The refrigerator is not plugged into the electrical outlet. Make sure the plug is properly inserted into the outlet.
• Possibly, the temperature is incorrectly adjusted.
• Possibly, the power supply is disconnected.

The refrigerator is working too long.

• Your new refrigerator may be larger than the previous one. This is quite normal. Larger refrigerators work for longer periods of time.
• The room temperature may have changed. This is normal. The refrigerator may have been recently switched on or just loaded with food. Full cooling of the refrigerator may take several hours longer. Possibly, a large amount of hot food was recently placed in the refrigerator. Due to the presence of hot food, the refrigerator will work longer to reach the required storage temperature. The door may be opened frequently or left open for long periods. When warm air enters the refrigerator, it will work longer. Open the door less often.
• The freezer or refrigerator door is not closed properly. Check that the doors are closed tightly. The refrigerator is set to a very low temperature. Set a higher temperature in the refrigerator and wait until the set temperature is reached. Possibly, the door gasket of the refrigerator or freezer is dirty, worn, torn, or incorrectly installed. Clean or replace the gaskets. Due to a damaged or torn gasket, the refrigerator will work longer to maintain the set temperature.

The temperature in the freezer is too low, and the temperature in the refrigerator is sufficient.

The temperature level in the freezer is set too low. Set a higher temperature in the freezer and check the result.

The temperature of the refrigerator is too low, and the temperature in the freezer is sufficient.

• Possibly, the temperature of the refrigerator is set to a very low value. Set a higher temperature in the refrigerator and check the result. Products in the refrigerator drawers are freezing. Possibly, the temperature of the refrigerator is set to a very low value. Set a higher temperature in the refrigerator and check the result.

Tempepatуba V xolodnilbHOM MOPO3nIbHOM OTdeJeHIN CNIIKOM BvICOKa.

• Bo3moxHo, Tempepatya xolodnilbHOrO OTdeJeHIN OTRpeyUInpOBAHa Ha OueHb BvICOKe 3NaueHne. Tempepatya B xolodnilbHOM OTdeJeHIN BnIaReT Ha Tempepatyu B MOpO3nIbHOM OTdeJeHIN. I3MeHaiTe Tempepatypu B xolodnilbH NJIIM MOpO3nIbHOM OTdeJeHIN, Poka He bDeT DOCTNHyT HxJXhBiy UPOBeHb TEMpepatybl.

• Bo3moxHo, DBePcbl cacto OTKpbIBaIOTcR Jn60 6bln pnpOTKpbITb B TeueHne dIInTeHBO BPEMeHn. OTKpbIBaIte nx pexe.

• Bo3moxHo, DBePca xolodnilbHnka npnOTKpbIta; 3akpoite ee noJIHOCTbU.

• Bo3moxHo, B xolodnilbHnK HeDaBn NOMeCTNI 6blsoe KOJIueCTBO TropaHx npOdyKTob. POnOxDITE, Poka B xolodnilbHOM IINI MOpO3nIbHOM OTdeJeHIN 6bUdE DOCTNHyTA HxJXHnA TEMpepatya.

• Bo3moxHo, MOpO3nIbHk 6bln HeDaBn BKNIOUeH B Cetb. Ha noJIHOe OxJaXdHne XOLODnilbHnKa Notpe6byTcR HeKOTOpoe BPEM.

B npOcece pa6otbl xolodnilbHnka yPoBeHb 7Uyma NOBVIIaAETcR.

• Pa6OHe XapAKterpIcTnki N3deJIg MOrTy N3MeHAYTcR B 3aBVCIMOCTN OT I3MeHEni TEMpepatybl OkpykaIOUeCpebl. 3To HOpMaJIbHO n He YBaJIaETcR HeNCnPabHOCtBu.

Bn6paunr IINI shum.

• POn HepOBHb IINI HeJceSTKn. XolodnilbHnK MeDJIeHNO nepemeUaETcR i npri 3Tom dPojNT. Y6eIITecb B TOM, qTO pON pOBHb I INDOCTaTOUHO pOChbI, qTO6bl BbIDepKATb BEC XOLODnilbHnka.

• IVToCHNKOM Shyma MOrTy 6blb ppeMeTbI, leJeaUe NaHEpxy XOLODnilbHnka. PocToPOHNHe ppeMeTbI cIeDuET y6paTb C XOLODnilbHnka.

IV3 xOLODnilbHnKa DoHOCITcR 7Uym JbIOUeCra IINI pa36pbIz3rNAIOUeCRA XIKKOCTN.

• PacXoD JxNDCKCTN I r3a I3MeHaeTcR B COOTBeTCTBn C pINHcIaMn pa6Oblx OLODnilbHnka. 3To HOpMaJIbHO n He YBaJIaETcR HeNCnPabHOCtBu.

CblIeH Shym, IOnOxKn Ha 7Uym BeTa.

•ДЯ OXJaXdENH YA ONOДINbHnKa IcNoJIb3UOTcR BeHTINJIaTOPbl. 3To HOpMaJIbHO n He YBaJIaETcR HeNCnPabHOCtBu.

KoHdEHCaUNI BnArl Ha BHyTpeHnIX CTeHKax XOLODnilbHnka.

•ЖapKaI N BnajKna I NOrOda CnocObCTByET o6pa3OBAHnIO Nbda I KOHdEHCaUNI BnArl 3To HOpMaJIbHO n He YBaJIaETcR HeNCnPabHOCtBu.

• Bo3moxHo, DBePcbl xOLodnilbHnKa pnpOTKpbITbI. Y6eIITcB, qTO OHI NOJIHOCTbU 3aKpbITbl.

• Bo3moxHo, DBePcbl cacto OTKpbIBaIOTcR IIn60 6bln pnpOTKpbITb B TeueHne DlnteHBO BPEMeHn. OTKpbIAaTe nx pexe.

ПОВLENHNE BnArl ChapUx XOLODnilbHnKa IINI MExdY DBePcAMI.

• Bo3moxHo, B BO3duX MHOrO BnArl. 3To BnOJIe HOpMaJIbHO pRn BnaxHoi noroDe. KOrda BnaxHocTb UMeHbUnTcR, KOHdEHCaUNI NCye3HeT.

Нериянный 3арах Bнуtrpoхолдьнka.

• Следует оочсты xолдьнок Bнуtrpo. Протриte xолдьнок Bнуtrpo Гбков, смочны в теллоь ВODE ИлиВ газиравань ВODE.

• НекторыkoHTе контейнера Или уразковочные матерпальtsakоже могут 6ытв. Источником зараха. Исплъзут дру罗й контейнера Или уразковочный матерпаль. Дру罗й марки.

Дерца He зakрываetся.

• Уразковский поюктов могут посятCTBOВаьт b зakрываню дөрць. Поремecтуte уразковские поюлъы, посятCTBYЮшке 3akрываню дөрць.

• Холдьнок с Todг He COВСЕМ ВERTИКально, ЭTO может BыЗВаь дрожаиме доже при HeЗнachtelнom поемши. ОчyperларучтЕ ВИNTБ рergларовки ВИСOTь

• Рол неразовный Или пожестук. Рол поожен bыт b ровны IM и bыдэржинь ВEC хOLODINHLNKA.

Контейнера Деля Фруков и Oвошей прлллл.

• ВOSTMOЖно, поюкъ kасаются в��ней част Контейнера. Поремecтуte поюк В КOLTЧЕнcope.

www.teka.com

User Manual

RVI 35

DA

FIN

NO

SV

Installation and mounting. 9

4 Preparation 10
