USER MANUAL DHH 10508 TC230 V Güde

ENGLISH Please read the instructions carefully before starting the machine.

Spaltsaule 100x100mm
TischgroBe. 300 x 310 mm

Hydrauliktank (HLP 46) 3,4
max. Hydralikdruck 210 bar

Engine speed 2820 min
Max. splitting pressure. 8 t

Max. splitting uplift 515 mm
Forward speed 0,04 - 0,05 m/s

Reverse speed. 0,10-0,12 m/s
Weight. 107,5 kg

max. Split material lengths. 1040 mm
Max. splitting diameter 400 mm

Splitting post. 100 x 100 mm
Table size. 300 x 310 mm

Hydraulics tank (HLP 46) 3,4 I
Max. hydraulic pressure 210 bar

Noise and Vibration Information

Sound pressure level L_PA^1) 69,9 dB (A)
Sound power level L 85,2 dB (A)

Vibration emission value a 2,5 m/s²

Uncertainty K = 3 db (A)

WARNING The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Abide by all

the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The wood splitter has only been designed to split

wood in the fibre direction. Respecting technical data and safety precautions.

When splitting, it is essential to make sure the split wood only contacts the checkered sheet of the bottom plate or the checkered sheet of the splitting desk.

It is essential to follow instructions for installation, operation, repairs, etc. to prevent hazards and damage.

Please do not forget that this machine, as designed, is not intended for industrial use.

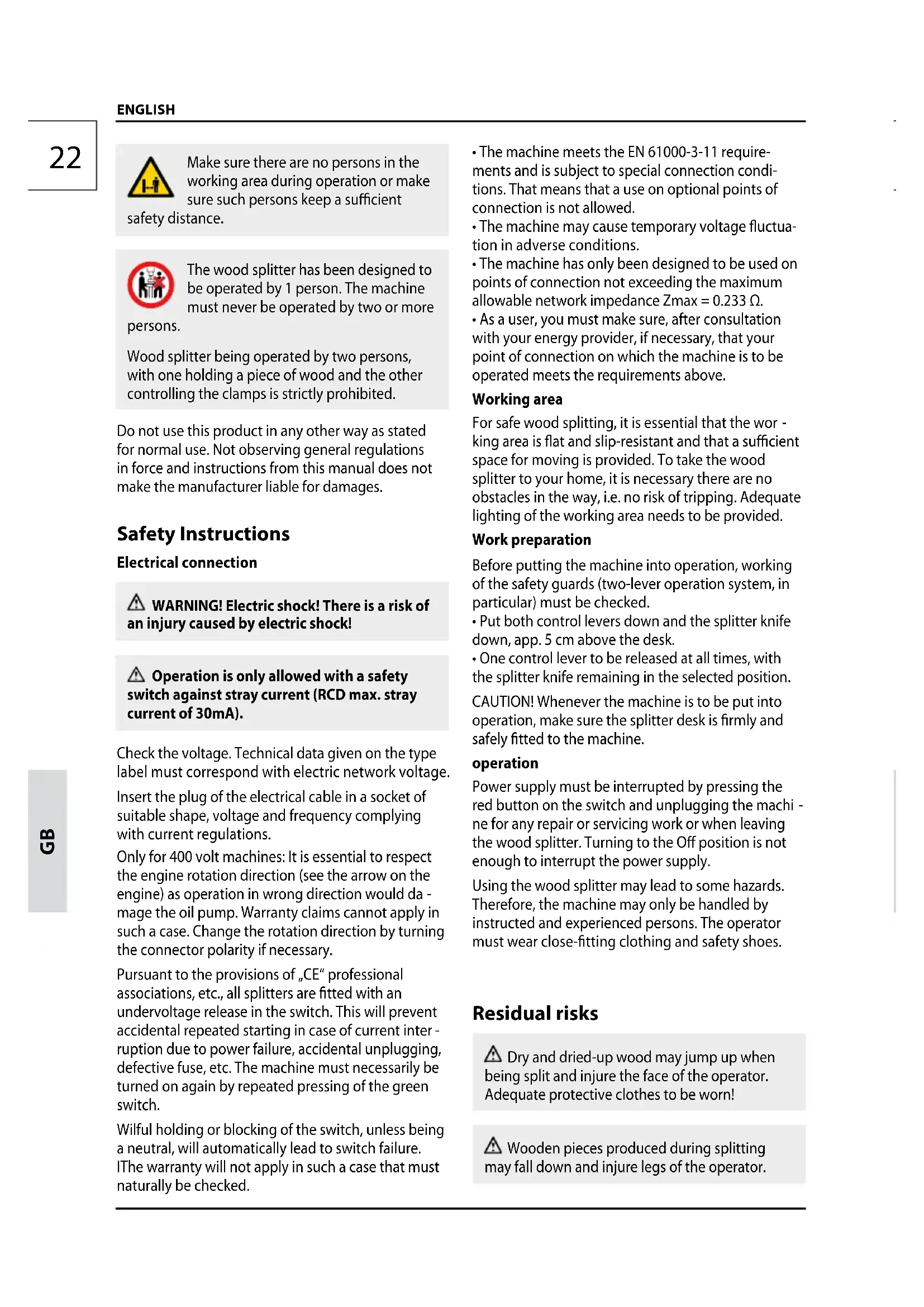

Make sure there are no persons in the working area during operation or make sure such persons keep a sufficient

safety distance.

The wood splitter has been designed to be operated by 1 person. The machine must never be operated by two or more

persons.

Wood splitter being operated by two persons, with one holding a piece of wood and the other controlling the clamps is strictly prohibited.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Safety Instructions

Electrical connection

WARNING! Electric shock! There is a risk of injury caused by electric shock!

Operation is only allowed with a safety pitch against stray current (RCD max. stray rent of 30mA ).

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.

Only for 400 volt machines: It is essential to respect the engine rotation direction (see the arrow on the engine) as operation in wrong direction would damage the oil pump. Warranty claims cannot apply in such a case. Change the rotation direction by turning the connector polarity if necessary.

Pursuant to the provisions of "CE" professional associations, etc., all splitters are fitted with an undervoltage release in the switch. This will prevent accidental repeated starting in case of current interruption due to power failure, accidental unplugging, defective fuse, etc. The machine must necessarily be turned on again by repeated pressing of the green switch.

Wilful holding or blocking of the switch, unless being a neutral, will automatically lead to switch failure.

The warranty will not apply in such a case that must naturally be checked.

• The machine meets the EN 61000-3-11 requirements and is subject to special connection conditions. That means that a use on optional points of connection is not allowed.
• The machine may cause temporary voltage fluctuation in adverse conditions.
• The machine has only been designed to be used on points of connection not exceeding the maximum allowable network impedance Z_ = 0.233 .
• As a user, you must make sure, after consultation with your energy provider, if necessary, that your point of connection on which the machine is to be operated meets the requirements above.

Working area

For safe wood splitting, it is essential that the working area is flat and slip-resistant and that a sufficient space for moving is provided. To take the wood splitter to your home, it is necessary there are no obstacles in the way, i.e. no risk of tripping. Adequate lighting of the working area needs to be provided.

Work preparation

Before putting the machine into operation, working of the safety guards (two-lever operation system, in particular) must be checked.

• Put both control levers down and the splitter knife down, app. 5 cm above the desk.
• One control lever to be released at all times, with the splitter knife remaining in the selected position.

CAUTION! Whenever the machine is to be put into operation, make sure the splitter desk is firmly and safely fitted to the machine.

operation

Power supply must be interrupted by pressing the red button on the switch and unplugging the machine for any repair or servicing work or when leaving the wood splitter. Turning to the Off position is not enough to interrupt the power supply.

Using the wood splitter may lead to some hazards. Therefore, the machine may only be handled by instructed and experienced persons. The operator must wear close-fitting clothing and safety shoes.

Residual risks

Dry and dried-up wood may jump up when being split and injure the face of the operator. Adequate protective clothes to be worn!
Wooden pieces produced during splitting may fall down and injure legs of the operator.

When splitting wood, parts of body may be crushed or separated due to hydraulic knife lowering.

There is a risk of branchy wood getting stuck when being split. Please be advised that wood being separated is under heavy pressure and your fingers may get squeezed in the gap.

Caution!

Pieces of wood cut at the right angle to be split only!

Diagonally cut pieces of wood may slip when cutting!

This may cause personal injury or damage to the splitter knife especially when using the gap extension by wedge!

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.

If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

Unplug the machine before any work on it..

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

The hydraulic hoses and connections must be checked if tight enough after app. 4 hours of operation and tightened if necessary.

If the device is defective, the repair has to be made exclusively by the customer service.

Use only original accessories and original spare parts.

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Symbols

Read the Operating Instructions

Wear eye protective goggles!

Wear ear protectors!

Safety gloves to be used!

Safety shoes to be used

Use of crane

Caution! Moving parts of the machine!

To be operated by 1 person only!

Do not touch in the splitting area!

Protect against humidity. Never expose tool to rain.

WARNING/Caution!

Dangerous voltage

Caution - hot surface!

Danger of burns!

Warning against hand injuries

Keep distance of persons

Observe to keep out of dangerous zone.

Warning against thrown-off items

Warning against a risk of tripping

Warning against hand injury by the splitter knife

Engine rotation direction

2 people are needed for implementation.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

warranty

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.

Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guide.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art.No:

Year of production:

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Failure removal

Failures Causes Removal
Engine does not start No power in the socket Check the fuse
	Defective electric extension cable Pull the plug out, check it, replace it
	Wrong connecting cable 5-wire connection at 2.5 mm2 cross section
	Defective condenser switch Have the machine checked by a professional electrician
Splitting knife is not moving Adjust the two-hand control and starting levers	Defective control valve - to be replaced in a service centre only
Splitter has no power	Wrong rotation direction Have the rotation direction changed by a professional
	Few hydraulic oil Hydraulic oil to be added
	Trigger is bent; hydraulic piston on the valve is not fully seated	Check all screws on the triggerAdjust the trigger so that the hydraulic piston on the valve is fully seated
	Wood has many knobs and the splitting knife is getting stuck	Lubricate the splitting knife
	Control arm is bent Put the control arm back to the starting position
The green supply button does not hold after being pressed	Defective fuse, etc. Check the cable
	2-phase running
Hydraulic pump is whistling, splitting knife running jerkily	Oil loss, bottom contamination Tighten the screws replace the hose
	<<Zu weniger Hydraulikol>> <<Hydraulikol nachfüllen>>
