USER MANUAL WTC180T Perel

ELETRILEUTTERWITHSTAND-600W,180MMLADE

ARRELETTE ELETRIQUE AVE STATIF - 600 W - LAME 180 MM
ELEKTRIS HE TEGELSNIJDER MET STATIEF - 600 W - SNIJ LAD
180 MM

ORTADOR DE AZULEJOS ELETRI ON PIE - 600W - HOJA 180MM
ELEKTRIS HER FLIESENS HNEIDER MIT STATIV - 600W -
TRENNS HEI E 180MM

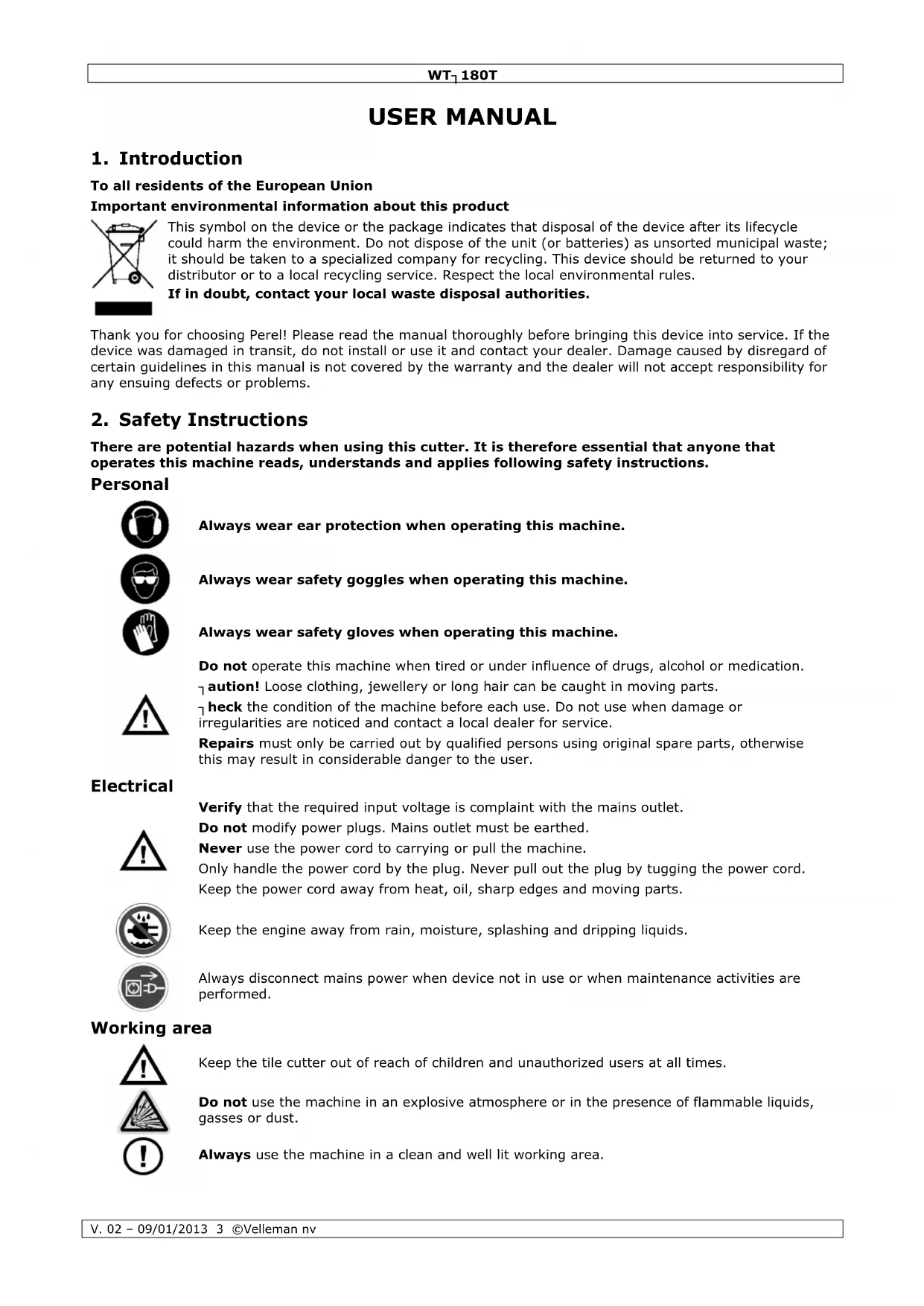

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

2. Safety Instructions

There are potential hazards when using this cutter. It is therefore essential that anyone that operates this machine reads, understands and applies following safety instructions.

Personal

Always wear ear protection when operating this machine.

Always wear safety goggles when operating this machine.

Always wear safety gloves when operating this machine.

Do not operate this machine when tired or under influence of drugs, alcohol or medication.

`aution! Loose clothing, jewellery or long hair can be caught in moving parts.

• check the condition of the machine before each use. Do not use when damage or irregularities are noticed and contact a local dealer for service.

Repairs must only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

Electrical

Verify that the required input voltage is complaint with the mains outlet.

Do not modify power plugs. Mains outlet must be earthed.

Never use the power cord to carrying or pull the machine.

Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.

Keep the power cord away from heat, oil, sharp edges and moving parts.

Keep the engine away from rain, moisture, splashing and dripping liquids.

Always disconnect mains power when device not in use or when maintenance activities are performed.

Working area

Keep the tile cutter out of reach of children and unauthorized users at all times.

Do not use the machine in an explosive atmosphere or in the presence of flammable liquids, gasses or dust.

Always use the machine in a clean and well lit working area.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
  Note that damage caused by user modifications to the device is not covered by the warranty.

3. General Guidelines

• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Protect the device against extreme heat and dust.
  Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features

• for ceramic floor and wall tiles
• water cooled blade
• adjustable blade angle

5. Overview

Refer to the illustrations on page 2 of this manual.

tile cutter E tilt angle indicator
A	On/Off switch F graduated ruler
B	adjustable bridge G handle
C	tile positioner with adjustable angle H cutting disk guard
	C1	lateral lock knobs I cutting disk
	C2	tile holding edge J table frame
	C3	angular lock knob K blade guard holding	screw	(2x)
D	tilt angle lock knob (2x)		L	water pump

6. Installation

• First assemble the table frame [J]. Place the top part upside down on the floor (narrow edge of L-shaped frame facing down: ) and mount on each corner a leg with 4 bolts (screw hand tight).
• Place a rubber foot on each of the four legs.
• Turn the table frame upright (resting on the 4 rubber feet).
• Tighten all the bolts firmly and verify that the table frame is stable.
• Place the frame on a level, steady, non-slippery surface.
• Place the water reservoir on the frame.
• Locate the position of the water pump [L] in the water reservoir. Place the pump [L] as shown in the illustrations on page 2 and press it down until it snaps into place.
• Fill the water reservoir, making sure that the pump inlet is completely under water. Do not operate the tile cutter with an empty reservoir or too low water level.
• Place the table with adjustable bridge [B] on top of the water reservoir. Make sure the cables from the water pump [L] are not squeezed.

7. Operation

Always wear safety goggles, safety gloves and ear protection when operating the tile cutter!
- Make sure the On/Off switch [A] is in the off-position and connect the power cord to the mains.
- Place a tile against the graduated ruler [F] or use the tile positioner with adjustable angle [C] to place the tile under an angle. Loosen the lateral lock knobs [C1] to move the positioner lateral, loosen the angular lock knob [C3] to set the desired angle and tighten the knob [C3]. Place a tile against the tile holding edge [C2] and tighten the lateral lock knobs [C1] to secure the tile position.
- Make sure the cutting disk [I] doesn't touch the tile and switch on the tile cutter by pressing the on/off switch [A]. Wait a few seconds to allow the disc to reach full speed. Make sure that water is sprayed on the disc. If not, switch off the machine and check the water level and pump [L].

• Firmly hold the tile in place and gently slide the cutting disc [I] along the adjustable bridge [F] towards the tile. Do not force. Always cut towards the graduated ruler [F], otherwise the spinning disc will push the tile upwards.
• When finished cutting the tile move the cutting disc [I] back to the other end of the adjustable bridge [Γ] and switch off the cutter by pressing the on/off switch [A]. Γeware that the cutting disc keeps spinning for a while before coming to a full stop!
• To cut tile edges under an angle, loosen both tilt angle lock knobs [D] and tilt the adjustable bridge [Γ] in the desired angle (max. 45^ ). Secure the tilt angle lock knobs [D].
  After use, remove the power cord from the mains and dispose of the water in the water reservoir before storing the tile cutter.
• When the cutting disc shows signs of wearing, replace it immediately. Refer to §8 for the correct procedure.

8. utting disc replacement

Refer to the illustrations on page 2 of this manual.

utting disc replacement
1 motor shaft 4 outer flange
2 inner flange 5 nut
3 blade 6 shaft - narrow end

Before replacing the cutting disc, switch off the tile cutter and remove the power cord from the mains.
- Remove the cutting disk guard [H]. To do this, remove the two screws [K] and lift the guard over the cutting disk. Be careful not to damage the water hose.
- Place the included hex spanner over the nut [5] and place the shaft holder tool (included) over the narrow end [6] of the motor shaft [1].
- Hold the shaft holder tool firmly and turn the nut [5] clockwise.
- Remove the nut [5], the outer flange [4] and the cutting disc [3] from the motor shaft [1]. Note that the inner flange [2] has an edge which fits in the arbor hole of the cutting disc. Always mount the inner flange [2] at the inside (closest to the engine)
- Make sure the new cutting disc has the right specifications (see §10). Never use segmented disc types.
- When spinning, the cutting disc rotates clockwise when looking from the narrow end of the shaft [6]. Always respect the rotation direction indicated on the disc!
- Slide the cutting disk [3] and the outer flange [4] over the motor shaft [1].
- Screw the nut [5] on the motor shaft [1]. To secure it tightly, place the included hex spanner over the nut [5] and place the shaft holder tool over the narrow end [6] of the motor shaft [1]. Hold the shaft holder tool firmly and turn the nut [5] counter clockwise.
- Remount the blade guard [H] with the 2 screws and washers (2 per screw).

9. leaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly - preferably after each use - clean the machine housing with a soft cloth. Moisten the cloth with soapy water when necessary. Never use solvents e.g. petrol, alcohol, ammonia... as these may damage plastic parts.

10. Technical specifications

input voltage 230VAC / 50Hz
power 600W
IP-rating IP54
speed (idle) 2950 rpm
table tilting range 0~45°
dimensions		910 x 530 x 77 mm
	table size	790 x 385 mm
	disc	Ø180 x 2.2 mm
	arbor hole	Ø22.2 mm
max. depth of cut 25 mm (@ 90°) ~ 17 mm (@ 45°)
weight 25kg

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device.

For more info concerning this product, please visit our website www.perel.eu.

The information in this manual is subject to change without prior notice.
