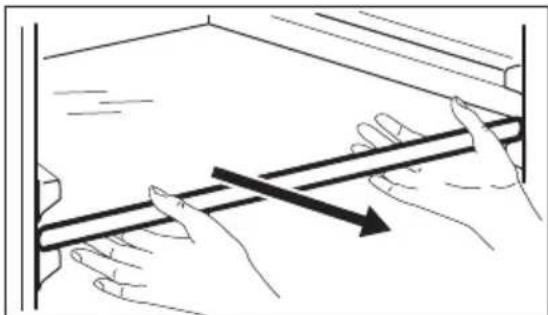

Otevretecela dvea police vyjmte tazenim dopredu.

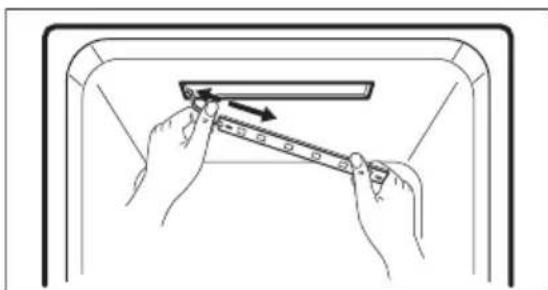

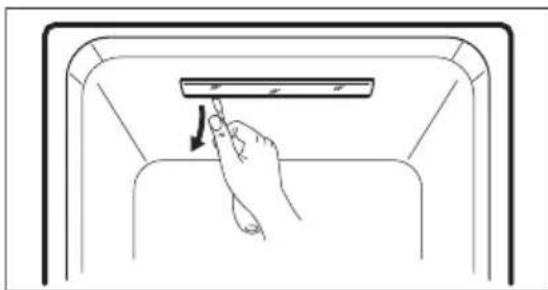

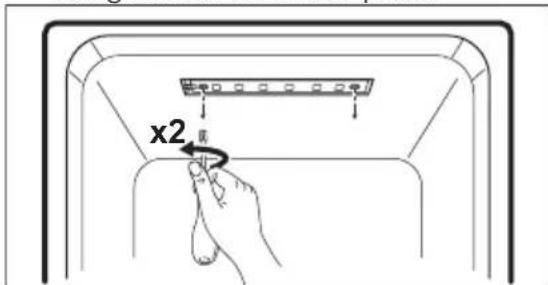

Vymena LED mraznicky a chladnicky

BESCHRIJVING VAN HET PRODUCT

Xpress Can Chiller (snelkoelcompa-ment)

12 Deurcompartiment (2-sterrencompartiment)

Xpress Can Chiller (snelkoelcompa-ment)

10 Deurcompartiment (2-sterrencompartiment)

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

VISIT OUR WEBSITE FOR:

• Products
• Brochures
  -User manuals
• Trouble shooter
• Service information

www.aeg.com

LEGEND

Warning - Important Safety information.
i General information and tips
Environmental information

Subject to change without notice.

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

一

PNC

Serial Number

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

WARNING!

Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.

INSTALLATION

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  Make sure that the floor where you install the appliance is not wet or damp.
• Do not move the appliance unless you are minimum in 2 persons. Be careful because the appliance is heavy. Always wear safety gloves.
• When you move the appliance, lift up the adjustable feet and attach tightly all the movable parts in the appliance.
• Do not connect the appliance to the power supply during the installation.
• When the installation is completed, wait minimum 4 hours before you connect the appliance to the power supply.

This is to let the oil to flow back in the compressor.

• Make sure that there is access to the mains plug after the installation.
• Make sure that there is sufficient air circulation all around the appliance.
• Do not install the appliance near to radiators, cookers, ovens or hobs.
• Only for appliances with water connection: connect only to drinking water supply.
• The rear of the appliance must stand against the wall.
• Do not install the appliance where there is direct sunlight.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
  Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Service or an electrician to change the electrical components.
• The mains cable must stay below the level of the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with wet hands.

USE

• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food.

WARNING!

Risk of fire, electrical shock or explosion.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, prevent flames and sources of ignitions and fully ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put fizzy drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of injury or burns

• Do not touch the compressor or the condenser. They are hot.
• Do not put your fingers or tools in the dispenser outlet.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• When you remove an ice lolly from the appliance, do not eat it immediately. Wait a few minutes.

INTERNAL LIGHT

WARNING!

Risk of injury.

Visible LED radiation, do not look directly into the beam.

• The LED light used for this appliance, is only for household appliances. Do not use it for house lighting.

• To replace the internal light, contact Service.

CARE AND CLEANING

WARNING!

Before maintenance, disconnect the mains plug from the mains.

• Do not clean the appliance with metal objects.
• Do not use water spray and steam to clean the appliance.
• Regularly examine the drain of the refrigerator and if necessary clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

DISPOSAL

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to be closed in the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

RoHS (Directive 2002/95/EC) Compliant

This environment-friendly product does not contain the EU RoHS restricted substances (Pb, Hg, Cd, Cr6+, PBB, and PBDE).

SERVICE

• Contact the Service to repair or to recharge the appliance.
• We recommend only the use of original spare parts.

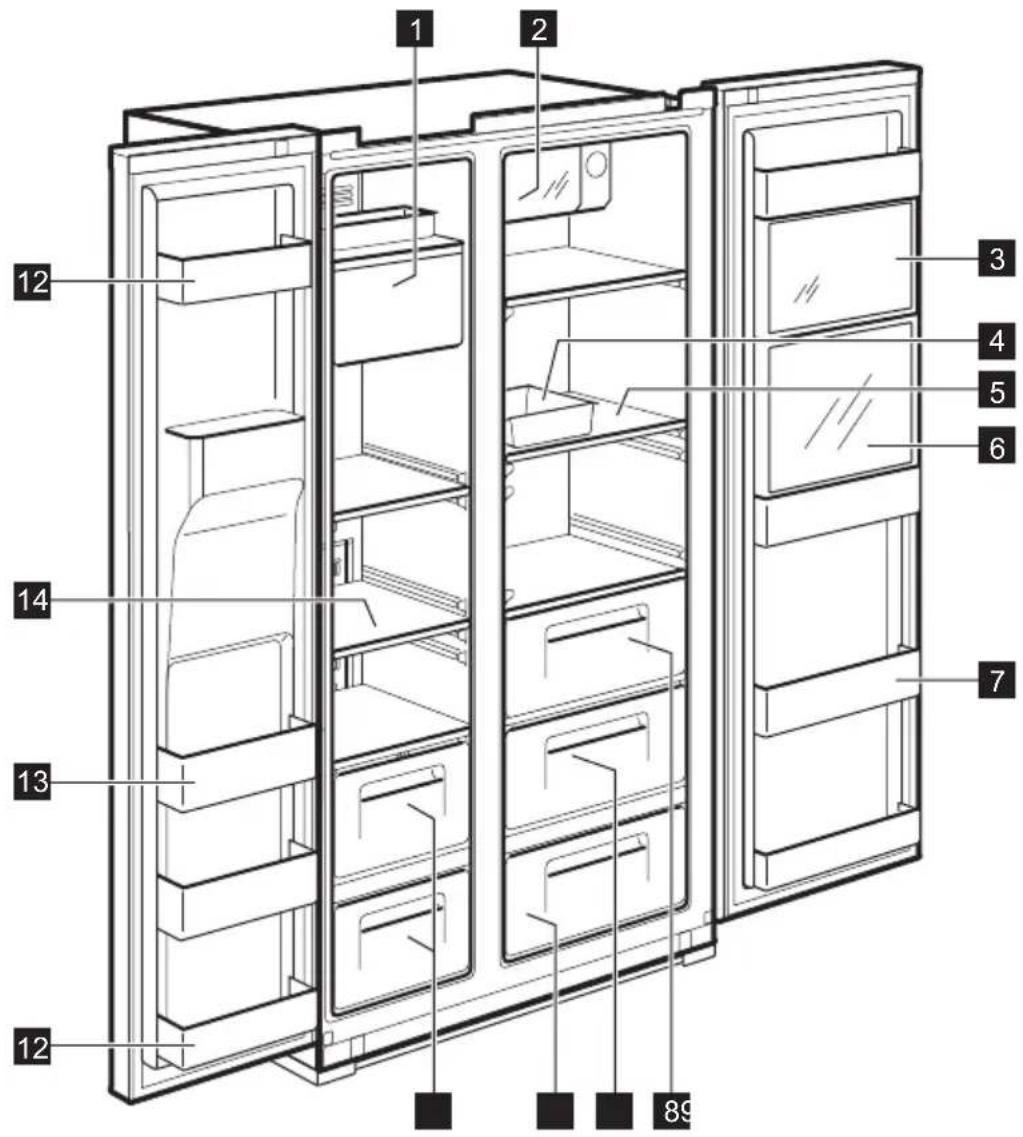

PRODUCT DESCRIPTION

dispensersER MODEL

Ice Maker and Storage

Xpress Can Chiller (quick cooling compartment)

For storing beverages.

3 Multi Plus Zone

For storing general medicines or cosmetic products. Safekeeping is not guaranteed for products such as academic sampling or medicine which require a specific temperature range.

4 Egg Case

Do not use this case for storing ice cubes nor place it in the freezer compartment.

5 Refrigerator Shelf (tempered glass) For storing common foods.

6 Refreshment Compartment (selected models only)

For frequently used cans, drinking water and beverages.

7 Refreshment Pocket

For storing refrigerating foods, milk, juice, beer bottles etc.

8 Vegetable Case

Fruit Case

10 Magic Cool Zone (selected models only)

11 Freezer Case

For storing dried meat or fish for a longer period of time.

12 Door Storage Compartment (2-star compartment)

For short-term storage of food and ice-cream.

13 Door Storage Compartment For storing frozen food.

14 Freezer Shelf (tempered glass) For storing frozen foods such as meat, fish, ice-cream.

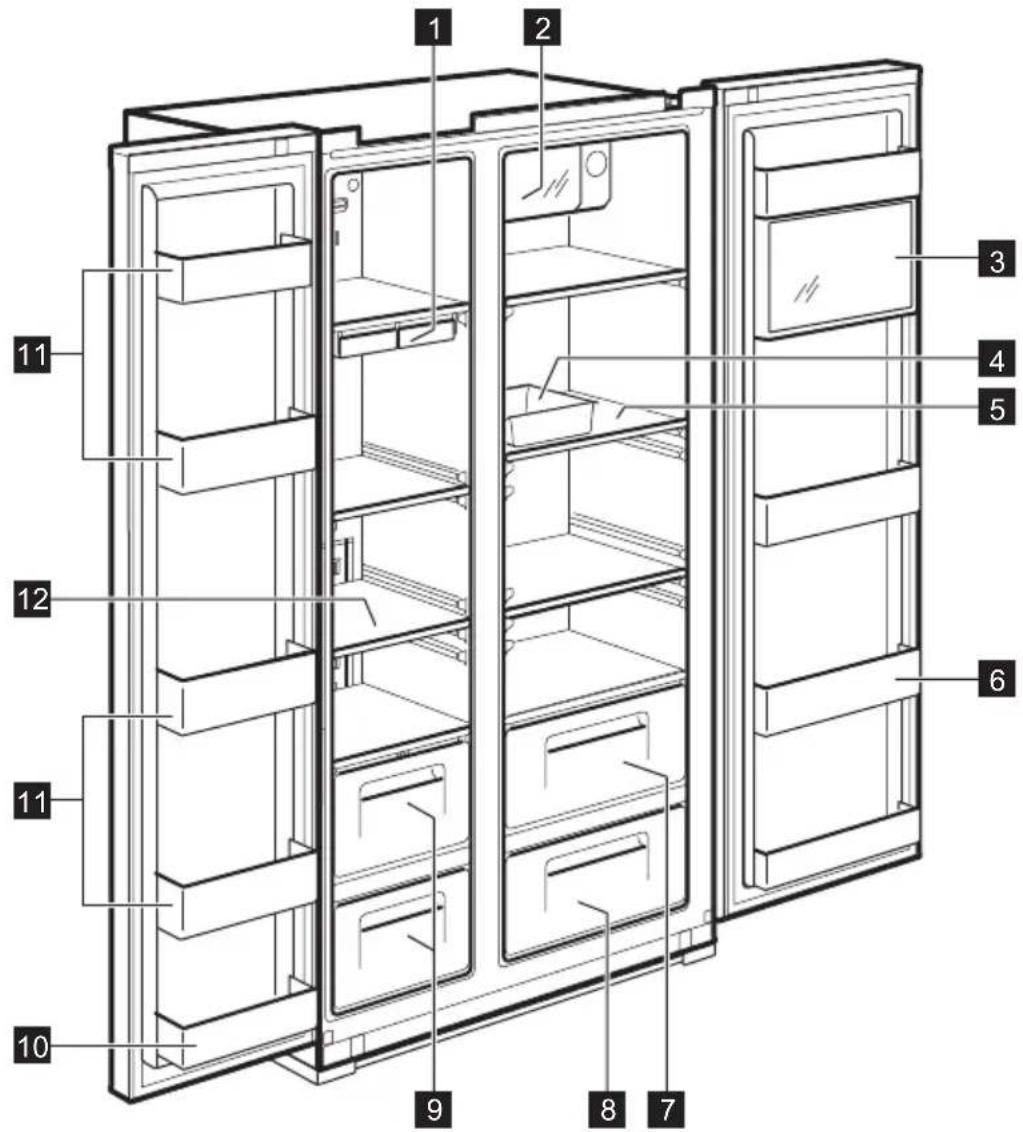

NON DISPENSER MODEL

Ice Cube Tray
Xpress Can Chiller (quick cooling compartment) For storing beverages.
3 Multi Plus Zone For storing general medicines or cosmetic products. Safekeeping is not guaranteed for products such as academic sampling or medicine which require a specific temperature range.
4 Egg Case Do not use this case for storing ice cubes nor place it in the freezer compartment.

5 Refrigerator Shelf (tempered glass) For storing common foods.
6 Refreshment Pocket For storing refrigerating foods, milk, juice, beer bottles etc.
7 Vegetable Case
8 Fruit Case
Freezer Case For storing dried meat or fish for a longer period of time.
10 Door Storage Compartment (2-star compartment)

For short-term storage of food and ice-cream.

11 Door Storage Compartment

For storing frozen food.

12 Freezer Shelf (tempered glass)

For storing frozen foods such as meat, fish, ice-cream.

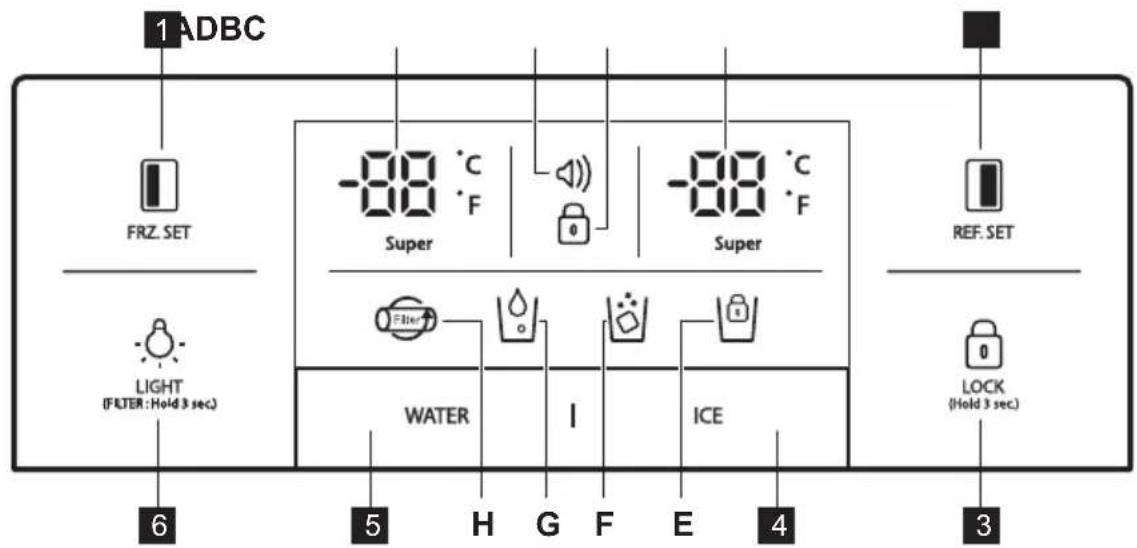

CONTROL PANEL

dispensersER MODEL

FRZ. SET

Selection button for freezer compartment temperature

REF. SET

Selection button for refrigerator compartment temperature.

Press this button to prevent settings from being accidentally changed.

To release the button, press it for longer than 3 seconds. The display switches off.

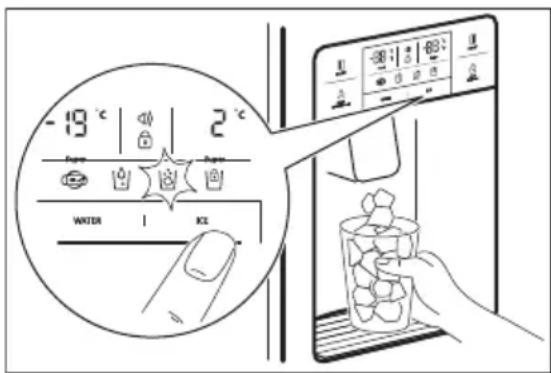

Selection button for Ice Dispensing and Lock for Ice Maker

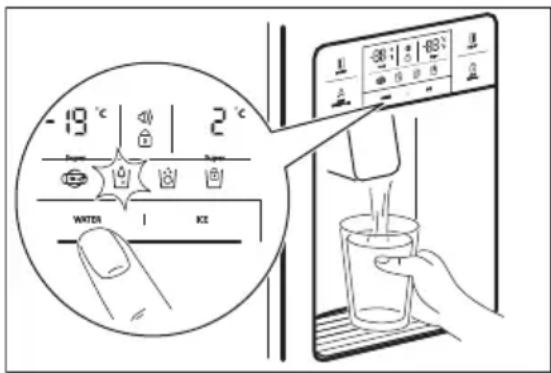

Selection button for Water Dispensing

LIGHT/FILTER button:

1. Button for switching on a dispenser light.
2. Button for filter exchange or reset.

After exchanging filter or in order to reset, press this button for 3 seconds.

Indicators (A-H) Description

A. Super	Freezer temperature indicator
B.	Alarm display (no sound)Customers can be informed of temper- ature status when it normally rises due to accidents (e.g. blackouts)1. Alarm icon blinks displaying the highest inner temperature2. Alarm stops when button is pressed and display shows temper- ature control value
C.	Lock indicator
D. Super	Refrigerator temperature indicator
E.	Lock for Ice Maker indicator
F.	Ice Dispensing indicator
G.	Water Dispensing indicator
H.	Filter Exchange display After 6 months of the first power input, the icon will flicker.

NON DISPENSER MODEL

1 FRZ. SET

Selection button for freezer compartment temperature

2 REF. SET

Selection button for refrigerator compartment temperature

Lock button

Press this button to prevent settings from being accidentally changed.

To release the button, press it for longer than 3 seconds.

3 LOCK (Hold 3 Sec.)

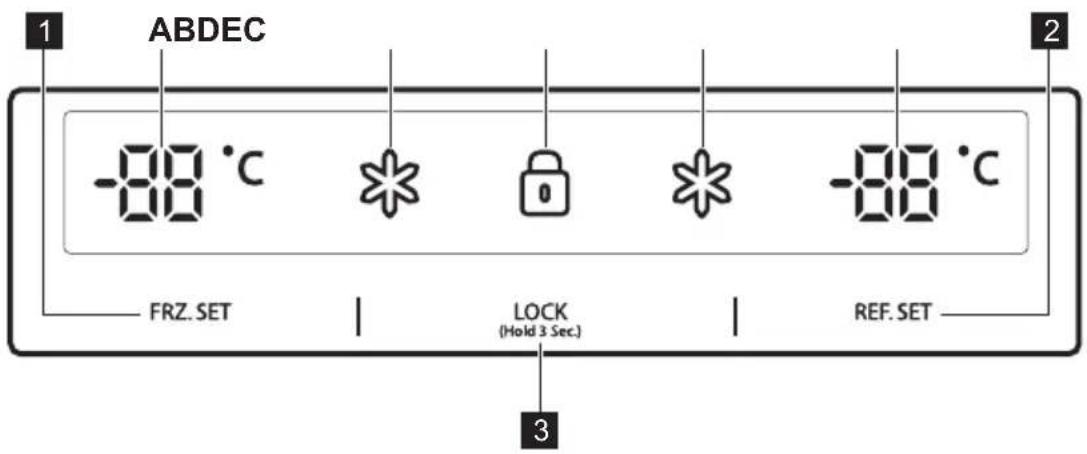

Indicators (A-E) Description
A -88 °C	Freezer temperature indicator
B※	"Super "indicator for freezer
C ☑	Lock indicator
D※	"Super" indicator for refrigerator
E -88 °C	Refrigerator temperature indicator

BEFORE FIRST USE

INSTALLING WATER LINE

1. For models with Automatic Ice Maker

• The water pressure should be 2.0 12.5kgf / cm2 or more to run the Automatic Ice Maker.
• Check your tap water pressure. If a cup of 180 cc is full within 10 seconds, the pressure is appropriate.

• If the water pressure is not high enough to run the Automatic Ice Maker, call the local plumber to get an additional water pressure pump.

• When installing the water tubes, ensure they are not close to any hot surfaces.

• The water filter only "filters" water. It does not eliminate any bacteria or microbes.
• The filter life depends on the amount of use. We recommend you replace the filter at least once every 6 months. When attaching the filter, place it for an easy access (to remove and replace).
• After installing refrigerator and water line system, select WATER on your control panel and press it for 2-3 minutes to supply water into the water tank and dispense water.

DAILYUSE

TEMPERATURE CONTROL

When the appliance is plugged in for a first time, the temperature mode is set to Middle.

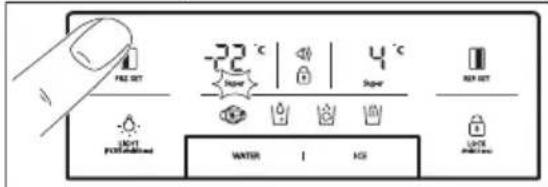

DISPENSER MODEL

Freezer Compartment

For temperature setting push button, until desired value displays.

For Faster Freezing function hold button until super LED turns on. To stop this function, just push the button again.

Refrigerator Compartment

For temperature setting push button, until desired value displays.

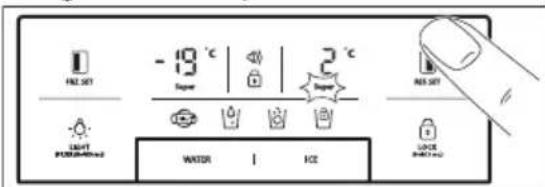

For Faster Cooling function hold button until super LED turns on. To stop this function, just push the button again.

Temperature indicator convert function (Fahrenheit-Celsius)

Default setting is Celsius. Press lock button to enter locked mode. Under the locked mode, press and WATER button at the same time for 10 seconds to swap temperature scale.

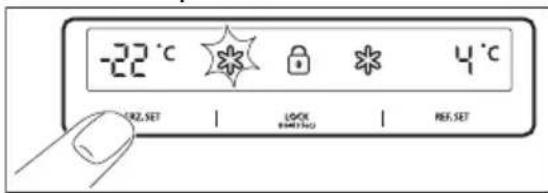

NON DISPENSER MODEL Freezer Compartment

For temperature setting push

FRZ. SET button until desired temperature displays.

For Faster Freezing function hold FRZ. SET button until super LED turns on. To stop this function, just push the button again.

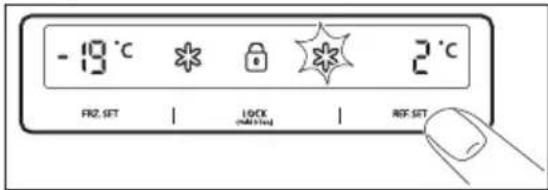

Refrigerator Compartment

For temperature setting push

REF. SET button until desired temperature displays.

For Faster Cooling function hold

REF. SET button until super LED turns on. To stop this function, just push the button again.

CAUTION!

Food in refrigerator can be frozen if the ambient temperature of the refrigerator is below 5^ C.

HIGH TEMPERATURE MODE

dispensersER MODEL

An increase in temperature in freezer or refrigerator compartment is indicated by:

• flashing the alarm icon (buzzer does not sound)
• electronic system shows the maximum temperature reached inside the compartments

Even though normal operation of the appliance is restored and inner temperature reaches a normal range, alarm icon still blinks and display indicator shows the highest temperature reached.

When you press Lock button alarm mode is terminated and alarm icon goes off. The display shows adjusted temperature value.

NON DISPENSER MODEL

An increase in temperature in freezer or refrigerator compartment is indicated by:

• flashing of a display of freezer or / and refrigerator compartment
• electronic system shows the maximum temperature reached inside the compartments

Even though normal operation of the appliance is restored and inner temperature reaches a normal range, the display still flashes and the highest temperature reached is indicated.

When you press Lock button LOCK (Hold 3 Sec.) , high temperature mode is terminated and the display shows adjusted temperature value.

"OFF" FUNCTIONS

• Interior lights of the appliance turn off when the door is open for more than 10 minutes

• Display Off function:

• 5 minutes after no button is pressed or no doors are open, all the display LED lamps switch off except for W A T E R, ICE and icon

• After the LED off mode, the appliance returns to a normal display mode when you press any button or open the door.

• System Off function (Power Off function):

you can stop operating the appliance without unplugging it, especially during holiday

• pressing FRZ. SET and REF. SET button at the same time for 5 seconds result in switching off the appliance

• during the "OFF" mode freezer and refrigerator temperature displays — — . Other LED lights go off and the whole operation of your appliance stops.

on the contrary, hold button FRZ. SET and REF. SET gather for 5 seconds to clear the "OFF" function

DOOR OPEN ALARM

An acoustic alarm will sound if refrigerator or freezer door is left open for 1 minute. The alarm will stop after 5 minutes. When normal conditions are restored (door is closed), the alarm stops.

OPTIONS

MAGIC COOL ZONE

When you plug the appliance for a first time FRESH LED is ON.

For changing settings step by step use SELECT button.

Step Display Target Temperature

1. FRESH +5°C to +6°C.
2. VEGETABLE +3^ to +4^ .
3. FISH -1^ to +0^
4. MEAT -3^ to -2^

dispensenser

Select WATER or ICE button and smoothly push the lever with you cup, after 2 seconds:

If you pressed WATER button, icon will light up

If you pressed ICE button, icon will light up.

When cleaning the ice cubes case assembly or you do not use it for a longer time, remove the ice cubes from the Ice Storage Case and lock the Ice Maker by pushing ICE button for 3 seconds. will light up.

CAUTION!

Avoid using thin fragile cups or crystal glasses while collecting ice cubes.

CAUTION!

If the ice is discoloured, stop using the dispenser and call a service agent.

Use only ice from this appliance.

AUTOMATIC ICE MAKER

• About 10 ice cubes are made at one time, 14-15 times a day. If the Ice Storage Case is full, ice making stops.
  It is normal for Ice Maker to make banging sounds when ice cubes are falling into Ice Storage Case.
• To prevent a bad odour or smells, regularly clean the Ice Cube Storage Case.
• If the amount of ice in the storage case is not sufficient, the ice may not be dispensed. Wait a day or so to make more ice.
• If the ice does not dispense easily, ensure the dispenser outlet is not blocked.
• If ice cubes get stuck and do not disperse, pull out the Ice Storage Case and separate the ice cubes which may have stuck together.

CAUTION!

If the amount of water which is supplied to Ice Maker needs adjusting, call for a service agent.

CAUTION!

In case of power failure ice cubes may melt and flow down to the floor. If you expect such situation to last for long hours, pull out the case and remove the ice cubes from it, then replace it back.

HELPFUL HINTS AND TIPS

HINTS FOR STORING FOOD

• Wash foods before storing.
• Divide and separate foods into smaller pieces.
• Place watery foods or foods with much moisture in front of shelves (close to the door side). If they are placed close to the cold air spout, they can be frozen.
• Warm or hot foods should be cooled down enough before storing to reduce power consumption and to enhance refrigeration performance.
• Be careful in storing tropical fruit such as bananas, pineapples and tomatoes as they can easily deteriorate in lower temperature.
• Keep as much space between foods as possible. If it is too tight or too close, cold air circulation is hindered, resulting in poor refrigeration.
• Never forget to cover or wrap foods to prevent odour of foods.
• Do not store vegetables in the chilled place as they can become frozen.
• Egg case can be placed on a refrigerator shelf the way you prefer.

CARE AND CLEANING

CLEANING OF THE INTERIOR PARTS

Use cloth with water and mild (neutral) detergent to clean.

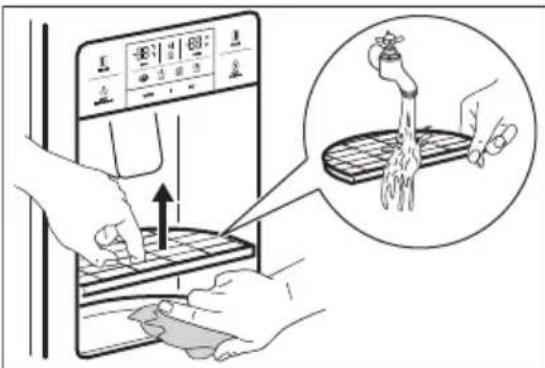

1. Dispenser Water Shelf

Remove the spill grill and clean the water shelf regularly (the spill shelf is not self-draining).

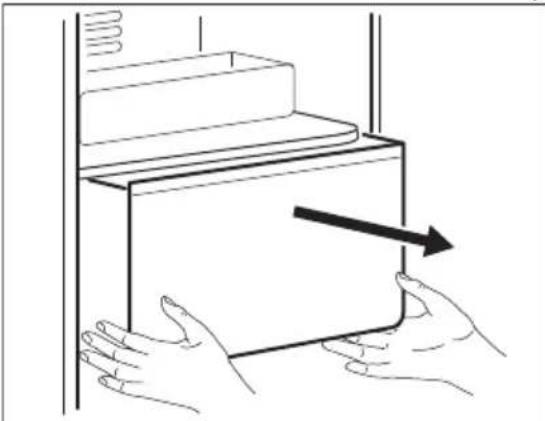

2. Ice Cube Storage Case

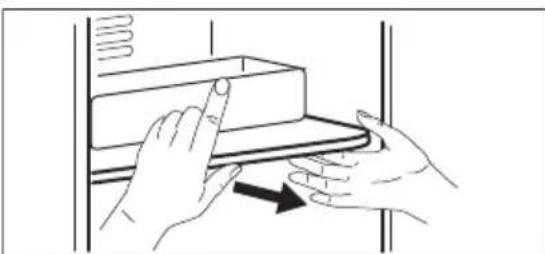

• Removing: pull up the case assembly forward to remove.
• Replacing: fit to the side grooves and insert to the end. If it is difficult to fully insert the case, remove it, rotate the swirl coil in the case or drive mechanism a quarter turn and insert again.
• Do not store ice cubes for too long.

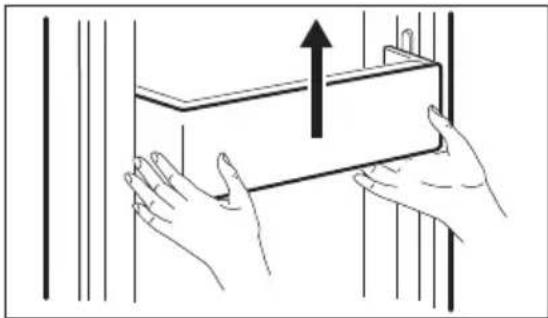

3. Freezer and Refrigerator Pockets

Hold both ends and pull up.

4. Freezer and Refrigerator Shelves

Open the door completely, then pull shelves forward to remove.

5. Vegetable and Fruit Case

Pull forward and lift up a bit to remove.

CLEANING OF DOOR PACKAGING

Use cloth with mild (neutral) detergent.

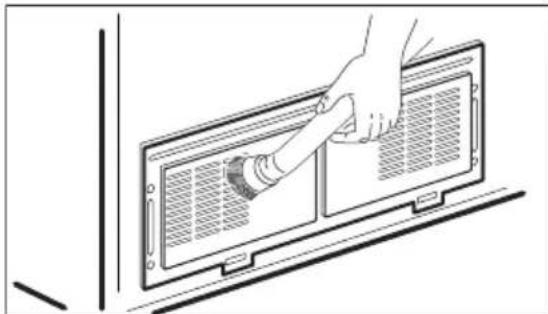

CLEANING OF THE BACK OF THE APPLIANCE (MACHINE ROOM)

Remove dust on a grill with a vacuum cleaner at least once a year.

An assembly method is the opposite of a disassembling sequence.

CHANGING THE INTERIOR LED LIGHT

CAUTION!

LED light should be replaced only by a service agent or similarly qualified person.

CAUTION!

Be sure to unplug the appliance first!

Freezer and refrigerator LED changing

1. Separate a back side of a LED cover using a screwdriver.

1. Separate the LED cover and loosen 2 fixing screws for a LED plate.

1. Disconnect a harness of the LED plate and change LED.

WHAT TO DO IF...

Please check up the following troubleshooting tips before you call for service!

Problem Checkup Point Solution
It never gets cold inside. Freezing and refrigerating is not sufficient.	Is the appliance unplugged? Is temperature set to LOW mode? Is the appliance under a direct sunlight or is any heat appliance placed near it? Is the space between the back of the appliance and the wall too small?	Plug in the appliance. Set temperature mode to MIDDLE or HIGH. Move to a place where there is no direct sunlight, no heat appliances around. Keep sufficient space (more than 10 cm) between the back of the appliance and the wall.
Foods in the appliance get frozen.	Is temperature set to STRONG mode? Is surrounding temperature too low? Is the food with much moisture stored close to the cold air spout?	Set temperature to MIDDLE or LOW mode. Foods can be frozen if ambient temperature is below 5 °C. Move to a place where the temperature is over 5 °C. Place foods with moisture on the shelves close to the doors.
Strange sound from the appliance.	Is floor beneath the appliance uneven? Is the space between the back of the appliance and the wall too small? Do any objects or other stuff touch the appliance?	Move the appliance to a level and even floor. Keep sufficient space. Remove any away which touches the appliance.
Strange sounds: cracking, clicking, water flowing, humming or buzzing.	It is normal (if the appliance is not leveled, the sound can be louder).
Odour or disgusting smell from the inside.	• Is the food stored uncovered or unwrapped? • Are the shelves and pockets stained with food stuff? • Is the food stored for too long?	• Be sure to cover and wrap the foods. • Clean the interior parts of the appliance regularly. Once smell gets soaked to those parts, it is not easy to remove. • Do not store foods for too long. • The appliance is neither a perfect nor a permanent food keeper.
Door do not open easily. • Was the door closed and open again immediately?		• In this case wait for a minute, then it will open easily.
Frost and dew inside the appliance and on the cabinet surface.	• Was the door open for too long? • Were the foods with much moisture stored uncovered or unwrapped? • Is temperature and/or humidity around the appliance high?	• Do not leave the door open for a long time. • Be sure to cover and wrap the foods. • Install the appliance in a drier and cooler place.
Front and side of the appliance feels warm or hot.	It is normal.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature specified by its category marked on the rating plate.

Climate category Ambient temperature (from... to...)

SN +10°C to + 32°C

N +16°C to + 32°C

ST +16°C to + 38°C

T +16°C to + 43°C

Internal temperature may be affected by factors such as location of the appliance, ambient temperature or frequency of door opening.

• User Manual

ACCESSIONS

• Filter Box
  Water Supply Kit

SISUKORD

62 OHUTUSINFO
64 SEADME KIRJELDUS
67 JUHTPANEEL
69 ENNE ESIMEST KASUTAMIST
70 IGAPÄEVANE KASUTAMINE
72 VALIKUD
73 VIHJEID JA NAPUNAITEID
74 PUHASTUS JA HOOLDUS
76 MIDA TEHA, KUI...

JÄATMEKÄITLUS

ACCESSIONS ET CONSOMMABLES

Kwikoc Tpoovtoc (PNC)
