USER MANUAL GUC3025HW6 IOGEAR

© 2014 IOGEAR® Part No. M1250

IOEAR, the IOEAR logo, are trademarks or registered trademarks of IOEAR. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other brand and product names are trademarks or registered trademarks of their respective holders. IOEAR makes no warranty of any kind with regards to the information presented in this document. All information furnished here is for informational purposes only and is subject to change without notice. IOEAR assumes no responsibility for any inaccuracies or errors that may appear in this document.

Table of Contents / Sommaire / Contenidos

Table of Contents / Sommaire / 3

Contenidos

Package Contents 4

System Requirements 4

Overview 5

Software Installation 6

Hardware Installation 7

Configuration 9

Federal Communications Commission 11 (FCC) Statement

CE Statement 11

Limited Warranty 12

1 x GUC3025HW6 USB 3.0 to HDMI External Video Card
1 x USB 3.0 Type A to Micro-B cable
1 x HDMI to DVI adapter
1 x Driver CD
1 x Quick Start Guide
1 x Warranty Card

System Requirements

System OS:

Windows Vista
Windows7
Windows® 8
Windows® 8.1
Intel-Based Apple® computers running MAC OS X 10.6 or later

System Memory:

Minimum: 2GB
- Recommended: 4GB or more when using multiple GUC3025HW6 units

System Hardware:

Available USB 3.0 Port
1.6GHz or faster processor

Display:

• HD Display or projector with HDMI connector

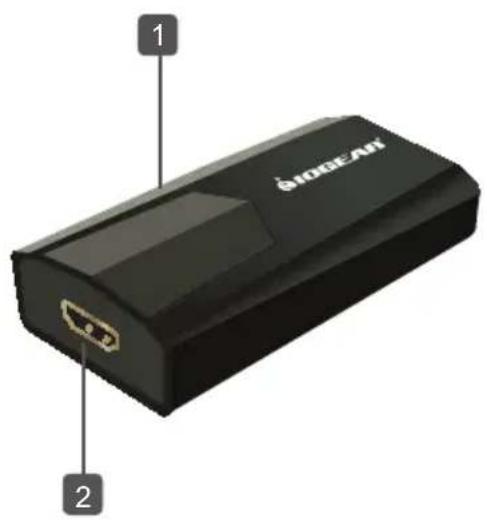

Overview

1. LED Power Indicator
2. HDMI Connector
3. USB 3.0 connector

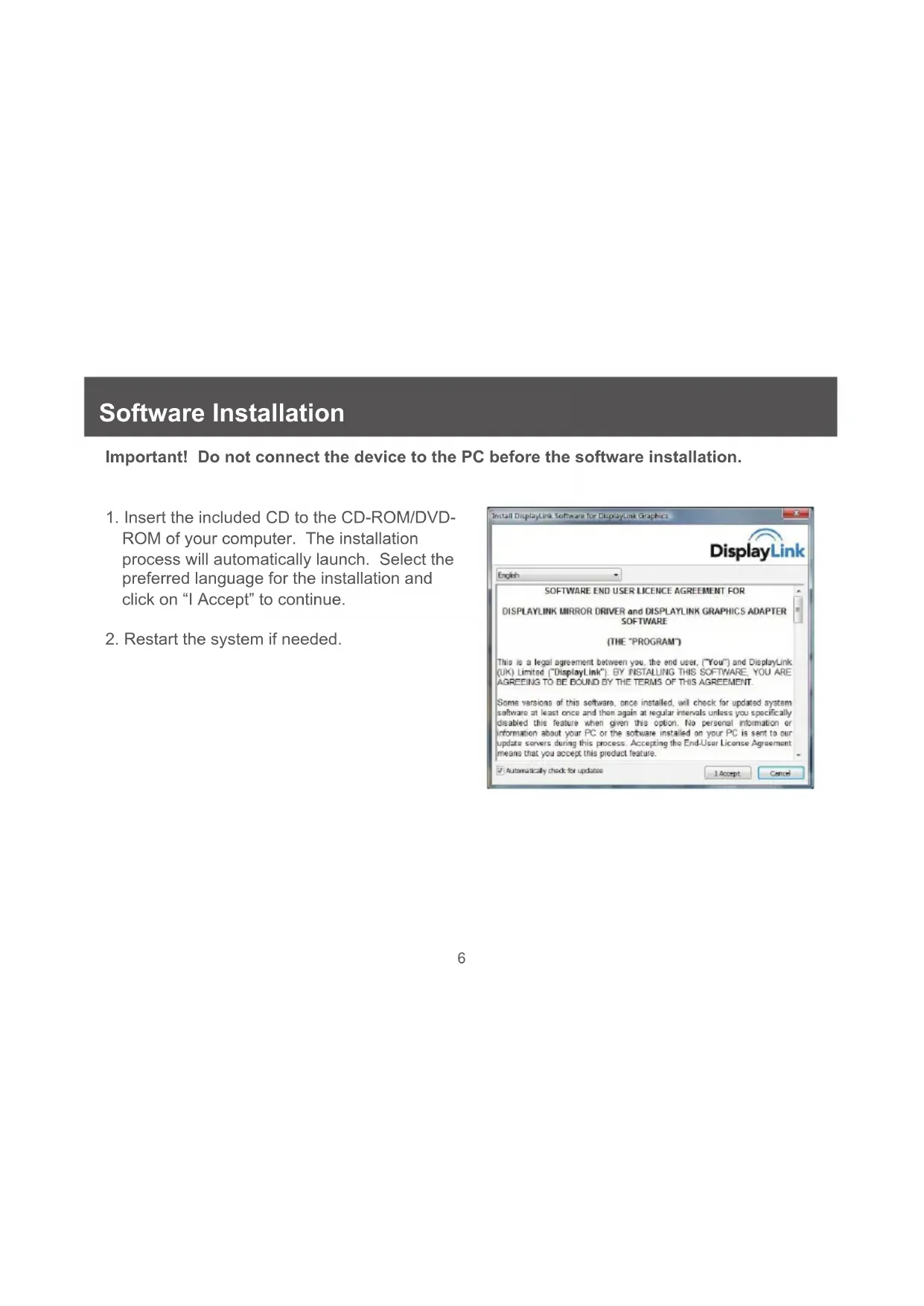

Software Installation

Important! Do not connect the device to the PC before the software installation.

1. Insert the included CD to the CD-ROM/DVD-ROM of your computer. The installation process will automatically launch. Select the preferred language for the installation and click on "I Accept" to continue.
2. Restart the system if needed.

Hardware Installation

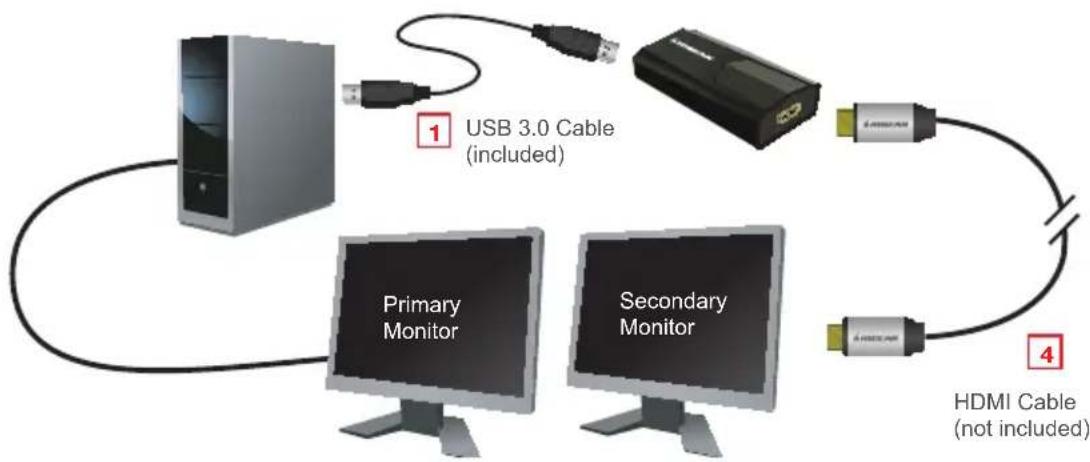

1. Connect the Micro-B end of the included USB 3.0 cable to the Micro-B port on the USB External HD Video Adapter. Then connect the USB Type-A end of the cable to any available 3.0 USB port on the computer. Once plugged in, the Installing Device Driver Message will come out and the Windows User Account Control window opens.

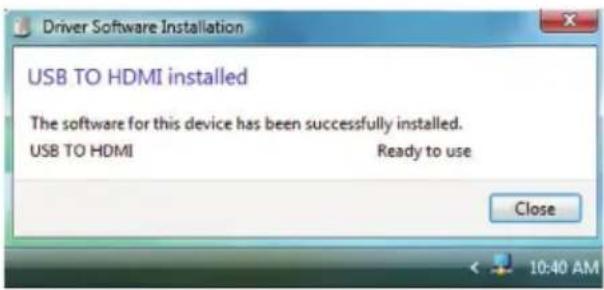

2. The device will be installed automatically.

1. You should able to see the display icon on the task bar.

Note: On some computers, you may need to reboot before using the device.

1. Connect the male end of the HDMI cable to the HDMI port on the USB External HDMI Video Card. Then connect the other male end of the HDMI cable to the HDMI port on the monitor/ display.

Configuration

Menu Sub-M Menu Description
Updates	Check Now	Connects to the Update Server to check for latest driver versions and download them, if available.
	Configure	Opens the Update Options window where you can configure automatic updates.
Screen Resolution Displays a list of avai		able resolutions.
Screen Rotation	No rotation No rotation
	Rotated Left Rotates the extended or mirrored display by 270 degrees.
	Rotated Right Rotates the extended or mirrored display by 90 degrees.
	Upside-Down Rotates the extended or mirrored display by 180 degrees.
Extend to	Right Extends the display to the right of the main display.
	Left Extends the display to the left of the main display.
	Above Extends the display to the above of the main display.
	Below Extends the display to the below of the main display.
Extend Extends your desktop onto the secondary display
Set as Main Monitor Sets the secondary		display as the main display.
Notebook Monitor Off		Switches off the display of an attached notebook and makes the external display primary.
Menu Sub-M Menu Description
Mirror		Copies what is on the main display and reproduces it on the secondary display.
Off Switches off the secondary display.
Optimize for Video		Configs the secondary display for optimum full screen video performance output. Note: Text may appear less clear
Fit to TV		Opens a GUI to change the size of the Windows desktop so it fits on a TV screen.
Advanced Configuration Opens the Display Settings window.

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential setting. This product generates, uses, and can radiate radio frequency energy and, if not installed and used as directed, it may cause harmful interference to radio communications. Although this product complies with the limits for a Class B digital device, there is no guarantee that interference will not occur in a particular installation.

CE Statement

This device has been tested and found to comply with the following European Union directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).

Limited Warranty

WE'RE HERE TO HELP YOU!

NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

Warranty Information

This product carries a 3 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/support/warranty

Register online at http://www.iogear.com/register

Important Product Information

Product Model

Serial Number
