USER MANUAL 154502 Hendi

Bake Master/Grill Master/ Roast Master

154601/154618/154700/154717/154908

154502

Exterior view of a portable electric stove with coiled hoses and control panel (no visible text or symbols)

Exterior view of a stainless steel gas stove with red tubing and control valves (no text or symbols visible)

GEBRUIKSAANWIJZING

USER INSTRUCTIONS

GEBRAUCHSANWEISUNG

MODE D'EMPLOI

INSTRUKCJA OBSŁUGI

MANUAL DE UTILIZARE

Exterior view of a stainless steel outdoor grill with open lid and red piping (no text or symbols visible)

Exterior view of a stainless steel portable gas stove with open lid and red tubing (no text or symbols visible)

Metallic stainless steel electrical heating unit with control panel and red cable, displayed on wheels against a blue background (no text or symbols visible)

Exterior view of a white industrial electrical enclosure with cooling fans and control buttons (no visible text or symbols)

Gasbarbecue

Gas grill

Gasgrill

Grill à gaz

Grill gazowe

Grill coacere master

You should read these user instructions carefully before using the appliance

Please read and keep these instructions

Keep these instructions with the appliance.

For outdoor use only.

Read instructions before use.

Some accessible parts may be hot.

Keep young children on a safe distance.

While using the brasing pan

remove the grill grids and the fat drip tray

NUR IM FREIEN VERWENDEN

FOOD SERVICE EQUIPMENT

0063

Roast-Master Maxi

Land/Country/Kraj Land/Paya	NL	FRIEBE/OB	LUDE/PL	AT
Belasting/Power/Moc nominalna Leistung/Puissance	[4q] 11,8 KW	[4q] 9,0 KW	[4q] 11,8 KW	[4q] 12,6 KW
Categorie/Category/Kategoria Kategoria/Categoria	IP	IP Ib+	IP	IPIP (Propenothutane)
Verbruik/Consumption/Zuzycie Verbrauch/Consommation	0,40 m3/h	0,35 m3/h	0,40 m3/h	0,40 m3/h
Inrichting/Set up/Przeznaczony na Auflegung/Conçu pour	031-60 m3/h	031-37 m3/h	031-60 m3/h	03001-90 m3/h
Ultersost voor/Equipad for Przystosowany dla/Ausgestaltet för/Equipé pour
Artikel/Artical Artikel/Article	154502
Pin nr. / Pin no. / Nr Pin Pin nr. / Pin nr.	0063AR3273
Hendi BV - Steenoven 21 3911 TX Rhenen (The Netherlands)

UITSLUITEND BUITEN GEBRUIKEN

Read instructions before use.

Some accessible parts may be hot.

Keep young children on a safe distance.

While using the brasing pan

remove the grill grids and the fat drip tray

NUR IM FREIEN VERWENDEN

FOOD SERVICE EQUIPMENT

0063

Bake-Master Maxi

Land/Country/Kraj Land/Pays	NL	FRIESE/OS	LVIDEPL	AT
Belasting/Power/Moc nominalna Leistung/Puissance	D4Q 11,8 KW	D4Q30 KW	D4Q 11,6 KW	D4Q 12,5 KW
Categorie/Category/Kategoria Kategorie/Categorie	IP	IP I3-	IP	IBSP (Propane/Eutane)
Verbruik/Consumption/Zuzycie Verbrauch/Consommation	0,40 m3/h	0,35 m3/h	0,40 m3/h	0,40 m3/h
Inrichting/Set up/Przoznaczony na Auflegung/Conçu pour	031 - 30 mbar	031 - 37 mbar	031 - 60 mbar	03001 - 60 mbar
Utgenust voor/Equipped for Przystosowany die/Ausgestattel 10/Equipe pour
Artikel/Artikel Artikel/Article	154618
Pin nr. / Pin no. / Nr Pin Pin nr. / Pin nr.	0063AR3273
Hendi BV - Steenoven 21 3911 TX Rhenen (The Netherlands)

UITSLUITEND BUITEN GEBRUIKEN

Read instructions before use.

Some accessible parts may be hot.

Keep young children on a safe distance.

While using the brasing pan

remove the grill grids and the fat drip tray

NUR IM FREIEN VERWENDEN

FOOD SERVICE EQUIPMENT

0063

Bake-Master Mini

Land/Country/Kraj Land/Pays	NL	FRI/EBE/OB	LUO/EPL	AT
Belasting/Power/Moc nominalna Leistung/Puissance	[4q] 4,8 KW	[4q] 4,6 KW	[4q] 6,8 KW	[4q] 8,2 KW
Categorie/Category/Kategoria Kategorie/Categoria	IP	IP Is+	IP	IBSP (Propenellutane)
Verbruik/Consumption/Zuzycie Verbrauch/Consommation	0.25 m3/h	0.18 m3/h	3,20 m3/h	0.26 m3/h
Inrichting/Set up/Przeznaczony na Auflegung/Conçu pour	001 - 90 mbar	001 - 37 mbar	001 - 60 mbar	00001 - 60 mbar
Ultersost voor/Esploped for Przytesożowy dla/Ausgestattet för/Equipe pour
Artikel/Artical Artikel/Article	154601
Pin nr. / Pin no. / Nr Pin Pin nr. / Pin nr.	0063AR3273
Hendi BV - Steenoven 21 3911 TX Rhenen (The Netherlands)

UITSLUITEND BUITEN GEBRUIKEN

Read instructions before use.

Some accessible parts may be hot.

Keep young children on a safe distance.

While using the brasing pan

remove the grill grids and the fat drip tray

NUR IM FREIEN VERWENDEN

FOOD SERVICE EQUIPMENT

0063

Grill-Master Maxi

Land/Country/Kraj Land/Pays	NL	FRIERGEOB	LUOXIPL	AT
Belasting/Power/Moc nominaina Leistung/Puissance	P4Q 11,8 KW	P4Q 9,0 KW	P4Q 11,8 KW	P4Q 125 KW
Categorie/Category/Kategoria Kategorie/Categorie	IP	IP I>	IP	IBSP (Propene/Bulane)
Verbruik/Consumption/Zuzycie Verbrauch/Consommation	0,40 m3h	0,35 m3h	0,40 m3h	0,40 m3h
Inrichting/Set up/Przeznaczony na Aufegung/Conçu pour	G31-50 mber	G31-37 mber	G31-51 mber	G3031-40 mber
Uitgenust voor/Equipped for Przytoesowany da/ Ausgestatet für/Equipe pour
Artikel/Artikel Artikel/Article	154717
Pin nr. / Pin no. / Nr Pin Pin nr. / Pin nr.	0063AR3273
Hendi BV - Steenoven 21 3911 TX Rhenen (The Netherlands)

Hendi BV - Steenoven 21 3911 TX Rhenen (The Netherlands)

UITSLUITEND BUITEN GEBRUIKEN

Read instructions before use.

Some accessible parts may be hot.

Keep young children on a safe distance.

While using the brasing pan

remove the grill grids and the fat drip tray

NUR IM FREIEN VERWENDEN

FOOD SERVICE EQUIPMENT

0063

Grill-Master Mini

Land/Country/Kraj Land/Pays	NL	FRIEBBOB	LUDEPL	AT
Belasting/Power/Moc nominaina Leistung/Puissance	P4q 6,9 KW	P4q 4,6 KW	P4q 6,1 KW	P4q 8,2 KW
Categoriα/Category/Kategoriα Kategoriα/Categoriα	I2P	I2P I2-	I2P	I2SP (Propenethutane)
Verbruik/Consumption/Zuzycie Verbrauch/Consommation	0,20 m3/h	0,18 m3/h	0,20 m3/h	0,20 m3/h
Inrichting/Set up/Przeznaczony na Auflegung/Conçu pour	001 - 60 mbar	001 - 37 mbar	001 - 60 mbar	00001 - 60 mbar
Ufgenust nour/Equipped for Przytostaveny da/ Ausgestatiet for/Equips pour
Artikel/Artical Artikel/Article	154700
Pin nr. / Pin no. / Nr Pin Pin nr. / Pin nr.	0063AR3273
Hendi BV - Steenoven 21 3911 TX Rhenen (The Netherlands)

UITSLUITEND BUITEN GEBRUIKEN

Read instructions before use.

Some accessible parts may be hot.

Keep young children on a safe distance.

While using the brasing pan

remove the grill grids and the fat drip tray

NUR IM FREIEN VERWENDEN

FOOD SERVICE EQUIPMENT

0063

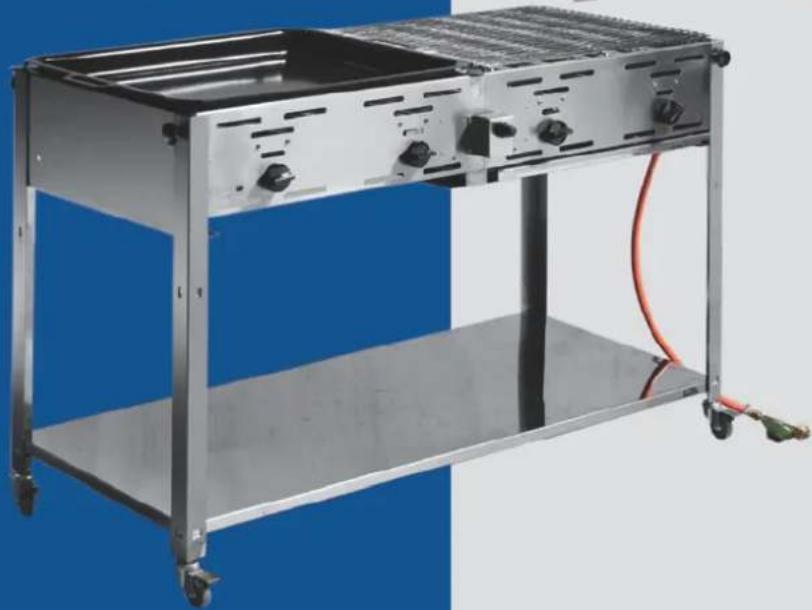

Grill-Master Quattro

Land/Country/Kraj Land/Pays	NL	FRISSEPOE	LIXOEPPL	AT
Belasting/Power/Moc nominalna Leistung/Puissance	DHQ 22,0 KW	DHQ 18,0 KW	DHQ 22,0 KW	DHQ 25,0 KW
Categorie/Category/Kategoria Kategorie/Categorie	IP	IP Ib+	IP	IBSP (Propenellbutane)
Verbruik/Consumption/Zuzycie Verbrauch/Consommation	0,80 m3/h	0,80 m3/h	0,80 m3/h	0,80 m3/h
Inrichting/Set up/Przeznaczony na Auflegung/Conçu pour	031 - 60 mbar	031 - 37 mbar	031 - 60 mbar	03001 - 60 mbar
Uitgenat voor/Equipped for Przysloszewary dia/ Ausgestattet für/Equipé pour
Artikel/Articai Artikel/Article	154908
Pin nr. / Pin no. / Nr Pin Pin nr. / Pin nr.	0063AR3273
Hendi BV - Steenoven 21 3911 TX Rhenen (The Netherlands)

154908: 1 AA batterij inbegrepen

1 AA battery included

1 AA-Batterie inklusive
1 pile AA incluse
1 bateria AA w zestawie
1 baterie AA inclusa

GEBRUIKSAANWIJZING

USER INSTRUCTIONS

GEBRAUCHSANWEISUNG

MODE D'EMPLOI

INSTRUKCJA OBSŁUGI

ISTRUZIONI PER L'USO

Illustration of a fork, knife, and spoon arranged in a circular frame (no text or symbols)

HENDI

FOOD SERVICE EQUIPMENT

Nederlands

Geachte klant,

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Thank you for purchasing this Hendi appliance. Please read these user instructions carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety instructions in particular very carefully.

Safety Regulations

• Only use this appliance outdoors.
- Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
- The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
- Never try to open the casing of the appliance yourself.
- Do not insert any objects in the casing of the appliance.
- Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
- Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
• Always keep an eye on the appliance when in use.
- Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.
- Do not use any extra devices that are not supplied along with the appliance.
- The use of the installation must comply with the applicable national and local regulations.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended solely for preparing food.
• Gas and electrical installations should be checked at least once a year.
• Note: the griddle is hot. Let it cool down before touching or removing it.
• We recommend to use only gas cylinders with a capacity of more than 10 kilo's.

General instructions

• Necessary changes may only be done by a qualified technician
• Use only the supplied pressure regulator.
  • This appliance is only suited for propane gas.
• Check that there are no kinks in the gas hose.
• The length of the gas hose may not exceed 1,5 meters.
• Keep the appliance away from (easily) flammable material.
• Do not move the gas appliance during use.
  • Always close the tap on the gas cylinder if the appliance is no longer being used.
  • The user must not change parts of the appliance that are sealed by the manufacturer.
  • Install the appliance as level as possible.

WARNING: Some parts of the appliance can become hot.

Keep children away from the gas griddle.

Connecting the gas bottle

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

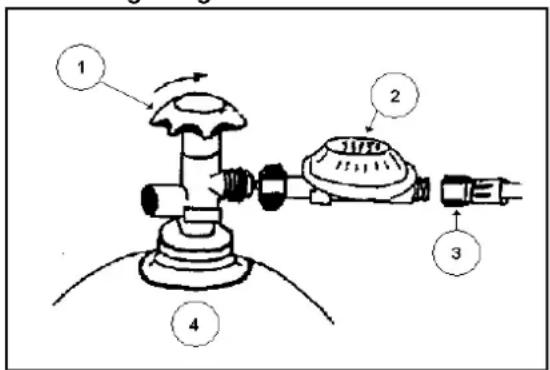

1 = main tap
2 = pressure regulator
3 = gas hose
4 = gas bottle

Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber-sealing washer is present in the nut. (NB. This rubber washer is not required for UK-type pressure regulators). Tighten the nut well. Note that the nut has a left-hand thread.

Check the connections for leaks using a soap and water solution.

Igniting the gas griddle

• Place the grill grid.
• Turn the knob to the "big flame" position. Keep the knob pressed and press the ignition button a few times until the burner is burning completely. Keep the knob pressed in for approximately a further 10 seconds. The burner will continue to burn.

Turning off the gas griddle

- Turn the knob completely to the right. The burner will go off.

Note! After turning off the burners, wait approximately 10 minutes before reigniting the burners.

After turning off the burners, always turn off the main tap on the gas cylinder and the tap on the appliance!

Cleaning and maintenance

• Let the appliance cool down before cleaning
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• The grid and/or baking tray of the grill should be cleaned regularly. Let it soak in cleaning agent first, then use an abrasive material like a scourer or wire brush. If you use special barbecue cleaner, follow the instructions on the packaging.

- Clean the ventilation slots (if applicable) with a vacuum cleaner.

- Keep inside after use.

- Let specialised personnel clean at least once a year the burner.

- Never use a high pressure cleaner.

- Maintenance after every use: Clean the griddle. Clean the grease holder.

Fault	Possible cause	Fault	Possible cause
Burner will not ignite:	Defective igniter	Burner does not burn fully:	Gas cylinder is (almost) empty
	Defective thermocouple
	Dirty sparking plug Kink in gas hose
	Defective pressure regulator		The main gas tap on the gas cylinder is not fully open
	Empty gas cylinder
	Kink in gas hose Main jet clogged
	Clogged jet Defective gas tap

Note

• It is to be recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time. Also check the hose for leaks on a yearly basis at least. Even if the expiration date has not been expired yet, you must check the condition of the hose always. In case of damage/cracks you have to replace the hose immediately. Please make sure that you comply with all local health and safety regulations (e.g. fire code).
• Pressure regulators have a default maximum life span as indicated by the date printed on the regulator, but please note that local health and safety regulations may overrule this.
• Only replace the pressure regulator with one provided by the manufacturer.
• Consult the local regulations, these may differ.
  • Always store gas bottles upright, in use as well as when empty.

Accessories

Description Article no.

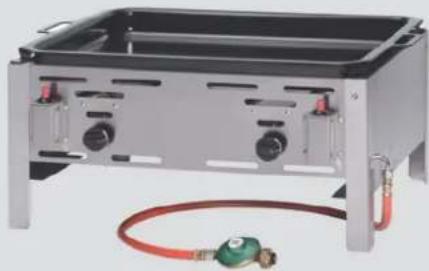

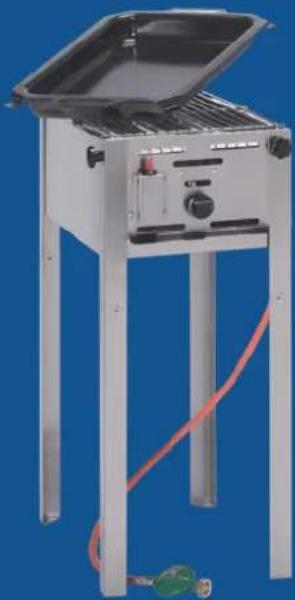

Baking tray Grill/Bakemaster Mini	154687
Baking tray Grill/Bakemaster Maxi/ Quattro	154656
Upper grid Grillmaster Mini 154663

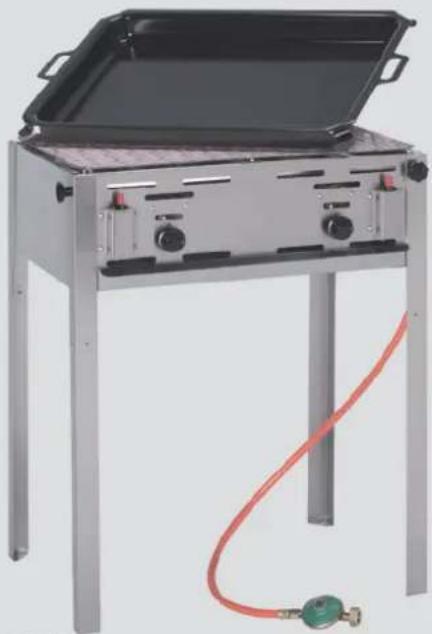

Upper grid Grill/Roastmaster Maxi/ Quattro	154632
Lower grid Grillmaster Mini 154670
Lower grid Grill/Roastmaster Maxi/Quattro	154649
Grease holder Grillmaster Mini	154748
Grease holder Grill/Roastmaster Maxi/ Quattro	154755
Leg Grillmaster Grillmaster Mini	154823
Leg Grillmaster Grillmaster Maxi	154694
Leg Grillmaster Grillmaster Quattro	928226
Wheel Quattro 928233
Ignition button Grill/Roast/Bakemaster Mini/Maxi	153178
button Quattro 928240
Gas tap Grill/Bakemaster Mini / Maxi/ Quattro	154724
Burner Grill/Bakemaster Mini / Maxi / Quattro	154731

Important!

When you are using the baking tray for the Grillmaster Mini / Maxi / Quattro, you must remove the upper & lower griddle and the grease holder. When you don't do this, there will be such an amount of heat inside the appliance that this heat will cause damage.

Warranty

Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was bought and include proof of purchase (f.e. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

At the end of the life of the appliance, please dispose of the appliance according to the regulations and guidelines applicable at the time.

Throw packing materials like plastic and boxes in the appropriate containers.

Deutsch

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

1 = Haupthahn

2 = Druckregler

3 = Gasschlauch

4 = Gasflasche

Diagram of a gasifier or scrubber with labeled components and directional arrows indicating flow or movement.

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

1 = principalul robinet
2 = regulator de presiune
3 = furtun de gas
4 = butelie de gaz

Hendi B.V. (The Netherlands)

Steenoven 21

3911 TX Rhenen

Nederland

Tel: [phone]

Fax: [phone]

www.hendi.eu

[e-mail]

Hendi Food Service Equipment GmbH (Austria)

[e-mail]

Hendi Polska Sp. z o.o. (Poland)

ul. Magazynowa 5

62-023 Gadki

Polska

Tel: [phone]

Fax: [phone]

www.hendi.pl

[e-mail]

Hendi Food Service Equipment Romania S.R.L. (Romania)

Str. Tampei Nr. 13

Brasov 500271

Romania

Tel: [phone]

Fax: [phone]

www.hendi.ro

[e-mail]

Changes, printing and typesetting errors reserved.
