USER MANUAL 154618 Hendi

• Read the instructions before using the appliance.

• WARNING: accessible parts may be very hot. Keep young childern away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas cylinder after use.

WARNING: accessible parts may be very hot.

Keep young children away. Nur im Freien verwenden. Lesen Sie die Bedienungsanleitung vor Inbetriebnahme des Gerätes. ACHTUNG: Zugängliche Teile können sehr heiß sein. Kinder fernhalten. Alleen buiten gebruiken. Lees de instructies voor ingebruikname. WAARSCHUWING: Aanraakbare delen kunnen erg heet zijn. Houdt jonge kinderen op afstand. A n'utiliser qu'à l'extérieur des locaux. Consulter la notice avant l'utilisation. ATTENTION : des parties accessibles peuvent être très chaudes. Eloigner les jeunes enfants. Για χρήση μόνο σε εξωτερικό χώρο. Διαβάστε τις οδηγίες πριν χρησιμοποιήσετε τη συσκευή. ΠΡΟΕΙΔΟΠΟΙΗΣΗ: τα προσβάσιμα σημεία μπορούν να θερμανθούν υπερβολικά. Διατηρείτε τη συσκευή μακριά από παιδιά. Использовать на открытом воздухе. Перед использованием устройства прочитайте, пожалуйста, руководство по обслуживанию. ВНИМАНИЕ: Детали устройства могут быть горячими. Убедитесь в том, что рядом с устройством нет детей. Csak kültéri használatra. A készülék használata előtt olvassa el a használati utasítást. FIGYELEM: az alkatrészek forrók lehetnek. Gyermekektől távol tartandó. Isključivo za upotrebu na otvorenom. Prije upotrebe uređaja pročitajte upute. UPOZORENJE: dostupni dijelovi mogu biti jako vrući. Ne smije se dopustiti pristup djeci. Stosować tylko na wolnej przestrzeni. Przeczytaj instrukcję przed użyciem urządzenia. OSTRZEŻENIE: dostępne części urządzenia mogą być bardzo gorące. Trzymaj dzieci z dala od urządzenia. Può essere utilizzato solo all'aperto. Prima dell'uso leggere attentamente le istruzioni d'uso. AVVERTENZE! I componenti del dispositivo possono essere molto caldi. Assicurarsi che non ci siano bambini nelle vicinanze del dispositivo. Pouze pro venkovní použití. Před použitím přístroje si přečtěte návod na použití. POZOR: Přístupné části mohou být velmi horké. Udržujte mimo dosah dětí. Len pre vonkajšie použitie. Pred použitím prístroja si prečítajte návod na použitie. POZOR: Prístupné časti môžu byť veľmi horúce. Udržujte mimo dosah detí. Innovatielaan 6, 6745 XW De Klomp,The Netherlands www.hendi.euCHROME PLATED 0063/21STAINLESS STEEL 18/0 0063/XX [HS] 11 kW [HS] 9,5 kW 744 g/h 648 g/h G31-50 mbar G31-37 mbar NL/DE/AT/PL/CH BE/FR/LU/GB/IE/GR/IT [HS] 9,5 kW 697 g/h G30-30 mbar RO/IT/HU 154878 Roast-master Maxi PIN : 0063AR3273 [HS] 9,5 kW 697 g/h / 648 g/h G30/28-30 mbar G31/37 mbar CZ/SK [HS] 13 kW 888 g/h G30-50 mbar AT/CH/HR I3P I3P I3B/P I3B/P I3+ Item / Artike l/ Item / Artykuł / Article / Articolo / Articol / пункт / Στοιχείο / Číslo artiklu / Číslo artikla / Tétel / Stavka Country / Land / Land / Kraj / Payes / Paese / țară / страна / Χώρα / Země / Krajina / Ország / Država Category / Categorie / Kategorie / Kategoria / Catégorie / Categoria / Categorie / категория / Κατηγορία / Kategorie / Kategória / Kategória / Kategorija Power / Belasting / Leistung / Moc nominaina / Puissance / Potenza / Putere / Мощность / Ισχύς / Výkon / Výkon / Áramellátás /Snaga Set up / Auflegung / Inrichting / Przeznaczony na / Conçu pour / Configurare / Configurarea / Настройка / Ρύθμιση / Hodnota regulátoru tlaku / Hodnota regulátora tlaku /Beüzemelés / Postavljanje Consumption / Verbrauch / Verbruik / Zuzycie / Consommation / Consumo / Consum / потребление / Κατανάλωση / Spotřeba / Spotreba / Fogyasztás / Potrošnja Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de série / N° seriale / Număr serial / Серийный номер / Αριθμός σειράς / Pořadové číslo / Poradové číslo / Sorozatszám / Serijski br. A se folosi doar spații deschise. Citiți cu atenție instrucțiunile înainte de utilizarea aparatului. AVERTISMENT: piesele accesibile pot fi foarte fierbinți. A nu se lăsa la îndemâna copiilor. Use outdoors only. Read the instructions before using the appliance.

WARNING: accessible parts may be very hot.

WARNING: accessible parts may be very hot.

Keep young children away. Nur im Freien verwenden. Lesen Sie die Bedienungsanleitung vor Inbetriebnahme des Gerätes. ACHTUNG: Zugängliche Teile können sehr heiß sein. Kinder fernhalten. Alleen buiten gebruiken. Lees de instructies voor ingebruikname. WAARSCHUWING: Aanraakbare delen kunnen erg heet zijn. Houdt jonge kinderen op afstand. A n'utiliser qu'à l'extérieur des locaux. Consulter la notice avant l'utilisation. ATTENTION : des parties accessibles peuvent être très chaudes. Eloigner les jeunes enfants. Για χρήση μόνο σε εξωτερικό χώρο. Διαβάστε τις οδηγίες πριν χρησιμοποιήσετε τη συσκευή. ΠΡΟΕΙΔΟΠΟΙΗΣΗ: τα προσβάσιμα σημεία μπορούν να θερμανθούν υπερβολικά. Διατηρείτε τη συσκευή μακριά από παιδιά. Использовать на открытом воздухе. Перед использованием устройства прочитайте, пожалуйста, руководство по обслуживанию. ВНИМАНИЕ: Детали устройства могут быть горячими. Убедитесь в том, что рядом с устройством нет детей. Csak kültéri használatra. A készülék használata előtt olvassa el a használati utasítást. FIGYELEM: az alkatrészek forrók lehetnek. Gyermekektől távol tartandó. Isključivo za upotrebu na otvorenom. Prije upotrebe uređaja pročitajte upute. UPOZORENJE: dostupni dijelovi mogu biti jako vrući. Ne smije se dopustiti pristup djeci. Stosować tylko na wolnej przestrzeni. Przeczytaj instrukcję przed użyciem urządzenia. OSTRZEŻENIE: dostępne części urządzenia mogą być bardzo gorące. Trzymaj dzieci z dala od urządzenia. Può essere utilizzato solo all'aperto. Prima dell'uso leggere attentamente le istruzioni d'uso. AVVERTENZE! I componenti del dispositivo possono essere molto caldi. Assicurarsi che non ci siano bambini nelle vicinanze del dispositivo. Pouze pro venkovní použití. Před použitím přístroje si přečtěte návod na použití. POZOR: Přístupné části mohou být velmi horké. Udržujte mimo dosah dětí. Len pre vonkajšie použitie. Pred použitím prístroja si prečítajte návod na použitie. POZOR: Prístupné časti môžu byť veľmi horúce. Udržujte mimo dosah detí. Innovatielaan 6, 6745 XW De Klomp,The Netherlands www.hendi.eu 0063/21 STAINLESS STEEL 18/0 0063/XX6 [HS] 6 kW [HS] 5 kW 395 g/h 342 g/h G31-50 mbar G31-37 mbarNL/DE/AT/PL/CH BE/FR/LU/GB/IE/GR/IT [HS] 5 kW 351 g/h G30-30 mbarRO/IT/HU 154601 Bake-master Mini PIN : 0063AR3273 [HS] 5 kW 351 g/h / 342 g/h G30/28-30 mbar G31/37 mbarCZ/SK [HS] 6,5 kW 450 g/h G30-50 mbarAT/CH/HR I3P I3P I3B/P I3B/P I3+ Item / Artike l/ Item / Artykuł / Article / Articolo / Articol / пункт / Στοιχείο / Číslo artiklu / Číslo artikla / Tétel / Stavka Country / Land / Land / Kraj / Payes / Paese / țară / страна / Χώρα / Země / Krajina / Ország / Država Category / Categorie / Kategorie / Kategoria / Catégorie / Categoria / Categorie / категория / Κατηγορία / Kategorie / Kategória / Kategória / Kategorija Power / Belasting / Leistung / Moc nominaina / Puissance / Potenza / Putere / Мощность / Ισχύς / Výkon / Výkon / Áramellátás /SnagaSet up / Auflegung / Inrichting / Przeznaczony na / Conçu pour / Configurare / Configurarea / Настройка / Ρύθμιση / Hodnota regulátoru tlaku / Hodnota regulátora tlaku /Beüzemelés / PostavljanjeConsumption / Verbrauch / Verbruik / Zuzycie / Consommation / Consumo / Consum / потребление / Κατανάλωση / Spotřeba / Spotreba / Fogyasztás / Potrošnja Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de série / N° seriale / Număr serial / Серийный номер / Αριθμός σειράς / Pořadové číslo / Poradové číslo / Sorozatszám / Serijski br. A se folosi doar spații deschise. Citiți cu atenție instrucțiunile înainte de utilizarea aparatului. AVERTISMENT: piesele accesibile pot fi foarte fierbinți. A nu se lăsa la îndemâna copiilor. Use outdoors only. Read the instructions before using the appliance.

WARNING: accessible parts may be very hot.

Keep young children away. Nur im Freien verwenden. Lesen Sie die Bedienungsanleitung vor Inbetriebnahme des Gerätes. ACHTUNG: Zugängliche Teile können sehr heiß sein. Kinder fernhalten. Alleen buiten gebruiken. Lees de instructies voor ingebruikname. WAARSCHUWING: Aanraakbare delen kunnen erg heet zijn. Houdt jonge kinderen op afstand. A n'utiliser qu'à l'extérieur des locaux. Consulter la notice avant l'utilisation. ATTENTION : des parties accessibles peuvent être très chaudes. Eloigner les jeunes enfants. Για χρήση μόνο σε εξωτερικό χώρο. Διαβάστε τις οδηγίες πριν χρησιμοποιήσετε τη συσκευή. ΠΡΟΕΙΔΟΠΟΙΗΣΗ: τα προσβάσιμα σημεία μπορούν να θερμανθούν υπερβολικά. Διατηρείτε τη συσκευή μακριά από παιδιά. Использовать на открытом воздухе. Перед использованием устройства прочитайте, пожалуйста, руководство по обслуживанию. ВНИМАНИЕ: Детали устройства могут быть горячими. Убедитесь в том, что рядом с устройством нет детей. Csak kültéri használatra. A készülék használata előtt olvassa el a használati utasítást. FIGYELEM: az alkatrészek forrók lehetnek. Gyermekektől távol tartandó. Isključivo za upotrebu na otvorenom. Prije upotrebe uređaja pročitajte upute. UPOZORENJE: dostupni dijelovi mogu biti jako vrući. Ne smije se dopustiti pristup djeci. Stosować tylko na wolnej przestrzeni. Przeczytaj instrukcję przed użyciem urządzenia. OSTRZEŻENIE: dostępne części urządzenia mogą być bardzo gorące. Trzymaj dzieci z dala od urządzenia. Può essere utilizzato solo all'aperto. Prima dell'uso leggere attentamente le istruzioni d'uso. AVVERTENZE! I componenti del dispositivo possono essere molto caldi. Assicurarsi che non ci siano bambini nelle vicinanze del dispositivo. Pouze pro venkovní použití. Před použitím přístroje si přečtěte návod na použití. POZOR: Přístupné části mohou být velmi horké. Udržujte mimo dosah dětí. Len pre vonkajšie použitie. Pred použitím prístroja si prečítajte návod na použitie. POZOR: Prístupné časti môžu byť veľmi horúce. Udržujte mimo dosah detí. Innovatielaan 6, 6745 XW De Klomp,The Netherlands www.hendi.eu0063/21STAINLESS STEEL 18/0 size : 215mm X 70mm 0063/XX [HS] 11 kW [HS] 9,5 kW 744 g/h 648 g/h G31-50 mbar G31-37 mbar NL/DE/AT/PL/CH BE/FR/LU/GB/IE/GR/IT [HS] 9,5 kW 697 g/h G30-30 mbar RO/IT/HU 154618 Bake-master Maxi PIN : 0063AR3273 [HS] 9,5 kW 697 g/h / 648 g/h G30/28-30 mbar G31/37 mbar CZ/SK [HS] 13 kW 888 g/h G30-50 mbar AT/CH/HR I3P I3P I3B/P I3B/P I3+ Item / Artike l/ Item / Artykuł / Article / Articolo / Articol / пункт / Στοιχείο / Číslo artiklu / Číslo artikla / Tétel / Stavka Country / Land / Land / Kraj / Payes / Paese / țară / страна / Χώρα / Země / Krajina / Ország / Država Category / Categorie / Kategorie / Kategoria / Catégorie / Categoria / Categorie / категория / Κατηγορία / Kategorie / Kategória / Kategória / Kategorija Power / Belasting / Leistung / Moc nominaina / Puissance / Potenza / Putere / Мощность / Ισχύς / Výkon / Výkon / Áramellátás /Snaga Set up / Auflegung / Inrichting / Przeznaczony na / Conçu pour / Configurare / Configurarea / Настройка / Ρύθμιση / Hodnota regulátoru tlaku / Hodnota regulátora tlaku /Beüzemelés / Postavljanje Consumption / Verbrauch / Verbruik / Zuzycie / Consommation / Consumo / Consum / потребление / Κατανάλωση / Spotřeba / Spotreba / Fogyasztás / Potrošnja Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de série / N° seriale / Număr serial / Серийный номер / Αριθμός σειράς / Pořadové číslo / Poradové číslo / Sorozatszám / Serijski br. A se folosi doar spații deschise. Citiți cu atenție instrucțiunile înainte de utilizarea aparatului. AVERTISMENT: piesele accesibile pot fi foarte fierbinți. A nu se lăsa la îndemâna copiilor. Use outdoors only. Read the instructions before using the appliance.

WARNING: accessible parts may be very hot.

Keep young children away. Nur im Freien verwenden. Lesen Sie die Bedienungsanleitung vor Inbetriebnahme des Gerätes. ACHTUNG: Zugängliche Teile können sehr heiß sein. Kinder fernhalten. Alleen buiten gebruiken. Lees de instructies voor ingebruikname. WAARSCHUWING: Aanraakbare delen kunnen erg heet zijn. Houdt jonge kinderen op afstand. A n'utiliser qu'à l'extérieur des locaux. Consulter la notice avant l'utilisation. ATTENTION : des parties accessibles peuvent être très chaudes. Eloigner les jeunes enfants. Για χρήση μόνο σε εξωτερικό χώρο. Διαβάστε τις οδηγίες πριν χρησιμοποιήσετε τη συσκευή. ΠΡΟΕΙΔΟΠΟΙΗΣΗ: τα προσβάσιμα σημεία μπορούν να θερμανθούν υπερβολικά. Διατηρείτε τη συσκευή μακριά από παιδιά. Использовать на открытом воздухе. Перед использованием устройства прочитайте, пожалуйста, руководство по обслуживанию. ВНИМАНИЕ: Детали устройства могут быть горячими. Убедитесь в том, что рядом с устройством нет детей. Csak kültéri használatra. A készülék használata előtt olvassa el a használati utasítást. FIGYELEM: az alkatrészek forrók lehetnek. Gyermekektől távol tartandó. Isključivo za upotrebu na otvorenom. Prije upotrebe uređaja pročitajte upute. UPOZORENJE: dostupni dijelovi mogu biti jako vrući. Ne smije se dopustiti pristup djeci. Stosować tylko na wolnej przestrzeni. Przeczytaj instrukcję przed użyciem urządzenia. OSTRZEŻENIE: dostępne części urządzenia mogą być bardzo gorące. Trzymaj dzieci z dala od urządzenia. Può essere utilizzato solo all'aperto. Prima dell'uso leggere attentamente le istruzioni d'uso. AVVERTENZE! I componenti del dispositivo possono essere molto caldi. Assicurarsi che non ci siano bambini nelle vicinanze del dispositivo. Pouze pro venkovní použití. Před použitím přístroje si přečtěte návod na použití. POZOR: Přístupné části mohou být velmi horké. Udržujte mimo dosah dětí. Len pre vonkajšie použitie. Pred použitím prístroja si prečítajte návod na použitie. POZOR: Prístupné časti môžu byť veľmi horúce. Udržujte mimo dosah detí. Innovatielaan 6, 6745 XW De Klomp,The Netherlands www.hendi.eu 0063/21 STAINLESS STEEL 18/0 0063/XX [HS] 6 kW [HS] 5 kW 395 g/h 342 g/h G31-50 mbar G31-37 mbar NL/DE/AT/PL/CH BE/FR/LU/GB/IE/GR/IT [HS] 5 kW 351 g/h G30-30 mbar RO/IT/HU 154700 Grill-master Mini PIN : 0063AR3273 [HS] 5 kW 351 g/h / 342 g/h G30/28-30 mbar G31/37 mbar CZ/SK [HS] 6,5 kW 450 g/h G30-50 mbar AT/CH/HR I3P I3P I3B/P I3B/P I3+ Item / Artike l/ Item / Artykuł / Article / Articolo / Articol / пункт / Στοιχείο / Číslo artiklu / Číslo artikla / Tétel / Stavka Country / Land / Land / Kraj / Payes / Paese / țară / страна / Χώρα / Země / Krajina / Ország / Država Category / Categorie / Kategorie / Kategoria / Catégorie / Categoria / Categorie / категория / Κατηγορία / Kategorie / Kategória / Kategória / Kategorija Power / Belasting / Leistung / Moc nominaina / Puissance / Potenza / Putere / Мощность / Ισχύς / Výkon / Výkon / Áramellátás /Snaga Set up / Auflegung / Inrichting / Przeznaczony na / Conçu pour / Configurare / Configurarea / Настройка / Ρύθμιση / Hodnota regulátoru tlaku / Hodnota regulátora tlaku /Beüzemelés / Postavljanje Consumption / Verbrauch / Verbruik / Zuzycie / Consommation / Consumo / Consum / потребление / Κατανάλωση / Spotřeba / Spotreba / Fogyasztás / Potrošnja Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de série / N° seriale / Număr serial / Серийный номер / Αριθμός σειράς / Pořadové číslo / Poradové číslo / Sorozatszám / Serijski br. A se folosi doar spații deschise. Citiți cu atenție instrucțiunile înainte de utilizarea aparatului. AVERTISMENT: piesele accesibile pot fi foarte fierbinți. A nu se lăsa la îndemâna copiilor. Use outdoors only. Read the instructions before using the appliance.

WARNING: accessible parts may be very hot.

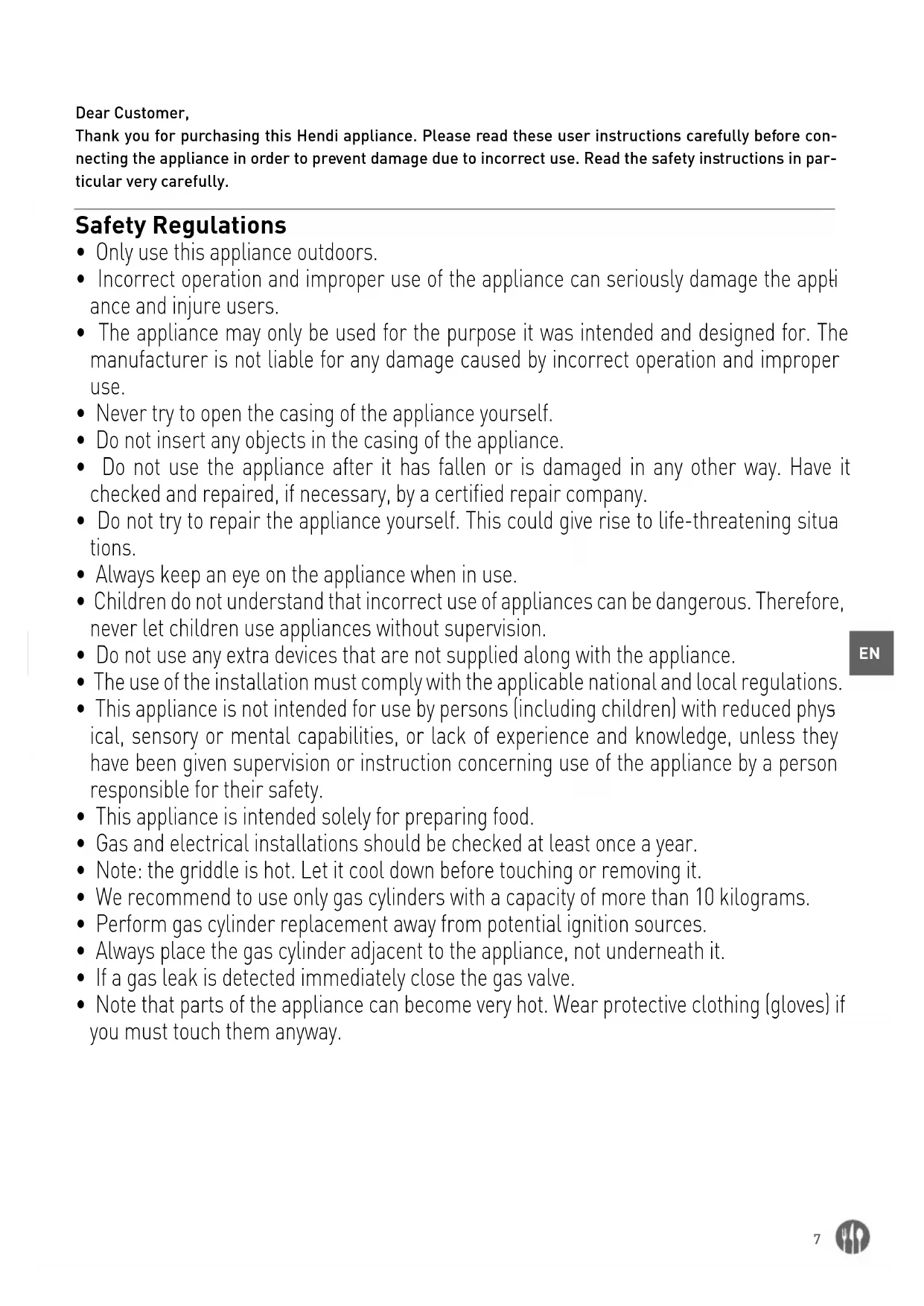

Dear Customer, Thank you for purchasing this Hendi appliance. Please read these user instructions carefully before con- necting the appliance in order to prevent damage due to incorrect use. Read the safety instructions in par- ticular very carefully. Safety Regulations

• Only use this appliance outdoors.

• Incorrect operation and improper use of the appliance can seriously damage the appli

ance and injure users.

• The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.

• Never try to open the casing of the appliance yourself.

• Do not insert any objects in the casing of the appliance.

• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.

• Do not try to repair the appliance yourself. This could give rise to life-threatening situa

• Always keep an eye on the appliance when in use.

• Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.

• Do not use any extra devices that are not supplied along with the appliance.

• The use of the installation must comply with the applicable national and local regulations.

• This appliance is not intended for use by persons (including children) with reduced phys

ical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• This appliance is intended solely for preparing food.

• Gas and electrical installations should be checked at least once a year.

• Note: the griddle is hot. Let it cool down before touching or removing it.

• We recommend to use only gas cylinders with a capacity of more than 10 kilograms.

• Perform gas cylinder replacement away from potential ignition sources.

• Always place the gas cylinder adjacent to the appliance, not underneath it.

• If a gas leak is detected immediately close the gas valve.

• Note that parts of the appliance can become very hot. Wear protective clothing (gloves) if you must touch them anyway.8

Special safety instructions

• Necessary changes may only be done by a qualified technician.

• Use only the supplied pressure regulator.

• This appliance is suited for propane and butane gas.

• Check that there are no kinks in the gas hose.

• This appliance must be kept away from flammable materials during use.

• If a gas leak is detected immediately close the gas valve on the gas bottle.

• Certain accessible parts of the appliance can become extremely hot during operation. In view of this, keep the appliance out of reach of children.

• The appliance may only be installed against or on fire-resistant surfaces.

• The appliance must be installed in accordance with the applicable national regulations.

• Do not move the appliance during use.

• Always close the gas valve on the gas bottle if the appliance is no longer being used.

• Changing or modifying this equipment is dangerous and therefore not allowed.

• Parts which are fastened or sealed by the manufacturer, are not to be loosened or ad

• Install the appliance as level as possible with regard to the grease drain.

• Do not cover the ventilation openings in the appliance.

• To prevent blockage of the venturis, keep the venturis and the surrounding area clean of dust, cobwebs, etc.

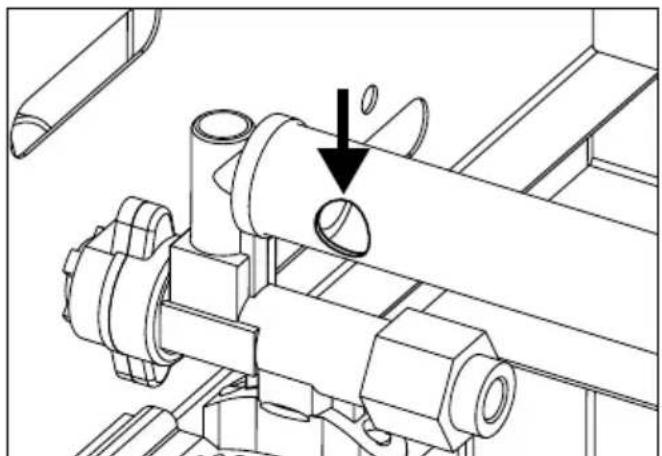

• Before each use, the user must always check whether the holes (pictured below) of the burner are clear of obstructions and not blocked.

WARNING: some parts of the appliance can become hot. Keep children away from the

• Warning: assembly of the tubing must be conducted by some qualified tuber of desti

• Approved gas regulator is used according to appliances categories and countries listed in data plate. Approved flexible hose would be changed when the national conditions require it & consult the local regulations, these may differ.

• The tubing or the flexible hose must be changed within the prescribed intervals or with-in one year. The flexible hose should not extend than 1.5m according to standard EN16436:2014.9

The maximum cylinder dimensions(regulator included) should not exceed (D)50x(H)75cm if no cylinder compartment included. Intended use

• The device is intended for professional use and can be operated only by qualified personnel.

• This appliance is designed only for grilling appro- priate food products. Any other use may lead to damage to the appliance or personal injury.

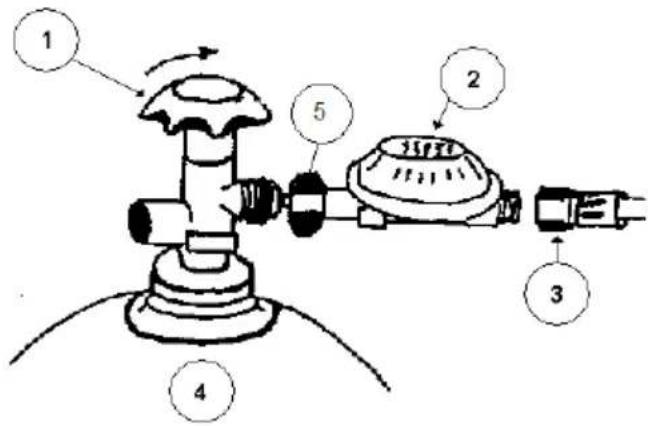

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the de- vice. Connecting the gas bottle 1 = Main tap 2 = Pressure regulator 3 = Gas hose 4 = Gas Bottle 5 = Rubber washer Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber-sealing washer is present in the nut. (NB. This rubber washer is not required for UK-type pressure regulators). Tighten the nut well. Note that the nut has a left-hand thread. Check the connections for leaks using a soap and water solution. Every time a newly filled gas bottle is connected, a new rubber washer must be fitted. In most cases, your gas supplier will include it with the bottle. Igniting the gas appliance

• Press the knob and turn left to the maximum po- sition. Keep the knob pressed and press the igni- tion button a few times. Keep the knob pressed in for approximately 10 more seconds. The burner will continue to burn.

• Let the appliance burn for approximately 15 minutes before putting meat on the grid, as the burners must first heat the chamber before it can pass its heat to the upper grid. Turning off the gas appliance

• Turn the knob fully to the right. Note! After turning off the burners, wait approxi- mately 10 minutes before reigniting the burners.

• When disconnecting the gas bottle or after turn- ing off the burners, always turn off the regulator on the gas bottle!10

Cleaning and maintenance

• Let the appliance cool down before cleaning

• Beware: Never immerse the appliance in water or any other liquid!

• Clean the outside of the appliance with a damp cloth (water with mild detergent).

• The grid and/or baking tray of the grill should be cleaned regularly. Let it soak in cleaning agent first, then use an abrasive material like a scourer or wire brush. If you use special cleaner, follow the instructions on the packaging.

• Clean the ventilation slots (if applicable) with a vacuum cleaner.

• Keep inside after use.

• Let specialised personnel clean at least once a year the burner.

• Never use a high pressure cleaner.

• Maintenance after every use: Clean the griddle. Clean the grease holder.

• If the injector must be replaced, replace it only with an original spare part acquired from the manufacturer. The diameter of the injector is noted on the injector: 1.10 mm. Troubleshooting If the appliance does not function properly, please check the below table for the solution. If you are unable to solve the problem, please contact the supplier / service provider. Fault Possible cause Fault Possible cause Burner will not ignite: Defective igniter Burner does not burn fully: Gas cylinder is (almost) empty Defective thermocouple Dirty sparking plug Kink in gas hose Defective pressure regu- lator The main gas tap on the gas cylinder is not fully open Empty gas cylinder Kink in gas hose Defective gas tap Clogged jet Main jet clogged Note

• It is to be recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time. Also check the hose for leaks on a yearly basis at least. Even if the expiration date has not been expired yet, you must check the condition of the hose always. In case of damage/cracks you have to replace the hose immediately. Please make sure that you comply with all local health and safety regulations (e.g. fire code).

• Pressure regulators have a default maximum life span as indicated by the date printed on the regu- lator, but please note that local health and safety regulations may overrule this.

• Only replace the pressure regulator with one pro- vided by the manufacturer.

• Consult the local regulations, these may differ.

• Always store gas bottles upright, in use as well as when empty.

Accessories Description Article no. Baking tray Grill/Bake master Mini 154687 Baking tray Grill/Bake master Maxi/ Quattro 154656 Upper grid Grill master Mini 154663 Upper grid Grill master Maxi/ Quattro 154632 Lower grid Grill master Mini 154670 Lower grid Grill master Maxi/Quattro 154649 Grease holder Grill master Mini 154748 Grease holder Grill master Maxi/ Quattro 154755 Leg Grill master Mini 154823 Leg Grill master Maxi 154694 Leg Grill master Quattro 928226 Wheel Quattro 928233 Ignition button Grill/Bake master Mini/Maxi 153178 button Quattro 928240 Gas tap Grill/Bake master Mini / Maxi/ Quattro 154724 Burner Grill/Bake master Mini / Maxi / Quattro 154731 Important! When you are using the baking tray for the Grillmaster Mini / Maxi / Quattro, you must remove the upper & lower griddle and the grease holder. When you don’t do this, there will be such an amount of heat inside the appliance that this heat will cause damage. Warranty Any defect affecting the functionality of the ap- pliance which becomes apparent within one year after purchase will be repaired by free repair or re- placement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appli- ance is claimed under warranty, state where and when it was purchased and include proof of pur- chase (e.g. receipt). In line with our policy of continuous product devel- opment we reserve the right to change the product, packaging and documentation specifications with- out notice. Discarding & Environment When decommissioning the appliance, the prod- uct must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a des- ignated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate col- lection and recycling of your waste equipment at the time of disposal will help conserve natural re- sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.12
