USER MANUAL Ergo RF SL6491 Speedlink

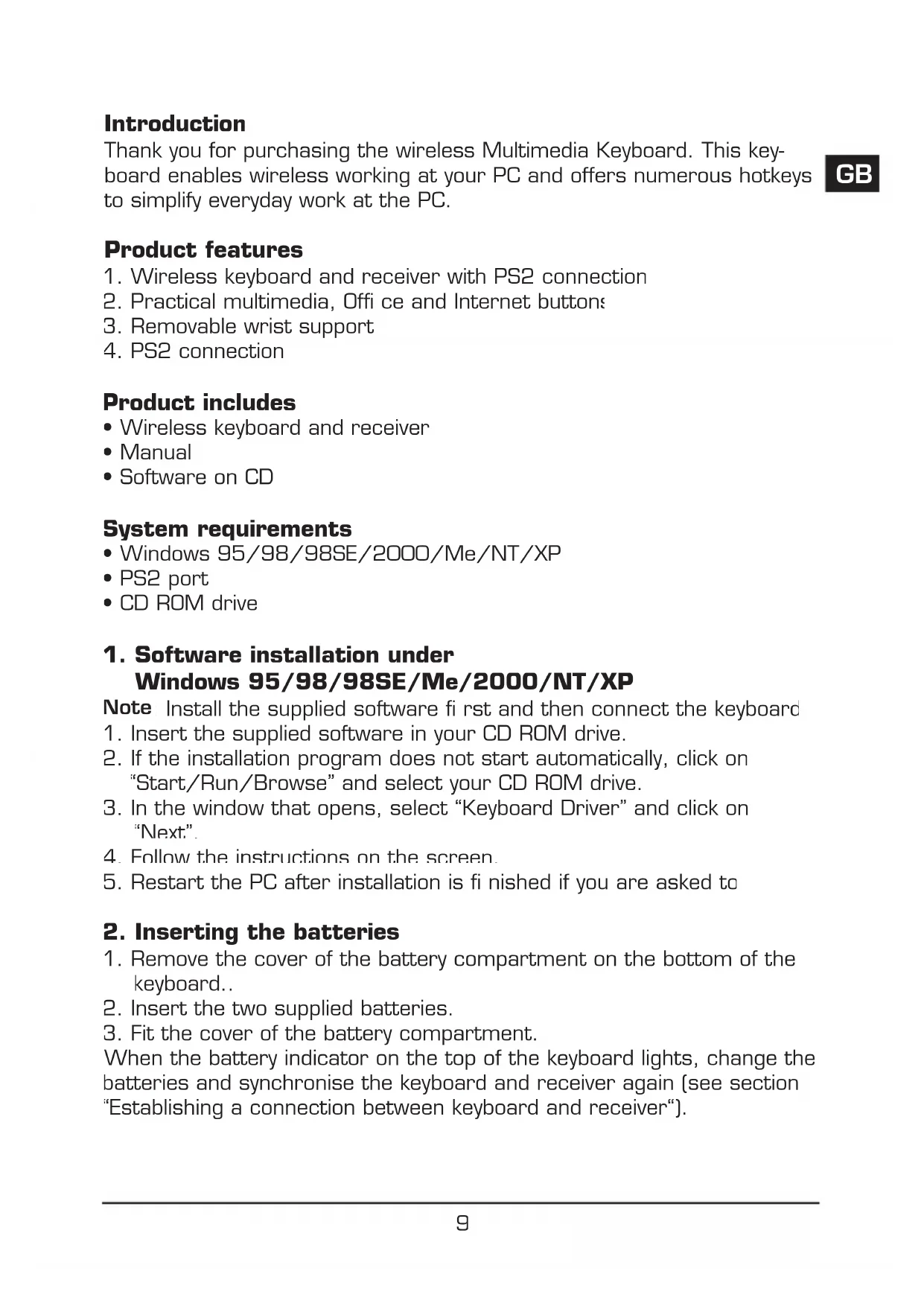

Thank you for purchasing the wireless Multimedia Keyboard. This keyboard enables wireless working at your PC and offers numerous hotkeys to simplify everyday work at the PC.

GB

Product features

1. Wireless keyboard and receiver with PS2 connection
2. Practical multimedia, Offic e and Internet buttons
3. Removable wrist support
4. PS2 connection

Product includes

• Wireless keyboard and receiver
• Manual
• Software on CD

System requirements

• Windows 95/98/98SE/2000/Me/NT/XP
  PS2 port
• CD ROM drive

1. Software installation under Windows 95/98/98SE/Me/2000/NT/XP

Note Install the supplied software fi rst and then connect the keyboard

1. Insert the supplied software in your CD ROM drive.
2. If the installation program does not start automatically, click on "Start/Run/Browse" and select your CD ROM drive.
3. In the window that opens, select "Keyboard Driver" and click on "Next".
4. Follow the instructions on the screen
5. Restart the PC after installation is finished if you are asked to

2. Inserting the batteries

1. Remove the cover of the battery compartment on the bottom of the keyboard..
2. Insert the two supplied batteries.
3. Fit the cover of the battery compartment. When the battery indicator on the top of the keyboard lights, change the batteries and synchronise the keyboard and receiver again (see section "Establishing a connection between keyboard and receiver").

GB

Use of batteries:

• Keep batteries out of the reach of children.
• Never use old and new batteries together or different types of battery.
• Follow the instructions of the battery manufacturer concerning the handling of batteries.
• Always replace old or weak batteries straight away.
• Dispose of and recycle used batteries in accordance with local laws and recommendations.

3. Setting up

1. Switch off your computer
2. Connect the PS2 plug of the receiver to the appropriate PS2 port of your computer, identify with a keyboard symbol or purple colouring
3. Switch on your computer. The operating system may ask you to insert the Windows installation CD. Follow the instructions on the screen.
4. Now establish a connection between keyboard and receiver, see section 4 for this.

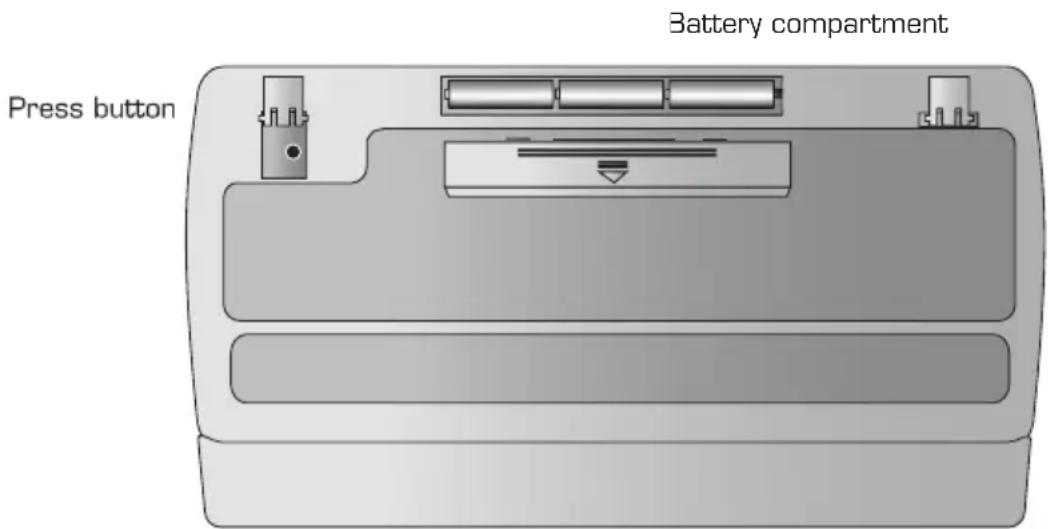

4. Establishing a connection between keyboard and receiver

To establish a radio connection between keyboard and receiver, proceed as follows:

1. Press the button on the top of the receiver, the LED will start flashing
2. Press the sunk-in button located under the folding left foot on the bottom of the keyboard, using a pointed object such as a pencil. The LED will stop fl ashing

If interference with other radio equipment occurs, simply repeat the above steps 1-2. A different radio channel will automatically be used.

Note: Synchronisation has to be repeated each time the batteries are changed. Complete the synchronisation procedure within 15 seconds otherwise it will be necessary to repeat the above steps.

5 Functions

Button	Function
	Goes to previous track
/11	Starts and stops the media player. Press once to start the player and again to stop it
	Goes to next track
	Stops media player
+	Increases the volume
	Mutes the media player
-	Reduces the volume
Lock	Activates (LED on)/deactivates (LED off) the function keys(F1-F12)
	Loads the previous web page opened in the web browser.
	Loads the next already visited web page in your web browser.
	Stops the loading of a web page
	Updates the selected web page
	Opens the search engine in the web browser
	Opens "My Favourites" in your web browser
	Opens the start page in your web browser
	Opens your default e-mail program (e.g. Outlook)
	Opens the "Shut Down Windows" window, ensuring quick log-off of a user.
	Opens "My Computer" on your PC, to let you display the content of all networks.
	Opens the calculator

GB

GB	* The IFD is located on the front of the receiver

Function keys [F1-F12]

The function keys have 2 assigned functions each and can be activated/deactivated by pressing the "Lock" button

?	Activates the Help function in the open program (if avail-able)
N	Creates a new document in the open program*
	Opens a new document (only in programs which support this function)
	Saves the fi le in the active window
AB	Finds and replaces selected text
ABC	Starts spell checking in the active document (if the pro-gram supports this function)
	Undoes the last action
	Repeats the last action
	Replies to the active e-mail
	Replies to all e-mails in the active window
	Forwards the e-mail in the active window
	Sends the e-mail in the active window
	Prints the active document
€	("Num Lock" key) For direct input of the Euro symbol

• On keyboards with Spanish layout, this key has the function "bold

LED on the keyboard lights when battery status is low

6. Troubleshooting

The keyboard is not working properly.

1. Make sure the keyboard is correctly connected and the software is fully installed.

2. Remove any other already installed keyboard drivers and repeat software installation.

3. Perform synchronisation between keyboard and receiver. The radic connection may not have been established between the two devices.

GB

The keyboard is slow to respond

Check whether the battery indicator is lit on the keyboard. If yes, change the batteries and repeat the steps described in section 4.

Safety advice

• Do not attempt to service or repair the device yourself.
  Refer all servicing to quali ed service personnel
• Do not use the device in the vicinity of water (e.g. wash basins, bath or swimming pools) and keep it away from moisture, dripping or splashing liquids and rain

Technical data

Model no: SI-6491

Interface: PS/2

Frequency: 27 MHz

Guarantee

We guarantee this product in respect of workmanship and all built-in components for a period of two years from date of purchase

If you need help...

In the event of technical problems, please contact our technical support. The hotline number can be found on the back of this manue

Introduction

Radiofrequency: 27 MHz

Garantía

Declaration of Conformity

The following equipment:

SL-6491

Ergo RF Keyboard

Is herewith confi rmed to comply with the requirements set out in the R&TTE Directive 1999/5/EC Annex IV

For the evaluation regarding the Directives, the following standards were applied:

1999/5/EC:

The following manufacturer/importer is responsible for this:

First Wise Media GmbH

ImDorf5,

D-2/404 Heeslingen

Person responsible for this declaration:
