USER MANUAL GF269 BUFFALO

Pass-through Operation 3

Toasting 3

Cleaning, Care & Maintenance 3

Troubleshooting 4

Technical Specifications 4

Electrical Wiring 5

Compliance 5

NL

Inhoudsopgave

Veiligheidstips 6

Spcifications techniques 14

Raccordementelectrique 15

Conformité 15

DE Inhalt

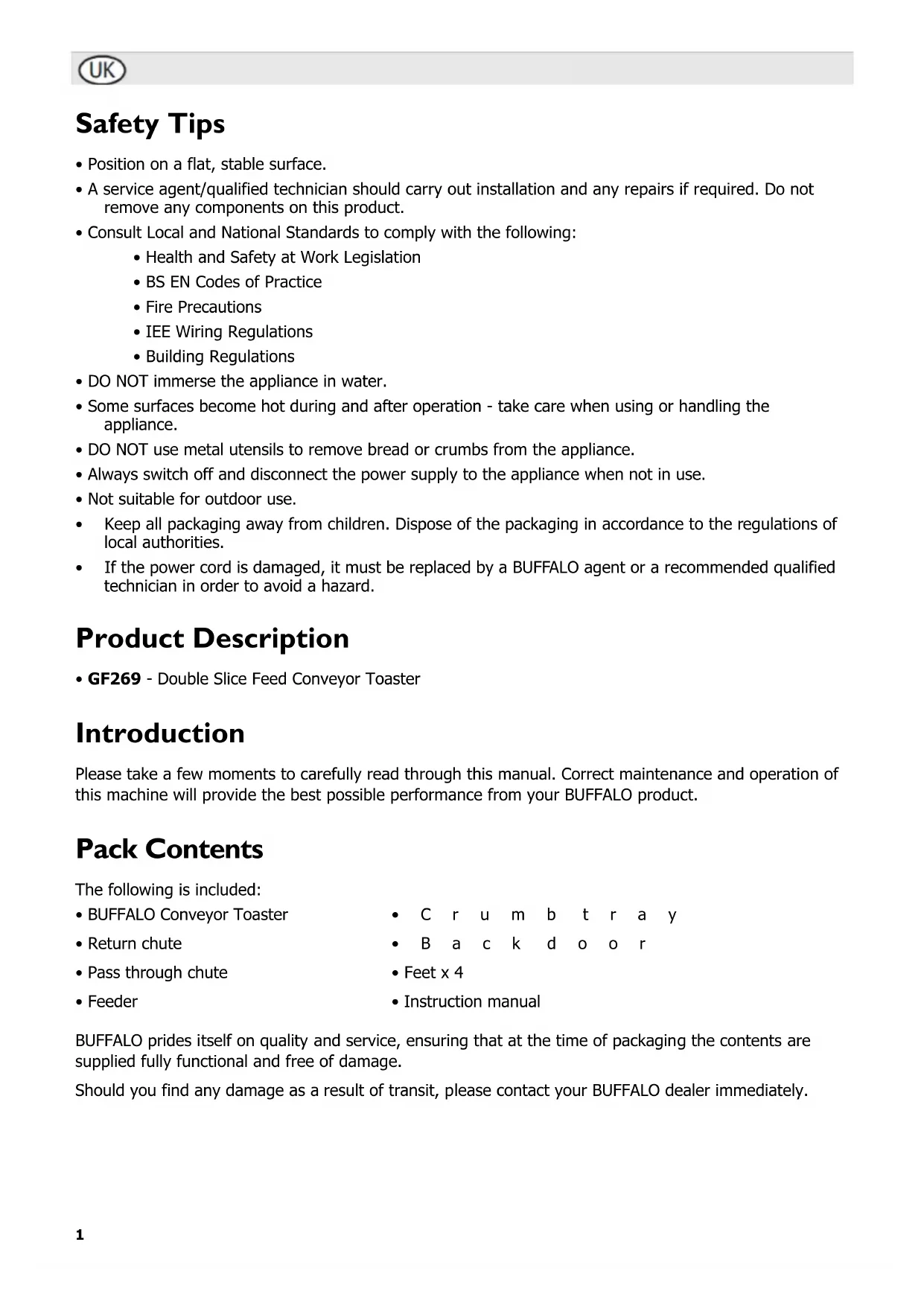

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation
BS EN Codes of Practice
Fire Precautions
- IEE Wiring Regulations
Building Regulations

DO NOT immerse the appliance in water.
- Some surfaces become hot during and after operation - take care when using or handling the appliance.
- DO NOT use metal utensils to remove bread or crumbs from the appliance.
- Always switch off and disconnect the power supply to the appliance when not in use.
- Not suitable for outdoor use.
- Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Product Description

• GF269 - Double Slice Feed Conveyor Toaster

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Conveyor Toaster
  C r u m b t r a y
• Return chute
• B a c k d o o r
  Pass through chute
• Feet x 4
• Feeder
• Instruction manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

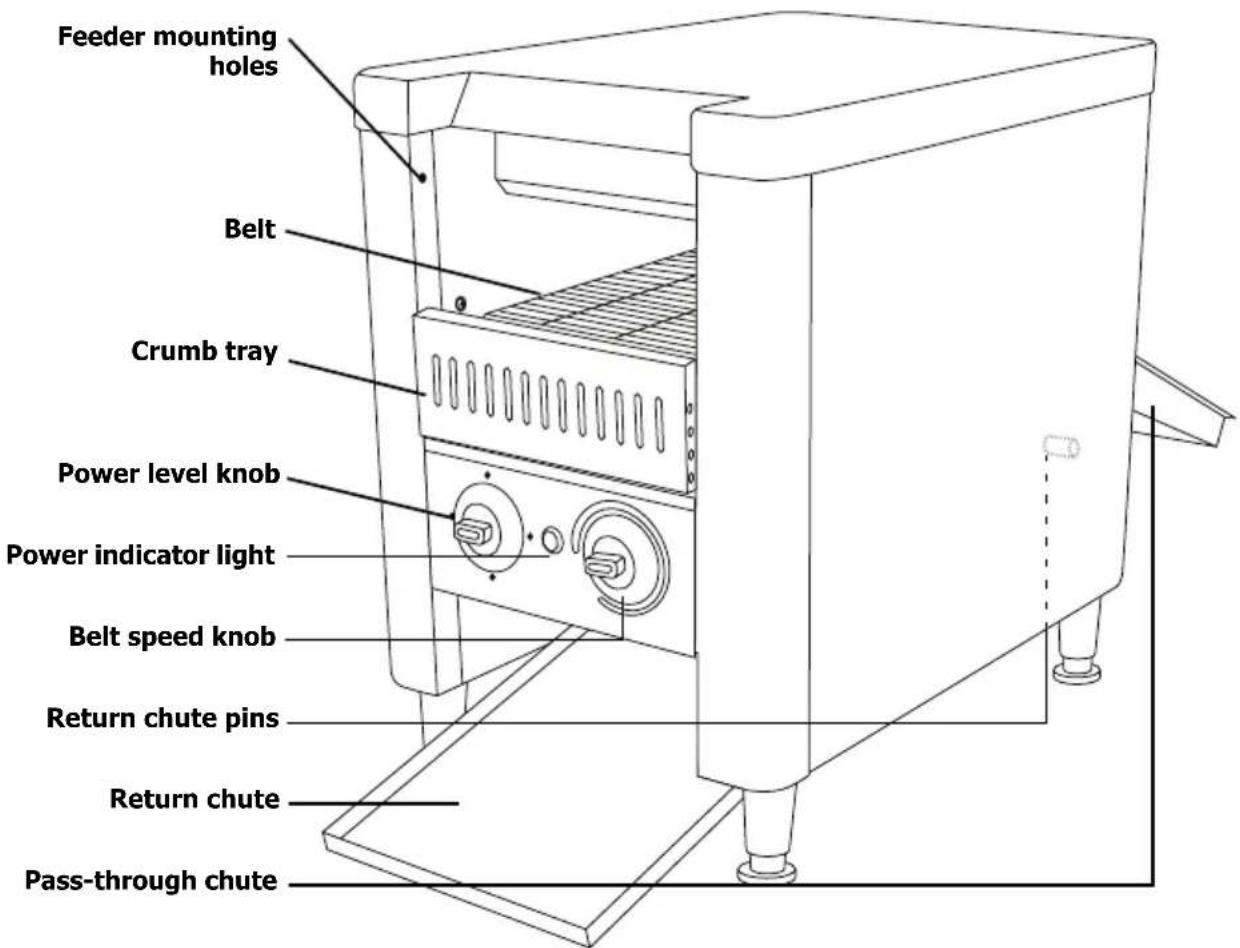

Operation

WARNING: Take care to avoid touching the surfaces as surfaces remain hot during and immediately after use.

BUFFALO Conveyor Toasters can be set up to return the toast from the front or rear of the appliance. This is known as 'Return' or 'Pass-through' operation and can be set up to best suit the kitchen environment.

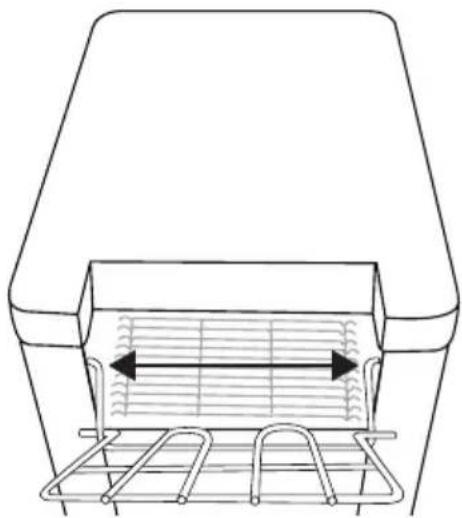

Fit the Feeder

1. Squeeze the arms of the feeder and slot the arms in to the feeder mounting holes.
2. Rest the legs on the outside of the appliance [Fig. 1].

Return Operation

To set-up the toaster for return operation:

1. Close the back door of the appliance and fix it in the vertical position.
2. Slide the return chute in to the bottom of the appliance and secure it to the two pins located inside the rear of the appliance.

Fig. 1

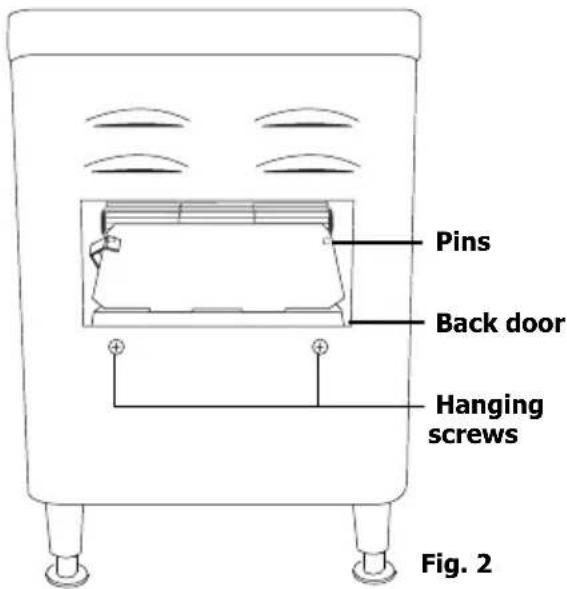

Pass-through Operation

To set-up the toaster for pass-through operation:

1. Remove the back door of the appliance.
2. Fix it inside the appliance by resting the curved lip of the door on the two pins at the end of the belt [Fig. 2].
3. Attach the Pass-through chute to the hanging screws at the rear of the appliance.

Toasting

The BUFFALO Conveyor Toaster has 3 power levels:

'Both Elements'

Full power to both upper and lower elements

'Top Element'

Full power to upper element only

"Warm 'ECO"

Energy Saver (reduces power to minimum, providing quick heat up times when required)

The speed of the conveyor belt can also be altered to adjust the cooking level.

• Turn the knob clockwise towards LIGHT (increases the speed of the belt) for a lighter toasting.
• Turn the knob anti-clockwise towards DARK (slows the speed of the belt) for a darker toasting.

To toast:

1. Connect the appliance to the power supply.
2. Set the power and belt speed.

Note: BUFFALO recommend that the Conveyor Toaster is allowed to heat up for 30 minutes before use.

1. Place the bread on the Feeder.
2. The bread is toasted as it travels through the appliance.
3. If necessary, adjust the power/belt speed to achieve the desired level ofasting.

Cleaning, Care & Maintenance

• Always turn Off the appliance and disconnect from the power supply before cleaning.
• Allow the appliance to cool before cleaning.
• Regularly remove and empty the crumb tray.
• Use warm, soapy water and a damp cloth to clean the exterior of the appliance.
• D r y t h o r o u g h l y after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable Cause	Use Action
The unit is not working The unit	is not switched on Check the unit	it is plugged in correctly and switched on
	Plug and lead are damaged Call	BUFFALO agent or qualified technician
	Fuse in the plug has blown Rep	ace the plug fuse
	Power supply Check power supply	l
	Internal wiring fault Call BUFFALO	l o agent or qualified technician
Appliance does not reach set temperature	Faulty thermostat Call BUFFALO a	agent or qualified technician
	Faulty element Call BUFFALO a	ent or qualified technician
Appliance heats up but indicator light does not come on	Bulb has expired Call BUFFALO a	agent or qualified technician
Power indicator light comes on but appliance does not heat up	Faulty element Call BUFFALO a	ent or qualified technician
	Faulty thermostat Call BUFFALO a	agent or qualified technician
	Thermostat set incorrectly	Check thermostat
Appliance slow to heat up	Faulty element	Call BUFFALO agent or qualified technician
Belt does not move/is slower than usual	Loose chain	Call BUFFALO agent or qualified technician
Uneven toasting	Incorrect power setting	Check power setting
	Not yet up to temperature	Allow appliance to heat up

Technical Specifications

Model	Voltage	Power	Current	Dimensions h x w x d (mm)	Weight (kg)
GF269	230V 50Hz	2400W	10.4A	420 x 370 x 410	17.6

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

• BUFFALO Conveyor Toaster

Kruimella de

• T e r u q l o o

s Ac ch hu ti ef rp kl la ea pt

• Toaster conveyeur BUFFALO

Tiroir ramasse-miettes

Gou l o t t e d

Specifications techniques

Modèle	Tension	Puisance	Courant	Dimensions h x l x l mm	Poids (kg)
GF269	230V 50Hz	2400W	10,4A	420 x 370 x 410	17,6

O P M O R T A T R A S E I R A

DECLARATION OF CONFORMITY

• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

• Declaración de conformidad - Declaração de conformidade - Überensstämmlseförsakran
  Overensstemmelseserklaering · Konformitetserklaering · Selvitys vaatimustenmukaisuudesta ·

EMC Directive 2004/108/EC

LVD Directive 2006/95/EC

EN 55014-1:2006+AI:2009

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3:2008, EN 55014-2:1997+A1:2001+A2:2008

EN 60335-1:2002+A11:2004+A1:2004+A12:2006

+A2:2006+A13:2008+A14:2010+A15:2011,

EN60335-2-48:2003+AI:2008, EN62233:2008

BUFFALO

Fourth Way

Avonmouth

Bristol

BSII 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
