BT3020 - Electric mower BRAUN - Free user manual and instructions

Brand	Braun
Model	BT3020
Product type	Electric trimmer
Main use	Trimming beard and short hair
Adjustable cutting height	1 to 10 mm, in 2 mm steps
Precision comb	Included, for beard and short hair
Cordless runtime	Up to 40 minutes
Full charge time	Approximately 10 hours
Battery type	Integrated rechargeable
Power supply	Special power cord (included)
Charge indicator	Yes, on the cord
Recommended charging temperature	5 to 35°C
Recommended trimming temperature	15 to 35°C
Cleaning	Head and combs washable under running water
Cleaning brush	Included
Recommended oiling	Light oil (not included), regularly
Warranty	2 years
Safety	Use by children aged 8+ with supervision; do not use with damaged accessory
Approximate weight	150 g
Approximate dimensions	15 x 5 x 4 cm
Recycling	Do not dispose of with household waste; recycle at dedicated points

Frequently Asked Questions - BT3020 BRAUN

How to charge the Braun BT3020 trimmer?

Plug the special cord (6) into the device when off, then into a power outlet. The charge indicator (7) lights up. Full charge takes about 10 hours.

What is the runtime after a full charge?

The cordless runtime is about 40 minutes.

How to adjust the cutting height?

Turn the comb height adjustment wheel (3) to select a length from 1 to 10 mm, in 2 mm steps.

Can I use the trimmer without the comb?

Yes, the trimmer head can be used without the comb for detailing sideburns, mustaches, and short beards.

How to clean the trimmer?

Turn off the device, remove the trimmer head. Use the included brush to clean. The head and comb can be rinsed under running water. Let dry completely before reassembling.

Do I need to oil the trimmer?

Yes, regularly apply a few drops of light oil (not included) to maintain performance.

What is the recommended ambient temperature for charging?

The charging temperature should be between 5°C and 35°C. Outside this range, the battery may not charge properly.

What to do if the trimmer does not recharge?

Check that the device is off and the ambient temperature is between 5 and 35°C. Make sure to use the special cord provided. If the problem persists, contact an authorized Braun service center.

Does the warranty cover the blades?

The 2-year warranty does not cover normal wear, such as the foil and cutter block. It covers manufacturing and material defects.

Can I throw the device in the trash?

No, this product contains recyclable batteries and electrical waste. Dispose of it at an appropriate recycling point.

USER MANUAL BT3020 BRAUN

(Sharecall charged at local rates)

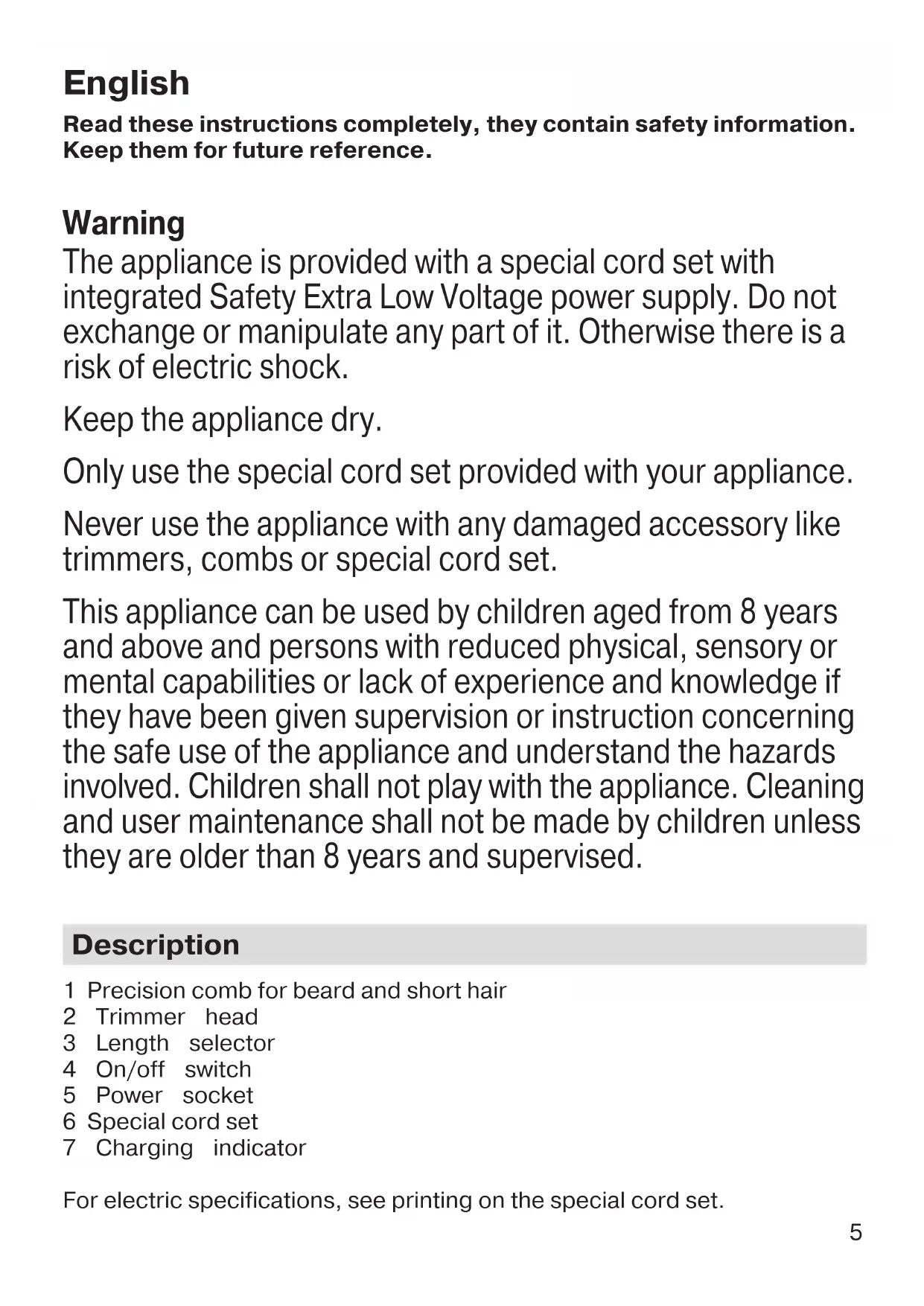

English

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Keep the appliance dry.

Only use the special cord set provided with your appliance.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

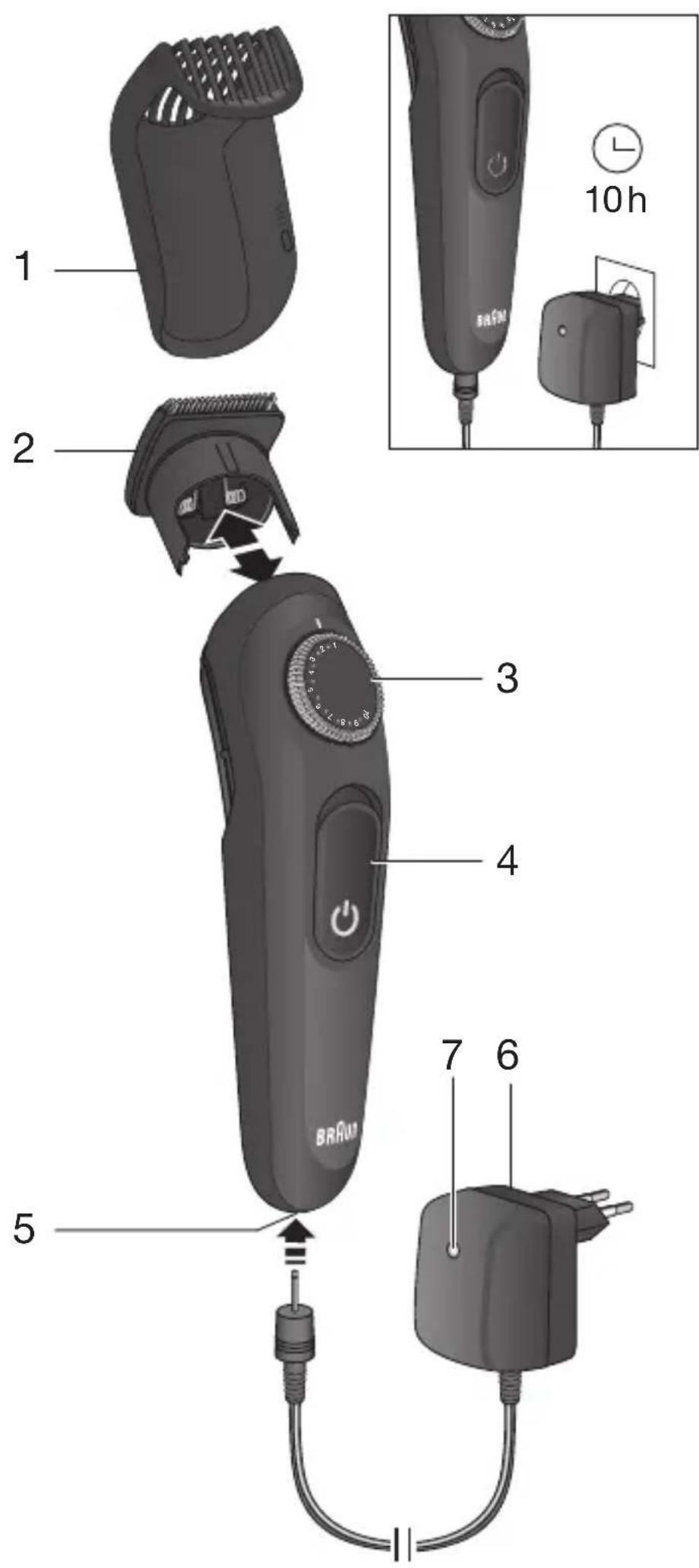

Description

1 Precision comb for beard and short hair
2 Trimmer head
3 Length selector
4 On/off switch
5 Power socket
6 Special cord set
7 Charging indicator

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5^ to 35^ .

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15^ to 35^ . Do not expose the appliance to temperatures higher than 50^ for extended periods of time.

• Connect the appliance via the special cord set (6) to an electrical outlet.

The appliance will only charge when it is switched off.

• A full charge takes approx. 10 hours and provides up to 40 minutes of cordless operation time.
• The charging indicator (7) in the special cord set lights up continuously when the appliance is being charged.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Trimming

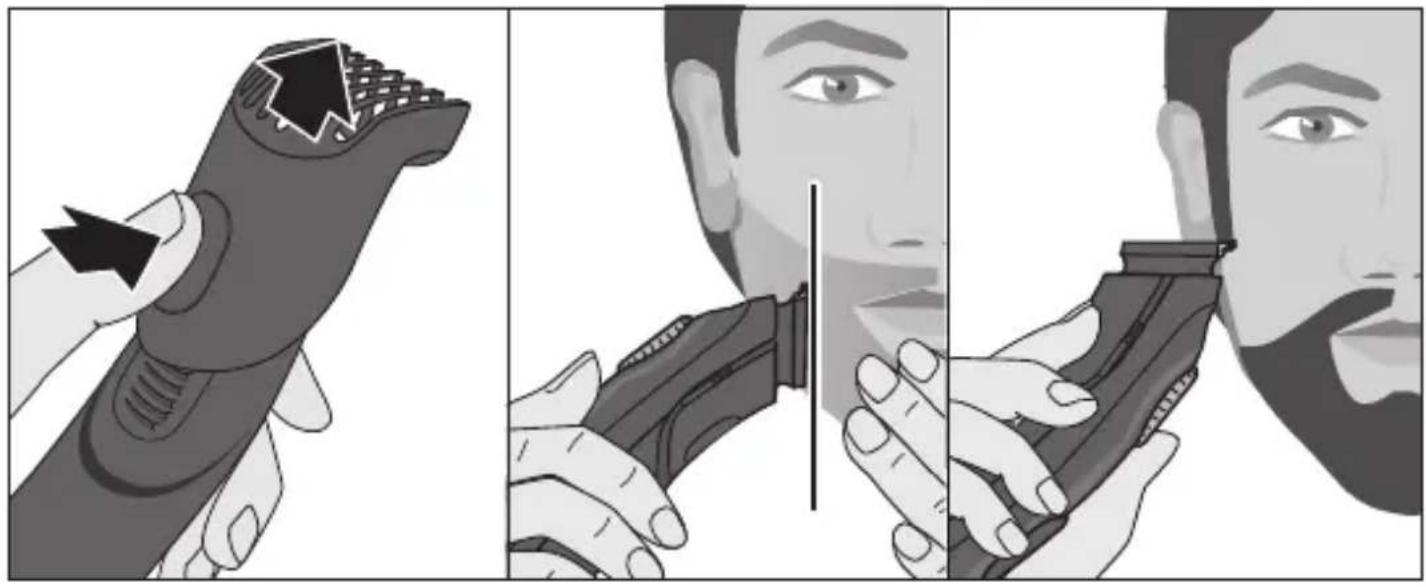

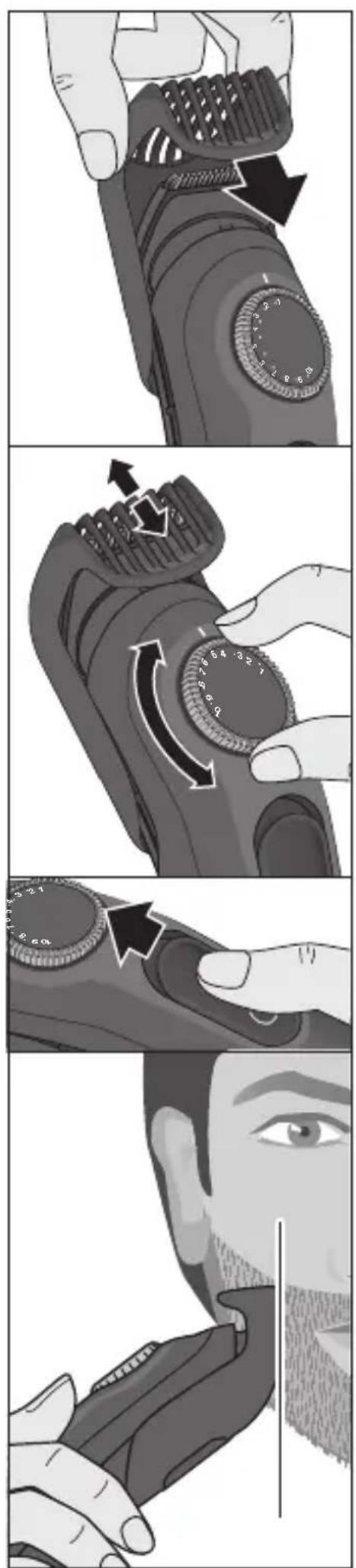

• Click the precision comb (1) onto the trimmer head (2).
• Turn the length selector (3) to your desired cutting length. The comb slides automatically up or down.
• Length settings precision comb (1): 1 to 10 mm in 0,5 mm steps
• Slide the on/off switch up to turn the appliance on.
• Trim against hair growth by guiding the flat comb part over the skin.
• Avoid clogging the comb with hair. Remove and clean it from time to time.
• For shaping sideburns, moustaches and partial short beards, take off the precision comb.

Cleaning and maintenance

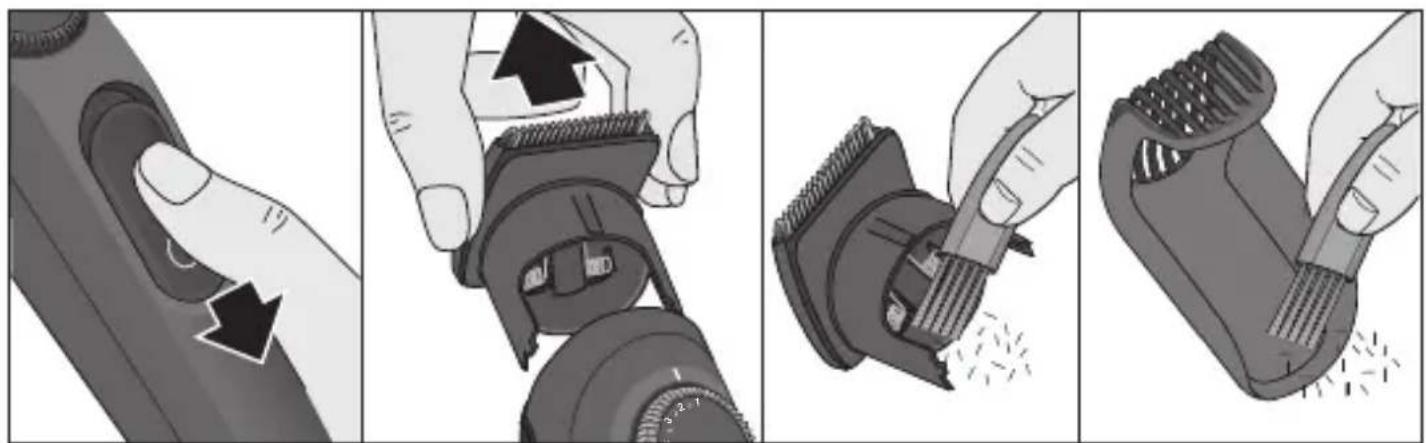

• Switch off the appliance.
• Take off the comb and the trimmer head.
• Use the brush to clean the head, comb and the appliance.

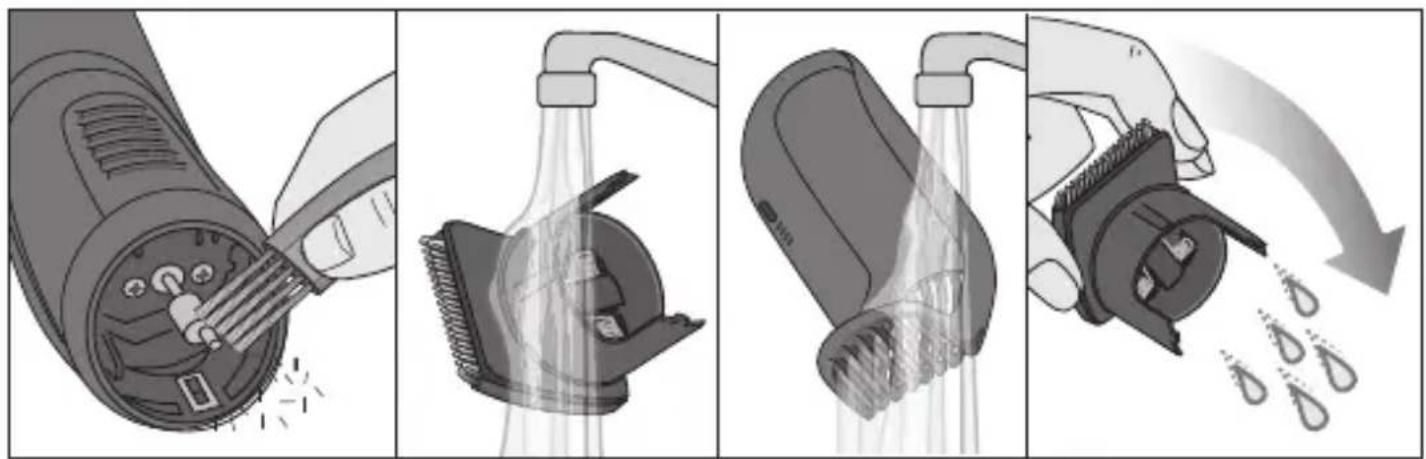

• The removed head and comb can be cleaned under running water. Let them dry completely before reattaching them.

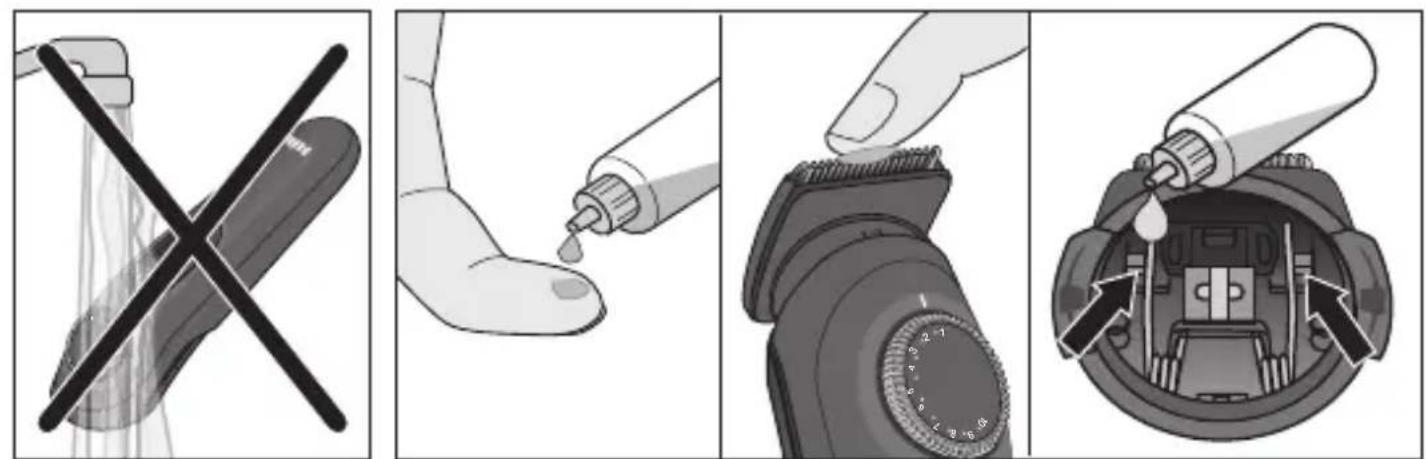

• To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Environmental notice

Product contains a battery and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Country of origin: China

To determine the year of manufacture, remove the head and find the 3-digit production code located inside the housing. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: "527" - The product was manufactured in week 27 of 2015.
