USER MANUAL BS7 Bremshey

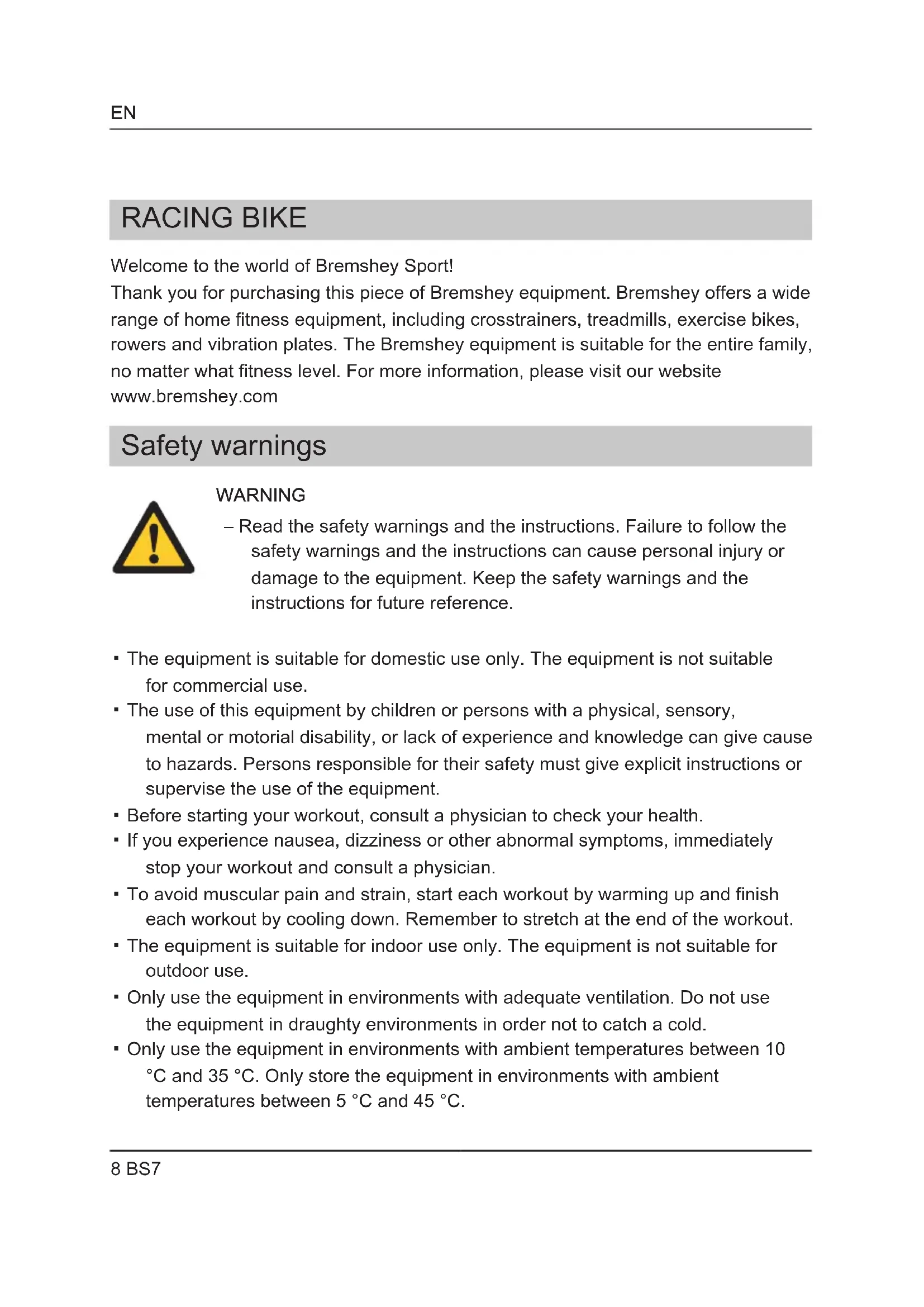

Welcome to the world of Bremshey Sport!

Thank you for purchasing this piece of Bremshey equipment. Bremshey offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes, rowers and vibration plates. The Bremshey equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.bremshey.com

Safety warnings

WARNING

• Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

• The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.

• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.
• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.
• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.
• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.

• Only use the equipment in environments with ambient temperatures between 10 °C and 35 °C. Only store the equipment in environments with ambient temperatures between 5 °C and 45 °C.

• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80% .

• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.
• Keep clothing, jewelry and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 160kg (350 lbs).
• Do not open equipment without consulting your dealer.

Package contents (fig. B & C)

The package contains the parts as shown in fig. B.
- The package contains the fasteners as shown in fig. C. Refer to the section "Description".

NOTE

• If a part is missing, contact your dealer.

Description (fig. A)

Your racing bike is a piece of stationary fitness equipment used to simulate bicycle racing without causing excessive pressure to the joints.

1 Pedal

10 Handlebar tube adjustment knob (side)

2 Pedal strap

11 Handlebar tube adjustment knob (front)

3 Main housing

12 Bottle holder

4 Seat

13 Support foot

5 Seat adjustment knob

14 Transport wheel

6 Seat tube

15 Console

7 Seat tube adjustment knob

16 Resistance adjustment knob

8 Handlebar

17 Emergency brake

9 Handlebar tube

Fasteners (fig. C)

18 Carriage bolt (M8*55)

20 Locknut (M8)

19 Washer (D8*19)

21 Screw (M5*10)

Assembly (fig. D)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Allow at least 100~cm of clearance around the equipment.

Refer to the illustrations for the correct assembly of the equipment.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain. As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

Heart rate measurement (heart rate chest belt)

WARNING

• If you have a pacemaker, consult a physician before using a heart rate chest belt.

CAUTION

• If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 1.5 metres.

• If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

• Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.
• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.
• The transmitter transmits the heart rate to the console up to a distance of 1 metre. If the electrodes are not moist, the heart rate will not appear on the display.
• Some fibers in clothes (e.g. polyester, polyamide) create static electricity which can prevent accurate heart rate measurement.

• Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

• Slightly moisten the electrodes on the transmitter belt with saliva or water.

• Fasten the transmitter with the belt just below the chest, firmly enough so that the electrodes are constantly touching the skin, but not so tight that you cannot breathe normally.
• Allow the electrodes to warm up properly to ensure accurate heart rate measurement.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

• Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Category Heart rate zone Explanation
Beginner 50-60% of maximum heart rate		Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.
Advanced 60-70% of maximum heart rate		Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.
Expert 70-80% of maximum heart rate		Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Adjusting the support feet

The equipment is equipped with 4 support feet. If the equipment is not stable, the support feet can be adjusted.

1. Turn the support feet as required to put the equipment in a stable position.
2. Tighten the locknuts to lock the support feet.

Adjusting the horizontal seat position

The horizontal seat position can be adjusted by setting the seat to the required position.

1. Loosen the seat adjustment knob.
2. Move the seat to the required position.
3. Tighten the seat adjustment knob.

Adjusting the vertical seat position

The vertical seat position can be adjusted by setting the seat tube to the required position. With the leg almost straight, the arch of the foot must touch the pedal at its lowermost point.

1. Loosen the seat tube adjustment knob.

2. Move the seat tube to the required position.

3. Tighten the seat tube adjustment knob.

Adjusting the handlebar

The handlebar is designed to exercise in an upright position or with the upper body leaning forward, with your back kept straight during the workout. The handlebar can be adjusted according to the height and the exercise position of the user.

1. Loosen the handlebar tube adjustment knob at the side of the handlebar tube.
2. Loosen the handlebar tube adjustment knob at the front of the handlebar tube.
3. Move the handlebar tube to the required position.
4. Tighten the handlebar tube adjustment knob at the front of the handlebar tube.
5. Tighten the handlebar tube adjustment knob at the side of the handlebar tube.

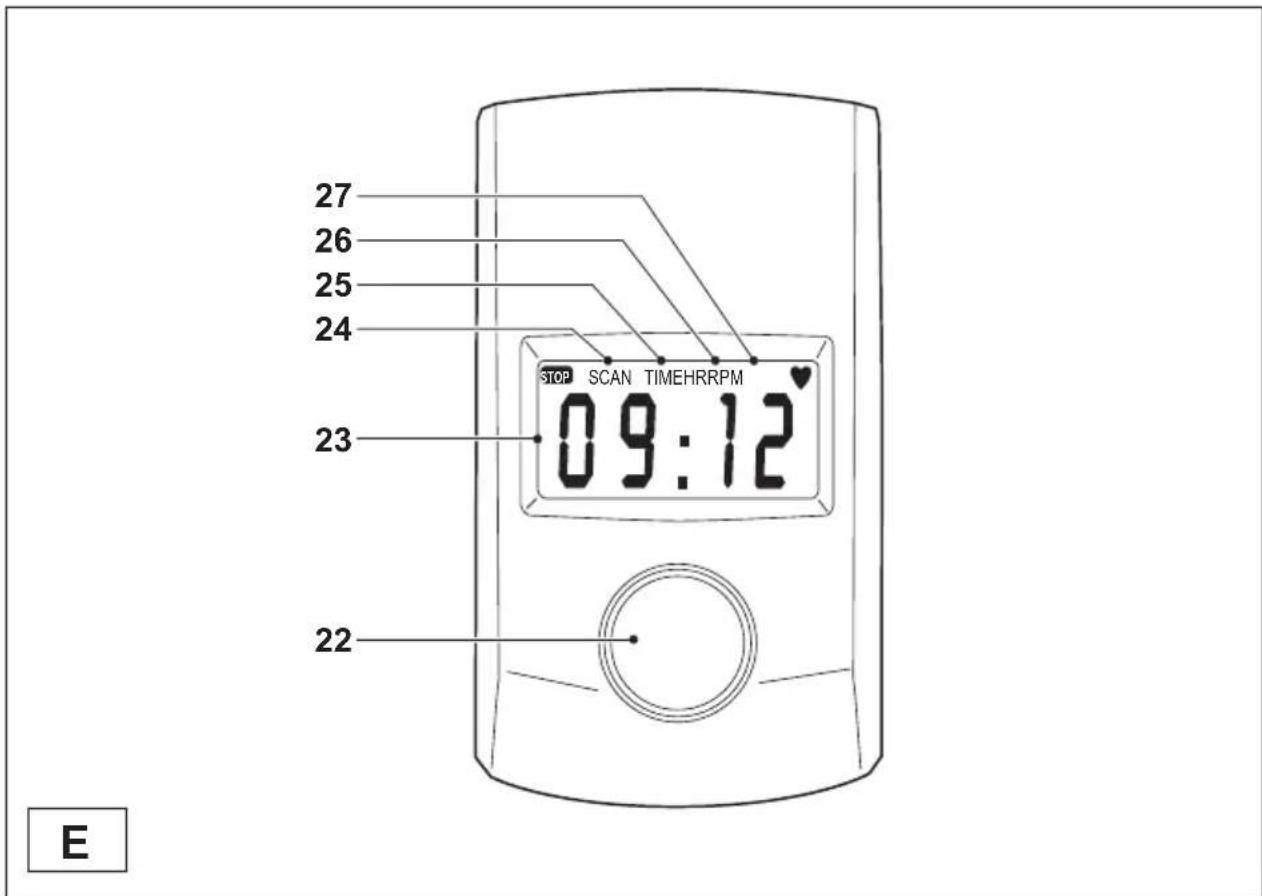

Console (fig. E)

22 Display

25 Menu item: TIME

23 MODE button

26 Menu item: RPM

24 Menu item: SCAN

27 Menu item: HR

CAUTION

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTE

• The console switches to standby mode when the equipment is not used for 90 seconds.

• Press the MODE button to select one of the menu items:

• TIME: The display shows the time.

• RPM: The display shows the RPM. With sensor input, the display shows the value within 3 seconds. Without sensor input, the display shows 0 and STOP within 4 seconds.
• HR: The display shows the heart rate. The display shows the heart symbol.

• SCAN: The display shows the menu items for 6 seconds one after another: TIME, RPM and HR.

• Press and hold the MODE button to reset the meter.

Adjusting the resistance

1. Turn the resistance adjustment knob clockwise to increase the resistance.
2. Turn the resistance adjustment knob counterclockwise to decrease the resistance.

Emergency brake

The equipment is supplied with an emergency brake. In case of an emergency, push the emergency brake to prevent any unwanted motion.

Cleaning and maintenance

The equipment does not require special maintenance. The equipment does not require recalibration when it is assembled, used and serviced according to the instructions.

WARNING

• Do not use solvents to clean the equipment.

• Clean the equipment with a soft, absorbent cloth after each use.

• Regularly check that all screws and nuts are tight.
• If necessary, lubricate the joints.

Replacing the batteries

The console is equipped with 4 AA batteries at the rear of the console.

1. Remove the cover.
2. Remove the old batteries.
3. Insert the new batteries. Make sure that batteries match the (+) and (-) polarity markings.
4. Mount the cover.

Defects and malfunctions

Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

1. If the equipment does not function properly, immediately contact the dealer.
2. Provide the model number and the serial number of the equipment to the dealer. State the nature of the problem, conditions of use and purchase date.

Transport and storage

WARNING

• Carry and move the equipment with at least two persons.

• Remain standing in front of the equipment on each side and take a sturdy grip at the handlebars. Lift the front of the equipment so as to lift the rear of the equipment on the wheels. Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface.

• Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.

• Store the equipment in a dry place with as little temperature variation as possible.

Technical data

Parameter Unit of	measurement	Value
Length cm	inch	108 42
Width cm	inch	54 21
Height cm	inch	110 43
Weight kg	lbs	45 99
Max. user weight kg	lbs	160 350
Battery size		AA

Warranty

The product has a warranty from the date of delivery (to be documented by invoice or delivery note). Further information on warranty terms can be obtained from your local dealer. The warranty terms may vary from one country to another. Damages caused by normal wear, overloading or improper handling are excluded from the warranty. Damages caused by material or manufacturing faults are covered by the warranty and will repaired or replaced at no cost.

Declaration of the manufacturer

Accell Fitness Division BV declares that the product is in conformity with the following standards and directives: EN 957 (HC), 89/336/EEC. The product therefore carries the CE label.

04-2011

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2011 Accell Fitness Division BV

All rights reserved.

The product and the manual are subject to change. Specifications can be changed without further notice.
