USER MANUAL Morpheus SF1810 Skandika

skandika.com/service

WATT = DREHMOMENT (KGM) * U/Min. * 1.03

29 Safety precautions
30 Checklist
32 Parts list
33 Explosion drawing
34 Set-up instructions
40 Computer instructions
45 Using apps

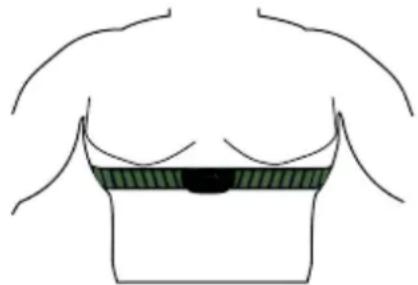

49 Using the chest belt
50 Warm-up and cool-down
51 Exercise instructions
52 Guarantee conditions

skandika.com/service

Please visit the Skandika Service portal on our website for setup & help videos, FAQs and downloadable instructions. For more information about Skandika, simply visit our main page www.skandika.com

WARNING

To reduce risk of injury, read and understand this instruction manual before using the device! This machine is intended for home use only in accordance with the instructions provided in this manual. Read the instruction manual carefully before using this device and keep the instruction manual for future use.

SAFETY PRECAUTIONS

1. Keep children and pets away from the machine at all times. DO NOT leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout immediately. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a plain, leveled surface. DO NOT use the machine near liquids or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in the machine. Running or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp objects around the machine.
9. Disabled persons should not use the machine without a qualified person or physician, who can provide qualified surveillance / assistance.
10. Before using the device, always do stretching exercises to properly warm up.
11. Never operate the device if it is not functioning properly.

12. The max. user capacity of this class HA device is 150 KGS.

13. Do not use this device directly after meals or drinks.

14. This device is not suitable for therapeutically use. Only use this unit according to the intended purpose and as directed in the instruction manual.

15. Please do not attempt to repair the unit yourself in the event of malfunctions, since this will void all warranty claims. Only have repairs carried out by authorised service centres. It is recommended to lightly lubricate all moving parts from time to time to maintain functionality.

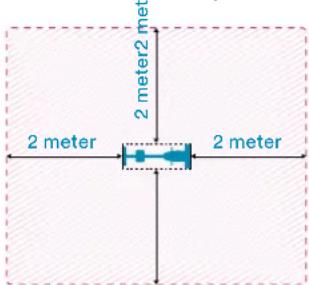

16. Please only exercise with a minimum clearance area of 2 meters around the device.

Be sure to consult a physician before you start any device program. He may give you proper hints and advice with respect to the individual intensity of stress for you, your workout and sensible eating habits. This is especially important for individuals over the age of 35 or persons with pre-existing health problems.

Part no.	Description Q'ty

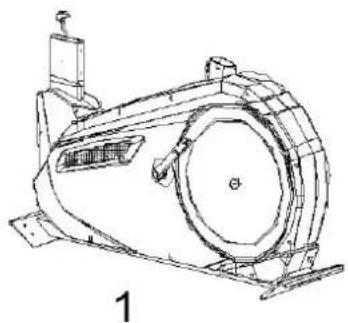

1 Main frame 1
2 Front stabilizer 1
3 Rear stabilizer 1
4 Front support 1
5 Handlebars 1
6 Computer 1

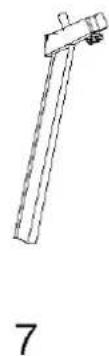

7 Seat support 1
8 Seat 1
9/10	Pedals (L/R) 1/1
12	Sliding seat cover	1
38	Cover	1

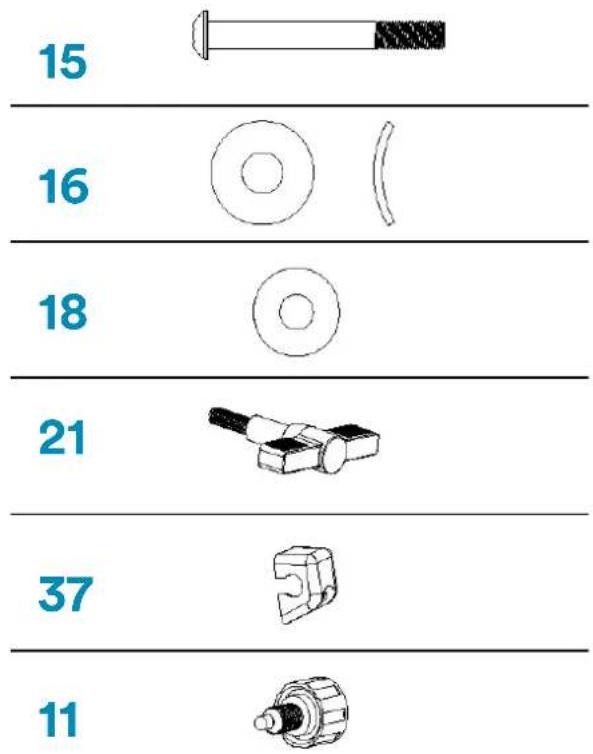

Part no.	Description Q'ty
15 Allen bolt M8*16 mm 12
16 Curved washer ø22 mm 10
18 Flat washer ø8*20 mm 2
21 T-type knob 1
37 Clamp cover 1
11 Quick release knob 1
	Box wrench 1
	Allen key 6mm 1

Part No. Description Q'ty
1 Main frame 1
2 Front stabilizer 1
3 Rear stabilizer 1
4 Front support 1
5 Handlebars 1
6 Computer 1
7 Seat support 1
8 Seat 1
9 Pedal (L) 1
10 Pedal (R) 1
11 Quick release knob 1
12	Sliding seat cover	1
13	Sliding seat	1
14 U-Plate 1
15	Allen bolt M8*16 mm	12
16 Curved washerø22mm 10
17	Seat bushing	1
18	Flat washerø8*20 mm	5
19 Square end cap 38*38 1
20	Handpulse wire	2
21	T-type knob	1
22	Allen bolt M8*20 mm	2
23	End cap for front stabilizer (L/R)	1/1
24	End cap for rear stabilizer (L/R)	1/1
25	Clamp	1
26	Hand pulse sensor	2
27	Screw M5*10 mm	4
28	Foam grip	2
29	End cap for handlebar	2
30	Self-tapping screw ST4*20 mm	2
31	Washerø4.2*ø12 mm	2
32	Grommet	1
33	Upper sensor wire	1
34	Lower sensor wire	1
35	Washerø8*ø17 mm	1
36	Club knob	1
37	Clamp cover 1
38	Cover	1
39	Self-tapping screw	10
40	Self-tapping screw ST5*15 mm	8

Part No. Description Q'ty
41 Motor	1
42	Mains wire	1
43	Motor wire	1
44	Sensor wire	1
45	Chain cover (L/R)	1/1
46	End cap for chain cover	2
47	End cap for crank	2
48	Crank (L)	1
49	Crank (R)	1
50	Flange nut	4
51	PVC cover	2
52	Flywheel	1
53	Magnet assembly	1
54	Nut M8	5
55	Screw M8*55 mm	1
56	Magnet bushing	2
57	C-clip ø17 mm	2
58	Bearing 6203	2
59	Nut M6	4
60	Belt pulley	1
61 Axle for belt pulley	1
62	Allen bolt M6*15 mm	4
63	Sensor bracket 1
64	Belt	1
65	Hex head bolt M6*25 mm	1
66	Hex head nut M6	2
67	Spring	1
68	Spring	1
69	Adjusting bolt 1
70	Nut M8	1
71	Idler wheel	1
72	Powder metal 1
73	Seat holder 1

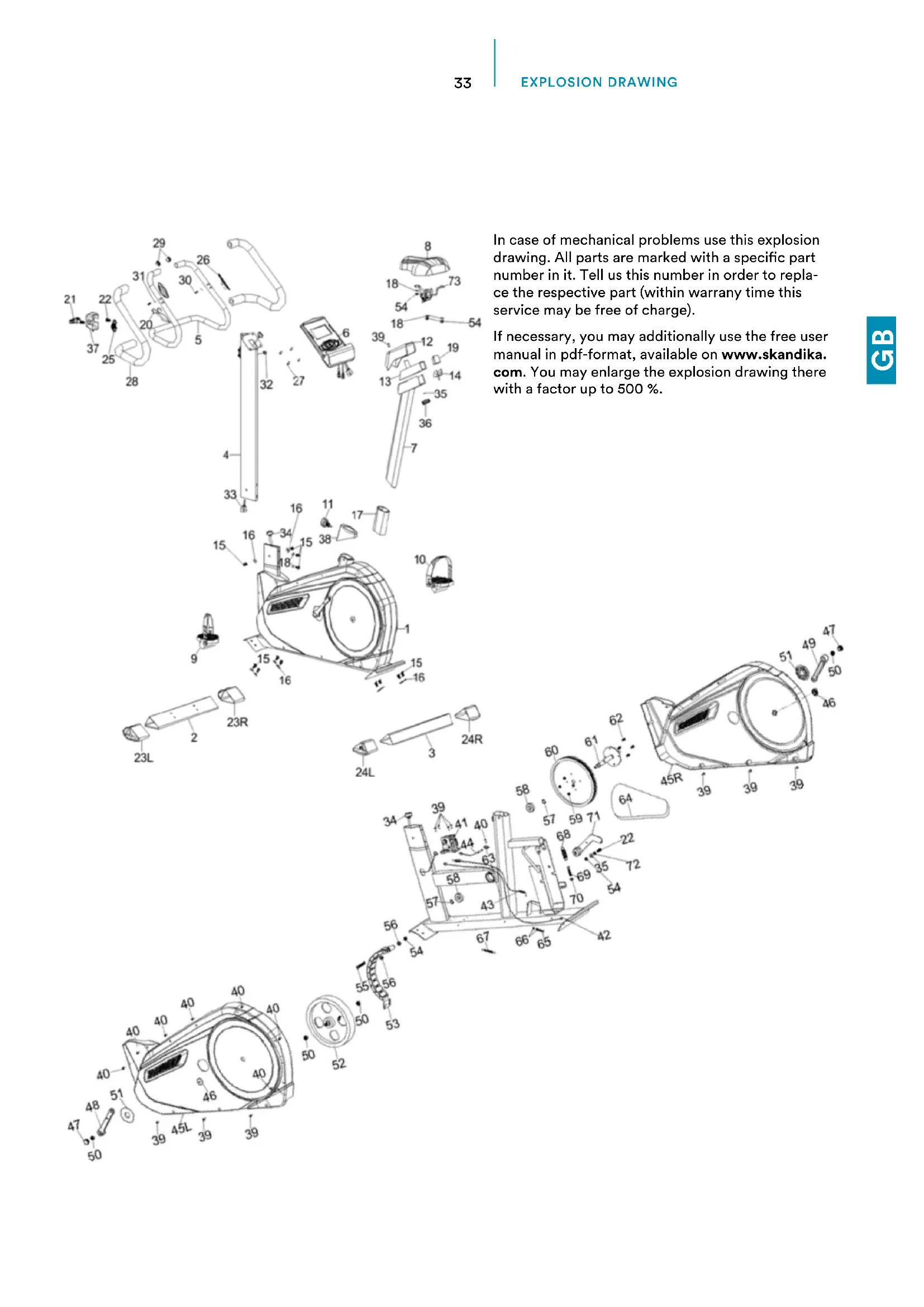

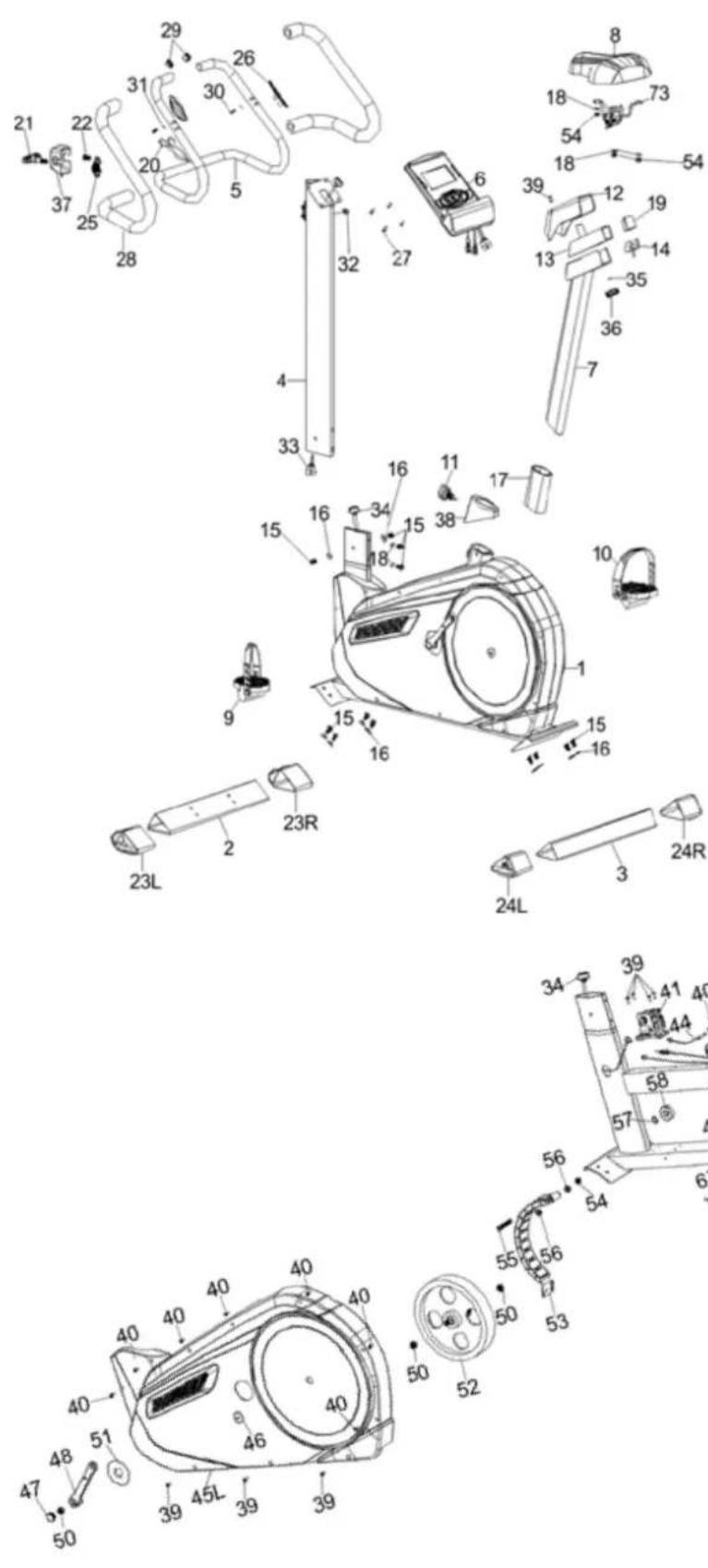

In case of mechanical problems use this explosion drawing. All parts are marked with a specific part number in it. Tell us this number in order to replace the respective part (within warranty time this service may be free of charge).

If necessary, you may additionally use the free user manual in pdf-format, available on www.skandika.com. You may enlarge the explosion drawing there with a factor up to 500% .

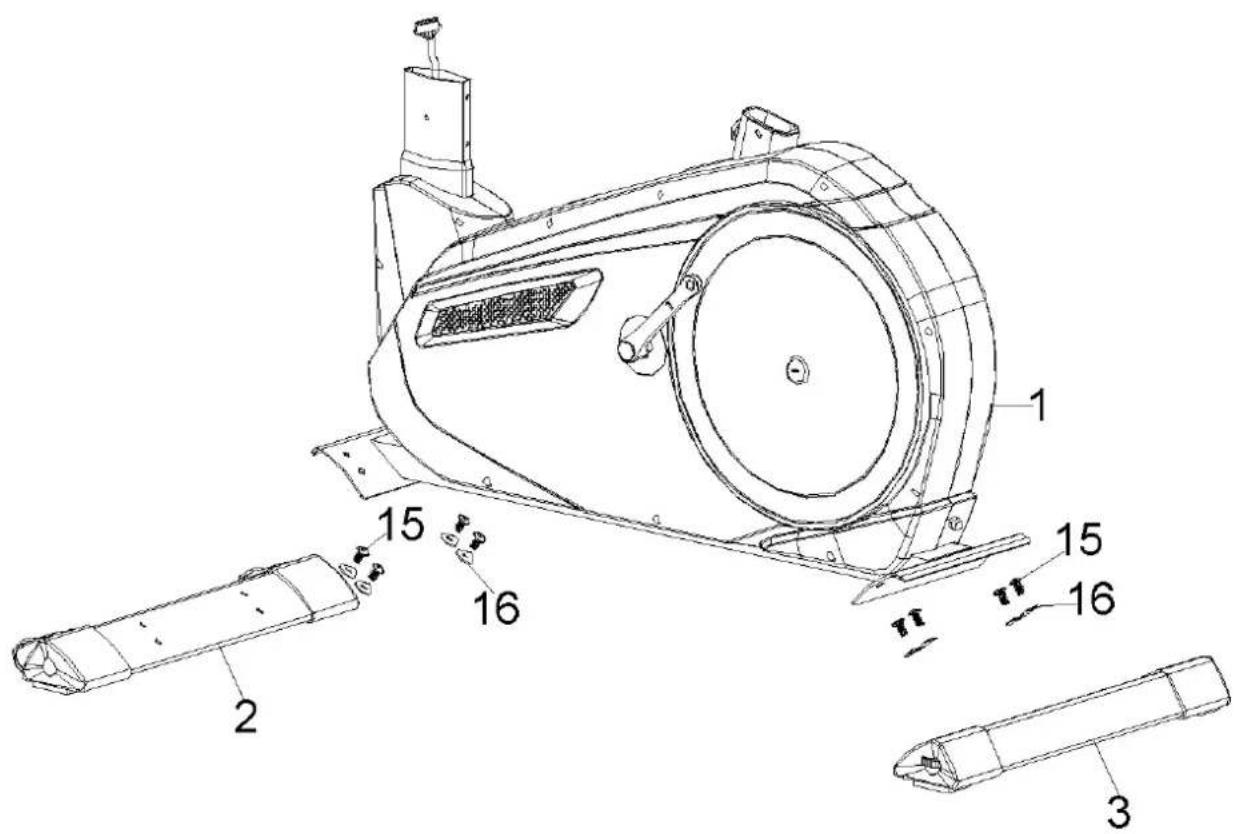

STEP1

Attach the front stabilizer (2) to the front part of the main frame (1) with 4 curved washers (16) and 4 allen bolts (15).

Attach the rear stabilizer (3) to the rear part of the main frame (1) with 4 curved washers (16) and 4 allen bolts (15).

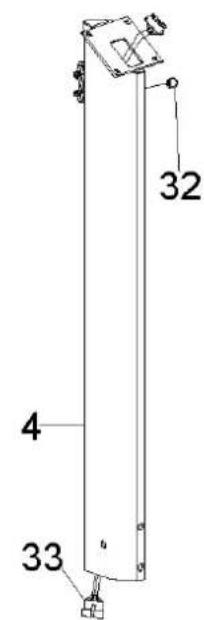

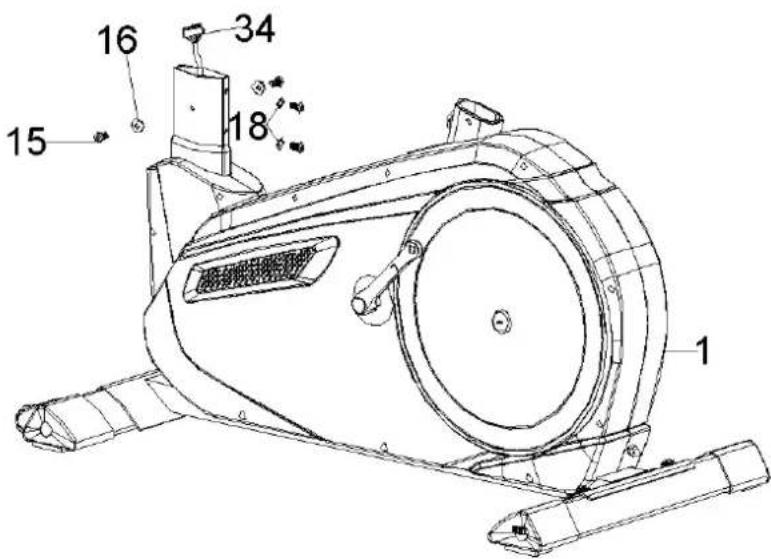

STEP 2

Connect the upper sensor wire (33) to the lower sensor wire (34). Insert the front support (4) into main frame (1) and secure with two flat washers (18), two curved washers (16) and four allen bolts (15).

STEP3

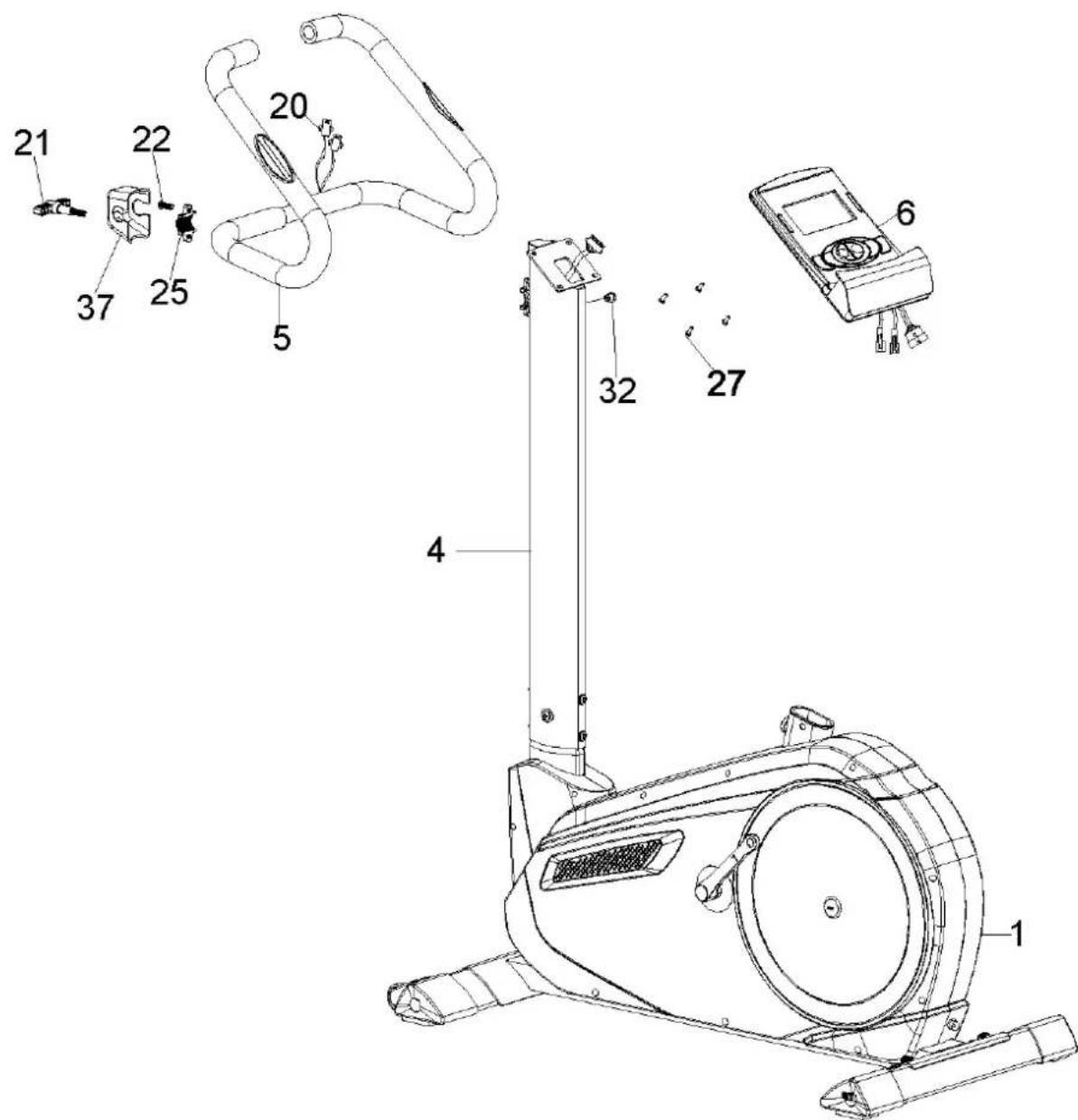

Attach the handlebars (5) to the front support (4) and fasten with one clamp (25), one allen bolt (22), one clamp cover (37) and one T-type knob (21).

Connect the upper sensor wire (33) to the sensor wire on the back of the computer (6). Insert the handpulse wire (20) through grommet (32) on front support (4) and pull it out of front support (4). Connect the hand pulse wire (20) to the jack on the back of computer (6).

Attach computer (6) to front support (4) using four screws (27) [pre-assembled on computer].

STEP4

Attach sliding seat cover (12) to seat support (7) using one self-tapping screw (39). Loosen two nuts on back of seat (8) and re-attach it to seat support (7) and fix the seat (8). Insert the seat support (7) into decorative cover (38). Attach the seat support (7) to main frame (1) and fasten with one quick release knob (11).

STEP5

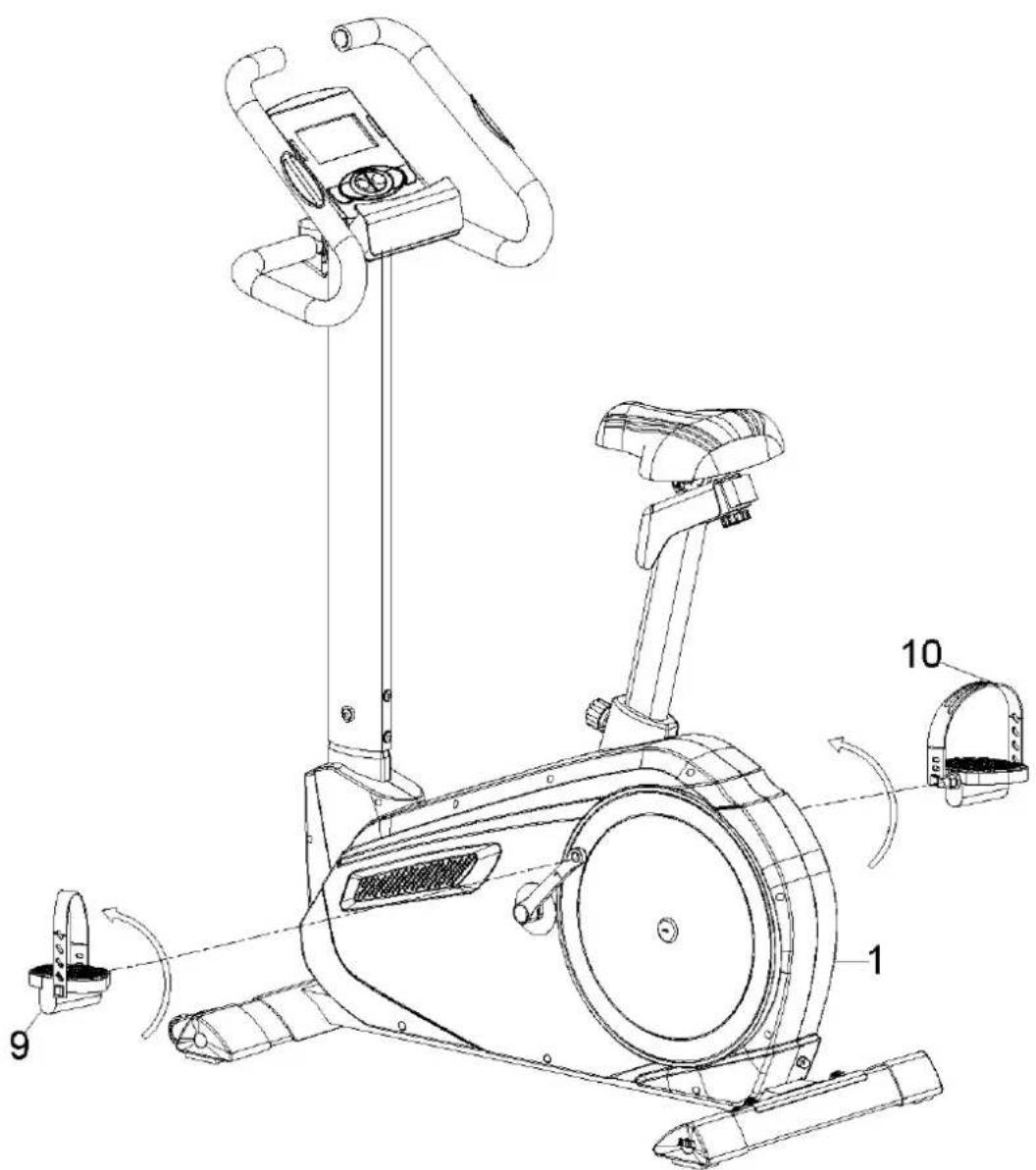

Attach the right pedal (10) onto the right crank and tighten it by turning it clockwise. Then attach the left pedal (9) onto the left crank and tighten it by turning it anticlockwise. The pedals are marked with "R" (right) and "L" (left).

STEP6

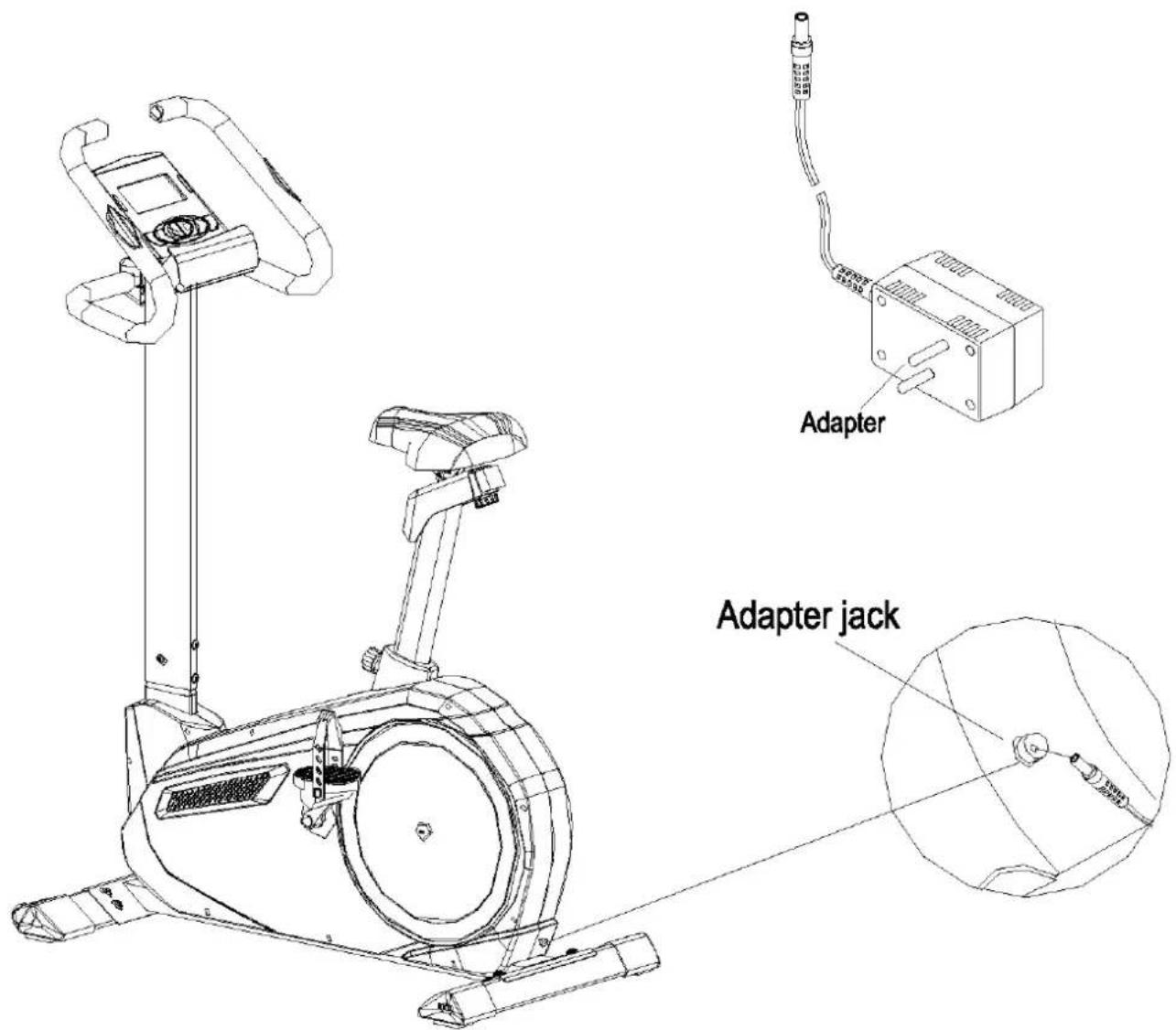

Connect the adapter jack to rear part of main frame (1) as shown:

Program selection and value presetting

1. Use the UP- and DOWN keys to select program mode and press ENTER to confirm selected mode.
2. In manual mode, use the UP- and DOWN keys to preset any value for TIME, DISTANCE, CALORIES or PULSE.
3. Press the START/STOP-key to start exercise.
4. When a preset value is reached, the computer will beep and stop.
5. If more than one value is preset, press START/STOP-key to keep on exercising until the next value is reached.

Sleep / Wake-up function

The monitor will enter SLEEP mode (LCD off) when there is no signal and no key pressed for 4 minutes. Touch the screen to wake up the monitor.

Functions and features

TIME: Computer shows actual exercise time (max. 99:59 Min.). When no target value has been entered, the time will count up from 0:00.

Preset a target time: You may preset a target time before starting a workout. The time will then count down and multiple sound beeps will be emitted when reaching 0:00.

DISTANCE: The workout distance is displayed here (max. 99,9 km / miles).

RPM: Displays the rounds per minute.

WATT: Computer shows the actual watt value.

SPEED: The computer shows the current speed in the display (km / miles per hour).

CALORIES: The currently burned calories are displayed here.

PULSE: The computer is showing the user's heart rate in beats per minute. For a correct display please ensure that you fully grasp the hand sensors. It may last up to 2 minutes before the pulse frequency will be measured correctly. If you use a breast strap, the measured frequency will also be displayed here.

AGE: You may set your age from 10 to 99 years. If no age is set, the default value will be 35.

TARGET HEART RATE (TARGET PULSE): The heart rate to maintain during your exercise is called your "target heart rate" (heartbeats per minute).

PULSE RECOVERY: With this special function, you can check your hearts recovery rate after a training session. This is a very important indication for the physical condition of your body. Try to improve your recovery rate with regular training sessions. The aim is, to calm down to a normal pulse frequency (frequency, when you are not in motion) as quickly as possible. To check your recovery rate, you need to keep your hands onto the hand pulsesensors after your exercise. Now press the button "PULSE RECOVERY". The computer will start to countdown 60 seconds. During this period the computer will constantly measure your heart rate through the hand sensors. After this minute, your recovery rate will be displayed on the display. The range is F1.0 to F6.0, whereby F1.0 is very good and F6.0 is insufficient. Improve your value by intense and regular training!

Note: If no pulse signal is detected, the computer will show "P" in PULSE window. If "ERR" or "E" is displayed, pulse recovery function cannot be started. Make sure, that you fully grasp the hand sensors resp. that the chest belt is attached correctly.

DISTANCE BAR: Every bar indicates 100 meter or 0.1 mile.

Button functions

There are 6 buttons with different functions:

1. START/STOP

a. Quick Start - start the computer without selecting a program (manual workout only). Time automatically begins to count up from zero.
b. During exercise, press the button to STOP exercise.
c. During stop mode, press the button to START exercise.

2. UP

a. Press this button to increase the resistance during exercise.
b. During setting mode, press the button to adjust the values of time, distance, calories and program.

3. DOWN

a. Press this button to decrease the resistance during exercise.
b. During setting mode, press the button to adjust the values of time, distance, calories and program.

4. ENTER

a. During setting mode, press the button to confirm any input.
b. In stop mode, press and hold button for min. 2 seconds to reset all data.
c. During clock setting mode, press the button to confirm hour / minute.

5. BODY FAT

Press this button to start the body fat measurement. You have to input your personal data with the help of "UP", "DOWN" and "ENTER" first for:

1. Height in cm
2. Weight in kg
3. Gender
4. Age in years

6. PULSE RECOVERY

Press this button to start the heart recovery measurement.

Program modes

Manual mode

P1 is the manual mode. Start exercise by pressing START/STOP. Default resistance level: 5. You may change the tension level at any time during exercise with "UP" and "DOWN". You may also input target values for the following function values:

a. TIME

PROGRAM 1

MANUAL

b. DISTANCE

c.CALORIES

d. PULSE

To input a target value, do not press "Start/Stop" after selecting mode, but instead use "UP", "DOWN" and "ENTER" to input the target values. After your input, press "Start"/Stop".

Preset programs:

Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice Program

P2 to P6 are the preset program. You can exercise with a program profile (preset mountain- and valley courses). Choose one of the 5 programs (P2 to P6) by pressing "UP" and "DOWN". Press Enter to use it for your training. It is also possible to input target values during the program training. Use the ,UP/DOWN"-buttons and ENTER to input target values. You may change the tension level at any time during exercise with "UP" and "DOWN". Start exercise by pressing START/STOP.

PROGRAM 2
STEPS

PROGRAM 3
HILL

PROGRAM 4
ROLLING

PROGRAM 5
VALLEY

PROGRAM 6
FAT BURN

PROGRAM 7
RAMP

PROGRAM 8
MOUNTAIN

PROGRAM 9
INTERVALS

PROGRAM 10
RANDOM

PROGRAM 11
PLATEAU

PROGRAM 12
FARTLEK

PROGRAM 13
PRECIPICE

User program:

User 1, User 2, User 3, User 4

In these modes you can exercise according to your own programmed profiles.

After selecting P14, P15, P16 or P17 (confirm with „ENTER“) you can preset each segment load in the profile with the “UP” and “DOWN” buttons (“ENTER” for confirmation). After you have finished your input, please press “START/STOP” directly or continue to enter any target values with the „UP/DOWN“(AUF/AB)-buttons as described above.

PROGRAM 14

USER 1

PROGRAM 15

USER2

PROGRAM 16

USER 3

PROGRAM 17

USER 4

Heart rate controlled programs: P18 to P22

You can run an automatically steered training depending on your pulse frequency:

Program 18 is the 55% Max H.R.C. - - Target H.R. = (220 - AGE) x 55%

Program 19 is the 65% Max H.R.C. -- Target H.R. = (220 - AGE) x 65%

Program 20 is the 75% Max H.R.C. -- Target H.R. = (220 - AGE) x 75%

Program 21 is the 85% Max H.R.C. -- Target H.R. = (220 - AGE) x 85%

Program 22 is the Target H.R.C. - - Workout by your target heart rate value.

After selecting a respective mode (press ENTER to confirm) you are in the heart frequency controlled mode. Please amend the displayed value for age (factory default: 35) according to your actual age and press ENTER to confirm.

In program 22, use „UP/DOWN“-buttons for direct input of the target pulse value (between 80 and 180 bpm, default = 120).

After you have finished your input, please press "START/STOP" directly or continue to enter any target values with the ,UP/DOWN"(AUF/AB)-buttons as described earlier.

After starting to exercise, the computer will automatically always pay attention to the target pulse. If your measured pulse is below this value the computer will increase the resistance constantly. If you exceed this value, it reduces the difficulty until the pulse will be balanced.

PROGRAM 18

55% H.R.C.

PROGRAM 19

65% H.R.C.

PROGRAM 20

75% H.R.C.

PROGRAM 21

35% H.R.C.

PROGRAM 22

TARGET H.I.

Watt-controlled training mode

P23 is a speed-independent exercise mode. With this mode you can exercise according to the preset Watt value. After selecting P23, you may enter preset values for TIME, DISTANCE, WATT, CALORIES and PULSE. The default value for the WATT preset value is 100, which you may change with "UP"/"DOWN" and "ENTER".

PROGRAM 23

WATT CONTROL

If WATT is a preset value, it is not possible to adjust the resistance with "UP" and "DOWN" during exercise as usual. The computer will automatically control the resistance.

WATT = TORQUE (KGM) * RPM * 1.03

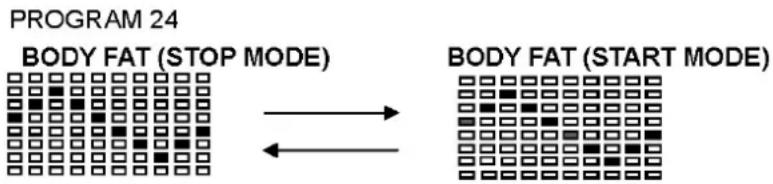

The bodyfat analysis

P24 is the bodyfat measurement mode.

Generally there are 3 different body types according to the FAT% determined by the computer:

Type1:BODY FAT% > 27

Type2: 27 > BODY fat % > 20

Type3:BODY FAT % < 20

The computer will show the test result accordingly at the end of the measurement process.

Operation:

Use UP/DOWN to select P24.

Press ENTER.

The HEIGHT will flash and you can press UP or DOWN to adjust your HEIGHT. Press ENTER to confirm. The default HEIGHT is 170cm or 5'07" (5feet 7 inches).

Now the WEIGHT will flash. Use UP or DOWN buttons to adjust your WEIGHT. Press ENTER to confirm. The default WEIGHT is 70kgs/155lbs.

Now select your Gender (1=male; 2=female) and Age in the same way.

Press START/STOP to start the bodyfat measurement. Move your thumb/hand back to the hand sensor quickly and grasp the sensors on both sides fully. The measurement will take about a few seconds.

If E should appear on the display: This means, that the contact to the handpulse sensors was not sufficiently for a measurement. The reason for this can be, that you have not grasped the two sensors correctly. Start a new measurement with correctly placed hands!

One out of the 6 following profiles will occur automatically as exercise suggestion after a successful measurement of bodyfat. Press START/STOP to exercise with this program suggestion.

Exercise Time: 40 minutes

Workout Time: 40 minutes

Exercise Time: 20 minutes

Exercise Time: 40 minutes

Exercise Time: 40 minutes

Workout Time: 20 minutes

If no correct measurements are possible or the display does not show correct values, please contact the customer service.

Error messages

ERROR 1 (E1)

Connection to gear motor (motor signal) is lost for more than 4 seconds. During power-on, the gear motor will return to initial position automatically. Contact the customer service.

ERROR 2 (E2)

Memory error. Disconnect from mains source and retry after 1 minute. If problem still exists, contact the customer service.

ERROR 3 (E3)

Motor cannot leave zero position. Contact the customer service.

Using apps

The computer has a Bluetooth function (frequency: 2.4 GHz) and is compatible with the apps DELIGHTECH and KINOMAP. You will find more information on the following pages.

App users' guide for „Delightech“

Compatibility

a. Android® 4.4 or later, Bluetooth dual mode / BLE (Bluetooth Low Energy)
b. APPLE® iOS® devices with Bluetooth Version 4.0 only.

1. Turn on Wi-Fi (WLAN) to connect to the internet

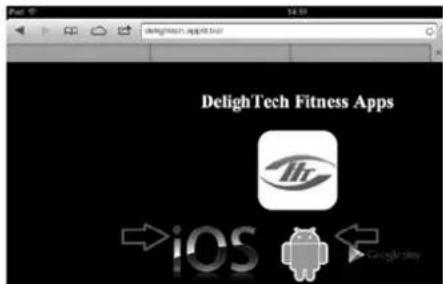

2. Download the app from App Store® or Delightech website. Alternatively, you may scan the below QR-Code. Click the green robot icon for Android® and the “iOS” icon for iOS®

devices.

www.appfit.biz

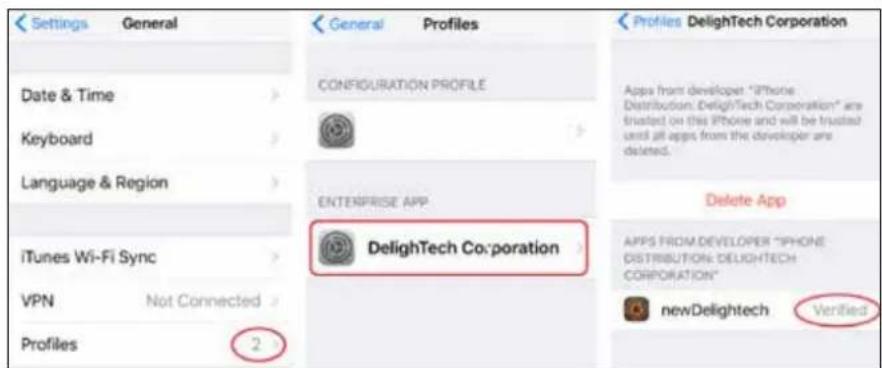

1. For Android® devices only: Allow "unknown sources" option in system security settings. For iOS devices only: Enter System Settings -> General->Profiles for iOS System and adjust

DelighTech Corporation as verified developer as shown in the screenshot.

1. Enable and connect via Bluetooth.
2. Run the app.
3. Switch on the fitness device.

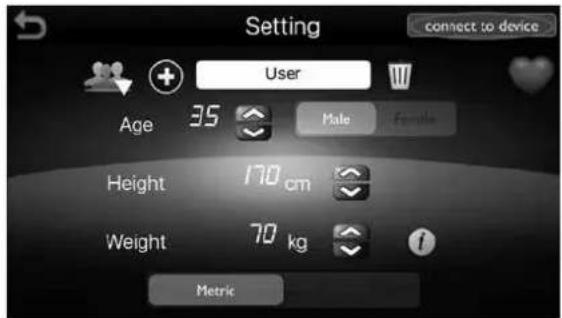

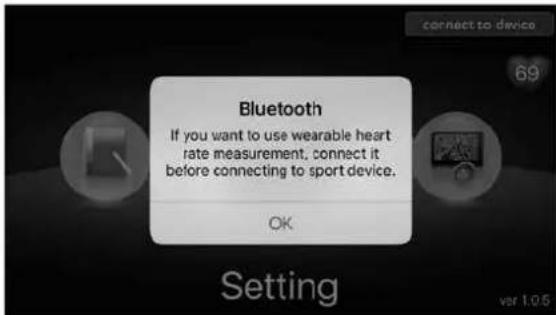

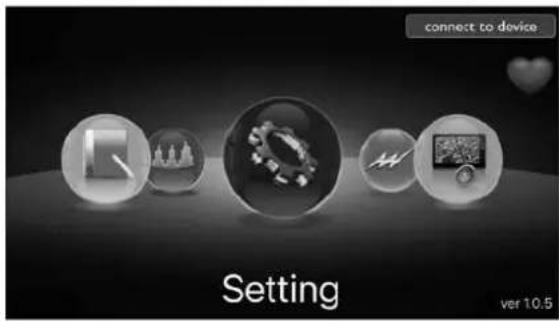

4. Enter "Setting" and touch "Connect to device" icon.
5. A list will appear with available devices. First select the chest belt to link and then select the device. The chest belt display will turn off, if there are no pulse signals detected for more than 10 seconds.
6. If you can see your fitness device's name on the screen (as per example below) the link is ok. To disconnect, touch the device button again.
7. As the app allows multi-user records, it is recommended to fill in your personal data within the app first.

App contents:

Quick start

Start manually without any settings. Tap "Resistance" to change resistance level. The slider bar appears for 3 seconds. Tap the "Heart" symbol to show the heartrate chart. Tap the return arrow to exit to main screen.

Programs

Here you may select pre-defined programs for your exercise.

Map Virtual Navigation

You may select 2 points on the map. You may then virtually explore the route by exercising with your fitness device. If asked, allow to use the current location of user. Where street views are available, these will be shown in your app.

History list

The records include:

Time, Distance, Calories, Speed, Pulse, Date, Device name and other details.

Quick start

Programs

Map

History list

Quit

Kinomap

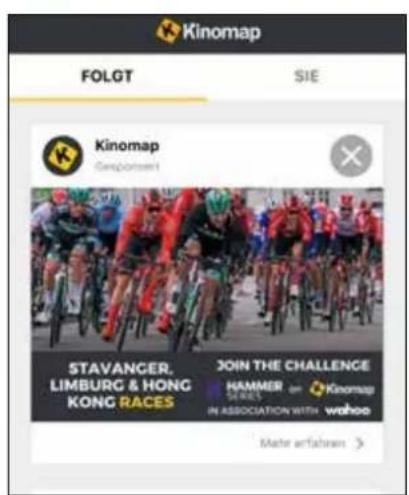

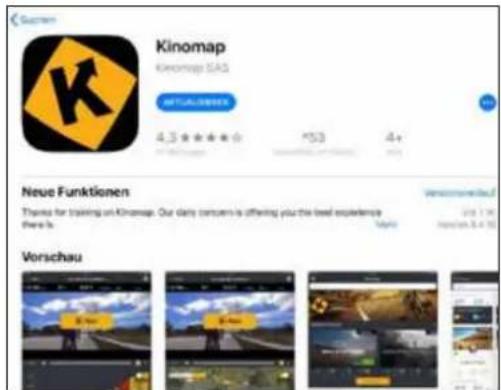

The free KinoMap app turns your device into a powerful and fun fitness product! Choose from the geotagged video on Kinomap and go! Your position is shown in the video and as icon on the map. Download the Kinomap Fitness app in the app or play store by searching for 'Kinomap Fitness' or follow one of the links below. Install and open the app and register resp. log in. Activate Bluetooth. Now add the training device as follows:

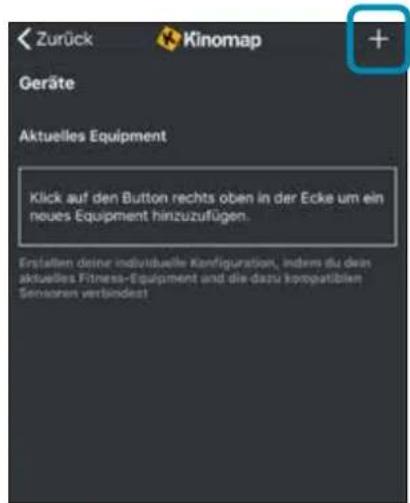

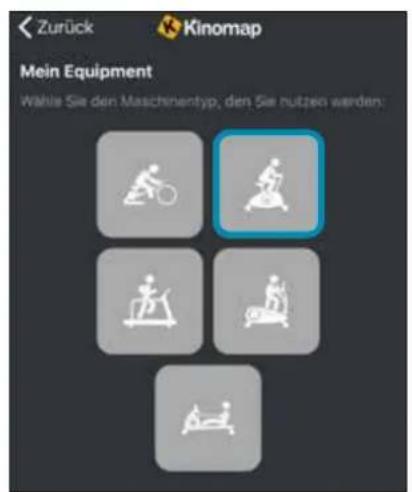

1.2. Tap on ^, + 3.Hometrainer

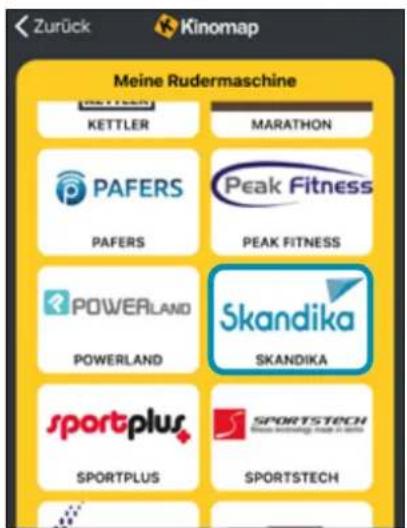

4. Select Skandika

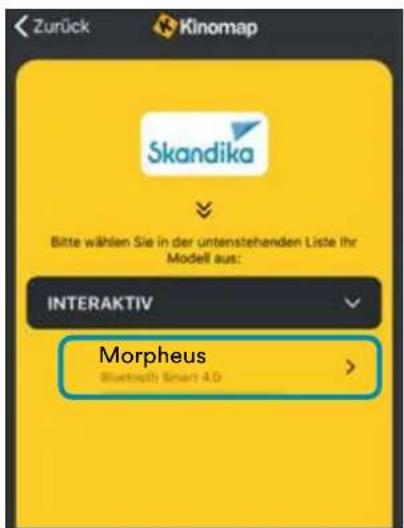

5. Tap on the device

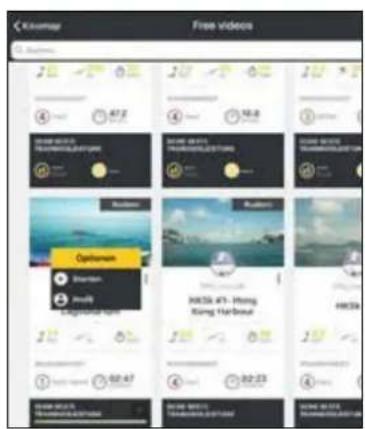

Now tap on OK and return to main menu. You can now choose a course for your exercise (depending on your type of KinoMap account maybe only some free courses). Press Start and begin to exercise!

Using the chest belt

The computer is equipped with a built-in receiver for the wireless receipt of the pulse frequency with a compatible SKANDIKA chest belt (frequency: 5.3 kHz, included in the scope of delivery). Recommended range: 100 - 150 cm.

If you want to transmit your pulse frequency via chest-belt, follow these instructions:

1. Make sure, the correct battery is inserted into the chest belt (button cell of type CR-2032, 3 volts). Battery replacement: Open the battery case cover on the back side of your transmitter (you may use a coin for easier handling) and replace the old battery by a fitting new one. The _r + ^a symbol should point upwards. Make sure, the sealing ring ist correctly placed. Close the case cover properly.
2. The transmitter needs to be attached to the belt with the 2 buttons. Moisten the electrodes slightly before wearing the belt. This increases the contact sensibility and enables a better wireless signal transmitting.
3. Put on the chest belt and make sure the electrodes are touching your breast directly. You may adjust the belt to a comfortable length. However, the electrodes must have contact with your skin in order to measure your heart rate correctly.

1. The 5.3 kHz-chest-belt communicates with the computer via the built-in receiver. It may last up to one minute before a correct display can be seen.

Safety hint:

Do not use the chest-belt if you have a pacemaker, unless you double-checked with the producer of the pacemaker and with your doctor!

Battery-Disposal:

Batteries should not be considered as regular garbage. As consumer you are obliged to return finished batteries. The finished batteries can be returned to a collection base at your residential area or at places, where batteries can be bought.

WARM-UP and COOL-DOWN

A successful exercise program consists of a warm-up, aerobic exercise and a cool-down. Exercise for at least two or preferably three times a week, resting for a day between workouts. After several months, you may increase the frequency to four or five times per week.

WARM-UP

This stage helps to improve the blood circulation and prepares the muscles for your workout. It additionally helps to reduce the risk of injury or cramps. It is recommended to do some stretching exercises as shown here below. Hold each stretching position for approximately 30 seconds. Never force or jerk yourself into a stretching position – if you feel pain, STOP immediately. Warm-up exercises may also include brisk walking, jogging, jumping jacks, jump rope exercises or running in place.

STRETCHING

Muscles can be stretched more easily when these are warm. This reduces the risk of injury. DO NOT BOUNCE.

COOL-DOWN

This stage helps to soothe your muscles and your cardiovascular system after your workout. At the end of your workout, reduce the speed and exercise for approximately 5 minutes at this lower speed level. Afterwards, repeat the warm-up exercises as described above.

Using your exercise bike will provide you with several benefits, e.g. it will improve your physical fitness, tone your muscles and - in conjunction with a calorie-controlled diet - help you tp reduce weight.

1. The warm-up phase

The phase improves blood flow and helps the muscles to work properly. Warming up reduces the risk of cramp or muscle injury. It is advisable to perform some stretching exercises as described on the following page. Each stretch should be held for about 30 seconds, no force or excessive pressure should be applied - if pain occurs, stop.

2. The exercise phase

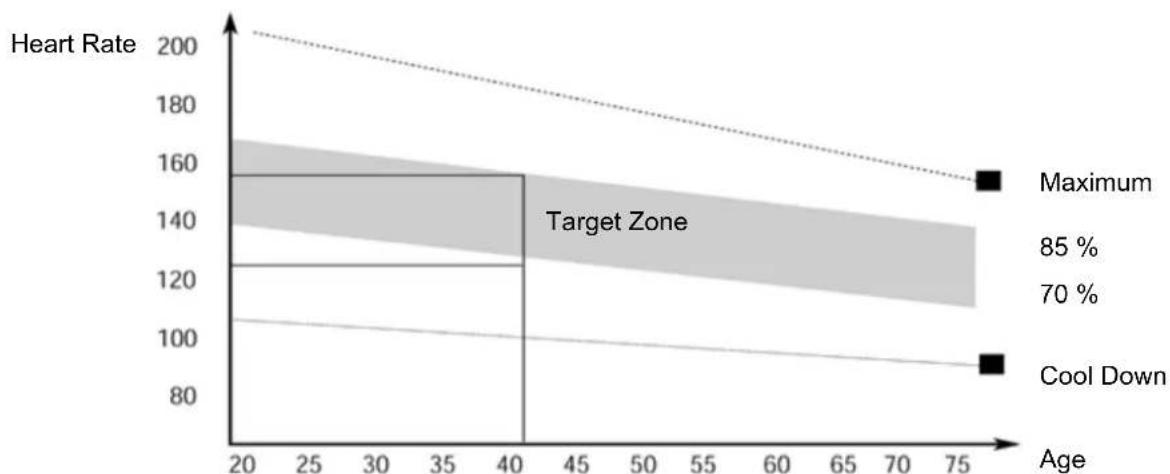

In this phase you should perform. Regular training will make your leg muscles more flexible. During training you should run at a steady pace. Your heart rate should reach the target zone as shown in the graph below.

NOTE: The exercise phase should last at least 12 minutes. Most people exercise for about 15 to 20 minutes per session.

3. The cool-down-phase

This phase serves to relax your cardiovascular system and muscles again. For example, you can reduce the pace and exercise for 5 more minutes. Then repeat the stretching exercises from the warm-up phase - again remember not to use force or too much pressure when stretching. As you get fitter, you will need to exercise longer and harder to achieve success. It is recommended to train at least 3 times a week and - if possible - spread the training sessions evenly throughout the week.

MUSCLE TONING

To achieve muscle definition, you need to set the resistance setting relatively high. This puts more strain on your leg muscles - which may mean that you cannot train for as long as you would like. However, if you also want to train your fitness, you need to diversify your training programme. You should exercise normally during the warm-up and cool-down phases, but increase the load towards the end of the training phase so that your legs have to work harder. You then need to reduce the pace to stay in the target heart rate zone.

WEIGHT LOSS

To lose weight, you need to workout comparatively hard. The longer your workout lasts, the more calories will be burned. It is almost the same way of exercise as if you want to improve your fitness level.

GUARANTEE CONDITIONS

For our devices we provide a warranty as defined below.

1. In accordance with the following conditions (numbers 2-5) we repair defect or damage to the device free of charge, if the cause is a manufacturing defect. Therefore, these defects / damages need to be reported to us without delay after appearance and within the warranty period of 24 months after delivery to the end user. The warranty does not cover parts, which easily break (e.g. glass or plastic). The warranty does not cover slight deviations of the product, which are insignificant for usability and value of the device and damage caused by chemical or electrochemical effects and damages caused by penetration of water or generally force majeure damage.
2. The warranty achievement is the replacement or repair of defective parts, depending on our decision. The cost of material and labor will be borne by us. Repairs at customer site cannot be demanded. The proof of purchase along with the date of purchase and / or delivery is required. Replaced parts become our property.
3. The warranty is void if repairs or adjustments are made,

which are not authorized by us or if our devices are equipped with additional parts or accessories that are not adapted to our devices. Furthermore, the warranty is void if the device is damaged or destroyed by force majeure or due to environmental influences and in case of improper handling / maintenance (e.g. due to non-observation of the instruction manual) or mechanical damages. The customer service may authorize you to replace or repair defective parts after telephone consultation. In this case, the warranty is not void.

1. Warranty services do not extend the warranty period nor do they initiate a new warranty period.
2. Further demands, especially claims for damages which occurred outside the device, are excluded as long as a liability is not obligatory legal.
3. Our warranty terms - which cover the requirements and scope of our warranty conditions - do not affect the contractual warranty obligations of the seller.
4. Parts of wear and tear are not included in the warranty.
5. The warranty is void if not used properly or if used in gyms, rehabilitation centers and hotels. Even if most of our units are suitable for a professional use, this requires a separate agreement.

ENVIRONMENTAL PROTECTION

The symbol of the crossed-out dustbin on batteries or accumulators indicates that they must not be disposed of in household waste at the end of their life. If batteries or accumulators contain mercury (Hg), cadmium (Cd) or lead (Pb), you will find the respective chemical symbol below the symbol of the crossed-out dustbin. You are legally obliged to return old batteries and accumulators after use. You can do this free of charge at a retail outlet or at another collection point near you. You can obtain addresses of suitable collection points from your

city or local government. Batteries may contain substances that are harmful to the environment and human health. Particular care should be taken when handling batteries containing lithium because of the special risks involved. The separate collection and recycling of old batteries and accumulators is intended to avoid negative impacts on the environment and human health. Please avoid the generation of waste from old batteries as far as possible, e.g. by giving preference to batteries with a longer life or rechargeable batteries. Please avoid littering public spaces by not carelessly leaving batteries or electrical and electronic equipment containing batteries. Please consider ways to reuse a battery instead of disposing of it, for example by reconditioning or repairing the battery.

In accordance with our policy of continual product improvement, we reserve the right to make technical and visual changes without notice.

For spare parts please contact: [e-mail]

Service centre:

skandika.com/service

WATT = COUPLE (KGM) * RPM * 1.03
