USER MANUAL LVF27A FAGOR

• Wash Cycle Table p. 11
• Turning on the Appliance p. 12
• Change the Programme p. 12
• At the end of the Wash Cycle p. 12
• 8) Installation instruction p. 158
• ) Installation instruction p. 15
• Positioning the Appliance p. 15
• Water Connection p. 16
• About Power Connection p. 15
• Start of dishwasher p. 17
• 9) Troubleshooting Tips p. 189
• ) Troubleshooting Tips p. 18
• Before calling for service p. 18
• Error codes p. 19
• Technical information p. 20
• 1) Safety Information p. 11
• ) Safety Information p. 1
• 2) Quick operation guide p. 22
• ) Quick operation guide p. 2
• 3) Operating Instructions p. 33
• ) Operating Instructions p. 3
• Control Panel p. 3
• The Method Loading Normal Dishware Loading the baskets according to En50242 Loading the baskets according to En50242 To review the section on troubleshooting Tips will help you to solve some common problems by yourself . NOTE: Dear Customer, Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly. Pass it on to any subsequent owner of the appliance. This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc. The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. This user manual shall also be got from the manufacturer or responsible vendor. Read this Manual Before Calling for Service Keep it to refer to it at a later date. If you can not solve the problems by yourself , please ask for the help of professional technicians.1-11-1 This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.(For EN60335-1) This appliance is not intended for use by persons (including children )with reduced physical, sensory or mental capabilities, or lack of experience and knowledge ,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.(For IEC60335-1 ) This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance . Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again. p. 10

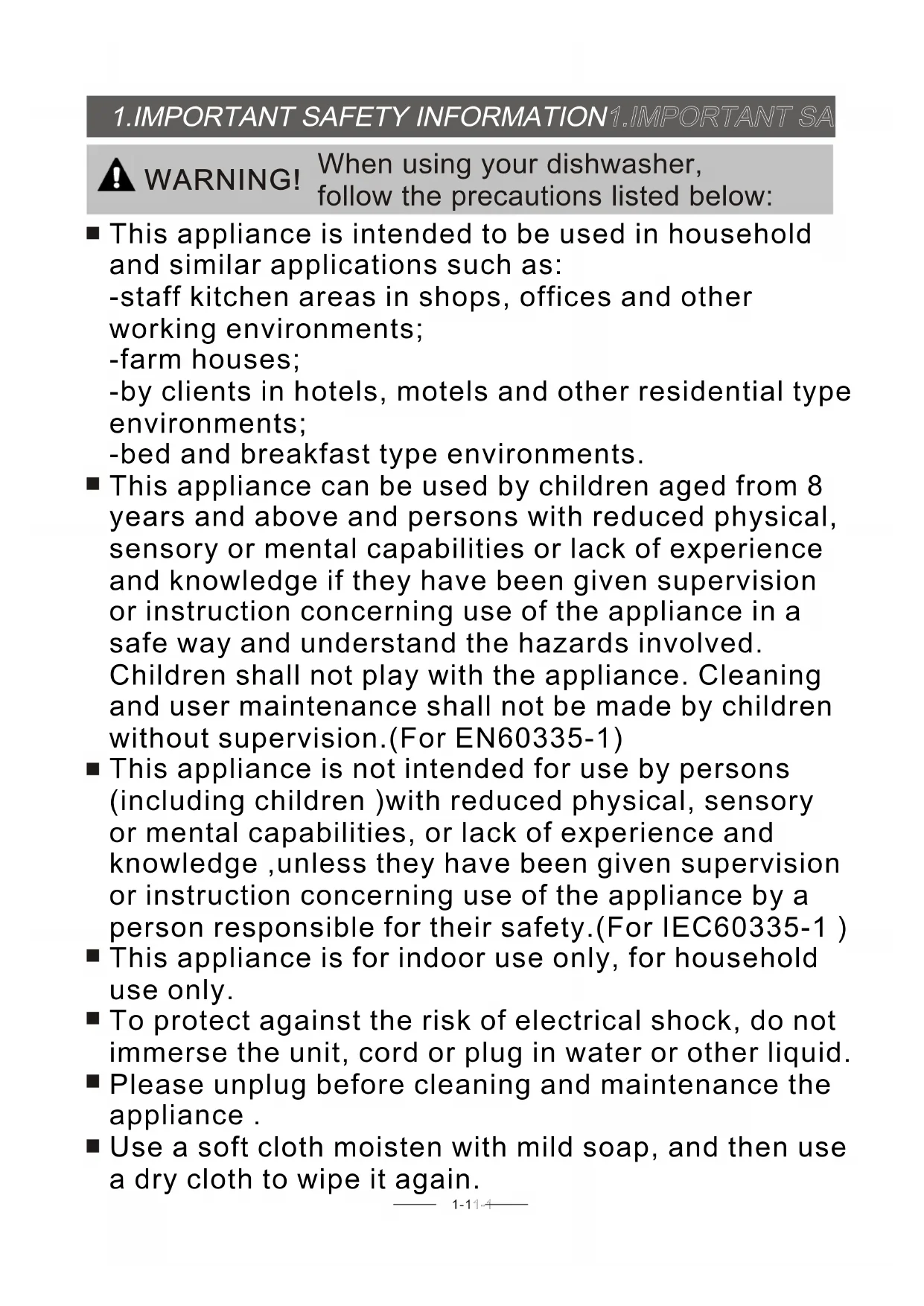

1.IMPORTANT SAFETY INFORMATION1.IMPORTANT SAFETY INFORMATION

When using your dishwasher, follow the precautions listed below:

WARNING! WARNING!1-21-2

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug. The plug must be plugged into an appropriate outlet that i s i nstalled a nd earthed in a ccordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal;

EARTHING INSTRUCTIONS1-31-3

2) Warning: Knives and other utensils with sharp points

must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic it ems n check th e m anufacturer's ot so marked, recommendations. Use only det ergent and rins e add itives des igned for an aut omatic dish washer. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Children should be supervised to ensure that they do not play with the appliance. The door should not be left open, since this could increase the risk of tripping. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls. The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused. The maximum number of place settings to be washed is 14. The maximum permissible inlet water pressure is 1MPa. The minimum permissible inlet water pressure is 0.04MPa.Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: PE for polyethylene, e.g. sheet wrapping material PS for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips PP polypropylene, e.g. Salt filler ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel . Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. WARNING! WARNING! Disposal Disposal 1-41-4Compartment A:Compartment A: With each wash cycle.Compartment B:B:For programmes with pre-wash only.(Follow the user instructions!) Mechanical indicator C. Mechanical indicator C. Electric indicator on control panel (if provided).Check the rinse aid level(On models with water softener system only.) Electric indicator on control panel (if provided). If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run. Check the regeneration salt levelLoad the basketsSelect a programmeTurn on the water tap and press the Start/Pause Button. The machine will start working after about 10 seconds. Running the dishwasherSwitch off the applianceFill the detergent dispenserChanging the programmeAdd forgotten dishes in the dishwasher. Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.Close the door,Press the Programme Button until the selected programme lights up.( See the section entitled Operationg instruction )When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the On/Off Button.If the appliance is switchedoff during a wash cycle. Open the door carefully. Hot steam may escape when the door is opened! WARNING! If the appliance is switched off during a wash cycle, when switchedon again, please re-select the washing cycle and operate the dishwasheraccording to the original Power-on state ). Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. 2.Quick operation guide2.Quick operation guide For detailed operating method read the corresponding content on the instruction manual. 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispenser must be refilled. 2. Press the Start/Pause button, the machine will be in standby state, press the program button more than 3 seconds then you can change the program to the desired cycle setting 1.Open the door a little .2.After the spray arms stop working, you can open the doorcompletely.3.Add forgotten dishes.4.Close the door,the dishwasher will run after 10 seconds. Turn off the water tap,unload the basketsWarning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better.Unload the appliance, starting from the lower basket.

B C33 3.Operation Instruction3.Operation Instruction Dishwasher FeaturesDishwasher Features Control PanelControl Panel before using it for the first time.To get the best performance from your dishwasher, read all operating instructions IMPORTANTIMPORTANT

7.Start /Pause button: To start the selected washing program or pause the washing program when the machine is working.Attention:Child lock function: press two delay buttons simultaneously to lock the program.2.Delay Button : Press the button to add the delay time.5.Program Button : To Press the button to select appropriate Program.1. On/Off Button: to switch On/Off the appliance. 4.Display screen: to show the reminding time and the state(running state, delay time etc ) 6.Alt Button: Dual zone wash function, press the buttonto select either upper basket or lower basket loaded, andthe response indicators will light on.3.Delay Button : Press the button to decrease the delay time.

663344The water softener must be set manually, using the water hardness dial.The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting Salt Consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level o f salt consumption. WATER SOFTENERThe hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits willform on the dishes and utensils.The appliance is equipped with a special softener that uses a salt container specifically designed to eliminatelime and minerals from the water. 4.Prior using for the first time4.Prior using for the first time Contact your local water board for information on the hardness of your water supply. A. Water SoftenerA. Water Softener NOTE:NOTE: If your model does not have any water softener, you may skip this section.

Clark: British degree fH: French degree DH: German degreeNote:1Note:1dH=1.25 Clarke=1.78 fH=0.178mmol/l

Note:2Note:2The manufactory setting: H4 (EN 50242)Before using your dishwasher for the first time:A. Set the water softenerB. Add 1.5Kg dishwasher salt and then full fill the salt container with waterC. Fill the rinse aid dispenserD. Fill in detergentPlease follow the steps below for adjustment in salt consumption. mmol/l0~90~5 0~0.94

29-42 35-55 61-98 43-69 6.1-9.8 1. Close the door ,Switch on the appliance;2. Press the Star/Pause button for more than 5 seconds to start the water softener set model within 60seconds after the appliance was switched on( The Salt and Rinse aid warning lights will be on periodically when it get in the set model );3. Press the Star/Pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;4. Press the Power button to end the set up model.55

1. The salt container must only be refilled when the salt warning light in the control panel comes on.

Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some Models),you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be filled as explained in the following: Attention! Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused. Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. B. Loading the Salt Into the SoftenerB. Loading the Salt Into the Softener C. Fill the Rinse Aid DispenserC. Fill the Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml. Rinse Aid Dispenser Function of Rinse Aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Attention! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. NOTE:NOTE: OpenOpen

Full fill the salt container with water,It is normal for a small amount of water to come out of the salt container. A After the lower basket has been removed, unscrew and remove the cap from the salt container. B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.

D After filling the container , screw the cap tightly back clockwise. E The salt warning light will stop being after the salt container has been filled with salt. F Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.66 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out. Pour the rinse aid into the dispenser, being careful not to overfill. Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".) Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3 / 4 ful l 1 / 2 ful l 1 / 4 full - Should refill to eliminate spotting Empty Adjust lever(Rinse) Adjust lever(Rinse) When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full. during the next wash. Don't forget to replace the cap before you close dishwasher door. Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming NOTE:NOTE: NOTE:NOTE: Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. D. Function of DetergentD. Function of Detergent MAXMAX Proper Use of Detergent Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes. Attention! C (Rinse-Aid indicator)77 Amount of Detergent to Use Dishwasher detergent is corrosive! Take care to keep it out of reach of children. WARNING! WARNING! Based on their chemical composition, detergents can be split in two basic types: Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly. Concentrated Detergent Detergent Tablets Detergent Dispenser conventional, alkaline detergents with caustic components low alkaline concentrated detergents with natural enzymes Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature. Detergents There are 3 sorts of detergents 1.With phosphate and with chlorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Always add the detergent just before starting each wash cycle. Only use branded detergent aid for dishwasher. If the lid is closed: press release button. The lid will spring open. NOTE:NOTE: Push latch to openFill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: The place of main wash cycle detergent placed. The place of pre-wash cycle detergent placed. Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging. Close the lid and press until it locks in place. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Fill in Detergent You find information about the amount of detergent for the single programme on the last page. Please aware, that according to the level soiling and the specific hardness of water differences are possible. Please observe the manufacturer's recommendations on the detergent packaging. NOTE:NOTE:

B5.Loading the Dishwasher Baskets5.Loading the Dishwasher Baskets For washing in the dishwasher the following cutlery/dishesFor washing in the dishwasher the following cutlery/dishes Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant Bonded cutlery items or dishes Pewter or cooper items Crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibres Some types of glasses can become dull after a large number of washes Silver and aluminum parts have a tendency to discolour during washing Glazed patterns may fade if machine washed frequently Are not suitable Are of limited suitability Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage to glasses, they must not touch. Load large items which are most difficult to clean into the lower basket. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Long bladed knives stored in an upright position are a potential hazard! Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. RecommendationRecommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. (For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way: 1.Items such as cups, glasses, pots/pans, etc. are faced downwards. 2.Curved items, or ones with recesses, should be loaded aslant so that water can run off. 3.All utensils are stacked securely and can not tip over. 4.All utensils are placed in the way that the spray arms can rotate freely during washing. NOTE:NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket. Attention before or after loading the Dishwasher BasketsAttention before or after loading the Dishwasher Baskets To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket. Removing the DishesRemoving the Dishes 991010The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowlsand shallow pans (as long as they are not too dirty).Position the dishes and cookware so that they will not get moved by the spray of water. Loading the Upper BasketLoading the Upper Basket We suggest that you place large items and the most difficult to clean items are to be placed into the lowerbasket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racksin order to avoid blocking the rotation of the top spray arm. Loading the Lower BasketLoading the Lower Basket Pots, serving bowls, etc, must always be placed top down. Deep pots should be slanted to allow water to flow out.Please be reminded that:The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded. The Method Loading Normal DishwareThe Method Loading Normal Dishware

Folding back the cup shelives For better stacking of pots and pans, the spikes can be folded down as show in the picture right.Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance. Cutlery BasketCutlery Basket

Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down! WARNING! For personal safety and a top quality cleaning, place the silverware in the basketmaking sure that:For personal safety and a top quality cleaning, place the silverware in the basketmaking sure that:They do not nest together.They do not nest together. Silverware is placed with the handles-down.Silverware is placed with the handles-down. But place knives and other potentially dangerous utensils are placed handles-up. But place knives and other potentially dangerous utensils are placed handles-up. Folding Spikes of Upper and Lower Basket For better stacking of pots and pans, the spikes can be folded down as show in the picture right. Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by lift up the basket for the upper position, and uppress the handle to lower the upper basket, see the picturebelow: Lift the basket for upper postion Lift the basket for upper postion Up press the handle to lower the basket Up press the handle to lower the basket Adjust handleAdjust handle6.Starting a washing program6.Starting a washing program

Turning On the ApplianceTurning On the Appliance Starting a cycle wash Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled Loading the Dishwasher ). Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid ). Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure. Close the door, press the On/Off button to switch on the machine. Press the program button , the wash program will be changed as follows direction: Auto->Intensive->Normal->ECO-> ->Glass->Rapid; If a program is selected, the response light will light on. Then press the Start/Pause button, the dishwasher begins to start.

Auto NOTE:NOTE: *EN 5 0242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:Capacity: 14 settingPosition Upper basket: upper wheels on railsRinse aid setting: 6Pl:0.49w; Po:0.45w . Wash Cycle TableWash Cycle Table NOTE:NOTE:Means: need to fill rinse into the Rinse-Aid Dispenser.( ) Water comsumption doesn t include regeneration water.Water comsumption doesn t include regeneration water.

Detergent pre/main Detergent pre/main Cycle Selection Information Cycle Selection Information ProgramProgram (*EN 5 0242) Running time(min) Running time(min) Water (L) Water (L) Energy (Kwh) Energy (Kwh) Rinse Aid Rinse Aid 5/30g 5/30g 5/30g For normally soiled loads, such as pots plates glasses and lightly soiled pans. For heaviest soiled crockery, and normally soiled pots pans dishes etc with dried on soiling. A shorter wash for lightly soiled loads and quick wash.Pre-wash(50 )Wash (65 )RinseRinseRinse(55 )DryingPre-wash(45 )Wash (55 )RinseRinse (65 )DryingPre-washWash (50 )Rinse(60 )DryingWash (45 )RinseRinse (45 )

Description of Cycle Description of Cycle Pre-wash(50 )Wash(60 )Rinse (60 )Drying60 101.055/30g 20g For lightly soiled loads that do not need excellent drying efficiency. 5/30g For lightly soiled crockery and glass.

Pre-washWash (40 )RinseRinse(60 )Drying 8.4~12.7 0.9~1.3 120~180 5/30g Pre-wash (45 )Autowash(45-55 )RinseRinse (62 )DryingAuto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on foodThis is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.NOTE:NOTE: When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn offthe appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better. Switch Off the Dishwasher The program light is on but is not blinking, only in this case the programme has ended.1.Switch off the dishwasher by pressing the ON/OFF button.2.Turn off the water tap! Open the door carefully. Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved. Unloading the dishwasher It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one. Change the Program...Change the Program... Forgot to Add a Dish?Forgot to Add a Dish? If you open the door during a wash cycle , the machine will pause. will stop blinking and the buzzer will mooing every minute unless you close the door . After you close the door ,the machine will keep on working after 10 seconds.the LED display window NOTE:NOTE: At the End of the Wash CycleAt the End of the Wash Cycle Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the Detergent " ).Press the Start/Pause button , the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle. . ." ).The LED display shows the state of the dishwasher: a) The LED shows ----------------------------------------------- stand by b) The LED shows H MM and not blinking-------------------Being paused c) The LED shows H MM and blinking------------------------------Running 1 2 3 A forgotten dish can be added any time before the detergent cup opens.Add forgotten dishes.Close the door After the spray arms stop working, you can open the doorcompletely.

Press the Start/Pause Button to stop the washing.Press the Start/Pause Button, the dishwasher will run after 10 seconds. When you press the Start/Pause button to pause during washing, the LED display window will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly. NOTE:NOTE: When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step 3 to Step 1, the filter system will be installed. WARNING! WARNING! It is dangerous to open the door when washing, because the hot water may scald you.The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain. Larger items, such as pieces of bones or glass, that could blockthe drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out. This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle. Main filter Coarse filter Fine filter

Filter assembly The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea toremove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter andcup under running water. To remove the filter device, pull the cup handle in the upward direction. WARNING! WARNING! The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils. nnnn

Step 1 Turn the filter in anti-clockwise direction, Step 2 lift the filter assy up OpenOpen 7.Maintenance and Cleaning7.Maintenance and Cleaning Filtering SystemFiltering System NOTE:NOTE: When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed. 1313The control panel can be cleaned by using a lightly dampened cloth.After cleaning, make sure to dry it thoroughly. For the exterior, use a good appliance polish wax.Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher. Protect Against Freezing 1.Cut off the electrical power to the dishwasher.2.Turn off the water supply and disconnect the water inlet pipe from the water valve.3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)4.Reconnect the water inlet pipe to the water valve.5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.please take frost protection measures on the dishwasher in winter. Every time after washing cycles,please operate as follows Caring for the DishwasherCaring for the Dishwasher Cleaning the Filter Cleaning The Door To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards. When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased. WARNING! WARNING! To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. WARNING! WARNING! Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components. Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Cleaning the Spray Arms NOTE:NOTE: If your dishwasher cannot work because of the ice,please contact professional service persons.It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.- Inspect the filters for blocking after every time the dishwasher has been used.- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. Remarks: The entire filter assembly should be cleaned once a week. NOTE:NOTE: To remove the lower spray arm, pull out the spray arm upward.To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.1414 OpenOpenIt is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.Electrical Requirements Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug , replace the socket, rather than using a adaptors or the like as they could cause overheating and burns. Electrical Connection Insure proper ground exists before use 8.Installation instruction8.Installation instruction Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit servingonly this appliance. Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Levelling the ApplianceOnce the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case,the appliance should not be inclined more than 2 . Positioning the AppliancePositioning the Appliance About Power ConnectionAbout Power Connection Before cleaning or performing maintenance, always remove the plug from the socket. To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.Remove the PlugNo Solvents or Abrasive CleaningMoving the ApplianceSeals How to Keep Your Dishwasher in Shape After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.After Every WashWhen not in Use for a LongTime1515 WARNING! WARNING! For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing Connection from the power cord. nnnnnn1616 Drain hose Connection Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm. MAX 1000mm

Counter Front Drain pipe NOTE The top of the hose must be less than 1000mm. 40mm

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, BPLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, BThe following things should be checked before starting the dishwasher. Start of Dishwasher Start of Dishwasher The content of this manual is very helpful to the users. After installation, please make sure to keep this manual. Attention:Attention: 1 The dishwasher is level and fixed properly 2 The inlet valve is open 3 There is a leakage at the connections of the conducts 4 The wires are tightly connected 5 The power is switched on 6 The inlet and drain hoses are knotted 7 All packing materials and printings should be taken out from the dishwasher Extension Hose If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced. Water Outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. How to Drain Excess Water From Hoses Syphon Connection The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed .1818 9.Troubleshooting Tips9.Troubleshooting Tips Problem Possible CausesWhat To Do Fuse blown, or thecircuit breaker actedReplace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher Suds in the tub Spilled rinse-aidAlways wipe up rinse-aid spills immediately. Review the charts on the following pages may save you from calling for service. White film on inside surface There are rust stains on cutlery Knocking noise in the wash cabinet Rattling noise in the wash cabinet Knocking noise in the water pipes Hard water mineralsThe affected items are not corrosion resistant.The lid of the softer is looseA spray arm is knocking against an item in a basketItems of crockery are loose in the wash cabinetThis may be caused by on-site installation or the cross-section of the piping.A programme was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds. Always run the quick wash programme .without any crockery in the dishwasher and without selecting the Turbo function (if present),after adding dishwasher salt.Check the lip .Ensure the fix is fine.Interrupt the programme, and rearrange the items which are obstructing the spray arm.Interrupt the programme,and rearrange the items of crockery.This has no influence on the dishwasher function. if in doubt, contact a suitably qualified plumber. Stained tub interior Detergent withcolourant was usedMake sure that the detergent is the one without colourant.Improper detergent Dishwasher doesn't start Make sure the dishwasher is turned on and the door isclosed securely.Check that the water supply is connected properly andthe water is turned on.Make sure to close the door properly and latch it.Make sure the power cord is properly plugged into the wall socket.Power supply is notturned onDoor of dishwasher not properly closed. water not pumped form dishwasher Kink in drain hoseFilter cloggedKitchen sink cloggedCheck drain hose.Check coarse the filter(see section titled " Cleaning The Filter ")Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers. Before Calling for Service Before Calling for Service Technical problems General problems Noise Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.Water pressure is low1919 Problem Possible Causes What To Do The dishes were not loaded correctly.See notes in " Loading the Dishwasher Baskets ". The dishes are not clean Cloudiness on glassware Black or gray marks on dishes Detergent left in dispenser cups The dishes are not drying Select a more intensive programme.See" Wash Cycle Table ".Use more detergent, or change your detergent.Rearrange the items so that the spray can rotate freely.Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray Arms".Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean. Use a mild abrasive cleaner to eliminate those marks.Re-loading the dishes properly.Load the dishwasher as suggested in the directions.Increase the amount of rinse-aid/refill the rinse-aid dispenser.Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.In short program the washing temperature is lower.This also lowers cleaning performance. Choose a program with a long washing time.Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.The programme was not powerful enough.Not enough detergent was dispensed.Items are blocking the path of spray arms.The filter combination in the base of wash cabinet is not clean or is not correctly fitted.This may cause the spray arm jets to get blocked.Combination of soft water and too much detergent.Aluminum utensils have rubbed against dishes.Dishes block detergent cups.Improper loadingToo little rinse-aidDishes are removed too soonWrong program has been selectedUse of cutlery with a low-quality coating Unsatis -factory washing result Unsatis -factory drying result Error CodesError Codes Overflow. When some malfunctions come on, the appliance will display error codes to warn you: Codes Meanings Possible Causes Longer inlet time. Faucets is not opened, or water intake is restricted,or water pressure is too low. Some element of dishwasher leaks .

Open circuit or break of distributary valve. Failure of orientation of distributary valve. E C PCB failure Fault of PCB data transmission.2020 Height : 845mm Width : 598m m Depth : 600mm(with the door closed) Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 14 place settings Technical InformationTechnical Information

WARNING! WARNING! If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. nnnn845845

60 cm ECO 50 45 dB(A) re 1 pW 220-240 V~ 50 Hz 0.4-10 bar = 0.04-1 MPa Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer Type / Description Standard place settings Energy efficiency class Annual energy consumption Energy consumption of the standard cleaning cycle Power consumption of off-mode Power consumption of left-on mode Annual water consumption Drying efficiency class Standard cleaning cycle Program duration of the standard cleaning cycle Noise level Mounting Height Width Depth (with connectors) Power consumption Rated voltage / frequency A + + + (highest efficiency) to D (lowest efficiency) Energy consumption 237 kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used. Water consumption 2800 litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used. A (highest efficiency) to G (lowest efficiency) This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware. The device meets the European standards and the directives in the current version at delivery: - LVD 2006/95/EC - EMC2004/108/EC - ErP 2009/125/EC The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc. The manual is based on the European Union's standards and rules. Technical Data SheetTechnical Data Sheet NOTE

Water pressure (flow pressure) Could be built-in Yes A+++ 237 kWh

Dessert spoons Gravy ladles Loading the baskets according to En50242: Loading the baskets according to En50242:

6Position one: lift the left basket up, both left and right baskets are sideling. Position two: adjust the left basket to lower position, left basket is flat and right basket is sideling. Position three: lift the right basket up, both left and right baskets are flat. Position Four: Move the right basket from right to left, two basket are overlapping. Position Five: Remove the right basket from the tray, only has the left basket. Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Cutlery basket could be have 5 positions:English user manual LVF27A.LVF27AX(U7209E)FAGOR_201504181 servicios Manual de instrucciones
