USER MANUAL C2Mini EZVIZ

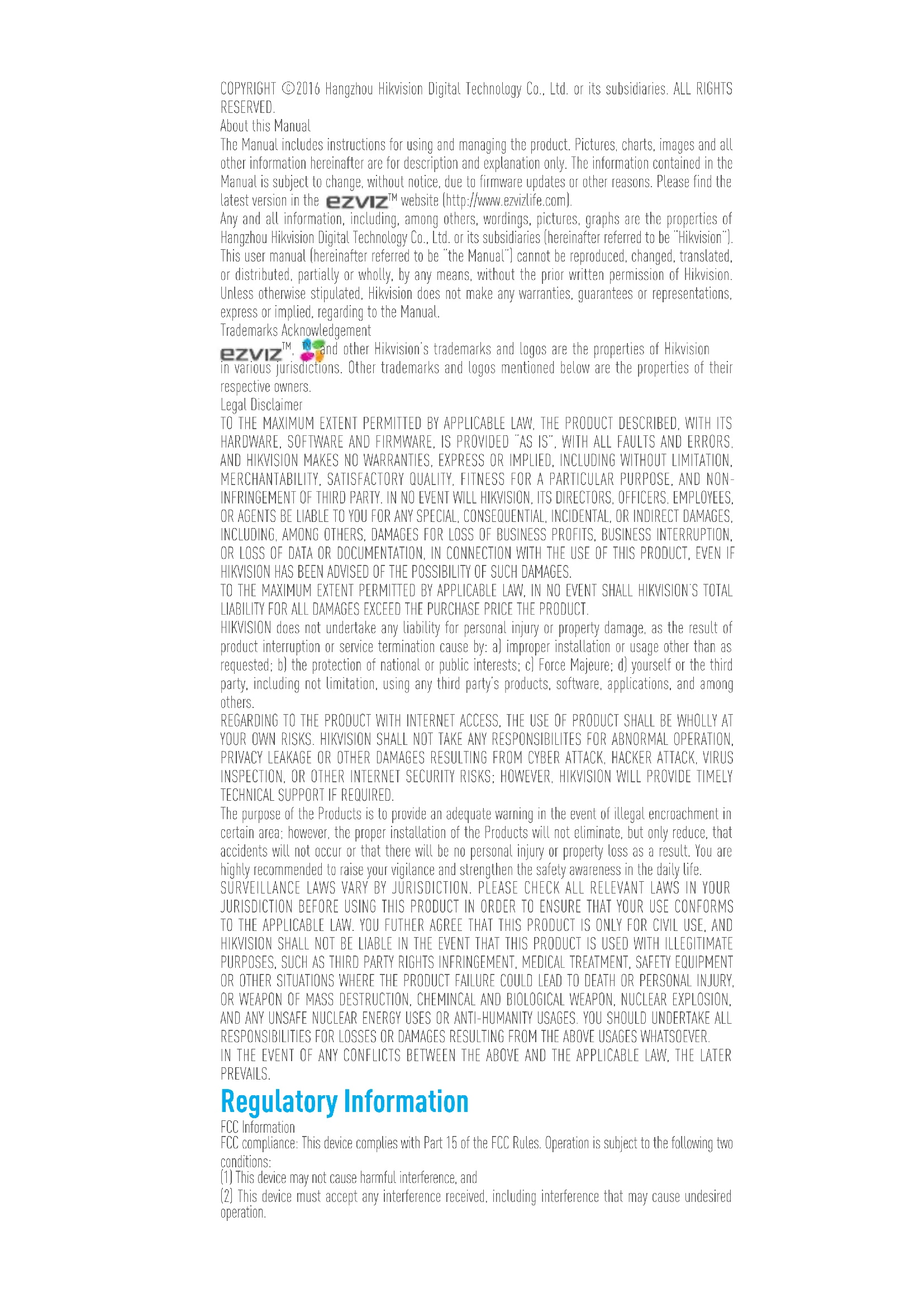

COPYRIGHT ©2016 Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries. ALL RIGHTS RESERVED.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the ezviz™ website (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

Trademarks Acknowledgement

EzyizTM. and other Hikvision's trademarks and logos are the properties of Hikvision

in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HIKVISION'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT.

HIKVISION does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

The purpose of the Products is to provide an adequate warning in the event of illegal encroachment in certain area; however, the proper installation of the Products will not eliminate, but only reduce, that accidents will not occur or that there will be no personal injury or property loss as a result. You are highly recommended to raise your vigilance and strengthen the safety awareness in the daily life.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. YOU Futher AGREE THAT THIS PRODUCT IS ONLY FOR CIVIL USE, AND HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGIMATE PURPOSES, SUCH AS THIRD PARTY RIGHTS INFRINGEMENT, MEDICAL TREATMENT, SAFETY EQUIPMENT OR OTHER SITUATIONS WHERE THE PRODUCT FAILURE COULD LEAD TO DEATH OR PERSONAL INJURY, OR WEAPON OF MASS DESTRUCTION, CHEMICAL AND BIOLOGICAL WEAPON, NUCLEAR EXPLOSION, AND ANY UNSAFE NUCLEAR ENERGY USES OR ANTI-HUMANITY USAGES. YOU SHOULD UNDERTAKE ALL RESPONSIBILITIES FOR LOSSES OR DAMAGES RESULTING FROM THE ABOVE USAGES WHATSOEVER. IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATER PREVAIRS.

Regulatory Information

FCC Information
FCC compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
[2] this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www-recyclethis.info.

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-C2mini-31WFR, CS-C2mini-UWWXYZ] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web link: http://www.ezvizlife.com/declaration-of-conformity.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Internet Camera (x1) Screw Kit Metal Plate (x1)

Foam Sticker (x1) Power Adapter (x1) Quick Start Guide X1

Functions

HD 720P Live Video

Wi-Fi Connection

115^ Horizontal Field of View

Motion Detection: Send instant alert to mobile device if motion detection is triggered.

Auto Light Supplement

EZVIZ Cloud

Certain functions of this product (including but not limited to live view, recording, and remote playback) depend upon the Internet connection. To learn more about these functions, visit the EZVIZ website ezvizlife.com and register for a new account.

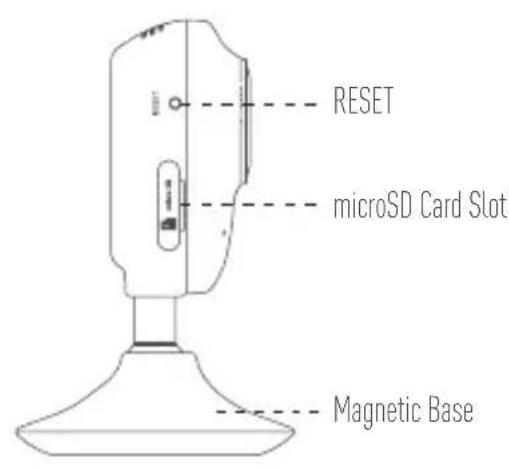

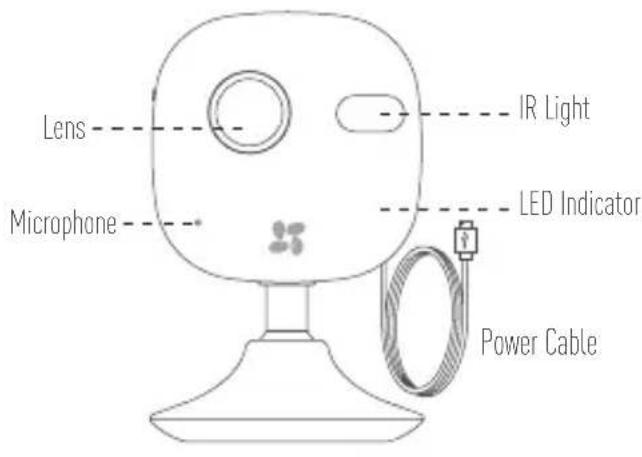

Overview

Name Description

IR Light	Auto light source for dark environment. The camera video has two modes: color (for daylight recording) and black and white with IR illuminator (for night condition).
LED Indicator	Red and Blue Alternately: The camera is ready for Wi-Fi setup.Steady Blue: The camera is connected by a user.Slow Blue Flicker: The camera is running properly.Steady Red: The camera is starting.Slow Red Flicker: The Wi-Fi connection has failed.Fast Red Flicker: MicroSD card error.
Power Input	-5V±10%
microSD Card Slot	Recommended compatibility: Class 10, maximum space 128GB. If a SD card is used, video files will be stored in the SD card. You would need to initialize it in the EZVIZ app.
RESET	Hold down the RESET button for 10 seconds while the camera is running, the camera restarts and all parameters are reset to default.

To connect to a different Wi-Fi network, press the RESET button for 10 seconds to restart the camera then reconnect to Wi-Fi when the red and blue light flashes.

Step 1 (Optional)

Installing the microSD Card

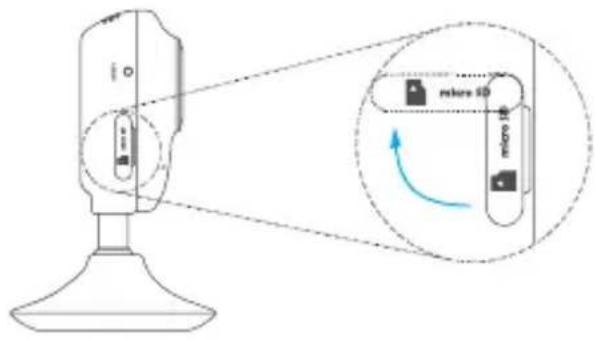

To open the MicroSD card slot cover, flip it clockwise.

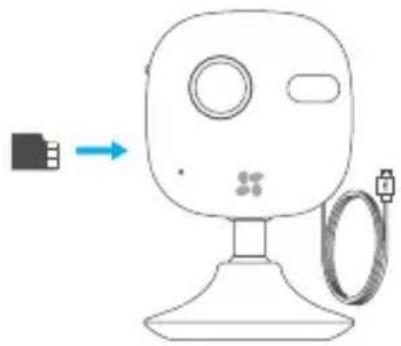

2 Insert a microSD card into the slot.

Step 2

Starting the Camera

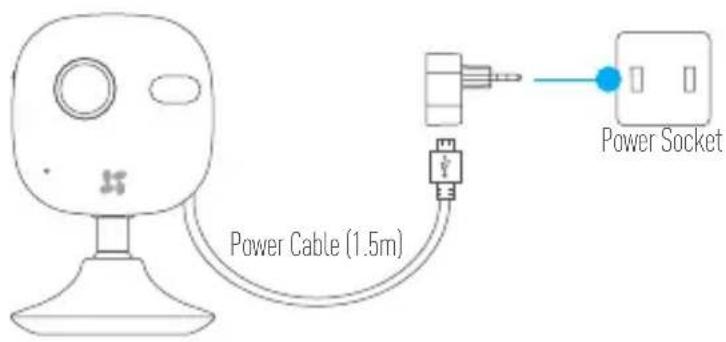

Connect the camera to the power adapter. When the red and blue light flashes, that means the camera is powered on.

Step 3 EZVIZ Cloud Setup

1 To Register an EZVIZ Account

• Connect your mobile device to Wi-Fi.
• Download and install the EZVIZ app by searching the "EZVIZ" in App Store or Google Play.

OR

• Launch the app and register for an EZVIZ user account.

To Add a Camera

• Log into the EZVIZ app.
• Click the "+" on the upper-right hand corner to add a camera.

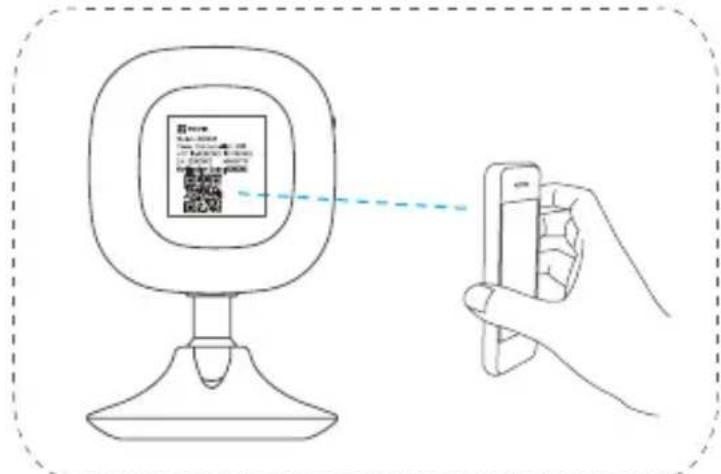

• Scan the QR Code on the back of the camera or on the Quick Start Guide cover.

• Follow the prompts to set up the Wi-Fi. (Locate the camera within 3 meters from the router when setting up the Wi-Fi.)
• Configure the time settings and complete the process.

3 To Change the Default Password

After adding the camera, you are required to change the device password to ensure your video security.

• Locate the verification code as your default password on the label at the back of the camera.

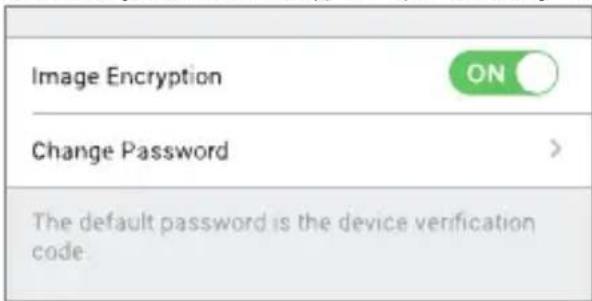

• Go in the Device Settings interface in the app and tap on the Change Password.

• Enter the verification code as the old password, and type a new password.

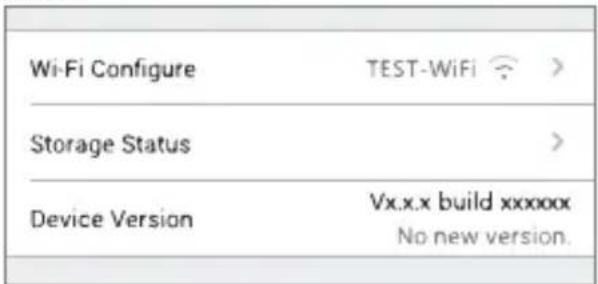

To Initialize the microSD Card

• Check the microSD card status by tapping on the Storage Status in the Device Settings interface.

• If the microSD card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.

Installation

1 Installing the Metal Plate (Optional) Pick a clean and flat surface and secure the metal plate to the desired position with the foam stickers or screws (not included.)

There's a magnet piece inside the camera. You can skip this step if the surface is made of metal.

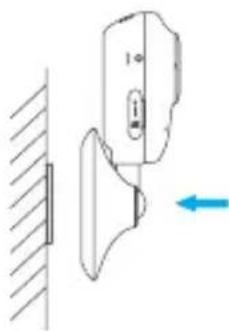

2 Installing the Camera Secure the camera magnetically to the metal plate or metal surface (see figure below).

3 Completing Installation Adjust the camera angle as required.

Troubleshooting

Q: "The device is offline." or "The device is not registered." prompts appear when adding the camera using the EZVIZ App.

A: 1. Make sure the network, which the camera is connected to, is working properly and the router's DHCP is enabled.

1. Hold down the RESET button for 10 seconds to reset the settings if you change the network parameters.

Q: The mobile phone cannot receive alarm prompts when the camera is online.

A: 1. Make sure the EZVIZ app is running on your mobile phone.

1. For Android OS mobile phone, make sure the app is running in the background; and for iOS mobile phones, enable the message push function in "Settings > Notification".

Q: Does the camera support power via USB devices or a portable battery.

A: It's advised to use the EZVIZ standard power adapter to provide a stable voltage supply.

For more information, please visit www.ezvizlife.com.

Inhalt

DE

1 yctahOBka KpenexKHO nlaactnHbI (Onuia

3aKpEnIte KpeNexHyIO pIactuHy Ha rIaIKoN NOBepXHOCTn CTehbIC nOmoUbo KpeNexHoi JeHTbI uIN camope3OB.

Ecnncnbo3yetcMetaannuecka Nobepxhoctb,3TO neCTBne MoXHO npOnyctntb,T.K.BHyTpncamOu KaMepbl MMeTcMaHHT dJa KpenlneHna.

2 MoHTaX KaMEpbI

YcTaHOBuTe KaMepy Ha KpenexKHyI pNactHy IINI npocTo MeTaNlHuEcKyIO NOBepxHocTb. KaMepa 6ydt dEpxaTbcra, 6laorappaCnNoJKeHHOMy BHyTpMaHHTy, KaN oKa3aHO Ha pucyHKe cnpaba.

3 3aBepseHne yCTaHOBKn BbIcTaBBte yron o630pa.

YcTpaHHeHne HeKoToPbIX HeNCnPaBHOCTeI

Q: Пи добavenи kamepbI B EZVIZ noBnaetcHnncb «YctpoCTBO He B cETN» nii «YctpoCTBO He 3apernctpnpoBaHO>.

A: 1.y6eunTecb, yTo KaMepa n(nn) MapuPyTu3aTOp npabuJbHo noqKluoyehbl.

1. Haxmte KhoNky «RESET» u ydepXuBaIte 6oJee 10c dJa c6pOca hAcTpoek m ceTeBbIX npaMeTpOB.

Q: Mo6nIbHbI TenefoH He IonyuAeT TpeBxHbIX Coo6uEHH npu TOM, yTo KaMepa B cETN.

A: 1. Y6eHntecb, yTO EZVIZ ycTaHOBneH pa6oTaET Ha BaWem TeenefoHe.

2.ДЯ OC Android - y6eNTecb,чTO npINIOXeHne pa6OtaET B FOHOBOM pexnme.ДЯ iOS - y6eNTecb,чTOВ «HacTpoKax» BKJIouHeHa ΦyHKunI NOJUeyHncoo6uhen.

Q: CyuectByet Nn BO3MOxHocTb NHTaHn KaMepb Ypee3 USB-nopt nnn ot aBTOHOMHOro aKKyMynTopa?

A:ДяобсесеняHopMaIbHOrO nITaHnKaMepbl peKOMeHdyetc NcNoIb30BaTb ⅢTaTHbI aanTep ot EZVIZ.

Paki Sisu

Pilve Kaamera (x1) Kruvide komplekt Metall plaat (x1)

Kahepoolne teip [x1] Toite Adapter [x1] Kiirkäivitus Juhend [x1]

ET

Funktsoon

HD 720P Live Video

Wi-Fi Ühendus

115° Horisontaaalne Vaatenurk

FCC ID:XXXXXXIC:XXXXXX

SN XXXXXXXX MM/YYYY

Verification Code: ABCDEF

-Ejiet uz Ierices lestatijumu izvelni lietojumprogramma un noklikskiniet uz "Nomainit Paroli".

LV

FCC ID:XXXXXXIC:XXXXXX

SN XXXXXXXX MM/YYYY

Verification Code: ABCDEF

Thank you for purchasing EZVIZ products. This limited warranty gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this limited warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any medication, extension, or addition to this limited warranty.

Your EZVIZ product is warranted for a period of one (1) year from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual. You can request warranty service by emailing us at [e-mail].

For any defective EZVIZ products under warranty, HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ("the Company") will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; (iii) or refund the original purchase price, provided you provide the original purchase receipt or copy, brief explanation of the defect, and return the product in its original packaging. At the sole discretion of the Company, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the postal cost, insurance and any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this limited warranty. Any product that has either been repaired or replaced under this limited warranty will be covered by the terms of this limited warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

• If the warranty claim is made outside the warranty period or if the proof of purchase is not provided.
• For any malfunction, defect or failure caused by or resulting from the evidence of impact, mishandling, tampering, use contrary to the applicable instruction manual, incorrect power line voltage, accident, loss, theft, fire, flood or other Acts of God, shipping damage or damage resulting from repairs performed by unauthorized personnel.
• For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product.
  Cosmetic damage, including but not limited to scratches, dents and broken plastic on ports
  Any software, even if packaged or sold with EZVIZ hardware.
  For any other damages free from defects in material or workmanship
  Routine cleaning, normal cosmetic and mechanical wear and tear.

Please do not hesitate to contact your seller, or send e-mails to us [e-mail], with any questions.

COPYRIGHT ©2016 HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.
