USER MANUAL OMW 2211 W OK

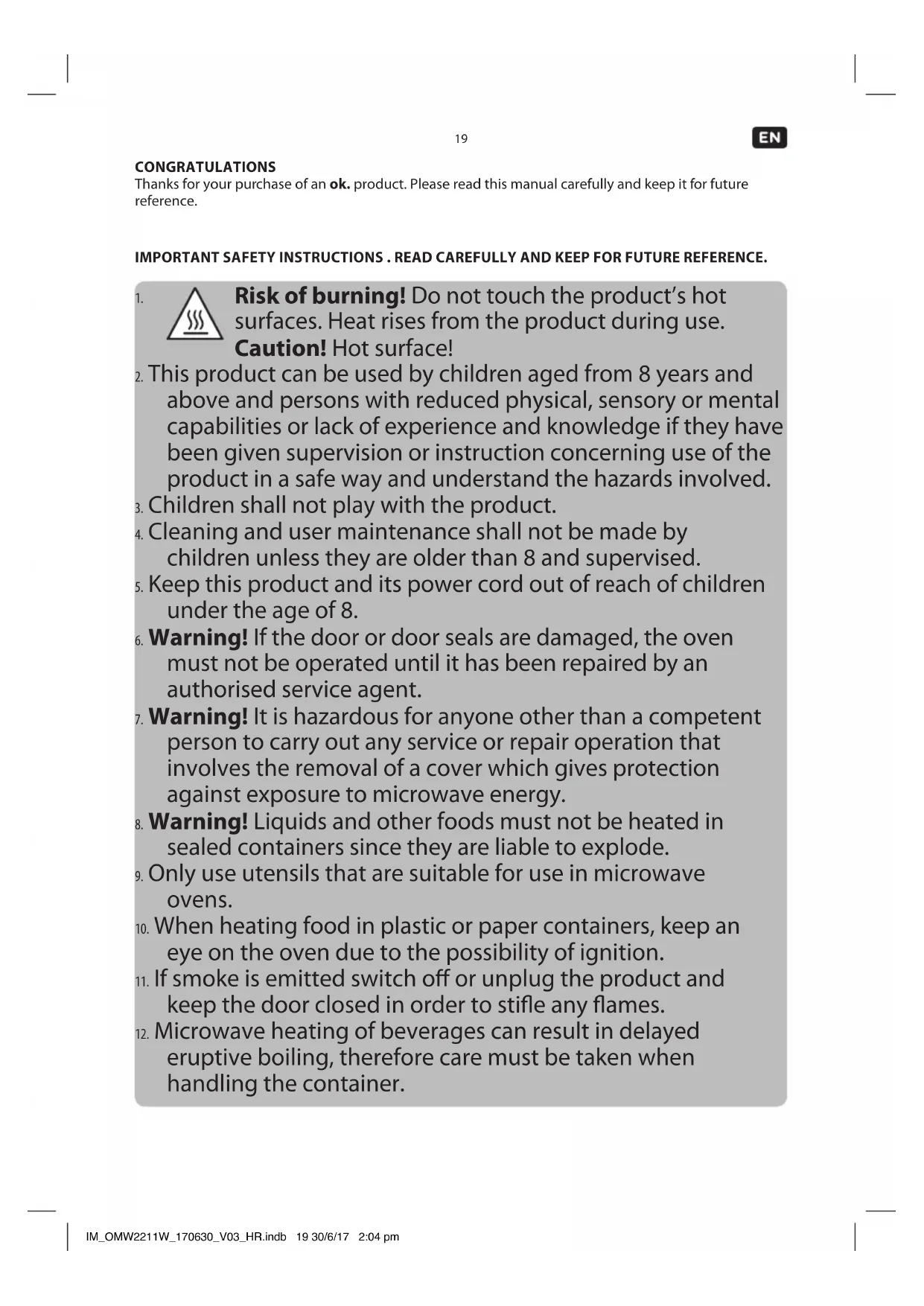

Risk of burning! Do not touch the product’s hot surfaces. Heat rises from the product during use. Caution! Hot surface!

2. This product can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

3. Children shall not play with the product.

4. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

5. Keep this product and its power cord out of reach of children

6. Warning! If the door or door seals are damaged, the oven

must not be operated until it has been repaired by an authorised service agent.

7. Warning! It is hazardous for anyone other than a competent

person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

8. Warning! Liquids and other foods must not be heated in

sealed containers since they are liable to explode.

9. Only use utensils that are suitable for use in microwave

10. When heating food in plastic or paper containers, keep an

eye on the oven due to the possibility of ignition.

11. If smoke is emitted switch o or unplug the product and

keep the door closed in order to stie any ames.

12. Microwave heating of beverages can result in delayed

eruptive boiling, therefore care must be taken when handling the container. IM_OMW2211W_170630_V03_HR.indb 19 30/6/17 2:04 pm20

13. The contents of feeding bottles and baby food jars shall

be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

14. Eggs in their shell and whole hard-boiled eggs should not

be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. The oven should be cleaned regularly and any food deposits

16. Failure to maintain the oven in a clean condition could lead

to deterioration of the surface that could adversely aect the life of the appliance and possibly result in a hazardous situation.

17. The microwave oven is only allowed to be used as a free-

standing device. The device is not suitable for mounting in furniture such as cupboards and is therefore not allowed to be used in built-in furniture.

18. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

19. The microwave oven is intended for warming food and

drinks. The drying of food or clothes and the warming of electric pads, slippers, sponges, damp cleaning cloths and similar can lead to injuries, inammation or re.

20. The product is designed for the preparation of normal

household quantities in the home, or in household-like, non- commercial environments. Household-like environments include sta kitchens in shops, oces, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

21. Warning! This product is not intended to be operated by

means of an external timer or separate remote-control system.

22. Warning! Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.. IM_OMW2211W_170630_V03_HR.indb 20 30/6/17 2:04 pm21

23. Leave space for sucient airow: 20 mm above the oven.

24. Clean the product and all other accessories after each use.

25. Follow the instructions in the chapter Cleaning and care.

26. Read this manual before rst use thoroughly. It contains important information for your safety as

well as for the use and maintenance of the equipment.

27. Keep this manual for future reference and pass it on with the product.

28. Pay particular attention to the warnings on the product and in this manual.

29. Use the product only for its intended purpose. Improper use may lead to hazards.

30. In the event of improper use or wrong operation, we do not accept any liability for resulting

31. The use of accessories and components not expressly recommended by the manufacturer may

result in injuries or damages and voids the warranty.

32. Never leave the product unsupervised while it is switched on.

33. Do not place heavy objects on top of the product.

34. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the

product under running water.

35. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs,

please consult an authorised service agent.

36. The mains voltage must match the information on the rating label of the product.

37. The power plug is used as the disconnect device. Please be sure that the power plug is in operable

38. Only unplug from the power socket can separate the product completely from the mains.

39. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

40. Keep this product including power cord and power plug away from all heat sources like for

example, ovens, hot plates and other heat-producing products/objects.

41. Only unplug from the power socket by the plug itself. Do not pull on the cord.

42. Unplug the product ...

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

43. If the power cord or the casing of the product is damaged or if the product is dropped, the product

may not be used before it is examined by an authorised service agent.

44. A damaged power cord may only be replaced by the authorised service agent in order to avoid

45. Caution! In order to prevent hazards from unintentional resetting of the protective temperature

limiter, this product must not be powered by an external switching device such as a timer, or connected to a circuit which is regularly switched on and o by a device.

46. Use this product in dry indoor areas only and never outdoors.

47. Place the product on a at, sturdy and slip-resistant surface.

48. Protect this product from extreme heat and cold as well as from direct sunlight and dust.

49. In order to reduce the risk of re and electric shock, do not expose the product to re (replace, grill,

candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs, ponds and so on).

50. Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside

a swimming pool or bathtub.

51. This product is not intended for commercial use.

INTENDED USE This product is intended for defrosting, reheating and cooking food. Any other use may result in damage to the product or injuries. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specied purpose. IM_OMW2211W_170630_V03_HR.indb 21 30/6/17 2:04 pm22 COMPONENTS The product may be available in dierent colors. A. Oven cavity B. Door Sealing C. Door window D. Door E. Safety Interlock system F. Handle G. Feet H. Turntable roller

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care. INSTALLATION

Place the microwave on a at, stable surface.

Leave space for sucient airow. 20 cm above the oven, 10 cm at the back, 5 cm at both side.

Do not cover or block any vents on the unit. Do not remove feet.

Before use, plug in the unit. Unplug when not using it for a long time. NOTE

• Make sure that all packaging materials including tape are removed from the door, cavity, switches and accessories.

• Do not place the oven in places that generate heat, moisture or high humidity, or near combustible materials.

• Do not operate the oven without turntable roller on the shaft and glass tray in proper positions.

• Make sure that the power cord is undamaged and does not run under the oven or over any hot or sharp surface.

• The mains plug must be readily accessible so that it can be easily disconnected in an emergency. Grounding instructions

• The supply cord of the oven is equipped with a plug with earth connection, which must be plugged into a properly installed and grounded wall outlet.

• It is recommended that a separate circuit serving only the oven is provided and used.

• High voltage is dangerous and may result in re or other accidents, causing property damage or injuries.

• Warning! Improper use of the grounding plug can result in a risk of electric shock. IM_OMW2211W_170630_V03_HR.indb 22 30/6/17 2:04 pm23 MICROWAVE COOKING

Use TIME selector switch to set cooking duration. Mode Power level Grill 100% COMBINATION COOKING Note: The metal rack cannot be used for combination cooking.

Use TIME selector switch to set cooking duration. Mode Power level Suitable for Combi 1 30 % Microwave / 70 % Grill Fish, potatoes au gratin Combi 2 49 % Microwave / 51 % Grill Omelette, baked potatoes Combi 3 67 % Microwave / 33 % Grill Poultry IM_OMW2211W_170630_V03_HR.indb 23 30/6/17 2:04 pm24 NOTE A short supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. If an extension cord is used:

• The electrical rating should be at least as great as the electrical rating of the product.

• The extension cord must be a grounding-type 3-wire cord.

• The cord should be arranged so that it will not drape over counter tops or table tops, where it can be pulled on by children or tripped over unintentionally.

COOKING UTENSILS GUIDE

Cooking utensils Microwave Grill Combination Heat–resistant glass Yes Yes Yes Non heat–resistant glass No No No Heat–resistant ceramics Yes Yes Yes Microwave–safe plastic dish Yes No No Kitchen paper Yes No No Metal tray No Yes No Metal rack No Yes No Aluminum foil & foil containers No Yes No TROUBLESHOOTING If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer. Problem Possible causes Solution Product does not work • Interrupted power supply

• Door is not correctly closed

• Check the power supply

• Close the door correctly Some noise is coming from the glass tray

• Glass tray is not correctly placed on the turntable roller

• Bottom of the cooking chamber is soiled

• Place in the glass tray correctly

• Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).

• Clean the cavity, the door seals and adjacent parts regularly with a damp cloth. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth.

• Wipe the cavity dry afterwards using a soft cloth.

• The glass tray can be removed for cleaning. Clean the tray in warm, soapy water or in the dishwasher.

• The turntable roller and the cavity bottom should be cleaned regularly to prevent excessive noise. Simply use a mild detergent to wipe the surface and allow it to dry. If the turntable roller is removed for cleaning, make sure to re-insert it properly before next use. Note: Odours in the cavity can be neutralized by lling a microwave-suitable cup with water and lemon juice and boiling it in the microwave oven for 5 minutes. SPECIFICATION Rated voltage : 230-240 V~, 50 Hz Rated power input : 1200 W (Micro) 900 W (Grill) Rated power output : 700 W Operation frequency : 2450 MHz Outside dimensions : 262 x 452 x 356 mm Turntable Diameter : Ø 245 mm Oven capacity : 17 L Net weight : Approx. 11.3 kg DISPOSAL Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. IM_OMW2211W_170630_V03_HR.indb 25 30/6/17 2:04 pm26
