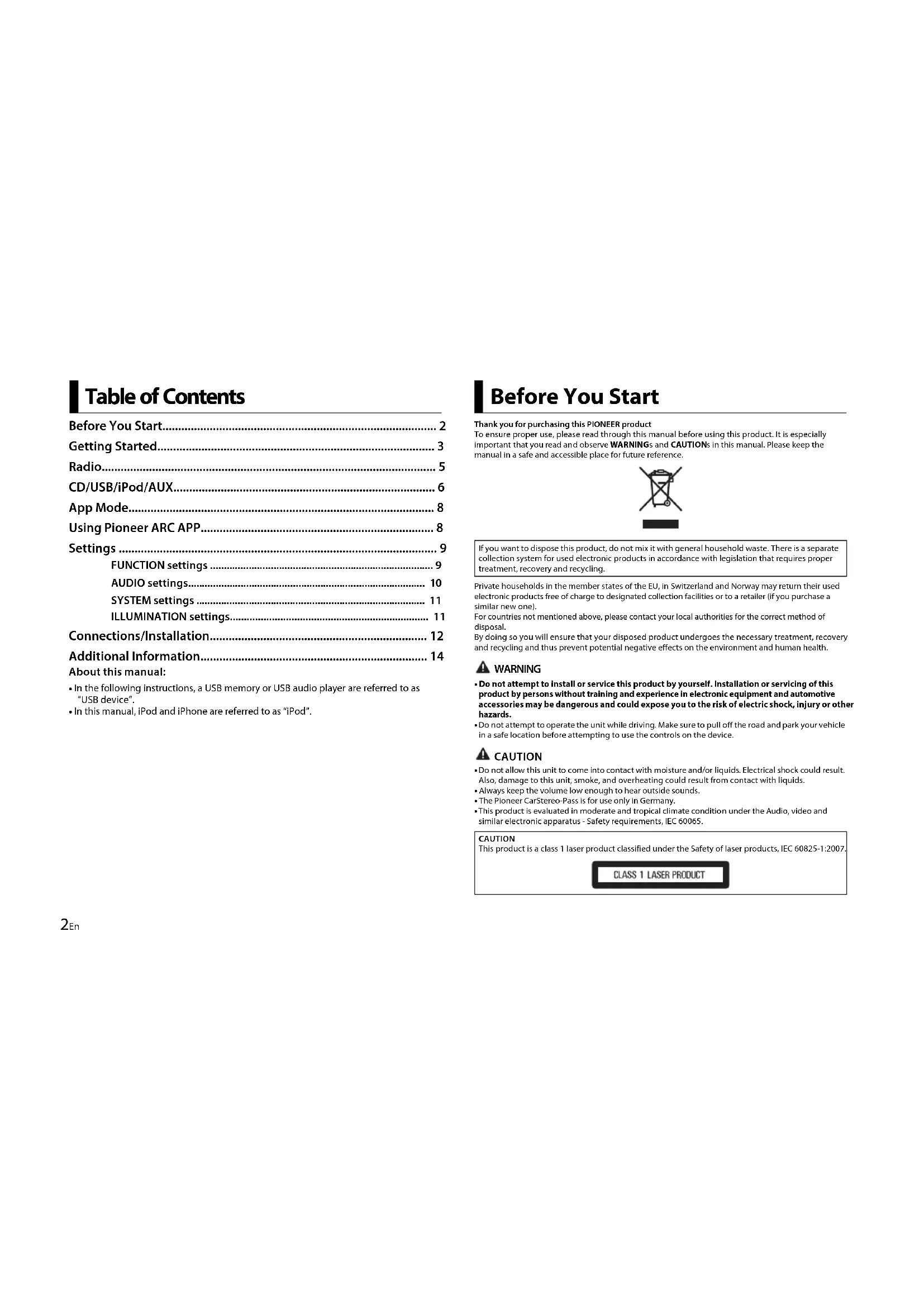

USER MANUAL DEH4800FD PIONEER

• In the following instructions, a USB memory or USB audio player are referred to as “USB device”.

• In this manual, iPod and iPhone are referred to as “iPod”. Table of Contents Thank you for purchasing this PIONEER productTo ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the manual in a safe and accessible place for future reference.Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).For countries not mentioned above, please contact your local authorities for the correct method of disposal.By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. WARNING

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device. CAUTION

• Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.• Always keep the volume low enough to hear outside sounds.• The Pioneer CarStereo-Pass is for use only in Germany.
• This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065. Before You Start If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.CAUTIONThis product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.3En English If you experience problems Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station. DEH-4800FD MVH-280FD Getting Started Basic operation SRC (source)/OFFDetach buttonDisplay windowM.C. (multi-control) dialBAND/DISP (display) SRC (source)/OFFDetach buttonDisplay windowM.C. (multi-control) dialBAND/DISP (display) Optional remote control (Only for DEH-4800FD)The remote control CD-R320 is sold separately. Remote Control NOTE Remote control is supplied only for MVH-280FD. Frequently used operations The available buttons vary depending on the unit.* When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off.PurposeOperationHead Unit Remote ControlTurn on the power* Press SRC/OFF to turn on the power.Press and hold SRC/OFF to turn off the power.Press SRC to turn on the power.Press and hold SRC to turn off the power.Adjust the volume Turn the M. C. dial. Press VOLUME + or –. Press MUTE to mute the unit. Press again to unmute.Select a source Press SR C/OFF repeatedly. Press SRC repeatedly. Change the display info rmation Press DISP repeatedly. Press DISP repeatedly. Return to the previous isplay/list Press BAND/ . Press / to select the next/previous folder.Return to the normal display om the menuPress and hold BAND/ .

SRC (source)VOLUME +/– MUTE DISP (display)FUNCTIONAUDIO4En Display indication Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. Important

• Avoid subjecting the front panel to excessive shock.• Keep the front panel out of direct sunlight and high temperatures.• Always store the detached front panel in a protective case or bag. Remove the insulation sheet before use. Indication Description Appears when a lower tier of the menu or folder exists.Appears when the button is pressed. Appears when the local seek tuning function is set (page 9). Appears when a traffic program is received. Appears when the TA (traffic announcements) function is set (page 9). Appears when the sound retriever function is set (page 10). Appears when random/shuffle play is set.Appears when repeat play is set. Appears when the iPod control function is set (page 8). Detaching the front panel Preparing the remote control Detach Attach WARNING

• Do not ingest the battery, Chemical Burn Hazard.
• This product, including the supplied remote control, contains a coin/button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just two hours and can lead to death.
• Keep new or used batteries out of the reach of children. If the battery is swallowed or placed inside any part of the body, consult a doctor immediately.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• Do not expose the battery or remote control to excessive heat such as direct sunlight or fire. CAUTION

• There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the battery, replace it with the same type.• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institutions’ rules that apply in your country/area. Important

• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal. When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display. 1 Press the M.C. dial. The setup menu disappears after 30 seconds of no operation. If you prefer not to set

t this time, turn the M.C. dial to select [NO], then press to confirm. Setup menu How to replace the battery Insert the CR2025 (3 V) battery with the plus (+) and minus (–) poles orientated properly.5En English 2 Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, yo u need to confirm your selection. 3 [QUIT :YES] appears when all the settings have been made. To return to the first item of the setup menu, turn the M. C. dial to select [QUIT :NO], then press to confirm. 4 Press the M.C. dial to confirm the settings. NOTES

• You can cancel the menu setting by pressing SRC/OFF.

• These settings can be made at any time from the SYSTEM settings (page 11) and INITIAL settings (page 5). 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm. 1 Press and hold SRC/OFF until the unit turns off. 2 Press and hold SRC/OFF to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm. Menu Item Description LANGUAGE Select the language to display the text information from a

mpressed audio file. [ENG](English),

](Russian), [TUR](Turkish) CLOCK SET Set the clock. FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50] Canceling the demonstration display (DEMO OFF) INITIAL settings The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations. 1 Press SRC/OFF to select [RADIO]. 2 Press BAND/ to select the band from [FM1], [FM2], [FM3], [MW] or [LW]. 3 Press a number button (1/ to 6/ ). TIP The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 10). Menu Item Description FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50] SP-P/O MODE Select when there is a full-range speaker connected to the rear speake r output leads and there is a subwoofer connected to the RCA output.

[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to

he rear speaker output leads and there is a subwoofer connected to the RCA output. [REAR/REAR] Select when there are full-range speakers connected to the rear speake r output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR]. AUTO AMP OFF Select [OFF] when the tweeter is directly connected to any channe l, otherwise select [ON] to automatically stop amplifier output. [ON], [OFF] SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be restarted automatically. (Some of the settings may be retained even after resetting the unit

[YES], [CANCEL] Radio Receiving preset stations6En The six strongest stations are stored on the number buttons (1/ to 6/ ). 1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually 1 After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press / . NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 10). To store stations manually 1 While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. The unit searches for a station by PTY (program type) information. 1 Press during FM reception. 2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS]. 3 Press the M.C. dial. The unit begins to search for a station. When it is found, its program service name is displa yed. NOTES

• To cancel the search, press the M.C. dial.
• The program of some stations may differ from that indicated by the transmitted PTY.
• If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station. PTY list For more details about PTY list, visit the following site:http://www.pioneer.eu/eur/products/25/121/tech/CarAudio/PTY.html Best stations memory (BSM) Using PTY functions NOTE CD function is not available for MVH-280FD.Disconnect headphones from the device before connecting it to the unit.* Not equipped for MVH-280FD

1 Insert a disc into the disc loading slot with the label side up. To eject a disc, stop playback first then press . USB devices (including Android™)/iPod 1 Open the USB port cover. 2 Plug in the USB device/iPod using an appropriate cable. NOTE To automatically switch to [USB] source when a USB device/iPod is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 11). CAUTION Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.Before removing the device, stop playback. CD/USB/iPod/AUX Playing back AUX input jack (3.5 mm stereo jack) (eject)*Disc loading slot*USB portSRC (source)/OFFM.C. (multi-control) dial7En English AOA connections For details on AOA connection, see page 8. MTP connection A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV and FLAC file formats. NOTE If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings (page 11). AUX 1 Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 11). You can make various adjustments in the FUNCTION settings (page 9). Note that the following operations do not work for an AUX device. To operate an AUX

evice, use the device itself. Operations Purpose Operation Select a folder/album*1 Press 1/ or 2/ . Select a track/song (chapter) Press or . Fast forward or reverse*2 Press and hold or . Search for a file from a list 1 Press to display the list. 2 Tu rn the M.C. dial to select the desired file (folder) name or category, then press to confirm. 3 Tu rn the M.C. dial to select the desired file, then press to confirm. Playback starts. View a list of the files in the selected folder/ category*1 Press the M.C. dial when a folder/category is selected. Play a song in the selected folder/ cat egory*1 Press and hold the M.C. dial when a folder/ category is selected. *1 Compressed audio files only*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct. Link play mode You can access songs based on the artist, album, or genre currently playing. 1 While listening to a song, press and hold to enter the link play mode. 2 Turn the M.C. dial to select the mode ([ARTIST], [ALBUM], [GENRE]), then press to confirm. The selected song/album will be played after the currently playing song. NOTE The selected song/album may be canceled if you use functions other than those from the link play mode (e.g. fast forward and reverse). Alphabetical search (iPod only) 1 Press to display the list. 2 Tu rn the M.C. dial to select the desired category list, then press to enter the alphabetical search mode. (Turning the M. C. dial twice also enters the alphabetical search mode.) 3 Tu rn the M.C. dial to select a letter, then press to display the alphabetical list. To cancel alphabetical search, press BAN

Repeat play Press 6/ . Random/shuffle play Press 5/ . Shuffle all play (iPod only) Press and hold 5/ . Pause/resume playback Press 4/PA USE. Sound retriever*1 Press 3/S. Rtrv. [1]: Effective for low compression rates [2]: Effective for high compression rates Return to root folder (CD/USB only)*1 Press and hold . Switch between compressed audio and CD- DA ( CD only) Press BAND/ . Change drives in USB device (Devices that support the USB mass storage

vice class protocol only) Press BA ND/ . Useful functions for iPod Purpose Operation8En iPod control You can control the unit via a connected iPod.The following iPod models are not compatible with this function.–iPod nano 1st generation, iPod with video 1 Press BAND/ during playback, then select the control mode. [CONTROL iPod]: The unit’s iPod function can be operated from the connected iPod.[CONTROL AUDIO]: The unit’s iPod function can only be operated by the buttons on the unit or supplied remote control. In this mode, the connected iPod cannot be turned on or off. NOTES

• Switching the control mode to [CONTROL iPod] pauses song playback. Use the connected iPod to resume playback.
• The following operations are still accessible from the unit, even if the control mode is set to [CONTROL iPod].– Pause, fast forward/reverse, song/chapter selection• The volume can only be adjusted from the unit.You can enjoy listening to an application on an iPhone via the unit. In some cases, you can control an application by using the unit.For details on compatible devices, visit our website. Important Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data.ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP. For iPhone users This function is compatible with iPhones and iPod touches installed with iOS 5.0 or later. NOTE PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER. App Mode 1 Connect this unit with the mobile device.
• iPhone via USB (page 6) 2 Press SRC/OFF to select [APP]. 3 Operate the mobile device to start up the application. Basic operations You can make various adjustments in the FUNCTION settings (page 9). You can operate the unit from Pioneer ARC APP installed on an iPhone/Android device. n some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.For details on what operations are available on the application, see the application’s help sec tion. WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.For iPhone users This function is compatible with iPhones (iPhone 5 or later) and iPod touches installed wit h iOS 8.0 or later.You can download Pioneer ARC APP on iTunes App Store.For Android device usersThis function is compatible with devices that have Android OS 4.1 or later installed and also support AOA (Android Open Accessory) 2.0.You can download Pioneer ARC APP on Google Play™. NOTE Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version. Playback of an application via the unit Purpose OperationSelect a track Press or . Fast forward or reverse Press and hold or . Pause/resume playback Press BAND/ . Using Pioneer ARC APP9En English 1 Connect this unit with the mobile device.

• i Phone/Android device via USB (page 6) Proceed to step 6 if you select the USB connection for iPhone. 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [SYSTEM], then press to confirm. 4 Turn the M.C. dial to select [ANDROID WIRED], then press to confirm. 5 Turn the M.C. dial to select [APP CONTROL] for an Android device connected via USB. If [ON] is selected in [P.APP AUTO ON] (page 11), Pioneer ARC APP on the Android device starts automatically, and all the steps are finished. NOTE If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 11). 6 Press SRC/OFF to select any source. 7 Launch Pioneer ARC APP on the mobile device. NOTE You can also launch the application by pressing and holding the M.C. dial for iPhone. 1 Press SRC/OFF to select [ANDROID]. Basic operations Making a connection with Pioneer ARC APP Listening to music on Android Purpose OperationSelect a track Press or . Fast forward or reverse Press and hold or . Pause/resume playback Press 4/PA USE. Sound retriever Press 3/S. Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates You can adjust various settings in the main menu. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• ILLUMINATION settings (page 11) 3 Turn the M.C. dial to select the options, then press to confirm. The menu items vary according to the source. Settings FUNCTION settings Menu Item DescriptionFM SETTING [TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast ignal conditions of the FM band signal. (Available only when FM band is selected.) BSM Store the six strongest stations on the number but tons (1/ to 6/ ) automatically. REGIONAL [ON], [OFF] Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.)LOCAL FM: [OFF], [LV1], [LV2], [LV3], [LV4]MW/LW: [OFF], [LV1], [LV2]Restrict the tuning station according to the gnal strength. [ON], [OFF] Receive current traffic information if available. Available only when FM band is selected.)10En

[ON], [OFF] Allow the unit to retune to a different frequency pro viding the same station. (Available only when FM band is selected.) NEWS [ON], [OFF] Interrupt the currently selected source with news programs. (Available only when FM band is selected.) SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station

rom the preset channels. S.RTRV [1] (effective for low compression rates), [2] (effective for high

mpression rates), [OFF] Enhance compressed audio and restore rich

und. Not available when:

• C D-DA/CD-TEXT is played back.

• The F LAC file is played back. AUDIO BOOK [FASTER], [NORMAL], [SLOWER] Change the playback speed. (Not available when

ONTROL iPod] is selected in the control mode.) PAUSE Pause or resume playback. AUDIO settings Menu Item Description FADER*1 Adjust the front and rear speaker balance. BALANCE Adjust the left and right speaker balance. Menu Item Description USB iPod iPod *1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 5). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 5). *3 Not available when [OFF] is selected in [SUB.W]. EQ SETTING [SUPER BASS], [POWERFUL], [NA TURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT] Select an equalizer band and level for further customizing. Equalizer band: [80H Z], [250HZ],

[800HZ], [2.5KHZ], [8KHZ]

Equalizer level: [+ 6] to [–6] Select or customize the equalizer curve. [CUSTOM1] can be set separately for each source.

owever, each of the below combinations are set to the same setting automatically.

• US B, iPod, ANDROID, and APP (iPhone) [CUSTOM2] is a shared setting used for all

urces. You can also switch the equalizer by pressing repeatedly. LOUDNESS [OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume. SUB.W*2 [NOR], [REV], [OFF] Select the subwoofer phase.

Cut-off frequency: [50 HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Output level: [–24] t o [+6] Slope level: [–12 ], [–24] Only frequencies lower than those in the selected range are output from the subwoofer. BASS BOOST [0] to [+6] Select the bass boost level. HPF SETTING Cut-off frequency: [ OFF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Slope level: [–12 ], [–24] Only frequencies higher than the high-pass filter

HPF) cutoff are output from the speakers. SLA [+4] to [–4] Adjust the volume level for each source except

Each of the below combinations are set to the

ame setting automatically.

• USB, iPod, ANDROID, and APP (iPhone) Menu Item Description11En English You can also access to these menus when the unit is turned off. SYSTEM settings Menu Item Description LANGUAGE [ENG](English), [РУС](Russian), [TUR](Turkish) Select the language to display the text information from a compressed audio file. CLOCK SET Set the clock (page 5). 12H/24H [12H], [24H] Select the time notation. AUTO PI [ON], [OFF] Search for a different station with the same pro gramming, even if using a preset station. AUX [ON], [OFF] Set to [ON] when using an auxiliary device

ignal from equipment with a mute function is received. PW SAVE* [ON], [OFF] Reduce the battery power consumption. Turning on the source is the only operation

lowed when this function is on. ANDROID WIRED [MEMORY], [APP CONTROL] Select the appropriate connection method for an

ndroid device. P.A P P A U TO O N [ON], [OFF] Select [ON] to automatically launch the car remote application when an Android device is connected to the unit via AOA. (Not available when [MEMORY] is selected in [ANDROID WIRED].)

• [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle’s ignition does not have an ACC (accessory) position. USB AUTO [ON], [OFF] Select [ON] to automatically switch to [USB]

urce when a USB device/iPod is connected to the unit. Select [OFF] when a USB device/iPod is being

nnected to the unit just for charging. ILLUMINATION settings Menu Item Description DIM SETTING [SYNC CLOCK], [MANUAL] Change the display brightness. BRIGHTNESS [1] to [10] Change the display brightness. The available setting ranges differ depending on

• When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.• Use of this unit in conditions other than the following could result in fire or malfunction.–Vehicles with a 12-volt battery and neg ative grounding.–Speakers over 100 W (maximum input wer) and 4 Ω to 8 Ω (impedance value). Do not use 1Ω to 3Ω speakers for this unit.• To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.–Disconnect the negative terminal of the bat tery before installation.–Secure the wiring with cable clamps or hesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.– Place all cables away from moving parts, ch as the shift lever and seat rails.–Place all cables away from hot places, such as near the heater outlet.–Do not connect the yellow cable to the attery by passing it through the hole to the engine compartment.–Cover any disconnected cable onnectors with insulating tape.–Do not shorten any cables.–Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.–Use a fuse of the rating prescribed.–Never wire the negative speaker cable rectly to ground.–Never band together negative cables of ultiple speakers.• When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle’s auto-antenna relay control terminal (max. 300 mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.• Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.• The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.• The graphical symbol placed on the product means direct current. This unit Power cord input Connections/Installation Connections ACC position No ACC position Rear output or subwoofer outputFront outputFuse (15 A)Wired remote inputHard-wired remote control adapter can be connected (sold separately).Antenna input Power cord To power cord inputDepending on the kind of vehicle, the function of and may be different. In this case, be sure to connect to and to .Yel lowBack-up (or accessory)Yel lowConnect to the constant 12 V supply rminal.When the amperage rating of the fuse ed on your vehicle is 10 A, connect to the positive battery terminal directly to avoid short circuits. For details on the power connection, see page 12. Red Accessory (or back-up) Red Connect to terminal controlled by the igni tion switch (12 V DC).Connect leads of the same color to each other.Black (chassis ground)Blue/whiteThe pin position of the ISO connector ll differ depending on the type of vehicle. Connect and when Pin 5 is an antenna control type. In another ype of vehicle, never connect and Blue/whiteConnect to the system control terminal the power amp (max. 300 mA 12 V DC). Blue/whiteConnect to the auto-antenna relay ontrol terminal (max. 300 mA 12 V DC).Yel low /blackIf you use equipment with a Mute unction, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.Speaker leads*White: Front left White/black: Front left Gray: Front right Gray/black: Front right Green: Rear left Green/black: Rear left Violet: Rear right or subwoofer Violet/black: Rear right or subwoofer ISO connectorIn some vehicles, the ISO connector y be divided into two. In this case, be sure to connect to both connectors.* Use speakers with 100 W or higher power input capacity (recommended). NOTES

• Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 5). The subwoofer output of this unit is naural.13En English
• When using a subwoofer, be sure to connect the one-side channel of the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.• Connect to the battery directly despite connection to the power supply lead of the vehicle in the case that the unit may not perform fully due to insufficient power.• Connect the wires to the +12 V and GND terminals of the unit with at least 14 –Gauge or have a sectional area of more than 2 mm , as a current of more than 15 A will run through the system during full power operation.• All power wires connected to the positive battery post should be fused within 450 mm of the battery post and before they pass through any metal if the power wires are connected to the positive battery terminal directly.• Make sure that the vehicle’s battery wires connected to the vehicle (ground (earth) to chassis)* are of a wire gauge equal to at least that of the main power wire connected from the battery to the head unit.For details, consult your dealer if you have any questions or problems about the connection. Power amp (sold separately) Perform these connections when using the optional amplifier.System remote controlConnect to blue/white cable.Power amp (sold separately)Connect with RCA cables (sold separately)To front outputFront speakerTo rear output or subwoofer outputRear speaker or subwoofer Important
• Check all connections and systems before final installation.• Do not use unauthorized parts as this may cause malfunctions.• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.• Do not install this unit where:– it may interfere with operation of the vehicl – it may cause injury to a passenger as a esult of a sudden stop.• The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.• Optimum performance is obtained when the unit is installed at an angle of less than 60°.• When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear Less than 450 mmFuse (15 A)+12 V car battery Installation panel and wrap any loose cables so they are not blocking the vents. DIN mount installation 1 Insert the supplied mounting sleeve into the dashboard. 2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.DashboardMounting sleeve• Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions. When not using the supplied mounting sleeve 1 Determine the appropriate position where the holes on the bracket and the side of the unit match. 2 Tighten two screws on each side. Tapping screw (5 mm × 9 mm, not supplied with product)Mounting bracketDashboard or console Removing the unit (installed with the supplied mounting sleeve) 1 Remove the trim ring. Trim ringNotched tab• Releasing the front panel allows easier access to the trim ring.• When reattaching the trim ring, point the side with the notched tab down. 2 Insert the supplied extraction keys into both sides of the unit until they click into place. 3 Pull the unit out of the dashboard. Leave ample space 5 cm 5 cm14En The display automatically returns to the normal display.→ No operations have been made for about 30 seconds.– Perform an operation.The repeat play range changes unexpectedly.→ Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.– Select the repeat play range again.A subfolder is not played back.→ Subfolders cannot be played when [FLD] (folder repeat) is selected.– Select another repeat play range.The sound is intermittent.→ You are using a device, such as a cellular phone, that may cause audible interference.– Move electrical devices that may be using the interference away from the unit. Common AMP ERROR→ This unit fails to operate or the speaker connection is incorrect.→ The protective circuit is activated.– Check the speaker connection.– Turn the ignition switch OFF and back o ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.NO XXXX (NO TITLE, for example)→ There is no embedded text information.– Switch the display or play another ack/file. CD player (Only for DEH- 4800FD) ERROR-07, 11, 12, 17, 30→ The disc is dirty.–Clean the disc.→ The disc is scratched.– Replace the disc.ERROR-07, 10, 11, 12, 15, 17, 30, A0→ There is an electrical or mechanical error.– Turn the ignition switch OFF and back o ON, or switch to a different source, then back to the CD player.ERROR-15→ The inserted disc is blank.– Replace the disc.ERROR-23→ Unsupported CD format.– Replace the disc.FORMAT READ→ Sometimes there is a delay between the start of playback and when you start to hear any sound.– Wait until the message disappears and ou hear sound.NO AUDIO→ The inserted disc does not contain any playable files.– Replace the disc.SKIPPED→ The inserted disc contains DRM protected files. Additional Information Troubleshooting Error messages – The protected files are skipped.PROTECT→ All the files on the inserted disc are embedded with DRM.– Replace the disc. USB device/iPod FORMAT READ→ Sometimes there is a delay between the start of playback and when you start to hear any sound.– Wait until the message disappears and ou hear sound.NO AUDIO→ There are no songs.– Transfer the audio files to the USB evice and connect.→ The connected USB device has security enabled.– Follow the USB device instructions to isable the security.SKIPPED→ The connected USB device contains DRM protected files.– The protected files are skipped.PROTECT→ All the files on the connected USB device are embedded with DRM.– Replace the USB device.N/A USB→ The connected USB device is not supported by this unit.– Disconnect your device and replace it ith a compatible USB device.HUB ERROR→ The USB device connected via a USB hub is not supported by this unit.– Connect the USB device directly to this uni t using a USB cable.CHECK USB→ The USB connector or USB cable has short-circuited.– Check that the USB connector or USB able is not caught in something or damaged.→ The connected USB device consumes more than maximum allowable current.– Disconnect the USB device and do not e it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.→ The iPod operates correctly but does not charge.–Make sure the connection cable for e iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPod and reconnect.ERROR-19→ Communication failed.– Perform one of the following perations, then return to the USB source.• Turn the ignition switch OFF and back to ON.• Disconnect the USB device.• Change to a different source.→ iPod failure.– Disconnect the cable from the iPod. nce the iPod’s main menu is displayed, reconnect the iPod and reset it.ERROR-23→ USB device was not formatted properly.– Format the USB device with FAT12, FAT 16 or FAT32.ERROR-16→ The iPod firmware version is old.– Update the iPod version.→ iPod failure.15En English – Disconnect the cable from the iPod. Once the iPod’s main menu is displayed, reconnect the iPod and reset it. STOP

• There are no songs in the current list. – Select a list that contains songs. NOT FOUND

• No related songs. – Transfer songs to the iPod. Apps

• The application has not started running yet. – Operate the mobile device to start up

he application. Discs and player

• Use only discs that feature either of the following two logos.

• U se only conventional, fully circular discs.

• T he following types of discs cannot be used with this unit: –DualDiscs –8-cm discs: Attempts to use such discs

th an adaptor may cause the unit to malfunction. –Oddly shaped discs –Discs other than CDs –Damaged discs, including discs that are crac ked, chipped or warped –CD-R/RW discs that have not been

• Do not write on or apply chemicals to the surface of the discs.

• T o clean a CD, wipe the disc with a soft cloth outward from the center.

• C ondensation may temporarily impair the player’s performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.

• When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.

• D o not attach commercially available labels or other materials to the discs. – The discs may warp making the disc unpl ayable. – The labels may come off during play back and prevent ejection of the discs, which may result in damage to the equipment. USB storage device

• Connections via USB hubs are not supported.

• F irmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• D epending on the USB storage device, the following problems may occur. –Operations may vary. – The storage device may not be reco gnized. – Files may not be played back properly. – The device may cause audible int erference when you are listening to the radio. iPod

• Do not leave the iPod in places with high temperatures. Handling guidelines

• Firmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• The settings of the iPod such as the equalizer and repeat play are changed automatically when the iPod is connected to the unit. Once the iPod is disconnected, those settings will return to the original settings.

• I ncompatible text saved on the iPod will not be displayed by the unit.

• O nly the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

• T he unit may not work properly depending on the application used to encode WMA files.

• T here may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.

• Rus sian text to be displayed on this unit should be encoded in one of the following character sets: –Unicode (UTF-8, UTF-16) –A character set other than Unicode that

used in a Windows environment and is set to Russian in the multi-language setting CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

• Do not leave discs or a USB storage device in any place that is subject to high temperatures. WMA files MP3 files WAV files

• WAV file formats cannot be connected via MTP. FLAC files

• FLAC file formats cannot be connected via MTP.

• F LAC files may not be playable, depending on the encoder. Compressed audio compatibility File extension .wmaBit rate 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)Sampling frequency 32 kHz, 44.1 kHz, 48 kHz Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with videoNot compatibleFile extension .mp3Bit rate 8 kbps to 320 kbps (CBR), VBRSampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)Compatible ID3 tag version1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)M3u playlist Not compatibleMP3i (MP3 interactive), mp3 PRONot compatibleFile extension .wavQuantization bits 8 and 16 (LPCM), 4 (MSADPCM)Sampling frequency 16 kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)16En Disc (DEH-4800FD only)
• Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs. USB device
• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.This unit supports only the following iPod models. Supported iPod software versions are shown below. Older versions may not be supported.Made for–iPod touch (1st through 5th generation)–iPod classic– iPod with video–iPod nano (1st through 7th generation)–iPhone 6–iPhone 6 Plus–iPhone 5s–iPhone 5c–iPhone 5–iPhone 4s–iPhone 4–iPhone 3GS–iPhone 3G–iPhone• Operations may vary depending on the generation and/or software version of the iPod.• Users of iPod with the Lightning Connector should use the Lightning to USB Cable (supplied with iPod).• Users of iPod with the Dock Connector should use the CD-IU51. For details, consult your dealer.• Refer to the iPod manuals for information about the file/format compatibility.• Audiobook, Podcast: Compatible CAUTION Pioneer accepts no responsibility for data lost on the iPod, even if that data is lost while this unit is used.The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.Note that the hidden files in a USB device can not be played back.File extension .flacSampling frequency 8/11.025/12/16/22.05/24/32/44.1/48 kHzQuantization bit rate 16 bitChannel mode 1/2 chPlayable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 99Playable files Up to 999File system ISO 9660 Level 1 and 2, Romeo, JolietMulti-session playbackCompatiblePacket write data transferNot compatiblePlayable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 500Playable files Up to 15 000Playback of copyright-protected filesNot compatiblePartitioned USB deviceOnly the first partition can be played. iPod compatibility Sequence of audio files Example of a hierarchy iTunesApple and iTunes are trademarks of Apple nc., registered in the U.S. and other countries. WMA Windows Media is either a registered rademark or trademark of Microsoft Corporation in the United States and/or other countries.This product includes technology owned Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. FLAC Copyright © 2000-2009 Josh CoalsonCopyright © 2011-2013 Xiph.Org undationRedistribution and use in source and inary forms, with or without modification, are permitted provided that the following conditions are met:– Redistributions of source code must etain the above copyright notice, this list of conditions and the following disclaimer.– Redistributions in binary form must eproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.– Neither the name of the Xiph.org oundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.THIS SOFTWARE IS PROVIDED BY THE COP YRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND Russian character chart FolderCompressed audio file to : Playback sequence01 to 05: Folder number D: Display C: Character Copyright and trademark17En English

CONSEQUENTIAL DAMAGES (INCLUDING,

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. iPhone and Lightning Use of the Made for Apple badge means

hat an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory

ith an Apple product may affect wireless performance. iPhone and Lightning are trademarks of

ple Inc., registered in the U.S. and other countries. Siri® Works with Siri through the microphone. Android & Google Play Android, Google Play, and the Google Play log o are trademarks of Google Inc. General Power source: 14.4 V DC (10.8 V to 15.1 V allowable) Grounding system: Negative type Maximum current consumption: 15.0 A Dimensions (W × H × D): DIN Chassis: 178 mm × 50 mm × 155 mm Nose: 188 mm × 58 mm × 17 mm

Audio Maximum power output: 100 W × 4 ch/4 Ω (for no subwoofer) Continuous power output: 40 W × 4 (50 Hz to 15 000 Hz, 5 %

z/125 Hz/160 Hz/200 Hz Slope: –12 dB/oct, –24 dB/oct Gain: +6 dB to –24 dB Phase: Normal/Reverse CD player (DEH-4800FD) System: Compact disc audio system Usable discs: Compact disc Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A
