• In the following instructions, a USB memory or USB audio player are referred to as “USB device”.

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device. CAUTION

• Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.•Always keep the volume low enough to hear outside sounds.•The Pioneer CarStereo-Pass is for use only in Germany.
• This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065. Before You Start If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.CAUTIONThis product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007. If you experience problems Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station. DEH-09BT

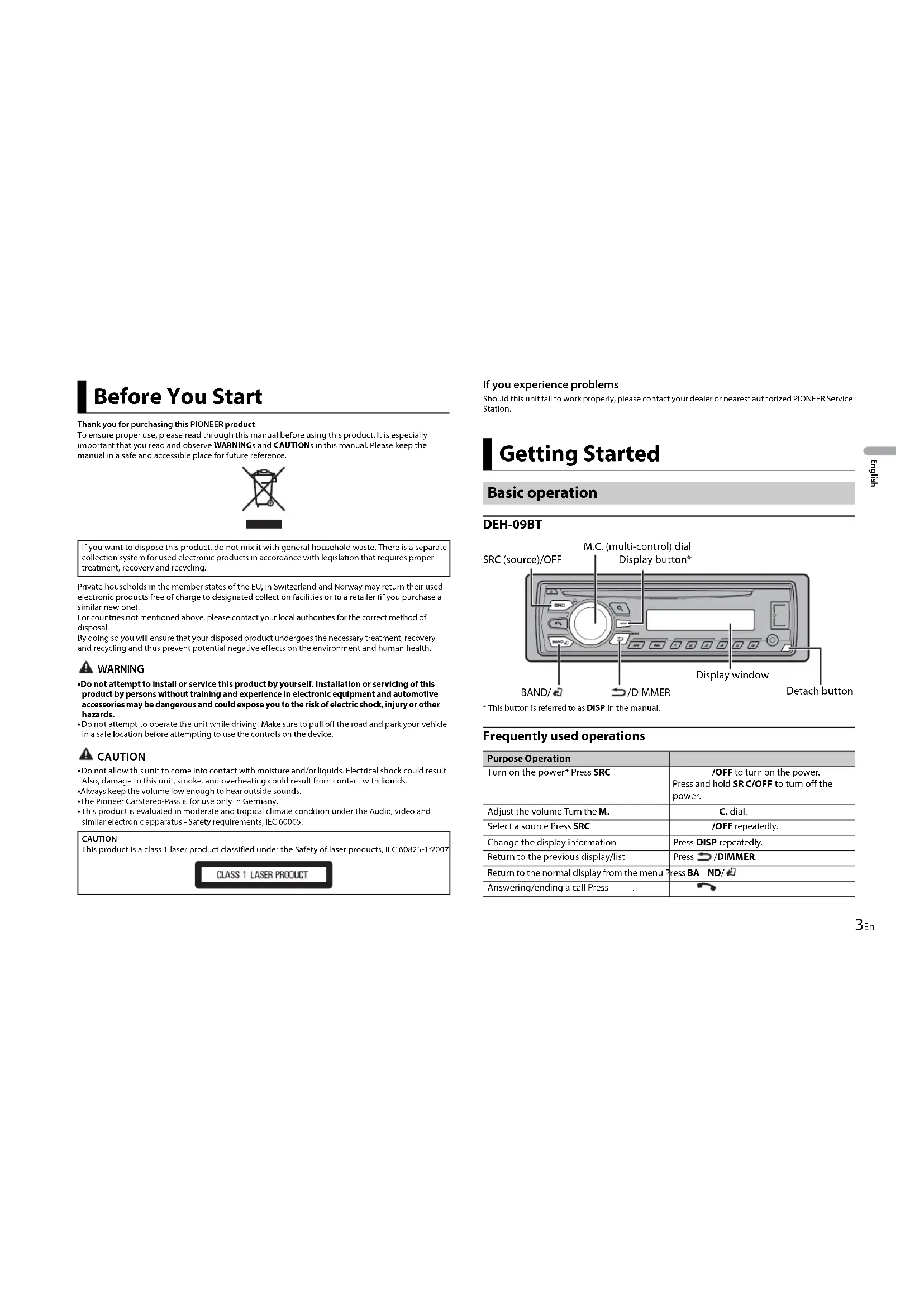

• This button is referred to as DISP in the manual. Frequently used operations Getting Started Basic operation Purpose OperationTurn on the power* Press SRC/OFF to turn on the power.Press and hold SRC/OFF to turn off the power.Adjust the volume Turn the M.C. dial.Select a source Press SRC/OFF repeatedly. Change the display information Press DISP re peatedly. Return to the previous display/list Press /DI MMER.Return to the normal display from the menu Press BAND/ .Answering/ending a call Press . SRC (source)/OFFDetach buttonDisplay windowM.C. (multi-control) dialBAND//DIMMERDisplay button*4En
• When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Display indication Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. Important

• Avoid subjecting the front panel to excessive shock.• Keep the front panel out of direct sunlight and high temperatures.Indication Description Appears when a lower tier of the menu or folder exists. Appears when the automatic answering function is set (page 9). Appears when the button is pressed. Appears when the local seek tuning function is set (page 11). Appears when a traffic program is received. Appears when the TA (traffic announcements) function is set (page 11). Appears when the sound retriever function is set (page 11). Appears when random/shuffle play is set (except when BT AUDIO is lected as the source).Appears when repeat play is set (except when BT AUDIO is selected as the urce). Appears when the iPod control function is set (page 7). Appears when a Bluetooth connection is made (page 7). Detaching the front panel Detach Attach

• Always store the detached front panel in a protective case or bag. When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display. 1 Press the M.C. dial. The setup menu disappears after 30 seconds of no operation. If you prefer not to set

t this time, turn the M.C. dial to select [NO], then press to confirm. 2 Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, you need to confirm your selection. 3 [QUIT :YES] appears when all the settings have been made. To return to the first item of the setup menu, turn the M. C. dial to select [QUIT :NO], then press to confirm. 4 Press the M.C. dial to confirm the settings. NOTES

• You can cancel the menu setting by pressing SRC/OFF.

• These settings can be made at any time from the SYSTEM settings (page 12) and INITIAL settings (page 5). 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm. Setup menu Menu Item DescriptionLANGUAGE Select the language to display the text information from a mpressed audio file.[ENG](English), ](Russian), [TUR](Turkish)CLOCK SET Set the clock.FM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50] Canceling the demonstration display (DEMO OFF)5En English 1 Press and hold SRC/OFF until the unit turns off. 2 Press and hold SRC/OFF to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm. The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the

iddle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations. INITIAL settings Menu Item DescriptionFM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50]SP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.[REAR/SUB.W][SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.[REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].S/W UPDATE Select to update the unit to the latest Bluetooth software. For etails on Bluetooth software and updating, visit our website.SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be estarted automatically.(Some of the settings will be retained even after resetting the nit, such as Bluetooth pairing information, etc.)[YES], [CANCEL] Radio 1 Press SRC/OFF to select [RADIO]. 2 Press BAND/ to select the band from [FM1], [FM2], [FM3], [MW] or [LW]. 3 Press a number button (1/ to 6/ ). TIP The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 11). The six strongest stations are stored on the number buttons (1/ to 6/ ). 1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually 1 After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press / . NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 11). To store stations manually 1 While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. The unit searches for a station by PTY (program type) information. 1 Press during FM reception. 2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS]. 3 Press the M.C. dial. Receiving preset stations Best stations memory (BSM) Using PTY functions6En The unit begins to search for a station. When it is found, its program service name is displa yed. NOTES

• To cancel the search, press the M.C. dial.
• The program of some stations may differ from that indicated by the transmitted PTY.
• If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.Disconnect headphones from the device before connecting it to the unit.

1 Insert a disc into the disc loading slot with the label side up. To eject a disc, stop playback first then press . USB device/iPod 1 Open the USB port cover. 2 Plug in the USB device/iPod using an appropriate cable. CD/USB/iPod/AUX Playing back AUX input jack (3.5 mm stereo jack) (eject)Disc loading slot USB portSRC (source)/OFFM.C. (multi-control) dial CAUTION Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.Before removing the device, stop playback.MTP connectionA device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats. AUX 1 Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 12). You can make various adjustments in the FUNCTION settings (page 10). Note that the following operations do not work for an AUX device. To operate an AUX vice, use the device itself. Operations Purpose Operation Select a folder/album* Press 1/ or 2/ . Select a track/song (chapter) Press or . Fast forward or reverse Press and hold or . Search for a file from a list 1 Press to display the list. 2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.View a list of the files in the selected folder/ cat egory*Press the M.C. dial when a folder/category is selected. Play a song in the selected folder/category* Press and hold the M. C. dial when a folder/category is selected.7En English

• Compressed audio files only Link play mode You can access songs based on the artist, album, or genre currently playing. 1 While listening to a song, press and hold to enter the link play mode. 2 Turn the M.C. dial to select the mode ([ARTIST], [ALBUM], [GENRE]), then press to confirm. The selected song/album will be played after the currently playing song. NOTE The selected song/album may be canceled if you use functions other than those from the link play mode (e.g. fast forward and reverse). Alphabetical search (iPod only) 1 Press to display the list. 2 Turn the M.C. dial to select the desired category list, then press to enter the alphabetical search mode. (Turning the M.C. dial twice also enters the alphabetical search mode.)3 Turn the M.C. dial to select a letter, then press to display the alphabetical list.To cancel alphabetical search, press /DIMMER.Repeat play Press 6/ .Random/shuffle play Press 5/ . Shuffle all play (iPod only) Press and hold 5/ . Pause/resume playback Press 4/PA USE. Sound retriever Press 3/S. Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates Return to root folder (USB only)* Press and hold BAND/ . Switch between compressed audio and CD- DA ( CD only)Press BAND/ .Change drives in USB device(Devices that support the USB mass storage vice class protocol only)Press BAND/ . Useful functions for iPod Purpose Operation iPod control You can control the unit via a connected iPod. The following iPod models are not compatible with this function. –iPod nano 1st generation, iPod with video 1 Press BAND/ during playback, then select the control mode.

ONTROL iPod/CTRL iPod]: The unit’s iPod function can be operated from the connected iPod.

ONTROL AUDIO/CTRL AUDIO]: The unit’s iPod function can only be operated by the buttons on the unit. In this mode, the connected iPod cannot be turned on or off. NOTES

• Switching the control mode to [CONTROL iPod/CTRL iPod] pauses song playback. Use the connected iPod to resume playback.
• The following operations are still accessible from the unit, even if the control mode is set to [CONTROL iPod/CTRL iPod].– Pause, fast forward/reverse, song/chapter selection• The volume can only be adjusted from the unit. Important If three or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly. 1 Turn on the Bluetooth function of the device. 2 Press and hold to display the connection menu. 3 Turn the M.C. dial to select [ADD DEVICE], then press to confirm. The unit starts to search for available devices, then displays them in the device list.

• T o cancel searching, press the M.C. dial.

• I f the desired device is not in the list, select [RE-SEARCH].

• I f there is no device available, [NOT FOUND] appears in the display. 4 Turn the M.C. dial to select a device from the device list, then press to confirm. Press and hold the M. C. dial to switch the displayed device information between the Bluetooth device address and device name. 5 Select [Pioneer BT Unit] shown in the device display. Bluetooth Bluetooth connection8En 6 Make sure the same 6-digit number appears on this unit and the device, then select “Yes” on the device. NOTES

• [DEVICE FULL] appears if the unit has already been paired with three other devices. In this case, delete one of the paired devices. See [DEL DEVICE] or [GUEST MODE] in the connection menu (page 8).

• Depending on the device, the PIN code is required in step 6. In this case, input [0000]. TIP The Bluetooth connection can be also made by detecting the unit from the Bluetooth device. To do so, [VISIBLE] in the connection menu needs to be set to [ON]. For details on a Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device. Connection menu Menu Item Description DEVICELIST Display the list of paired Bluetooth devices. “*” appears on the

evice name when the Bluetooth connection is established. DEL DEVICE Delete the device information. [DELETE YES],

DELETE NO] ADD DEVICE Register a new device. A.CONN Select [ON] to connect to a Bluetooth device automatically. [ON], [OFF] VISIBLE Select [ON] so that a Bluetooth device can detect the unit when

he unit is connected via Bluetooth to another device. [ON], [OFF] PIN CODE Change the PIN code. 1 P ress the M.C. dial to display the setting mode. 2 Tu rn the M.C. dial to select a number. 3 P ress the M.C. dial to move the cursor to the next position. 4 A fter inputting the PIN code, press and hold the M.C. dial. After inputting the PIN code, pressing the M. C. dial returns you to the PIN code input display, and you can change the PIN code. DEV. INFO Switch the device information on the display between the

vice name and Bluetooth device address. GUEST MODE Select [ON] to move to the [DEL DEVICE] screen automatically when the unit has already been paired with three devices. [ON], [OFF] First, make a Bluetooth connection with the Bluetooth telephone (page 7). Up to two Bluetooth telephones can be connected simultaneously. Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle’s battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation. To make a phone call 1 Press to display the phone menu. When two phones are connected, a phone name appears first then a phone menu

ll display. To switch to another phone, press again. 2 Turn the M.C. dial to select [MISSED], [DIALLED], [RECEIVED] or [PHONE BOOK], then press to confirm. The phone number list appears. 3 Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts. To answer an incoming call 1 Press when a call is received. TIP When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call. Basic operations A.PAIRING Select [ON] to pair the unit and iPhone automatically when an iPhone is connected to the unit via USB. (This function may not be available depending on the version of iOS you are using.) [ON], [OFF] Bluetooth telephone Purpose Operation End a call Press . Reject an incoming call Press and hold when a call is received. Switch between the current caller and a caller on hold Press the M.C. dial. Menu Item Description9En English To preset phone numbers 1 Select a phone number from a phone book or call history. 2 Press and hold one of the number buttons (1/ to 6/ ). The contact is stored in the selected preset number. To make a call using a preset number, press one of the number buttons (1/ to 6/ ), then press the M.C . dial. Voice recognition (Only for iPhone) This function is only available when an iPhone equipped with voice recognition is connected to the unit via Bluetooth. 1 Press and hold the M.C. dial to activate the voice recognition mode. 2 Press the M.C. dial and then talk into the microphone to input voice commands. To exit the voice recognition mode, press BAND/ . NOTE For details on the voice recognition features, refer to the manual supplied with your iPhone. Phone menu Cancel a caller on hold Press and hold . Adjust the volume of the caller’s

ice (When private mode is on, this function is not available.) Turn the M.C. dial during the call. Turn the privacy mode on or off Press BAND/ during the call. Menu Item Description MISSED Display the missed call history. DIALLED Display the dialed call history. RECEIVED Display the received call history. PHONE BOOK*1 Display the contacts which have been transferred from your pho ne. Set [VISIBLE] in the connection menu to [ON] to browse the contacts via this unit. Purpose Operation *1 The contacts on your phone will normally be transferred automatically when the phone is connected. If they are not, use your phone to transfer the contacts. *2 If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call. Important

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:– A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player. – AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.
• The sound of the Bluetooth audio player will be muted when the phone is in use.

• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality. 1 Make a Bluetooth connection with the Bluetooth audio player. 2 Press SRC/OFF to select [BT AUDIO] as the source. 3 Press BAND/ to start playback. Basic operations You can make various adjustments in the FUNCTION settings (page 10). PRESET 1-6 Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/ to 6/ ). PHONE FUNC Select [ON] to answer an incoming call automatically. A.ANSR*2: [ON], [OFF] R.TONE: [ON], [OFF] Select [ON] if the ring tone does not come out from the car

peakers. Depending on the connected phone, this function may not work. PB INVT Invert the order of names in the phone book (name view). Bluetooth audio Purpose Operation Fast forward or reverse Press and hold or . Select a track Press or . Repeat play* Press 6/ . Menu Item Description10En

• Depending on the connected device, these operations may not be available. You can enjoy listening to an application on an iPhone/Android device via the unit. In some cases, you can control an application by using the unit. For details on compatible devices, visit our website. Important Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data.ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP. For iPhone users This function is compatible with iPhones and iPod touches installed with iOS 5.0 or later. For Android device users This function is compatible with devices that have Android OS 2.3 or later installed and also support Bluetooth SPP (Serial Port Profile) and A2DP (Advance Audio Distribution Profile). NOTE PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER. 1 Connect this unit with the mobile device. Random play* Press 5/ . Pause/resume playback Press 4/PA USE.Search for a file from a list 1 Press to display a list.2 Turn the M.C. dial to select the desired folder name, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts. App Mode Playback of an application via the unit Purpose Operation
• iPhone via USB (page 6)

• A ndroid device via Bluetooth (page 7) 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [SYSTEM], then press to confirm. 4 Turn the M.C. dial to select [APP CONN.SET], then press to confirm. 5 Turn the M.C. dial to select one of the below, then press to confirm.

• Se lect [WIRED] for iPhone.

• Se lect [BLUETOOTH] for an Android device. 6 Press SRC/OFF to select [APP]. 7 Operate the mobile device to start up the application. Basic operations You can make various adjustments in the FUNCTION settings (page 10). You can adjust various settings in the main menu. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• ILLUMINATION settings (page 13) 3 Turn the M.C. dial to select the options, then press to confirm. The menu items vary according to the source. Purpose Operation Select a track Press or . Fast forward or reverse Press and hold or . Pause/resume playback Press BAND/ . Settings FUNCTION settings11En English Menu Item Description FM SETTING [TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast

ignal conditions of the FM band signal. (Available only when FM band is selected.) BSM Store the six strongest stations on the number but tons (1/ to 6/ ) automatically. REGIONAL [ON], [OFF] Limit the reception to the specific regional pro grams when AF (alternative frequencies search) is selected. (Available only when FM band is selected.) LOCAL FM: [

OFF], [LV1], [LV2], [LV3], [LV4]

MW/LW: [O FF], [LV1], [LV2] Restrict the tuning station according to the

[ON], [OFF] Receive current traffic information if available. (Available only when FM band is selected.)

[ON], [OFF] Allow the unit to retune to a different frequency providing the same station. (Available only when FM band is selected.) NEWS [ON], [OFF] Interrupt the currently selected source with

ws programs. (Available only when FM band is selected.) SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station

rom the preset channels. SEL DEVICE Connect a Bluetooth device in the list. S.RTRV [1] (effective for low compression rates), [2] (effective for high

mpression rates), [OFF] Enhance compressed audio and restore rich

und. AUDIO BOOK [FASTER], [NORMAL], [SLOWER] Change the playback speed. (Not available when

ONTROL iPod/CTRL iPod] is selected in the control mode.) PAU SE Pause or resume playback. PLAY Start playback. STOP Stop playback. AUDIO settings Menu Item Description FADER*1 Adjust the front and rear speaker balance. BALANCE Adjust the left and right speaker balance. EQ SETTING [SUPER BASS], [POWERFUL], [NATURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT] Select an equalizer band and

vel for further customizing. Equalizer band: [ 80HZ], [250HZ],

[800HZ], [2.5KHZ], [8KHZ]

Equalizer level: [+ 6] to [–6] Select or customize the equalizer curve. [CUSTOM1] can be set separately for each source.

owever, each of the below combinations are set to the same setting automatically.

• U SB, iPod, and APP (iPhone)

• B T AUDIO, and APP (Android) [CUSTOM2] is a shared setting used for all

urces. Menu Item Description USB iPod iPod12En *1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 5). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 5). *3 Not available when [OFF] is selected in [SUB.W]. You can also access to these menus when the unit is turned off. LOUDNESS [OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume. SUB.W*2 [NOR], [REV], [OFF] Select the subwoofer phase.

Cut-off frequency: [50 HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Output level: [–24] t o [+6] Slope level: [ –12], [–24] Only frequencies lower than those in the sel ected range are output from the subwoofer. BASS BOOST [0] to [+6] Select the bass boost level. HPF SETTING Cut-off frequency: [O FF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Slope level: [ –12], [–24] Only frequencies higher than the high-pass filter

HPF) cutoff are output from the speakers. SLA [+4] to [–4] Adjust the volume level for each source except

Each of the below combinations are set to the

ame setting automatically.

• U SB, iPod, and APP (iPhone)

• BT AUDIO, and APP (Android) SYSTEM settings Menu Item Description LANGUAGE [ENG](English), [РУС](Russian), [TUR](Turkish) Select the language to display the text information from a compressed audio file. Menu Item Description *1 [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle’s ignition does not have an ACC (accessory) position. *2 Not available when [APP] is selected as the source. CLOCK SET Set the clock (page 4). 12H/24H [12H], [24H] Select the time notation. AUTO PI [ON], [OFF] Search for a different station with the same pro gramming, even if using a preset station. AUX [ON], [OFF] Set to [ON] when using an auxiliary device

nnected to the unit. BT AUDIO [ON], [OFF] Set the Bluetooth signal on/off. PW SAVE*1 [ON], [OFF] Reduce the battery power consumption. Turning on the source is the only operation all owed when this function is on.

[YES], [CANCEL] Clear the Bluetooth device data (device list, PIN cod e, call history, phone book, preset phone numbers) stored in the unit. [CLEARED] appears when data is successfully

leted. BT VERSION Displays the system version of the unit and the

[WIRED], [BLUETOOTH] Select the appropriate connection method according to your device. Menu Item Description13En English ILLUMINATION settings Menu Item DescriptionDIM SETTING[SYNC CLOCK], [MANUAL] Change the display brightness.BRIGHTNESS[1] to [10] Change the display brightness.The available setting ranges differ depending on IM SETTING]. Important

• When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.• Use of this unit in conditions other than the following could result in fire or malfunction.–Vehicles with a 12-volt battery and neg ative grounding.–Speakers with 50 W (output value) and 4 Ω to 8 Ω (impedance value).• To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.–Disconnect the negative terminal of the bat tery before installation.–Secure the wiring with cable clamps or hesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.– Place all cables away from moving parts, ch as the shift lever and seat rails.–Place all cables away from hot places, suc h as near the heater outlet.–Do not connect the yellow cable to the bat tery by passing it through the hole to the engine compartment.–Cover any disconnected cable onnectors with insulating tape.– Do not shorten any cables.– Never cut the insulation of the power ble of this unit in order to share the power with other devices. The current capacity of the cable is limited.– Use a fuse of the rating prescribed.– Never wire the negative speaker cable rectly to ground.– Never band together negative cables of ultiple speakers.• When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle’s auto-antenna relay control terminal (max. 300 mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.• Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.• The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.• The graphical symbol placed on the product means direct current. This unit Connections/Installation Connections ACC position No ACC position14En Power cord inputMicrophone inputMicrophone (3 m)Rear output or subwoofer outputAntenna inputFuse (10 A)Wired remote inputHard-wired remote control adapter can be connected (sold separately). Power cord To power cord inputDepending on the kind of vehicle, the function of and may be different. In this case, be sure to connect to and to .Yel lowBack-up (or accessory)Yel lowConnect to the constant 12 V supply rminal. Red Accessory (or back-up) Red Connect to terminal controlled by the ignition switch (12 V DC).Connect leads of the same color to each other.Black (chassis ground)Blue/whiteThe pin position of the ISO connector ill differ depending on the type of vehicle. Connect and when Pin 5 is an antenna control type. In another ype of vehicle, never connect and Blue/whiteConnect to the system control terminal the power amp (max. 300 mA 12 V DC). Blue/whiteConnect to the auto-antenna relay ontrol terminal (max. 300 mA 12 V DC).Speaker leadsWhite: Front left White/black: Front left Gray: Front right Gray/black: Front right Green: Rear left or subwoofer Green/black: Rear left or subwoofer Violet: Rear right or subwoofer Violet/black: Rear right or subwoofer ISO connectorIn some vehicles, the ISO connector y be divided into two. In this case, be sure to connect to both connectors. NOTES
• Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 5). The subwoofer output of this unit is naural.• When using a subwoofer of 70 W (2 Ω), be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads. Power amp (sold separately) Perform these connections when using the optional amplifier.System remote controlConnect to blue/white cable.Power amp (sold separately)Connect with RCA cables (sold separately)To rear output or subwoofer outputRear speaker or subwoofer Important
• Check all connections and systems before final installation.• Do not use unauthorized parts as this may cause malfunctions.• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.• Do not install this unit where:–it may interfere with operation of the hicle.–it may cause injury to a passenger as a resu lt of a sudden stop.• The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.• Optimum performance is obtained when the unit is installed at an angle of less than 60°.• When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents. DIN front/rear mount This unit can be properly installed using either front-mount or rear-mount installation.Use commercially available parts when ins talling. DIN Front-mount 1 Insert the mounting sleeve into the dashboard.For installation in shallow spaces, use he supplied mounting sleeve. If there is enough space, use the mounting sleeve that came with the vehicle. 2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.DashboardMounting sleeve• Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions. DIN Rear-mount 1 Determine the appropriate position where the holes on the bracket and the side of the unit match. Installation Leave ample space 5 cm 5 cm15En English 2 Tighten two screws on each side. Tapping screw (5 mm × 9 mm, not supplied with product)Mounting bracketDashboard or console Removing the unit 1 Remove the trim ring. Trim ringNotched tab• Releasing the front panel allows easier access to the trim ring.• When reattaching the trim ring, point the side with the notched tab down. 2 Insert the supplied extraction keys into both sides of the unit until they click into place. 3 Pull the unit out of the dashboard. The microphone should be placed directly in front of the driver at a suitable distance to pick up their voice clearly. CAUTION It is extremely dangerous to allow the microphone lead to become wound around the steering column or shift lever. Be sure to install the microphone in such a way that it will not obstruct driving. It is recommended to use the clamps (sold separately) to arrange the lead. NOTE Depending on the vehicle model, the microphone cable length may be too short when you mount the microphone on the sun visor. In such cases, install the microphone on the steering column. To install on the sun visor 1 Fit the microphone lead into the groove. 2 Install the microphone clip on the sun visor.Lowering the sun visor reduces the ice recognition rate. Installing the microphone Microphone lead Groove To install on the steering column 1 Slide the microphone base to detach it from the microphone clip.MicrophoneMicrophone clipMicrophone base 2 Install the microphone on the rear side of the steering column. Microphone clip Double-sided tape16En The display automatically returns to the normal display.→ No operations have been made for about 30 seconds.– Perform an operation.The repeat play range changes unexpectedly.→ Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.– Select the repeat play range again.A subfolder is not played back.→ Subfolders cannot be played when [FLD] (folder repeat) is selected.– Select another repeat play range.The sound is intermittent.→ You are using a device, such as a cellular phone, that may cause audible interference.– Move electrical devices that may be using the interference away from the unit.The sound from the Bluetooth audio source is not played back.→ There is a call in progress on a Bluetooth-connected cellular phone.– The sound will be played back when he call is terminated.→ A Bluetooth-connected cellular phone is currently being operated.– Stop using the cellular phone.→ The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone.– Make a Bluetooth connection etween the unit and the cellular phone again. Common AMP ERROR→ This unit fails to operate or the speaker connection is incorrect.→ The protective circuit is activated.– Check the speaker connection.– Turn the ignition switch OFF and back o ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.NO XXXX (NO TITLE, for example)→ There is no embedded text information.– Switch the display or play another ack/file. CD player ERROR-07, 11, 12, 17, 30→ The disc is dirty.–Clean the disc.→ The disc is scratched.– Replace the disc.ERROR-07, 10, 11, 12, 15, 17, 30, A0→ There is an electrical or mechanical error.– Turn the ignition switch OFF and back o ON, or switch to a different source, then back to the CD player.ERROR-15→ The inserted disc is blank.– Replace the disc.ERROR-23→ Unsupported CD format. Additional Information Troubleshooting Error messages – Replace the disc.FORMAT READ→ Sometimes there is a delay between the start of playback and when you start to hear any sound.– Wait until the message disappears and ou hear sound.NO AUDIO→ The inserted disc does not contain any playable files.– Replace the disc.SKIPPED→ The inserted disc contains DRM protected files.– The protected files are skipped.PROTECT→ All the files on the inserted disc are embedded with DRM.– Replace the disc. USB device/iPod FORMAT READ→ Sometimes there is a delay between the start of playback and when you start to hear any sound.– Wait until the message disappears and ou hear sound.NO AUDIO→ There are no songs.– Transfer the audio files to the USB evice and connect.→ The connected USB device has security enabled.– Follow the USB device instructions to isable the security.SKIPPED→ The connected USB device contains DRM protected files.– The protected files are skipped.PROTECT→ All the files on the connected USB device are embedded with DRM.– Replace the USB device.N/A USB→ The connected USB device is not supported by this unit.– Disconnect your device and replace it ith a compatible USB device.CHECK USB→ The USB connector or USB cable has short-circuited.– Check that the USB connector or USB able is not caught in something or damaged.→ The connected USB device consumes more than maximum allowable current.– Disconnect the USB device and do not e it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.→ The iPod operates correctly but does not charge.–Make sure the connection cable for e iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPod and reconnect.ERROR-19→ Communication failed.– Perform one of the following perations, then return to the USB source.• Turn the ignition switch OFF and back to ON.• Disconnect the USB device.• Change to a different source.→ iPod failure.– Disconnect the cable from the iPod. nce the iPod’s main menu is displayed, reconnect the iPod and reset it.17En English ERROR-23

• USB device was not formatted properly. – Format the USB device with FAT12, FAT 16 or FAT32. ERROR-16

• The iPod firmware version is old. – Update the iPod version.

• iP od failure. – Disconnect the cable from the iPod.

nce the iPod’s main menu is displayed, reconnect the iPod and reset it. STOP

• There are no songs in the current list. – Select a list that contains songs. NOT FOUND

• No related songs. – Transfer songs to the iPod. Bluetooth device ERROR-10

• The power failed for the Bluetooth module of the unit. – Turn the ignition switch OFF and back

• No Bluetooth device found. – Connect the unit and the device via Blu etooth (page 7).

• Bluetooth connection failed. – Press BA ND/ to make a connection again.

• Bluetooth connection failed. –Press BAND/ to make a connection again. CHECK APP

• Connection to the application failed. –Follow the instructions that appear on

• The application has not started running yet. – Operate the mobile device to start up

he application. Discs and player

• Use only discs that feature either of the following two logos.

• U se only conventional, fully circular discs.

• T he following types of discs cannot be used with this unit: –DualDiscs – 8-cm discs: Attempts to use such discs

th an adaptor may cause the unit to malfunction. – Oddly shaped discs –Discs other than CDs – Damaged discs, including discs that are cra cked, chipped or warped – CD-R/RW discs that have not been

• D o not write on or apply chemicals to the surface of the discs.

• T o clean a CD, wipe the disc with a soft cloth outward from the center.

• C ondensation may temporarily impair the player’s performance. Let it rest for about one hour to adjust to a warmer Handling guidelines temperature. Also, wipe any damp discs off with a soft cloth.

• When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.

• D o not attach commercially available labels or other materials to the discs. –The discs may warp making the disc unpl ayable. –The labels may come off during play back and prevent ejection of the discs, which may result in damage to the equipment. USB storage device

• Connections via USB hubs are not supported.

• F irmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• D epending on the USB storage device, the following problems may occur. –Operations may vary. –The storage device may not be reco gnized. –Files may not be played back properly. –The device may cause audible int erference when you are listening to the radio. iPod

• Do not leave the iPod in places with high temperatures.

• F irmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• T he settings of the iPod such as the equalizer and repeat play are changed automatically when the iPod is connected to the unit. Once the iPod is disconnected, those settings will return to the original settings.

• I ncompatible text saved on the iPod will not be displayed by the unit.

• On ly the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

• T he unit may not work properly depending on the application used to encode WMA files.

• T here may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.

• R ussian text to be displayed on this unit should be encoded in one of the following character sets: –Unicode (UTF-8, UTF-16) – A character set other than Unicode that

used in a Windows environment and is set to Russian in the multi-language setting CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

• Do not leave discs or a USB storage device in any place that is subject to high temperatures. WMA files Compressed audio compatibility File extension .wmaBit rate 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)18En MP3 files WAV files
• WAV file formats cannot be connected via MTP. Disc
• Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs. USB device
• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.This unit supports only the following iPod models. Supported iPod software versions are shown below. Older versions may not be supported.Made for–iPod touch (1st through 5th generation)–iPod classic– iPod with video–iPod nano (1st through 7th generation)–iPhone 5s–iPhone 5c–iPhone 5–iPhone 4s–iPhone 4–iPhone 3GS–iPhone 3G–iPhone• Operations may vary depending on the generation and/or software version of the iPod.Sampling frequency 32 kHz, 44.1 kHz, 48 kHz Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with videoNot compatibleFile extension .mp3Bit rate 8 kbps to 320 kbps (CBR), VBRSampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)Compatible ID3 tag version1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)M3u playlist Not compatibleMP3i (MP3 interactive), mp3 PRONot compatibleFile extension .wavQuantization bits 8 and 16 (LPCM), 4 (MSADPCM)Sampling frequency 16 kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)Playable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 99Playable files Up to 999File system ISO 9660 Level 1 and 2, Romeo, JolietMulti-session playbackCompatiblePacket write data transferNot compatiblePlayable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 500Playable files Up to 15 000Playback of copyright-protected filesNot compatiblePartitioned USB deviceOnly the first partition can be played. iPod compatibility
• Users of iPod with the Lightning Connector should use the Lightning to USB Cable (supplied with iPod).• Users of iPod with the Dock Connector should use the CD-IU51. For details, consult your dealer.• Refer to the iPod manuals for information about the file/format compatibility.• Audiobook, Podcast: Compatible CAUTION Pioneer accepts no responsibility for data lost on the iPod, even if that data is lost while this unit is used.The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.Note that the hidden files in a USB device cann ot be played back. Example of a hierarchy BluetoothThe Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.iTunesApple and iTunes are trademarks of Apple nc., registered in the U.S. and other countries. WMA Windows Media is either a registered rademark or trademark of Microsoft Corporation in the United States and/or other countries. Sequence of audio files FolderCompressed audio file to : Playback sequence01 to 05: Folder number Russian character chart Copyright and trademark D: Display C: Character19En English This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. iPhone and Lightning Use of the Made for Apple badge means

hat an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory

ith an Apple product may affect wireless performance. iPhone and Lightning are trademarks of

ple Inc., registered in the U.S. and other countries. Siri® Works with Siri through the microphone. Android™ Android is a trademark of Google Inc. General Power source: 14.4 V DC (10.8 V to 15.1 V allowable) Grounding system: Negative type Maximum current consumption: 10.0 A Dimensions (W × H × D): DIN Chassis: 178 mm × 50 mm × 165 mm Nose: 188 mm × 58 mm × 17 mm

z/125 Hz/160 Hz/200 Hz Slope: –12 dB/oct, –24 dB/oct Gain: +6 dB to –24 dB Phase: Normal/Reverse CD player System: Compact disc audio system Usable discs: Compact disc Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A

DPCM (Non-compressed) Specifications FM tuner Frequency range: 87.5 MHz to 108.0 MHz Usable sensitivity: 11 dBf (1.0 μV/75 Ω, mon o, S/N: 30 dB) Signal-to-noise ratio: 72 dB (IEC-A network) MW tuner Frequency range: 531 kHz to 1 602 kHz Usable sensitivity: 25 μV (S/N: 20 dB) Signal-to-noise ratio: 62 dB (IEC-A network) LW tuner Frequency range: 153 kHz to 281 kHz Usable sensitivity: 28 μV (S/N: 20 dB) Signal-to-noise ratio: 62 dB (IEC-A network) Bluetooth Version: Bluetooth 3.0 certified Output power: +4 dBm Maximum (Power
