USER MANUAL ZAGGkeys Cover Zagg

Keyboard Instructions

\* WARRANTY REGISTRATION

Your ZAGG® Cover comes with a one-year manufacturer's warranty. In order to activate the warranty, you must register your Cover as well as keep your purchase receipt. If you purchased your ZAGG Cover from ZAGG.com, ZAGG has already registered it and has a copy of your proof of purchase.

NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq

INSERTING/REMOVING YOUR iPad®

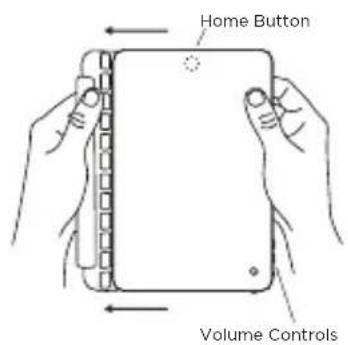

To insert your iPad into the Cover, start with the Cover's keyboard facing you. Then, with your iPad in landscape mode and the volume control buttons facing out (the Home button is on your right), slide it into the hinge channel, making sure it is firmly in place. For best results, insert your iPad with the hinge closed and align its edges with your Cover's keyboard.

When your iPad is secure in the Cover, and closed, cleverly placed magnets will activate your iPad's sleep/wake feature to help preserve battery life. Simply open your Cover to wake your iPad.

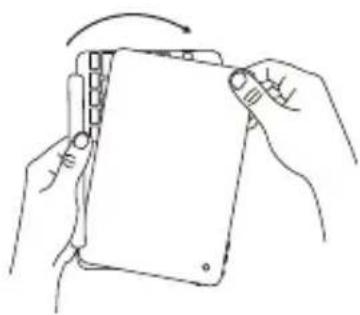

To easily remove your iPad, start with the hinge slightly open (enough that you can grasp the corner of your iPad) and while securing the Cover pull your iPad away from the hinge.

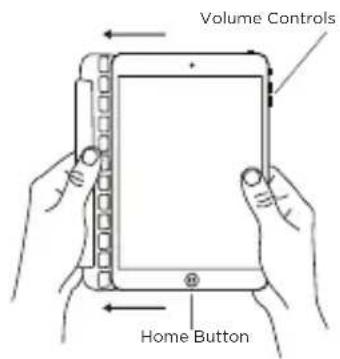

To insert your iPad using the media mode, start with the Cover's keyboard in portrait orientation with the hinge closed and on the left. Then, with your iPad also in portrait orientation (the Home button is on the bottom), slide your iPad into the hinge channel, making sure it is firmly in place*. You will feel the magnets engage, securing your device.

*Note: When your iPad is in media mode, it is somewhat less secure in the channel as when in regular mode. Use care when transporting it in this mode.

Home Button Volume Controls

Line drawing of two hands holding a tablet device with a scroll wheel (no text or symbols)

Volume Controls Home Button

POWERING ON AND OFF

To turn your Cover on, switch the POWER button to the ON position. A green LED will illuminate briefly while the keyboard powers up. To turn your Cover off, simply switch the POWER button to the OFF position.

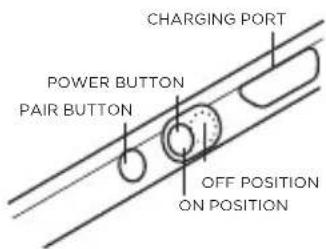

CHARGING PORT POWER BUTTON PAIR BUTTON OFF POSITION ON POSITION

PAIRING YOUR ZAGG COVER

Pairing your Cover with your iPad is easy. It should only need to be paired once, using the following directions. If the connection between your iPad and Cover is ever lost, repeat these steps.

1. On your iPad select: SETTINGS > BLUETOOTH > ON.

2. Press the PAIR button on your Cover keyboard. A blue LED will flash until your Cover and iPad are paired.

3. Your iPad will display "ZAGGkeys Cover" as an available device. Select this option to complete pairing.

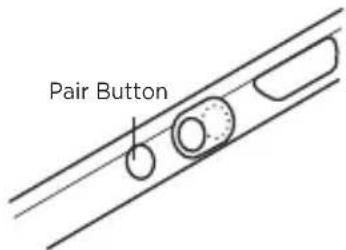

Pair Button

CHARGING

Your Cover features a powerful lithium polymer battery that lasts up to three months of normal use between charges*. It comes with a charging cable to charge your keyboard quickly and conveniently. To charge your Cover, follow these steps:

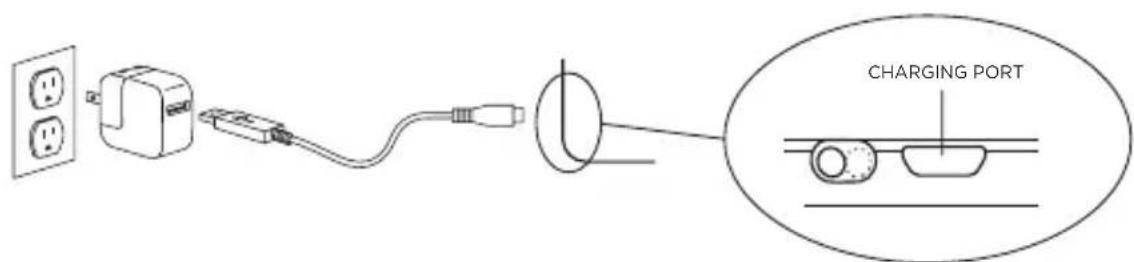

1. Plug the micro USB connector into the charging port.
2. Plug the regular USB connector into any 5v USB outlet.
3. A green LED on the battery key will illuminate to indicate the Cover is charging. Wait until this light turns off, indicating a full charge. It usually takes 2-4 hours to completely charge your Cover.
4. Remove the micro USB connector and enjoy your Cover for up to three months before you need to charge it again.

CHARGING PORT

BATTERY LIFE

As mentioned, the Cover features a powerful, rechargeable battery that lasts up to three months between charges. To check your Cover's remaining battery power, press the battery key. The LED indicator will flash one of three ways.

1. Three green flashes indicate 50% or more battery life remaining.
2. Three yellow flashes indicate between 25%-49% battery life remaining.
3. Three red flashes indicate less than 25% battery life remaining. When your Cover reaches critical battery level, the red light will flash once every five minutes.

To help preserve battery life, your Cover will enter sleep mode if left on and not used for several minutes. To awaken your Cover, press any key. The Cover's battery has no memory and may be charged whenever you wish. For optimal battery life, turn your Cover off when not in use for a prolonged time.

SPECIAL FUNCTION KEYS

Your Cover keyboard has been designed with the following special function keys to give you more control of your iPad:

HOME - Displays your iPad's home screen.
LOCK - Activates and deactivates your iPad's sleep mode.
MIC - Activates Siri from your keyboard.
UNDO - Undoes your last keystroke.
REDO - Repeats your last keystroke.
KEYBOARD HIDE/SHOW - Hides or shows your iPad's on-screen keyboard.
COPY - Copies selected text to your clipboard.
PASTE - Pastes clipboard content in your selected field.
PREVIOUS TRACK - Skips to the previous track on your current playlist.
▶II PLAY/PAUSE - Starts or stops your current playlist.
NEXT TRACK - Skips to the next track on your current playlist.

MUTE - Mutes your iPad's audio.
VOLUME DOWN - Decreases your iPad's volume.
VOLUME UP - Increases your iPad's volume.

caps

CAPS LOCK - Activates the Caps Lock feature. When Caps Lock is on a blue indicator light will remain lit until it is turned off. To turn Caps Lock off, simply press the CAPS button again.

WORLD SYMBOL - Toggles between international keyboards (when activated in your iPad's settings).

BATTERY SYMBOL - Indicates remaining battery life.

BACKLIGHT SYMBOL - Activates your Cover's backlight feature. Pressing this key once will turn on the backlights at their dimmest setting, pressing it twice will brighten the lights, and pressing it three times will brighten them to their brightest setting. If you continue pressing the backlight button, your Cover will cycle down through brightness settings, turn off, then cycle back up through brightness settings.

NOTE: The backlights will automatically turn off after a couple seconds if not being used. Begin typing again to activate them.

BACKLIGHT COLOR OPTIONS - Hold the backlight button and press the right arrow/color change symbol to select your preferred backlight color. Press repeatedly to cycle through available colors.

NOTE: The backlight feature must be turned on in order to select your preferred color.

Delete

COMMAND + DELETE - Forward delete.

TROUBLESHOOTING

If your iPad does not respond to your Cover there may be a simple explanation such as a dead battery or an unsuccessful pairing. Please use the following to help troubleshoot your situation. If none of the following solve your issue, then please contact ZAGG Customer Service and one of our trained professionals will be happy to assist you.

1. Restart your iPad by holding down the home and power button until the Apple® logo appears on the screen.

2. Turn your Cover off and back on. You should see the LED illuminate briefly, if not, charge your Cover.

3. After charging, turn your Cover on. If the LED does not illuminate, and your keyboard doesn't operate correctly, please contact ZAGG's customer service.

4. Forget and re-pair your Cover. On your iPad, select: SETTINGS > BLUETOOTH > ON. If you see “ZAGGkeys Cover” listed as an available device, touch the arrow to the right of it and choose to have your iPad forget the device.
5. Push the PAIR button on your Cover and watch for the LED to flash blue.
6. Your iPad should display "ZAGGkeys Cover" as an available device. Select it.
7. If your iPad gives you an error message, repeat the pairing process.

NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq To reach a trained customer service representative, please use one of the following: ZAGG.com/support/contact.php | [e-mail] 1-800-700-ZAGG [9244] | 00-1-801-839-3906 for international customers

For unparalleled scratch protection for your iPad, we recommend ZAGG's invisibleSHIELD®.

©2005 - 2014 ZAGG Inc All Rights Reserved.

PATENT PENDING | NASDAQ: ZAGG | MADE IN CHINA

iPad ^® and Apple ^® are registered trademarks of Apple Inc.

ZAGG ^® , invisibleSHIELD ^® , and ZAGG Cover are trademarks or registered trademarks of ZAGG Inc.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1: This device may not cause harmful interference, and 2: This device must accept any interference received, including interference that may cause undesired operation.

ZAGG®

Cover

iPad Air

Line drawing of two hands holding a tablet device with a scroll wheel (no text or symbols)

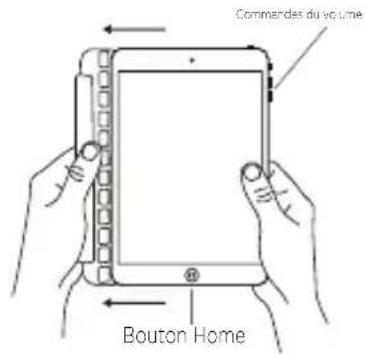

Commandes du volume Bouton Home
