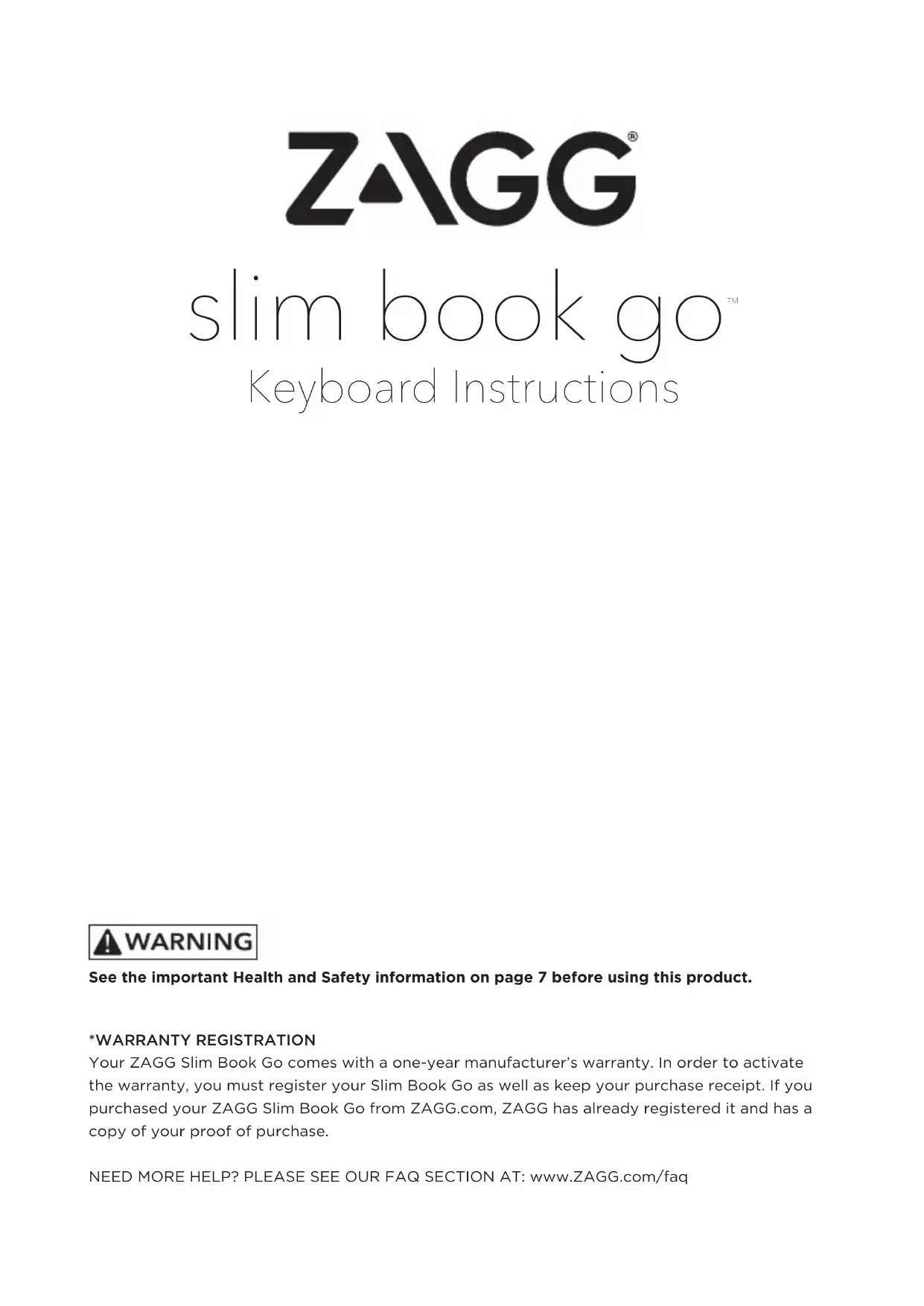

USER MANUAL Slim Book Go Zagg

Keyboard Instructions slim book go

*WARRANTY REGISTRATION Your ZAGG Slim Book Go comes with a one-year manufacturer’s warranty. In order to activate the warranty, you must register your Slim Book Go as well as keep your purchase receipt. If you purchased your ZAGG Slim Book Go from ZAGG.com, ZAGG has already registered it and has a copy of your proof of purchase. NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq See the important Health and Safety information on page 7 before using this product.INSERTING/REMOVING YOUR DEVICE

DETACHING THE CASE FROM THE KEYBOARD

1. Hold your device in landscape mode with the volume control

buttons facing up. Insert the top half of your device at an angle into the top of the case and apply light pressure to snap it snuggly into place.

2. Press the bottom half of your device into the cover and press it in.

Press all around your device to ensure it has seated properly.

3. Once your device has been inserted into the case, set the case into

the cradle hinge on the keyboard. You should feel the magnets connect as the case clicks into place.

4. To easily remove your device from the case, first detach the case

from the keyboard. (See directions below.) Then hold the top of the case with one hand and press against the back of the case with the other. Then grasp the exposed side of your device and lift/pull it away from the cover.

1. To detach the case and the keyboard, open the case at a 90˚ angle to

2. Hold one of the top corners of the keyboard with one hand, and

with the other hand on the corresponding top corner of the case, pull directly up. This will disengage the magnets holding the keyboard and case together.

1. To turn your Slim Book Go on, press the Power button located at

the top right corner of the keyboard. A green LED will light briefly.

2. To turn your Slim Book Go o, press and hold the Power button for

three seconds. A red LED will flash indicating it has turned o.1. Ensure your device’s Bluetooth® is on.

2. Press your Slim Book Go’s or keys for three seconds. A blue

LED light on the power button will begin pulsing, indicating your Slim Book Go is in pairing mode.

3. Your device will display “ZAGG Slim Book Go” as an available

pairing option. Select it and complete any ohter pairing steps based on your device.

4. To pair your Slim Book Go to another device, repeat steps 2 and 3.

To toggle between devices, simply press or .

5. Once paired, the Bluetooth® key will stop pulsing and fade to o.

Once begun, if the Slim Book Go doesn’t complete pairing after 60 seconds, it will abort the process. If this happens, repeat steps 2 and 3.

2. Turn o the Bluetooth® connection from your device.

Your Slim Book Go can pair with up to two devices at once. Pairing your Slim Book Go is easy; just follow these instructions. Your Slim Book Go features a case that protects your device even when it’s not connected to your keyboard. When you’d like to use the case without the keyboard, there are three ways you can switch to your onscreen keyboard.

2BATTERY LIFE To check your Slim Book Go keyboard’s battery life, press fn + the battery key. The LED light on the power key will flash one of the following three ways: Three green flashes = 50% or more battery life Three yellow flashes = 25-49% battery life Three red flashes = less than 25% battery life CHARGING Your Slim Book Go features a powerful lithium polymer battery that lasts up to two years of normal use between charges.* To charge your Slim Book Go, follow these steps. 1 . Plug the micro USB or Type-C connector into the charging port.

2. Plug the regular USB connector on your cable into any 5V USB

outlet. The power button LED on your Slim Book Go will light to indicate your keyboard is charging. This LED will turn o when your keyboard is fully charged. *Normal use is approximately one hour of use per day without the backlit feature. Using the backlit feature will impact battery life and require more frequent charging.1 & 2 MULTI-PAIRING – Activates your device’s pairing mode. HOME – Displays your device’s home screen. LOCK – Activates and deactivates your device’s sleep mode. APPS RUNNING – Displays all of the apps currently running on your device. LANGUAGE SYMBOL – Toggles between keyboard languages and emojis (if active on your device); pressing cmd + spacebar will do the same. KEYBOARD HIDE/SHOW – Hides or shows your tablet’s on-screen keyboard. PREVIOUS TRACK – Skips to the previous track on your selected playlist. PLAY/PAUSE – Starts or pauses your current playlist. NEXT TRACK – Skips to the next track on your selected playlist. MUTE – Mutes your device’s audio. VOLUME DOWN – Decreases your device’s volume. VOLUME UP – Increases your device’s volume. POWER – Turns your Slim Book Go keyboard on and o. BATTERY LEVEL – Indicates remaining battery life. FN + BACKLIGHT SYMBOL – Activates the backlight feature. FN + COLOR CHANGE SYMBOL – Changes backlight colors. (7 possible)

SPECIAL FUNCTION KEYS

Your Slim Book Go keyboard has been designed with the following special function keys to give you more control of your device:TROUBLESHOOTING If your device doesn’t respond to the Slim Book Go keyboard, there may be a simple explanation such as a dead battery or unsuccessful pairing. Please use the following to help troubleshoot your situation. If none of the following solve your issue, please contact ZAGG Customer Service and one of our trained professionals will be happy to assist you.

1. Restart your device.

2. Turn your Slim Book Go keyboard o and back on.

3. Forget and re-pair your Slim Book Go keyboard.

4. If your Slim Book Go keyboard does not establish or maintain a

connection, reset the Bluetooth

module by charging your keyboard.

5. If, after charging, your keyboard doesn’t operate correctly, please

contact ZAGG Customer Service.For more help please visit: www.zagg.com/support For unparalleled scratch protection for your device, we recommend ZAGG’s InvisibleShield®. ©2005 - 2018 ZAGG Inc All Rights Reserved. Patents: zagg.com/patents | NASDAQ: ZAGG | MADE IN CHINA The Bluetooth® word mark and logo are trademarks of Bluetooth SIG, Inc. and any use of such marks by ZAGG Inc is under license. ZAGG, InvisibleShield, ZAGG logo, and Slim Book Go are trademarks of ZAGG IP Holdings Co., Inc. iPad is a trademark of Apple Inc. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocated the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 1S of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that

may cause undesired operation.1. Health Warning: Take frequent breaks when using your keyboard. If you experience any discomfort, pain, tingling, numbness or burning in your neck, shoulders, arms, wrists, hands or any other part of the body, stop using your keyboard and consult a physician.

2. Use only micro USB chargers in connection with your keyboard.

3. Do not attempt to service your keyboard.

4. Do not disassemble or attempt to disassemble your keyboard.

5. Do not crush or puncture the keyboard.

6. Do not immerse your keyboard in water.

7. Do not put your keyboard in contact with water or other liquids as they could

cause a short circuit, fire, or electric shock which could result in serious injury, death or property damage.

8. Do not use liquid or aerosol cleaners or solvents on or near your keyboard.

Clean only with a soft, dry cloth. Disconnect any cords before cleaning the keyboard.

9. Do not use your keyboard while operating a motorized vehicle, including

automobile, boat or airplane. Doing so could put you and others at risk of serious injury, death or property damage.

10. Do not use or place your keyboard near any heat sources including, but not

limited to, radiators, heat registers, stoves, other appliances, campfires or barbeque grills.

11. To reduce the risk of fire or electric shock, wire or connect your keyboard

to products only in the manner instructed in the documentation supplied herewith.

12. Do not attempt to modify or adjust any ports. Any improper connections or

adjustments may cause damage.

13. When you are ready to discard your keyboard, recycle your keyboard in a

manner consistent with electronic recycling requirements or recommendations in your geographic area. Please read the precautions and operation information before using your keyboard or any accessories that accompany it. Retain this information for future use. 7ADVERNTENCIA Instrucciones del teclado slim book go
