USER MANUAL ASTRO 4MFP DOVRE

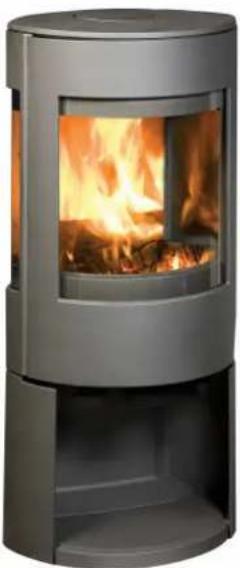

Modern outdoor stove burner with visible flames and a cylindrical base (no text or symbols)

Modern portable stove with visible flames and wood inside (no text or symbols)

Modern portable stove burner with visible flame inside, mounted on a base (no text or symbols)

Modern cylindrical stove with visible flames and wood inside (no text or symbols)

ASTRO 3MFP

ASTRO 3MFWB

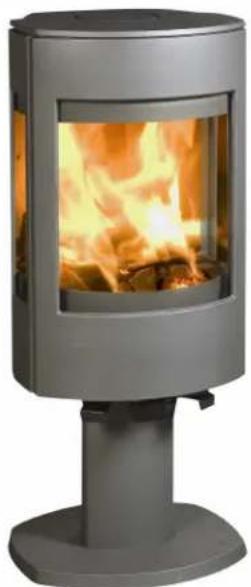

ASTRO 4MFP

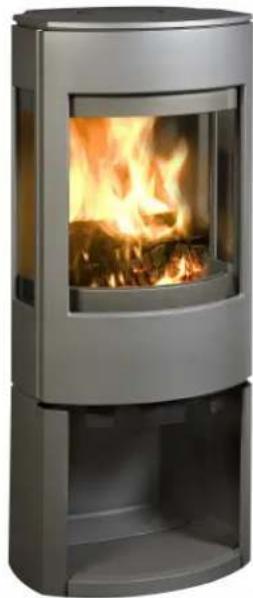

ASTRO 4MFWB

Inhoudsopgave

Inleiding 3

Technical diagram of a device with numbered parts labeled 1 through 6, showing internal components and structural layout.

09.20019.030

Installatie

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of two views of a device with labeled components, showing internal structure and movement (no text or symbols)

09.20019.033

Uitneembare binnendelen

astro3 series

Technical line drawing of a mechanical device with labeled component (1), no readable text or symbols beyond part number and date

Technical line drawing of a mechanical device with a base and cylindrical component (no text or symbols)

09-20001-013

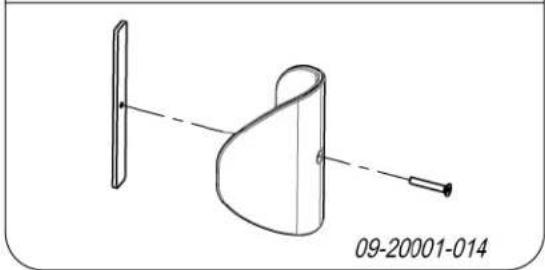

4 09-20001-014

Illustration of layered geological strata with a central drop symbol (no text or labels)

Illustration of a textured, folded object resembling a stone or mineral (no text or symbols)

Illustration of fragmented stone or mineral fragments with visible grain patterns (no text or symbols)

Line drawing of a mechanical component with a flanged end and two protrusions (no text or symbols)

Technical line drawing of a mechanical device with a circular component and labeled part (1), no readable text or symbols present.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

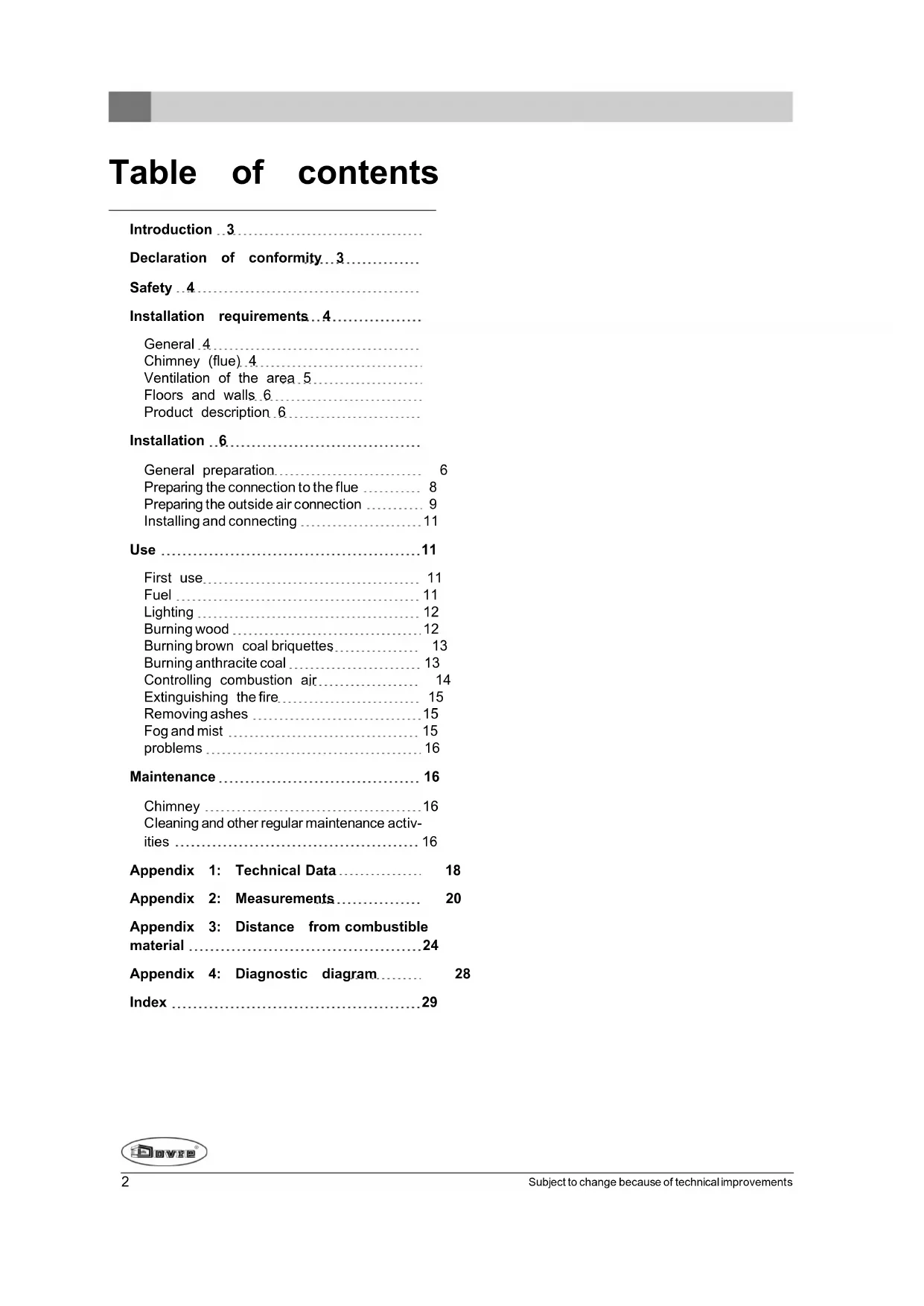

Bruinkool as .... 13 stoken .... 13

Bruinkoolbriketten 11

Declaration of conformity 3

Safety 4

Installation requirements 4

General 4

Chimney (flue) 4

Ventilation of the area 5

Floors and walls 6

Product description 6

Installation 6

General preparation.... 6

Preparing the connection to the flue 8

Preparing the outside air connection 9

Installing and connecting 11

Use 11

First use 11

Fuel 11

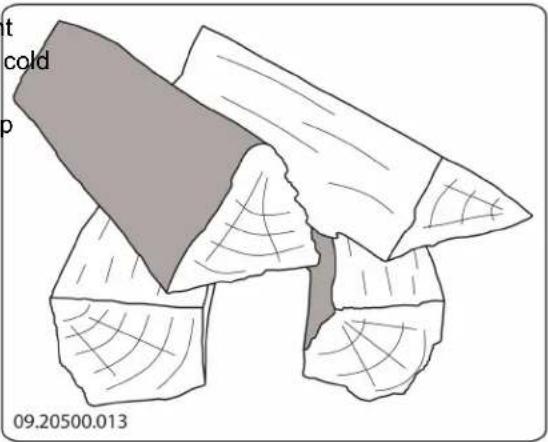

Lighting 12

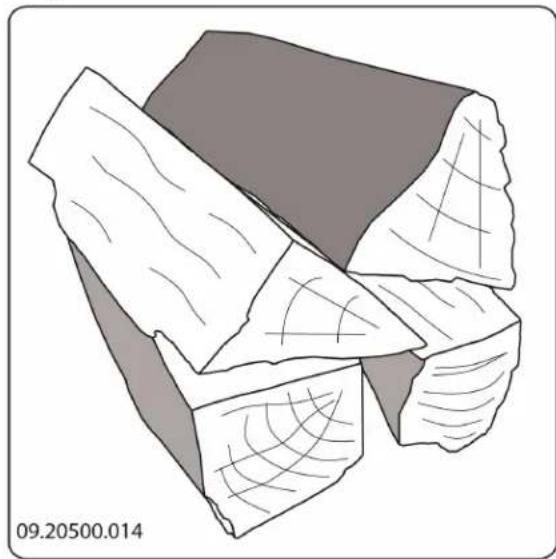

Burning wood 12

Burning brown coal briquettes 13

Burning anthracite coal 13

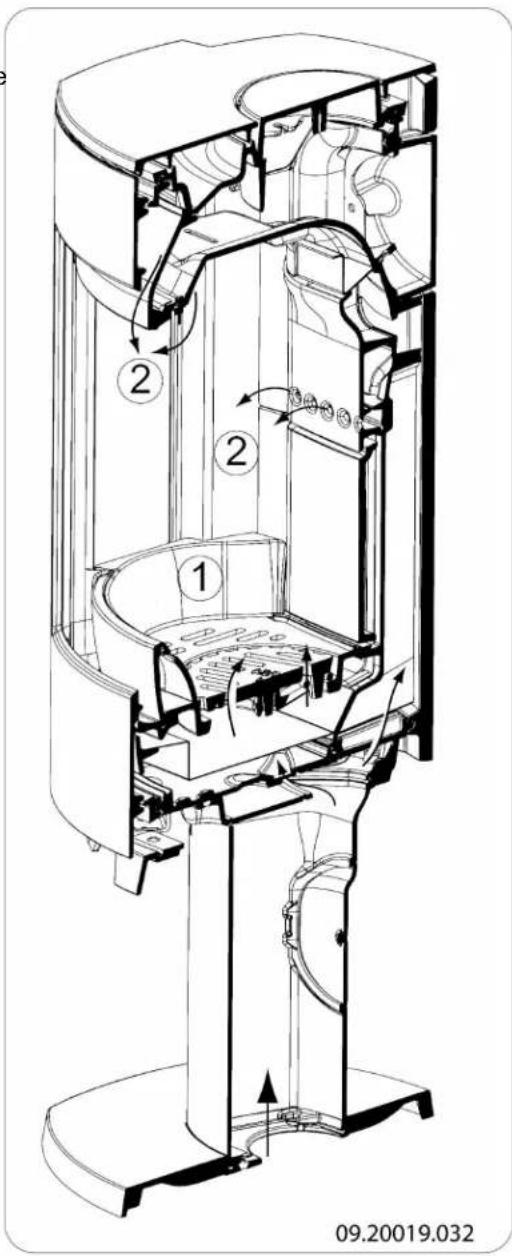

Controlling combustion ajr 14

Extinguishing the fire 15

Removing ashes 15

Fog and mist 15

problems 16

Maintenance 16

Chimney 16

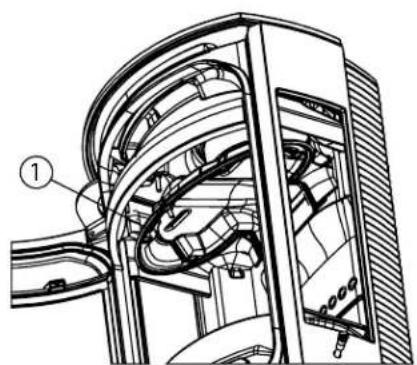

Cleaning and other regular maintenance activities 16

Appendix 1: Technical Data 18

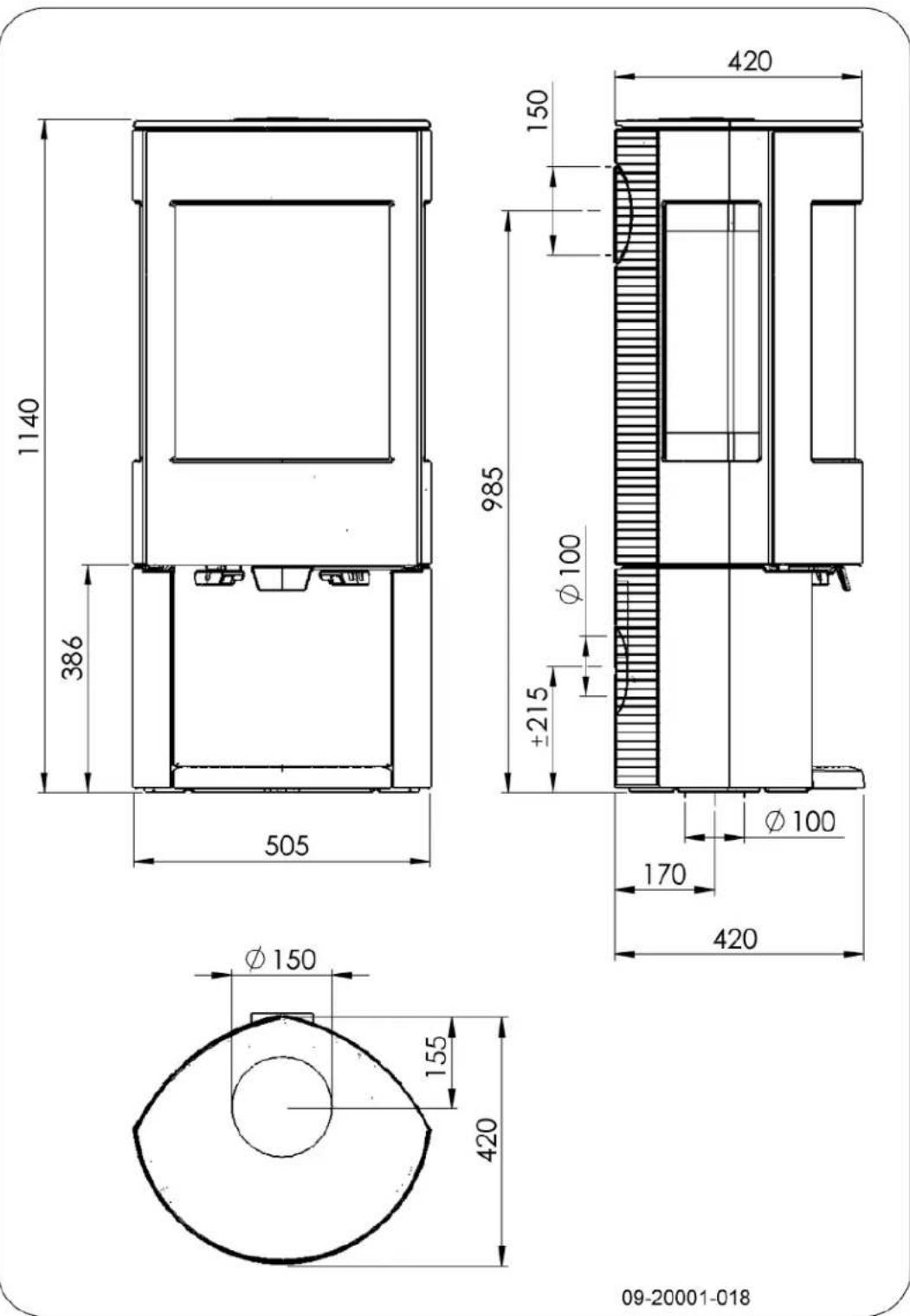

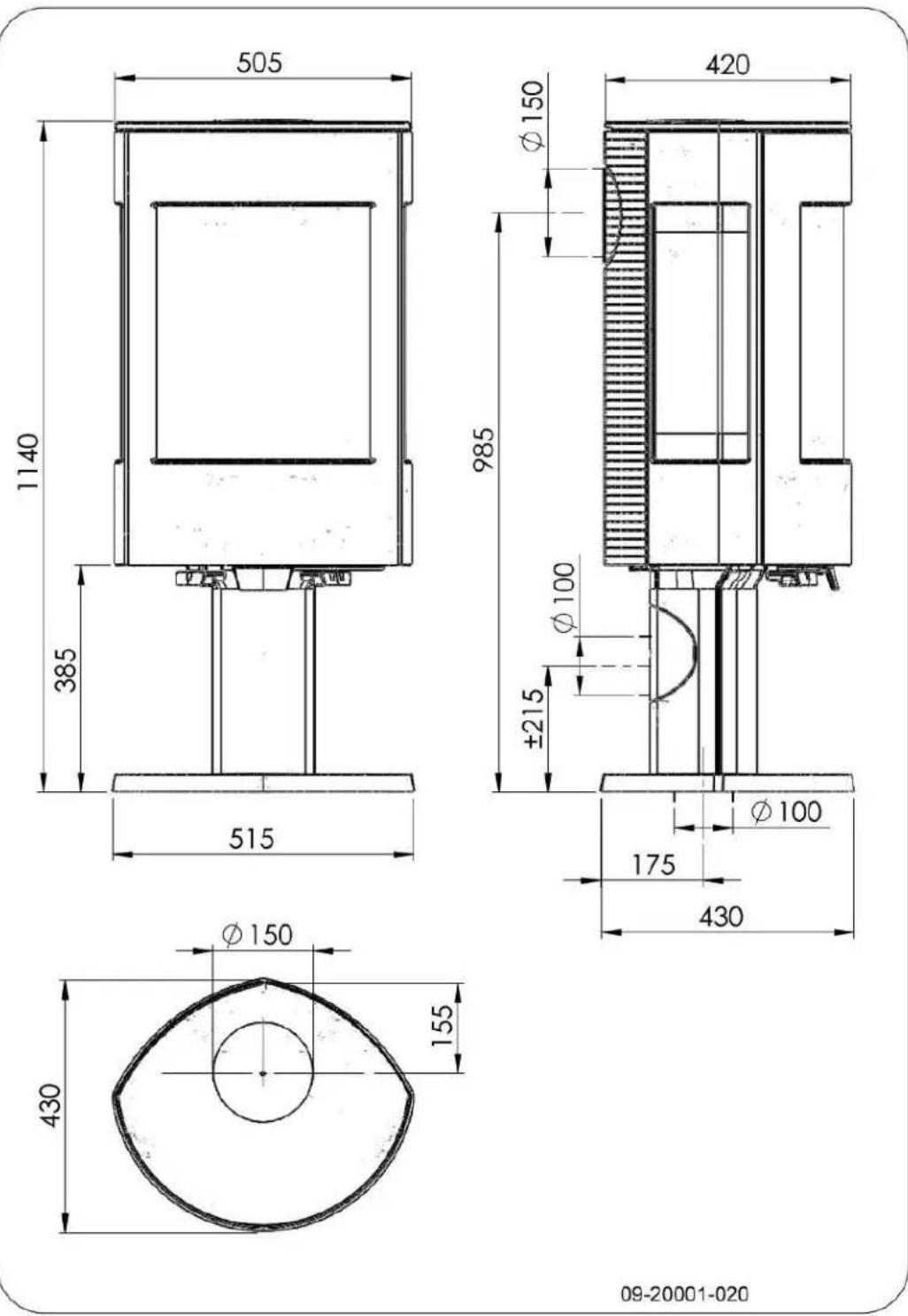

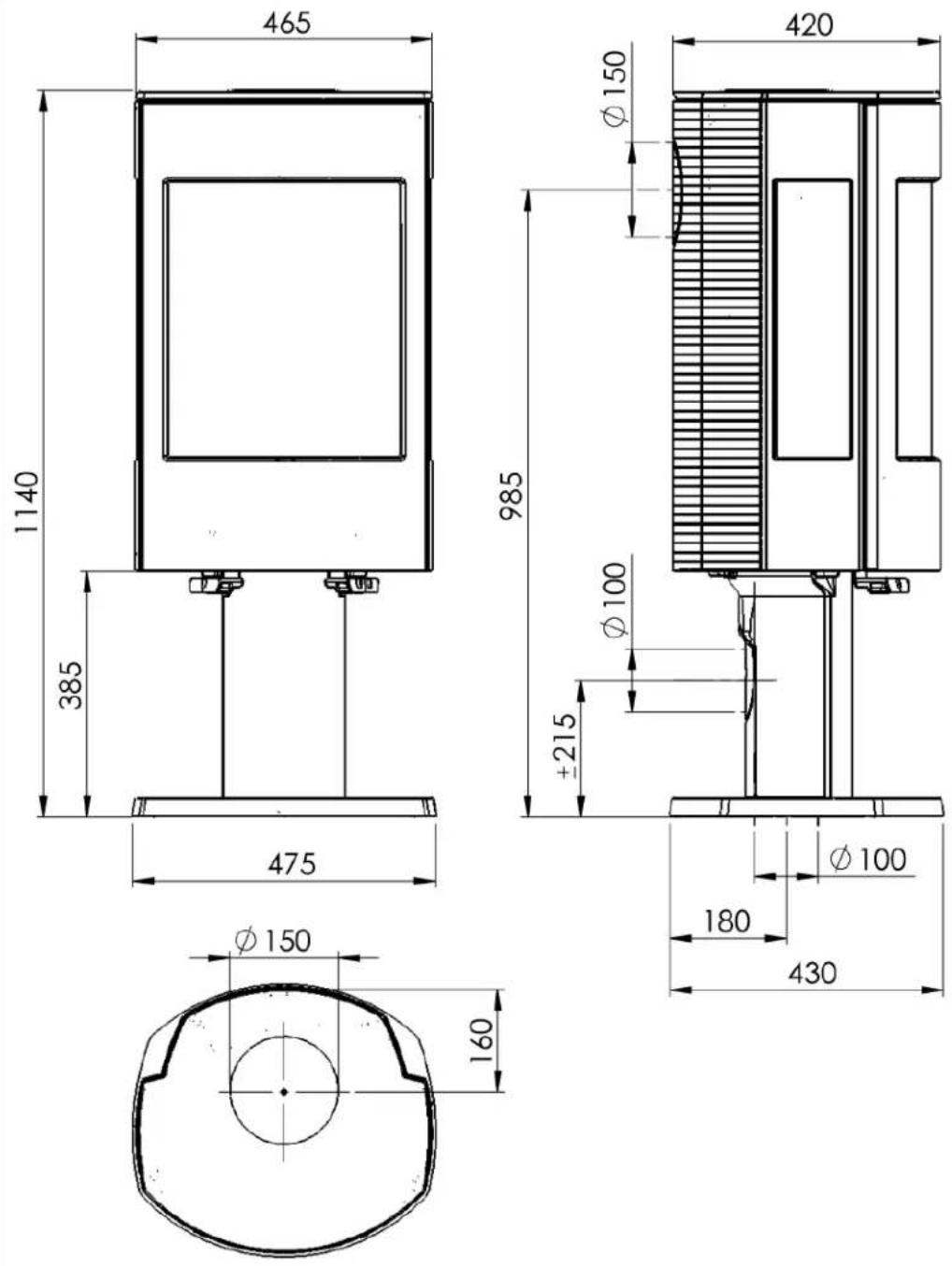

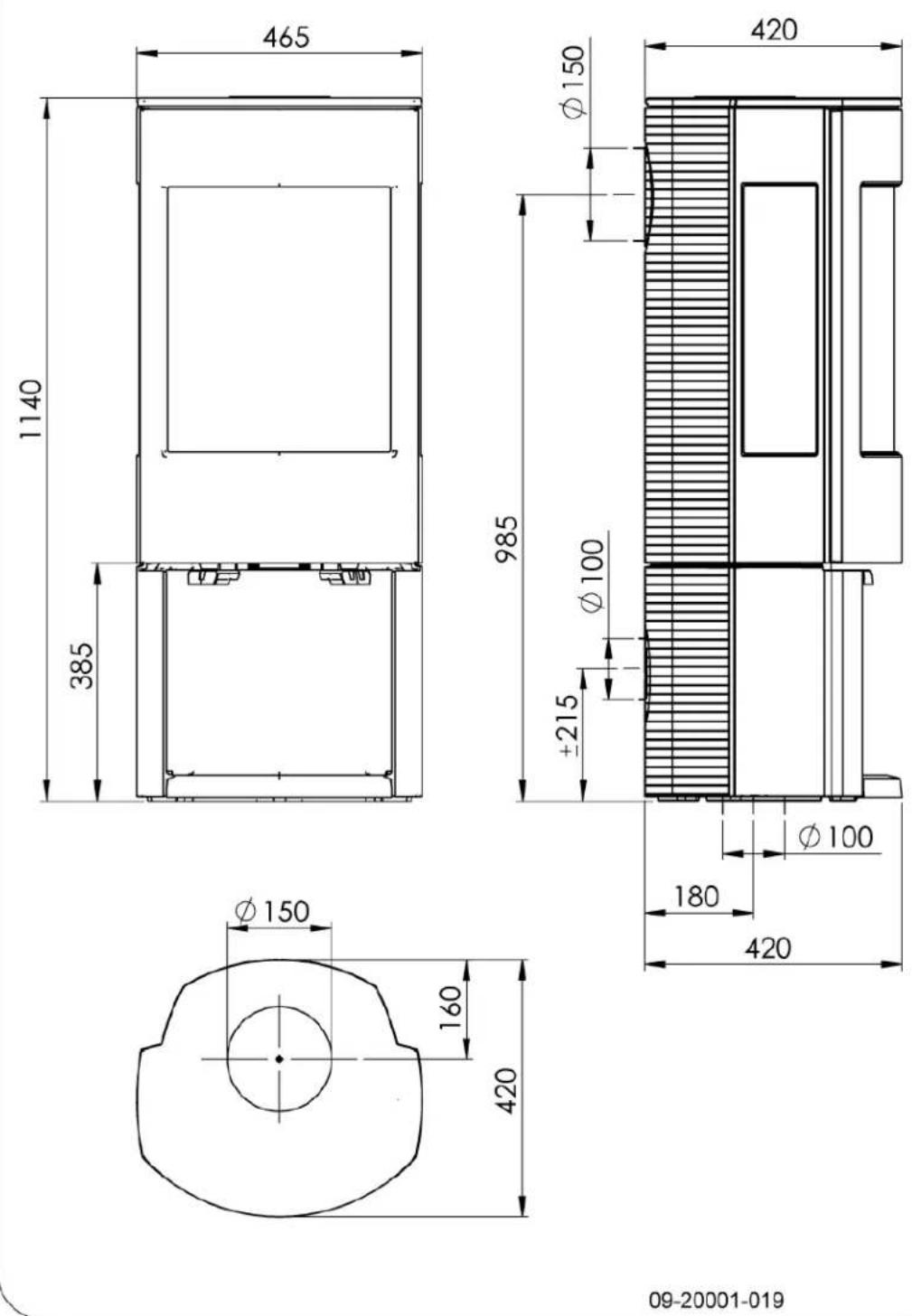

Appendix 2: Measurements.... 20

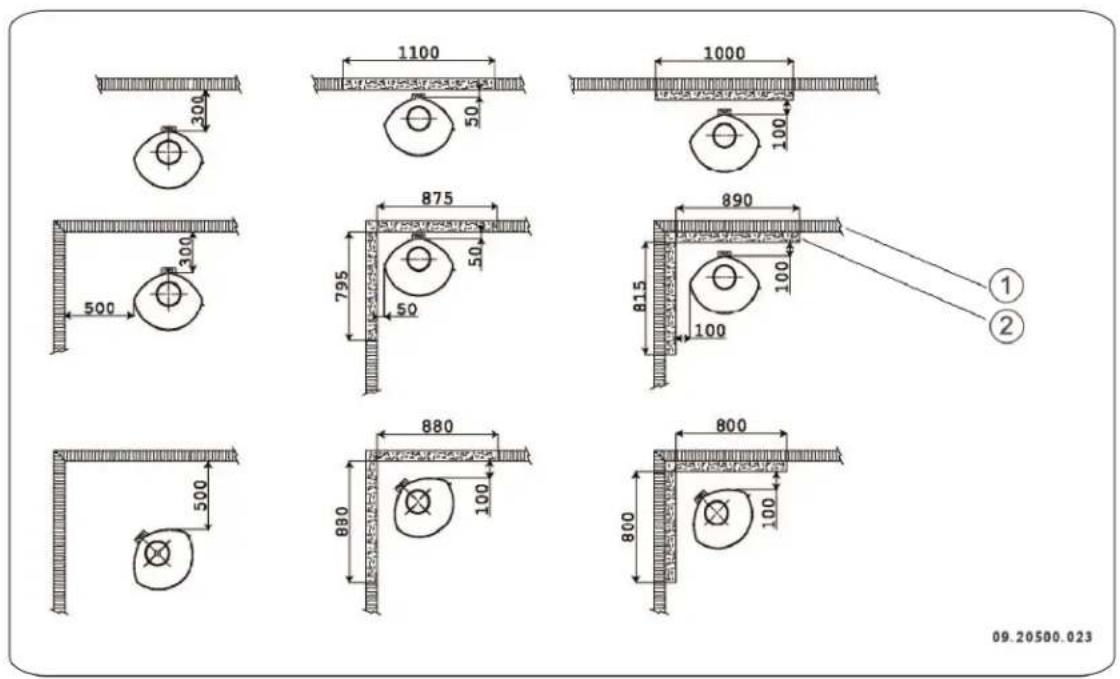

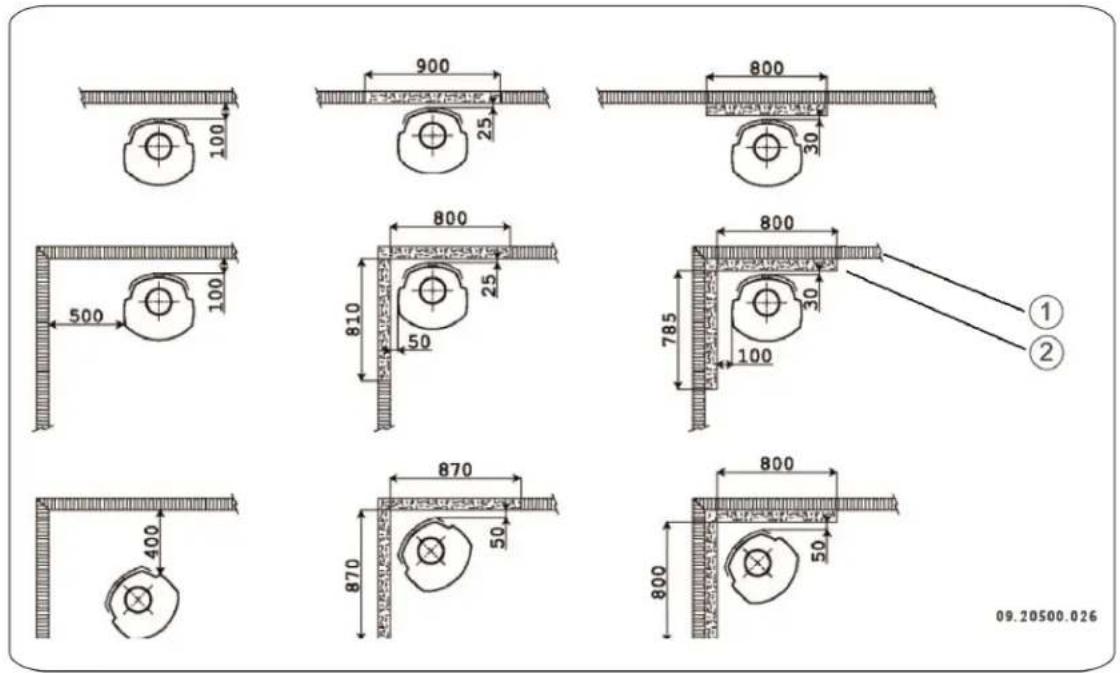

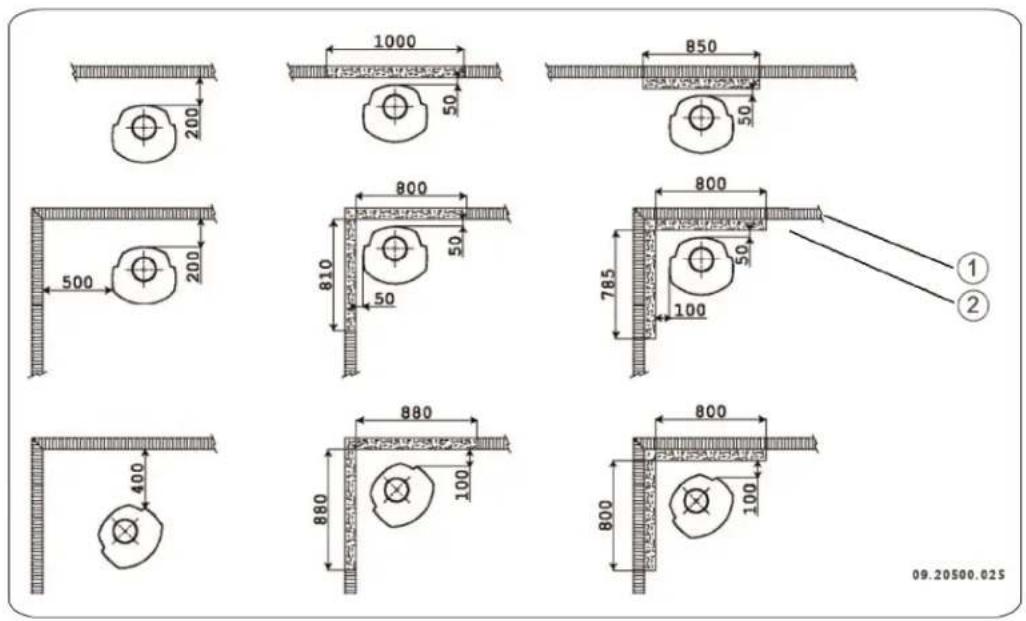

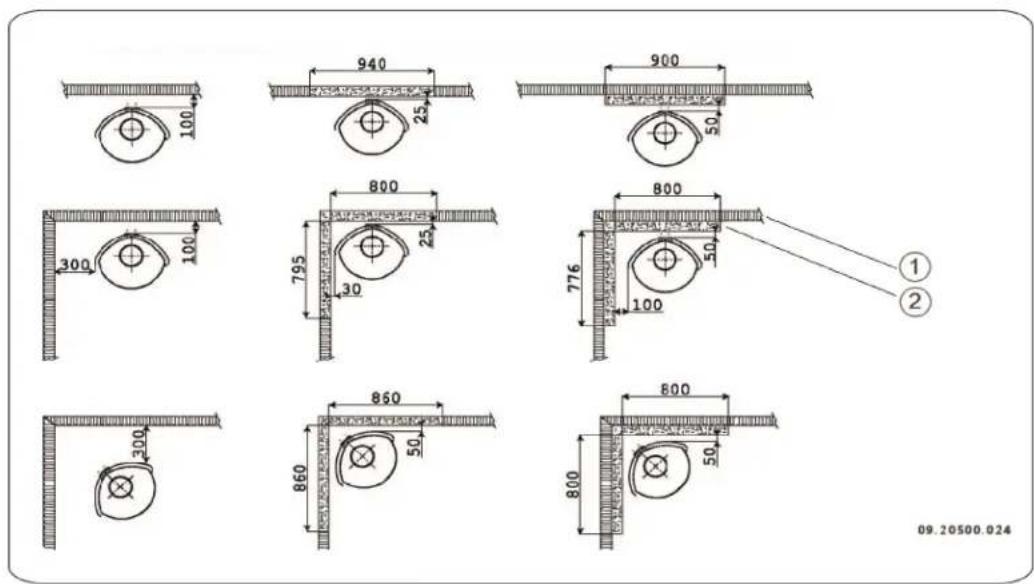

Appendix 3: Distance from combustible

material 24

Appendix 4: Diagnostic diagram.... 28

Index 29

Introduction

Dear user,

In buying this DOVRE heating appliance, you have chosen a high quality product. This product is part of a new generation of energy-efficient and environmentally-friendly heating appliances. These appliances make optimum use of convection heat as well as thermal radiation (radiant heat).

Your DOVRE appliance has been manufactured with state-of-the-art production equipment. In the unlikely event of a malfunction, you can always rely on DOVRE for support and service.
The appliance should not be modified; please always use original parts.
The appliance is intended for use in a living room. It should be connected hermetically to a well-functioning chimney. Dovre nv, Nijverheidsstraat 18 B-2381 Weelde hereby declares
We advise you have the appliance installed by a that houtkachel Astro 3MFP, Astro 3MFWB, Astro authorized and competent installer. 4MFP en Astro 4MFWB have been produced in
▶ DOVRE cannot be held liable for any problems or damage resulting from incorrect installation.
Observe the following safety regulations when Weelde 01-03-2013 installing and using the appliance.

In this manual, you can read how the DOVRE heating

appliance can be installed, used and maintained safely. Should you require additional information or T. Gehem

technical data, or should you experience an installation problem, please first contact your supplier.

Gehem Jen

© 2013 DOVRE NV

Due to continuous product improvement, the supplied appliance specifications may vary from the description in this brochure without prior notice.

DOVRE N.V.

Please note: All safety regulations must be complied with strictly.

Please read carefully the instructions supplied with the appliance for installation, use and maintenance, before using the appliance.

The appliance must be installed in accordance with the laws and requirements of your country.

All local regulations and the regulations relating to national and European standards must be observed when installing the appliance.

The appliance should preferably be installed by an authorized installer. Installers will be aware of the applicable regulations and requirements.

The appliance is designed for heating purposes. All surfaces, including the glass and connecting tube, can get very hot (over 100°C). For operation, use a so-called "cold hand" or a oven glove. Make sure there is sufficient protection if young children, disabled persons or old people are in the vicinity of the appliance.

Safety distances from flammable materials must be adhered to strictly.

Don't place any curtains, clothes, laundry or other combustible materials on or near the appliance.

Don't use flammable or explosive substances near the appliance when it is in use.

Avoid a chimney fire by having the chimney swept regularly. Never burn wood with the do open.

In the case of a chimney fire: close all air in of the appliance and alert the fire brigade.

If the glass in the appliance is broken or cracked, it must be replaced before you can use the appliance again.

Make sure there is adequate ventilation in the room where the appliance is installed. If ventilation is insufficient, combustion will be incomplete resulting in toxic gases being produced and spread through the room. See the chapter "Installation requirements" for more information on ventilation.

Installation requirements

General

The appliance must be connected tightly to a well-by functioning chimney.

For the connection measurements: see the appendix "Technical data".

Ask the fire brigade and/or your insurance company about any specific requirements and regulations.

Chimney (flue)

The flue or chimney is needed for:

▶ Removal of combustion gases via natural draught.

As the warm air in the flue or chimney is lighter than the outside air, it rises.

Air intake, needed for the combustion of fuel in the appliance.

A poorly-functioning flue or chimney can cause smoke to escape into the room when the door is opened. Damage caused by smoke emissions into the room is poor not covered by the warranty.

Do not connect multiple appliances (such as a boiler for central heating) to the same flue, unless local or national regulations allow this. In the event of two connections ensure that the difference in height between the connections is no less than 200 mm.

Ask your installer for advice regarding the flue. Refer to the European norm EN13384 for a correct calculations for the flue.

The flue must satisfy the following requirements:

The flue or chimney must be made of fire-resistant material, preferably ceramics or stainless steel.

The flue or chimney must be airtight and well-cleaned and guarantee sufficient draught.

A draught/vacuum of 15 - 20 Pa during normal operation is ideal.

Starting from the flue spigot, the flue must run a vertically as possible. Changes in direction and horizontal pieces disrupt the outward flow of combustion gases and may cause soot deposits.

To prevent combustion gases from cooling down For good combustion, the stove needs air (oxygen). too much, which reduces the draught, ensure that this air is supplied via adjustable air inlets from the interior diameter is not too big. area in which the stove is installed.

The flue or chimney should ideally have the same ⚠️ The combustion will be incomplete in case of diameter as the connection collar. insufficient ventilation, which results in toxic

For the nominal diameter: see the appendix "Technical data". If the smoke channel is well

The combustion will be incomplete in case of insufficient ventilation, which results in toxic gases being produced and spread through the area.

insulated, the diameter may be slightly bigger As a rule of thumb, the air supply should be 5, (up to 2x the section of the connection collar) cm²/kW. Extra ventilation is needed when:

The section (area) of the smoke channel must constant. Wider segments and (in particular) narrower segments disrupt the outward flow of combustion gases.

When using a cover plate or exhaust hood : make sure that the cover does not restrict the flue outlet and that the cap does not impede the outward flue ventilation louvre fitted on the outside wall. of combustion gases.

The flue must end in a zone that is not affected surrounding buildings, trees or other obstacles.

The flue outside the house must be insulated.

The chimney must be at least 4 metres high.

As a rule of thumb: 60 cm above the ridge of the roof.

If the ridge of the roof is more than 3 metres away from the flue: stick to the measurements in the following figure. A = the highest point of the roof within a distance of 3 metres.

be The stove is in an area that is well-insulated.

There is mechanical ventilation, for example a central extraction system or an extraction hood in an open kitchen.

You can provide extra ventilation by having a ventilation louvre fitted on the outside wall.

Make sure that other air consuming appliances (such as tumble-driers, other heating appliances or a bathroom fan) have their own supply of outside air, or are switched off when you use the appliance.

You can also connect the appliance to an outside air supply. This makes additional ventilation unnecessary.

Floors and walls

The floor on which the appliance is placed must have sufficient bearing capacity. For the weight of the appliance, see the appendix "Technical data".

Protect flammable flooring from heat radiation by means of a fireproof protective plate. See the appendix "Distance from combustible material".

Remove combustible material such as linoleum, carpets/rugs and similar materials below the fireproof protective plate.

Keep sufficient distance between the appliance and combustible materials such as wooden walls and furniture.

The connecting tube also radiates heat. Ensure that there is sufficient distance or a shield between the connecting tube and combustible material.

The rule of thumb for a single-walled tube is a distance of 3x the diameter. If a lining shell is fitted around the tube, a distance of 1x the diameter is permissible.

Carpets and rugs must be at least 80 cm away from the fire.

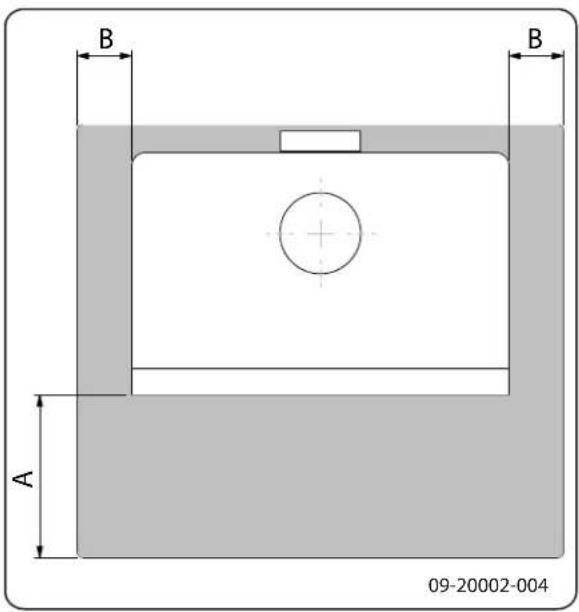

Use a fireproof floor plate to protect a flammable floor from any ash which may fall front of the stove. The protective plate must comply with national standards.

For the dimensions of the fireproof protective plate: see the appendix "Distance from combustible material".

For further requirements in connection with fire safety: see the appendix "Distance from combustible material".

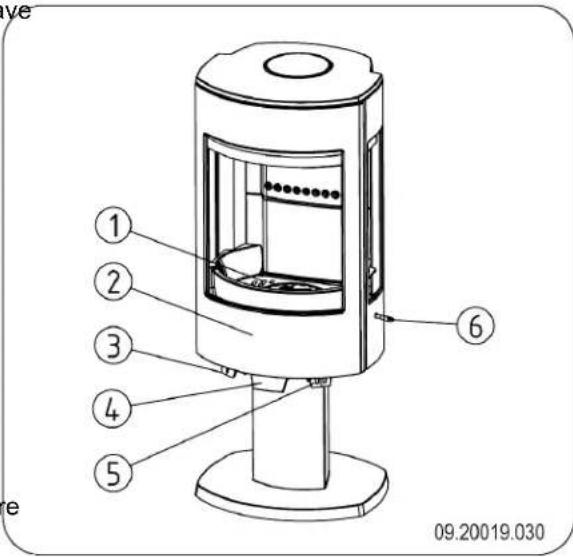

Product description

1 2 3 4 5 6 09.20019.030

1. Fire grate
2. Door

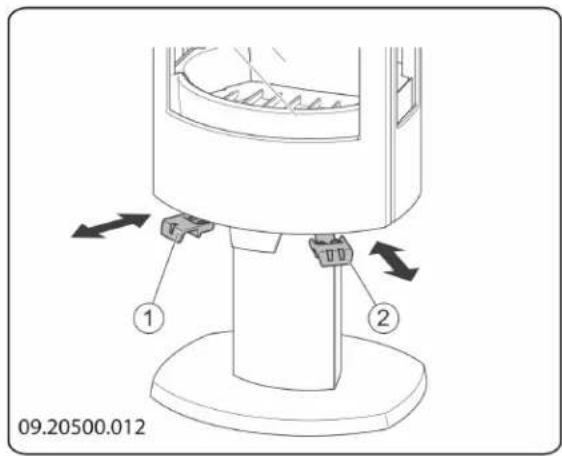

3. Primary air slide
4. Door latch
5. Secondary air slide
6. Riddling rod

Installation

General preparation

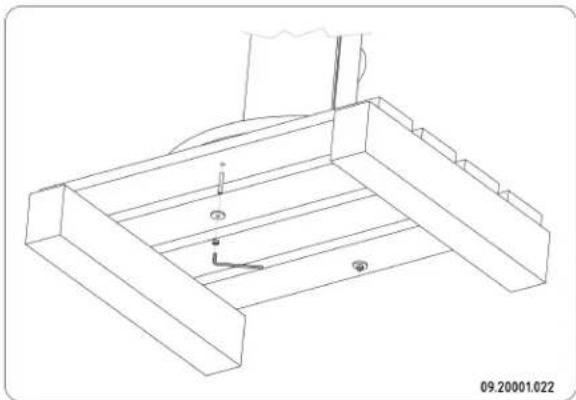

▶ Please check the appliance immediately after delivery for damage caused during transport or any other damage or defects. The appliance is attached to the pallet with screws at the bottom.

Technical line drawing of a mechanical component with mounting brackets and a central base (no text or symbols)

If you detect damage caused during transport or any other damage or defects, do not use the appliance and notify the supplier.

Remove the removable parts (fire-resistant inner plates, fire grate, top plate, ash pan) from the appliance before you start installing the appliance.

It is easier to move the appliance and to avoid damage if the removable parts have been removed.

Note the location of the removable parts, so that you can re-position the parts in the correct place later on.

the id act 09.20019.033

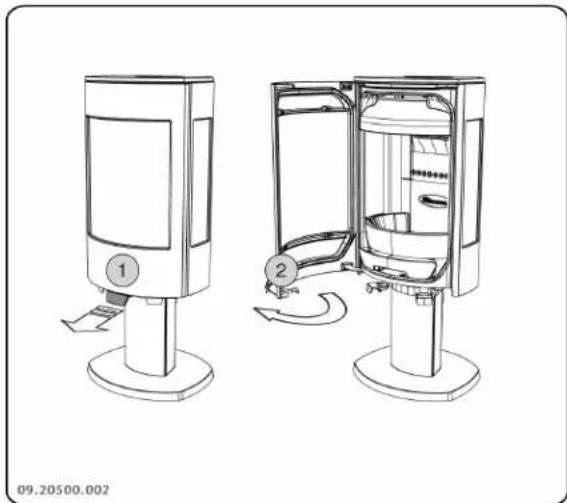

1. Open the door; see the following figure.

Technical line drawing of two views of a device with labeled components, showing internal structure and movement (no text or symbols)

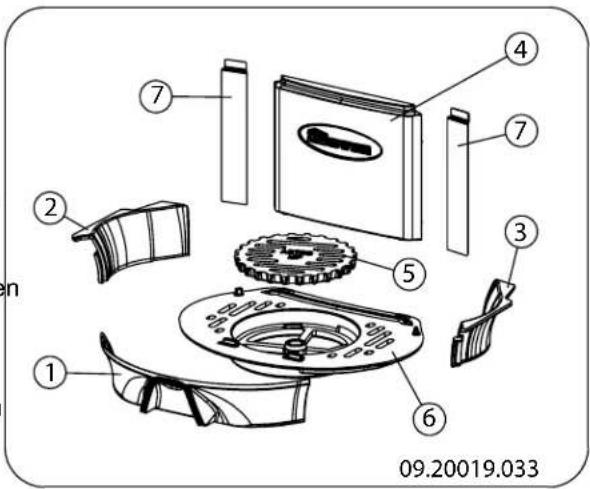

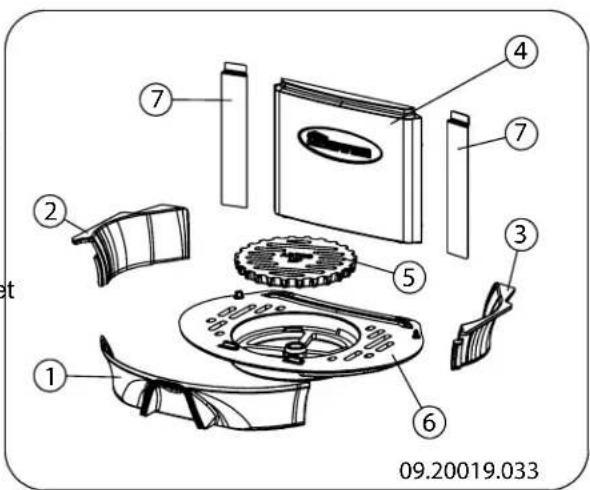

1. Remove the fire-resistant inner plates; see the following figure.

Vermiculite inner plates are light and tend to be

ochrous in colour on delivery. They insulate the combustion chamber to boost combustion. Cast iron inner plates protect the combustion chamber and dissipate heat to the surroundings.

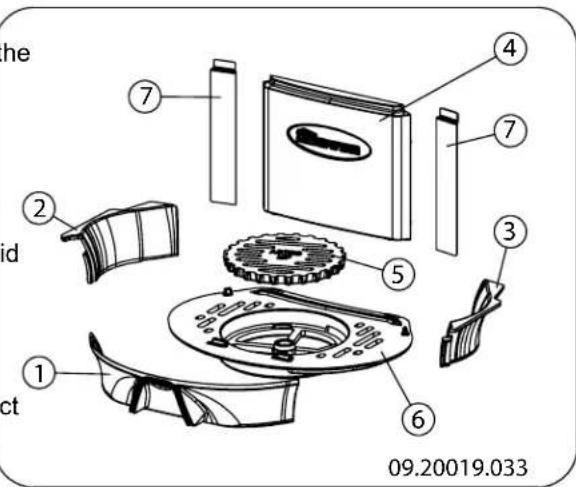

Removable internal sections

astro3 series

1 03.77099.002 Fire basket front
2 03.77400.002 Fire basket left
3 03.77401.002 Fire basket right
4 03.08365.002 Inner plate
5 03.61115.100 Grate
6 03.66532.100 Fire grate

astro4 series

1 03.77099.002 Fire basket front
2 03.77402.002 Fire basket left
3 03.77403.002 Fire basket right
4 03.08365.002 Inner plate
5 03.61115.100 Grate
6 03.66532.100 Fire grate
7 03.35210.000 Corner piece

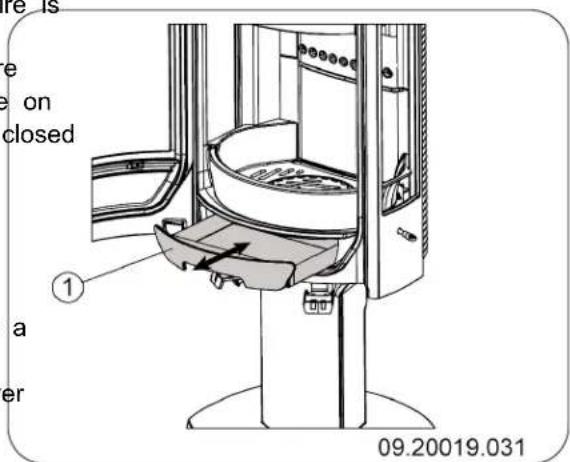

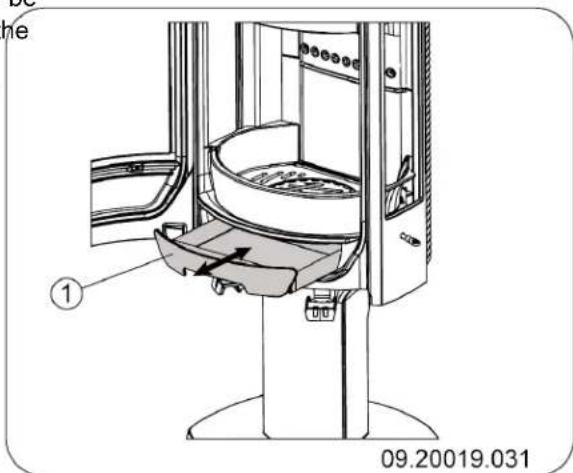

1. Remove the ash pan; see the following figure.

Technical line drawing of a mechanical device with labeled components and date (no readable text or symbols)

Preparing the connection to Connect to top the flue

When connecting the stove to the flue, you can choose to connect to the top or rear of the stove.

When the appliance is delivered, the connection on the rear is left open.

Plug the outlet you don't wish to use with the corresponding supplied cover.
▶ Install the supplied corresponding connection collar to the outlet you wish to use.
▶ Sealant and materials are supplied.

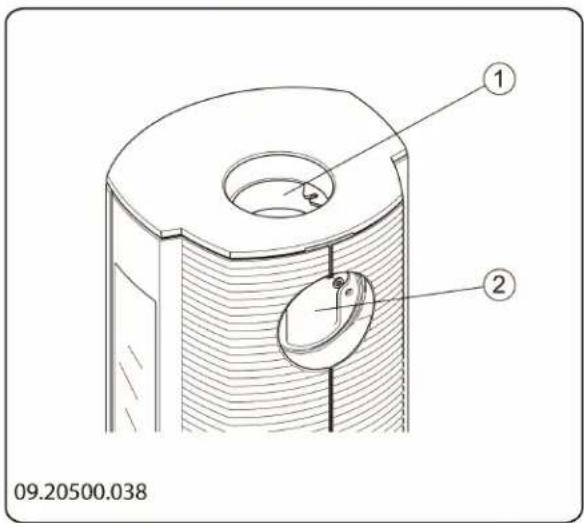

① ② 09.20500.038

1 Connection - top
2 Connection - rear

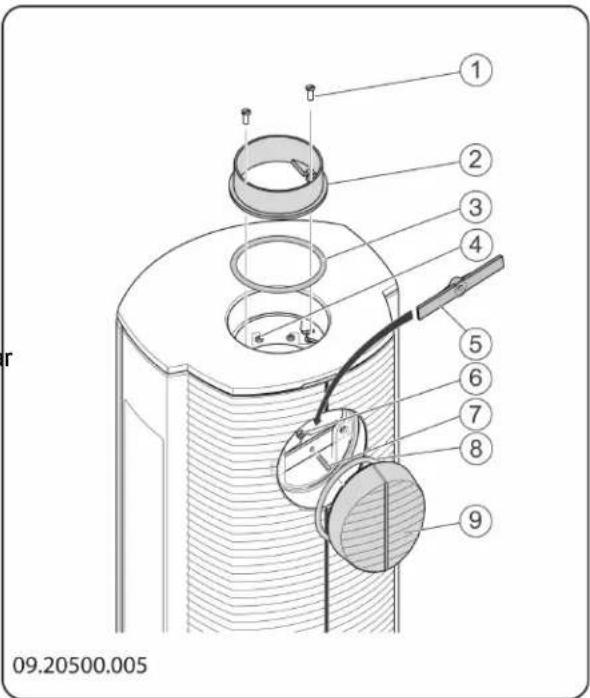

09.20500.005

1. Remove the top plate.

The top plate can be taken off the appliance just like that.

1. At the outlet at the top, apply sealant to the contact surface where the connection collar will be positioned.
2. Install the connection collar with the materials.
3. At the outlet at the rear, apply sealant to the contact surface where the cover will be positioned.
4. Install the cover using the materials.

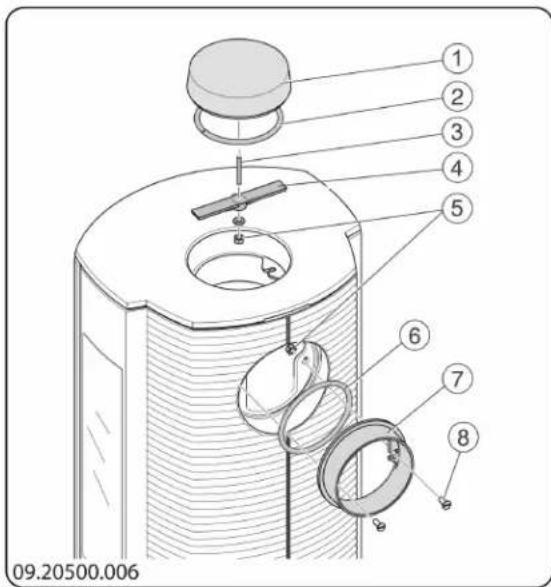

Connecting to the rear

1 2 3 4 5 6 7 8 09.20500.006

1. Remove the top plate.

The top plate can be taken off the appliance just like that.

1. At the outlet at the top, apply sealant to the contact surface where the cover will be positioned.
2. Install the cover using the materials.
3. At the rear, apply sealant to the contact surface where the connection collar will be positioned.
4. Install the connection collar with the materials.

Preparing the outside air connection

If the appliance is installed in a room without sufficient ventilation, you can install a connecting kit on the appliance for the outside air supply. Some of the air inlets on the appliance must then be plugged with the blanking material provided. We recommend applying a connection set that has a valve you can close when the stove is not in use.

The air supply tube is 100 mm in diameter. If the tube is smooth, it may be no longer than 12 metres. If accessories such as bends are used, the maximum

length (12 m) must be reduced by 1 m for each accessory used.

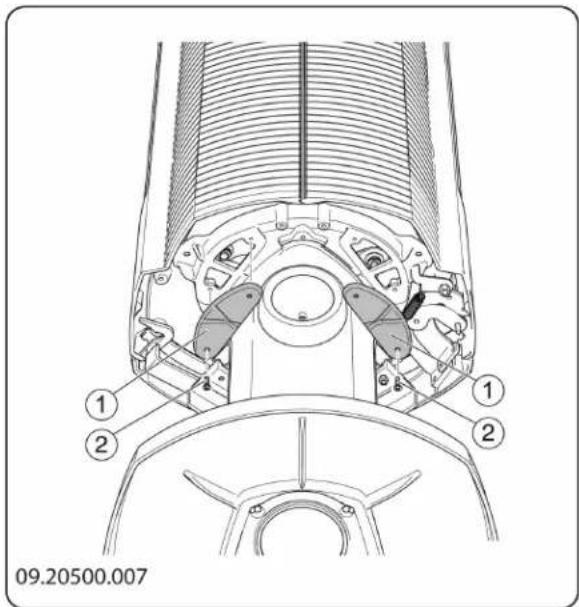

1. Close the air inlet in the bottom plate with the small cast-iron cover plates (1) and screws (2); see following figure.

By closing the air inlet in the bottom plate you prevent air being used for combustion from an insufficiently ventilated space.

09.20500.007

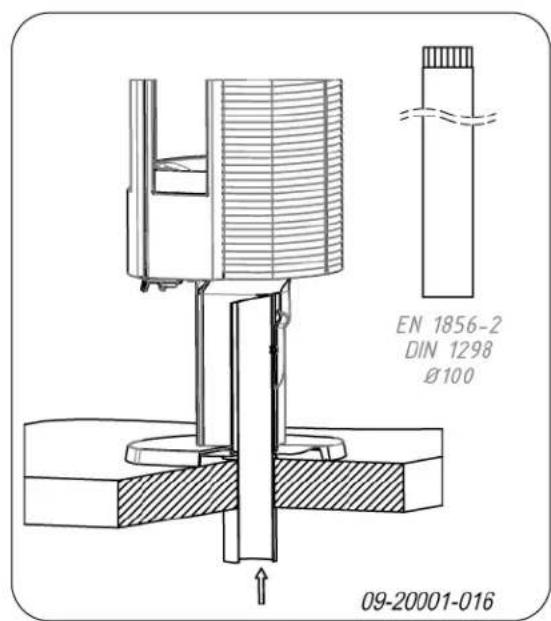

1. For connection to outside air via the floor:

a. Make an opening in the floor; see 'Appendix 2, Measurements' for the correct position of the opening.
b. Slide a straight air supply tube onto the connection collar of the stove, so that it cannot move; see following figure.

EN 1856-2 DIN 1298 Ø100 09-20001-016

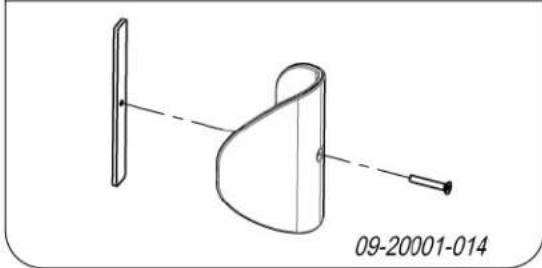

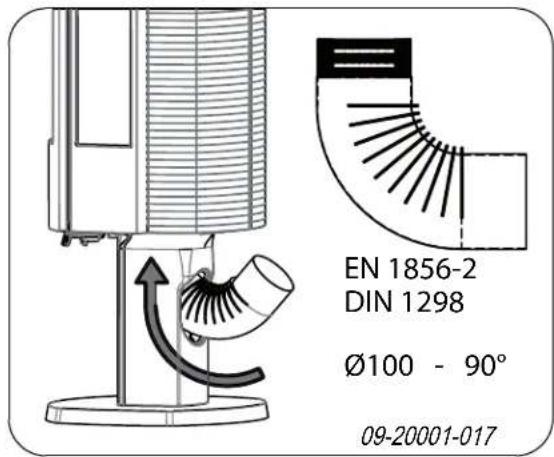

1. For connection to outside air via the rear of the appliance:

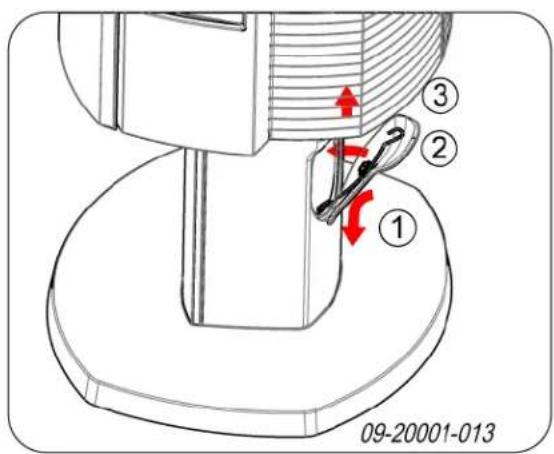

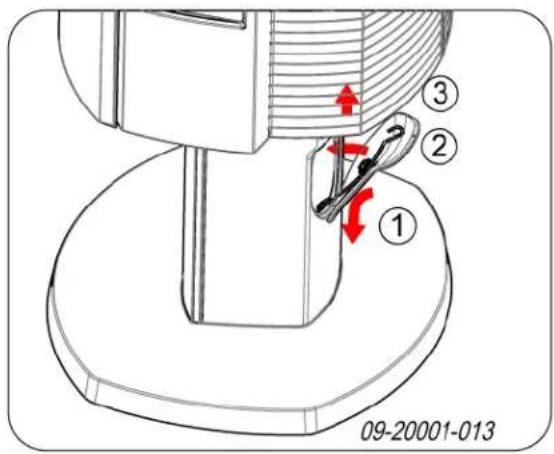

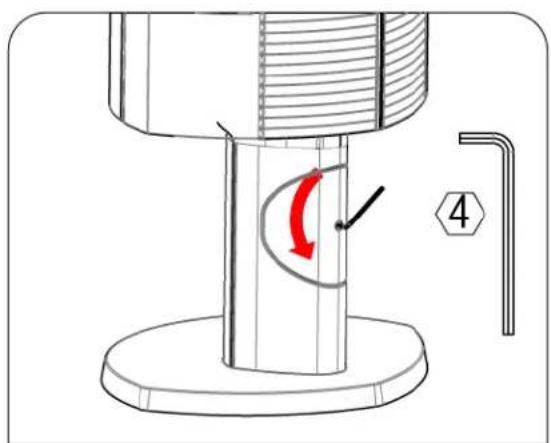

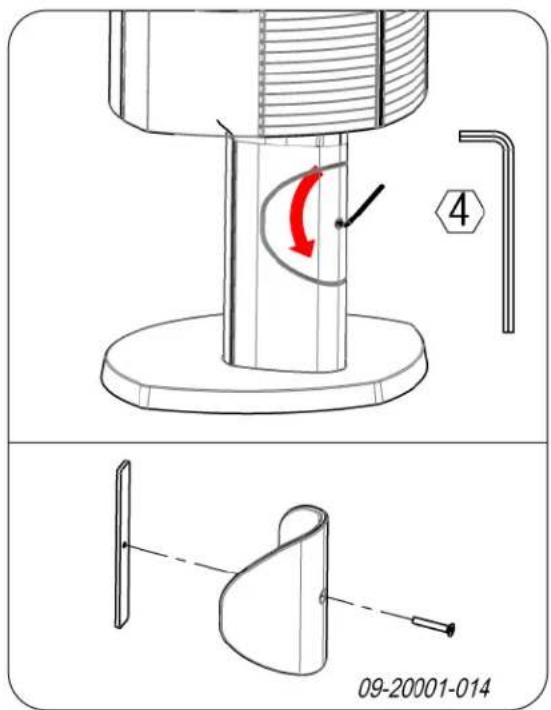

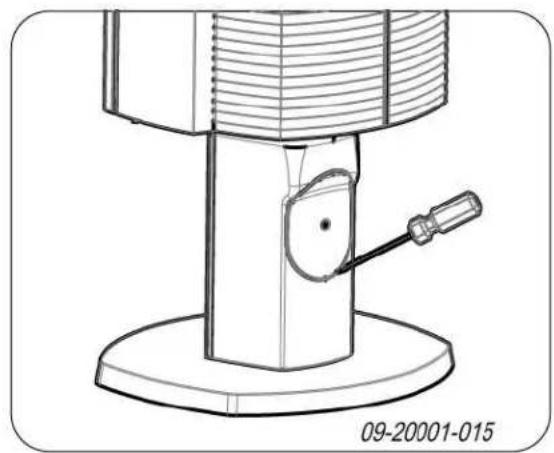

a. Create an opening in the base or the log compartment by removing the panel at the back of the base or the log compartment; see following figures.

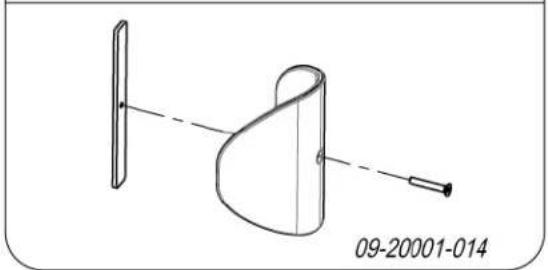

Depending on the version of the stove the cover plate is affixed either with springy clips or with a washer plate. In case of a spring fixing use a screwdriver to lift the cover plate out of its groove.

Technical line drawing of a mechanical device with a base and lever, no visible text or symbols

09-20001-013

Technical diagram showing a mechanical assembly with labeled component 4 and red curved arrows indicating motion or force direction.

Technical line drawing of a mechanical component with a curved body and a rod, no text or symbols present

b. Connect a so-called 'elbow' hermetically to the opening in the base or the log compartment so that it cannot move; see following figure.

The height for the connection through the wall may vary depending on the elbow type.

EN 1856-2 DIN 1298 Ø100 - 90° 09-20001-017

Installing and connecting

1. Position the stove in the correct place, and make sure it is level.

2. Connect the appliance airtight to the flue (chimney).

3. In the case of connection to outside air: connect the outside air supply to the connection collar within the base or log compartment of the stove or to the fitted elbow.

4. Re-position all removed parts in the correct places in the stove.

Never light a fire in the appliance without the fireproof inner plates.

The appliance is now ready for use.

Use

First use

When you use the stove for the first time, make an intense fire and keep it going for a good few hours.

This will cure the heat-resistant paint finish. This may result in some smoke and odours. You could open windows and doors for a while in the area in which stove is located.

Fuel

The appliance is suitable for the burning of natural wood; sawn and chopped wood that is sufficiently dry.

The appliance is also suitable for the burning of brown coal briquettes and anthracite coal.

Do not use other fuels, as they can cause serious damage to the stove.

You are not allowed to use the following fuels, as they pollute the environment and because they heavily soil the appliance and flue, which may lead to a chimney fire:

▶ Treated wood, such as scrap wood, painted wood, impregnated wood, preserved wood, plywood and chipboard.

Plastics, scrap paper and domestic waste.

Wood

Hardwood, such as oak, beech, birch and fruit tree wood is the ideal fuel for your stove. This type of wood burns slowly with calm flames. Softwood contains more resins, burns faster and sparks more.

▶ Use seasoned wood that contains no more than 20% moisture. The wood should have been ct seasoned for at least 2 years.

Saw the wood to size and split it while it is still fresh. Fresh wood is easier to split, and split wood dries more easily. Store the wood under a roof where the wind has free access.

Do not use damp wood. Damp logs do not produce heat as all the energy is used in the evaporation of moisture. This will result in a lot of smoke and soot deposits on the stove door and in the chimney. The water vapour will condense in the stove and can leak away through chinks in the stove, causing black stains on the floor. It may also condense in the chimney and form creosote. Creosote is a highly flammable compound and may cause a chimney fire.

Brown coal briquettes

Brown coal briquettes have approximately the same burning characteristics as wood.

▶ Ensure there is a good charcoal bed before you start burning brown coal briquettes.

For lighting the fireplace, follow the instructions in the "Lighting" paragraph.

Anthracite coal

Anthracite coal is categorised on the basis of properties, sometimes prescribed by law, such as the percentage of volatile substances. The ash content of anthracite coal is between 3% and 13%. The lower the ash content, the higher the net heating value and the less often you have to remove ash.

the appliance; see 'Controlling air combustion'.

1. Allow the fire develop into a good blaze until there is glowing bed of charcoal. You can then add fuel and adjust the appliance, see the chapter "Stoking with wood".

Burning wood

▶ Preferably use category A anthracite coal with a After you have followed the instructions for lighting : low ash content.

▶ Use the recommended size 12/22 or 20/30.

For lighting the fireplace, follow the instructions in the "Lighting" paragraph.

1. Slowly open the stove door.
2. Spread the charcoal evenly across the bottom of the stove base.
3. Stack a few logs on the charcoal.

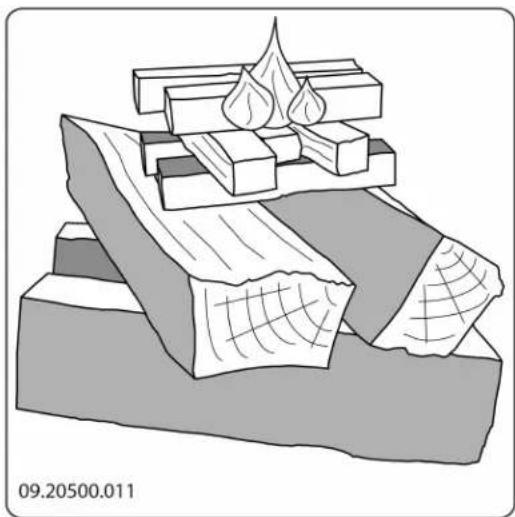

Lighting

You can check whether the flue has sufficient draugh by lighting a ball of paper above the baffle plate. A flue often has insufficient draught and consequently, some smoke may escape into the room instead of up the chimney. You can avoid this problem by lighting the fire as described below.

1. Stack two layers of medium sized logs crosswise.
2. Stack two layers of kindling crosswise on top of the logs.
3. Place a firelighter cube in the lower layer of kindling and light the cube according to the instructions on the packaging.

Open stacking

Illustration of a textured, irregularly shaped object with grid patterns, possibly geological or material (no text or symbols)

3D diagram of layered geological strata with no visible text or symbols

If the logs are stacked openly, the wood will burn quickly as the oxygen can reach each log easily. If you want to use the stove for a short while, make an open stack.

1. Close the door of the appliance and open the primary air inlet and open the secondary air inlet of

Compact stacking

Illustration of fragmented stone or mineral fragments with visible grain patterns (no text or symbols)

1. Slowly open the stove door.
2. Spread the charcoal evenly across the bottom of the stove base.
3. Place the brown coal briquettes on the charcoal bed.
4. Close the door.
5. Regularly remove ashes from the stove base riddling the grate. Use the cold handle to operate the riddling rod.

Burning anthracite coal

Always close the secondary air slide when burning anthracite coal.

Set the fuel choice air valve to the closed position.

If the logs are stacked tightly, the wood will burn more slowly as the oxygen can only reach some logs. After you have followed the instructions for lighting:

easily. If you want to burn wood for a longer period, Open the primary air slide completely.

make a compact stack.

1. Close the door of the appliance.

2. Close the primary air inlet and leave the secondary air inlet open. 4.

Fill the appliance up to one third capacity.

Burning brown coal briquettes

Brown coal briquettes burn in almost the same way wood. Using the primary air inlet, ensure sufficient supply of air under the fire. For further information the paragraph "Burning wood".

Burning brown coal briquettes creates a lot of ash. Regularly remove excess ash. See the paragraph "Removing ashes" for instructions.

For the properties and use of brown coal briquettes: consult your brown coal briquettes supplier or see the brown coal briquettes' packaging.

1. Slowly open the stove door.
2. Spread the charcoal evenly across the bottom of the stove base.

3. Spread a shovelful of coal on the charcoal bed and wait with the next shovelful until the coals start to glow.

4. Now add more coal.

Be careful not to smother the fire by adding too much coal at once.

You have added as much as you can once the glow of the previous load is only just visible.

1. Close the door.

2. Allow the coals to burn well for a few minutes and control the air supply using the primary air slider.

If the fire basket or the cast-iron plates start to glow red you have overfed the fire.

1. Regularly remove ashes from the stove base riddling the grate. Use the cold handle to operate the riddling rod.

After you have followed the instructions for lighting:

Controlling combustion air

The appliance has various features for air control; see following figure.

09.20500.012

1. The primary air slide is open in pulled out position and closed in pushed back position.
2. The secondary air slide is open in pulled out position and closed in pushed back position.

The primary air slide controls the air flow under the grille (1); see following figure.

The secondary air slide controls the air flow for the glass and the vents in the back wall (2).

09.20019.032

Advice

⚠️ Never burn wood with an open door.
Regularly burn wood with intense roaring fires.

If you frequently have low intensity fires, tar and creosote may be deposited in the chimney

. Tar and creosote are highly combustible substances. Thicker layers of these

substances may catch fire if the temperature in Use the riddling rod to free the grate of excess the chimney increases suddenly. By allowing ashes.

the fire to burn very intensely regularly, layers of tar and creosote will disappear.

Low intensity fires also cause tar deposits on the stove window and door.

When the outside temperature is not very low, it is better to burn wood intensely for a few hours instead of having a low intensity fire for long period of time.

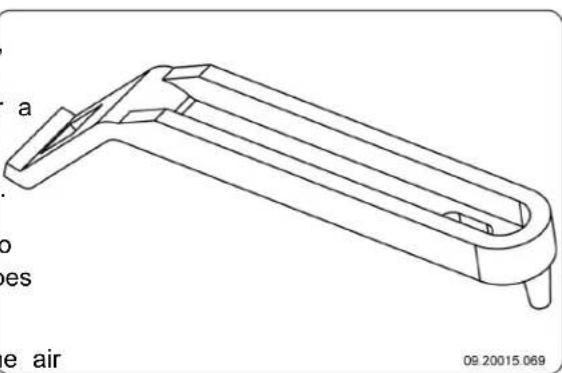

If the appliance is still warm, use the "cold hand" to operate the riddling rod.

▶ Control the air supply with the secondary air inlet

The secondary air inlet not only supplies air to the fire but to the glass as well, so that it does not quickly become dirty.

Open the primary air inlet for the time being if the air supply by the secondary air inlet is inadequate or if you want to fan the fire. 2. Op

It is better to add a small amount of logs regularly. Using the scraper, sweep the remaining ashes than to add many logs at the same time. through the grid.

Technical line drawing of a mechanical component with no visible text or symbols

Extinguishing the fire

1. Open the stove door.

aay Using the scraper, sweep the remaining ashes through the grid.

Do not add fuel and just let the fire go out. If a fire is damped down by reducing the air supply, harmful substances will be released. For this reason, the fire should be allowed to go out naturally. Keep an eye on the fire until it has gone out. All air inlets can be closed once the fire has died completely.

Removing ashes

After the wood has been burnt, a relatively small amount of ashes is left over. This bed of ashes is a good insulating layer for the stove base plate and improves combustion. It is good to leave a thin layer of ashes on the stove base plate.

1. Remove the ashtray (see next figure) using the glove provided and empty the ashtray.

re is e on closed a er ① 09.20019.031

The flow of air through the fire plate must not be obstructed, however, and no ash may be allowed to5. Replace the ash pan and close the stove door. accumulate behind a cast-iron inner plate. Remove the excess ash regularly. Fog and mist

After the brown coal briquettes and anthracite coal has been burnt, a relatively large amount of ash is over. No ash may be allowed to accumulate underneath the fire grate and the ash should never reach the bottom of the grate. This will cause the grate to overheat and be damaged. Fog and mist hinder the flow of flue gases through the flue. Smoke can blow back and cause a stench. If it is not strictly necessary, it is better not to use the stove in foggy and misty weather.

problems

Refer to the appendix "Diagnostic diagram" to resol any problems in using the stove.

To reach the nominal output, approximately 2 kg of fuel needs to be burnt every 45 minutes

Remove and install baffle plate

Unscrew the clamping plate on the front of the baffle plate. Lift the baffle plate from the support and tilt the baffle plate out of the appliance. Please ensure that the rear of the baffle plate properly connects to the air tunnel at the back of the appliance when reinstalling.

Maintenance

Follow the maintenance instructions in this chapter to keep the stove in good condition.

Chimney

In many countries, you are required by law to have your chimney checked and maintained.

At the beginning of the heating season: have the chimney swept by an expert.
During the heating season and after the chimney has not been used for a long time: have the chimney checked for soot deposits.
▶ After the heating season: seal off the chimney with a ball of paper.

Cleaning and other regular maintenance activities

Do not clean the stove when it is still warm!

Clean the exterior of the stove with a dry lint-free cloth.

You can clean the stove interior thoroughly at the end of the heating season:

If necessary, first remove the fire-resistant inner plates. See the chapter "Installation" for instructions on removing and installing the inner plates.
If necessary, clean the air supply ducts. Remove the top plate to this end. The top plate lies loosely on the appliance.
If required, remove the baffle plate at the top of the appliance and clean it.

Technical line drawing of a mechanical assembly with no visible text or symbols

09.20019.034

Checking fire-resistant inner plates

The fire-resistant inner plates are consumables and subject to wear. Vermiculite inner plates are fragile. Do not knock the inner plates with logs. Check the fire-resistant inner plates frequently and replace them when necessary.

See the chapter "Installation" for instructions on removing and installing the inner plates.

The insulating vermiculite or chamotte inner plates may develop hairline cracks, but this does not affect their performance adversely.

Cast-iron inner plates last a long time if you remove frequently the ash that can accumulate behind them. If accumulated ash behind the cast-iron plate is not removed, the plate will no longer be able to dissipate the heat to the surroundings and this may cause the plate to warp or crack.

Never use the stove without the fire-resistant inner plates.

Cleaning glass

Dirt clings less easily to well-cleaned glass. Proceed as follows:

1. Remove dust and loose soot with a dry cloth.

2. Clean the glass with stove glass cleaner:

a. Apply stove glass cleaner to a kitchen sponge, rub down the entire glass surface and give the cleaning agent time to react.

b. Remove the dirt with a moist cloth or kitchen tissue.

1. Clean the glass again with a normal glass cleaning product.

2. Rub the glass clean with a dry cloth or kitchen tissue.

Do not use abrasive or aggressive products to clean the glass.

▶ Wear household gloves to protect your hands.

If the glass in the appliance is broken or cracked, it must be replaced before you can use the appliance again.

Make sure that no stove window cleaner runs between the glass and the cast-iron door.

Lubrication

Although cast-iron is slightly self-lubricating, you will still need to lubricate moving parts frequently.

Lubricate the moving parts (such as guide systems, hinge pins, latches and air slides) with heat resistant grease that is available in the specialist trade.

Touching-up the paint finish

Small areas of damaged paint finish can be touched-up with a spray can of special heat-resistant paint, available from your supplier.

Areas of damaged enamel can be touched up with a special heat-resistant paint finish that is available from your supplier.

Checking the seal

▶ Check whether the door sealing rope is still in good condition and works well. The sealing rope is subject to wear and will need to be replaced over time.

Check the appliance for air leaks. Close any chinks with stove sealant.

Allow the sealant to harden fully before lighting the stove, as any moisture in the sealant will form bubbles, resulting in a new air leak.

Appendix 1: Technical Data

Model	Astro 3MFAstro 4MF
Fire regime Non continuous use
Nominal output 8 kW
Chimney connection (diameter) 150 mm
Weight +/- 140 kg

Recommended fuel Wood		Brown coal briquettes	Anthracite coal
Fuel property max. 33 cm 3" - 6" - 7"			12/2220/30
Mass flow of flue gases 7.4 g/s	6.1 g/s	7.3 g/s
Flue gas temperature in measurement section	sec-297 °C	252 °C	261 °C
Temperature at the appliance outlet	351 °C	454 °C	321 °C
Minimum draught	12 Pa	12 Pa	12 Pa
CO emission (13%Q)	0,09 %	0,04 %	0,10 %
NOx emission (13%Q)	123 mg/Nm ^3	151 mg/Nm ^3	123 mg/Nm ^3
CnHm emission (13%Q)	71 mg/Nm ^3	28 mg/Nm ^3	90 mg/Nm ^3
Particulate emission	18 mg/Nm ^3	17 mg/Nm ^3	15 mg/Nm ^3
Efficiency	76,7 %	82,8 %	80,0 %

Model	Astro 3MFAstro 4MF
Fire regime Continuous use
Nominal output 8 kW
Chimney connection (diameter) 150 mm
Weight +/- 140 kg

Recommended fuel Brown coal briquettes Anthracite coal
Fuel property 3" - 6" - 7"		12/2220/30
Mass flow of flue gases 7 g/s	8.6 g/s
Flue gas temperature in the measurement section	252 °C	247 °C
Temperature at the appliance outlet	440 °C	301 °C
Minimum draught	12 Pa	12 Pa
CO emission (13% _2 )	0,13 %	0,16 %
NOx emission (13% _2 )	161 mg/Nm ^3	116 mg/Nm ^3
CnHm emission (13% _2 )	45 mg/Nm ^3	85 mg/Nm ^3
Particulate emission		5 mg/Nm ^3
Efficiency	79,8 %	79,5 %

Appendix 2: Measurements

ASTRO 3MFP

09-20001-020

ASTRO 3MFWB

09-20001-018

ASTRO 4MFP

09-20001-021

ASTRO 4MFWB

09-20001-019

Appendix 3: Distance from combustible material

ASTRO 3

Minimum distances for versions without heat shield:

1100 50 1000 300 100 500 875 50 795 890 100 815 100 880 100 880 800 100 ① ② 500 500 500 500 800 800 09.20500.023

If the distance between the connecting tube and combustible materials is less than 300 mm the connecting tube should be protected.

1. Combustible material
2. Incombustible material, thickness 100mm

Minimum distances for versions with heat shield:

940 25 900 100 800 25 795 30 800 100 776 800 ① ② 300 100 300 860 50 860 800 50 800 09.20500.024

1. Combustible material
2. Incombustible material, thickness 100mm

ASTRO 4

Minimum distances for versions without heat shield:

1000 850 200 50 50 800 800 50 810 50 785 100 400 880 100 880 800 100 ① ② 09.20500.025

If the distance between the connecting tube and combustible materials is less than 300 mm the connecting tube should be protected.

1. Combustible material
2. Incombustible material, thickness 100mm

Minimum distances for versions with heat shield:

900 800 100 25 30 800 810 25 50 785 100 870 800 400 50 870 800 50 ① ② 09.20500.026

1. Combustible material
2. Incombustible material, thickness 100mm

ASTRO 3 and ASTRO 4 - Dimensions of fireproof floor plate

B A 09-20002-004

Minimal dimensions of fireproof protective plate

	A (mm)	B (mm)
Din 18891 500 300
Germany 500 300
Finland 400 100
Norway 300 100

Appendix 4: Diagnostic diagram

					Problem
●					Wood will not stay lit
	●				Gives off insufficient heat
		●			Smoke emissions into the room when adding wood
			●		Fire in stove is too intense, is hard to adjust
				●	Deposit on the glass
					Possible cause Possible	solution
●	●	●		●	Insufficient draught	A cold flue usually failsto create sufficient draught. Follow the instructions for lighting in the "Use" chapter; open a window.
●	●	●		●	Wood too damp Use wood with no more than 20%moisture.
●	●	●		●	Logs too large	Use small piecesof kindling. Use split logs no larger than 30 cm in circumference.
●	●	●	●	●	Wood stacked incorrectly	Stackthe logs in a way that allows adequate air flow between the logs (open stacking, see "Burning wood")
●	●	●		●	Chimney does not work properly	Check whether the chimney meets the requirements: at least 4 metres high, right diameter, well insulated, smooth inside, not too many bends, no obstructions in chimney (bird'snest, too much soot deposit), hermetically tight (no chinks).
●	●	●		●	Chimney stack incorrect Sufficiently high above the roof, no obstacles in the vicinity
●	●	●	●	●	Air inlets set incorrectly Open the air	inlets completely.
●	●	●		●	Stove connected to the chimney incorrectly	Connection should be hermetically tight.
●	●	●		●	Vacuum in area in which the stove is installed	Switch off extraction systems.
●	●	●		●	Insufficient supply of fresh air	Provide an adequate air supply; if necessary use outside air connection.
●	●	●		●	Adverse weather conditions? Inversion (reversed air flow in chimney because of a high outside temperature) if required, installan extra hood on the flue to increase the draught. extreme wind speeds	We recommend you don't use the appliance in the case of inversion.
		●			Draught in the living room	Avoid draught in the living room, do not place the appliance near a door or heating air ducts.
				●	Flames touch the glass	Make sure the wood is not positioned too close to the glass. Slide the primary air inlet cover closer to the "Closed" position.
			●		Stove is leaking air Check the door seals and stove joints.

Index

A

Adding fuel 15

Adding wood smoke emissions into the room 28....

Air control.14....

Air inlets 12

Air leak.17....

Air supply for fire 15

Anthracite coal.12....

Ash pan remove .7....

Ashes remove .15....

Ashtray open 15

B

Bearing capacity of floor Floors

bearing capacity 6

Brown coal ash....13 burning....13

Brown coal briquettes.... 11

Burning adding fuel.... 13 anthracite coal.... 13 brown coal briquettes.... 13

Burning wood.... 12 add fuel.15..... adding logs.... 12 appliance is hard to adjust.... 28 fire is too intense.... 28 insufficient heat.... 16, 28

C

Carpet 6

Cast iron fire resistant....7 inner plates....7

Cast iron inner plates.... 7

Chimney connection diameter.... 18-19 connection to.... 11

height 5

prepare connection 8

sweep 16

Chinks in appliance 17

Clean glass 16

Cleaning appliance 16

Coal ash content 12

Combustible material distance from 24

Combustion air control.... 14

Connection measurements 20

Connection collar for connection to chimney 8

Connection set for outside air supply.... 9

Connection to chimney....8 at top....8 top....8

Connection to outside air supply.... 9

Control air supply 15

Cover on flue.... 5

Creosote 14

D

Damage 7

Damp wood.... 11

Door open .... 7 sealing rope.... 17

Draught .18-19..... Drying wood.... 11

E

Efficiency 18-19

F

Filling height 13

Fire extinguishing .... 15 lighting .... 12

Fire-resistant inner plates maintenance .... 16 remove 7....

Fire going out.... 15

Fire regime.18-19....

Fire safety

distance from combustible material.24....

floor 6

furniture 6.

walls 6

Fireproof inner plates

warning 1.1

Floors

fire safety 6

Flue

maintenance 16

requirements 5

Flue gas

mass flow..18-19....

temperature 18-19

Fog, do not burn wood..15.

Foot

cover plate.... 10

Fuel

adding 15

adding wood 13

anthracite coal.... 11-12

brown coal 11

brown coal briquettes.... 11

necessary amount.... 16

required amount.... 16

suitable 11

unsuitable 11

wood 11

G

Glass

clean 16

deposit 28

H

Heat, insufficient 16

Heat,insufficient 28

Hood on the flue 5

|

Inner plates

cast iron 7

vermiculite 7

Inner plates, fire-resistant

remove 7

Install

connection set for outside air supply.... 9

Installation

measurements 20

K

Kindled fire 12

Kindling 28

L

Lighting 12

Lubricant 17

Lubricate .17....

M

Maintenance

chimney 16

clean glass.... 16

cleaning the appliance 16

fire-resistant inner plates.... 16

lubrication 17

sealing 17

Measurements 20

Mist, do not burn wood.... 15

N

Nominal output.... 16, 18-19

0

Open

ashtray 15

door .7....

Outside air

install connection set 9....

Outside air intake

connection to.... 11

Outside air supply 9

P

Paint finish 11

Particulate emission.... 18-19

Parts, removable 7

Prevent a chimney fire.... 14

Primary air inlet 12

R

Removable parts 7

Removal of ashes..15....

Remove ash pan.7..... fire-resistant inner plates 7....

Remove ashes 15....

Removing ash brown coal.13....

S

Screens clean .16..... deposit .28....

Sealing rope for door 17

Secondary air inlet 12

Smoke on first use.... 11

Smoke emissions into the room 4,28

Softwood 11

Solving problems 16, 28

Stacking logs.... 12

Storing wood 11

Stove window cleaner.... 16

Suitable fuel 11

Supply of outside air.... 5

Sweep chimney 16

T

Tar 14

Temperature 18-19

U

Unsuitable fuel.... 11

v

Ventilation .5..... connect outside air supply.... 9 rule of thumb.... 5

Ventilation louvre 5

Vermiculite fire-resistant 7

Vermiculite inner plates.... 7

w

Walls fire safety 6

Warning chimney fire....4, 11, 14 combustible materials....4 fireproof inner plates....11 glass broken or cracked....4, 17 hot surface....4 regulations....4 stove window cleaner....17 terms and conditions for insurance....4 ventilation....4-5

Weather conditions, do not burn wood.... 15 Weight.... 18-19 Wood.... 11 damp.... 11 does not keep burning.... 28 drying.... 11 right sort.... 11 storing.... 11

Table des matières

Introduction 3

(missing or bad snippet)

Technical line drawing of a mechanical component or bracket with mounting holes and internal features (no text or symbols)

Technical line drawing of two views of a device with labeled components, showing internal structure and movement (no text or symbols)

09.20019.033

Technical line drawing of a mechanical device with labeled component (1), no readable text or symbols beyond date and number

Technical line drawing of a mechanical device with a screwdriver inserted, no visible text or symbols

09-20001-013

Technical diagram showing a mechanical assembly with labeled component 4 and red curved arrows indicating motion or force direction.

Technical line drawing of a mechanical component with a curved body and a rod, no text or symbols present

Illustration of a textured, irregularly shaped object with no visible text or symbols

Illustration of fragmented stone or mineral fragments with visible grain patterns (no text or symbols)

Line drawing of a mechanical component with a U-shaped body and two protruding pins (no text or symbols)

Technical diagram of a mechanical assembly with labeled component (1), showing internal components and no readable text or symbols.

09.20019.034

Raccordement dimensions

Pose

dimensions 20

Technical line drawing of a mechanical component with mounting brackets and internal features (no text or symbols)

Technical line drawing of two views of a device with labeled components, showing internal structure and movement (no text or symbols)

Technical line drawing of a mechanical device with labeled component (1), no readable text or symbols beyond part number and date

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

09-20001-013

Technical diagram showing a mechanical assembly with labeled component 4 and red curved arrows indicating motion or rotation.

Technical line drawing of a mechanical component with a curved body and a vertical rod, labeled '09-20001-014' (no text or symbols on the diagram itself)

Illustration of layered geological strata with no visible text or symbols

Illustration of a broken stone or carpet with visible grain patterns and a gray rectangular block (no text or symbols)

Illustration of a broken stone or mineral sample with visible grain patterns and texture (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Technical line drawing of a mechanical device with labeled component (1), no readable text or symbols beyond part number and date

Technical line drawing of a mechanical assembly with internal components and labeled parts (no readable text or symbols)

Technical line drawing of a mechanical component or bracket with mounting holes and internal features (no text or symbols)

Technical line drawing of two views of a device with labeled components, showing internal structure and movement (no text or symbols)

Componentes interiores desmontables

serie astro3

1 03.77099.002 Salva-troncos delantero
2 03.77400.002 Salva-troncos izquierdo
3 03.77401.002 Salva-troncos derecho
4 03.08365.002 Placa refractaria
5 03.61115.100 Parrilla sacudidora
6 03.66532.100 Parrilla de combustión

serie astro4

1 03.77099.002 Salva-troncos delantero
2 03.77402.002 Salva-troncos izquierdo
3 03.77403.002 Salva-troncos derecho
4 03.08365.002 Placa refractaria
5 03.61115.100 Parrilla sacudidora
6 03.66532.100 Parrilla de combustión
7 03.35210.000 Perfil angular

Technical line drawing of a mechanical device with labeled component (1), no readable text or symbols beyond part number and date

Technical line drawing of a mechanical device with a base and cylindrical component (no text or symbols)

09-20001-013

Technical diagram showing a mechanical assembly with labeled component 4 and red curved arrows indicating motion or force direction.

Technical line drawing of a mechanical component with a curved body and a vertical rod, labeled 09-20001-014 (no text or symbols on the diagram itself)

3D diagram of layered geological or material structure with no visible text or symbols

Alimentar con leña

Illustration of a textured, folded object with geometric patterns (no text or symbols)

Illustration of fragmented 3D geometric blocks with grid patterns, no text or symbols present

Technical line drawing of a mechanical component (no text or symbols)

Technical line drawing of a mechanical device with labeled components and date (no readable text or symbols)
