USER MANUAL FPS Duronic

FPS - Floor Projector Screen

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

DURONIC

Contents

English Manual 5

• Remove all packaging and set aside.
• Clear a large enough area to assemble the screen. Make sure the area is larger than the sides of the screen.
  Assembly of the screen can be done by one person.
• Do not assemble the screen in areas of high temperature to avoid incurring any damage to the screen.
• Ensure that you read through this manual entirely before beginning to assemble the screen.

Assembly Instructions

Lift out the projector screen from the box and place on an even floor.

In order to protect the screen from getting marked or stained, ensure that the screen is kept away from dust and dirt.

Decide on a location for your screen. The FPS screen is a freestanding screen, so can stand upright in almost any location you need it to.

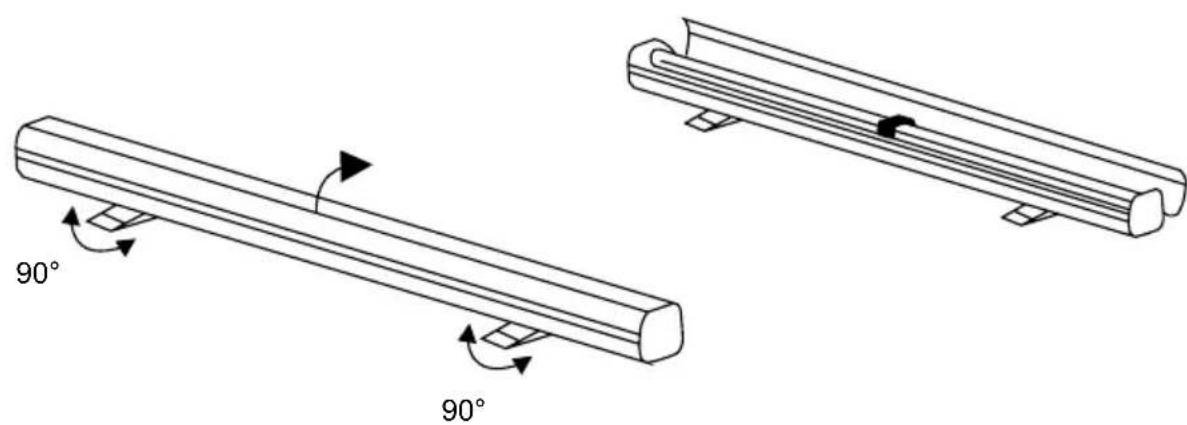

1. Rotate the two support feet outwards so that they are 90 degrees from the screen case.
2. Open the lock by pressing the UNLOCK button, and then open the top of the screen case.

Extending the Screen

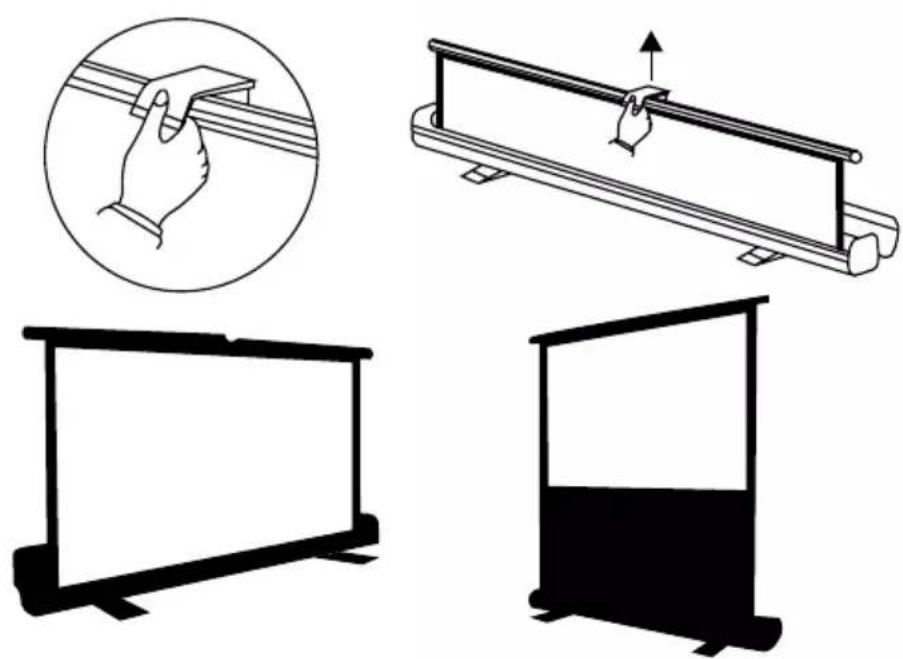

1. Pull the handle indicated with the yellow label. Pull it upwards until the maximum height has been reached.

Retracting the Screen

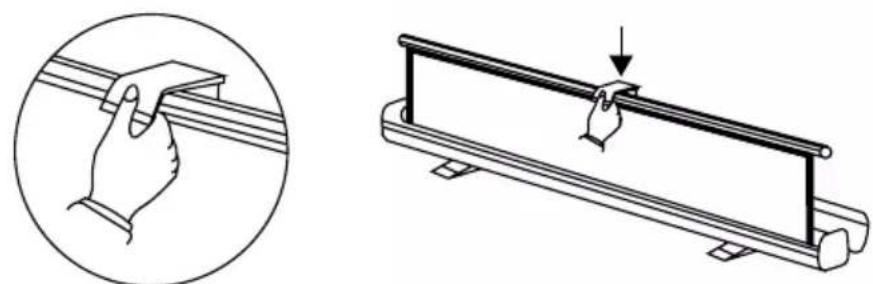

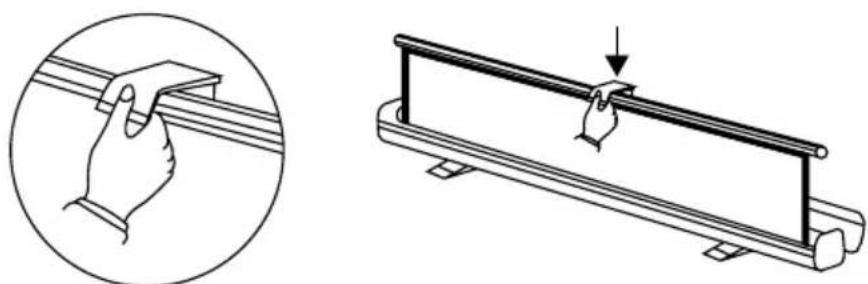

1. To retract the screen back into the case, slowly pull the handle indicated with the yellow label downwards until the screen is completely back inside the casing.

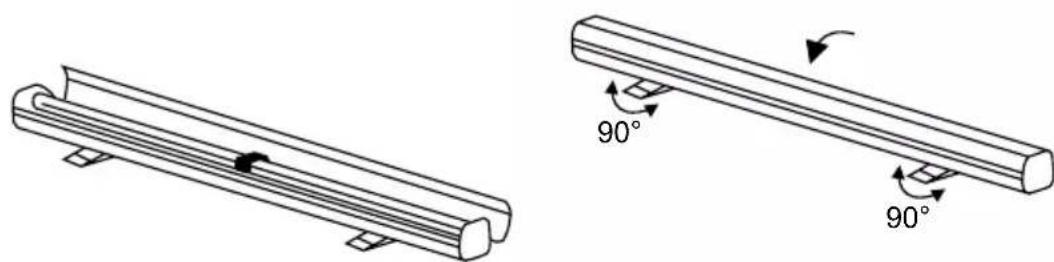

1. Close the casing, rotate the support feet back to slide underneath aligned with the case.

Cautions:

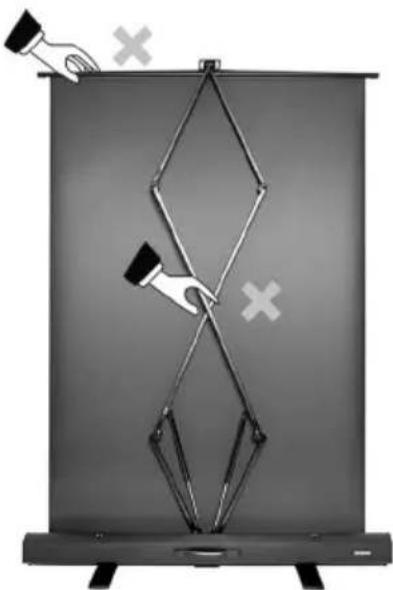

• To avoid folding or creasing the fabric screen, extend or retract the screen slowly and gently using minimal pressure. Only use the handle with the yellow label to hold the screen, do not hold the screen using the frame support or the top bar as this can damage the screen.

• Make sure that the screen is retracted back into the casing after each use. Failure to do so may result in damage to the locking catch and can also allow the screen to gather dust.

Cleaning

When not in use, keep your screen in the case to keep it dust-free. If the screen or case gather dust, simply clean with a dry cloth or duster.

The screen material is made of PVC. If the screen has a mark or stain that needs to be removed, use a wet cloth with a mild soap to gently clean the screen. Use minimal pressure to prevent damaging the fabric.

Do not use any abrasive chemicals or cleaning agents on any part of the screen or casing.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse. Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it

is to be disposed of, it must be treated as Waste

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site.

where it will be accepted free of charge

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
