VG MC 1 - Food Processor Venga - Free user manual and instructions

Product type	Food processor (mini chopper)
Brand	Venga
Model	VG MC 1
Power supply	Mains, check voltage on rating plate
Bowl capacity	Approximately 500 ml (estimate)
Bowl material	Plastic
Blade material	Stainless steel
Main functions	Chop, blend, pulse
Maximum continuous use time	1 minute (then at least 2 minutes rest)
Safety	Inadvertent start prevention device, stops if incorrectly assembled
Motor unit cleaning	Damp cloth, do not immerse
Removable parts cleaning	Wash with water and non-abrasive detergent, dry thoroughly
Spare parts available	Blade, bowl, lid, motor unit (depending on after-sales service)
Intended use	Domestic use for small quantities

Frequently Asked Questions - VG MC 1 Venga

How to assemble the mini chopper?

First insert the blade into the bowl, add ingredients, then place the lid aligning the notches. Finally, place the unplugged motor unit on the bowl and press to start after plugging in. Ensure the motor unit is correctly assembled, otherwise the appliance will not start.

What are the important safety instructions?

Never immerse the motor unit in water, do not use the appliance unattended, check voltage, do not use non-recommended accessories, and keep hands away from blades during operation. The appliance has a safety device preventing accidental start.

How to clean the food processor?

Always unplug the appliance before cleaning. Clean the motor unit with a slightly damp cloth. For the bowl, lid, and blade, wash them with water and non-abrasive detergent, rinse thoroughly and dry. Beware of the very sharp blade.

What is the maximum continuous use time?

The appliance must not run for more than one minute continuously. After this time, let it cool for at least 2 minutes before reuse. For best results, use short pulses.

Can I crush ice with this appliance?

No, the appliance is not designed to crush ice or handle boiling liquids. It is intended for preparing small quantities of food such as meat, cheese, or vegetables.

Can the appliance be used for hot preparations?

No, never use the appliance to blend or chop hot foods or liquids. Wait for them to cool before placing them in the bowl.

How to replace the blade?

Contact a qualified after-sales service for a replacement blade. Do not attempt to substitute the blade with a non-recommended part. Always unplug the appliance before any manipulation.

What to do if the appliance does not start?

Check that the motor unit is correctly assembled on the bowl and that the lid is properly positioned. If the problem persists, unplug the appliance and contact qualified service. Never force the start.

Can the appliance be used for kneading dough?

No, this appliance is a mini chopper designed mainly for chopping and blending. It is not suitable for kneading thick doughs. Use it only for small preparations.

Are the parts dishwasher safe?

No, neither the motor unit nor other parts should go in the dishwasher. Wash them by hand with clean water and mild detergent, then dry thoroughly.

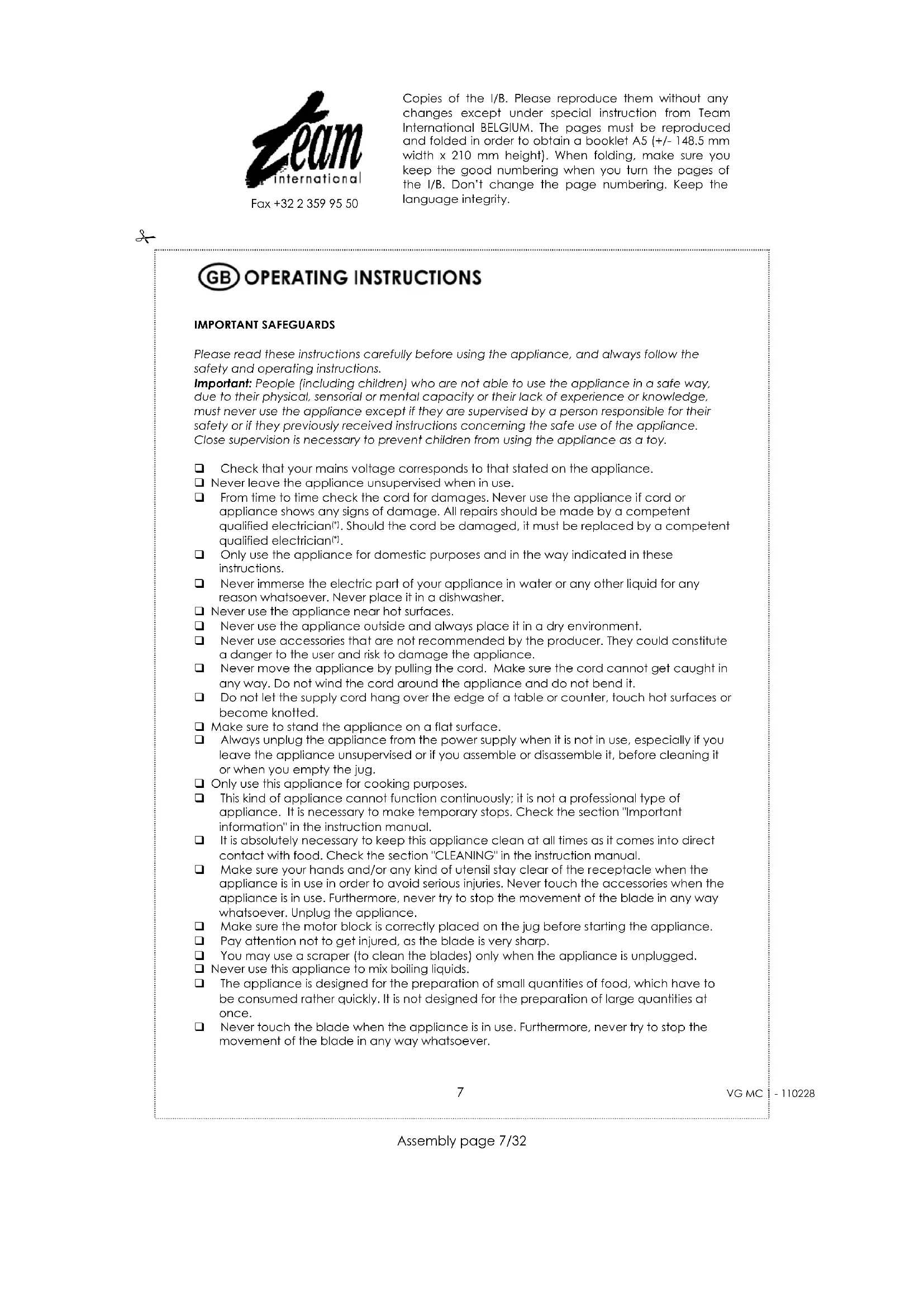

USER MANUAL VG MC 1 Venga

1. Motor housing
2. Lid
3. Jug
4. Blade
5. Shaft

FR

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. All repairs should be made by a competent qualified electrician!. Should the cord be damaged, it must be replaced by a competent qualified electrician!
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the electric part of your appliance in water or any other liquid for any reason whatsoever. Never place it in a dishwasher.
Never use the appliance near hot surfaces.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Do not let the supply cord hang over the edge of a table or counter, touch hot surfaces or become knotted.
Make sure to stand the appliance on a flat surface.
Always unplug the appliance from the power supply when it is not in use, especially if you leave the appliance unsupervised or if you assemble or disassemble it, before cleaning it or when you empty the jug.
Only use this appliance for cooking purposes.
This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section "Important information" in the instruction manual.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. Check the section "CLEANING" in the instruction manual.
Make sure your hands and/or any kind of utensil stay clear of the receptacle when the appliance is in use in order to avoid serious injuries. Never touch the accessories when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever. Unplug the appliance.
Make sure the motor block is correctly placed on the jug before starting the appliance.
Pay attention not to get injured, as the blade is very sharp.
You may use a scraper (to clean the blades) only when the appliance is unplugged.
Never use this appliance to mix boiling liquids.
The appliance is designed for the preparation of small quantities of food, which have to be consumed rather quickly. It is not designed for the preparation of large quantities at once.
Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

We recommend that when using your product you operate the motor unit in short on/off pulses. This will give better chopping, mixing, etc. It will also protect the motor against a too long use.
The chopper is designed to be used exclusively in its delivery state (bowl, lid and blades in good state) because it gives all the needed securities. Do not try to substitute one of those pieces by another one and if you have to replace one, contact your after-sales service.
Caution: your appliance has a security device that avoids excessive starting. Do not try to overrule this device, as it could be very dangerous for you.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

IMPORTANT INFORMATION

This appliance is not designed for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the allowed maximum usage time). The breaks should last at least 10 minutes.

MOUNTING AND USE OF THE MINI-CHOPPER (see page 3)

Caution: for your own safety and a good functioning it is absolutely necessary to respect the mounting described hereunder.

• Place the blade of the mixer fitting in the jug (1).
• Put the ingredients in the jug.
• Place the lid on the jug respecting the positioning of its openings-out (2). If necessary, turn the lid until it is correctly placed on the jug.
• Place the unplugged motor block on the jug (3) respecting the positioning of the openings-out. If the motor block is not mounted correctly, it will be impossible to start the appliance.
• Plug in the appliance.
  To start, press the motor block with your hand holding the jug with the other hand.
  To remove food, unplug and proceed the other way round, but pay attention not to get injured, as the blade is very sharp.

TIPS FOR USE

• Your appliance is not intended to work for long periods. So if your preparation requires more than 1 minute of continuous use, it is absolutely necessary to follow breaks. The breaks should last at least 2 minutes to allow the motor to cool down.
  We advise you to chop the food by fits and starts and if necessary to mix them with a spatula between two chopping processes following the safety instructions.
  If you chop pieces of meat or cheese, we advise you to cut them into small pieces of 1 to 1.5cm beforehand in order to obtain a homogeneous and fine chopping. Otherwise you could obtain lumps in your preparation.

CLEANING

Unplug from outlet before cleaning.
- You can wipe the motor block with a lightly damp cloth. Never immerse it in water or any other liquid. If this happens, do not plug it in, let it dry for at least 24 hours before using it again. If this is not enough, bring your appliance back to a competent qualified electrician.

To clean the blade, the jug and the lid, use soapy water, rinse with clear water and dry. Pay attention not to hurt yourself as the blade is very sharp.
To make the cleaning easier, you can disassemble the parts that are in contact with the food.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Team International Romania Srl;

Str. Industrilor 56A, sector 3, Bucuresti CUI 16991287; R.C. J40/19685/29.11.2004

VG MC 1

Deutsch	4
English	7
François	10
Nederlands	13
Espanol	16
Português	19
Italiano	22
Polska	25
Română	28

Venga
