Product Type	Clothes Iron
Brand	Venga
Model	VG SI 1
Power Supply	220-240 V, 50/60 Hz, ~2000 W
Water Tank Capacity	Approximately 200 ml
Soleplate	Stainless steel soleplate
Temperature Setting	Rotary control with MIN to MAX positions (with textile symbols)
Steam Function	Yes, with dry/steam switch
Spray Function	Yes, spray button independent of temperature
Dry Ironing	Yes
Heating Indicator	Yes, turns off when temperature is reached
Descaling	Recommended with specific iron descaling products
Soleplate Cleaning	Use a soft cloth and special cleaners, avoid abrasives
Cord Type	Power cord, do not wrap around the appliance
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	Approximately 30 x 12 x 18 cm
Vertical Storage	Yes, on heel
Recommended Water Type	Tap water or distilled water, frequent descaling depending on hardness
Safety	Automatic shut-off not mentioned; unplug after use and for filling
Warranty	Standard (see manufacturer's conditions)

Frequently Asked Questions - VG SI 1 Venga

How to fill the water tank?

Unplug the iron, set the thermostat to MIN and the dry/steam switch to dry. Pour water through the filling opening without exceeding the maximum level. Do not place the iron on the hot soleplate while filling.

What type of water to use?

You can use tap water or distilled water. To avoid frequent descaling, tap water is suitable but regular descaling is recommended depending on water hardness.

How to adjust the temperature?

Turn the temperature adjustment knob clockwise to align the fabric symbol (synthetic, silk, wool, cotton, linen) with the mark. The heating indicator turns off when the temperature is reached.

How to use the steam function?

Make sure the tank is filled. Set the temperature to at least ●● or ●●●. Set the dry/steam switch to the steam position. Wait for the indicator to turn off before ironing. Do not use steam at low temperature to avoid leaks.

What to do if water drips from the soleplate?

This happens if the temperature is too low. Increase the temperature setting to ●● or ●●●. Also check that the dry/steam switch is correctly positioned.

How to use the spray?

The spray function can be used at any temperature, with or without steam. Simply press the spray button to dampen the fabric before ironing.

How to clean the soleplate?

Let the iron cool down. Do not use abrasive products. Use a soft cloth or special cleaners for iron soleplates.

How to descale the iron?

Use a specific descaling product for irons, available commercially. Follow the product instructions. The frequency depends on your water hardness.

How to store the iron after use?

Set the thermostat to MIN, unplug, empty the tank by holding the iron tip down. Place it vertically on its heel to cool and allow moisture to evaporate before storing.

Can the iron be used by children?

No, the appliance is not intended for use by persons (including children) with reduced capabilities without supervision. Supervise children to ensure they do not play with the appliance.

USER MANUAL VG SI 1 Venga

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

2

VG SI 1 -101220

D

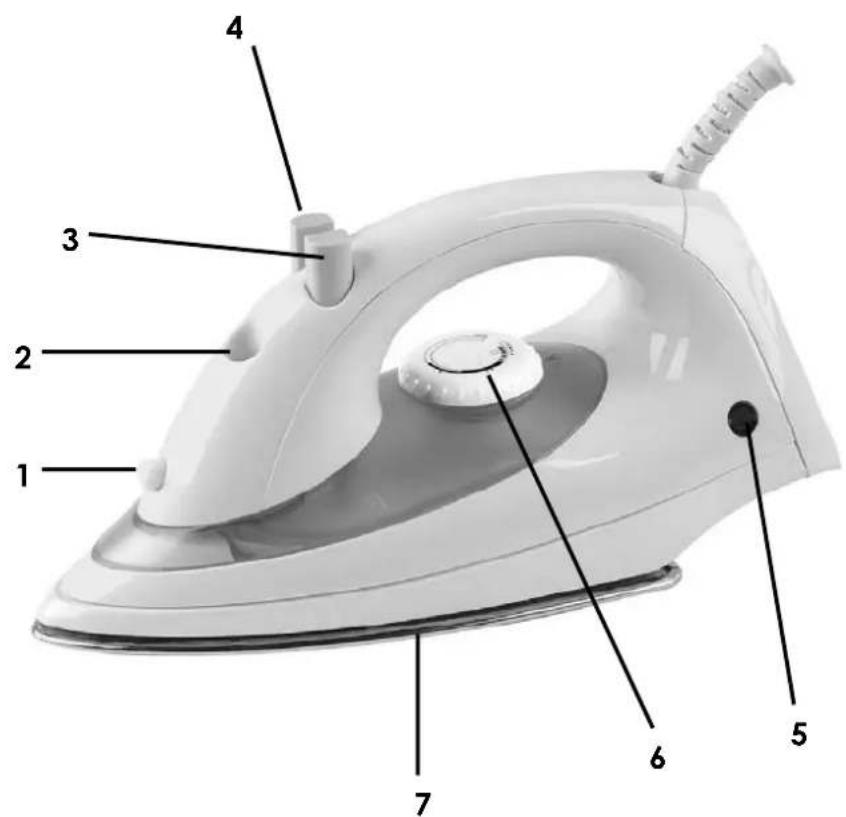

1. Spray nozzle
2. Fill opening
3. Steam/dry dial
4. Spray button
5. Temperature indicator
6. Temperature dial
7. Soleplate

F

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
□ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician(*). All repairs should be made by a competent qualified electrician(*).
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces, always use the handle.
☐ Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
□ Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
☐ To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam).
☐ Never put your appliance in horizontal position, but preferably in vertical position.
☐ Make sure its soleplate does not touch inflammable materials (e.g. plastic, textile) during use.
☐ If you have a special heat-resistant base, make sure you put the steam/dry dial in "dry" position beforehand.
□ Always unplug the iron when not in use.
☐ The iron shall be used and placed on a stable level surface.
☐ Do not use the iron if it has fallen, if it shows any visible signs of damage or if it leaks.
☐ When you place the iron on its support, make sure that the surface on which you put it is stable.

(*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

! BEFORE USING THE IRON, remove any labels from the soleplate and wipe any manufacturing residue from the soleplate using a soft cloth.

FILLING THE WATER TANK

You can use demineralised water or tap water. If you use tap water, make sure you descale the appliance regularly according to the amount of scale the water contains. If you want to use the steam dial, fill the water tank as follows:

1) Unplug the iron from the outlet to let it cool down and set it horizontally on a stable level surface.

2) Turn the temperature dial to "MIN" and the variable steam dial to the setting.

3) To fill the water tank, pour water through the fill opening using a measuring cup.

4) When ironing, unplug the appliance before refilling. Fill the water tank by holding the appliance in horizontal position without putting down the hot soleplate, unless you have a heat-resistant base.

TEMPERATURE SETTINGS

• You can choose the temperature setting according to the cloth to iron.

- In order to turn the iron on, please turn the temperature knob clockwise into the required position (see table below). If you doubt, take a look at the garment label.

DRY PRESSING

• Put the steam/dry dial on position
• Plug in the iron
• Set the temperature dial for the desired fabric. Always check the label of the garment before choosing the temperature setting.
• Set the iron on its heel rest and wait until the temperature indicator light goes out.

STEAM PRESSING

Kind of textile Temperature dial	Steam ironing
Synthetic (e.g. acetate, acrylic, viscose, polyamide, polyester, ...)	MIN|●|	[IMAGE]
SilkWool	|●●|	[IMAGE]
CottonLinen	|●●●|MAX	[IMAGE]

• Fill the water tank (steam/dry dial on position).
• Put the plug of the appliance into the power socket.
  • Turn the temperature dial clockwise into the required position.

• Put the steam/dry dial in ♕ position.
- Set the iron on its heel and wait until the temperature indicator goes out.

Caution: Set the temperature dial within the steam range ('●●' or '●●●'). If the temperature setting is too low, water may drip from the soleplate.

Check the garment label before ironing because some cloths may be damaged when exposed to steam or water.

SPRAY

- The spray button

- Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.

DESCALING

To descale your appliance, use products made especially for this purpose that you will find in commerce and follow their instruction manual carefully.

CARE AND CLEANING

• Always unplug the appliance and let it cool down before cleaning.
• To clean the plastic parts of the iron, use a damp cloth.
- To clean the soleplate, make sure you use a product made especially for this purpose. Never use abrasive products.

WHEN YOU HAVE FINISHED IRONING

• Turn the temperature dial to "MIN" and unplug the iron from the electrical outlet.
  • With the soleplate facing away from you, turn the iron upside down to empty the water.
  • Then store the hot iron on its heel rest so that any remaining moisture will evaporate.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
