VG HM 1 - Blender Venga - Free user manual and instructions

Product type	Hand mixer (beater)
Brand	Venga
Model	VG HM 1
Power	Approximately 200 W (estimate)
Power supply	220-240 V ~ 50/60 Hz
Number of speeds	5 speeds + turbo function
Speed selector	Positions 0 (stop) to 5, with hold turbo button
Ejection button	Yes, to remove accessories
Included accessories	Set of whisks, set of dough hooks
Usage	Beating, kneading, mixing, blending
Capacity	Domestic use, small quantities
Maximum continuous use time	Refer to the rating plate (e.g., KB 5 min.)
Recommended breaks	At least 10 minutes between cycles
Maintenance and cleaning	Accessories washable with soapy water; motor unit wiped with a damp cloth
Dishwasher cleaning	No, do not put accessories or motor unit
Immersion	Do not immerse the motor unit
Body material	Plastic
Color	White (estimate)
Weight	Approximately 1 kg (estimate)
Dimensions (L x W x H)	Approximately 20 x 10 x 15 cm (estimate)
Warranty	According to country, generally 2 years
Safety	Unplug before cleaning, do not use near heat sources, check voltage
Spare parts	Accessories available from manufacturer or after-sales service

Frequently Asked Questions - VG HM 1 Venga

How to use the turbo button?

Press and hold the turbo button to instantly increase speed, regardless of the selector position (1 to 5). Release to stop turbo.

Which speed to choose for beating egg whites?

Use speeds 4-5 for egg whites, whipped cream or Chantilly. Speeds 1-2 are for dense foods (butter, potatoes), 2-3 for liquids and sauces, 3-4 for pie dough or cakes.

How to insert and remove the whisks or dough hooks?

Make sure the appliance is unplugged and the selector is at 0. Insert the accessories into the openings under the appliance until they click. For the dough hooks, respect the direction (the one with washer in the larger opening). To remove, press the ejection button.

Can I use this appliance for hot liquids?

Yes, but with caution to avoid splashes. Use a moderate speed and a tall container. Beware of burns.

How to clean the mixer?

Unplug the appliance. Wash the accessories with soapy water (not in dishwasher). Wipe the motor unit with a slightly damp soft cloth without letting moisture enter the vents. Never immerse the motor unit.

What is the maximum continuous use time?

Refer to the rating plate for the mention KB xx min. (e.g., KB 5 min.). After each cycle, let the appliance rest for at least 10 minutes.

What to do if the appliance does not start?

Check that the selector is not at 0, that the plug is connected and the voltage matches. If the problem persists, contact a qualified service.

Can I use accessories from other brands?

No, use only the accessories recommended by Venga to avoid any danger and damage to the appliance.

How to store the power cord?

The cord can be wound around the base or stored in a drawer. Never pull the cord to move the appliance.

What to do in case of abnormal odor during use?

Immediately stop the appliance, unplug it and let it cool down. If the odor persists, have it checked by a qualified service.

USER MANUAL VG HM 1 Venga

D

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

Illustration of a hand using a knitted tool to tie with a string, showing motion direction (no text or symbols)

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
□ Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician ^[1] . Should the cord be damaged, it must be replaced by a competent qualified service ^[2] .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
□ Always unplug the appliance from the power supply when it is not in use, especially if you leave the appliance unsupervised or if you assemble or disassemble it or before cleaning it.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
□ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way in order to avoid the appliance's fall.
☐ Only use this appliance for cooking purposes.
This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. Check the section « Cleaning » in the instruction manual.
☐ Make sure the accessory is solidly and correctly tightened at the motor block before starting the appliance.
☐ Make sure your hands and/or any kind of utensil stay clear of the receptacle when the appliance is in use in order to avoid serious injuries. Never touch the accessories when the appliance is in use. Furthermore, never try to stop the movement of the accessories in any way whatsoever. Use the function OFF of the switch or unplug the appliance.
☐ When mixing warm liquids, be particularly careful as a projection of warm liquid could cause serious burns.
☐ The appliance is designed for the preparation of small quantities of food that have to be consumed rather quickly. It is not designed for the preparation of large quantities at once.
☐ Attention: never assemble several accessories simultaneously.

^19 Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

IMPORTANT INFORMATION

This appliance is not intended for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the allowed maximum usage time). The breaks should last at least 10 minutes.

USE OF THE BEATERS AND DOUGH HOOKS

With these accessories you can beat, knead and mix. It is recommended to make circular movements or movements in the form of an 8.

• Make sure the speed switch is in off-position "0" and the appliance is unplugged from the power supply.
• Insert the accessories in the openings at the bottom of the appliance and if necessary turn them lightly until you hear a light click.
• Check if they are locked properly by pulling them gently.

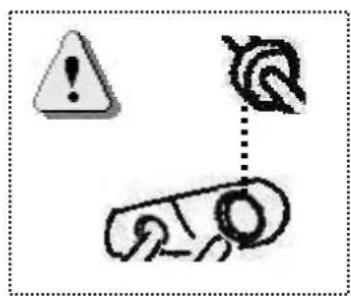

• The beaters can be mounted equally in both openings, but for the dough hooks you have to respect the sense indicated on page 4 (the hook fitted with a disk has to be placed in the larger of the two openings of the appliance).
• Press the eject button to remove the accessories.

SPEED SETTINGS

Speeds: 0 OFF

1-2 Dry ingredients: butter, potatoes, and flour

2-3 Liquids, sauces, spices

3-4 Dough: cake, biscuits

4-5 Egg white, whipped cream

Your appliance is fitted with a turbo function which allows you to increase the speed of your appliance, whatever the speed (1 to 5). You only have to press the turbo switch and to maintain it. The turbo switches off when you release the button.

CLEANING

• Always unplug the appliance from the power supply before cleaning it.
- Remove the accessories before washing them in soapy water.
- Wipe the outside only with a slightly moistened cloth, ensuring that no moisture enters the cooling slots.
- Do not clean with any abrasive scouring pad or steel wool, as this will damage the finish.
• Do not immerse the motor block in water or any other liquid.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
