USER MANUAL IAN 104357 SILVERCREST

Operation and Safety Notes

SE

KöKSvåG

GB / IE Operation and Safety Notes Page 4

Six black-and-white circular images showing various food and beverage scenes, including fruits, vegetables, and bowls, each with a label showing '00' (no text or symbols on the images themselves)

104357-14-04 104357-14-05 104357-14-06

B

1 2 3 4

1 2 3 4

C

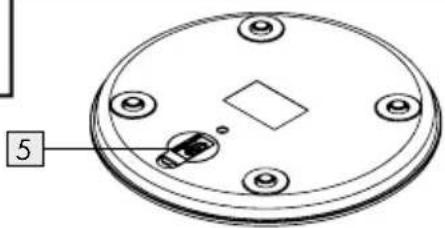

Circular mechanical component with mounting holes and a small inset showing a small component, labeled with number 5 (no text or symbols on the component itself)

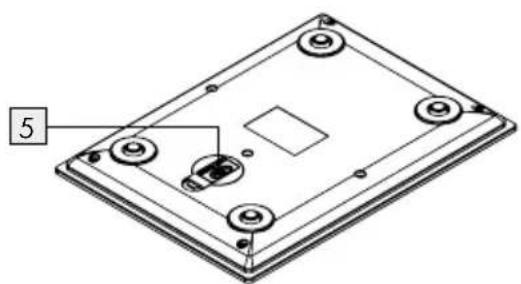

Isometric diagram of a rectangular electronic device with four circular components and a labeled part '5' (no text or symbols beyond the label)

D

6 7 8 9 TARE 10:00:00 10:00:00 g ml lb'oz fl'oz 10

Introduction

Proper Use....Page 5

Description of parts....Page 5

Technical data Page 5

Includes......Page 5

Safety Instructions

General Safety Instructions Page 5

Safety Instructions for Batteries Page 6

Preparing the product for use

Replacing the battery....Page 6

Operation

Weighing......Page 7

Incremental weighing....Page 7

Changing the measuring unit Page 7

Switching off....Page 7

Troubleshooting Page 8

Cleaning and Maintenance Page 8

Disposal Page 8

Warranty Page 9

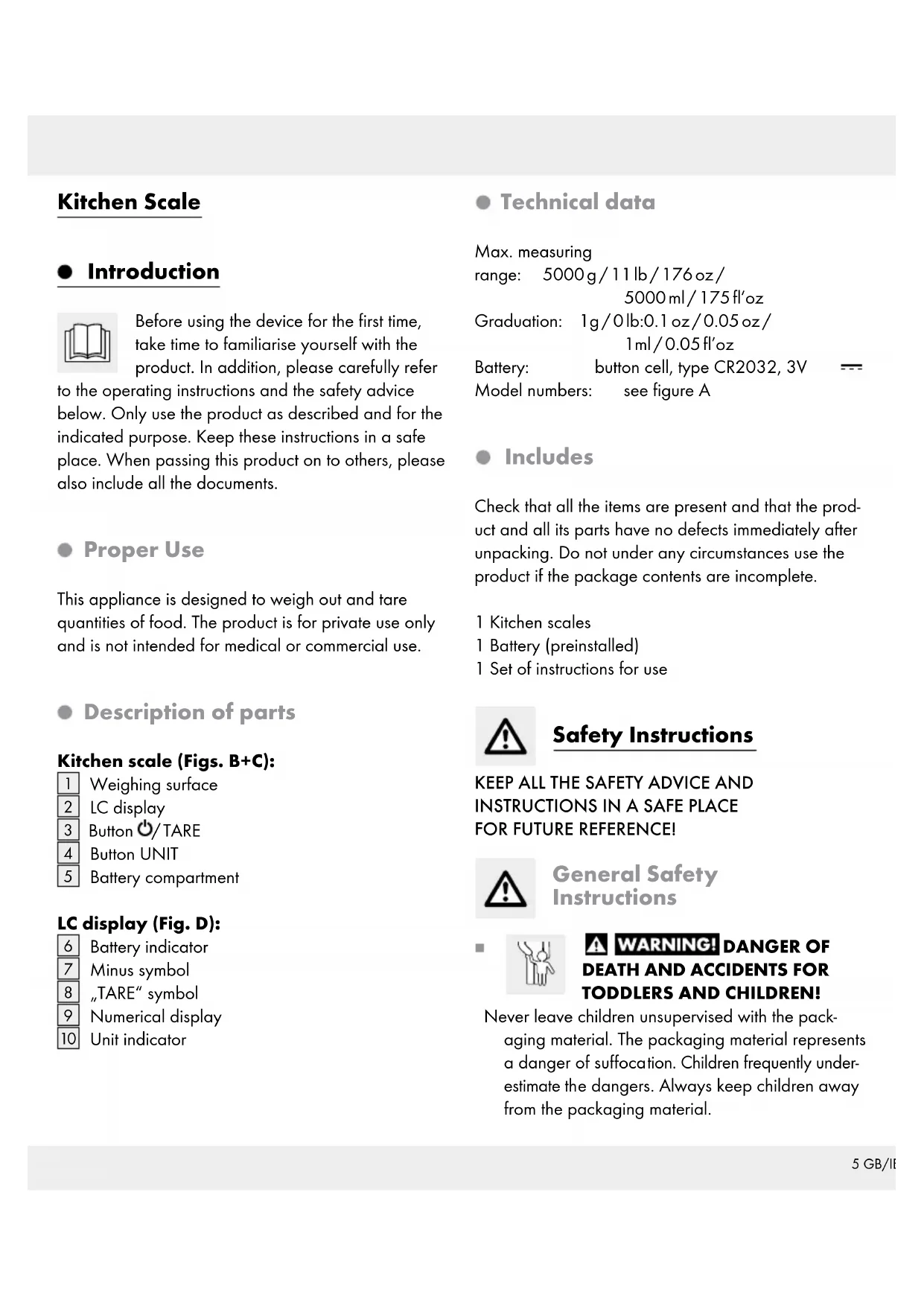

Kitchen Scale

- Introduction

Before using the device for the first time, take time to familiarise yourself with the product. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as described and for the indicated purpose. Keep these instructions in a safe place. When passing this product on to others, please also include all the documents.

- Proper Use

This appliance is designed to weigh out and tare quantities of food. The product is for private use only and is not intended for medical or commercial use.

• Description of parts

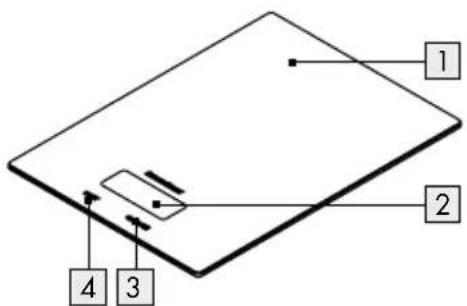

Kitchen scale (Figs. B+C):

1 Weighing surface
2 LC display
3 Button ⏻/TARE
4 Button UNIT
5 Battery compartment

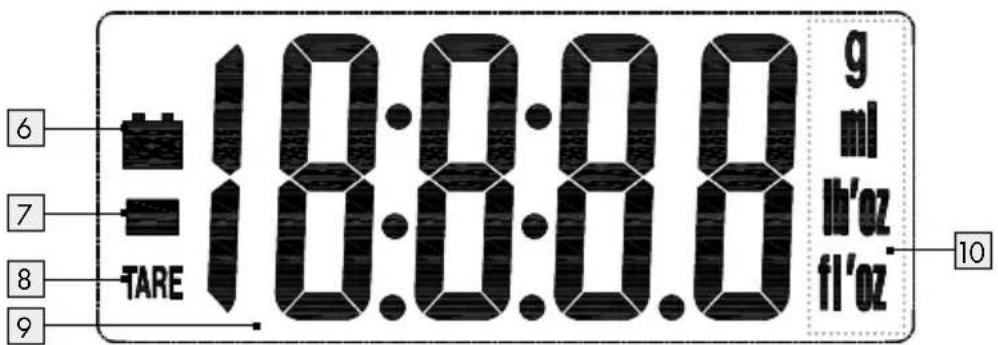

LC display (Fig. D):

6 Battery indicator
7 Minus symbol
8 „TARE" symbol
9 Numerical display
10 Unit indicator

- Technical data

Max. measuring

range: 5000g/11lb/176oz/

5000 ml / 175 fl'oz

Graduation: 1g/0lb:0.1 oz/0.05 oz/

1ml/0.05fl'oz

Battery: button cell, type CR2032, 3V

Model numbers: see figure A

- Includes

Check that all the items are present and that the product and all its parts have no defects immediately after unpacking. Do not under any circumstances use the product if the package contents are incomplete.

1 Kitchen scales
1 Battery (preinstalled)
1 Set of instructions for use

Safety Instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

General Safety Instructions

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

AUTION! RISK OF INJURY! Do

not place more than 5 kg on the scale. This could damage the product.

■ Do not expose the product to

• extreme temperatures,
• direct sunlight
• magnetic fields,
• moisture.

These can damage the product.

• Protect the product from electrostatic charge / discharge. This could hinder the internal data exchange, which causes errors in the LCD readout.
• Check the product for damage before use. Never use a damaged product.
  ■ Magnetic fields may cause the product not to function properly. If this happens, briefly remove the batteries from the product and re-insert them.

FOOD-SAFE! The taste and smell of your food are not detrimentally affected by this product.

Safety Instructions for Batteries

■ Remove the battery from the device if they are not going to be used for a prolonged period.
CAUTION! DANGER OF EXPLOSION! The batteries must never be recharged!

• When inserting the battery, ensure the correct polarity! This is shown in the battery compartment.
  If necessary, clean the batteries and device contacts before inserting the batteries.
  ■ Remove spent batteries immediately from the device. There is an increased danger of leaks!
• Keep batteries away from children; do not throw them in the fire, short-circuit them or take them apart.
  If the above instructions are not complied with, the batteries may discharge themselves beyond their end voltage. There is then a danger of leaking. If the batteries have leaked inside your device, you should remove them immediately in order to prevent damage to the device!
  Avoid contact with the skin, eyes and mucous membranes. Any parts of the body coming into contact with battery acid should be rinsed off with copious amounts of water and / or a doctor contacted if necessary!
  Avoid contact with the skin, eyes and mucous membranes. Any parts of the body coming into contact with battery acid should be rinsed off with copious amounts of water and / or a doctor contacted if necessary!

● Preparing the product for use

● Replacing the battery (Fig. C)

☐ Remove the insulation strip from the battery compartment 5.
☐ Open the battery compartment 5 on the back of the scale.
☐ Remove the used battery, if present.
☐ Insert a battery type CR2032 in the battery compartment.

Note: Make sure you insert the batteries with the correct polarity. This is indicated on the cover of the battery compartment 5.

☐ Close the battery compartment.

Operation

☐ Set the kitchen scale on a solid, level and flat surface to weigh.

Weighing

Briefly touch the button ⒻTARE 3 to switch on the kitchen scale. The LC display 2 will show all displays for approx. 3 seconds. During this time the weighing equipment on the kitchen scale is adjusting. Afterwards the numerical display 9 will read „0”. The unit 10 display will show the last unit selected.

Note: if an object (e.g. a key) is already on the weighing surface 1 while switching on, the numerical display will still read „0“.

Place the item you wish to weigh onto the scale. The numerical display will show the weight of the item you are weighing.

Incrementalweighing

☐ Pressing the button ⚙TARE 3 with the scale on will change the numerical display 9 from the reading to „0”. The TARE symbol 8 will appear.
☐ Now add another item to weigh onto the scale. The numerical display will show the weight of the newly added item.
☐ If you remove the item added to the scale, the numerical display will again read „0”.
☐ If you remove all items from the scale, the LC display 2 will show a negative value indicated by the minus sign 7.
☐ Then briefly press the button ⏻/TARE, and the TARE symbol will disappear.

☐ Important! Be sure never to add more than 5 kg to the weighing surface. Overloading the scale can damage it.

● Changing the measuring unit

The kitchen scale will display the weight in the official European measuring unit „g“ (grams), as well as the traditional unit of weight „oz“ (ounce, 1 oz ≈ 28.35 g) or „lb'oz“ (pound: ounce, 1 lb = 16 oz ≈ 453.59 g). When measuring the volume of water, the kitchen scale calculates it by the weight using the official European unit of volume „ml“ (millilitres) or the traditional unit of measure fl'oz (fluid ounces, 1 fl'oz ≈ 28.41 ml). To switch the unit of measure, briefly press the UNIT button 4. After each time it is pressed, the unit display 10 will switch to the next unit listed:

$$ \mathrm{g} \rightarrow \mathrm{oz} \rightarrow | b ^ {\prime} \mathrm{oz} \rightarrow m | \rightarrow f l ^ {\prime} \mathrm{oz} $$

- Switching off

☐ Holding the button ⓋTARE 3 for approx. 3 seconds will off the kitchen scale. If no movement is detected on the weighing surface for 2 minute and no button is pressed, the kitchen scale will automatically switch off.

●Troubleshooting

● = Fault

● = Cause

O = Solution

● = EEEE

= The scale is overloaded.

O = Remove the overload.

● = 菌

© = The battery is low.

O = Replace the battery (see chapter „Replacing the battery“).

● = Lo

● = The batteries are too weak to weigh. You cannot operate the scale.

O = Replace the battery (see section "Replacing the battery").

Note: The device contains sensitive electronic components. For this reason it is possible that it can be disrupted by radio transmitting equipment in the immediate vicinity. If the display 2 indicates a problem, move such objects away from it.

Electrostatic discharges can lead to malfunctions. In cases of the appliance failing to work, remove the batteries for a short while and then replace them.

● Cleaning and Maintenance

■ Never immerse the product in water or other liquids. This can damage the product.
☐ Clean the product with a slightly dampened, fluff-free cloth. To remove more stubborn dirt, you can also dampen the cloth with a weak soap solution.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority. Return the batteries and / or the device through the special waste collection points available.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE
