The Scoop 49981 - Coffee machine HAMILTON BEACH - Free user manual and instructions

Product Type	Drip Coffee Maker
Model	The Scoop 49981
Brand	Hamilton Beach
Power Supply	120 V ~ 60 Hz
Reservoir Capacity	250 ml (min) to 410 ml (max)
Coffee Type Used	Ground coffee only (no pods)
Brew Settings	Regular and Bold
Automatic Shut-off	Yes, at the end of the brew cycle
Adjustable Cup Base	Yes, adjustable and reversible height
Included Filter	Reusable Scoop Filter
Cleaning Function	Vinegar descaling cycle recommended monthly
Safety	Polarized plug, automatic shut-off, do not immerse
Daily Maintenance	Rinse and clean Scoop filter after each use
Warranty	1 year limited (defects in materials and workmanship)
Support Numbers	U.S.: 1.800.851.8900; Canada: 1.800.267.2826
Website	www.hamiltonbeach.ca

Frequently Asked Questions - The Scoop 49981 HAMILTON BEACH

How to use the Regular and Bold settings?

Press the REGULAR button for a standard brew or BOLD for a stronger coffee. The BOLD setting uses less water and a slower flow rate for better extraction. Use BOLD for flavored, decaffeinated, finely ground, or premium coffees like Starbucks or Dunkin' Donuts.

Why does my coffee overflow from the filter basket?

Overflow may be due to too fine a grind or too much ground coffee. Try using the BOLD setting or reduce the amount of coffee. Be careful not to exceed the MAX fill line on the Scoop filter.

How to clean the machine?

Clean the Scoop filter after each use with soapy water. Descale the machine once a month (or weekly in hard water areas) by pouring 125 ml of white vinegar and 125 ml of water into the reservoir, then start a brew cycle. Let it sit for 30 minutes, finish the cycle, and rinse with 2 to 3 cycles of fresh water.

What to do if the machine does not brew and the indicator light flashes?

The light flashes for 5 seconds if the water reservoir is empty. Fill with water to the desired level (between 250 ml and 410 ml) and press the brew button again.

How to get hotter coffee?

Rinse the cup or mug with hot water before brewing to preheat the container. This helps maintain the coffee temperature longer.

Can I use coffee pods?

No, this appliance is designed only for ground coffee. Do not use pods, as this could damage the machine.

How much water should I use?

The reservoir has two levels: a minimum of 250 ml (8 oz) and a maximum of 410 ml (14 oz). Use the same cup to fill the reservoir and collect the coffee to avoid overflows.

How to descale the machine?

Pour 125 ml of white vinegar and 125 ml of cold water into the reservoir. Press REGULAR or BOLD; the machine stops after 30 seconds. Let it sit for 30 minutes, then plug it in to finish the cycle. Rinse with 2 to 3 cycles of fresh water.

Does the machine shut off automatically?

Yes, the coffee maker turns off automatically at the end of the brew cycle. You can also interrupt brewing by pressing the REGULAR or BOLD button during the cycle.

Where can I order replacement parts?

To order parts or accessories, call 1.800.851.8900 (U.S.), 1.800.267.2826 (Canada), or 01.800.71.16.100 (Mexico), or visit www.hamiltonbeach.ca.

USER MANUAL The Scoop 49981 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Cara Guides - as well as delicious recipes, tips, and to register your product online!

Please call us - our friendly associates are ready to help. USA:1,800,851,8900

Questions?

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
3. To protect against electric shock, do not place cord, plug, or coffeemaker in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when the coffeemaker is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
6. Coffeemaker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.

7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Do not use appliance for other than intended use.
13. WARNING: To reduce the risk of fire or electric shock, do not remove the bottom cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.
14. To disconnect, turn any control to the OFF (O) position and then remove plug from wall outlet.

SAVE THESE INSTRUCTIONS!

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

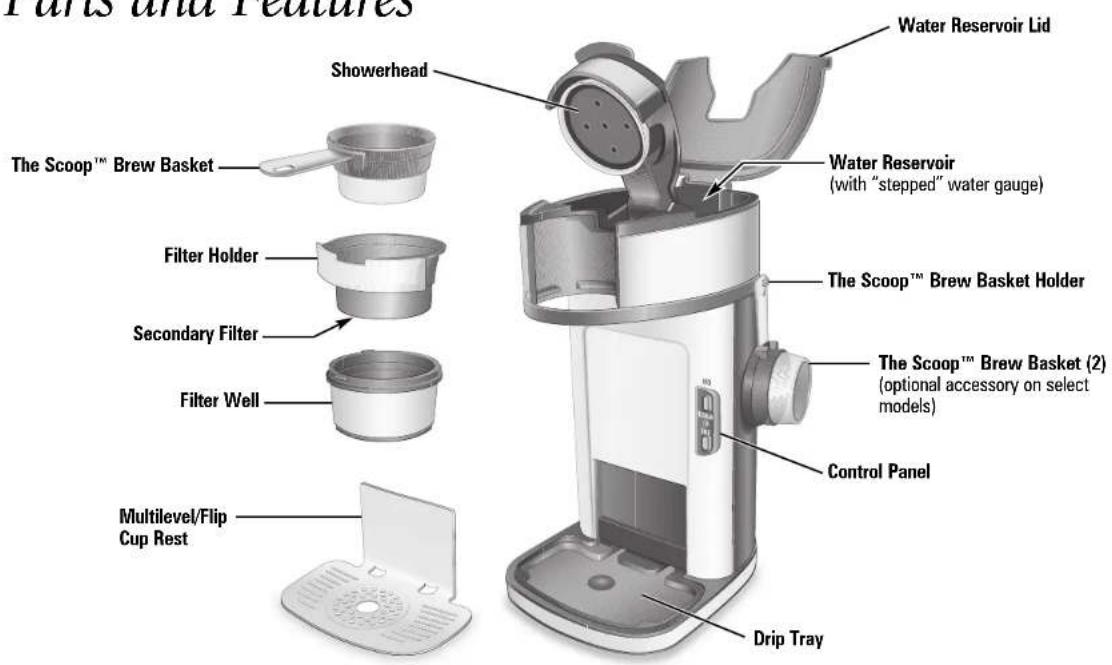

Parts and Features

Before First Use

WARNING

Burn Hazard.

To avoid contact with hot water: Do not use more than 14 ounces (410 ml) of water.

• Fill reservoir with mug or cup into which the water will be brewed.
• Fully insert mug or cup under filter basket.

Run one or two clean water cycles through the machine before first use.

AUTOMATIC SHUTOFF: The coffeemaker will automatically shut off after brew cycle is complete.

Water reservoir has two water levels: one for 8 oz. (250 ml) (minimum) and one for 14 oz. (410 ml) (MAX line) of water.

Before First Use (cont.)

Ensure the multilevel/flip cup rest is firmly secured and snapped into place.

Discard liquid when clean water cycle is finished. Coffeemaker is now ready for use. Follow instructions on page 6.

How to Use

SEE ALSO "USING THE REGULAR AND BOLD SETTINGS" SECTION ON PAGE 8.

WARNING Burn Hazard.

To avoid contact with hot coffee or water: Do not use more than 14 ounces (410 ml) of water.

• Fill reservoir with mug or cup into which the coffee will be brewed.
  Fully insert mug or cup under filter basket.

AUTOMATIC SHUTOFF: The coffeemaker will automatically shut off after brew cycle is complete.

FOR HOTTER COFFEE: Rinse mug or travel mug with warm water before brewing.

Water reservoir has two water levels: one for 8 oz. (250 ml) (minimum) and one for 14 oz. (410 ml) (MAX line) of water.

5A TRAVEL MUG

5B-1 REGULAR MUG

5B-2 REGULAR MUG

Ensure the multilevel/flip cup rest is firmly secured and snapped into place.

How to Use (cont.)

WARNING! Burn Hazard. To avoid overflow, keep ground coffee below MAX fill line.

To Order Parts and Accessories: 1.800.851.8900 (U.S.)

1.800.267.2826 (Canada)

01.800.71.16.100 (Mexico)

or visit hamiltonbeach.com

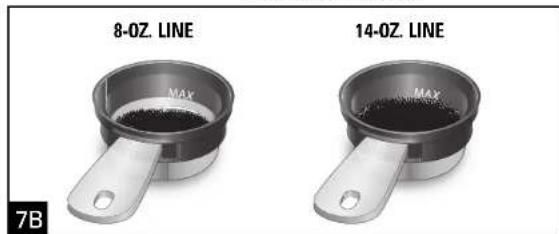

Scoop coffee grounds directly into the Scoop filter provided, using the measurement instructions shown above. Or, if you prefer to use a traditional coffee scoop method, measure coffee in the following way:

8-oz. cup = 2 tablespoons ground coffee
14-oz. cup = 3 tablespoons ground coffee

To get the perfect taste you prefer, adjust measurements up or down accordingly.

Use the BOLD setting for flavored, decaf, finely ground, and premium brand ground coffees such as Starbucks* and Dunkin' Donuts.

Press REGULAR or BOLD to begin flow of coffee. Coffeemaker will

automatically shut off when brewing is complete. To stop brewing midcycle, press either button and the unit will turn off.

NOTE: If there is no water in the water reservoir, and a brew button is pushed, the unit will not brew. The LED light will blink for 5 seconds, then turn coffeemaker OFF (O).

Starbucks is a registered trademark of Starbucks U.S. Brands, LLC.

Dunkin' Donuts is a registered trademark of DD IP Holder LLC.

Using the Regular and Bold Settings

• This unit uses ground coffee ONLY. It is NOT intended for use with coffee "pods."
• Use the BOLDsetting when a stronger cup of coffee is desired.
  Use the BOLDsetting for flavored, decaf, finely ground, and premium brand ground coffees such as Starbucks and Dunkin' Donuts.

Starbucks is a registered trademark of Starbucks U.S. Brands, LLC.

Dunkin' Donuts® is a registered trademark of DD IP Holder LLC.

• When using whole bean coffee, a standard automatic drip coffee grind will yield best results. Be careful not to overgrind, since very finely ground coffee can cause overflow in this unit.
• If overflow occurs, first try switching the unit to the BOLD setting, OR use slightly less grounds. The BOLD setting dispenses water at a slower rate, allowing more contact time and better coffee extraction from the coffee.

Tips for Best-Tasting Coffee

• All coffees are made from either arabica beans or robusta beans, or some combination of both. Arabica beans are slightly more expensive, but tend to produce better-tasting coffee.
• Ground coffee will become stale much faster than whole beans. If buying foreground coffee, choose a package with the latest expiration date or a smaller quantity.

Try to use freshly ground coffee within about a week of grinding.
- Using a water filter, filtered water, or bottled water will yield better-tasting coffee than tap water.
- Make sure your coffeemaker is clean. See "Care and Cleaning" section.

Care and Cleaning

WARNING

Shock Hazard.

Do not immerse cord, plug, or coffeemaker in any liquid.

All coffeemakers should be cleaned at least once a month (once a week for areas with hard water).

Pour 1/2 cup (125 ml) of plain white vinegar and 1/2 cup (125 ml) of cold water into reservoir.

Press the REGULAR or BOLD button once. After 30 seconds, turn unit OFF (O) using the REGULAR or BOLD button and allow vinegar to clean. After 30 minutes, plug in unit and allow it to finish the brew cycle. When brew cycle is finished, wait for unit to cool. Empty cup and rinse.

Replace accessories. Run two to three cycles of cold tap water. The unit is now cleaned and ready to make coffee.

Discard grounds after each use. Rinse and/or clean with soapy water. Towel dry or hang dry on brew basket holder.

NOTE: The Scoop™ brew basket should be cleaned daily, and the filter holder should be cleaned at least once a week.

Troubleshooting

PROBLEM

Coffee tastes bad.

Water on counter under unit.

Coffeemaker will not brew and LED light is blinking.

Weak coffee.

Coffee overflows from brew basket.

Coffee overflows from mug or travel mug.

PROBABLE CAUSE

• Coffeemaker needs cleaning.
• Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.
• Poor coffee quality and freshness.
• Poor water quality (use filtered or bottled water).
• Overfilled water reservoir. Also check cup used to fill reservoir. Some mugs/cups do not pour cleanly and can dribble water down the side of the cup and onto counter.
• Add water. If there is no water in the water reservoir and a brew button is pushed, the unit will not brew.
• First, try brewing using the BOLD setting. If coffee is still too weak, adjust water/coffee ratio by using slightly less water and/or more grounds. Be careful to not exceed the MAX line for grounds.
• Use a lesser amount of ground coffee.
• Use the BOLD setting for flavored, finely ground, premium brand ground coffees, and decaf coffees.
• When using whole bean coffee, a standard automatic drip coffee grind will yield best results. Be careful not to overgrind, since very finely ground coffee can cause overflow in this unit.
• To prevent coffee overflowing from a mug/travel mug, ensure the SAME cup into which coffee will be brewed is also used to fill the water reservoir.

840202201 ENV01.qxd:Layout 1 11/2/11 5:04 PM Page 11

Notes

Limited Warranty

This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1,800,851,8900 in the U.S. or 1,800,267,2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRECAUTIONS IMPORTANTES

Mixcoac MEXICO 03910 D.F.

Tel: [phone] - Fax: [phone]

Nuevo Leon

Ruperto Martinez No.238 Ote

Centro MONTERBEY, 64000 N.L.

Tel:[phone]·Fax:[phone]

Jalisco

SERVICIOS DE MANTENIMIENTO CASTILLO
Garibaldi No.1450
Ladrón de Guevara
GUADALAJARA 44660 Jal.
Tel: [phone] Fax: [phone]

Chihuahua

DISTRIBUIDORA TURMIX
Av. Paseo Triunfo de la Rep. No. 5289 Local 2 A.
Int. Hipermart
Alamos de San Lorenzo
CD.JUAREZ 32340 Chih
Tel: [phone] • Fax: [phone]

840202201 SPv01.qxd:Layout 1 11/2/11 5:16 PM Page 36

Modelo:

Tip:

CharacteristicasElecricas:

49981

A84

120V～ 60Hz 1300W
