SLC 8x56 - Binoculars Swarovski - Free user manual and instructions

Product type	Binoculars
Brand	Swarovski
Model	SLC 8x56
Magnification	8x
Objective diameter	56 mm
Weight	Approx. 1230 g
Dimensions (L x W x H)	Approx. 200 x 130 x 70 mm
Minimum focusing distance	Approx. 3.5 m
Diopter adjustment	Yes, focusing wheel with scale
Eyecups	Rotating, 4 positions
Tripod mount	Adapter sold separately
Power supply	None (optical instrument)
Maintenance	Microfiber cloth included; avoid dirt and grease
Safety	Never look directly at the sun
Spare parts	Protective caps, strap, tripod adapter
Repairability	Repairs only by SWAROVSKI OPTIK
Warranty	International 10 years
Included accessories	Strap, eyepiece and objective caps, cleaning cloth

Frequently Asked Questions - SLC 8x56 Swarovski

How to attach the carrying strap?

Two methods possible: mounting with the eyepiece protective cap attached on one side (recommended) or with the cap attached on both sides. Follow the illustrations in the manual.

How to adjust the rotating eyecups?

For eyeglass wearers, turn the eyecups clockwise until they stop (position B). Without glasses, turn fully counterclockwise (position A). There are also intermediate positions C and D.

How to adjust the interpupillary distance?

Spread the two tubes of your binoculars until you see a single circular image without disturbing shadows at the edges.

How to adjust the diopter?

If your visual acuity is identical for both eyes, set the diopter scale to 0. Otherwise, first adjust sharpness with the left eye using the focus wheel, then pull out the wheel and adjust for the right eye. Press the wheel back after adjustment.

What is the minimum focusing distance?

The minimum focusing distance is approximately 3.5 meters. Check the technical specification for the exact value.

How to clean the lenses?

Use the provided microfiber cloth. First remove large particles with a brush, then lightly moisten the surface with your breath and wipe with the cloth. For the body, use a soft, damp cloth.

Can I use a tripod with these binoculars?

Yes, remove the cover of the tripod connector with a coin and use the SLC tripod adapter (sold separately).

What safety precautions should I take?

Never look directly at the sun with the binoculars, as this could cause eye damage. Also avoid using them while walking to avoid hitting obstacles.

How to store the binoculars?

Store them in their case in a dry, well-ventilated place. If they are wet, dry them first. In humid areas, use a waterproof case with a silica gel packet.

What does the 10-year warranty cover?

The warranty covers defects in materials and workmanship. For the first 5 years, labor is included. Wear parts (eyecups, strap, case) are excluded. Repairs must be carried out by SWAROVSKI OPTIK.

USER MANUAL SLC 8x56 Swarovski

Labeled diagram of binoculars with numbered parts for identification

Technical diagram illustrating the use of a medical device to adjust the pelvic region, with labeled steps and illustrations.

DE

Bedienung

Illustration of binoculars with directional arrows indicating rotation (no text or symbols)

Diagram of a mechanical device with two circular components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with two circular components and rotational arrows indicating motion (no text or symbols)

Illustration of hands holding binoculars with a clock on top (no text or symbols)

Diagram of mechanical components with arrows indicating motion, no text or symbols present

Illustration of a hand holding a cylindrical object with a pointer (no text or symbols)

8

DE

Aufbewahrung

Illustration of a person lighting a sun with a lightning bolt, no text or symbols present

Simple line drawing of a person walking with a cross symbol (no text or labels)

Diagram of a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with no visible text or symbols

We thank you for choosing this product from SWAROVSKI OPTIK. If you have any questions, please consult your specialist dealer or contact us directly at WWW.SWAROVSKIOPTIK.COM.

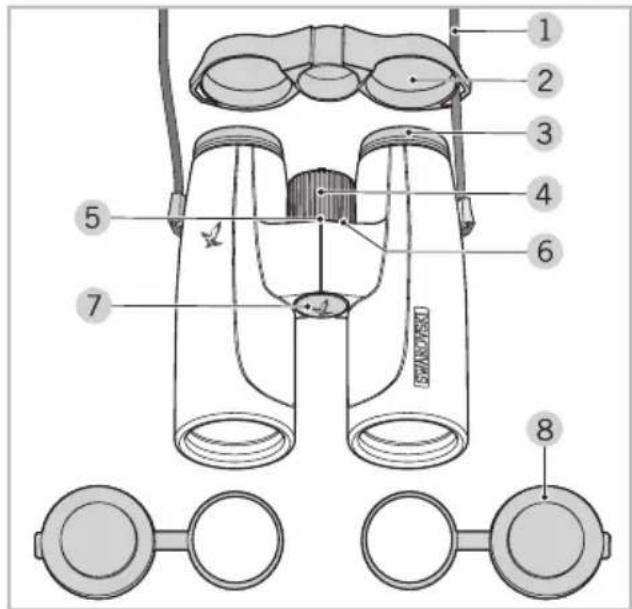

Labeled diagram of binoculars with numbered parts for identification

1 Carry strap

5 Dioptric scale

2 Eyepiece cover

6 Dioptric zero point

3 Screw-in-type eye cups

7 Covering for the tripod connector thread

4 Focusing wheel

8 Objective lens cover

Please find our current product accessories at WWW.SWAROVSKIOPTIK.COM.

EN

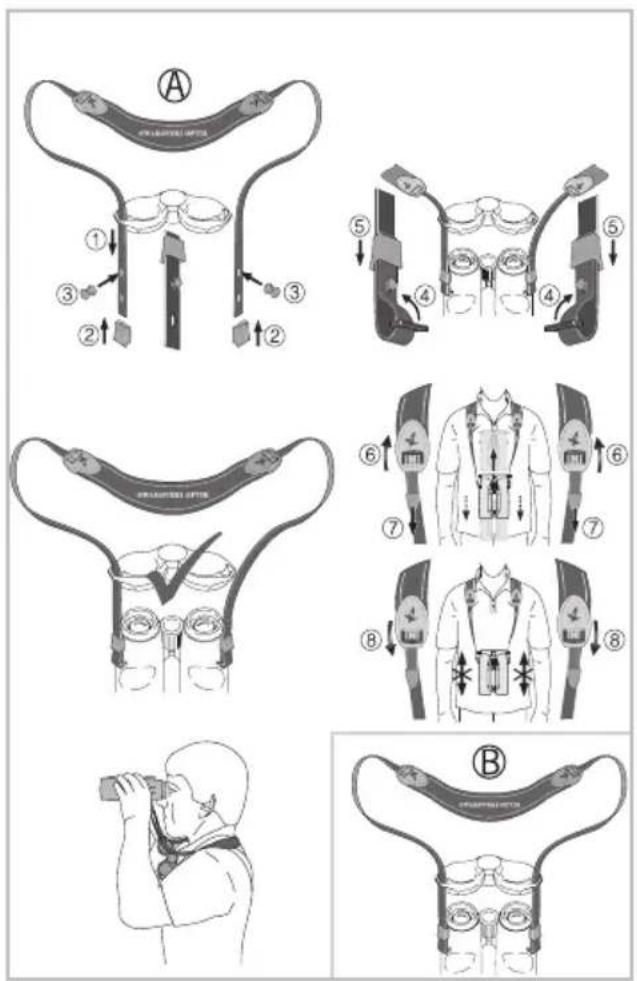

Attaching the lift carrying strap

Ⓐ Assembly with eyepiece cover attached on one side (recommended).
⑧ Alternatively: with eyepiece cover attached on both sides.

Operation

Adjustment of the screw-in-type eye cups

Basically, there are three (SLC 42) or four (SLC 56) different adjustment positions available with different distances between the eye and the lens. This allows you to adjust the eye cups individually to your personal preference.

Diagram of two cylindrical objects with rotating arrows indicating rotation, no text or symbols present

Pos. A: Initial position without spectacles: For this, twist out the eyecups anticlockwise to the full extent.

Diagram of two binoculars with directional arrows indicating rotation (no text or labels)

Pos. B: Initial position with spectacles: Twist in the eyecups clockwise until they stop.

Diagram of two cylindrical components with rotating arrows indicating rotation (no text or symbols)

Pos. C and D: Alternative positions or interim adjustment stages for spectacle-wearers and non-spectacle-wearers.

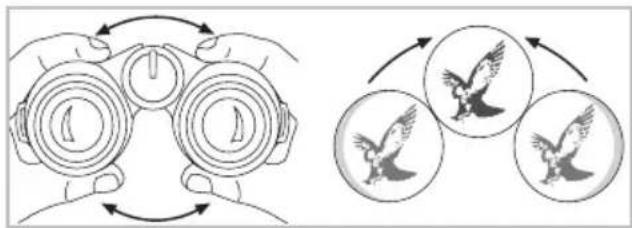

Adjustment of interpupillary distance

To see a single round image, turn the two halves of the binoculars until no irritating shadows can be seen.

Adjustment of focusing

Illustration of hands holding binoculars with a clock on the screen (no text or symbols)

It is possible to bring every subject into focus from the shortest adjustment distance (see technical data sheet) to infinity by turning the focusing wheel.

In the infinity position the little nose of the focusing wheel is at the top.

Dioptric compensation

To achieve optimal image quality, the possibly varying visual acuity between the left and right eye must be corrected.

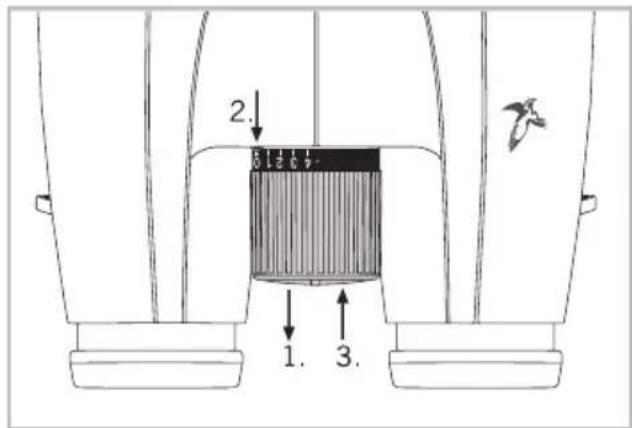

Use with equal acuity of both eyes:

1. Pull the focusing wheel outwards.
2. By turning the focusing wheel, set the dioptric scale to "0".
3. Push the focusing wheel back in.

2. 1. 3.

Use with varying acuity of both eyes:

1. Look through the left ocular with your left eye and turn the focusing wheel to focus sharply on a selected object.
2. Pull the focusing wheel outwards.
3. Now look at the same object through the right ocular with your right eye and again adjust the focusing wheel to attain optimal clarity.
4. Press the focusing wheel back in again.

EN

1.

3. 2. 4.

TIP: Please note your personal dioptric setting on the dioptric scale. With it you may adjust your individual dioptric setting anytime.

Tripod connector

Remove the covering for the tripod connector thread on the underside of the binoculars using a small coin. To mount the binoculars on a tripod, you will need the tripod adapter for SLC, which is sold separately as an accessory.

Assembly instructions for objective lens cover

1. 2.

Maintenance and care

Lens-cleaning cloth

You can clean high sensitive lens surfaces with the enclosed special cloth made of micro-fibres. It

is suitable for objective lens, ocular lens and eye-glasses.

Please keep the cloth clean, as dirt can damage the lens surface. If the cloth gets dirty, it can be washed in luke-warm soapy water and air-dried.

Please use it exclusively for cleaning lens surfaces!

Cleaning

We have designed all elements and surfaces to require little care.

To ensure the long-lasting optical brilliance of your binocular, you should keep the glass surfaces free of dirt, oil and grease.

When cleaning the lenses, first remove larger particles with an optical lens brush. For the subsequent thorough cleaning we recommend breathing onto the lens surface to form a coat of condensation and then cleaning it with a soft, moist cloth.

The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).

In the event of hard-to-remove dirt (e.g. sand) the eye cups can be unscrewed and cleaned very easily.

Diagram of a mechanical assembly with rotating components and a central shaft (no text or symbols)

Illustration of a hand holding a cylindrical object with a pointer (no text or symbols)

EN

Storage

You should keep your binocular in its bag in a well-ventilated, dry place.

SLC-Aged

If the instrument is wet, it must be dried prior to storage.

In tropical regions or regions with a high degree of humidity the best place to

store the instrument in is an air-tight receptacle along with a moisture-absorbing agent (e.g. silica gel).

SWAROVSKI OPTIK patents USA:

• Eyepiece cover: US 6,179,427 B1
- Snap Shot Adapter: US 2009/0128934 A1

For your safety!

WARNING!

Illustration of a person looking at a sun and lightning bolt, with no text or symbols present

Never look at the sun with the binocular! This leads to injury of your eyes!

Simple line drawing of a person holding a camera with a prohibition symbol (no text or labels)

Never look through the binocular when walking! You could encounter obstacles!

General information

Diagram of a mechanical device with rotating components and directional arrows (no text or labels)

Please protect your binoculars from jolts and jars.

Technical diagram of a mechanical assembly with two pipes and a circular component (no text or symbols)

Repair and service work shall only be carried out by either SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK North America and any work by

non-authorised parties shall render the warranty void.

All data are typical values.

We reserve the right to make changes regarding design and delivery. We accept no liability for printing errors. BA-731-01, 10/2013
